DVI-I
Component
Video
Lock Slot
RGB
S-Video
In
Composite
Video
RGB
Out
Audio
In 2
L & R
Control
RS-232
Audio
Out
Receiver

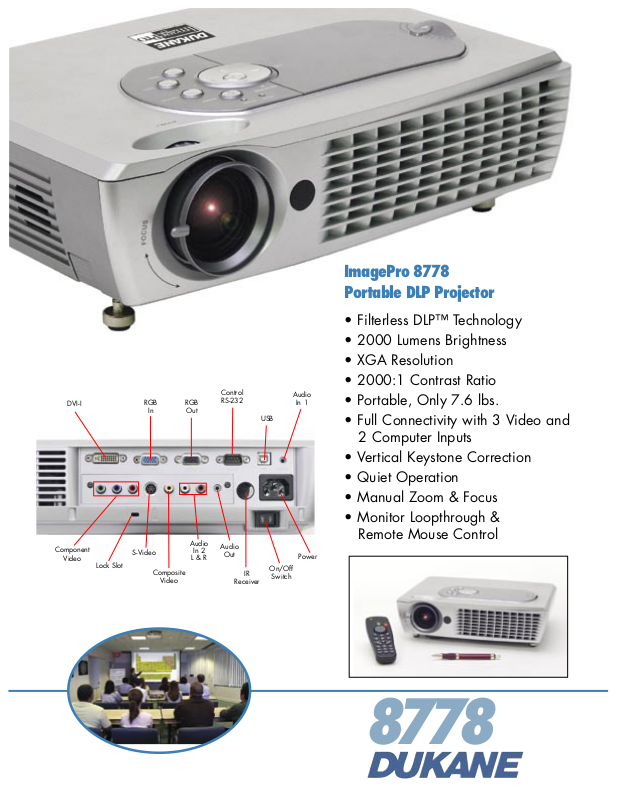

ImagePro 8778
Portable DLP Projector
• Filterless DLP™ Technology
• 2000 Lumens Brightness
• XGA Resolution
• 2000:1 Contrast Ratio
Audio
In 1
USB
Power
On/Off
IR
Switch
• Portable, Only 7.6 lbs.
• Full Connectivity with 3 Video and
2 Computer Inputs
• Vertical Keystone Correction
• Quiet Operation
• Manual Zoom & Focus
• Monitor Loopthrough &
Remote Mouse Control
8778
ImagePro 8778
Portable DLP projector
The Dukane ImagePro™ 8778 is an affordable full
featured projector that is ideal for most classrooms or
conference rooms. 2000 lumens, assures you the a
clean bright image.
This full-featured DLP
projector has outstanding video and computer
images. It has full XGA
resolution (1024 x 768)
and very low maintenance requirements.
Key features:
• 2000 Lumens Brightness
• XGA Resolution
• DLP™ Technology, Filterless System
• 2000:1 Contrast Ratio
• Full Connectivity with 3 Video and 2 Computer Inputs
• Monitor Loopthrough & Remote Mouse Control
• Vertical Keystone Correction
• Quiet 31dB Operation
• Manual Zoom & Focus
• Three Year Warranty and One Year
Peace of Mind Service
8778 Projection Table
Image Size 4:3 Throw Distance
Diagonal Width Min. Max.
Inches Inches Feet Feet
30 24 3.3 4.0
40 32 4.4 5.3
60 48 6.6 8.0
80 64 8.7 10.7
100 80 10.9 13.3
200 160 21.9 26.7
250 200 27.3 33.3
Throw Ratio (distance to width) 1.64 2.0
Specifications 8778
Image Element 0.55” 12 degree DDR DLP
Brightness 2000 ANSI lumens
1500 (whisper mode)
Resolution 1024 x 768 pixels (H X V), XGA
Contrast 2000:1
Scanning Frequency fh 15, 31-90 kHz, fv 50-85 Hz
Lens Manual zoom, (18.6-22.7mm), 1.22x
Lens Throw Ratio 1.6 - 2.0 :1 throw distance to image
width
Keystone Correction Digital vertical +/-15 deg.
Aspect Ratio 4:3 native, 16:9 selectable
Computer Compatibility VGA, SVGA, XGA, SXGA, and MAC
Video Compatibility NTSC, NTSC 4.43, PAL B/G/H/I/M/
N 60, SECAM, HDTV 1080i, 720p,
480i/p
Mouse Control USB
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 200W VIP
Lamp Life 2000 hours (4000 hours Whisper
Mode)
Audio 2W x 1
Throw Distance 40” to 400”
Screen Size, diagonal 30” to 300”
Inputs, Video (1) Component, RCA x 3
(1) S-video, Min DIN 4-pin,
(1) Composite video, RCA x 1
Audio, Stereo RCA x 2 (L&R)
Inputs, Computer (1) RGB Signal: D-sub, 15 pin
(1) DVI-I,
Audio, Stereo mini jack x 1
Outputs Monitor 15 pin, D-sub
Outputs Audio Audio, Stereo mini jack x 1
Outputs,Control 9 pin DB Connector RS232,
USB Type A
Security Kensington slot
Fan Level 36dB, (31dB in whisper mode)
Operating Temperature 41 to 95 deg. F (5-35 deg C)
Power AC 110-240V (auto ranging), 50/60
Hz, 290W (<10W Standby)
Size (WxHxD) 12.9” x 3.5” x 9.4”
Weight 7.8 lbs.
Carton Size 21” x 14” x 19”
Shipping Weight 20 lbs.
Accessories Included Remote control, batteries (AA), power
cord, Computer Cable (DVI-RGB), USB
Cable, S-Video Cable, CDROM, Soft
Carry Case, User Manual
Safety FCC-B, UL/Cul, TUV, CB, CE, CCC
Optional Accessories Lamp 456-8778; Ceiling mount,
universal, RPA-U
Audio Visual Products
2900 Dukane Drive
St. Charles, Illinois 60174
www.dukcorp.com/av
#11721-J-06
ImagePro is a registered trademark of Dukane Corporation
Toll-free: 800-676-2485
Fax: 630-584-5156
E-mail: avsales@dukcorp.com
Three (3) year limited warranty
on parts and labor in North America, lamp excluded
(for other locations, local warranties apply).
Includes Dukane’s FREE 1 year
Peace-of-Mind Loaner Program.
3YR
