Please read this manual carefully before using your Dukane Projector and keep the manual
handy for future reference. Your serial number is located on the bottom of your projector.
CAUTION
To turn off main power, be sure to remove the plug from power outlet.
The power outlet socket should be installed as near to the equipment as possible, and should be easily
accessible.
CAUTION
TO PREVENT SHOCK, DO NOT OPEN THE CABINET.
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED NEC SERVICE PERSONNEL.
This symbol warns the user that uninsulated voltage within the unit may be sufficient to cause electrical
shock. Therefore, it is dangerous to make any kind of contact with any part inside of the unit.
This symbol alerts the user that important information concerning the operation and maintenance of this
unit has been provided.
The information should be read carefully to avoid problems.
WARNING: TO PREVENT FIRE OR SHOCK, DO NOT EXPOSE THIS UNIT TO RAIN OR MOISTURE.
DO NOT USE THIS UNIT’S PLUG WITH AN EXTENSION CORD OR IN AN OUTLET UNLESS ALL THE PRONGS
CAN BE FULLY INSERTED.
DO NOT OPEN THE CABINET. THERE ARE HIGH-VOLTAGE COMPONENTS INSIDE. ALL SERVICING MUST
BE DONE BY QUALIFIED NEC SERVICE PERSONNEL.
DOC Compliance Notice (for Canada only)
This Class B digital apparatus meets all requirements of the Canadian Interference-Causing Equipment Regulations.
Acoustic Noise Information Ordinance-3. GSGV (for Germany only):
The sound pressure level is less than 70 dB (A) according to ISO 3744 or ISO 7779.
CAUTION
• Avoid displaying stationary images for a prolonged period of time.
Doing so can result in these images being temporarily sustained on the surface of the LCD panel.
If this should happen, continue to use your projector. The static background from previous images will disappear.
WARNING TO CALIFORNIA RESIDENTS:
Handling the cables supplied with this product, will expose you to lead, a chemical known to the State of California
to cause birth defects or other reproductive harm. Wash hands after handling.
i
Important Information
RF Interference (for USA only)
WARNING
The Federal Communications Commission does not allow any modifications or changes to the unit EXCEPT those
specified by NEC Soluctions (America), Inc. in this manual. Failure to comply with this government regulation could
void your right to operate this equipment. This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio / TV technician for help.
For UK only: In UK, a BS approved power cable with moulded plug has a Black (five Amps) fuse installed for use with
this equipment. If a power cable is not supplied with this equipment please contact your supplier.
Important Safeguards
These safety instructions are to ensure the long life of your projector and to prevent fire and shock. Please read them
carefully and heed all warnings.
Installation
1. For best results, use your projector in a darkened room.
2. Place the projector on a flat, level surface in a dry area away from dust and moisture.
3. Do not place your projector in direct sunlight, near heaters or heat radiating appliances.
4. Exposure to direct sunlight, smoke or steam can harm internal components.
5. Handle your projector carefully. Dropping or jarring can damage internal components.
6. Do not place heavy objects on top of the projector.
7. If you wish to have the projector installed on the ceiling:
a. Do not attempt to install the projector yourself.
b. The projector must be installed by qualified technicians in order to ensure proper operation and reduce the
risk of bodily injury.
c. In addition, the ceiling must be strong enough to support the projector and the installation must be in accor-
dance with any local building codes.
d. Please consult your dealer for more information.
ii
Important Information
Fire and Shock Precautions
1. Ensure that there is sufficient ventilation and that vents are unobstructed to prevent the build-up of heat inside
your projector. Allow at least 3 inches (10 cm) of space between your projector and a wall.
2. Prevent foreign objects such as paper clips and bits of paper from falling into your projector.
Do not attempt to retrieve any objects that might fall into your projector. Do not insert any metal objects such as
a wire or screwdriver into your projector. If something should fall into your projector, disconnect it immediately
and have the object removed by a qualified Dukane service personnel.
3. Do not place any liquids on top of your projector.
4. Do not look into the lens while the projector is on. Serious damage to your eyes could result.
5. Keep any items such as magnifying glass out of the light path of the projector. The light being projected from the
lens is extensive, therefore any kind of abnormal objects that can redirect light coming out of the lens, can
cause unpredictable outcome such as fire or injury to the eyes.
6. Do not cover the lens with the supplied lens cap or equivalent while the projector is on. Doing so can lead to
melting of the cap and possibly burning your hands due to the heat emitted from the light output.
7. The projector is designed to operate on a power supply of 100-240V AC 50/60 Hz. Ensure that your power
supply fits this requirement before attempting to use your projector.
8. Handle the power cable carefully and avoid excessive bending.
A damaged cord can cause electric shock or fire.
9. If the projector is not to be used for an extended period of time, disconnect the plug from the power outlet.
10. Do not touch the power plug during a thunderstorm. Doing so can cause electrical shock or fire.
11. Do not handle the power plug with wet hands.
CAUTION
• Do not try to touch the ventilation outlet on the left side (when seen from the front) as it can become heated
while the projector is turned on.
• Do no use the tilt-foot for purposes other than originally intended. Misuses such as gripping the tilt-foot or
hanging on the wall can cause damage to the projector.
• When carrying the projector by the carrying handle, make sure the two screws that attach the carrying handle
to the projector cabinet are tight.
Insufficient tightening of the two screws could result in the projector falling and causing injury.
• Do not send the projector in the soft carrying case by parcel delivery service or cargo shipment. The projector
inside the soft carrying case could be damaged.
• Select [High] in Fan mode if you continue to use the projector for consecutive days. (From the menu, select
[Advanced] → [Fan Mode] → [High].)
• Do not unplug the power cable from the wall outlet under any one of the following circumstances.
Doing so can cause damage to the projector:
* While the Hour Glass icon appears.
* While the cooling fans are running. (The cooling fans continue to work for 30 seconds after the projector is
turned off).
iii
Important Information

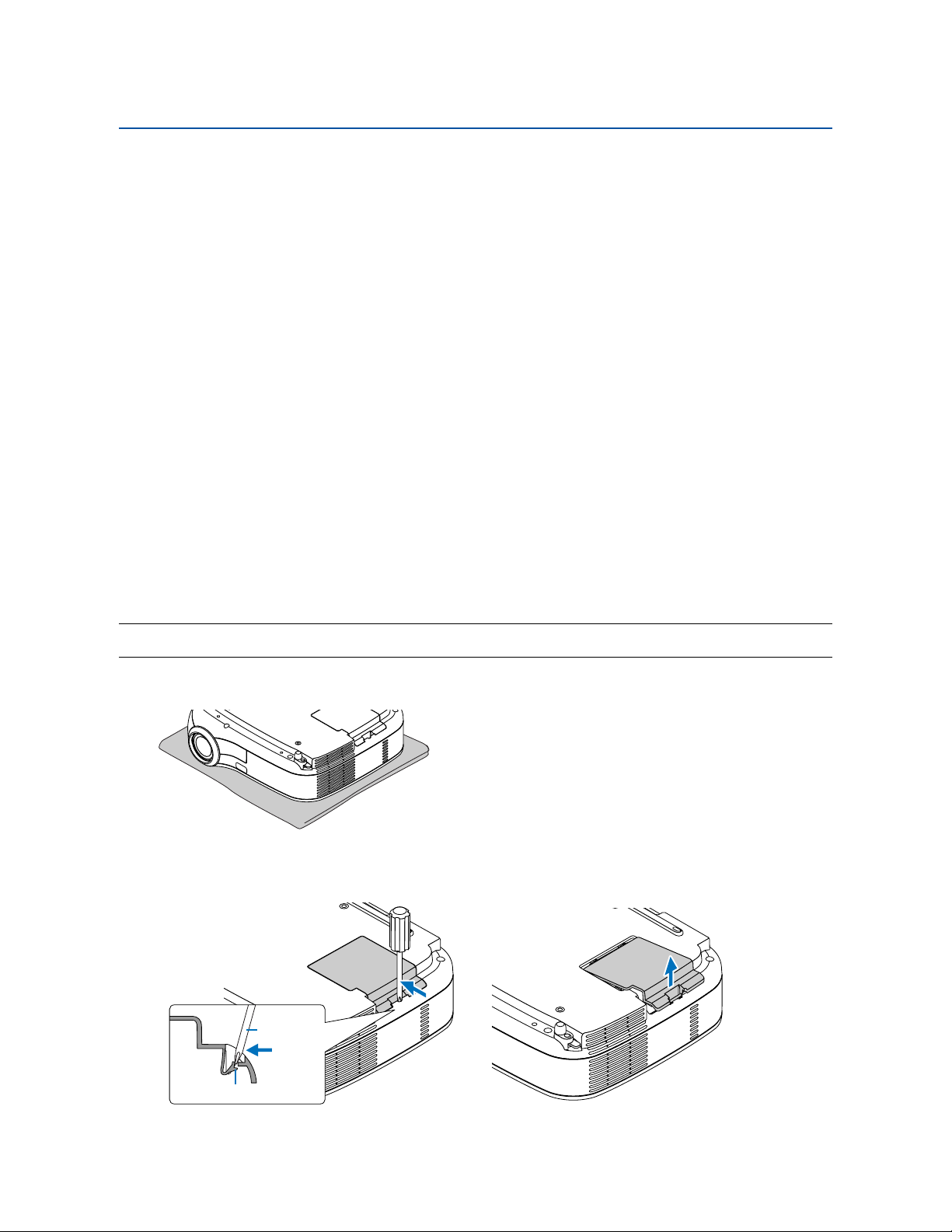

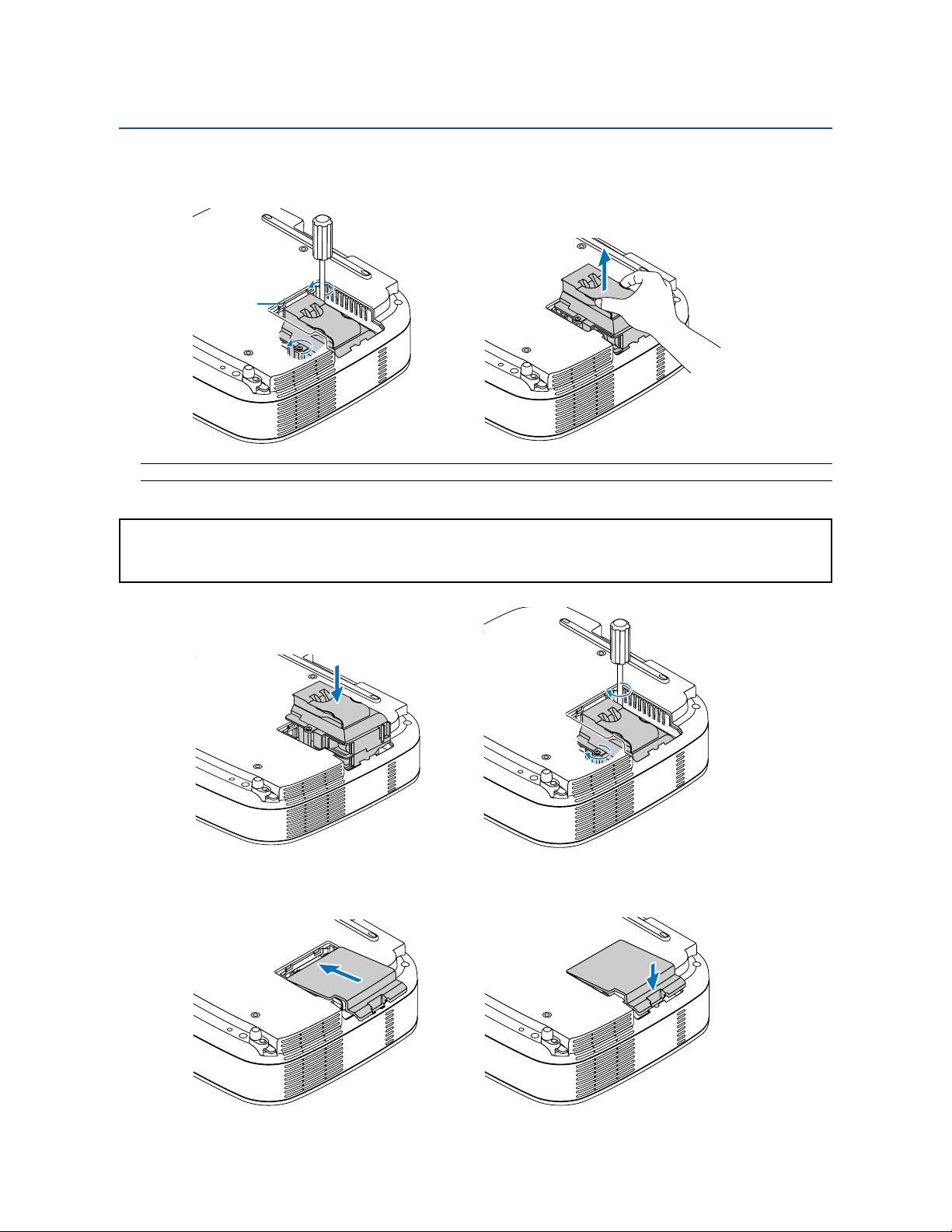

Lamp Replacement
•To replace the lamp, follow all instructions provided on page 53.
•Be sure to replace the lamp when the message “The lamp has reached the end of its usable life. Pleasereplace the lamp.” appears. If you continue to use the lamp after the lamp has reached the end of its usable
life, the lamp bulb may shatter, and pieces of glass may be scattered in the lamp case. Do not touch them as the
pieces of glass may cause injury.
If this happens, contact your Dukane dealer for lamp replacement.
•Allow a minimum of 30 seconds to elapse after turning off the projector. Then turn off the main power switch,
disconnect the power cable and allow 60 minutes to cool the projector before replacing the lamp.
iv
Table of Contents
Important Information ......................................................................... i

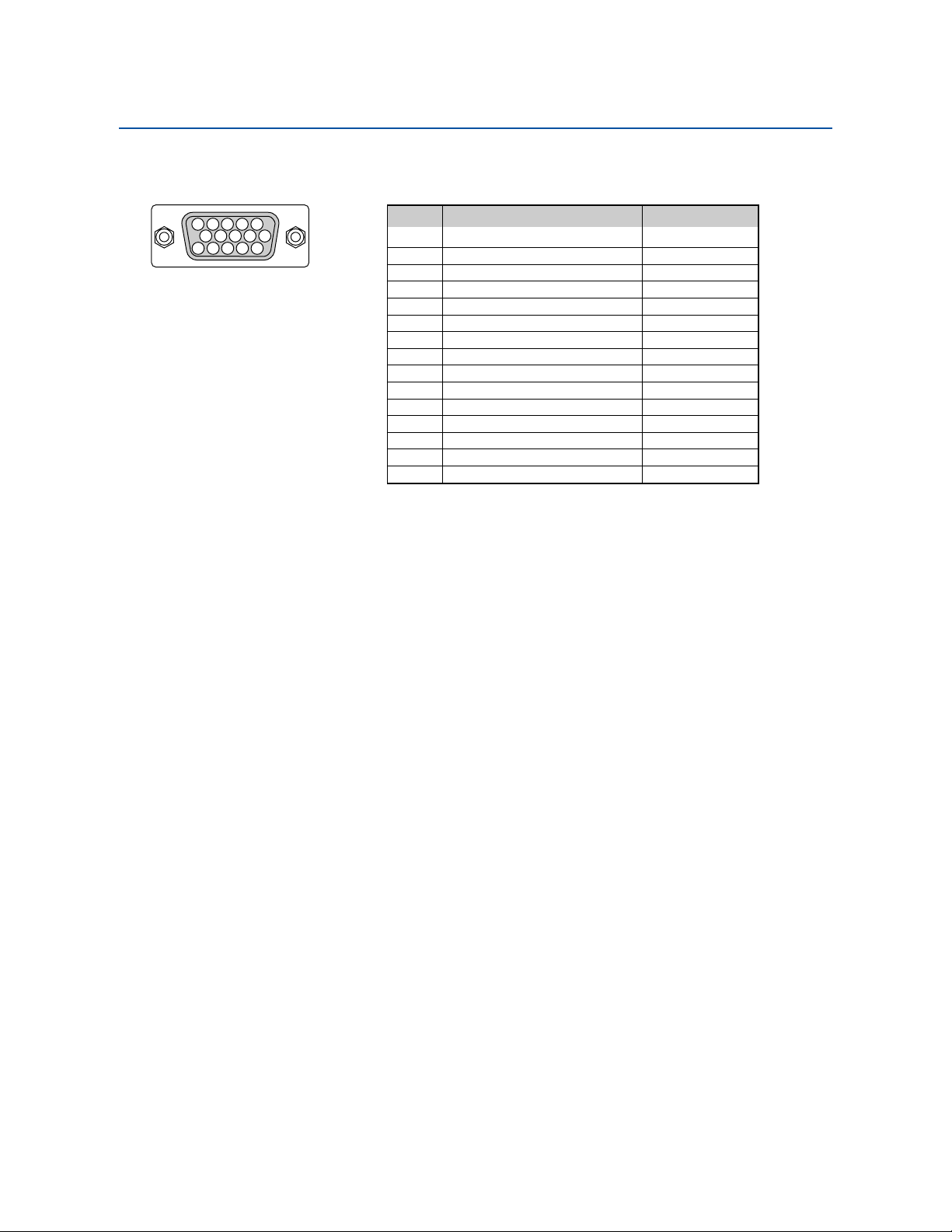

Pin Assignments of D-Sub COMPUTER Input Connector ........................................ 63
Compatible Input Signal List ...................................................................................... 64

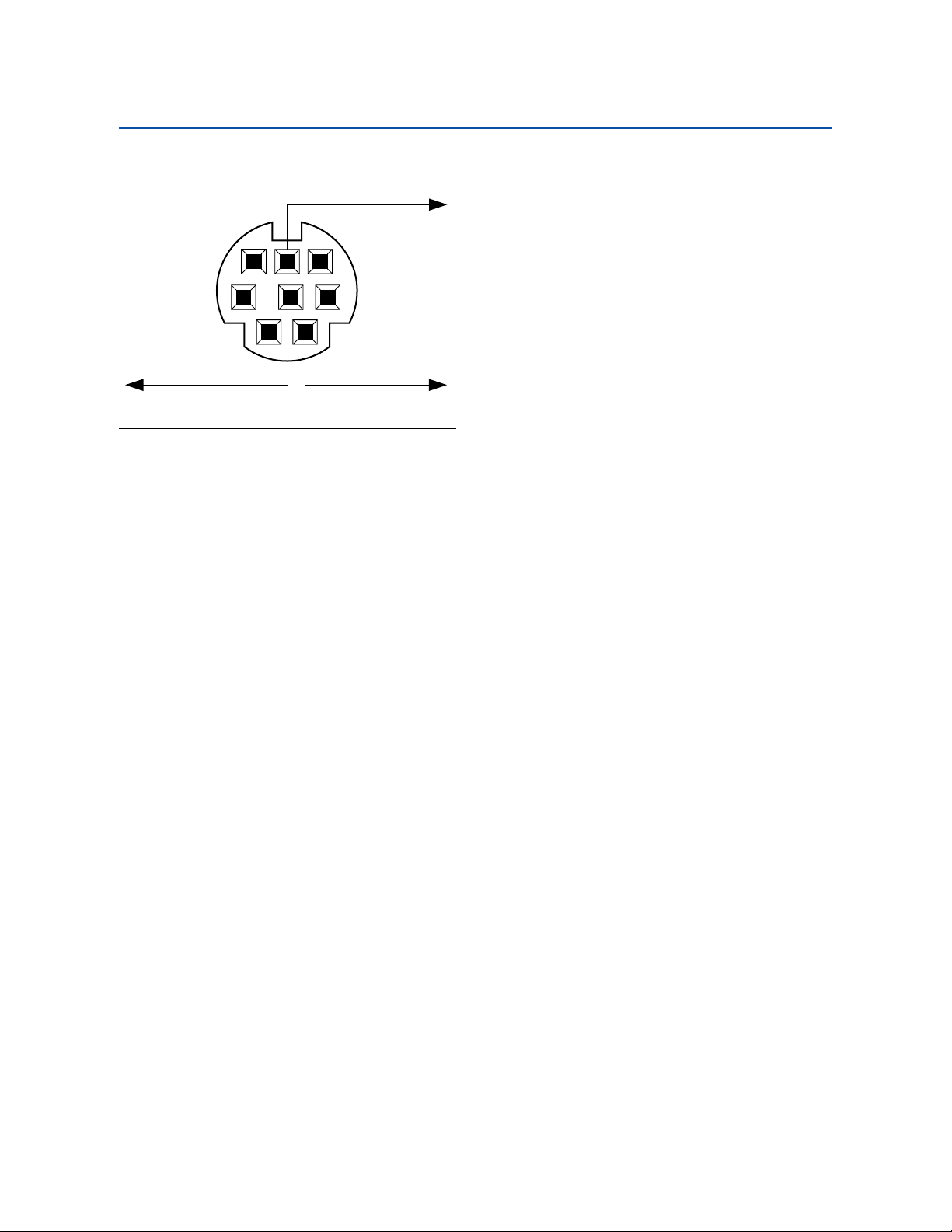

PC Control Codes and Cable Connection ................................................................. 65
Optional Presentation Remote Control Kit (PR52KIT)............................................... 67

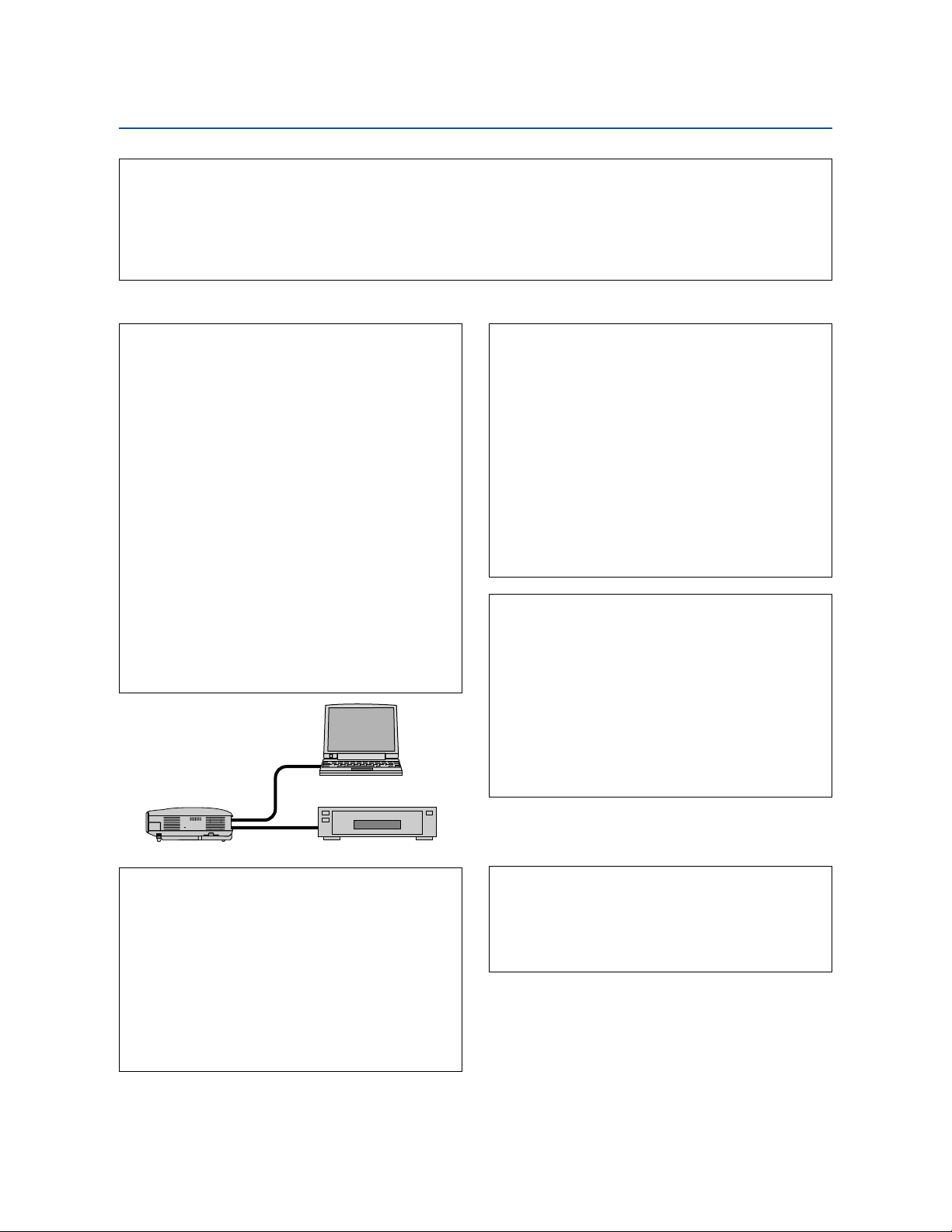

Troubleshooting Check List ........................................................................................ 71
vi
1. Introduction
What's in the Box?
Make sure your box contains everything listed. If any pieces are missing, contact your dealer.
Please save the original box and packing materials if you ever need to ship your projector.
This section introduces you to your new Dukane Projector and describes the features and controls.
Congratulations on Your Purchase of The Dukane Projector
The 8767A/8070/8771 is one of the very best projectors available today. The this projector
enables you to project precise images up to 300 inches across (measured diagonally) from your PC or Macintosh
computer (desktop or notebook), VCR, DVD player, document camera, or a laser disc player.
You can use the projector on a tabletop or cart, you can use the projector to project images from behind the screen,
and the projector can be permanently mounted on a ceiling*
1
Do not attempt to mount the projector on a ceiling yourself.
*
The projector must be installed by qualified technicians in order to ensure proper operation and reduce the
risk of bodily injury.
In addition, the ceiling must be strong enough to support the projector and the installation must be in accordance with any local building codes. Please consult your dealer for more information.
Features you'll enjoy:

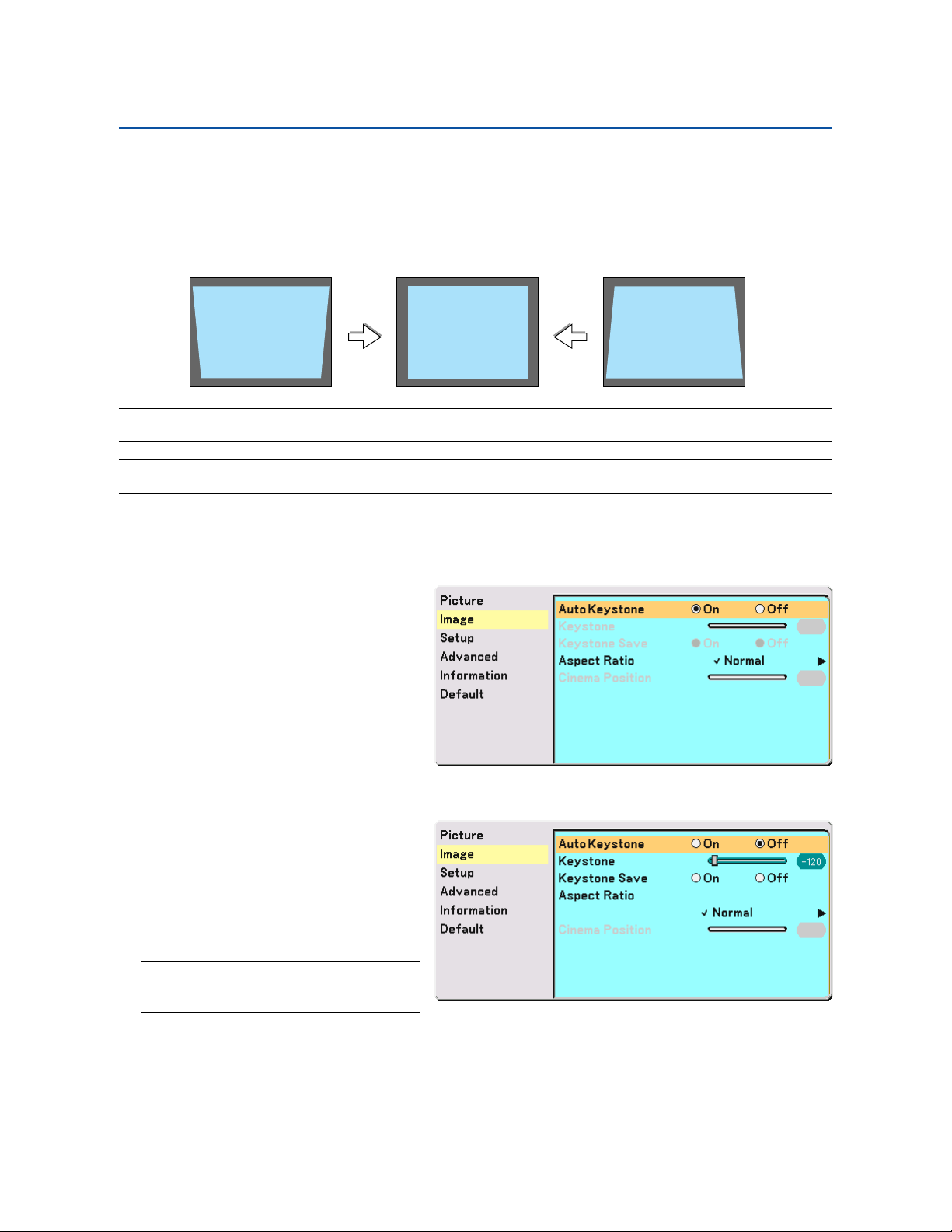

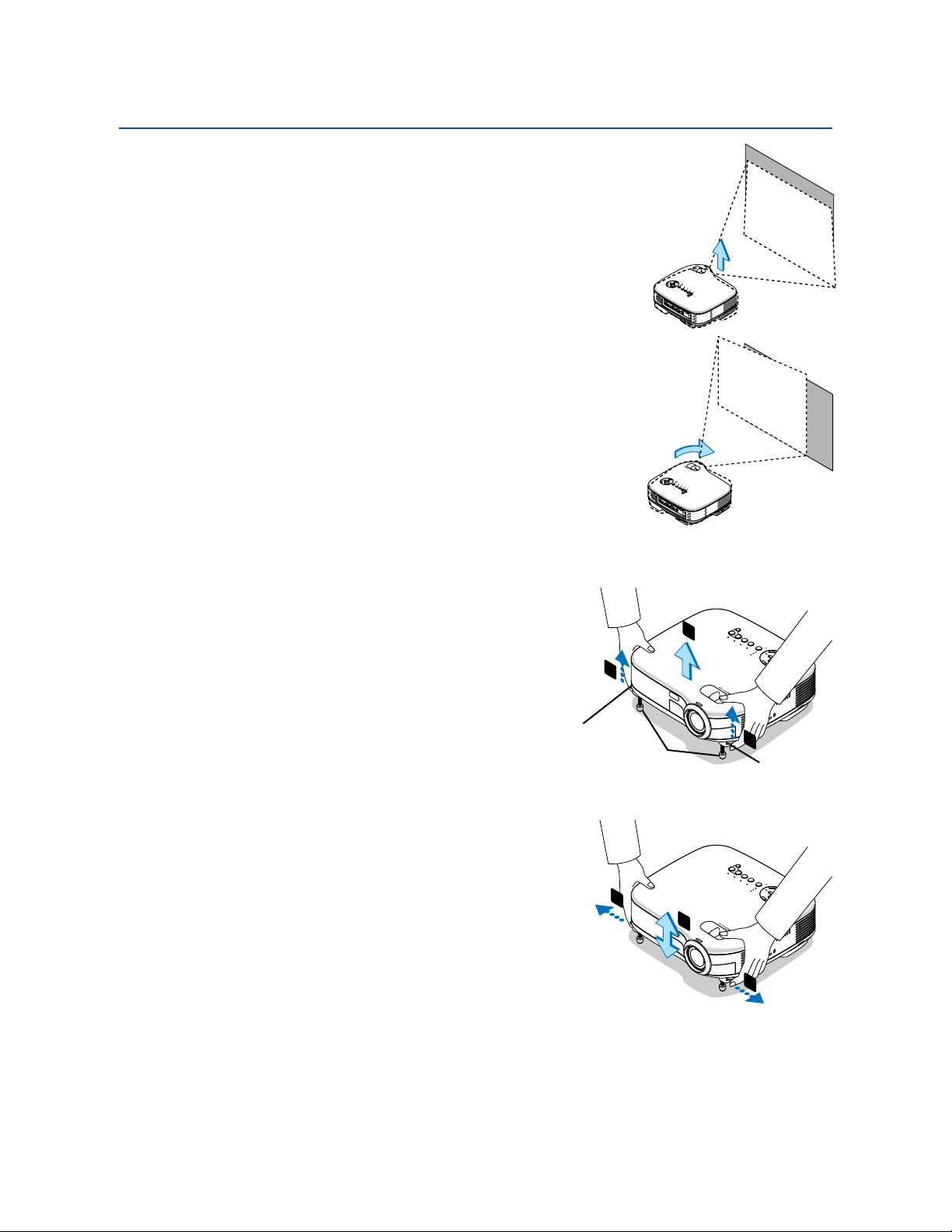

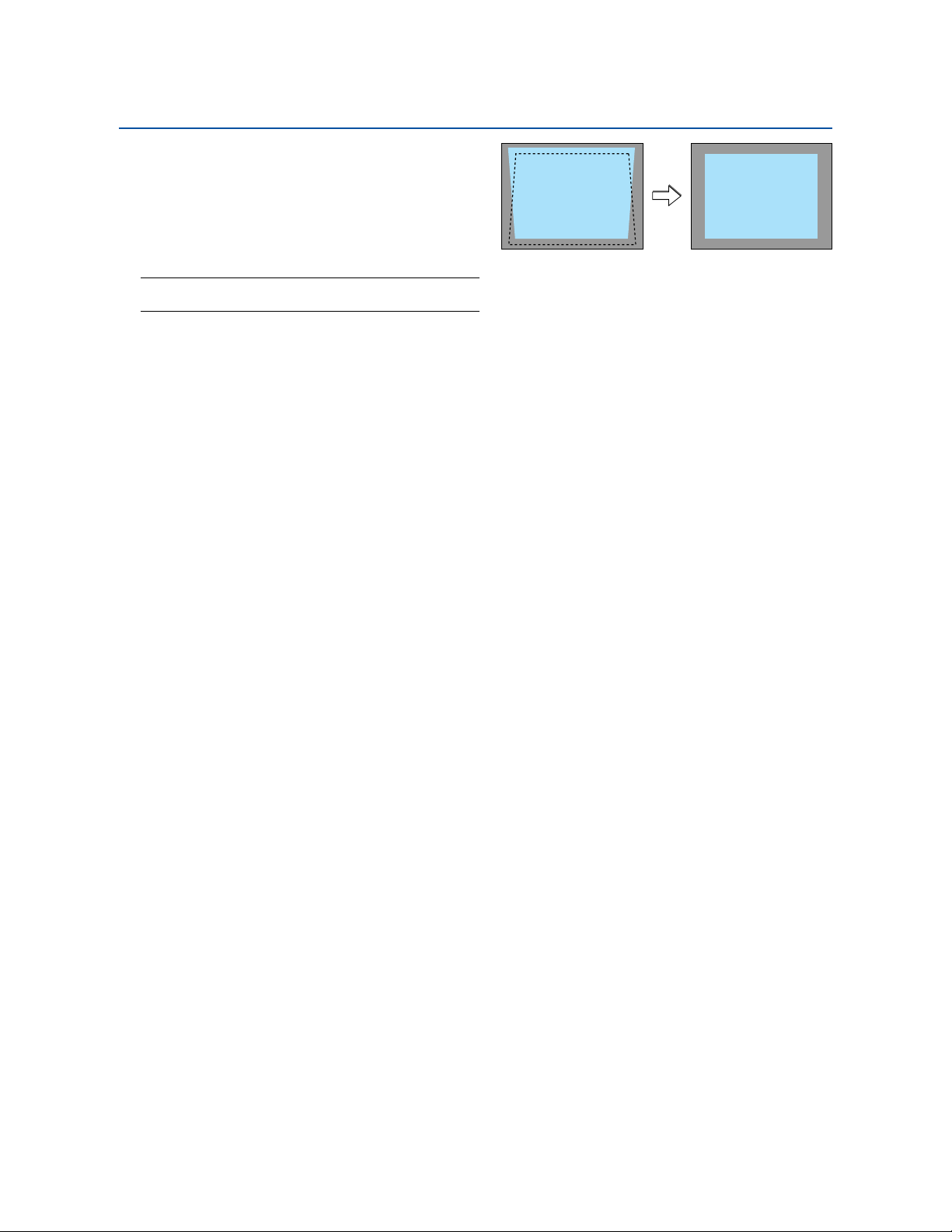

•Auto vertical keystone correction up to +/– 30 degrees

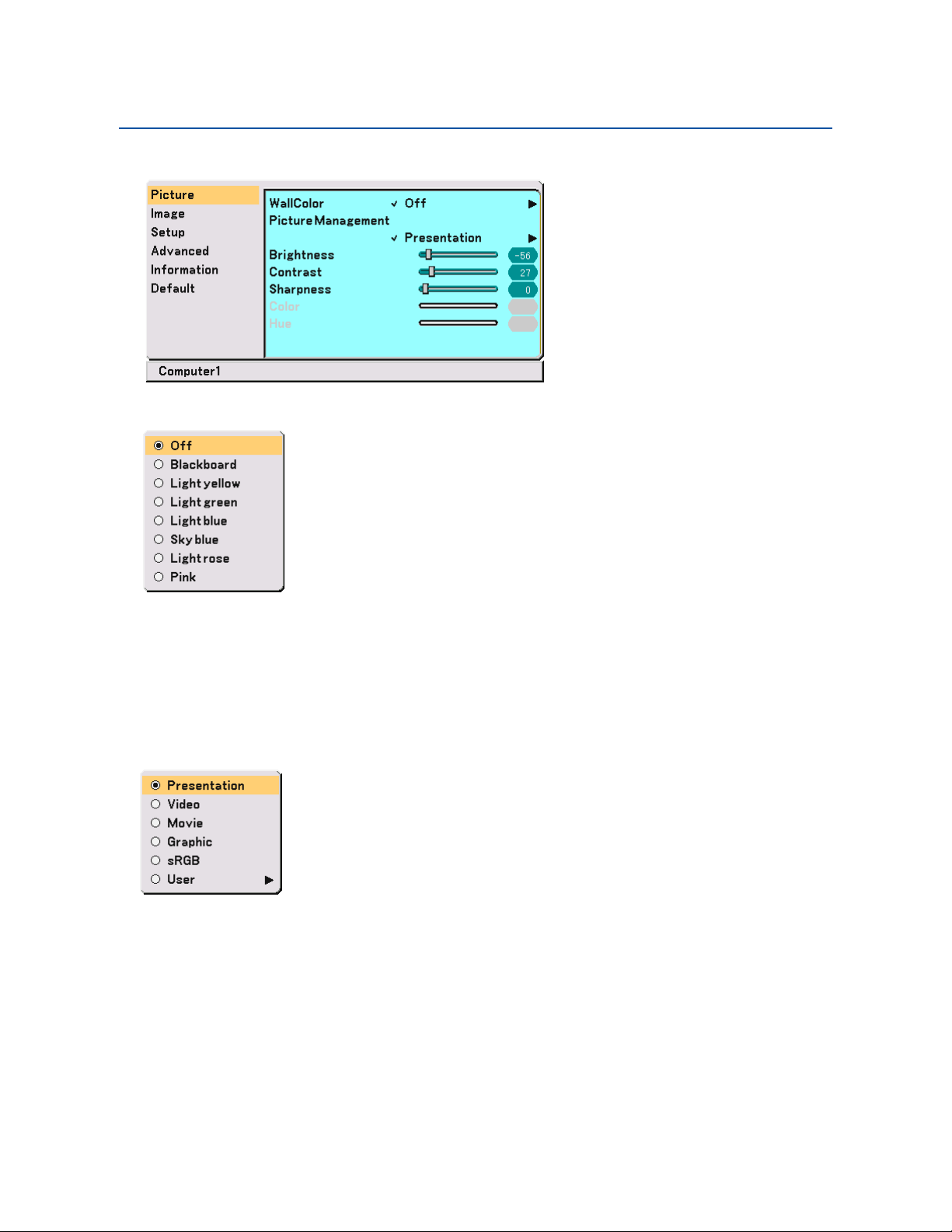

•Built-in Wall Color Correction presets provide for adaptive color correction when projecting onto non-white
screen material.
•Quick Start & Quick Shutoff
The quick start & quick shutoff function means you can set up or put away the projector without delay.
Nine seconds after turning on the power, the projector is ready to display PC or video images.
When you're finished, the fans stop in 30 seconds after turning off the power, so you can put away the projector
quickly after the conference or class.

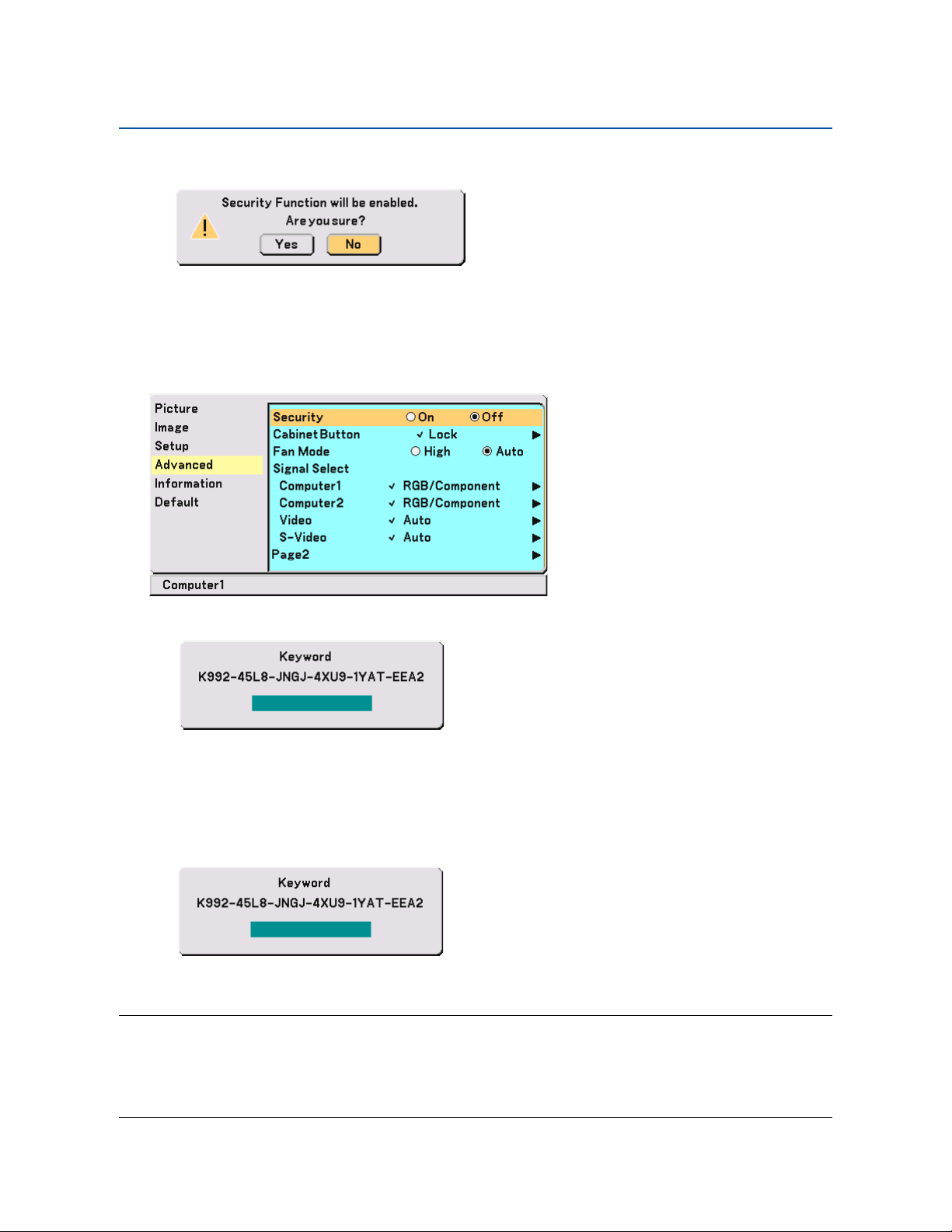

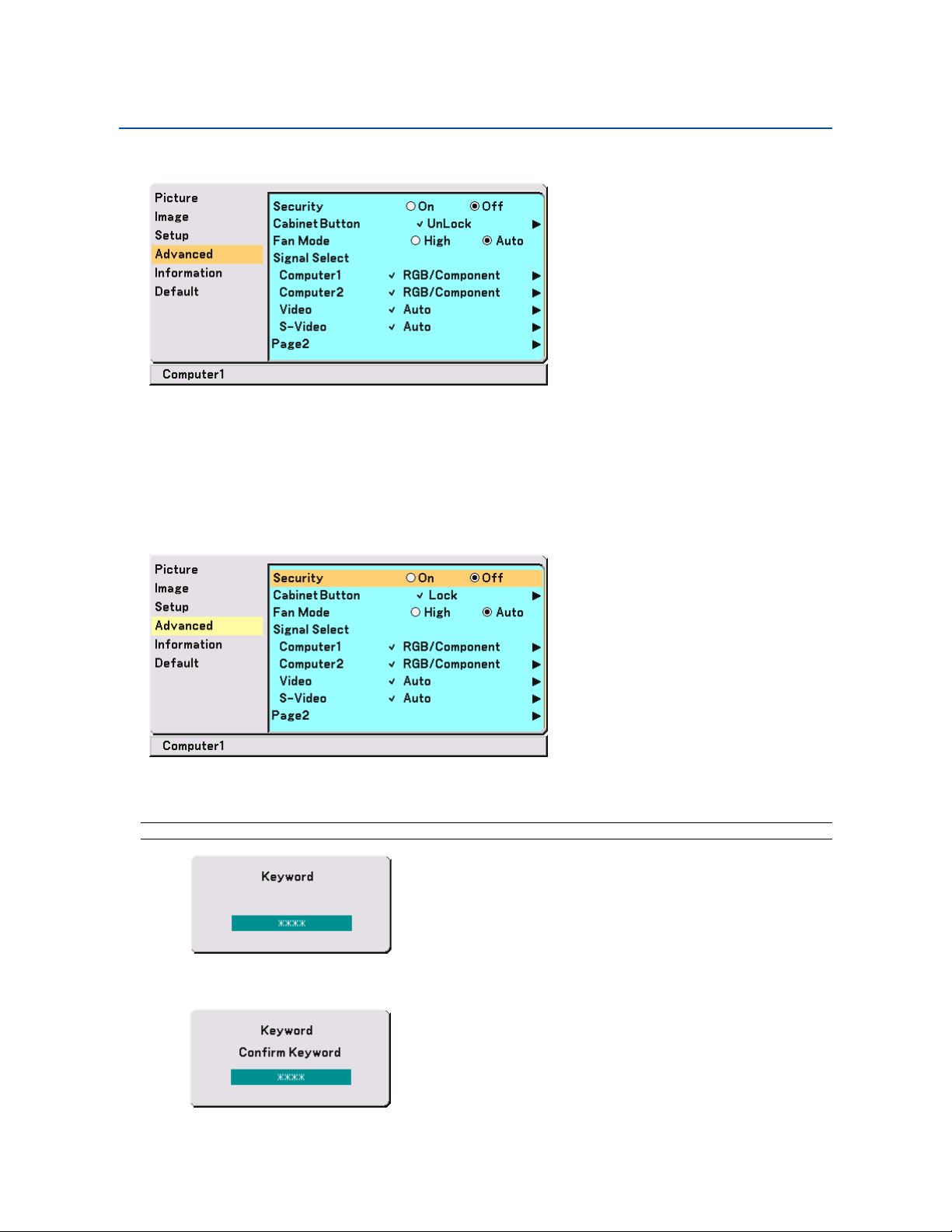

•Safety protect by Security function
Security feature prevents the projector from being used by unauthorized individuals.
Keyword prevents unauthorized individuals from changing projector settings or adjustments.
•Exclusive Advanced intelligent pixel blending technology - an extremely accurate image
compression technology - offers a crisp image with UXGA (1600⳯1200) resolution*
•Supports most IBM VGA, SVGA, XGA , SXGA/UXGA, Macintosh, component signal
(YCbCr/ YPbPr) or any other RGB signals within a horizontal frequency range of 24 to 100 kHz and a
vertical frequency range of 50 to 120 Hz. This includes NTSC, PAL, PAL-N, PAL-M, PAL60, SECAM and
NTSC4.43 standard video signals.
2
*
A UXGA (1600⳯1200) and SXGA image (1280⳯1024) are on 8767A and 8771.
1
. The remote control can be used wirelessly.
2
.
A UXGA (1600⳯1200), SXGA (1280⳯1024) and XGA (1024⳯768) image are displayed on 8070.
2
1. Introduction
NOTE: Composite video standards are as follows:
NTSC: U.S. TV standard for video in U.S. and Canada.
PAL: TV standard used in Western Europe.
PAL-N: TV standard used in Argentine, Paraguay and Uruguay.
PAL-M: TV standard used in Brazil.
PAL60: TV standard used for NTSC playback on PAL TVs.
SECAM: TV standard used in France and Eastern Europe.
NTSC4.43: TV standard used in Middle East countries.

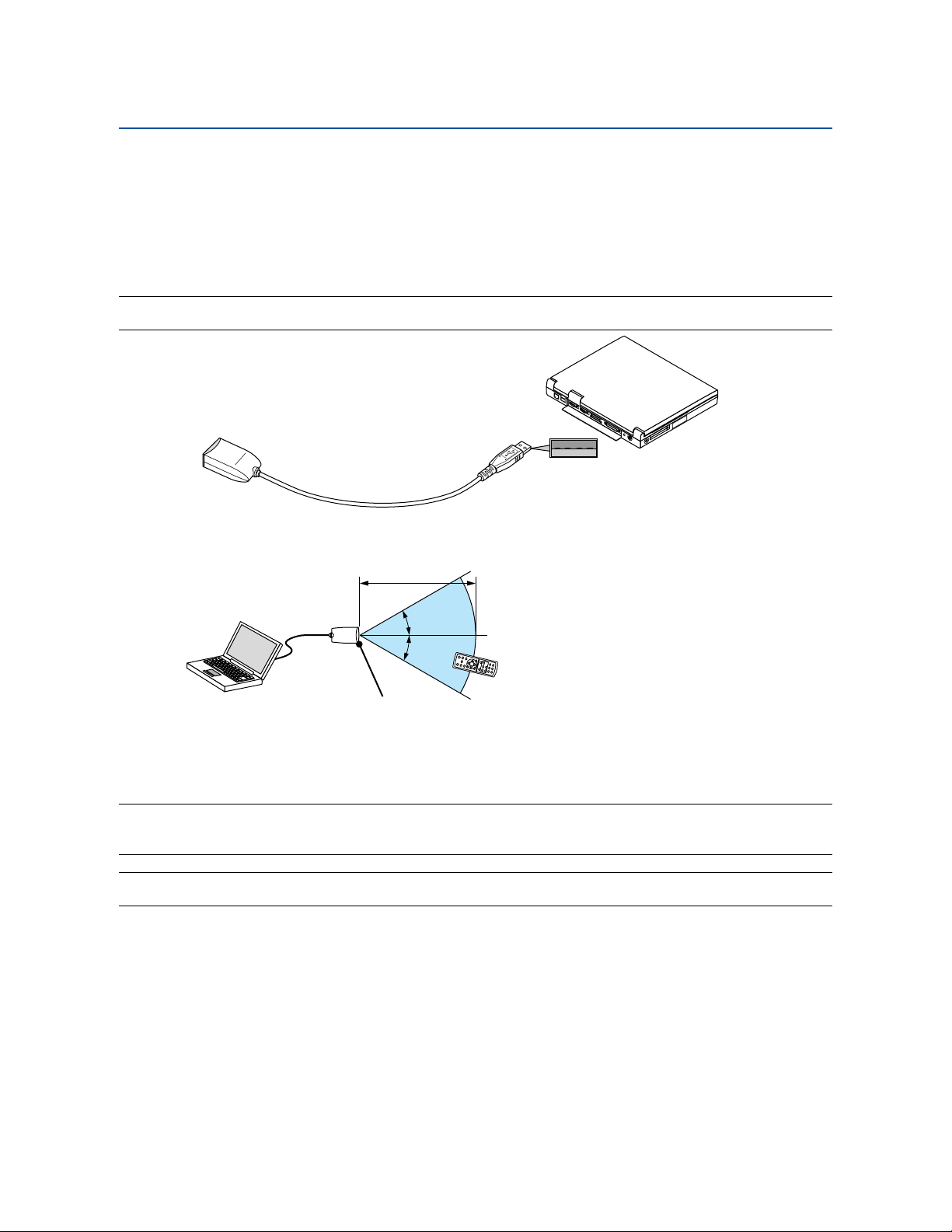

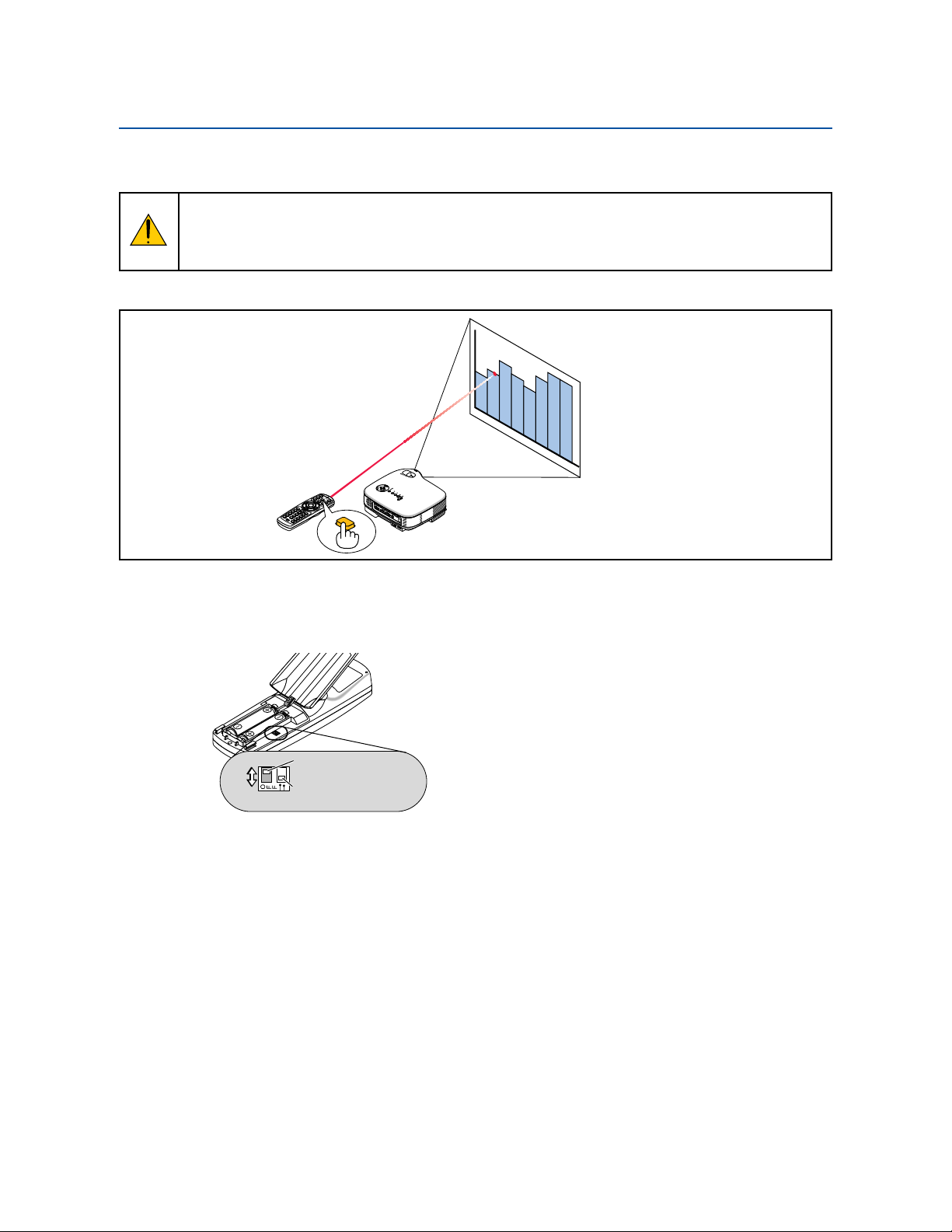

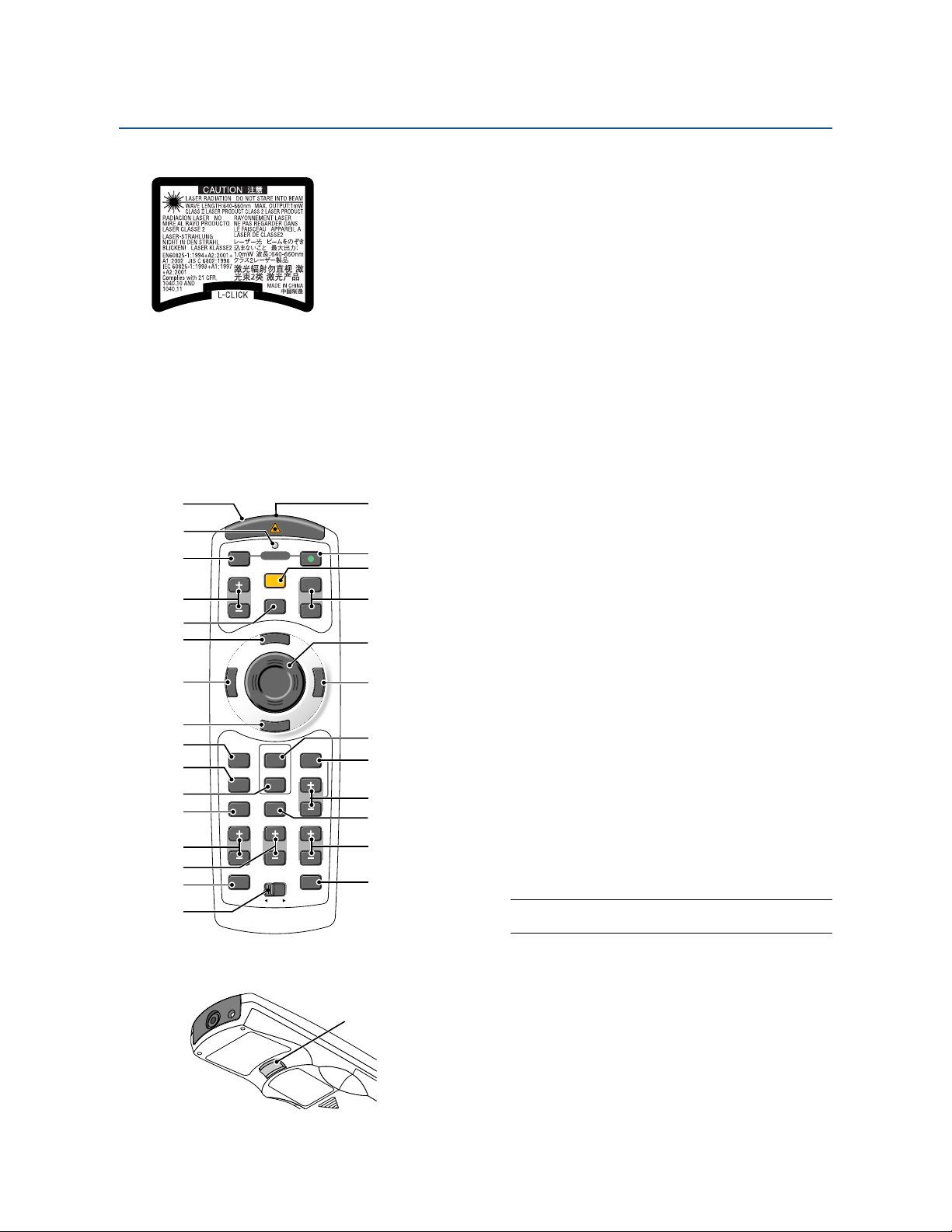

•You can use the supplied wireless remote control and remote mouse receiver to operate your PC mouse
wireless from across the room. The remote mouse receiver supports almost any PC using a USB connection
(8767A AND 8070).
•You can control the projector with a PC or control system using the PC Control port.
•The contemporary cabinet design is light, compact, easy to carry, and complements any office, boardroom or
auditorium.
About this user's manual
The fastest way to get started is to take your time and do everything right the first time. Take a few minutes now to
review the user's manual. This may save you time later on. At the beginning of each section of the manual you'll find an
overview. If the section doesn't apply, you can skip it.
•IBM is a trademark or registered trademark of International Business Machines Corporation.
•Mac and PowerBook are trademarks of Apple Computer, Inc., registered in the U.S. and other countries.
•Windows, Windows 98, Windows Me, Windows XP or Windows 2000 are trademarks or registered trademarks
of Microsoft Corporation.
•Other product and company names mentioned in this user’s manual may be the trademarks or registered
trademarks of their respective holders.
3

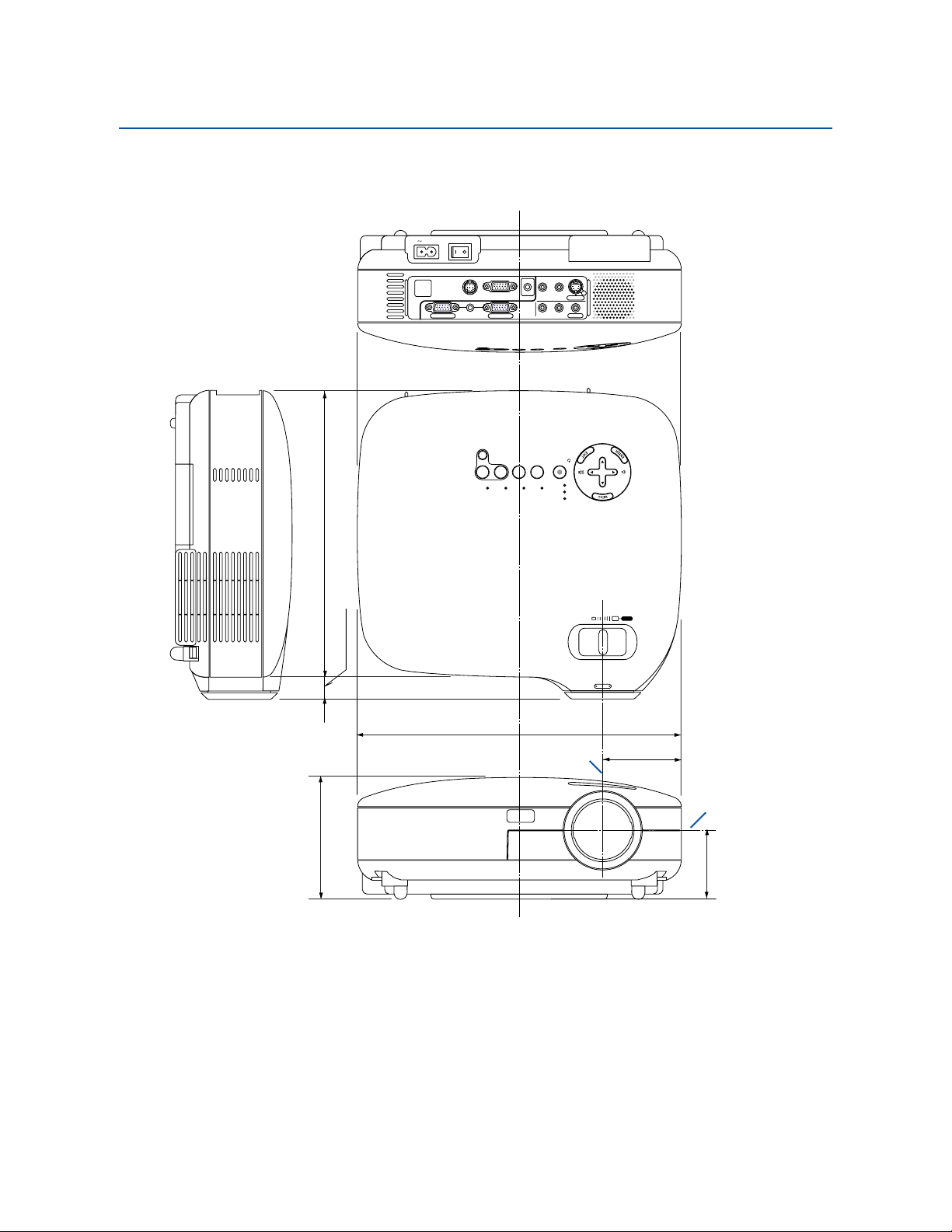

Part Names of the Projector
AUDIO OUT
S-VIDEO IN
COMPUTER 1 IN
COMPUTER OUT
PC CONTROL
AUDIO
AUDIO
COMPUTER 2 IN
VIDEO IN
AUDIO
L/MONO
R
AUDIO
L/MONO
R
Front/Top
1. Introduction
Zoom Lever
Controls
(See page 6)
(See page 28)
OM
ZO
S
CU
O
F
Focus Ring
J.
D
O
A
T
U
A
2
R
E
T
U
P
M
O
C
1
R
E
T
U
P
M
O
C
O
E
ID
-V
S
Y
B
D
N
A
O
T
E
S
/
D
I
N
V
O
R
E
W
O
S
P
U
T
A
T
S
P
M
A
L
T
C
LE
SE

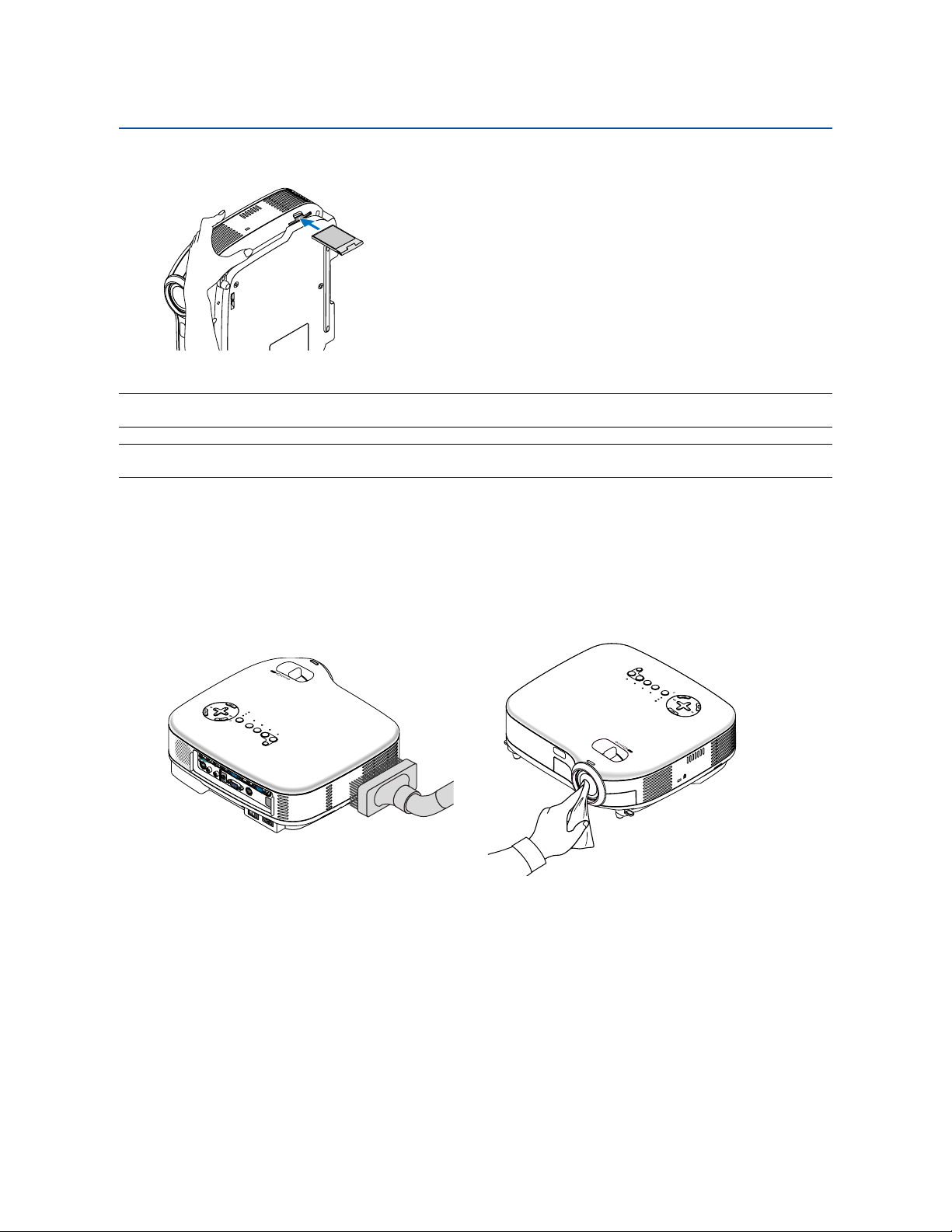

Ventilation (inlet) / Filter Cover
(See page 51)
(See page 28)
ZOOM
CU
O
F
Built-in Security Slot ( )*
Ventilation (inlet)
(See page 10 for
(See page 12 for
Remote sensor
8767A/8070
8771
)
)
S
Lens
Adjustable Tilt Foot Lever
(See page 27)
Lens Cap
Adjustable Tilt Foot
(See page 27)
*This security slot supports the MicroSaver ® Security System. MicroSaver ® is a registered trademark of
Kensington Microware Inc. The logo is trademarked and owned by Kensington Microware Inc.
Rear
F
OCU
ZOOM
S
S
E
LECT
LAM
P
STATUS
PO
WER
ON/STAND BY
V
IDEO
S-VIDEO
COMPUTER-1
COM
PUTER-2
AUTO
Monaural Speaker
(1W)
ADJ.
Remote sensor
(See page 10 for 8767A/8070)
(See page 12 for 8771)
AC IN
Ventilation (outlet)
Heated air is exhausted from here.
AC Input
Terminal Panel
(See page 7)

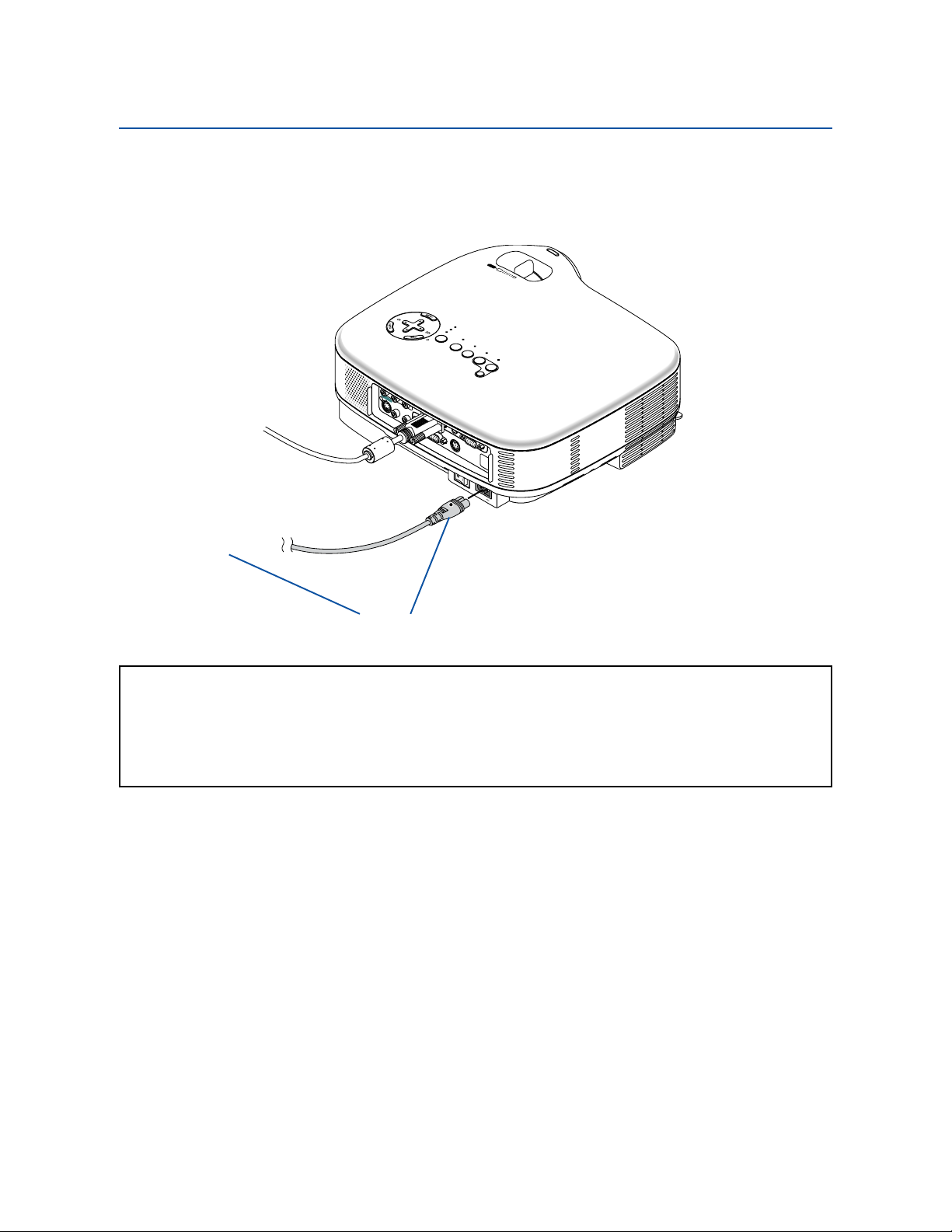

Connect the supplied power cable's two-pin plug here, and
plug the other end into an active wall outlet. (See page 22)

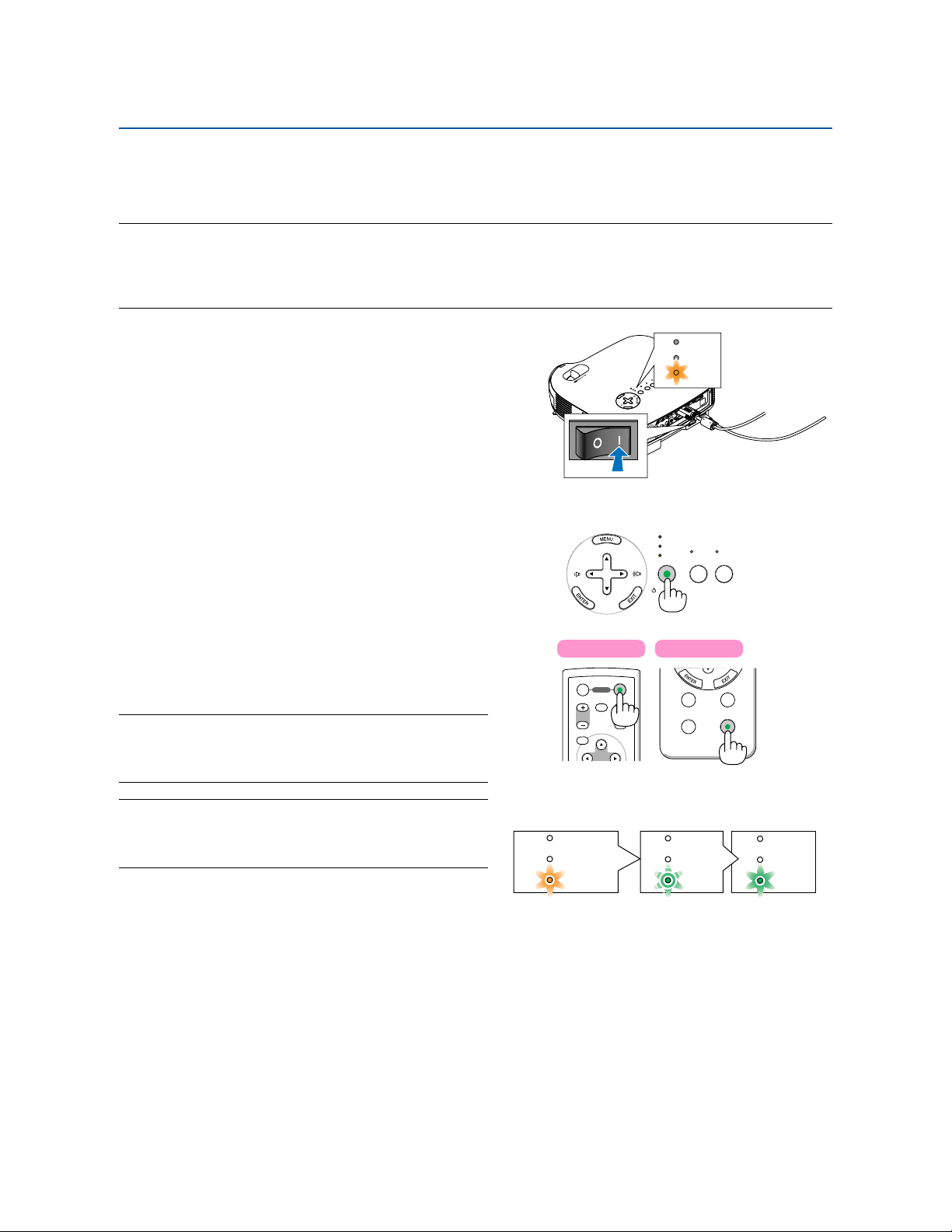

Main Power Switch
When you plug the supplied power cable into an active wall outlet
and turn on the Main Power, the POWER indicator turns orange
and the projector is in standby mode.
(See page 23)
4
Bottom
Adjustable Tilt Foot
(See page 27)
Lamp Cover
(See page
1. Introduction
53)
Adjustable Tilt Foot Lever
(See page
27)
Adjustable Tilt Foot Lever
(See page 27)
For 8767A and 8070 only
Attaching the supplied carrying handle
You can carry the projector by attaching the supplied carrying handle securely to the projector.
To attach the supplied carrying handle, use the supplied flathead screwdriver and two screws.
Place a soft cloth on the working surface before turning the projector over to prevent scratching the top cover.
Make sure that the carrying handle is attached with correct orientation as shown below.
Flathead screwdriver
Screw
Carrying handle
CAUTION
When carrying the projector by the carrying handle, make sure the two screws that attach the carrying handle
to the projector cabinet are tight.
5
Top Features
1. Introduction
10 2 3 411
SELECT
1213

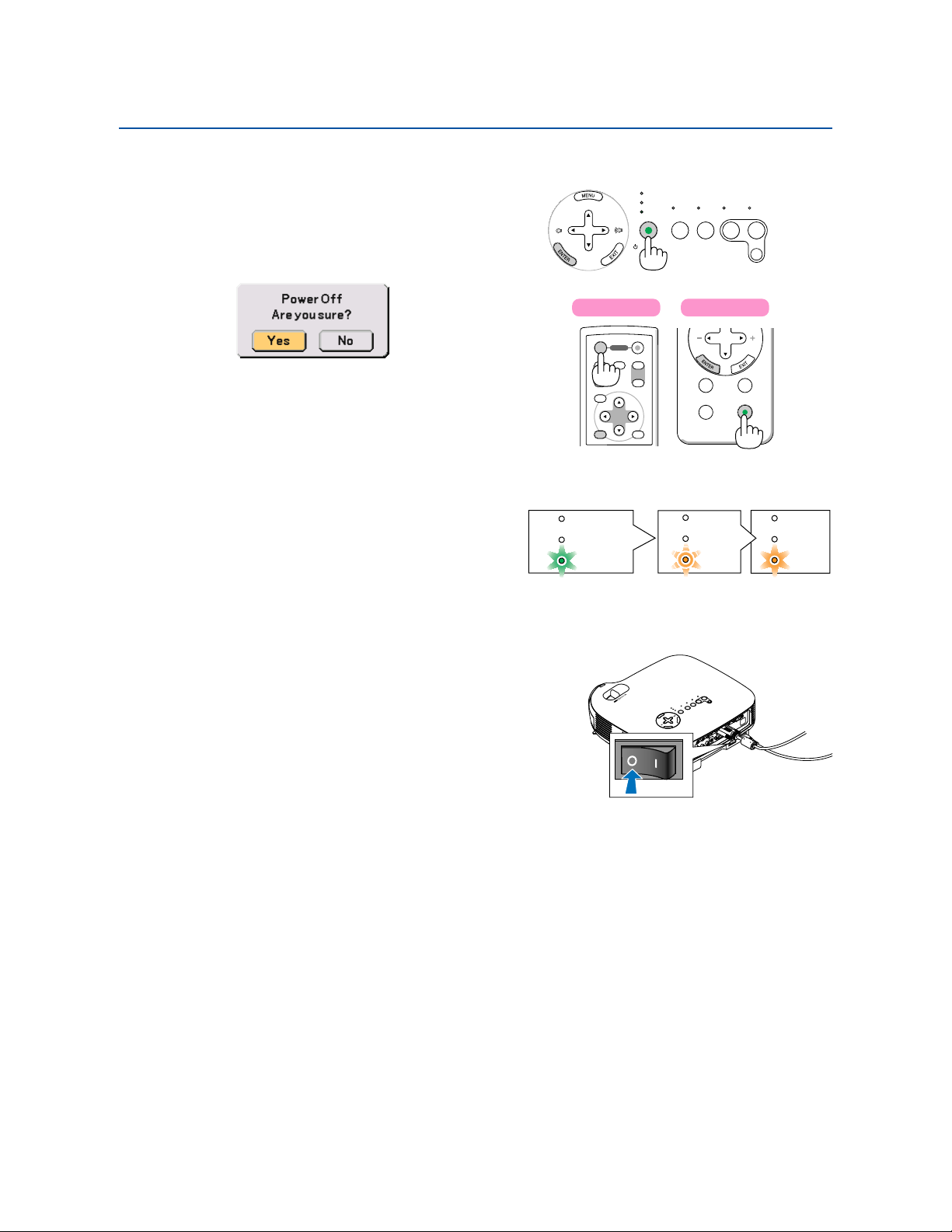

1. POWER Button (ON / STAND BY) ( )
Use this button to turn the power on and off when the
main power is supplied and the projector is in standby
mode.
To turn on the projector, press and hold this button for
a minimum of two seconds. To turn off the projector,
press this button twice.
2. POWER Indicator
When this indicator is green, the projector is on; when
this indicator is orange, it is in standby mode. See the
Power Indicator section on page 56 for more details.
3. STATUS Indicator
If this light blinks red rapidly, it indicates that an error
has occurred, the lamp cover is not attached properly
or the projector has overheated. If this light remains
orange, it indicates that you have pressed a cabinet
key while the Cabinet Button Lock is enabled. See the
Status Indicator section on page 56 for more details.
4. LAMP Indicator
If this light blinks red rapidly, it's warning you that the
lamp has reached the end of its usable life. After this
light appears, replace the lamp as soon as possible
(See page
cates that the lamp mode is set to Eco. See the Lamp
Indicator section on page 56 for more details.
5. VIDEO Button
Press this button to select a video source from a VCR,
DVD player, laser disc player or document camera.
6. S-VIDEO Button
Press this button to select an S-Video source from a
VCR, DVD player, laser disc player or document camera.
53). If this is lit green continually, it indi-
9
LAMP
STATUS
POWERVIDEO
ON/STAND BY
S-VIDEO COMPUTER-1 COMPUTER-2
AUTO
ADJ.
1567 8
7. COMPUTER1 and 2 Buttons
Press this button to select an RGB source from computer or component equipment connected to your
COMPUTER 1 or 2 port.
8. AUTO ADJ. Button
Use this button to adjust an RGB source for an optimal picture (See page 31).
9. Source Indicators
When one of the COMPUTER, VIDEO or S-VIDEO
input is selected, the corresponding source indicator
lights.
10. MENU Button
Displays the menu.
11. SELECT 왖왔왗왘 / Volume Buttons
왖왔 : Use these buttons to select the menu of the
item you wish to adjust.
왗왘 : Use these buttons to change the level of a se-
lected menu item. A press of the 왘 button ex-
ecutes the selection. When no menus appear,
these buttons work as a volume control.
When an image is magnified, the SELECT 왖왔왗왘
button moves the image.
12. ENTER Button
Executes your menu selection and activates items
selected from the menu.
13. EXIT Button
Pressing this button will return to the previous menu.
While you are in the main menu, pressing this button
will close the menu.
6
Terminal Panel Features
41
VIDEO IN
L/MONO
AUDIO
R
COMPUTER 1 IN
AUDIO
1. Introduction
COMPUTER 2 IN
S-VIDEO IN
L/MONO
AUDIO
R
AUDIO OUT
325
1.

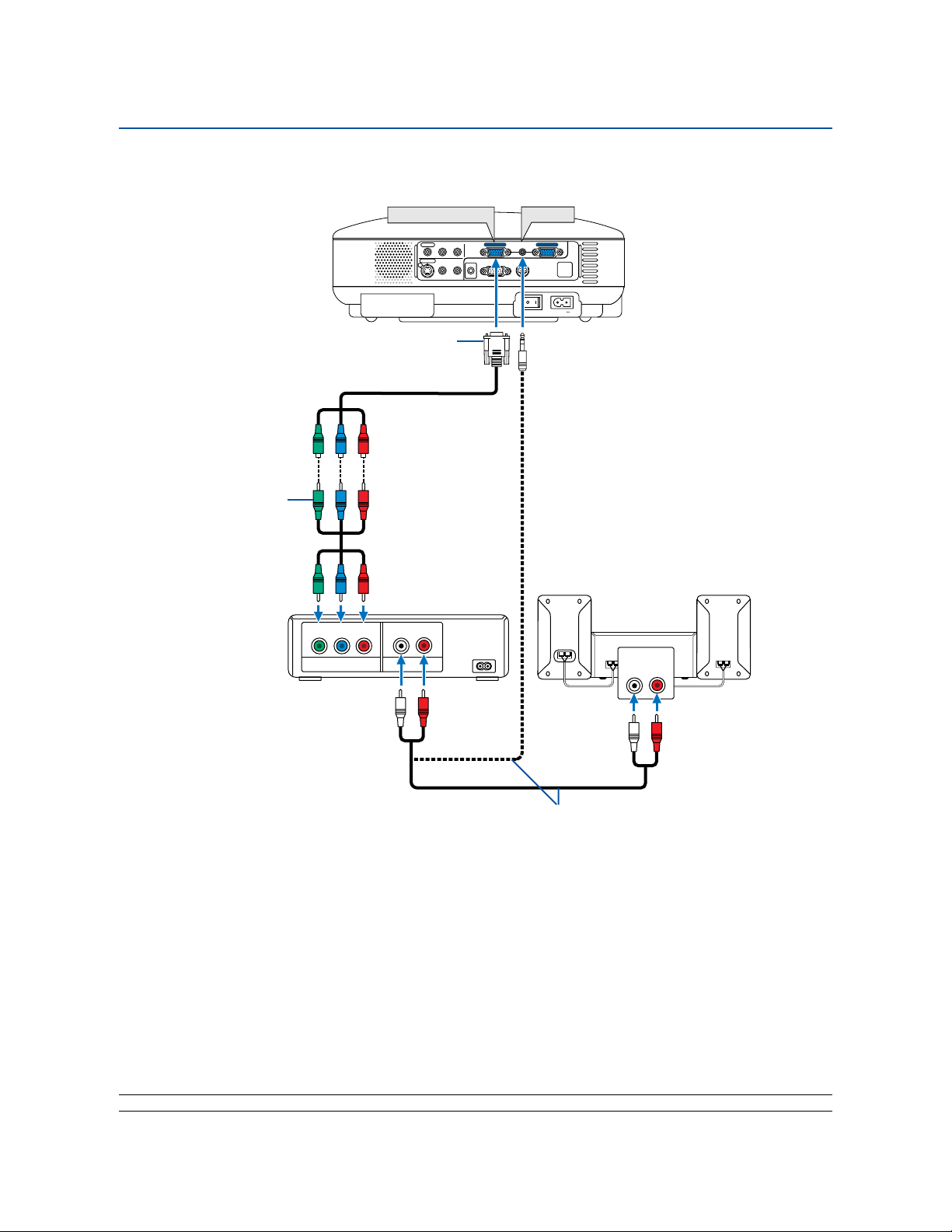

COMPUTER 1 and 2 IN / Component Input Connector
(Mini D-Sub 15 Pin)
Connect your computer or other analog RGB equipment such as IBM compatible or Macintosh computers. Use the supplied RGB cable to connect to your
computer. This also serves as a component input connector that allows you to connect a component video
output of component equipment such as a DVD player.

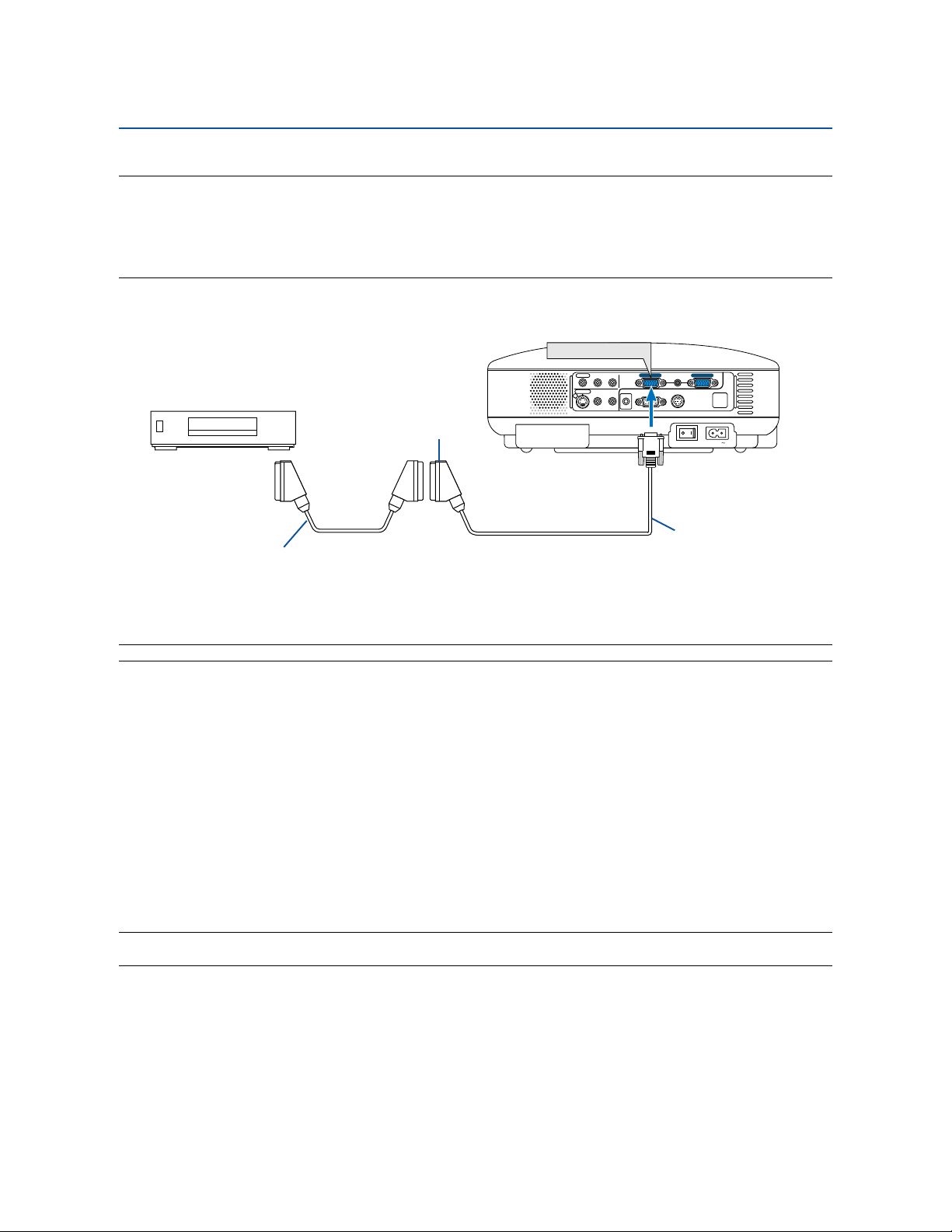

This connector also supports SCART output signal.
See page 18 for more details.
COMPUTER AUDIO Input Mini Jack (Stereo Mini)
This is where you connect the audio output from your
computer or DVD player when connected to the COMPUTER input. A commercially available audio cable is
required.
2.

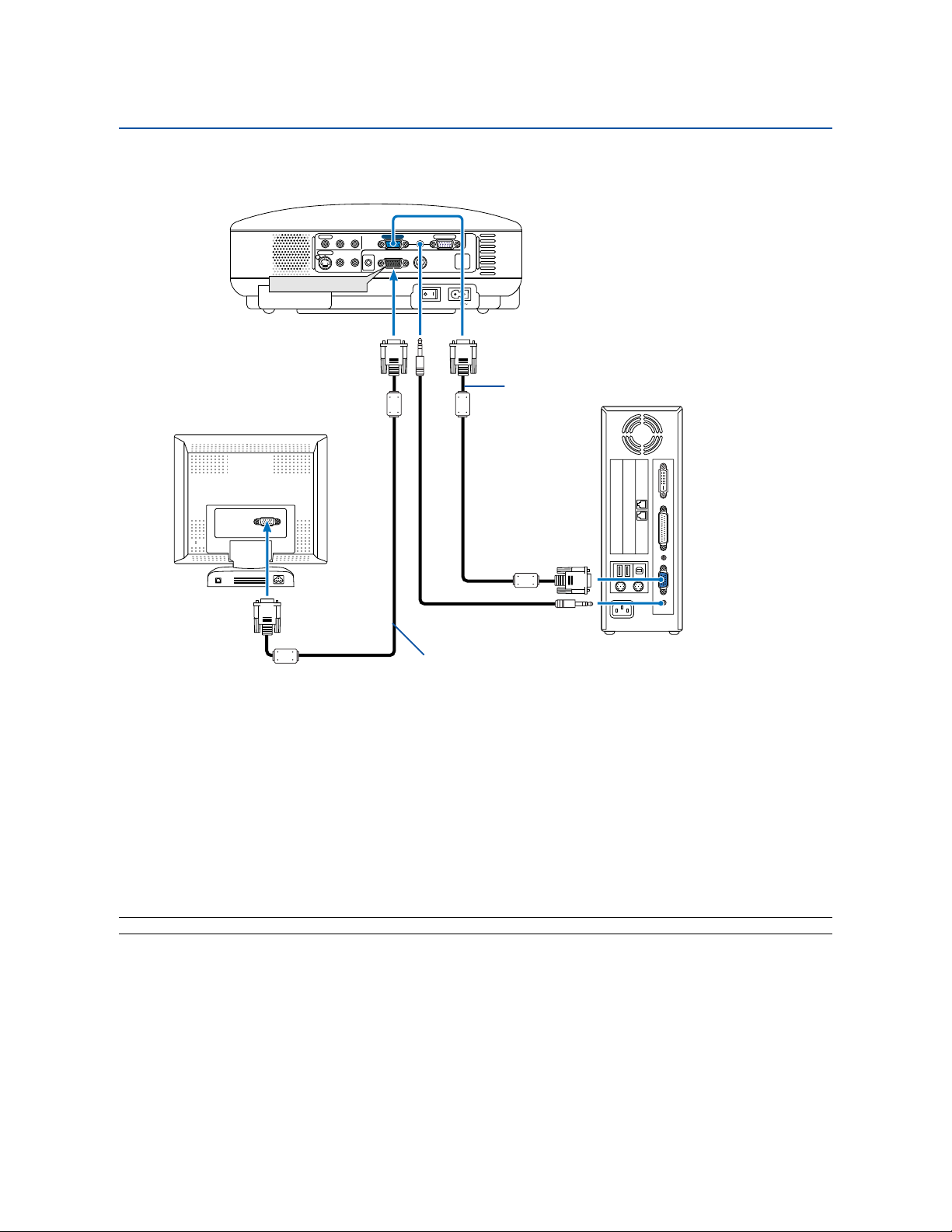

MONITOR OUT Connector (Mini D-Sub 15 Pin)
You can use this connector to loop your computer
image to an external monitor from the RGB input
source.
This connector outputs RGB signal in standby mode.
AUDIO OUT Mini Jack (Stereo Mini)
MONITOR OUT
PC CONTROL
For example, when a cable mini-plug is inserted into
the left AUDIO IN jack only, only left sound is output.
3. S-VIDEO IN Connector (Mini DIN 4 Pin)
Here is where you connect the S-Video input from an
external source like a VCR.
NOTE: S-Video provides more vivid color and higher
resolution than the traditional composite video format.
S-VIDEO AUDIO Input Jacks L/R (RCA)
These are your left and right channel audio inputs for
stereo sound from an S-Video source.

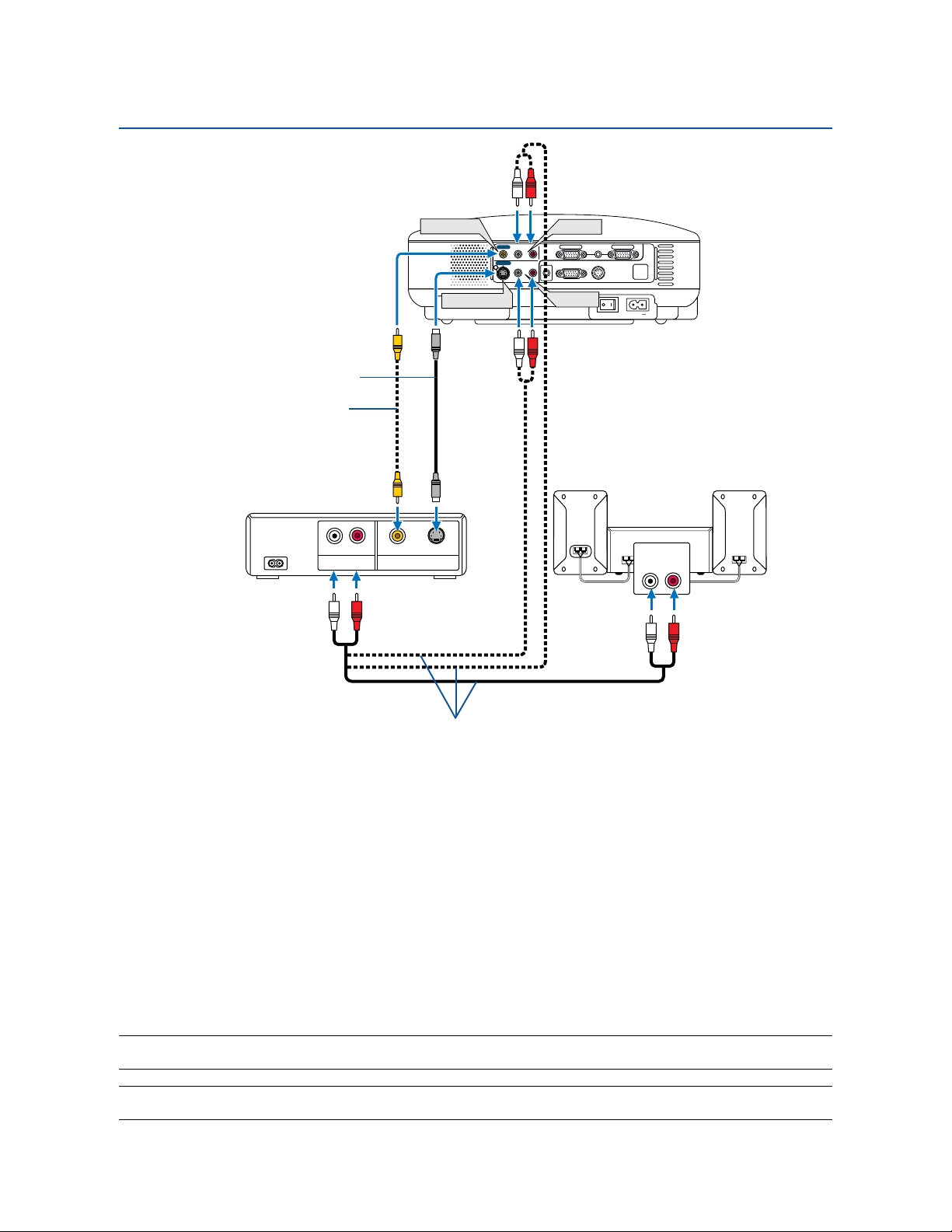

4. VIDEO IN Connector (RCA)
Connect a VCR, DVD player, laser disc player, or document camera here to project video.
VIDEO AUDIO Input Jacks L/R (RCA)
These are your left and right channel audio inputs for
stereo sound from a Video source.
You can use this jack to output sound from the currently selected source (COMPUTER, VIDEO or SVIDEO). Output sound level can be adjusted in accordance with the sound level of the internal speaker.
Note that this cannot be used as a headphone jack.
(When audio equipment is connected, the projector
speaker is disabled.)
When a cable mini-plug is inserted into this jack, both
the right and left audio signals are not mixed, but separate.
5. PC CONTROL Port (DIN 8 Pin)
Use this port to connect a PC or control system. This
enables you to control the projector using serial communication protocol. If you are writing your own program, typical PC control codes are on page 65.
7
Part Names of the Remote Control
1. Introduction
For 8767A/8070
3
4
7
OFF
MAGNIFYPAGE
PIC-MUTE
MENU
ON
POWER
UP
DOWN
1
2
6
5
8
9
11
13
14
17
ENTER
L-CLICK
VIDEO
S-VIDEO
VOLUME
EXIT
R-CLICK
MOUSE
AUTO ADJ.COMPUTER
1
2
ASPECTHELP
FREEZEPICTURE
10
12
16
15
18
20
21
19
NOTE: If you are using a Macintosh computer, you can click
either the MOUSE R-CLICK or MOUSE L-CLICK button to
activate the mouse.
1. Infrared Transmitter
Direct the remote control toward the remote sensor
on the projector cabinet.
2. POWER ON Button
When the main power is on, you can use this button
to turn your projector on.
NOTE: To turn on the projector, press and hold the POWER
ON button for a minimum of two seconds.
5. PIC-MUTE Button
This button turns off the image and sound for a short
period of time. Press again to restore the image and
sound.
6. PAGE UP/DOWN Button
Use these buttons to operate your computer with the
supplied remote mouse receiver. See page 34. You
can use these buttons to scroll the viewing area of the
window or to move to the previous or next slide in
PowerPoint on your computer.
7. MENU Button
Displays the menu for various settings and adjustments.
8. SELECT 왖왔왗왘 (Mouse) Button
왖왔 : Use these buttons to select the menu of the
item you wish to adjust.
왗왘 : Use these buttons to change the level of a se-
lected menu item. A press of the 왘 button ex-
ecutes the selection.
When an image is magnified, the SELECT 왖왔왗왘
button moves the image. See page
9. ENTER Button
Use this button to enter your menu selection. It works
the same way as the ENTER button on the cabinet.
See page 6.
10. EXIT Button
It works the same way as the EXIT button on the cabinet. See page
11. MOUSE L-CLICK Button
This button works as the mouse left button when the
supplied remote mouse receiver is connected with your
computer. See page
12. MOUSE R-CLICK Button
This button works as the mouse right button when the
supplied remote mouse receiver is connected with your
computer. See page 34.
6.
34.
33.
3. POWER OFF Button
You can use this button to turn your projector off.
NOTE: To turn off the projector, press the POWER OFF
button twice.

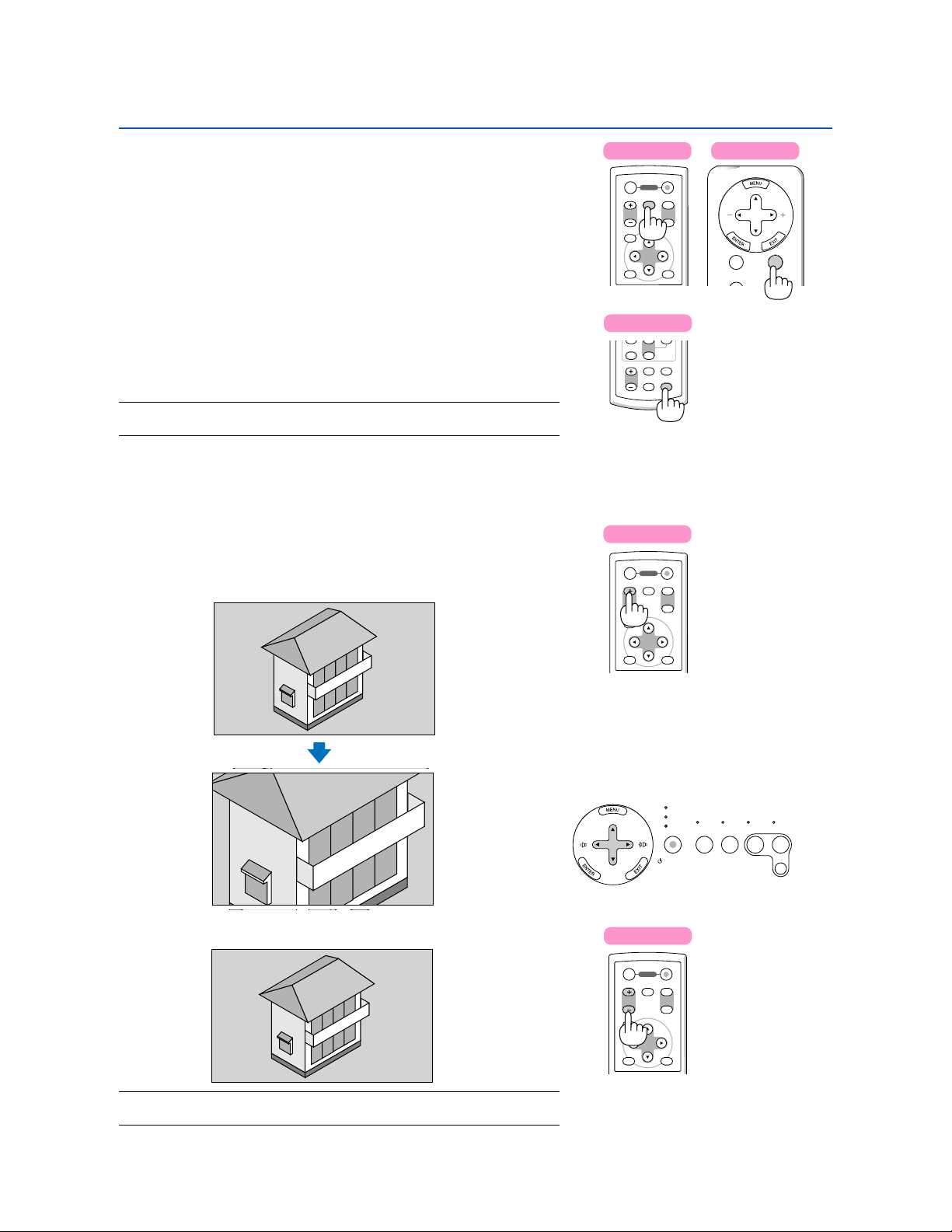

4. MAGNIFY (+)(–) Button
Use this button to adjust the image size up to 400%.
The image is magnified about the center of the screen.
See page 33.
13. VIDEO Button
Press this button to select a video source from a VCR,
DVD player, laser disc player or document camera.
14. S-VIDEO Button
Press this button to select an S-Video source from a
VCR.
15. COMPUTER 1/2 Button
Press this button to select COMPUTER 1 or 2 (or Component) input.
8
1. Introduction
1
3
4
7
9
11
13
14
17
OFF
MAGNIFYPAGE
PIC-MUTE
MENU
ENTER
L-CLICK
VIDEO
S-VIDEO
VOLUME
ON
POWER
UP
DOWN
EXIT
R-CLICK
MOUSE
AUTO ADJ.COMPUTER
1
2
ASPECTHELP
FREEZEPICTURE
2
6
5
8
10
12
16
15
18
20
21
19
16. AUTO ADJ. Button
Use this button to adjust an RGB source for an optimal picture.
See page
17. VOLUME (+)(–) Button
Press (+) to increase the volume and (–) to decrease
it.

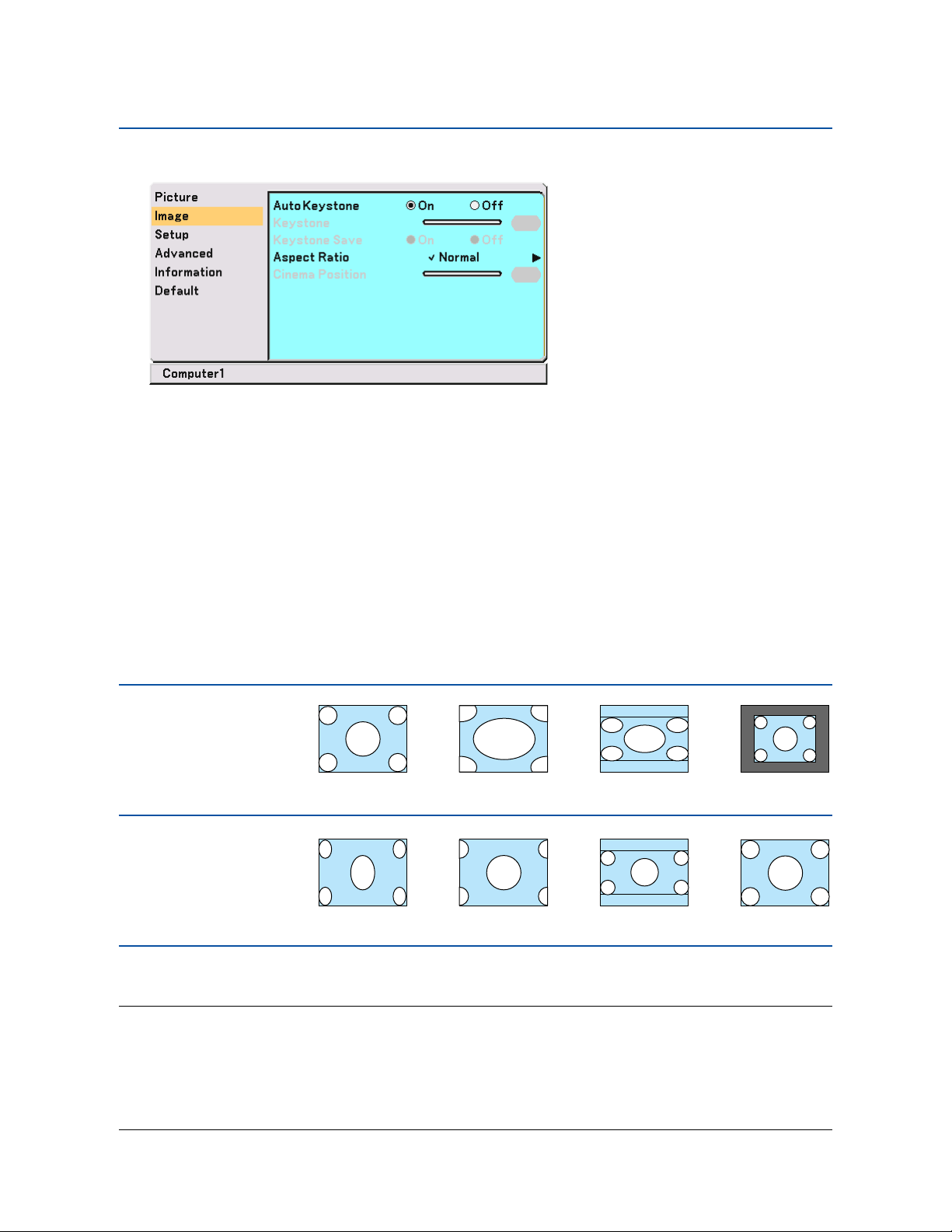

18. ASPECT Button
Press this button once to display the Aspect Ratio
select menu. Keep pressing will change aspect ratios.
See page

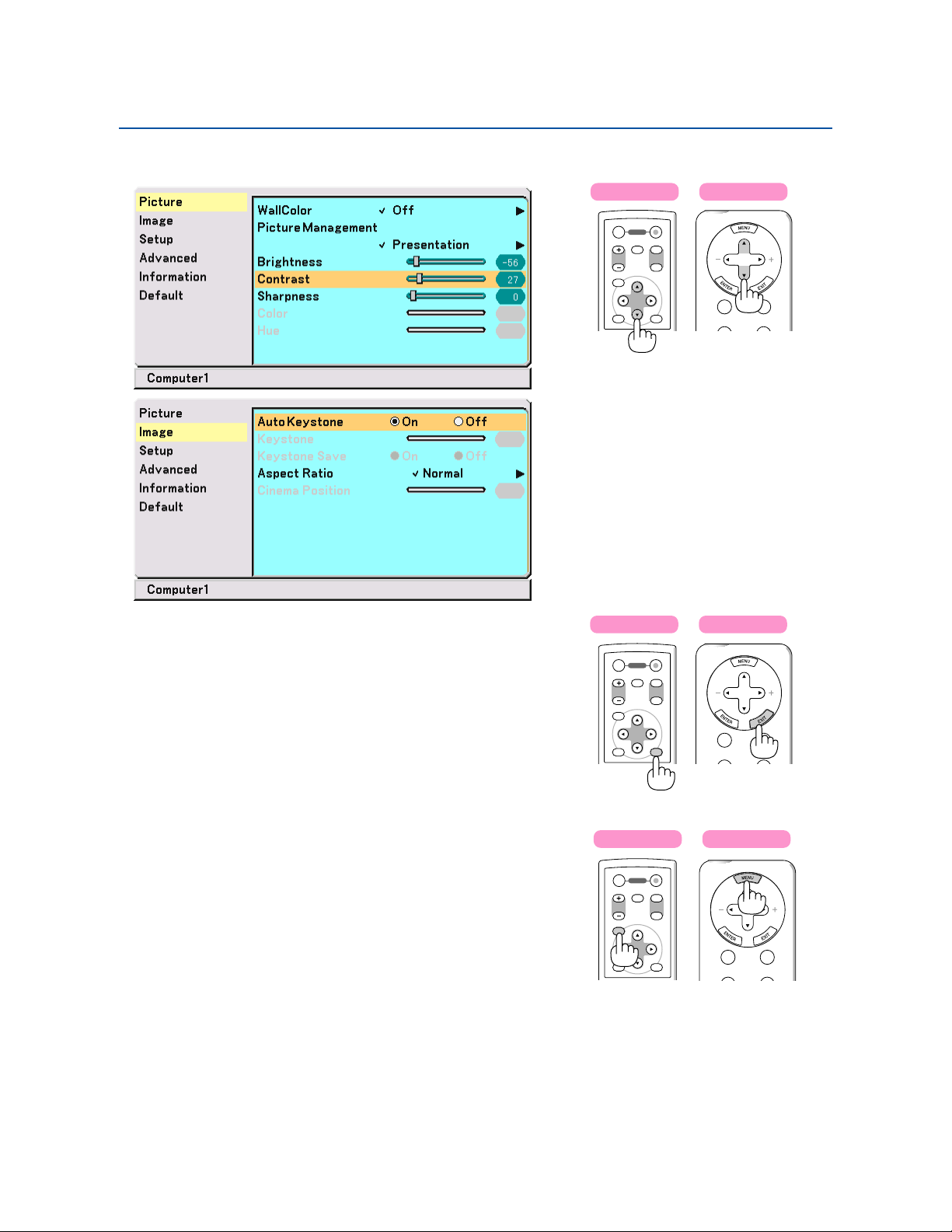

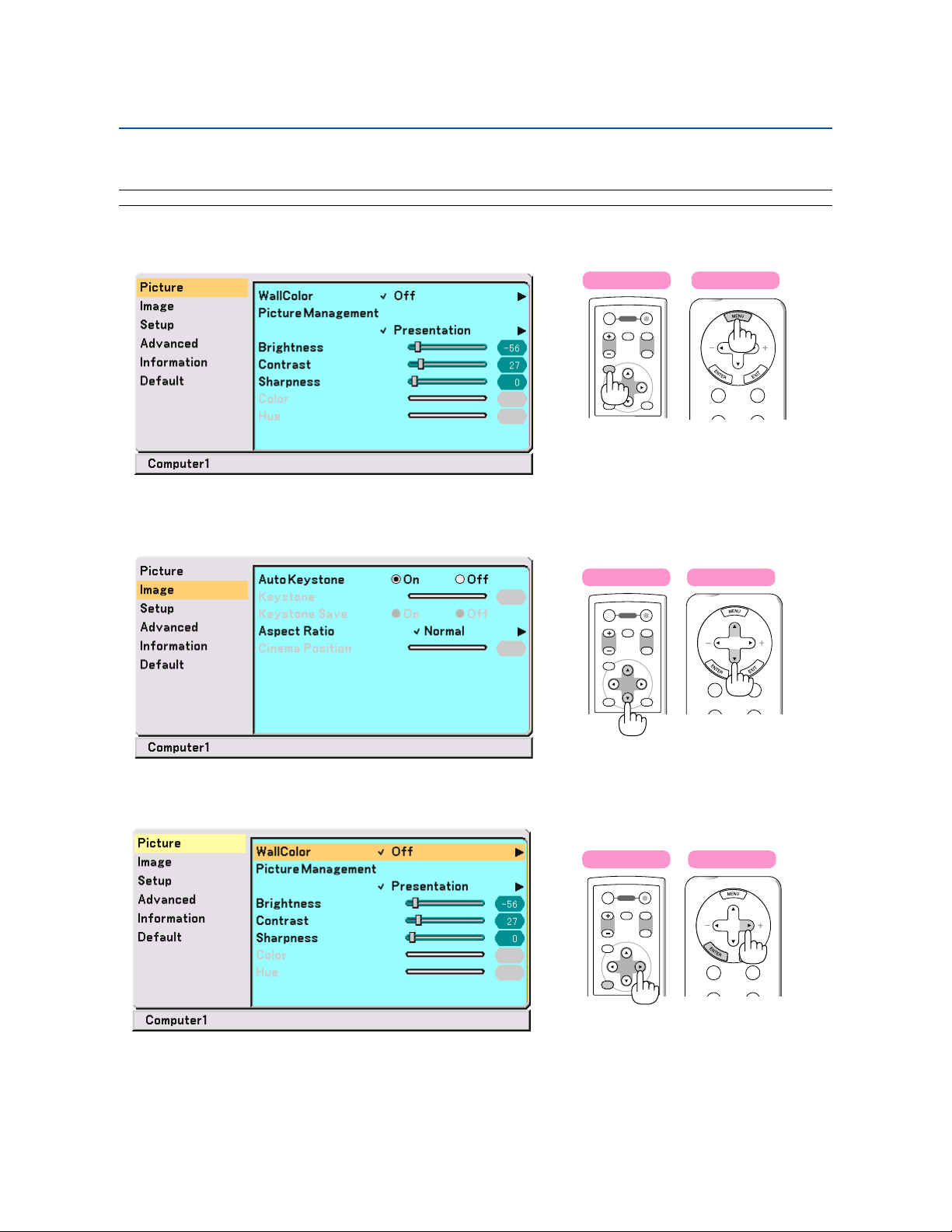

19. PICTURE Button
Press this button to display the Picture adjustement
menu to adjust Wall Color, Picture Management,
Brightness, Contrast, Sharpness, Color and Hue. See
pages

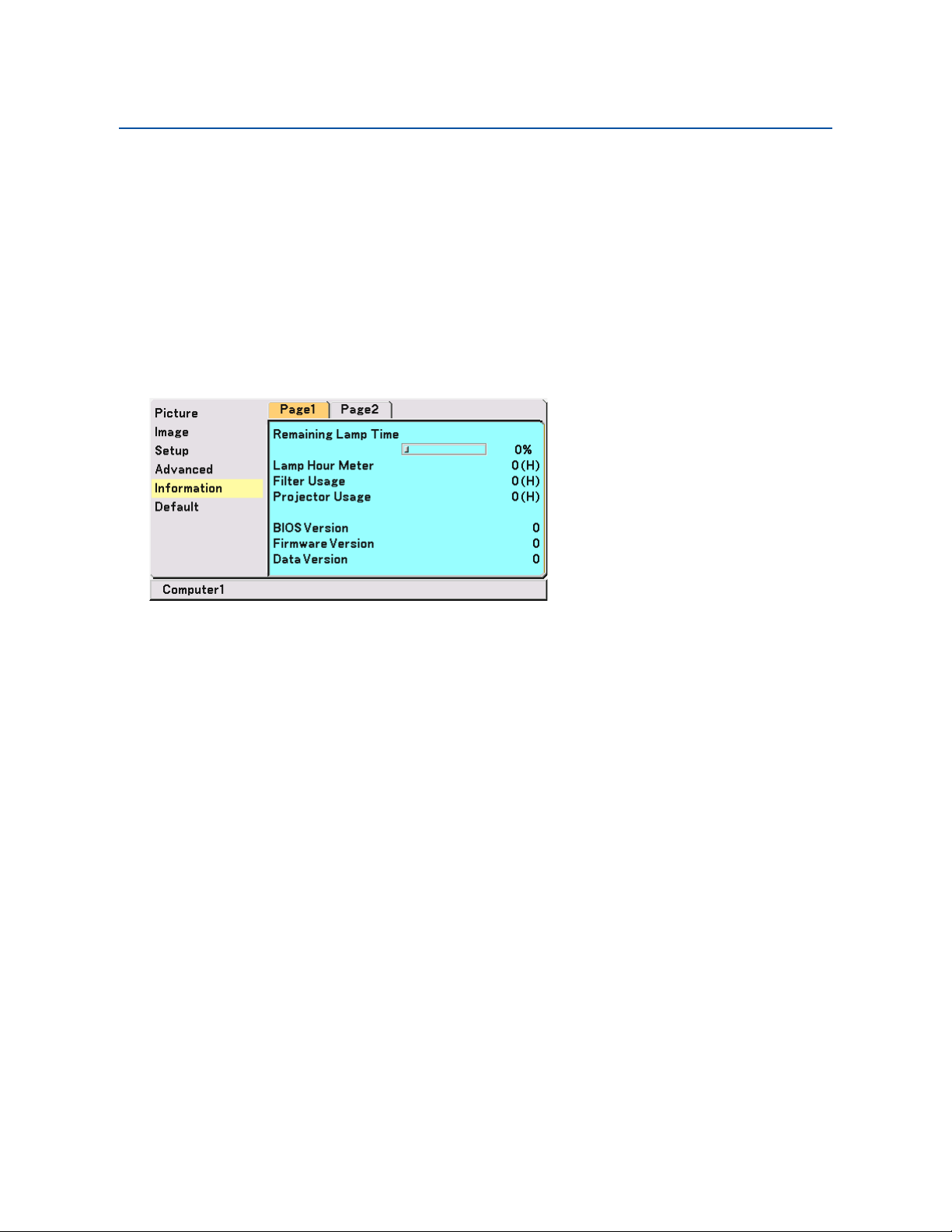

20. HELP Button
Provides the information on the current signal and projector settings. See page
21. FREEZE Button
This button will freeze a picture. Press again to resume motion. See page 33.
31.
42.
40 to 41.
49.
9

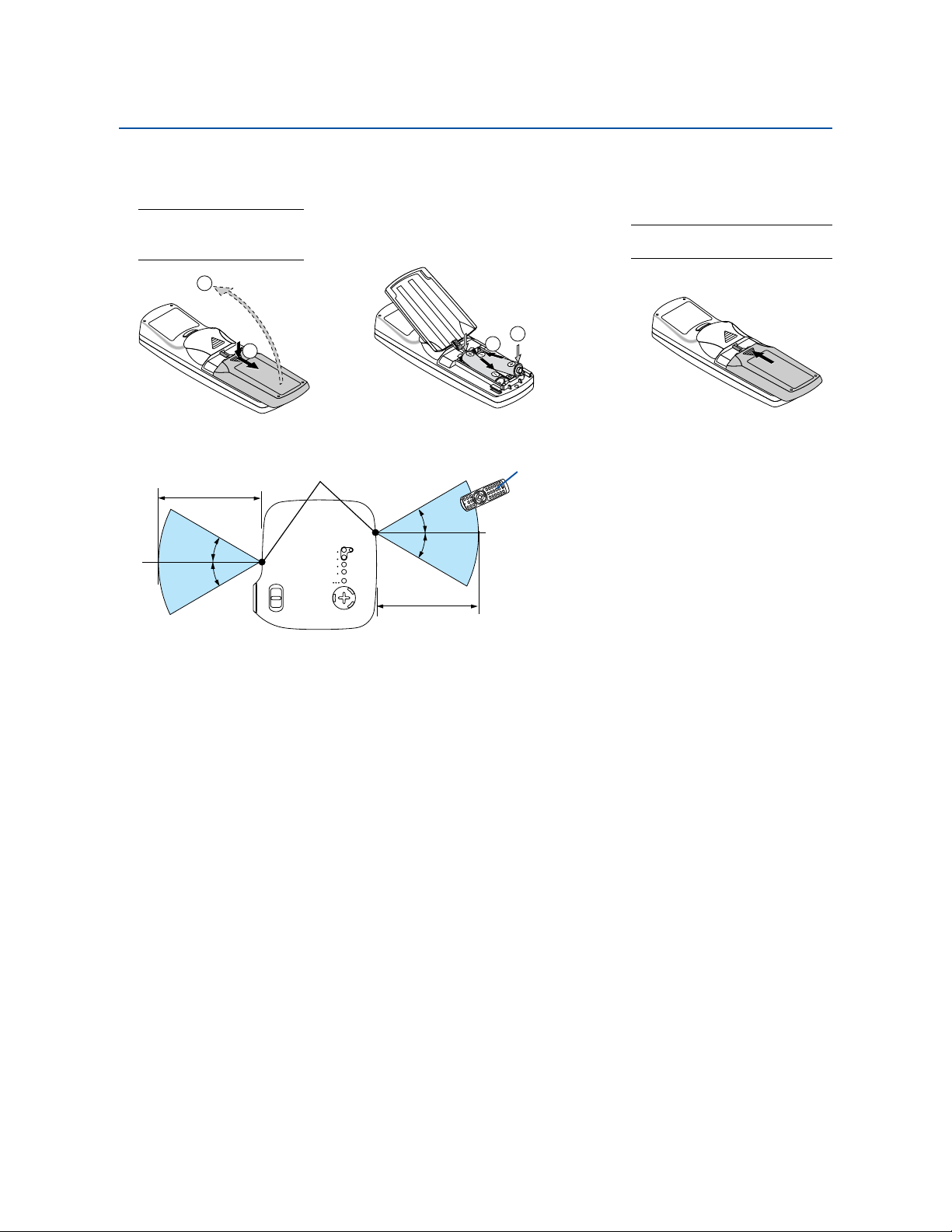

Battery Installation
1. Introduction
1
Press firmly and slide the
battery cover off.
2
Remove both old batteries and
install new ones (AAA). Ensure
that you have the batteries' polarity (+/–) aligned correctly.
3
Slip the cover back over the batteries until it snaps into place. Do
not mix different types of batteries or new and old batteries.
Remote Control Precautions
• Handle the remote control carefully.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• If you will not be using the remote control for a long time, remove the batteries.
• Do not place the batteries upside down.
• Do not use new and old batteries together, or use different types of batteries together.
Operating Range for Wireless Remote Control
Remote sensor on projector cabinet
7m/22 feet
Remote control
30°
30°
30°
• The infrared signal operates by line-of-sight up to a distance of about 22 feet/7 m and within a 60-degree angle of
the remote sensor on the projector cabinet.
• The projector will not respond if there are objects between the remote control and the sensor, or if strong light falls
on the sensor. Weak batteries will also prevent the remote control from properly operating the projector.
30°
7m/22 feet
10
1. Introduction
For 8771
1
2
3
4
6
8
1. Infrared Transmitter
Direct the remote control toward the remote sensor
on the projector cabinet.
2. MENU Button
Displays the menu for various settings and adjustments.
3. SELECT 왖왔왗왘 / Volume Buttons
왖왔 : Use these buttons to select the menu of the
item you wish to adjust.
왗왘 : Use these buttons to change the level of a se-
lected menu item. A press of the 왘 button ex-
ecutes the selection. When no menus appear,
these buttons work as a volume control.
4. ENTER Button
Executes your menu selection and activates items selected from the menu.
SELECT
SOURCEPIC-MUTE
ASPECT
POWER
7. PIC-MUTE Button
8. ASPECT Button
9. POWER Button
5
7
9
This button turns off the image and sound for a short
period of time.
Press again to restore the image and sound.
Press this button once to display the Aspect Ratio
select menu. Keep pressing will change aspect ratios.
See page
Use this button to turn the power on and off when the
main power is supplied and the projector is in standby
mode.
To turn on the projector, press and hold this button for
a minimum of two seconds. To turn off the projector,
press this button once to display the confirmation
message and then press the POWER button or ENTER button.
42.
5. EXIT Button
Pressing this button will return to the previous menu.
While you are in the main menu, pressing this button
will close the menu.

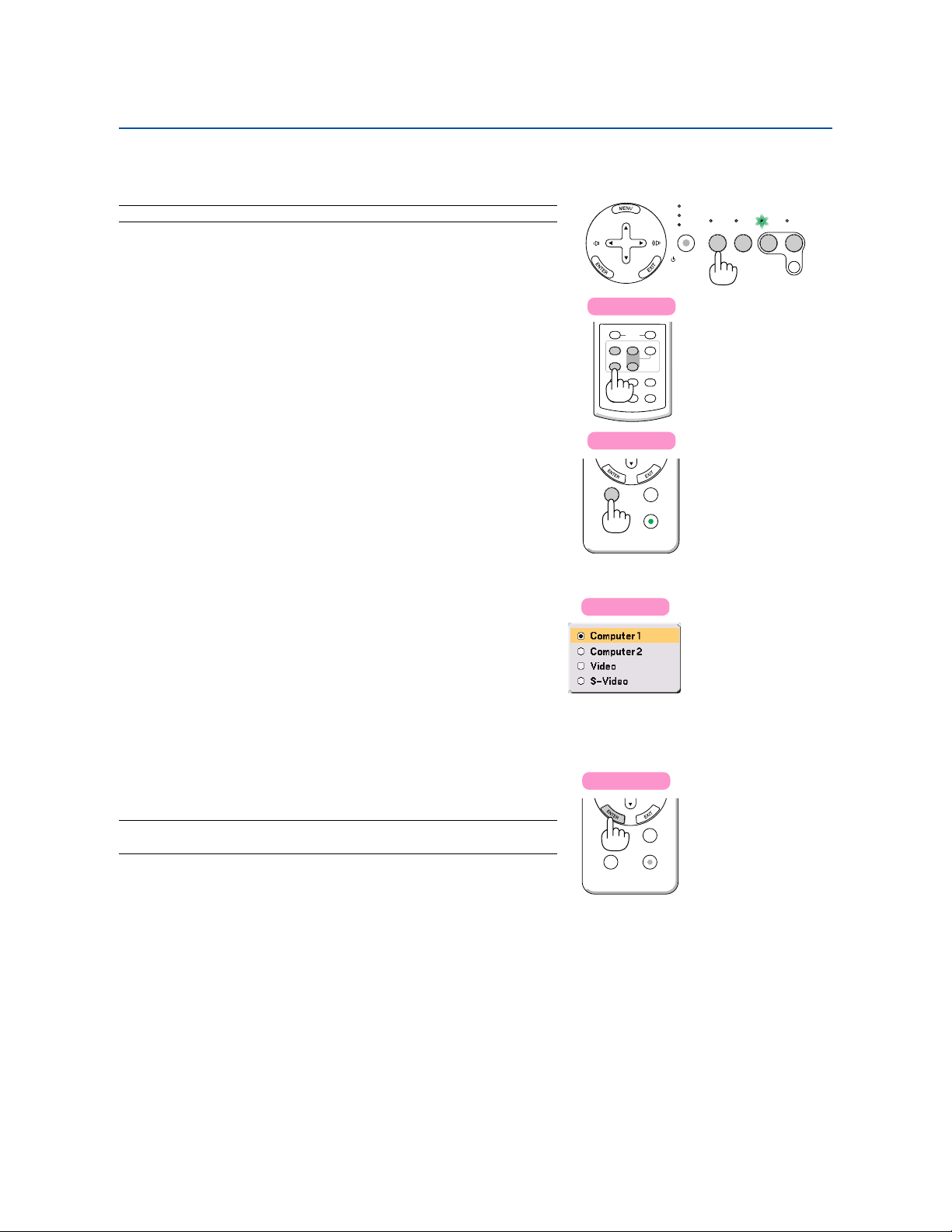

6. SOURCE Button
Press this button to select a video source such as a
PC, VCR or DVD player. Each time this button is
pressed, the input source will change as follows:
Push the catch to the right
and remove the battery
holder.
2
Remove the old Lithium coin cell
and install new one (CR2032).
Ensure that the side with the
mark “+” is up.
CR2025
3
Push the battery holder back into
the remote control until you feel a
click.
Remote Control Precautions
• Handle the remote control carefully.
• If the remote control gets wet, wipe it dry immediately.
• Avoid excessive heat and humidity.
• If you will not be using the remote control for a long time, remove the battery.
• Do not place the battery upside down.
• Keep the coin cell battery out of reach of children so as not to allow them to swallow the cell battery.
CAUTION
Danger of explosion if battery is incorrectly replaced.
Replace only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to your local regulations.
CR2025
Operating Range for Wireless Remote Control
Remote sensor on projector cabinet
7m/22 feet
30°
30°
30°
• The infrared signal operates by line-of-sight up to a distance of about 22 feet/7 m and within a 60-degree angle of
the remote sensor on the projector cabinet.
• The projector will not respond if there are objects between the remote control and the sensor, or if strong light falls
on the sensor.
Weak battery will also prevent the remote control from properly operating the projector.
30°
7m/22 feet
Remote control
12
2. Installation and Connections
This section describes how to set up your projector and how to connect video and audio sources.
1
Your projector is simple to set up and use.
But before you get started, you must first:
z Set up a screen and the projector.
x Connect your computer or video equip-
ment to the projector. See pages
17 to
21.
c Connect the supplied power cable. See
22.
2
3
page
NOTE: Ensure that the power cable and any
other cables are disconnected before moving
the projector. When moving the projector or
To the wall outlet.
when it is not in use, cover the lens with the
lens cap.
Setting Up the Screen and the Projector
Selecting a Location
The further your projector is from the screen or wall, the larger the image. The minimum size the image can be is
approximately 21" (0.53 m) measured diagonally when the projector is roughly 29 inches (0.73 m) from the wall or
screen. The largest the image can be is 300" (7.6 m) when the projector is about 393 inches (10 m) from the wall or
screen. Use the drawing below as a guide.
Screen Size (Unit: cm/inch
609.6(W)⳯457.2(H) / 240(W)⳯180(H)
300"
Screen Size
487.7(W)⳯365.8(H) / 192(W)⳯144(H)
406.4(W)⳯304.8(H) / 160(W)⳯120(H)
365.8(W)⳯274.3(H) / 144(W)⳯108(H)
304.8(W)⳯228.6(H) / 120(W)⳯90(H)
243.8(W)⳯182.9(H) / 96(W)⳯72(H)
203.2(W)⳯152.4(H) / 80(W)⳯60(H)
162.6(W)⳯121.9(H) / 64(W)⳯48(H)
121.9(W)⳯91.4(H) / 48(W)⳯36(H)
81.3(W)⳯61.0(H) / 32(W)⳯24(H)
61.0(W)⳯45.7(H) / 24(W)⳯18(H)
42.7(W)⳯32(H) / 17(W)⳯13(H)
Lens center
240
"
200
"
180"
150"
120"
100"
80"
60"
40"
30"
21"
0.7/
29
1.0/38
1.3/
ACIN
2.0/78
51
2.6/104
3.3/130
4.0/157
5.0/196
6.6/262
6.0/236
Distance (Unit: m/inch)
8.0/314
10.0/393
13
2. Installation and Connections
14
2. Installation and Connections
Throw Distance and Screen Size
The following shows the proper relative positions of the projector and screen. Refer to the table to determine the
position of installation.
Distance Chart
Screen Width
Screen Diagonal
Screen Height
ACIN
Screen SizeBC
DiagonalWidthHeight
inch
inch
120
144
160
168
192
216
240
inch
17
20
24
32
48
58
64
67
72
80
96
100
120
150
180
200
210
240
270
300
21
25
30
40
60
72
80
84
90
108
120
126
144
162
180
Screen center
(B)
(D)
Lens Center
Screen Bottom
B = Vertical distance between lens center and
screen center
Throw Angle (움)
C = Throw distance
D = Vertical distance between lens center and
* Installing your projector on the ceiling must be done
by a qualified technician.Contact your AV dealer for
more information.
* Do not attempt to install the projector yourself.
• Only use your projector on a solid, level surface. If the
projector falls to the ground, you can be injured and
the projector severely damaged.
• Do not use the projector where temperatures vary
greatly. The projector must be used at temperatures
between 41˚F (5˚C) and 95˚F (35˚C).
• Do not expose the projector to moisture, dust, or
smoke. This will harm the screen image.
• Ensure that you have adequate ventilation around your
projector so heat can dissipate. Do not cover the vents
on the side or the front of the projector.
Reflecting the Image
Using a mirror to reflect your projector's image enables
you to enjoy a much larger image. Contact your
dealer if you need a mirror system. If you're using a mirror system and your image is inverted, use the MENU
and SELECT buttons on your projector cabinet or your
remote control to correct the orientation. See page
44.
16
2. Installation and Connections
Making Connections
NOTE: When using with a notebook PC, be sure to connect between the projector and the notebook PC before turning on the
power to the notebook PC. In most cases signal cannot be output from RGB output unless the notebook PC is turned on after
connecting with the projector.
* If the screen goes blank while using your remote control, it may be the result of the computer's screen-saver or power
management software.
Enabling the computer’s external display
Displaying an image on the notebook PC’s screen does not necessarily mean it outputs a signal to the projector.
When using a PC compatible laptop, a combination of function keys will enable/disable the external display.
Usually, the combination of the ‘Fn” key along with one of the 12 function keys gets the external display to come on
or off. For example, NEC laptops use Fn + F3, while Dell laptops use Fn + F8 key combinations to toggle through
external display selections.
Connecting Your PC or Macintosh Computer
NOTE:The COMPUTER 1 connector supports Plug & Play (DDC2).
COMPUTER 1 IN
VIDEO IN
R
AUDIO
L/MONO
S-VIDEO IN
AUDIO OUT
AUDIO
R
L/MONO
COMPUTER 1 IN
MONITOR OUT
COMPUTER 2 IN
AUDIO
COMPUTER 2 IN
PC CONTROL
AUDIO
AC IN
RGB signal cable (supplied)
To mini D-Sub 15-pin connector on the projector. It
is recommended that you use a commercially
available distribution amplifier if connecting a
signal cable longer than the supplied one.
Audio cable
(not supplied)
PHONE
NOTE: For older Macintosh, use a
commercially available pin adapter
PHONE
IBM VGA or Compatibles (Notebook
type) or Macintosh (Notebook type)
(not supplied) to connect to your
Mac's video port.
IBM PC or Compatibles (Desktop type)
or Macintosh (Desktop type)
Connecting your PC or Macintosh computer to your projector will enable you to project your computer's screen image
for an impressive presentation.
To connect to a PC or Macintosh, simply:
1. Turn off the power to your projector and computer.
2. Use the supplied signal cable to connect your PC or Macintosh to the projector.
3. Connect the supplied power cable. See page 22.
4. Turn on the projector and the computer.
5. If the projector goes blank after a period of inactivity, it may be caused by a screen saver installed on the computer
you've connected to the projector.
17
Loading...
+ 57 hidden pages
You need points to download manuals.
1 point = 1 manual.
You can buy points or you can get point for every manual you upload.
