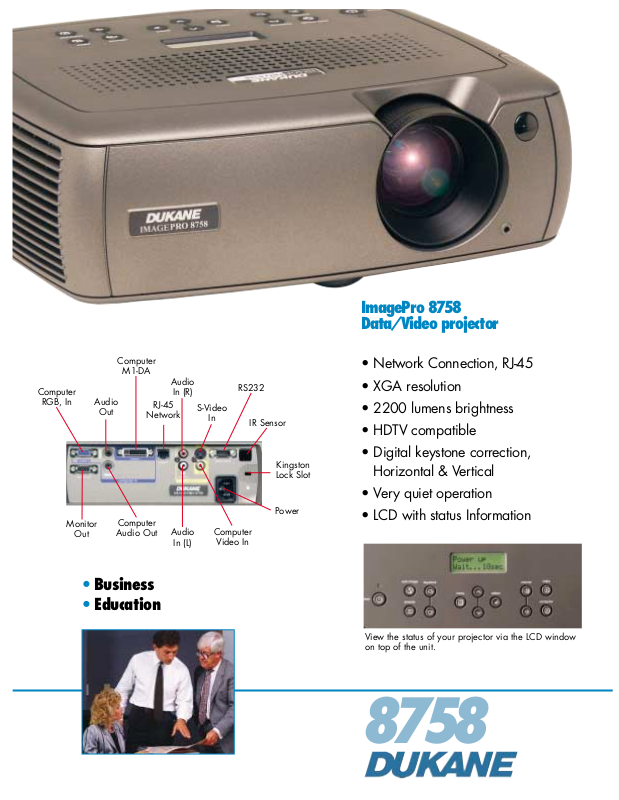

Dukane 8758 Product Sheet

ImagePro 8758
Data/Video projector

Computer

RGB, In

Monitor

Computer

M1-DA

Audio

Out

Computer

Out

Audio Out

• Business

• Education

Audio

RJ-45

Network

Audio

In (R)

In (L)

S-Video

In

Computer

Video In

RS232

IR Sensor

Kingston
Lock Slot

Power

• Network Connection, RJ-45

• XGA resolution

• 2200 lumens brightness

• HDTV compatible

• Digital keystone correction,
Horizontal & Vertical

• Very quiet operation

• LCD with status Information

View the status of your projector via the LCD window
on top of the unit.

8758

ImagePro 8758

Diagonal Width Min. Max. a*

Inches Inches Feet Feet Inches

40 32 4.3 5.1 1.5

60 48 6.4 7.6 2.0
100 80 10.7 12.7 4.0
120 96 12.9 15.3 5.0
150 120 16.1 19.1 6.5
210 168 22.5 26.7 7.0

a* = Distance Below Lens Center line.

Image Size 4:3

Throw Distance

Portable LCD projector

A way to present your images anywhere

The Dukane ImagePro 8758™ offers best-in-class
capabilities with intuitive controls. Get outstanding
color saturation and brightness that lasts. Use the net­work connection to set up any meeting room by
remote monitoring and control.

The high-end features mean that you do less work.
Automatic horizontal and vertical keystone correction,
plus ceiling detection
ensure your image is
proper, with no work
on your part. Automatic
synchronization with
computer and video
sources allows for quick
and smooth transitions.

features:

Key

• Light weight

• 2200 lumens brightness

• XGA resolution

• Simple, icon based menu

• HDTV compatible

• Zoom lens

• Automatic ceiling detection

• Network connection

• Picture-In-Picture (PIP)

• LCD window with status information

8758 Image Size Distance Table

Audio Visual Products
2900 Dukane Drive
St. Charles, Illinois 60174
www.dukcorp.com/av

Toll-free: 800-676-2485
Fax: [phone]
E-mail: [e-mail]

ImagePro is a registered trademark of Dukane Corporation

Specifications 8758

Image Element 0.8” polysilicon TFT x3, MLA
Brightness 2200 ANSI lumens
Resolution 1024 x 768 pixels (H X V), XGA
Contrast 400 to 1
Scanning Frequency fh 16-110 kHz, fv 50-85 Hz
Lens Manual zoom, 1.2X
Lens Throw Ratio 1.61 - 1.91 to 1 throw distance

to image width

Keystone Correction Digital, vertical +/-25 deg,

Horizontal +/-15 deg
Computer SVGA, VGA, XGA, and
Compatibility SXGA Compressed,

Mac 13” and Mac 16”
Video Compatibility NTSC, NTSC 4.43, PAL, PAL-M,

PAL-N, PAL60, SECAM, HDTV,

1080i,1080i/50 Hz, 720p, 480i/p
Image Control Freeze function, electronic

magnification and pan
Mouse Control Using USB – using M1-USB
Picture in Picture, PiP Yes, video in computer
Other Feature Mask reveal for images
Projection Modes Front/rear/ceiling
Color Reproduction 24 bit (16.7 million)
Lamp 170 W UHP
Lamp Life 2000 hours
Audio 2 speaker, 2 watt
Throw Distance 60” to 400”
Screen Size, diag. 40” to 300”
Inputs, Video Component, via adapter for M1-D/A

S-video, Min DIN 4-pin,

Composite video, RCA x 1

Audio, Stereo, RCA x 2, for c-video
Inputs, Computer 1 x RGB Signal: D-sub, 15 pin

Computer, Stereo Mini Audio x 1

M1-D/A Computer (DVI)
Outputs Monitor 15 pin, D-sub
Outputs,Control 15 pin D-Sub, RS-232

Audio out, Stereo mini jack

USB, mouse control w M1-D/A
Network connection RJ-45 port
Security Kensington slot
Fan Level Ultra quiet, 34 dB normal
Operating Temp. 50 to 95 deg. F
Power AC 100-240V, AC 50/60 Hz, 260 watt
Size (WxHxD) 11.6” x 4.1” x 10.3”
Weight 7.5 lbs.
Shipping Weight 14 lbs.
Carton Size 16” x 16” x 14”
Accessories Included Remote control, batteries, power

cord, M1-D/A computer and USB cable,

3.5 mm audio cable, RCA x 3

cable,operators manual and

soft carry case
Safety UL/CUL, FCC/DOC Class A,
Optional Accessories Lamp; 456-8758

Rolling briefcase; 185-406, Ceiling

mount, universal; PJF-UNV-S M1 to

Component adapter; SP-M1-ADPT

Two (2) year limited warranty on parts and labor in North America,
lamp excluded (for other locations, local warranties apply). Includes
Dukane’s FREE 1 year

Peace-of-Mind Loaner Program

#11626-C-04

.

2

YR
