Page 1
DLP Data Video Projector
User’s Manual
MODELS 8404/8404A
Information in this Guide may change due to product improvements. To obtain the latest
manuals, literature, and software please visit the Dukane web site at; www.dukane.com/av
and look at the specic model SUPPORT or DOWNLOADS section.
DUKANE CORP AV SERVICE DEPT
2900 Dukane Drive
St Charles, IL 60174
800-676-2487 / 630-762-4032
Fax 630-584-5156
[email protected]
www.dukane.com/av
403-8404-A-00.1 User’s Manual
Page 2
Table of Contents
Table of Contents ................................................................................... 1
Usage Notice ..........................................................................................2
Safety Information .........................................................................................2
Precautions....................................................................................................3
Eye Safety Warnings .....................................................................................5
Product Features ...........................................................................................5
Introduction.............................................................................................6
Package Overview.........................................................................................6
Product Overview ..........................................................................................7
Main Unit ................................................................................................................ 7
Control Panel ......................................................................................................... 8
Input / Output Connections .................................................................................... 9

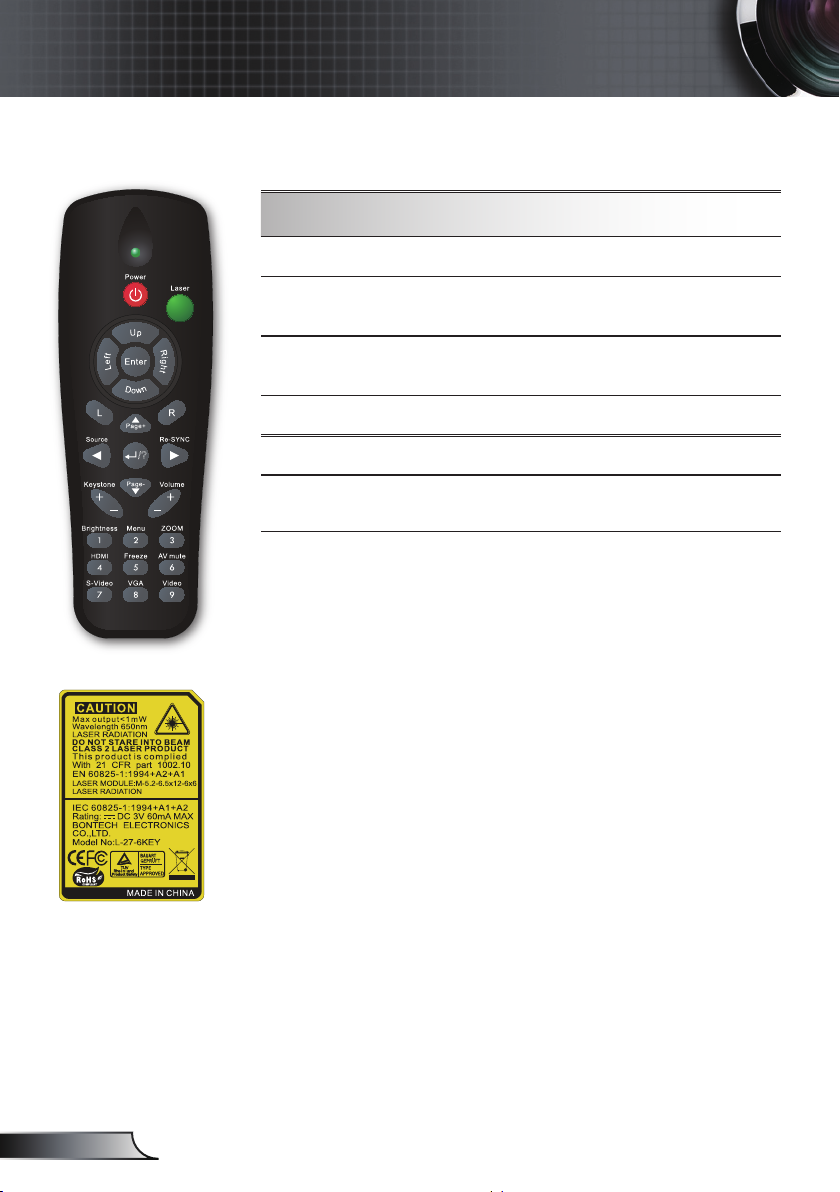

Remote Control .................................................................................................... 1
Installation ............................................................................................12
Connecting the Projector .............................................................................12
Connect to Computer/Notebook ..........................................................................12
Connect to Video Sources ................................................................................... 1
Powering On/Off the Projector .....................................................................14
Powering On the Projector ................................................................................... 14
Powering Off the projector ................................................................................... 1
Warning Indicator ................................................................................................. 1
Adjusting the Projected Image.....................................................................16
Adjusting the Projector’s Height ........................................................................... 16
Adjusting the Projector’s Zoom / Focus ............................................................... 1
Adjusting Projected Image Size ...........................................................................1
User Controls .......................................................................................18
Control Panel & Remote Control .................................................................18
Control Panel ....................................................................................................... 18
Remote Control .................................................................................................... 1

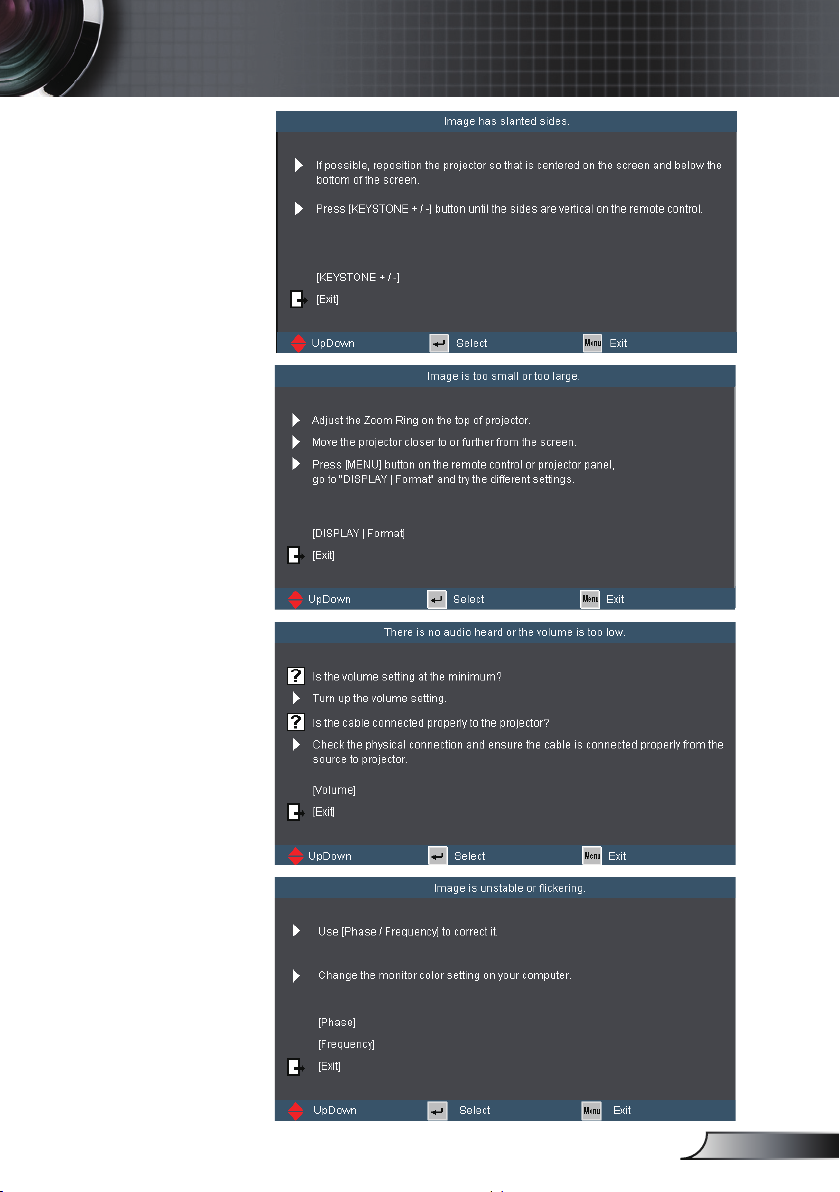

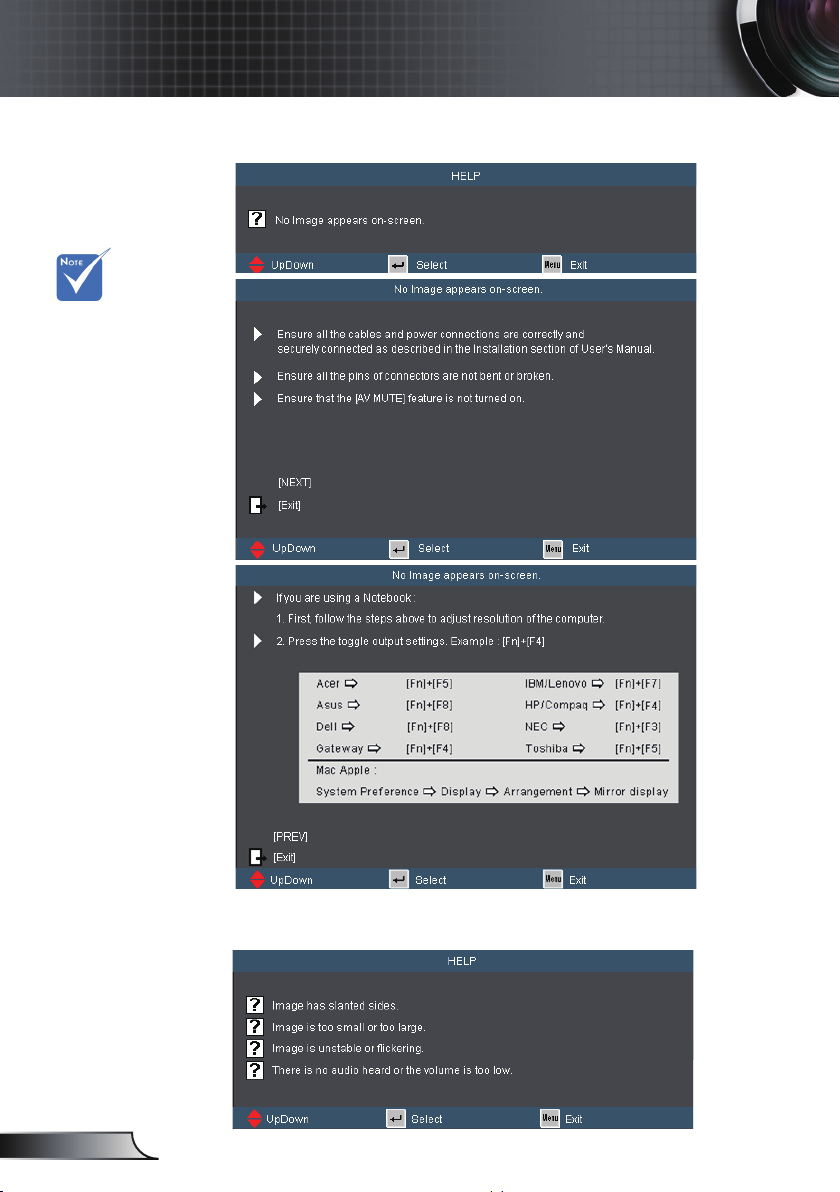

Using the HELP button ........................................................................................2

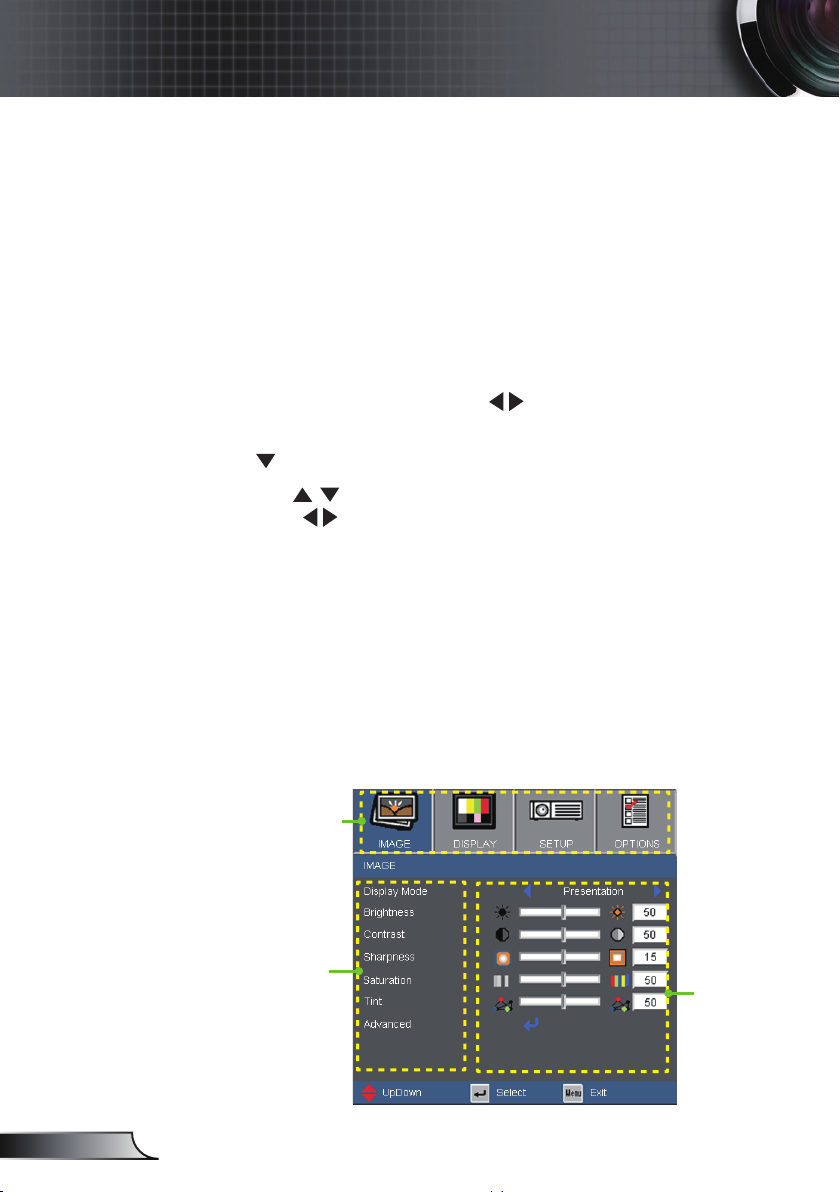

On-screen Display Menus ...........................................................................24
How to operate .................................................................................................... 24

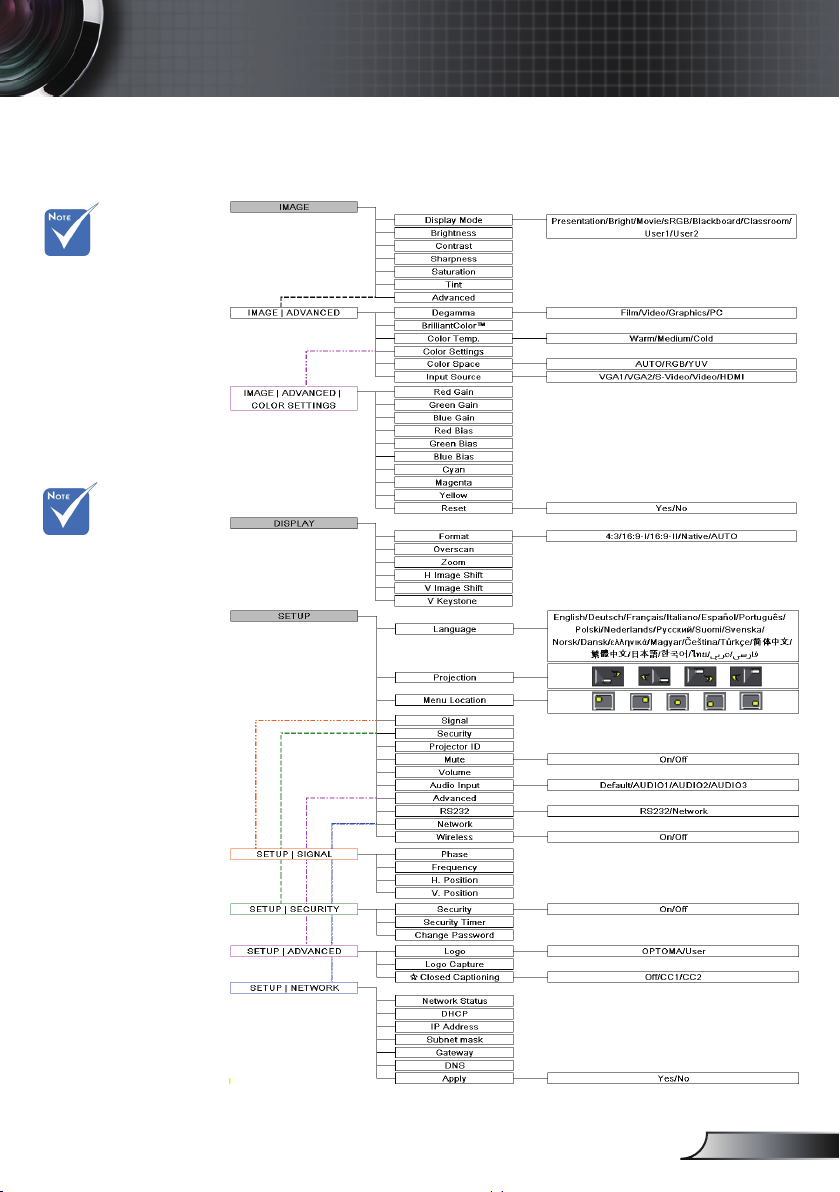

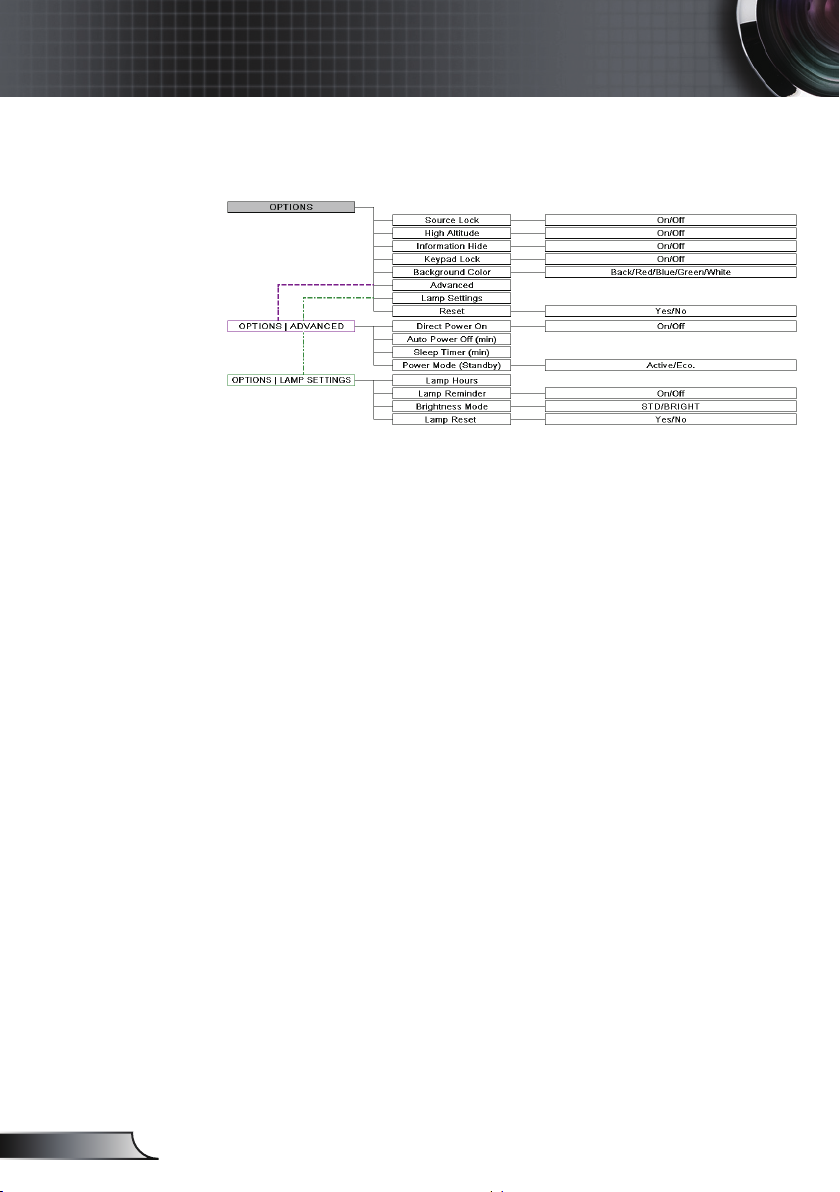

Menu Tree ............................................................................................................ 25

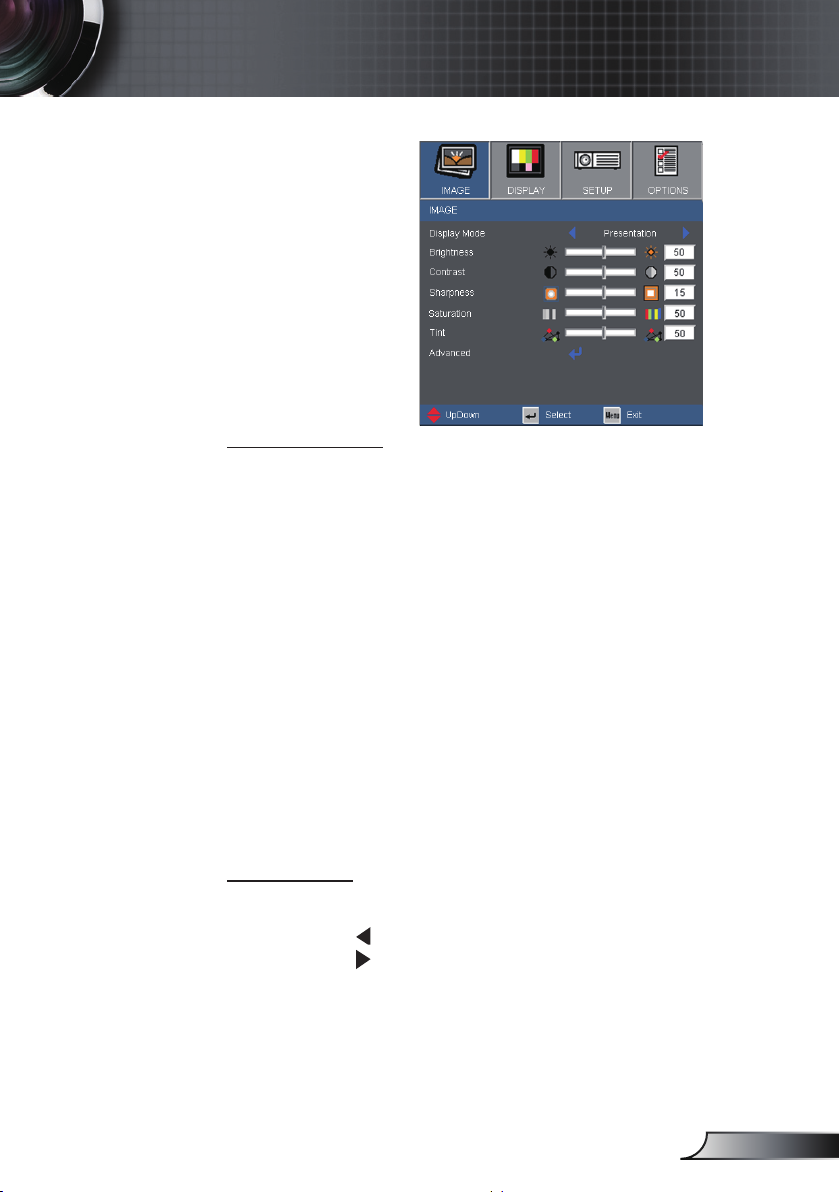

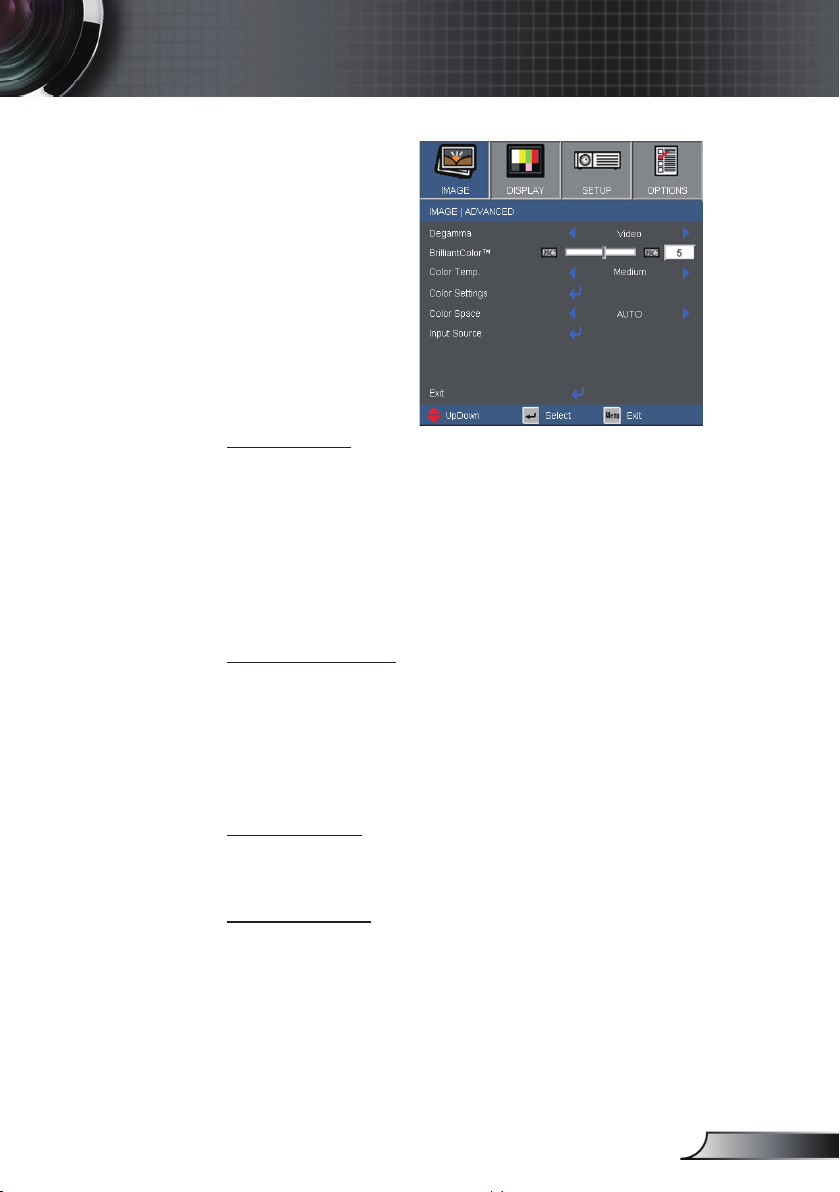

Image ...................................................................................................................27

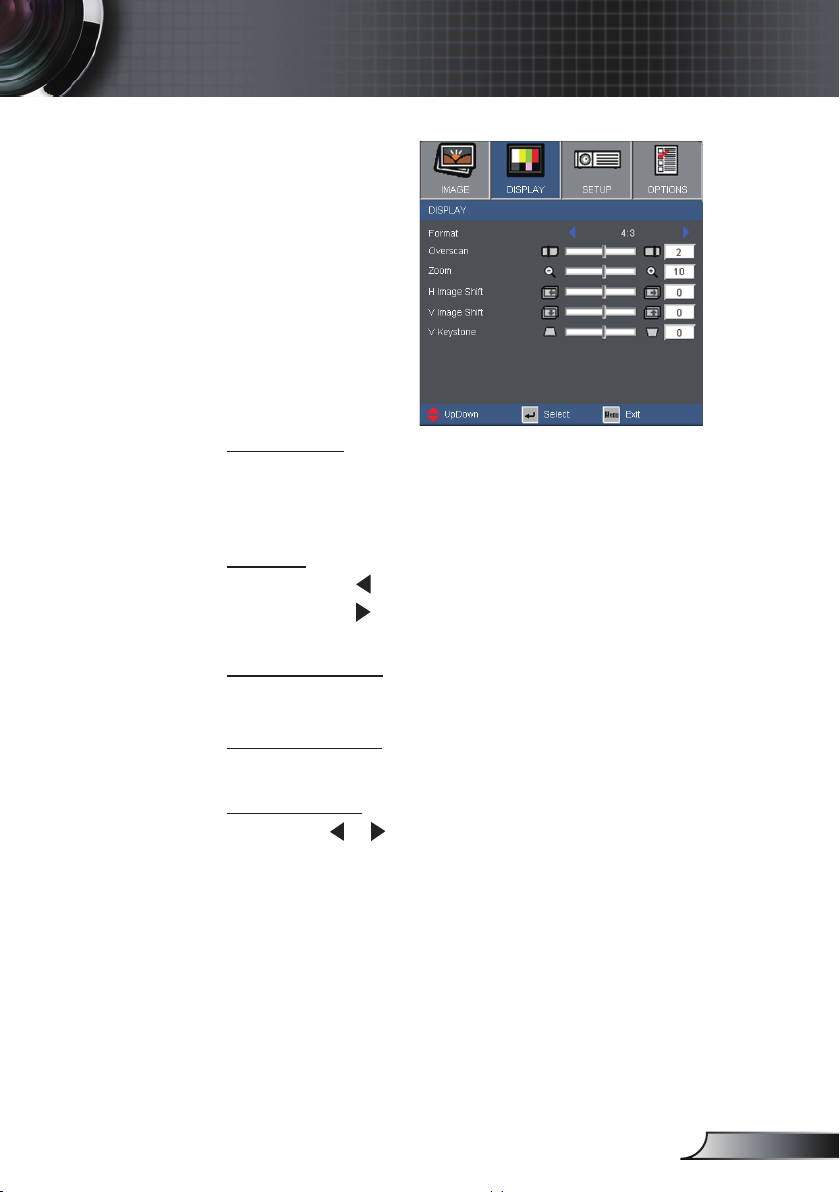

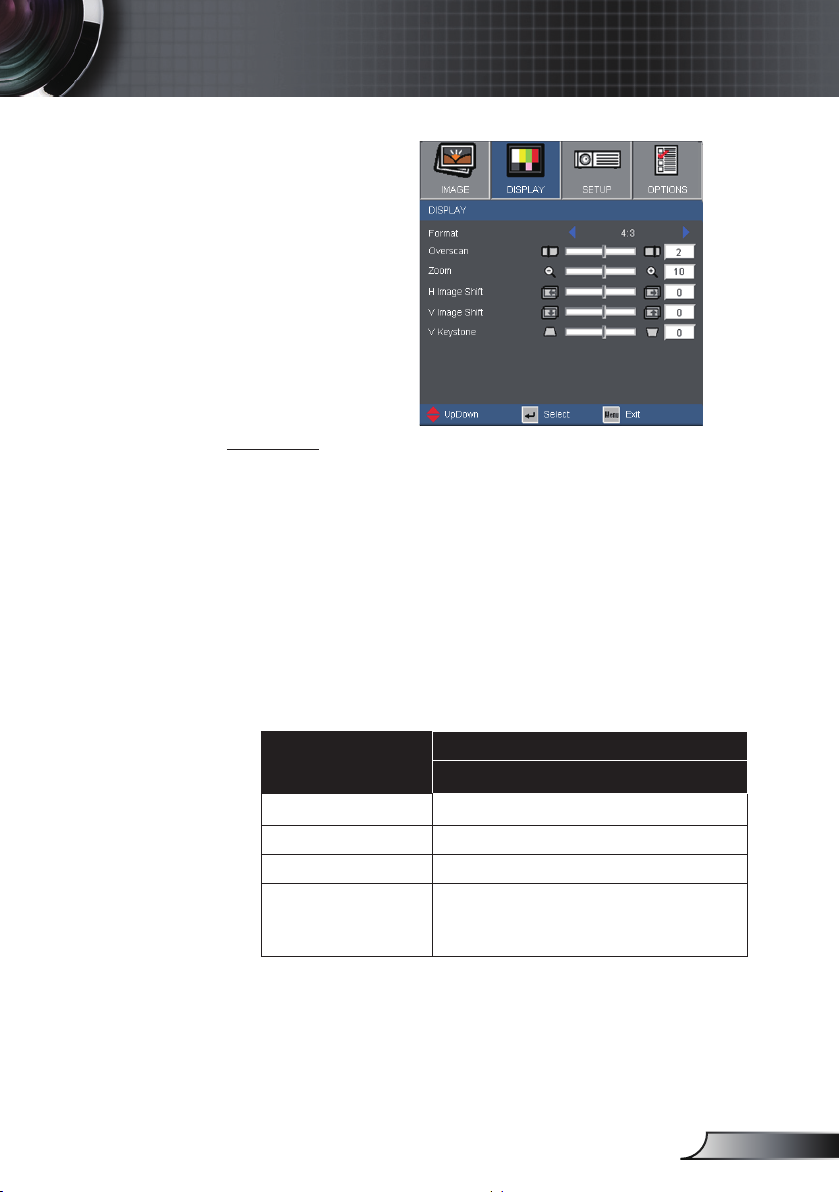

Display ................................................................................................................. 3

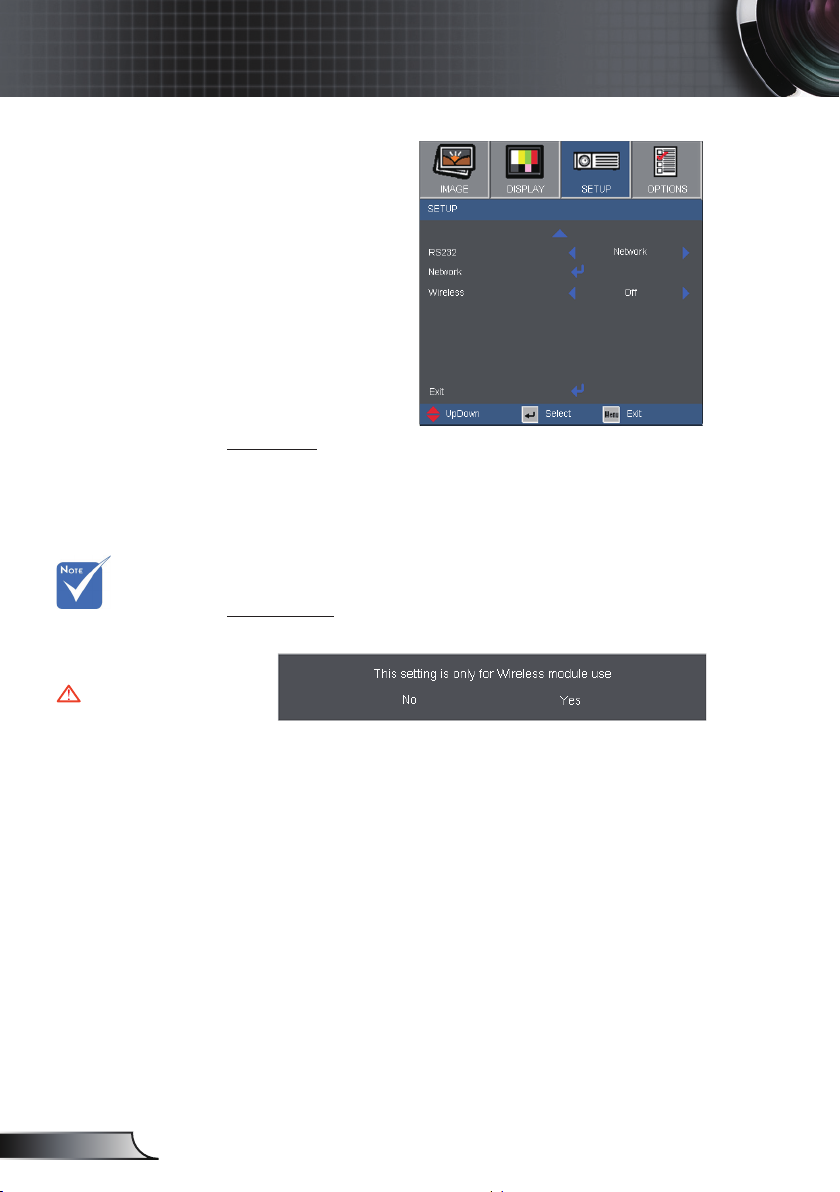

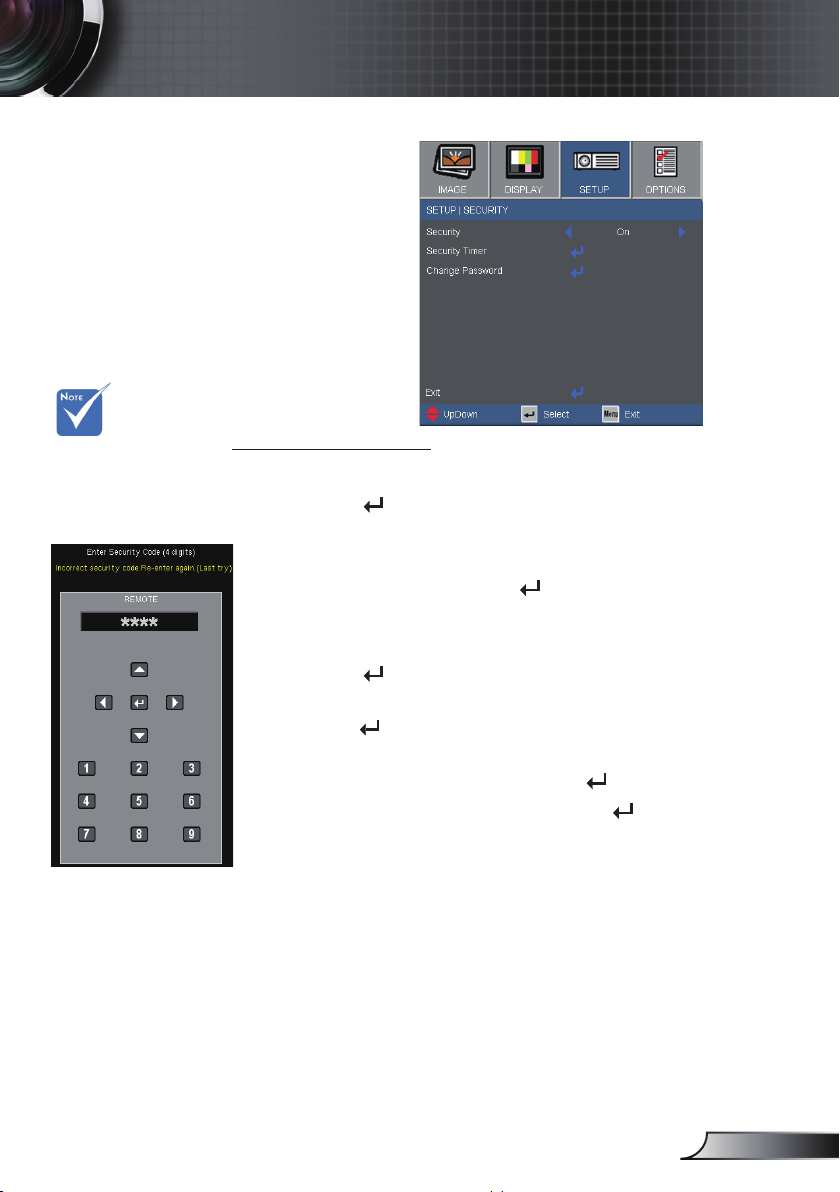

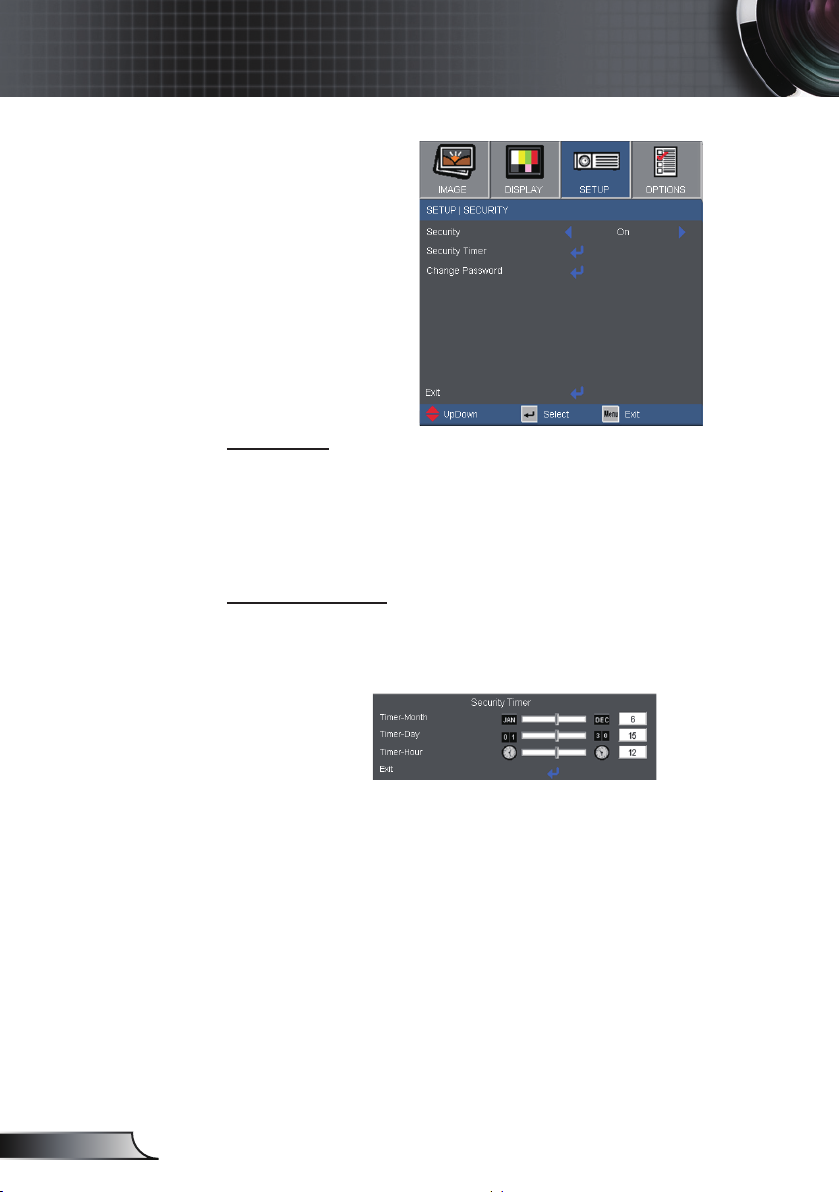

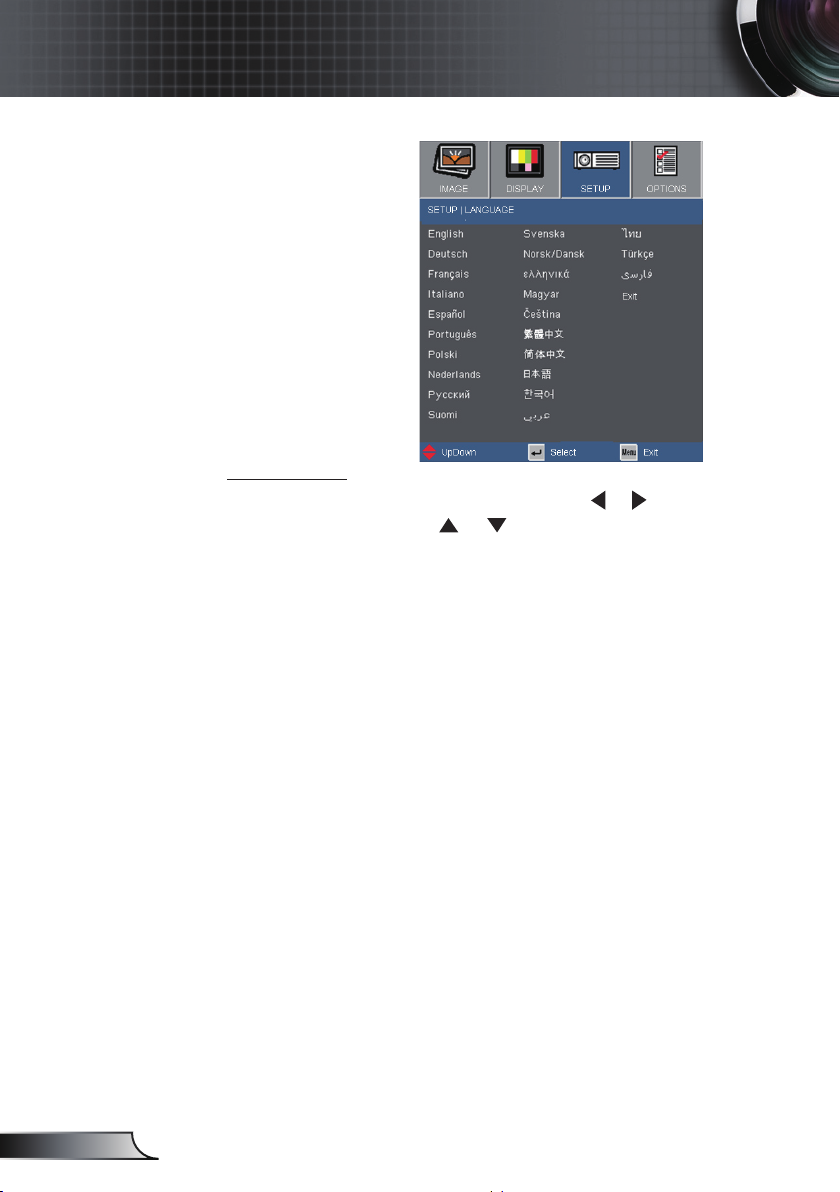

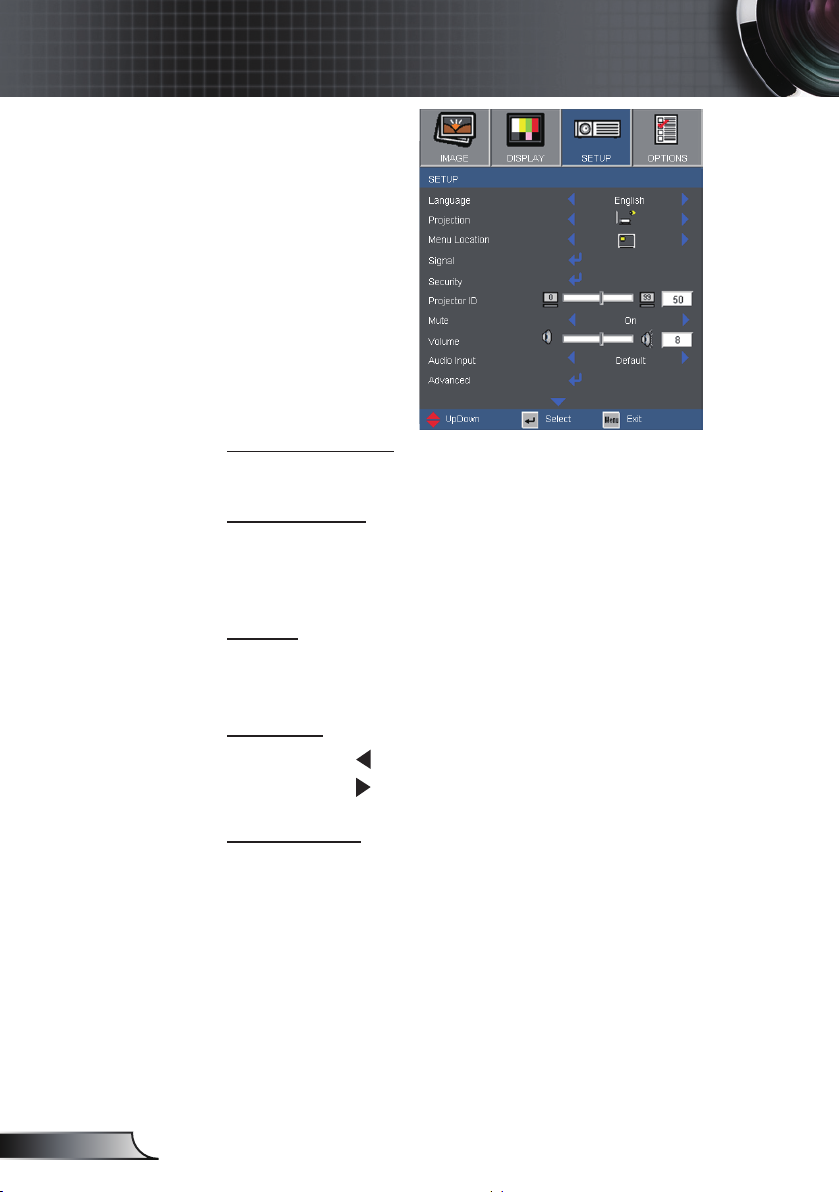

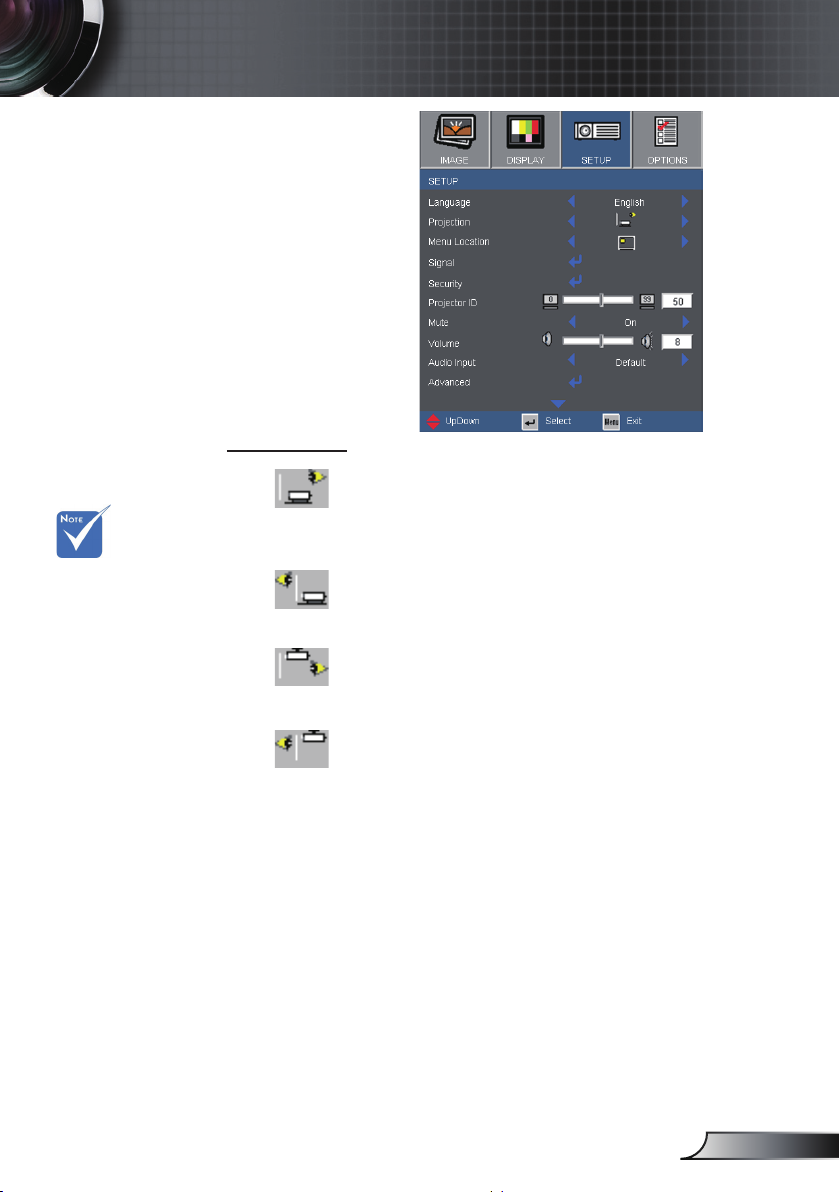

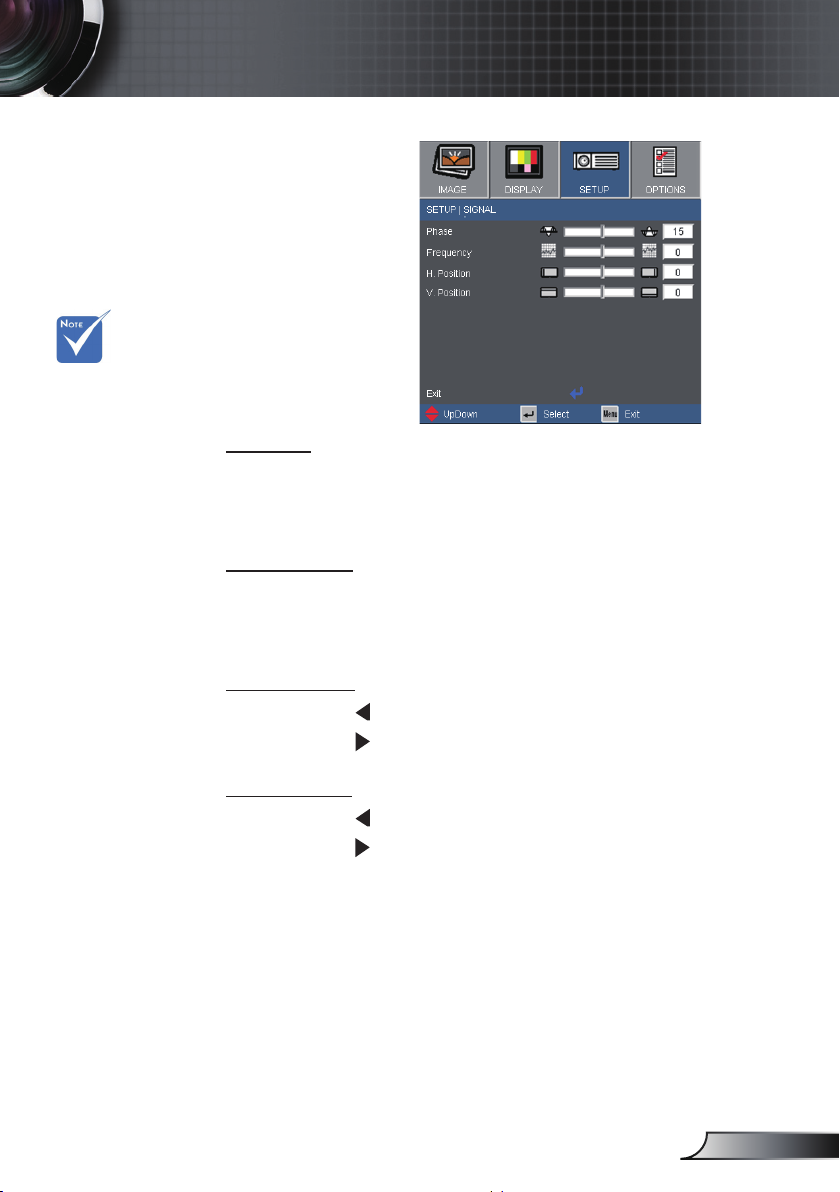

Setup .................................................................................................................... 35

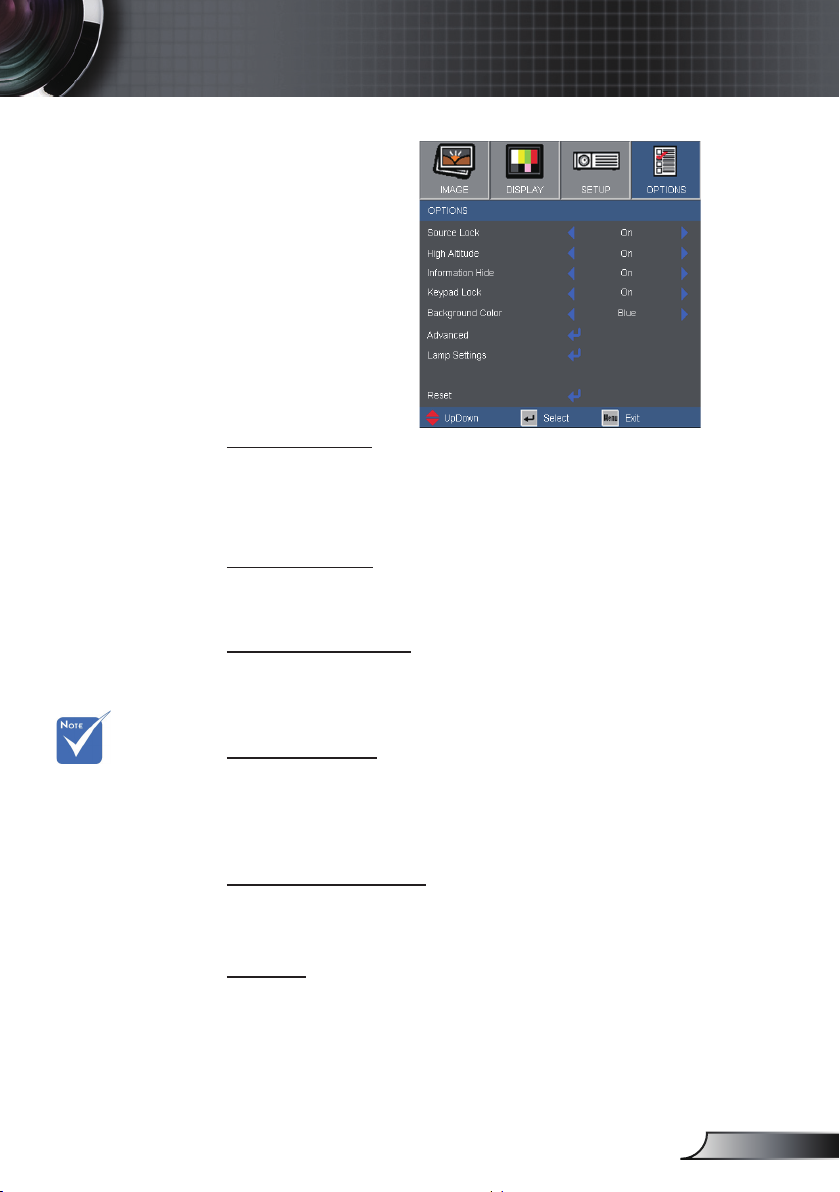

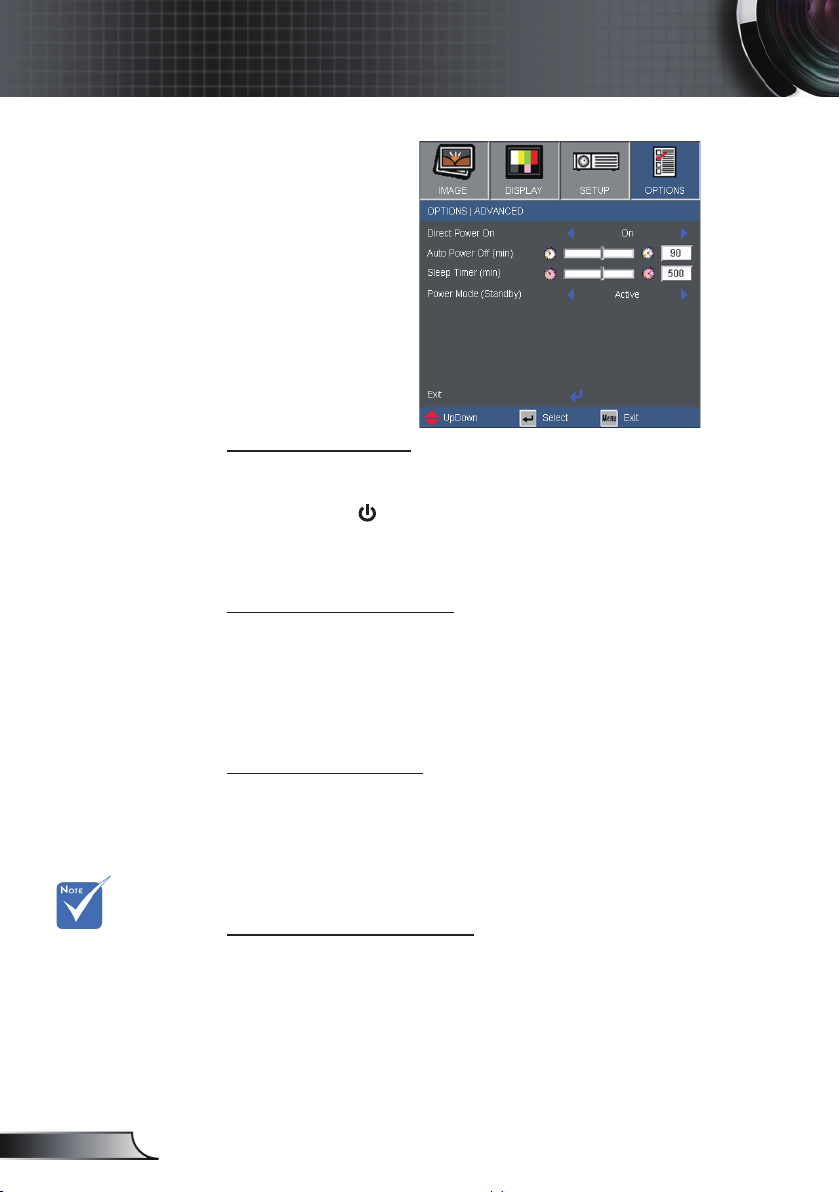

Options ................................................................................................................. 45
Appendices...........................................................................................48
Troubleshooting ...........................................................................................48
Projector Status Indication ..........................................................................5
Remote Control ...........................................................................................52
Replacing the Lamp.....................................................................................53
Compatibility Modes ....................................................................................55

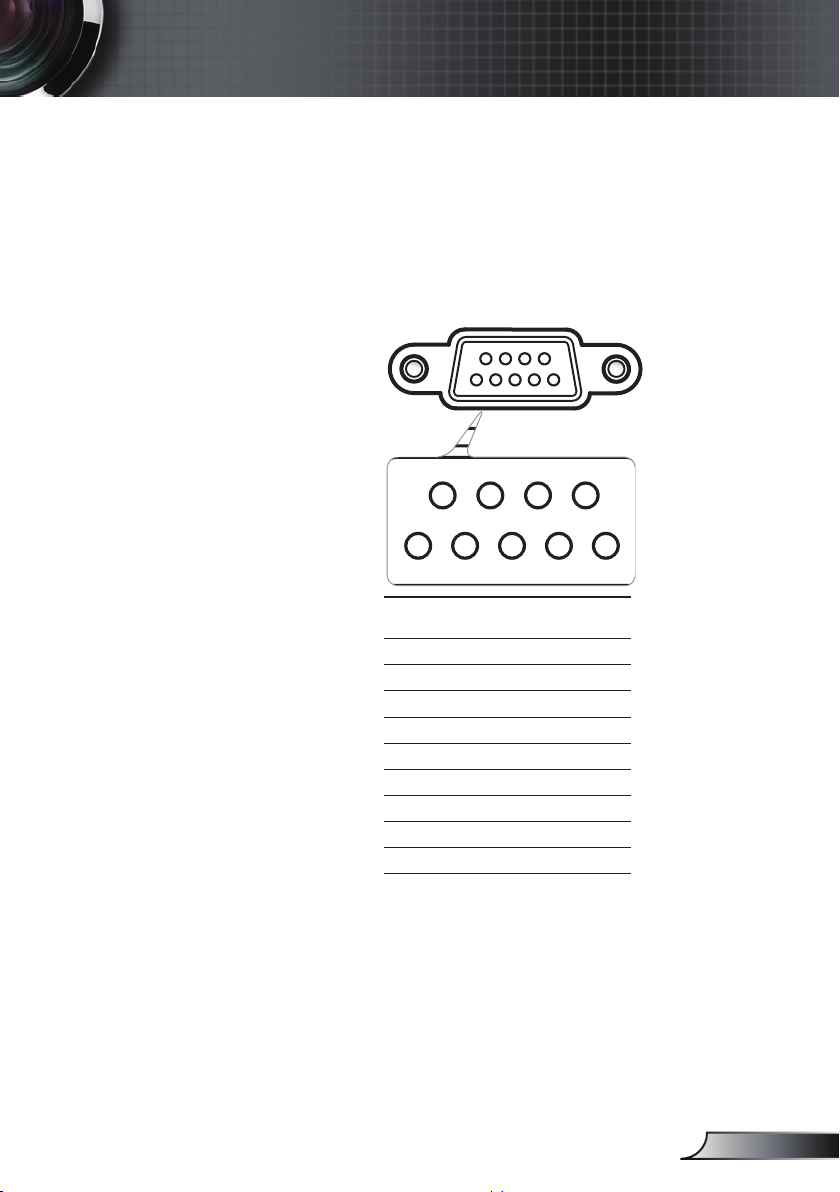

RS232 Commands and Protocol Function List............................................57

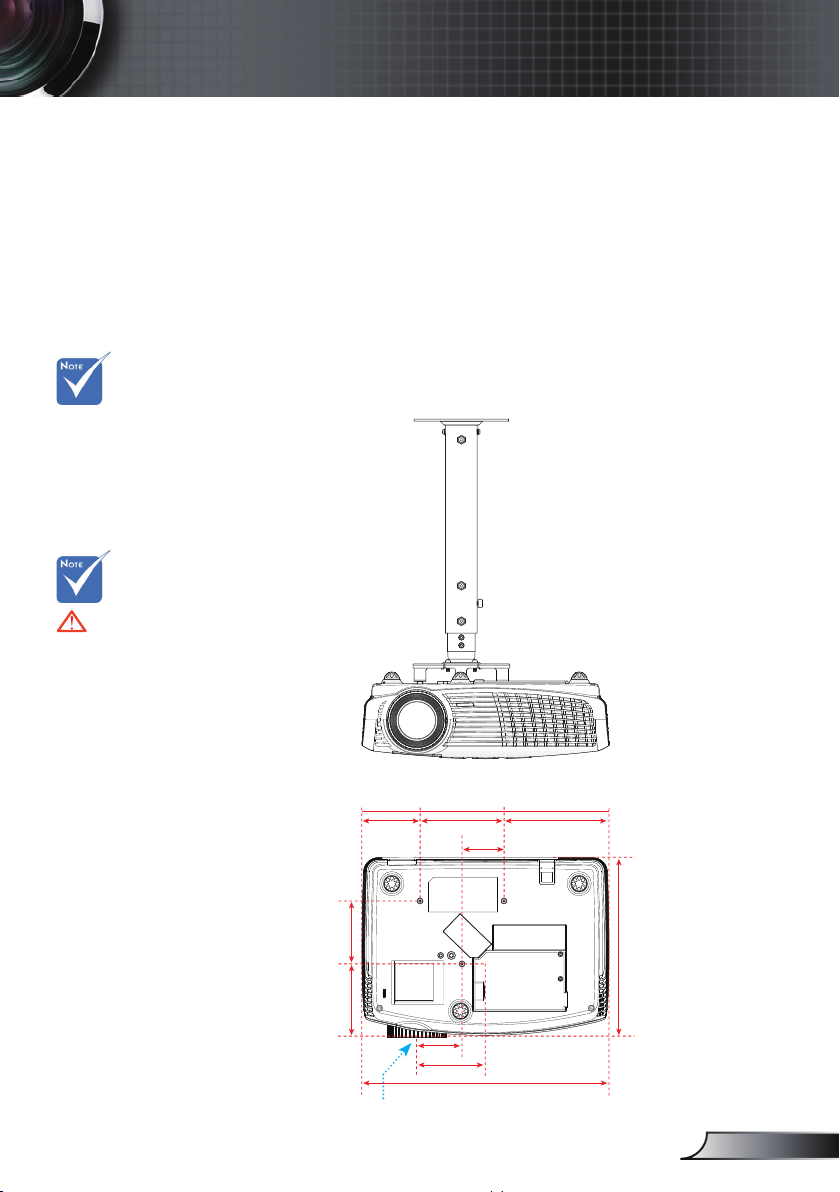

Ceiling Mount Installation ............................................................................6
Optoma Global Ofces ................................................................................62
Regulation & Safety notices ........................................................................64
1
3
5
5
7
7
9
1
1
1
1
1
English
Page 3
2
English
Usage Notice
Safety Information
The lightning ash with arrow head within an equilateral triangle is
intended to alert the user to the presence of uninsulated “dangerous
voltage” within the product’s enclosure that may be of suf cient
magnitude to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert
the user to the presence of important operating and maintenance
(servicing) instructions in the literature accompanying the appliance.
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DANGEROUS HIGH
VOLTAGES ARE PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE
CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.
Class B emissions limits
This Class B digital apparatus meets all requirements of the Canadian
Interference-Causing Equipment Regulations.
Important Safety Instruction
1. Do not block any ventilation openings. To ensure reliable operation of
the projector and to protect from over heating, it is recommended to
install the projector in a location that does not block ventilation. As an
example, do not place the projector on a crowded coffee table, sofa,
bed, etc. Do not put the projector in an enclosure such as a book case
or a cabinet that restricts air ow.
2. Do not use the projector near water or moisture. To reduce the risk
of re and/or electric shock, do not expose the projector to rain or
moisture.
3. Do not install near heat sources such as radiators, heaters, stoves or
any other apparatus such as ampli ers that emits heat.
4. Clean only with dry cloth.
5. Only use attachments/accessories speci ed by the manufacturer.
6. Do not use the unit if it has been physically damaged or abused.
Physical damage/abuse would be (but not limited to):
Unit has been dropped.
Power supply cord or plug has been damaged.
Liquid has been spilled on to the projector.
Projector has been exposed to rain or moisture.
Something has fallen in the projector or something is loose inside.
Do not attempt to service the unit yourself. Opening or removing covers
may expose you to dangerous voltages or other hazards. Please call
Optoma before you send the unit for repair.
7. Do not let objects or liquids enter the projector. They may touch
dangerous voltage points and short out parts that could result in
re or
electric shock.
8. See projector enclosure for safety related markings.
9. The unit should only be repaired by appropriate service personnel.
Page 4
3
English
Usage Notice
When the lamp
reaches the end
of its life, the
projector will
not turn back on
until the lamp
module has
been replaced.

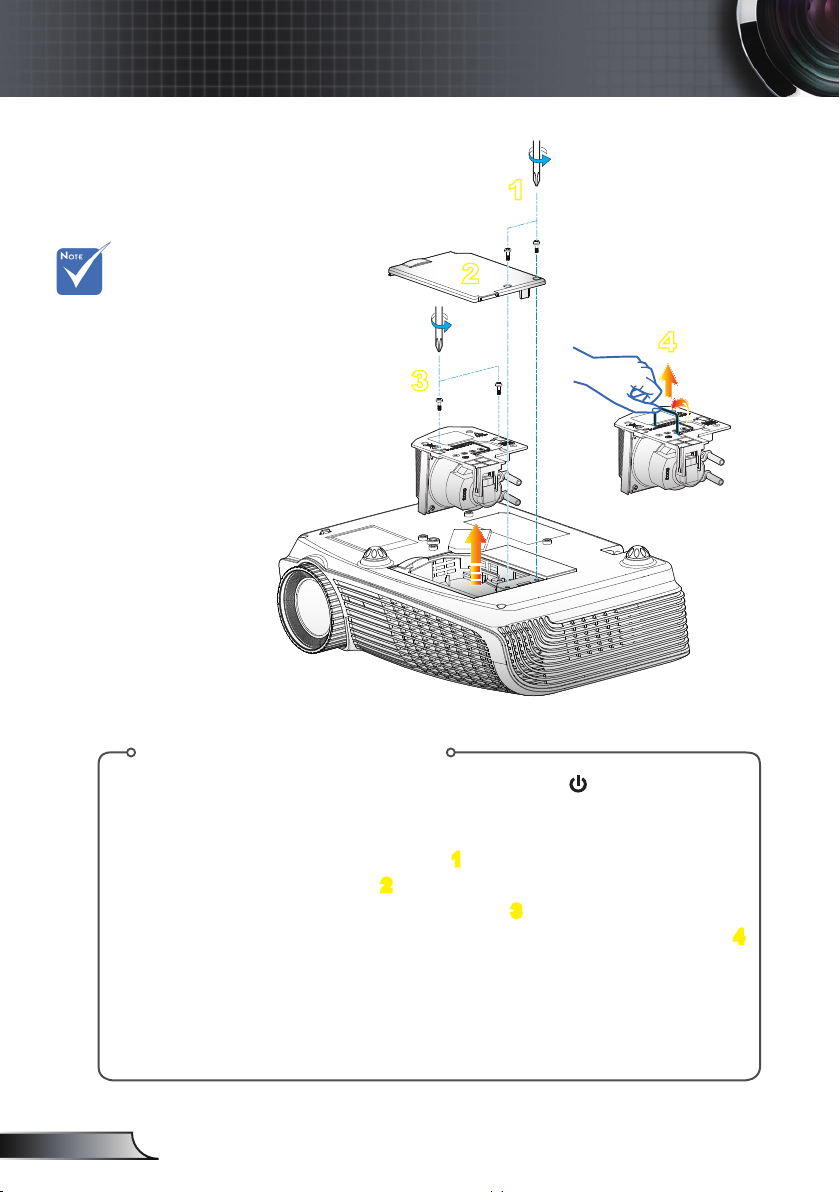

To replace the
lamp, follow
the procedures
listed under
“Replacing the
Lamp” section
on pages 53-54.
Precautions
Please follow all warnings, precautions and
maintenance as recommended in this user’s
guide.
▀■ Warning- Do not look into the projector’s lens when the lamp is
on. The bright light may hurt and damage your eyes.
▀■ Warning- To reduce the risk of re or electric shock, do not
expose this projector to rain or moisture.
▀■ Warning- Please do not open or disassemble the projector as
this may cause electric shock.
▀■ Warning- When replacing the lamp, please allow the unit to
cool down. Follow instructions as described on pages
53-54.
▀■ Warning- This projector will detect the life of the lamp itself.
Please be sure to change the lamp when it shows
warning messages.

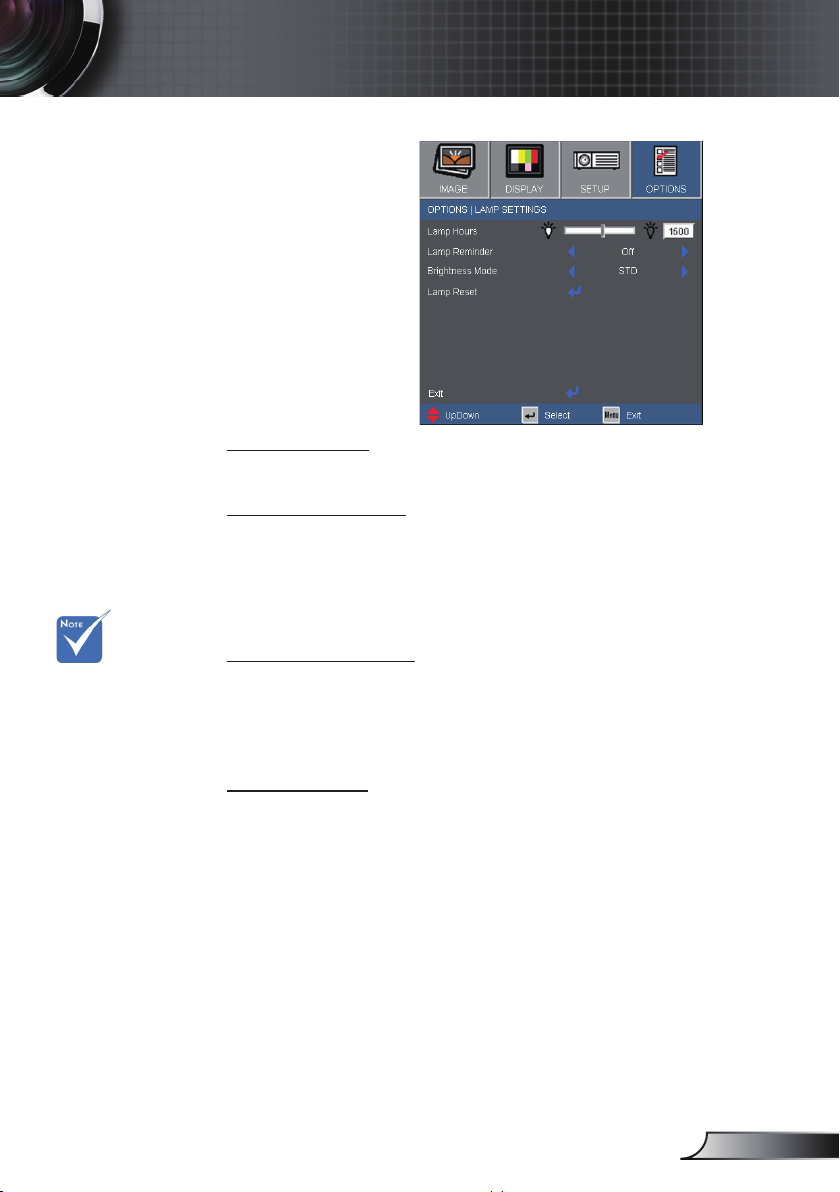

▀■ Warning- Reset the “Lamp Reset” function from the on-screen
display “Options|Lamp Settings” menu after replacing
the lamp module (refer to page 47).
▀■ Warning- When switching the projector off, please ensure
the cooling cycle has been completed before
disconnecting power. Allow 90 seconds for the
projector to cool down.
▀■ Warning- Do not use lens cap when projector is in operation.

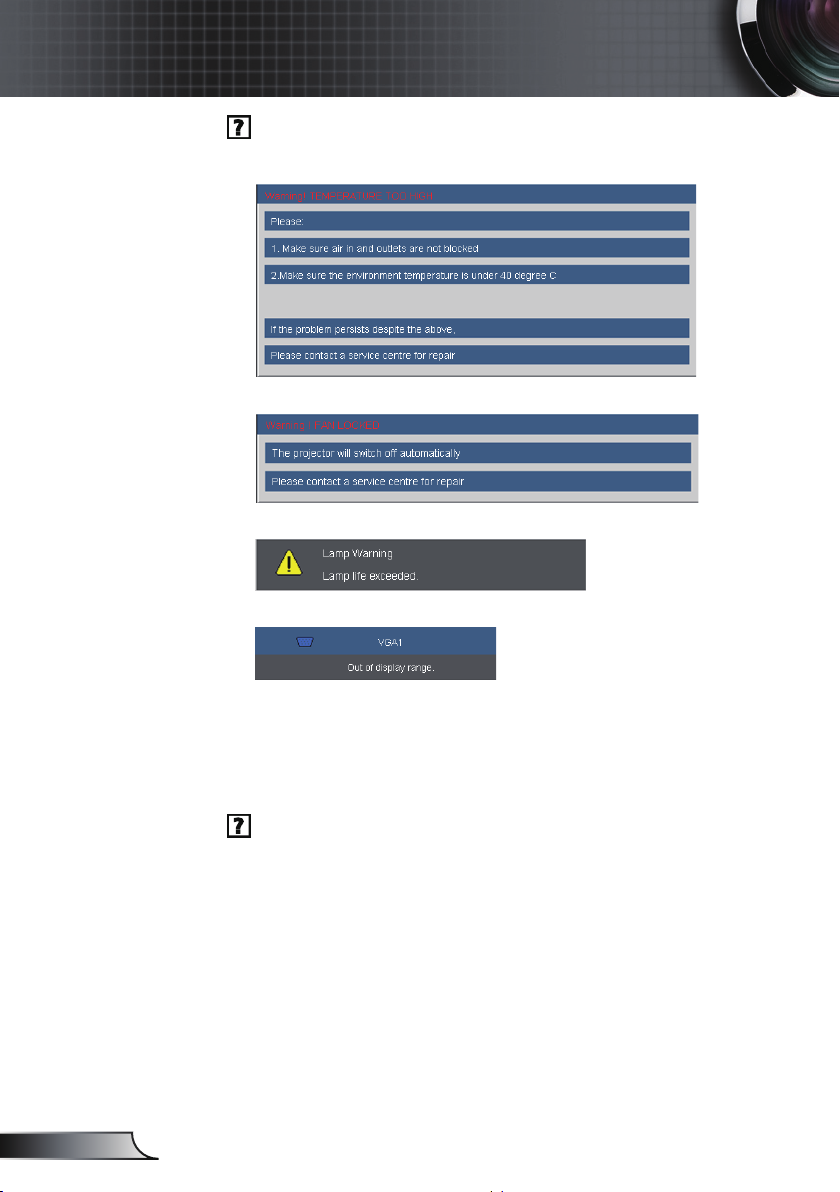

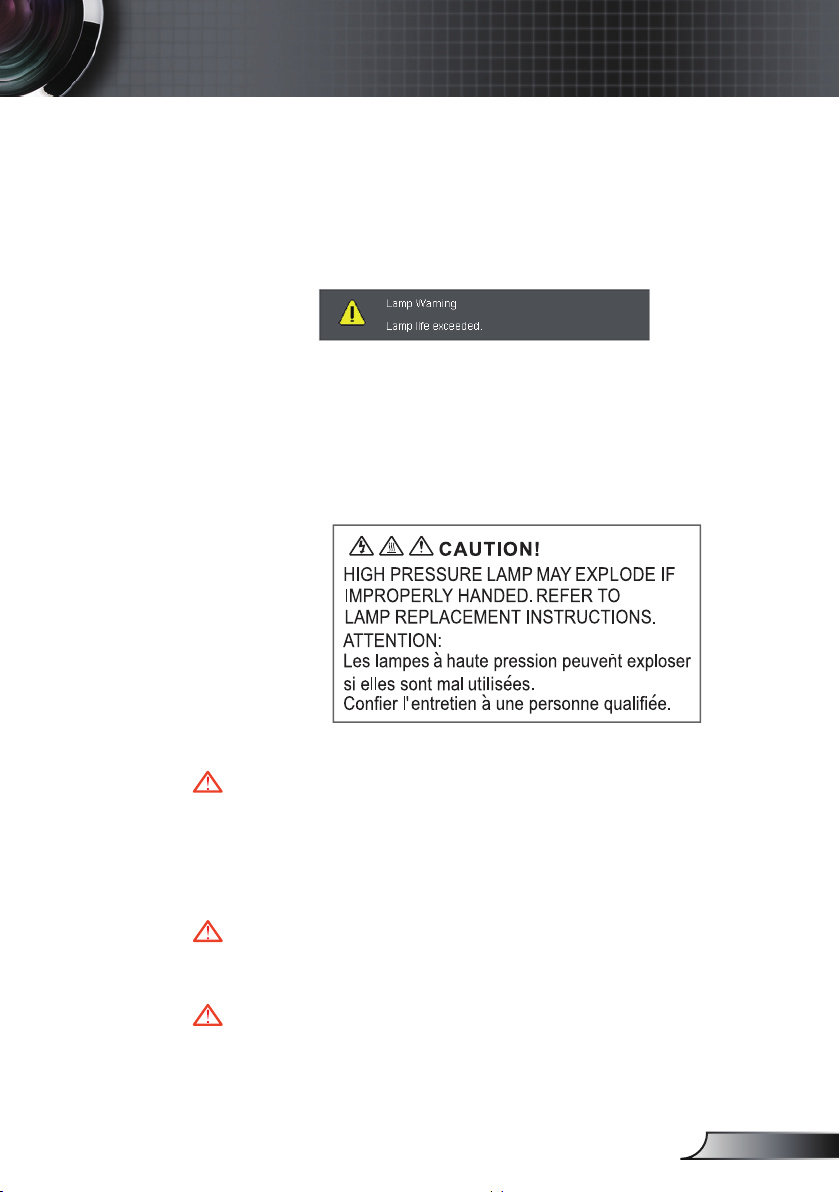

▀■ Warning- When the lamp is approaching the end of its lifetime,
the message “Lamp Warning: Lamp life exceeded.”
will show on the screen. Please contact your local
reseller or service center to change the lamp as soon
as possible.
▀■ Warning- Do not look into or point the laser pointer on your
remote control into your or someone’s eyes. Laser
pointer can cause permanent damage to eyesight.
Page 5
Usage Notice
Do:
Turn off and unplug the power plug from the AC outlet before
cleaning the product.
Use a soft dry cloth with mild detergent to clean the display
housing.
Disconnect the power plug from AC outlet if the product is
not being used for a long period of time.
Do not:
Block the slots and openings on the unit provided for
ventilation.
Use abrasive cleaners, waxes or solvents to clean the unit.
Use under the following conditions:
- In extremely hot, cold or humid environments.
Ensure that the ambient room temperature is within
5 - 35°C.
Relative Humidity is 5 - 35°C, 80% (Max.),
non-condensing.
- In areas susceptible to excessive dust and dirt.
-
-
Near any appliance generating a strong magnetic eld.
In direct sunlight.
English
4
Page 6
Usage Notice
Eye Safety Warnings
▀■ Avoid staring/facing directly into the projector beam at all
times. Keep your back to the beam as much as possible.
▀■ When projector is used in a classroom, adequately supervise
students when they are asked to point out something on the
screen.
▀■ In order to minimize the lamp power, use room blinds to
reduce ambient light levels.
Product Features
▀■ XGA (1024x768) Native resolution
▀■ HD compatible –
▀■ VGA monitor loop through
(works on standby mode >
▀■ BrilliantColor
▀■ Security Bar and Kensington Lock
▀■ RS232 control
▀■ Rapid shutdown
▀■ Built-in speaker
▀■ Network support (on specic models)
1080p supported
TM
Technology
1W)
5
English
Page 7
6
English
Introduction
Due to different
applications in
each Country,
some regions
may have
different
accessories.
Power Cord 1.8m
IR Remote Control
Package Overview
Unpack and inspect the box contents to ensure
all parts listed below are in the box. If something
is missing, please contact your nearest customer
service center.
Documentation :
User’s Manual
Warranty Card
Quick Start Card
WEEE Card
(for EMEA only)
2 × AAA Batteries
Projector with lens cap
POWER
?
/?
VGA Cable 1.8m
Page 8
7
English
Introduction
Product Overview
1. Control Panel
2. Zoom Ring
3. Focus Ring
4. Zoom Lens
5. IR Receivers
6. Tilt-Adjustment Feet
7. Security Bar
8. Input / Output
Connections
9. Power Socket
VGA1-IN / YPbPr/
VGA2-IN/SCART/ YPbPr
VGA-OUT
S-VIDEO VIDEO
AUDIO-OUT
VGA 1
AUDIO1-IN
RS232
USB
VGA 2
AUDIO2-IN
HDMI
RJ45
S-VIDEO/VIDEO
AUDIO3-IN
12V OUT
?
POWER
7
8
6
POWER
?
2
6
5
3
4
1
5
9
Page 9
8
English
Introduction
Control Panel
POWER
?
8
62 4 53
7
11
10
9
1
1. Help
2. Menu
3. Source
4. Enter
5. Re-Sync
6. Power
7. Keystone Correction
8. Four Directional Select Keys
9. On/Standby LED
10. Lamp Fail LED
11. Temp LED
12. IR Receiver
12
Page 10
9
English
Introduction
Input / Output Connections
1. RJ45 Networking Connector
2. USB Connector (Connect to PC for Remote Mouse function)
3. HDMI Connector
4. VGA1-In/YPbPr/” ” Connector
(PC Analog Signal/Component Video Input/HDTV/YPbPr/
Wireless Dongle)
5. VGA-Out Connector (Monitor Loop-through Output from
VGA1-In)
6. S-Video Input Connector
7. Composite Video Input Connector
8. Audio Output Connector (3.5mm Mini Jack)
7. Power Socket
9. VGA2-In/SCART/YPbPr Connector
(PC Analog Signal/Component Video Input/HDTV/SCART/
YPbPr)
10. RS-232 Connector (9-pin)
VGA1-IN / YPbPr/
VGA2-IN /SCART / YPbPr
VGA-OUT
S-VIDEO VIDEO
AUDIO-OUT
VGA 1
AUDIO1-IN
RS232
USB
VGA 2
AUDIO2-IN
HDMI
RJ45
S-VIDEO/VIDEO
AUDIO3-IN
12V OUT
5
9
87642
10 13
14 15
7
1 3 16
1211
Page 11
10
English
Introduction
VGA1-IN / YPbPr/
VGA2-IN /SCART / YPbPr
VGA-OUT
S-VIDEO VIDEO
AUDIO-OUT
VGA 1
AUDIO1-IN
RS232
USB
VGA 2
AUDIO2-IN
HDMI
RJ45
S-VIDEO/VIDEO
AUDIO3-IN
12V OUT
5
9
87642
10 13
14 15
7
1 3 16
1211
11. Audio 3 Input connector (3.5mm mini jack)
(for S-video / Video)
12. Audio 2 Input connector (3.5mm mini jack)
(for VGA 2)
13. Audio 1 Input connector (3.5mm mini jack)
(for VGA 1)
14. KensingtonTM Lock Port
15. Security Bar
The item below is only present on speci c models.
16. 12V Trigger Relay Connector
Page 12
11
English
Introduction
Remote Control
1. LED Indicator
2. Power On/Off
3. Page Up
4. Mouse Right Click
5. Four Directional
Select Keys
6. Re-Sync
7. Page Down
8. Volume +/-
9. Zoom
10. AV mute
11. Video
12. VGA
13. Freeze
14. S-Video
15. HDMI
16. Brightness
17. Menu
18. Keystone +/-
19. Source
20. Enter/Help
21. Mouse Left Click
22. PC/Mouse control
23. Numbered keypad
(for password input)
24. Laser Pointer
/?
1
9
10
1213
22
14
15
16
20
17
8
11
23
19
6
4
2
18
3
7
5
21
24
Page 13
12
English
Installation
Connecting the Projector
Connect to Computer/Notebook
1....................................................................................................Power Cord
2.....................................................................................................VGA Cable
3..............................................................................................*Network Cable
4....................................................................................................*USB Cable
5...........................................................................................*DVI/HDMI Cable
6................................................................................................*RS232 Cable
7.........................................................................................*Audio Input Cable
8.........................................................................................*VGA Onput Cable
9......................................................................................*Audio Output Cable
VGA1-IN / YPbPr/
VGA2-IN/SCART /YPbPr
VGA-OUT
S-VIDEO VIDEO
AUDIO-OUT
VGA 1
AUDIO1-IN
RS232
USB
VGA 2
AUDIO2-IN
HDMI
RJ45
S-VIDEO/VIDEO
AUDIO3-IN
12V OUT
E62405SP
R
MOLEX
1
4
2
3
7
6
5
+ 12V Output
8
9
I/O con guration
depends on
models.
Due to the
difference in
applications for
each country,
some regions may
have different
accessories.
(*) Optional
accessory
Page 14
13
English
Installation
VGA1-IN / YPbPr/
VGA2-IN/SCART /YPbPr
VGA-OUT
S-VIDEO VIDEO
AUDIO-OUT
VGA 1
AUDIO1-IN
RS232
USB
VGA 2
AUDIO2-IN
HDMI
RJ45
S-VIDEO/VIDEO
AUDIO3-IN
12V OUT
E62405SP
R
Connect to Video Sources
1....................................................................................................Power Cord
2.....................................................................................................VGA Cable
3................................................................................*Composite Video Cable
4.............................................................................................. *S-Video Cable
5................................................*15-Pin to 3 RCA Component/HDTV Adaptor
6.............................................................................*3 RCA Component Cable
7................................................................................... *SCART/VGA Adaptor
8.................................................................................*Audio Cable Jack/RCA
9..................................................................................................*HDMI Cable
10............................................................................................*Network Cable
Composite Video Output
DVD Player, Set-top Box,
HDTV receiver
S-Video Output
1
3
4
6
2
7
5
8
8
8
9
10
DVD Player, Set-top Box,
HDTV receiver
+ 12V Output
I/O con guration
depends on
models
Due to the
difference in
applications for
each country,
some regions may
have different
accessories.
(*) Optional
accessory
Page 15
14
English
Installation
Powering On/Off the Projector
Turn on the
projector rst and
then select the
signal sources.
Powering On the Projector
1. Remove the lens cap.
2. Securely connect the power cord and signal cable. When
connected, the ON/STANDBY LED will turn Amber.
3. Turn on the lamp by pressing “ ” button either on the top of
the projector or on the remote. The ON/STANDBY LED will
now turn Green.
The startup screen will display in approximately 10 seconds.
The rst time you use the projector, you will be asked to
select the preferred language and power saving mode.(*)
4. Turn on and connect the source that you want to display
on the screen (computer, notebook, video player, etc). The
projector will detect the source automatically. If not, push
menu button and go to “OPTIONS”.
Make sure that the “Source Lock” has been set to “Off”.
If you connect multiple sources at the same time, press the
“SOURCE” button on the control panel or direct source keys
on the remote control to switch between inputs.
POWER
POWER
?
Lens Cap
1
Power
2
(*) When power
saving mode
is enabled, the
VGA & Audio
pass-through,
RS-232 and
RJ45 will be
de-activated
during standby
mode.
Page 16
Installation
Powering Off the Projector
1. Press the “ ” button on the remote control or
on the control panel to turn off the projector.
The following message will be displayed on the screen.
Press the “ ” button again to conrm otherwise the
message will disappear after 15 seconds. When you
press the “ ” button for the second time, the projector will
display countdown timer and will shut down.
2. The cooling fans continue to operate for about 10 seconds
for cooling cycle and the ON/STANDBY LED will Flash
Green. When the ON/STANDBY LED lights solid Amber,
the projector has entered standby mode.
If you wish to turn the projector back on, you must wait
until the projector has completed the cooling cycle and
has entered standby mode. Once in standby mode, simply
press “ ” button to restart the projector.
3. Disconnect the power cord from the electrical outlet and
the projector.
4. Do not turn on the projector immediately following a power
off procedure.
Contact the
nearest service
center if the
projector displays
these symptoms.
See pages
1-62 for more
6
information.
Warning Indicator
When the warning indicators (see below) come on,
the projector will automatically shutdown:
“LAMP” LED indicator is lit red and if “On/Standby” indicator
ashes amber.
“TEMP” LED indicator is lit red and if “On/Standby”
indicator ashes amber. This indicates the projector has
overheated. Under normal conditions, the projector can be
switched back on.
“TEMP” LED indicator ashes red and if “On/Standby”
indicator ashes amber.
Unplug the power cord from the projector, wait for 30 seconds
and try again. If the warning indicator light up again, please
contact your nearest service center for assistance.
15
English
Page 17
16
English
Installation
Adjusting the Projected Image
Adjusting the Projector’s Height
The projector is equipped with elevator feet for adjusting
the image height.
1. Locate the adjustable foot you wish to modify on the
underside of the projector.
2. Rotate the adjustable rings clockwise/anticlockwise to
lower or raise the projector. Repeat with the remaining feet
as needed.
Tilt-Adjustment Feet
Tilt-Adjustment Ring
Page 18
17
English
Installation
Adjusting the Projector’s Zoom / Focus
You may turn the zoom lever to zoom in or out. To focus the
image, rotate the focus ring until the image is clear.
1.2x Zoom series will focus at distances from 4.92 to 32.81
feet (1.50 to 10.00 meters).
POWER
?
Focus Ring
Zoom Ring
Adjusting Projection Image Size
Hd
64.1"
(162.8cm)
83.3"
(211.6cm)
128.2"
(325.5cm)
205.1"
(520.8cm)
307.6"
(781.3cm)
46.1"
(117.2cm)
76.9"
(195.3cm)
100.0"
(253.9cm)
153.8"
(390.6cm)
246.1"
(625.0cm)
256.3"
(651.0cm)
38.4"
(97.7cm)
4.92'
(1.50m)
32.81'(10.00m)
26.25'(8.00m)
16.40'(5.00m)
10.66'(3.25m)
8.20'(2.50m)
Width
Height
Diagonal
This table is for user’s reference only.
Screen
(Diagonal)
Max.
46.1” (117.2cm) 76.9” (195.3cm) 100.0” (253.9cm) 153.8” (390.6cm) 246.1” (625.0cm)307.6” (781.3cm)
Min.
38.4” (97.7cm) 64.1” (162.8cm) 83.3” (211.6cm) 128.2” (325.5cm)205.1” (520.8cm) 256.3” (651.0cm)
Screen
Size
Max.
(WxH)
36.9” x 27.7”
93.8
x 70.3cm
61.5”
x 46.1”
156.3
x 117.2cm
80.0”
x 60.0”
203.1
x 152.3cm
123.0”
x 92.3”
312.5
x 234.4cm
196.9”
x 147.6”
500.0
x 375.0cm
246.1”
x 184.5”
625.0
x 468.8cm
Min.
(WxH)
30.8” x 23.1”
78.1
x 58.6cm
51.3”
x 38.4”
130.2
x 97.7cm
66.6”
x 50.0”
169.3
x 127.0cm
102.5”
x 76.9”
260.4
x 195.3cm
164.0”
x 123.0”
416.7
x 312.5cm
205.1”
x 153.8”
520.8
x 390.6cm
Hd
Max.
4.15” (10.55cm) 6.92” (17.58cm) 9.00” (22.85cm) 13.84” (35.16cm) 22.15” (56.25cm) 27.68” (70.31cm)
Min.
3.46” (8.79cm) 5.77” (14.65cm) 7.50” (19.04cm) 11.53” (29.3cm) 18.45” (46.88cm) 23.07” (58.59cm)
Distance
4.92’ (1.50m) 8.20’ (2.50m) 10.66’ (3.25m) 16.40’ (5.00m) 26.25’ (8.00m) 32.81’ (10.00m)
Page 19
18
English
User Controls
Control Panel
Control Panel & Remote Control
Using the Control Panel
Power
Refer to the “Power On/Off the Projector” section on
pages 14-15.
RE-SYNC
Automatically synchronize the projector to the input
source.
Enter
Con rm your item selection.
SOURCE
Press “SOURCE” to select an input signal.
Menu
Press “Menu” to launch the on-screen display
(OSD) menu. To exit OSD, Press “Menu” again.
?
HELP
Help Menu (refer to page 21).
Four Directional
Select Keys
Use to select items or make adjustments to your selection.
Keystone
Use
to adjust image distortion caused
by tilting the projector. (±40 degrees)
Lamp LED Indicate the projector’s lamp status.
Temp LED Indicate the projector’s temperature status.
ON/STANDBY LED Indicate the projector’s status.
POWER
?
Page 20
19
English
User Controls
Remote Control
Using the Remote Control
Power
Refer to the “Power On/Off the Projector”
section on pages 14-15.
Laser
Press to use laser pointer.
L Button
Mouse left click.
R Button
Mouse right click.
Page +
Use this button to page up.
Page -
Use this button to page down.
Enter/Help
Con rm your item selection.
? Help Menu (refer to page 21).
Source
Press “Source” to select an input signal.
Re-SYNC
Automatically synchronizes the projector to
the input source.
Four Directional
Select Keys
Use to select items or make
adjustments to your selection.
Keystone +/-
Adjust image distortion caused by tilting the
projector.
Volume +/-
Adjust to increase / decrease the volume.
Brightness
Adjust the brightness of the image.
Menu
Press “Menu” to launch the on-screen
display (OSD) menu. To exit OSD, press
“Menu” again.
ZOOM
Zoom in on an image.
Press
buttons to alter zoom.
/?
Page 21
20
English
User Controls
Remote Control
Using the Remote Control
HDMI
Press “HDMI” to choose HDMI source.
Freeze
Press “Freeze” to pause the screen image.
Press this button again to unlock.
AV mute
Momentarily turns off/on the audio and
video.
S-Video Press “S-Video” to choose S-Video source.
VGA
Press “VGA” to choose VGA sources.
Video
Press “Video” to choose Composite video
source.
/?
Page 22
21
English
User Controls

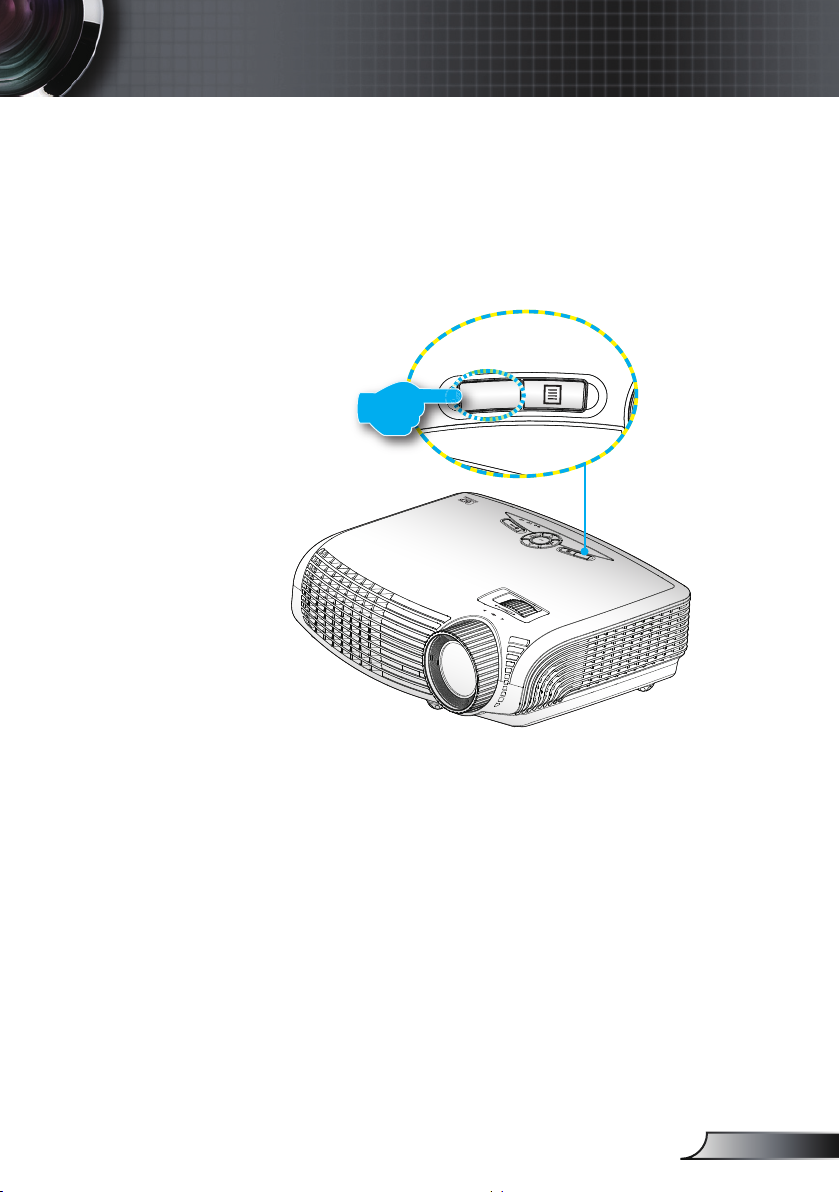

Using the HELP button
The HELP function ensures easy setup and operation.
Press the “?” button on the control panel to open the Help
Menu.
POWER
?
POWER
?
Page 23
User Controls
Help menu button functions only when no input source
is detected.
Please refer to the
“Troubleshooting”
section on pages
48-51 for more
details.
.
English
22
If input source is detected and help button is pressed, the
following pages will appear to help diagnose any problems.
Page 24
User Controls
23
English
Page 25
24
English
User Controls
The Projector has multilingual On-screen Display menus that
allow you to make image adjustments and change a variety of
settings. The projector will automatically detect the source.
How to operate
1. To open the OSD menu, press “Menu” on the Remote Control or
Projector Keypad.
2 When OSD is displayed, use
keys to select any item in the
main menu. While making a selection on a particular page, press
or “Enter” key to enter sub menu.
3. Use
keys to select the desired item and adjust the settings
using
key.
4. Select the next item to be adjusted in the sub menu and adjust as
described above.
5. Press “Enter” to con rm, and the screen will return to the main
menu.
6. To exit, press “MENU” again. The OSD menu will close and the
projector will automatically save the new settings.
On-screen Display Menus
Main Menu
Sub Menu
Settings
Page 26
Menu Tree
User Controls
(#) “Saturation”
and “Tint” are only
supported in Video
mode.
(
) “Signal” is only
*
supported in Analog
VGA (RGB) signal.
The item below is only
present on specic
models.
☆
(
) “Closed
Captioning”
#
#
*
25
English
Page 27
User Controls
Menu Tree
English
26
Page 28
27
English
User Controls
Display Mode
There are many factory presets optimized for various types of
images.
Presentation: Good color and brightness from PC input.
Bright: Maximum brightness from PC input.
Movie: For home theater.
sRGB: Standardised accurate color.
Blackboard: This mode should be selected to achieve optimum
color settings when projecting onto a blackboard (green).
Classroom: This mode is recommended for projecting in a
classroom.
User1: User’s settings.
User2: The initial default settings of this mode is from Movie
mode. Any further adjustments by the user in User2 will be
saved in this mode for future use.
Brightness
Adjust the brightness of the image.
Press the to darken image.
Press the to lighten the image.
Page 29
28
English
User Controls
Contrast
The contrast controls the degree of difference between the lightest
and darkest parts of the picture.
Press the to decrease the contrast.
Press the to increase the contrast.
Sharpness
Adjust the sharpness of the image.
Press the to decrease the sharpness.
Press the to increase the sharpness.
Saturation
Adjust a video image from black and white to fully saturated color.
Press the to decrease the amount of saturation in the image.
Press the to increase the amount of saturation in the image.
Tint
Adjust the color balance of red and green.
Press the to increase the amount of green in the image.
Press the to increase the amount of red in the image.
“Saturation” and
“Tint” functions
are only supported
under Video mode.
Page 30
IMAGE | Advanced
Degamma
This allows you to choose a degamma table that has been
ne-tuned to bring out the best image quality for the input.
Film: for home theater.
Video: for video or TV source.
Graphics: for image source.
PC: for PC or computer source.
BrilliantColor™
This adjustable item utilizes a new color-processing algorithm and
system level enhancements to enable higher brightness while
providing true, more vibrant colors in picture. The range is from
“0” to “10”. If you prefer a stronger enhanced image, adjust toward
the maximum setting. For a smoother, more natural image, adjust
toward the minimum setting.
User Controls
Color Temp
Adjust the color temperature. With cold temperature, the screen
looks colder; with warm temperature, the screen looks warmer.
Color Space
Select an appropriate color matrix type from AUTO, RGB or YUV.
29
English
Page 31
User Controls

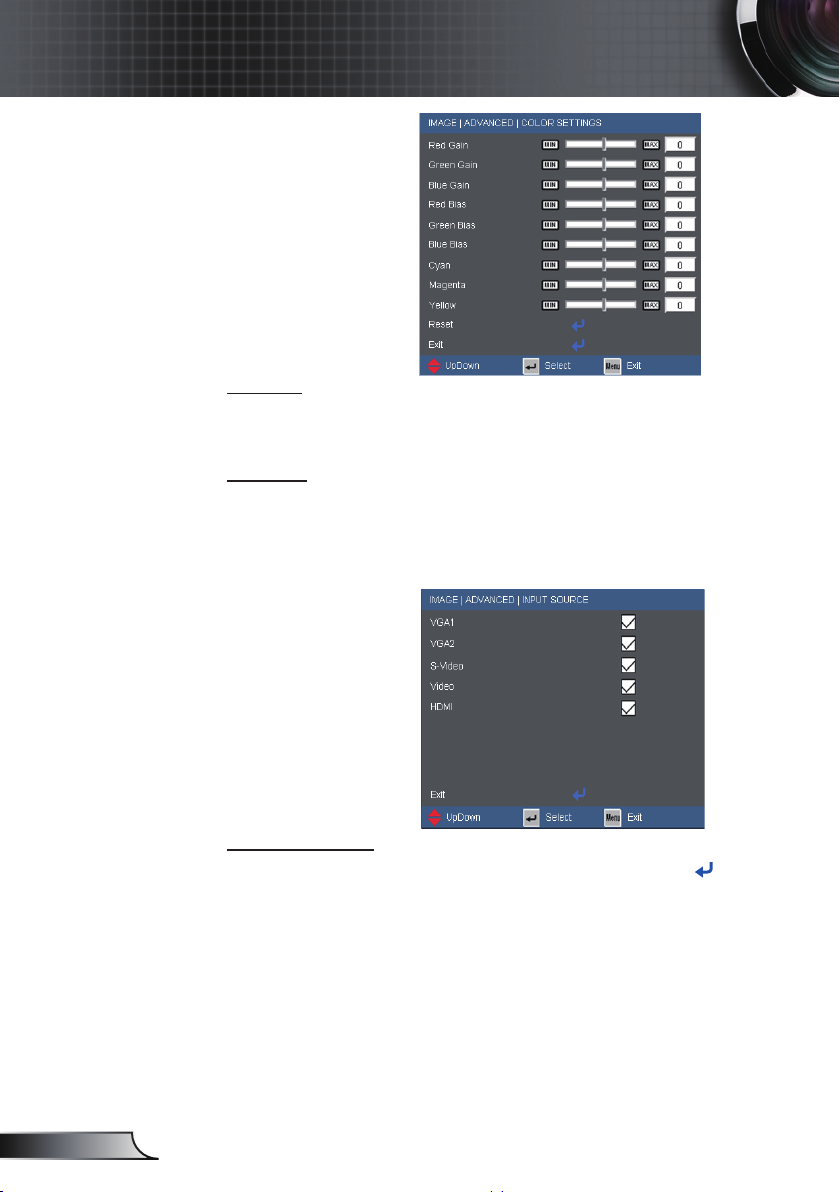

Advanced |
Color Setting
Color
Use these settings for advanced adjustment of the individual Red,
Green, Blue, Cyan, Magenta and Yellow Colors.
Reset
Choose “Yes” to return the factory default settings for color
adjustments.
English
Advanced |
Input Source
Input Source
Use this option to enable / disable input sources. Press to enter
the sub menu and select which sources you require. Press “Enter”
to finalize the selection. The projector will not search for inputs that
are not selected.
30
Page 32
User Controls
DISPLAY
Format
Use this function to choose your desired aspect ratio.
4:3: This format is for 4×3 input sources.
16:9-I: This format is for 16×9 input sources, like HDTV and
DVD enhanced for Wide screen TV. (576i/p)
16:9-II: This format is for 16×9 input sources, like HDTV and
DVD enhanced for Wide screen TV. (480i/p)
Native: This format displays the original image without any
scaling.
AUTO: Automatically selects the appropriate display format.
Aspect ratio
(source detected)
4:3 1
16:9-I 1024 x 576 center
16:9-II 854 x 480 center
Resize image of native change
Native
to above description not pixels
resolution.
Resize image
XGA model
024 x 768 center
31
English
Page 33
32
English
User Controls

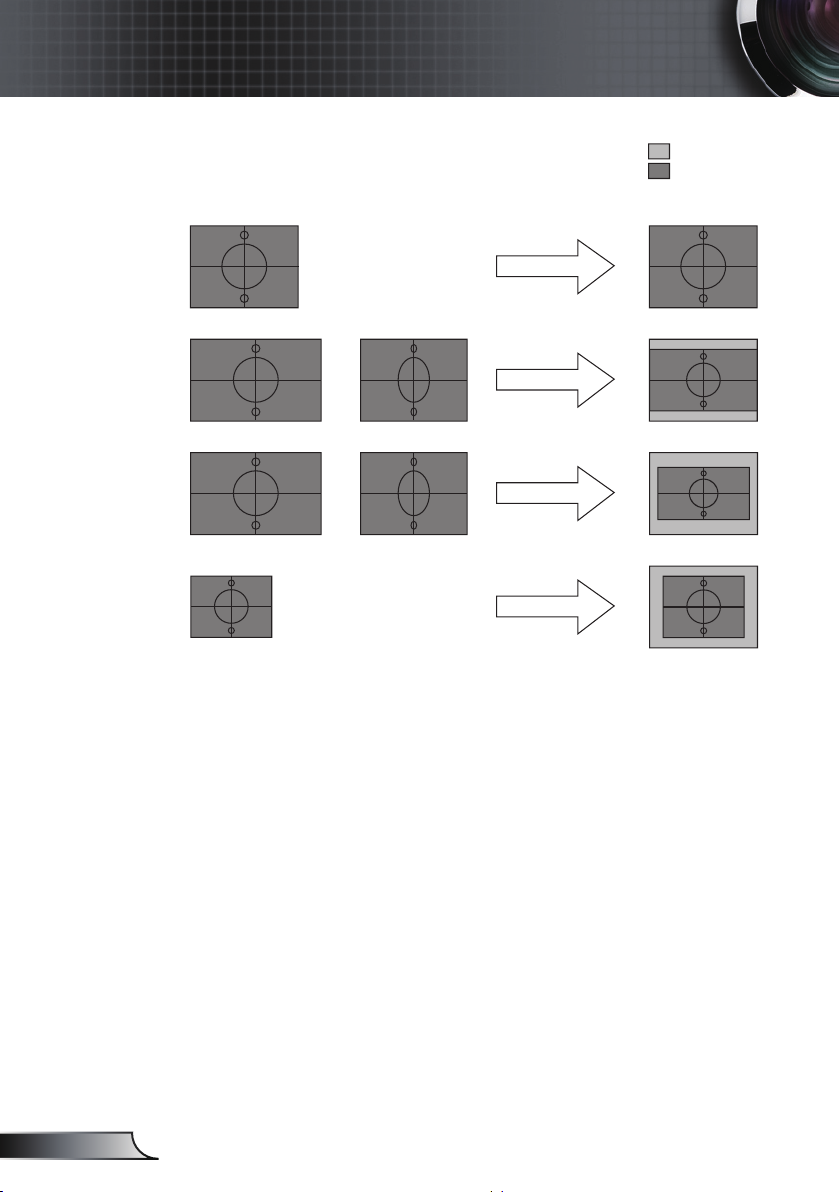

Native format
16 : 9-I format
or
or
16 : 9-II format
4 : 3 format
Input Signal
Display area
Picture area
Display on Screen
Page 34
33
English
User Controls
Overscan
Overscan function removes the noise in a video image. Overscan
the image to remove video encoding noise on the edge of video
source.
Zoom
Press the to reduce the size of an image.
Press the to magnify an image on the projection screen.
H Image Shift
Shift the projected image position horizontally.
V Image Shift
Shift the projected image position vertically.
V Keystone
Press the or to adjust image distortion vertically. If the image
looks trapezoidal, this option can help make the image rectangular.
DISPLAY
Page 35
34
English
User Controls
Language
Choose the multilingual OSD menu. Press or into the sub
menu and then use the
or key to select your preferred
language. Press “Enter” to nalize the selection.
SETUP | Language
Page 36
Rear-Desktop and
Rear-Ceiling are
to be used with a
translucent screen.
User Controls
SETUP
Projection
Front-Desktop
This is the default selection. The image is projected straight on
the screen.
Rear-Desktop
When selected, the image will appear reversed.
Front-Ceiling
When selected, the image will turn upside down.
Rear-Ceiling
When selected, the image will appear reversed in upside down
position.
35
English
Page 37
36
English
User Controls
SETUP
Menu Location
Choose the menu location on the display screen.
Projector ID
ID de nition can be set up by menu (range 0~99), and allow
user control an individual projector by RS232. Refer to page 58
for the complete list of RS232 commands.
Mute
Choose the “On” to turn mute on.
Choose the “Off” to turn mute off.
Volume
Press the to decrease the volume.
Press the
to increase the volume.
Audio Input
The default audio settings are on the back panel of the
projector. Use this option to reassign any of the Audio Inputs (1,
2 or 3) to the current image source. Each Audio input can be
assigned to more than one video source.
AUDIO1: VGA1
AUDIO2: VGA2
AUDIO3: S-VIDEO / VIDEO
Page 38
37
English
User Controls
SETUP | Signal
Phase
Synchronize the signal timing of the display with the graphic card.
If the image appears to be unstable or ickers, use this function to
correct it.
Frequency
Change the display data frequency to match the frequency of
your computer’s graphic card. Use this function only if the image
appears to icker vertically.
H. Position
Press the to move the image left.
Press the to move the image right.
V. Position
Press the to move the image down.
Press the to move the image up.
“Signal” is only
supported in Analog
VGA (RGB) signal.
Page 39
User Controls
SETUP | Security
Security
On: Choose “On” to use security verication when the turning
Security Timer
on the projector.
Off: Choose “Off” to be able to switch on the projector without
password verication.
Can be select the time (Month/Day/Hour) function to set the
number of hours the projector can be used. Once this time has
elapsed you will be requested to enter your password again.
English
38
Page 40
SETUP | Security
User Controls
Pass-code default
value is “1234”
(rst time).
Change Password
First time:
1. Press “ ” to set the password.
2. The password has to be 4 digits.
3. Use number button on the remote to enter your new
password and then press “
password.
Change Password:
1. Press “ ” to input old password.
2. Use number button to enter current password and then
press “
3. Enter new password (4 digits in length) using the number
buttons on the remote, then press “
4. Enter new password again and press “ ” to conrm.
If the incorrect password is entered 3 times, the projector will
automatically shut down.
If you have forgotten your password, please contact your local
ofce for support.
” to conrm.
” key to conrm your
” to conrm.
39
English
Page 41
40
English
User Controls
SETUP
RS232
RS232: Allow RS232 control of an individual projector.
(Default setting)

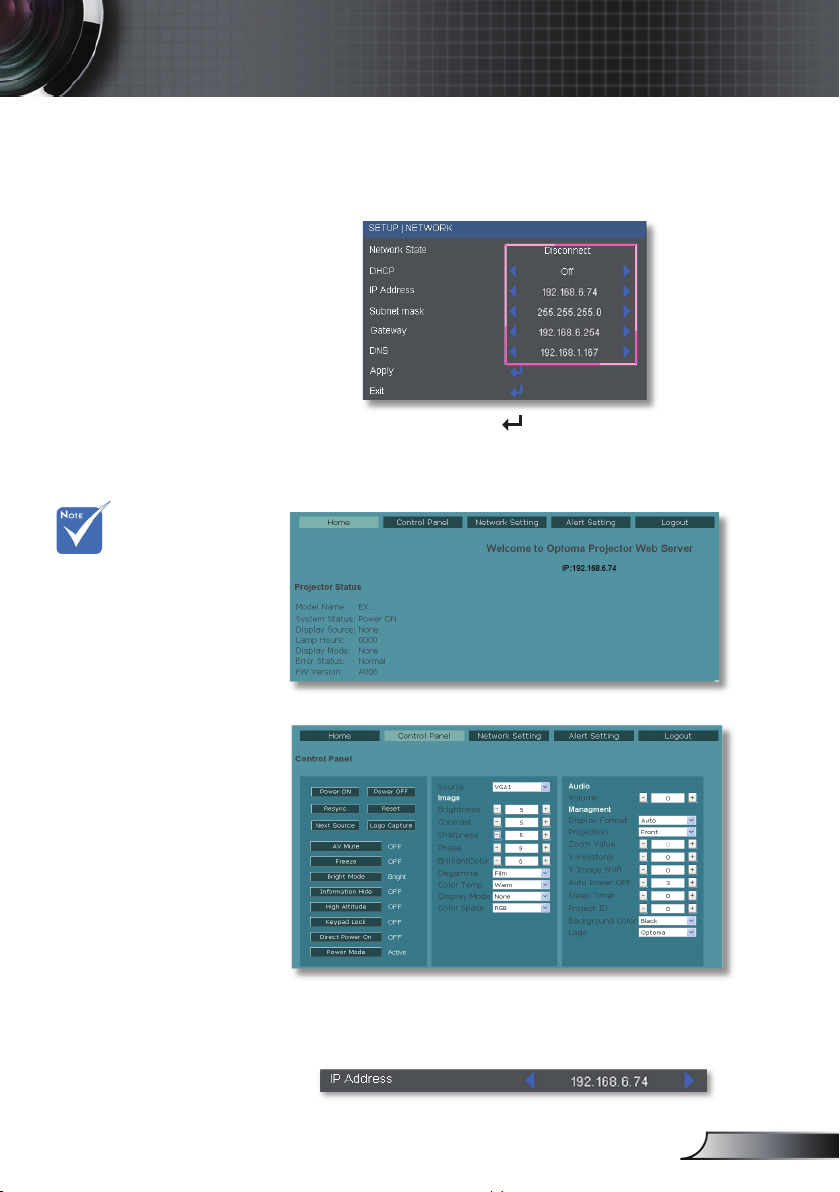

Network: Allow projector control via web browser (Internet
Explorer) using the network.
Wireless
Choose the “On” to turn on the Wireless.
“Wireless” is only
functional with
VGA1 connector
Warning:
Wired VGA will
not function and
the projector
maybe shut
down if Wireless
is turned on.
Page 42

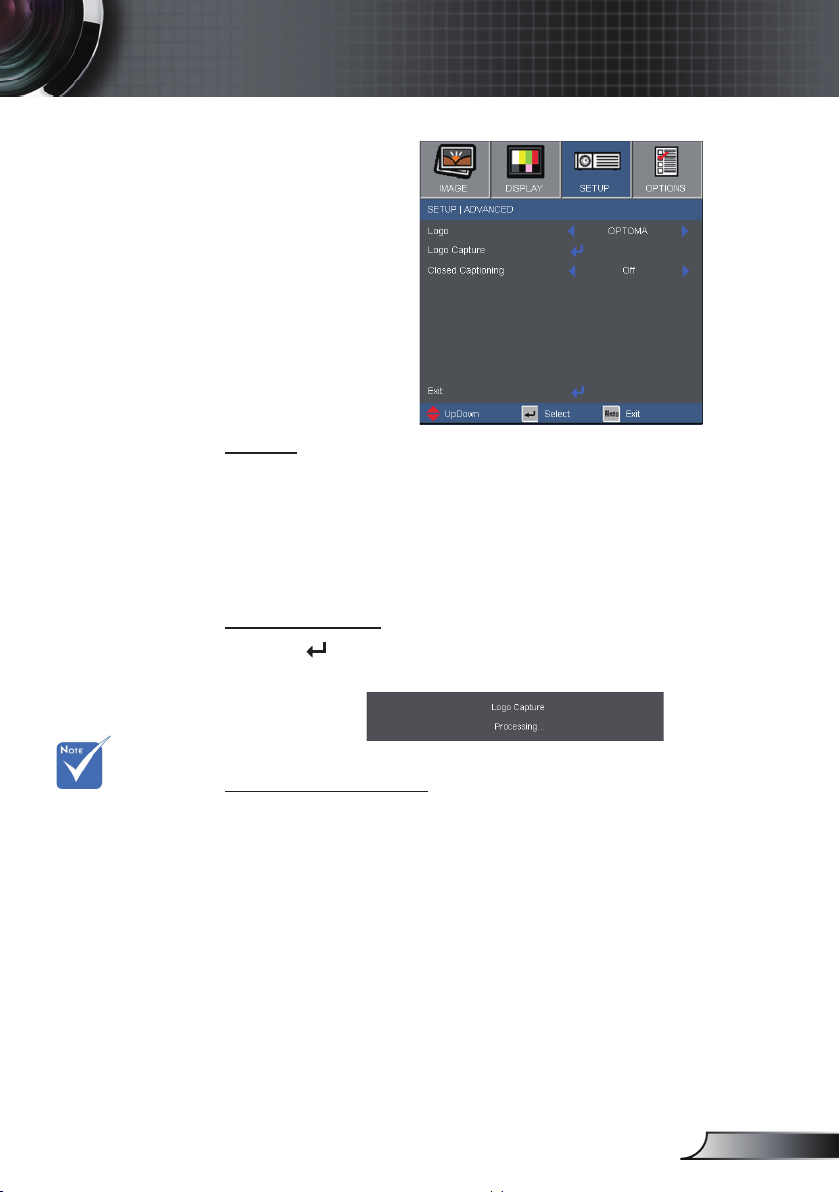

SETUP | Advanced
Logo
Use this function to set the desired startup screen. If changes are
made they will take effect the next time the projector is powered
on.
OPTOMA: The default startup screen.
User: Use memorize picture from “Logo Capture” function.
Logo Capture
Press “ ” to immediately capture an image of the picture
currently displayed on screen.
User Controls
“Closed Captioning”:
on specic models
Closed Captioning
Off: select “off” to turn off the closed captioning feature.
CC1: CC1 language: American English.
CC2: CC2 language (depending on the TV channel of the user):
Spanish, French, Portuguese, German, Danish.
41
English
Page 43
User Controls

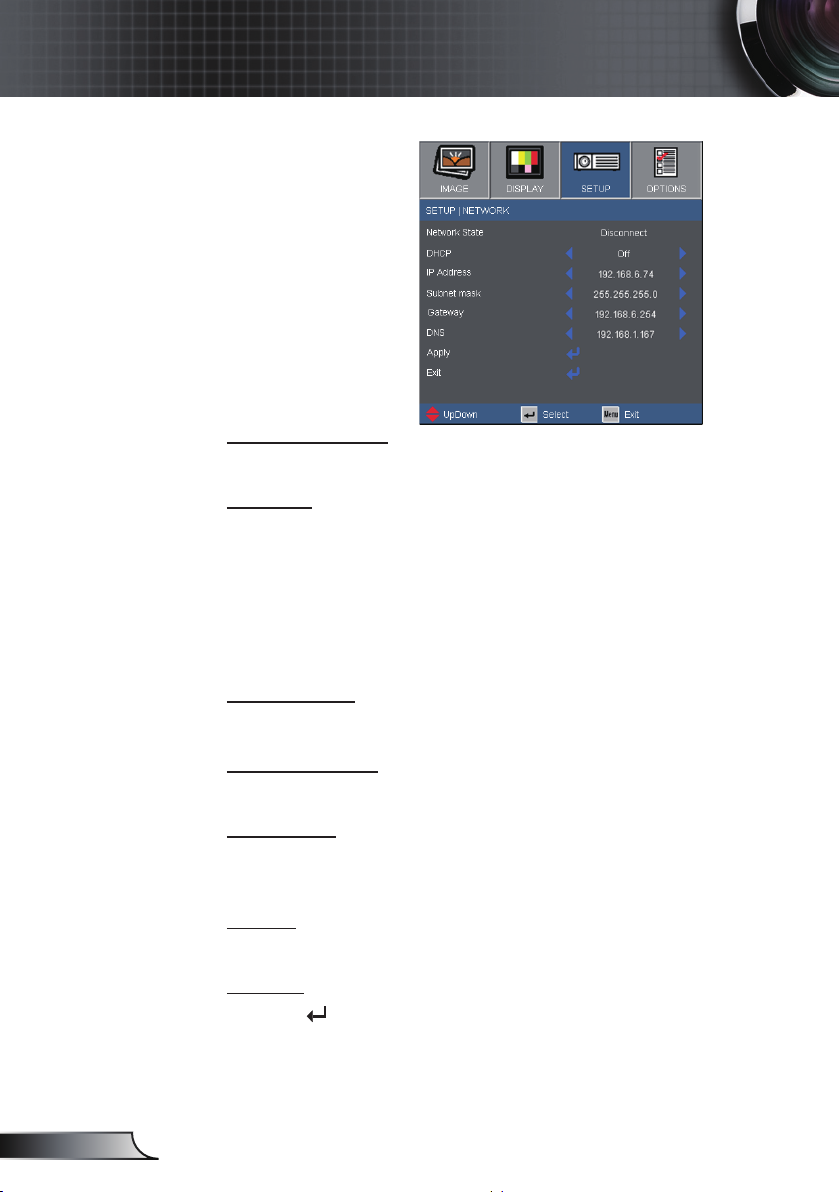

SETUP | Network
Network State
Display the network connection status.
DHCP
Use this function to select your desired startup screen. If you
change the setting from one to another, when you exit the OSD
menu, the new setting will take effect on next open.
On: Assign an IP address to the projector from an external
DHCP server automatically.
Off: Assign an IP address manually.
IP Address
Select an IP address.
English
Subnet Mask
Select subnet mask number.
Gateway
Select the default gateway of the network connected to the
projector.
DNS
Select DNS number.
Apply
Press “ ” and then choose “Yes” to apply the selection.
42
Page 44
43
English
User Controls
1. Turn on DHCP to allow the DHCP server to automatically assign
an IP, or manually enter the required network information.
2. Then choose apply and press “ ” button to complete the
con guration process.
3. Open your web browser and type in from the OSD LAN screen
then the web page will display as below:
4. Open “Control Panel” to control your projector.
When making a direct connection from your computer to the
projector
Step 1: Find an IP Address (192.168.6.74) from LAN function of
projector.
How to use web browser to control your projector
When you used
the projector IP
address, you
will can not link
to your service
server.
Page 45
44
English
User Controls
Step 2: Select apply and press “Enter” button to submit function or press “menu” key to
exit.

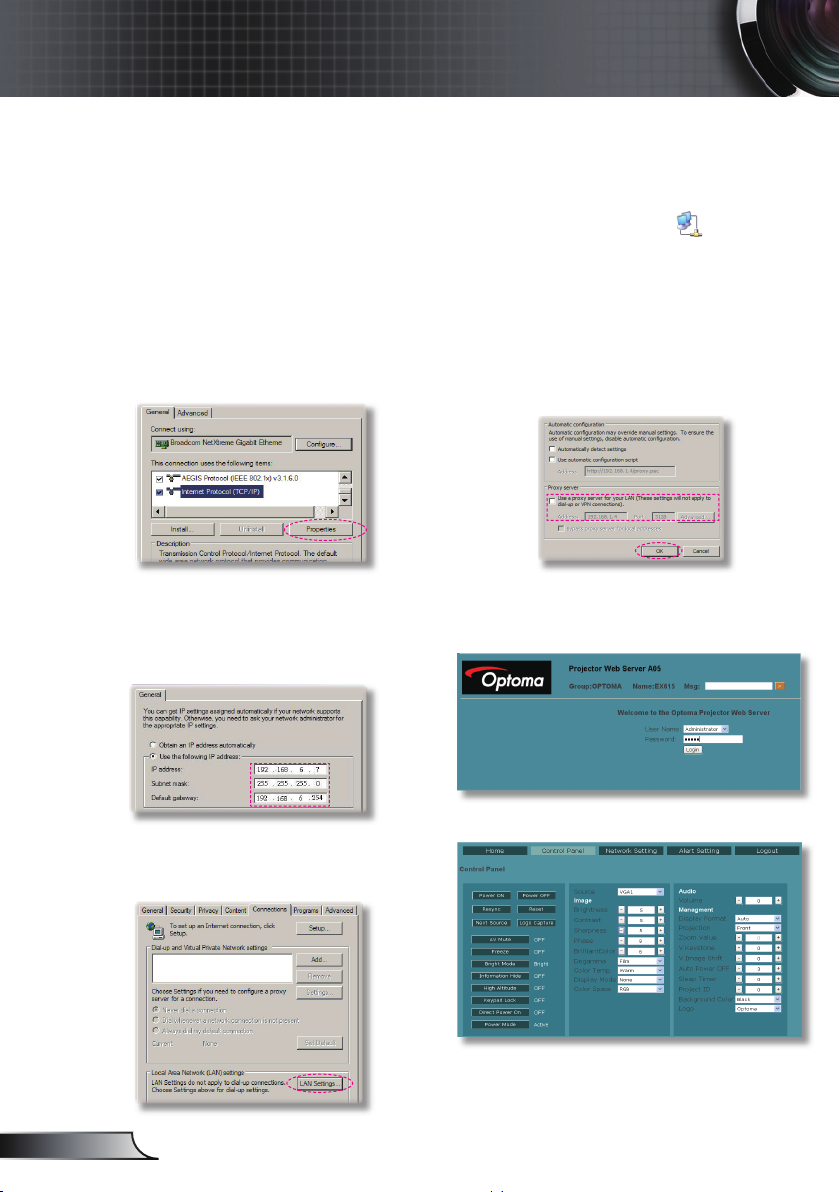

Step 3: To open Network Connections, click Start, click Control Panel, click Network
and Internet Connections, and then click Network Connections. Click the
connection you want to con gure, and then, under Network Tasks
, click
Change settings of this connection.
Step 4: On the General tab, under
This connection uses the
following items, click Internet
Protocol (TCP/IP), and then click
“Properties.”
Step 5: Click Use the following IP
address, and type in as below:
1) IP address: 192.168.6.XXX
2) Subnet mask: 255.255.0.0
3) Default gateway:192.168.6.254
Step 6: To open Internet Options, click
IE web browser, click Internet
Options, click the Connections
tab and click “LAN Settings...”
Step 7: The Local Area Network (LAN)
Setting dialog box appears, In the
Proxy Server area, cancel the
Use a proxy server for your LAN
check box., then click “OK” button
twice.
Step 8: Open your IE and type in the IP
address of 192.168.6.74 in the
URL then press “Enter” key. The
web page will display as below:
Step 9: Open “Control Panel” to control
your projector.
Page 46
User Controls
OPTIONS
Source Lock
On: The projector will only search current input connection.
Off: The projector will search for other signals if the current
High Altitude
When “On” is selected, the fans will spin faster. This feature is
useful in high altitude areas where the air is thin.
Information Hide
input signal is lost.
On: Choose “On” to hide the info message.
Off: Choose “Off” to show the “searching” message.
To turn off the
keypad lock, press
and hold “Enter”
key on top of the
projector for 5
seconds.
Keypad Lock
When the keypad lock function is “On”, the control panel will be
locked however, the projector can be operated by the remote
control. By selecting “Off”, you will be able to reuse the control
panel.
Background Color
Use this feature to display a “Black”, “Red”, “Blue”, “Green” or
“White”, screen when no signal is available.
Reset
Choose “Yes” to return the display parameters on all menus to the
factory default settings.
45
English
Page 47
User Controls
OPTIONS |
Advanced
Direct Power On
Choose “On” to activate Direct Power mode. The projector will
automatically power on when AC power is supplied, without
pressing the “
remote control.
Auto Power Off (min)
Sets the countdown timer interval. The countdown timer will start,
when there is no signal being sent to the projector. The projector
will automatically power off when the countdown has nished (in
minutes).
” key on the projector control panel or on the
This disables VGA
out and RJ45
control when
the projector
is in Power
Mode (Standby)
as Eco..
English
46
Sleep Timer (min)
Sets the countdown timer interval. The countdown timer will start,
with or without a signal being sent to the projector. The projector
will automatically power off when the countdown has nished (in
minutes).
Power Mode (Standby)
Eco.: Choose “Eco.” to save power dissipation further < 1W.
Active: Choose “Active” to return to normal standby and the
VGA out port will be enabled.
Page 48
OPTIONS |
Lamp Settings
Lamp Hours
Display the projection time.
Lamp Reminder
Choose this function to show or to hide the warning message
when the changing lamp message is displayed.
The message will appear 30 hours before suggested replacement
of lamp.
User Controls
When ambient
temperature is
over 35°C in
operating, the
projector will
switch to STD
automatically.
Brightness Mode
STD: Choose “STD” to dim the projector lamp which will lower
power consumption and extend the lamp life.
BRIGHT: Choose “BRIGHT” to increase the brightness.
Lamp Reset
Reset the lamp hour counter after replacing the lamp.
47
English
Page 49
Appendices
Troubleshooting
If you experience a problem with your projector,
please refer to the following information. If a
problem persists, please contact your local
reseller
No image appears on-screen
Ensure all the cables and power connections are correctly and
securely connected as described in the “Installation” section.
Ensure all the pins of connectors are not bent or broken.
Check if the projection lamp has been securely installed. Please
refer to the “Replacing the lamp” section.
Make sure you have removed the lens cap and the projector is
switched on.
Ensure that the “AV mute” feature is not turned on.
Partial, scrolling or incorrectly displayed image
Press “Re-SYNC” on the remote.
If you are using a PC:
For Windows 95, 98, 2000, XP:
. Open the “My Computer” icon, the “Control Panel” folder, and
1
2.
3. Verify that your display resolution setting is lower than or equal
4. Click on the “Advanced Properties” button.
or service center.
then double click on the “Display” icon.
Select the “Settings” tab.
to UXGA (1600 × 1200).
English
If the projector is still not projecting the whole image, you will also
need to change the monitor display you are using. Refer to the
following steps.
5. Verify the resolution setting is lower than or equal to UXGA
(1600 × 1200).
6. Select the “Change” button under the “Monitor” tab.
48
Page 50
Appendices
7. Click on “Show all devices”. Next, select “Standard monitor
types” under the SP box; choose the resolution mode you need
under the “Models” box.
8. Verify that the resolution setting of the monitor display is lower
than or equal to UXGA (1600 × 1200).
If you are using a Notebook:
1. First, follow the steps above to adjust resolution of the
computer.
Press the appropriate keys listed below for your notebook
2.
manufacturer to send signal out from notebook to projector.
Example: [Fn]+[F4]
Acer
Asus [Fn]+[F8]
Dell
Gateway [Fn]+[F4]
Mac Apple:
System Preference Display Arrangement Mirror
display
If you experience difculty changing resolutions or your monitor
freezes, restart all equipment including the projector.
The screen of the Notebook or PowerBook computer is not
[Fn]+[F5]
[Fn]+[F8]
IBM/Lenovo [Fn]+[F7]
HP/Compaq [Fn]+[F4]
NEC
Toshiba
[Fn]+[F3]
[Fn]+[F5]
displaying your presentation
If you are using a Notebook PC
Some Notebook PCs may deactivate their own screens when a
second display device is in use. Each has a different way to be
reactivated. Refer to your computer’s manual for detailed
information.
Image is unstable or ickering
Use “Phase” to correct it. See page 37 for more information.
Change the monitor color setting on your computer.
Image has vertical ickering bar
Use “Frequency” to make an adjustment. See page 37 for more
information.
Check and recongure the display mode of your graphic card to
make it compatible with the projector.
49
English
Page 51
Appendices
Image is out of focus
Make sure the lens cap is removed.
Adjust the Focus Ring on the projector lens.
Make sure the projection screen is between the required distance.
See page 17.
The image is stretched when displaying 16:9 DVD title
When you play anamorphic DVD or 16:9 DVD, the projector will
show the best image when the projector display mode is set to
1
6:9 in the OSD.
If you play 4:3 format DVD titles, please change the format to 4:3
in the projector OSD.
If the image is still stretched, you will also need to adjust the
aspect ratio by referring to the following:
Please setup the display format as 16:9 (wide) aspect ratio type
on your DVD player.
Image is too small or too large
Adjust the Zoom Ring on the top of the projector.
Move the projector closer to or further from the screen.
Press “Menu” button on the remote control or projector panel, go
to “Display Format” and try the different settings.
Use of Keystone is
not recommended.
English
50
Image has slanted sides
If possible, reposition the projector so that it is horizontally
centered on the screen and below the bottom of the screen.
Press “Keystone +/-” button on the remote control or press
“
/ ” on the projector panel, until the sides are vertical.
Image is reversed
Select “SETUP Projection” from the OSD and adjust the
projection direction.
Page 52
51
English
Appendices
The projector stops responding to all controls
If possible, turn off the projector, then unplug the power cord and
wait at least 60 seconds before reconnecting power.
Check that “Keypad Lock” is not activated by trying to control the
projector with the remote control.
Lamp burns out or makes a popping sound
When the lamp reaches its end of life, it will burn out and may
make a loud popping sound. If this happens, the projector will not
turn on until the lamp module has been replaced. To replace the
lamp, follow the procedures in the “Replacing the Lamp” section on
pages 53-54.
Projector Status Indication
LED lighting message
Steady light
No light
Message
ON/STANDBY
LED
Temp-LED Lamp-LED
(Green/Amber) (Red) (Red)
Standby State
(Input power cord)
Amber
Power on (Warming)
Flashing
Green
Lamp lighting Green
Power off (Cooling)
Flashing
Green
Error (Over Temp.)
Flashing
Amber
Error (Fan fail)
Flashing
Amber
Flashing
Error (Lamp fail)
Flashing
Amber
＊ ON/STANDBY LED be ON when OSD appears, be OFF when OSD disappears.
Page 53
Appendices
On Screen Messages
Temperature warning:
Fan failed:
Lamp warming:
Out of display range:
English
52
Remote Control
If the remote control does not work
Check the operating angle of the remote control is within ±15°
both horizontally and vertically of one of the IR receivers on the
projector.
Make sure there are not any obstructions between the remote
control and the projector. Move to within 7 m (±0°) of the projector.
Make sure the batteries are inserted correctly.
Replace batteries if they are exhausted.
Page 54
53
English
Appendices
Replacing the lamp
The projector automatically detects the lamp life. When the
lamp life is nearing the end of use, you will receive a warning
message.
When you see this message, please contact your local reseller
or service center to change the lamp as soon as possible.
Make sure the projector has been cooled down for at least 30
minutes before changing the lamp.
Warning: Lamp compartment may be hot! Allow it to cool down
before changing the lamp!
Warning: To reduce the risk of personal injury, do not drop the
lamp module or touch the lamp bulb. The bulb may shatter and
cause injury if it is dropped.
Warning: If ceiling mounted, please use caution when
opening the lamp access panel. It is recommended to wear
safety glasses if changing the bulb when ceiling mounted.
“Caution must be used to prevent any loose parts from falling
out of projector.”
Page 55
54
English
Appendices
Lamp Replacement Procedure:
1. Switch off the power to the projector by pressing the “ ” button.
2. Allow the projector to cool down for at least 30 minutes.
3. Disconnect the power cord.
4. Unscrew the two screws on the cover.
1
5. Lift up and remove the cover.
2
6. Unscrew the two screws on the lamp module.
3
7. Lift up the lamp handle and remove the lamp module slowly and carefully.
4
To replace the lamp module, reverse the previous steps.
8. Turn on the projector and use “Lamp Reset” after the lamp module is
replaced.
Lamp Reset: (i) Press “Menu” (ii) Select “OPTIONS” (iii) Select
“Lamp Settings” (iv) Select “Lamp Reset” (v) Select “Yes”.
1
2
3
4
The screws on the
lamp cover and the
lamp cannot be
removed.
The projector
cannot be turned
on if the lamp
cover has not been
placed back on the
projector.
Do not touch the
glass area of the
lamp. Hand oil can
cause the lamp to
shatter. Use a dry
cloth to clean the
lamp module if it
was accidentally
touched.
Page 56
For widescreen
resolution (WXGA),
the compatibility
support is
dependent on
Notebook/PC
models.
Appendices
Compatibility Modes
Computer Compatibility
Mode Resolution
VGA 640 × 350 70 70 31.50 31.50
VGA 640 × 350 85 85 37.90 37.90
VGA 640 × 400 85 85 37.90 37.90
VGA 640 × 480 60 60 3
VGA 640 × 480 72 72 37.90 37.90
VGA 640 × 480 75 75 37.50 37.50
VGA 640 × 480 85 85 43.30 43.30
VGA 720 × 400 70 70 3
VGA 720 × 400 85 85 37.90 37.90
SVGA 800 × 600 56 56 35.20 35.20
SVGA 800 × 600 60 60 37.90 37.90
SVGA 800 × 600 72 72 48.
SVGA 800 × 600 75 75 46.90 46.90
SVGA 800 × 600 85 85 53.70 53.70
XGA 1
XGA 1
XGA 1
XGA 1
WXGA 1
WXGA 1
WXGA 1
WXGA 1
SXGA 1
SXGA 1
SXGA 1
SXGA 1
SXGA 1
SXGA 1
SXGA 1
SXGA 1
SXGA+ 1
UXGA 1
024 × 768 60 60 48.40 48.40
024 × 768 70 70 56.50 56.50
024 × 768 75 75 60.00 60.00
024 × 768 85 85 68.70 68.70
280 × 768 60 60,75,85 47.80 47.80
280 × 768 75 - 60.30 -
280 × 720 60 - 45.00 -
280 × 800 60 60 49.68 49.64
152 × 864 60 60 53.50 53.50
152 × 864 70 70 63.80 63.80
152 × 864 75 75 67.50 67.50
152 × 864 85 85 77.10 77.10
280 × 1024 60 60 63.98 63.98
280 × 1024 75 75 79.98 79.98
280 × 1024 85 85 91.10 91.10
280 × 960 60 - 60.00 -
400 × 1050 60 60 63.98 63.98
600 × 1200 60 60 75.00 75.00
V-Sync (Hz) H-Sync (KHz)
Anglog Digital Anglog Digital
1.50 31.50
1.50 31.50
10 48.10
55
English
Page 57
Appendices
Computer Compatibility
Mode Resolution V-Sync (Hz) H-Sync (KHz)
MAC LC 13” 640 × 480 66.66 34.98
MAC II 13” 640 × 480 66.68 35.00
MAC 16” 832 × 624 74.55 49.73
MAC 19” 1
MAC 11
MAC G4 640 × 480 60 3
i MAC DV 1
i MAC DV 11
i MAC DV 1
Video Compatibility
NTSC M (3.58MHz), 4.43 MHz
PAL B, D, G, H, I, M, N
SECAM B, D, G, K, K
SDTV/HDTV 480i/p, 576i/p, 720p@50Hz/60Hz,
024 × 768 75 60.24
52 × 870 75.06 68.68
1.35
024 × 768 75 60.00
52 × 870 75 68.49
280 × 960 75 75.00
1, L
1080i/p@50Hz/60Hz
English
56
Page 58
57
English
Appendices
RS232 Pin Assignments
Pin no.
Spec.
(from projector side)
1 N/A
2 RXD
3 TXD
4 N/A
5 GND
6 N/A
7 N/A
8 N/A
9 N/A
12345
6789
RS232 Commands and Protocol
Function List
Page 59
Appendices
RS232 Protocol Function List
Optoma EX615/EX542 RS232 Command Table
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
Baud Rate : 9600
Note : There is a <CR> after all ASCII commands
Data Bits: 8
0 D is the HEX code for <CR> in ASCII code
Parity: None
Stop Bits: 1
Flow Control : None
UART16550 FIFO: Disable
Projector Return (Pass): P
Projector Return (Fail): F
XX=01ˀ99, projector's ID, XX=00 is for all projectors
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SEND to projector
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code Function Description
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX00 1 7E 30 30 30 30 20 31 0D Power ON
~
XX00 0 7E 30 30 30 30 20 30 0D Power OFF (0/
2
for backward compatible)
~XX00 1 ~nnnn 7E 30 30 30 30 20 31 20 a 0D Power ON with Password ~
n
nnn = ~0000 (a=7E 30 30 30 30) - ~9999(a=7E 39 39 39 39)
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ----------------------------------
~XX01 1 7E 30 30 30 31 20 31 0D Resync
~XX02 1 7E 30 30 30 32 20 31 0D AV Mute On
~XX02 0 7E 30 30 30 32 20 30 0D Of
f (0/2 for backward compatible)
~XX03 1 7E 30 30 30 33 20 31 0D Mute O
n
~XX03 0 7E 30 30 30 33 20 30 0D O
f
f (0/2 for backward compatible)
~XX04 1 7E 30 30 30 34 20 31 0D Freeze
~XX04 0 7E 30 30 30 34 20 30 0D Unfreeze (
0
/2 for backward compatible)
~XX05 1 7E 30 30 30 35 20 31 0D Zoom Plus
~XX06 1 7E 30 30 30 36 20 31 0D Zoom Minus
~XX07 1 7E 30 30 30 37 20 31 0D Up (Pan under zoom)
~XX08 1 7E 30 30 30 38 20 31 0D Down (Pan under zoom)
~XX09 1 7E 30 30 30 39 20 31 0D Left (Pan under zoom)
~XX10 1 7E 30 30 31 30 20 31 0D Right (Pan under zoom)
~XX12 1 7E 30 30 31 32 20 31 0D Direct Source Commands HDMI
~XX12 5 7E 30 30 31 32 20 35 0D V
GA
1
~XX12 6 7E 30 30 31 32 20 36 0D VGA
2
~XX12 8 7E 30 30 31 32 20 38 0D V
GA
1 Component
~XX12 9 7E 30 30 31 32 20 39 0D S-Vid
e
o
~XX12 10 7E 30 30 31 32 20 31 30 0D Vi
deo
~XX12 12 7E 30 30 31 32 20 31 33 0D V
GA
2 SCART
~XX12 13 7E 30 30 31 32 20 31 33 0D VGA
2 Component
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ----------------------------------
~XX20 1 7E 30 30 32 30 20 31 0D Display Mode Pre
s
entation
~XX20 2 7E 30 30 32 30 20 32 0D B
r
ight
~XX20 3 7E 30 30 32 30 20 33 0D Mov
ie
~XX20 4 7E 30 30 32 30 20 34 0D s
R
GB
~XX20 5 7E 30 30 32 30 20 35 0D U
s
er1
~XX20 6 7E 30 30 32 30 20 36 0D Us
er2
~XX20 7 7E 30 30 32 30 20 37 0D B
l
ackboard
~XX20 8 7E 30 30 32 30 20 38 0D Cla
ssro
om
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ----------------------------------
~XX21 n 7E 30 30 32 31 20 a 0D Brightness n
= 0 (a=30) ~ 100 (a=31 30 30)
~XX22 n 7E 30 30 32 32 20 a 0D Contrast n
= 0 (a=30) ~ 100 (a=31 30 30)
~XX23 n 7E 30 30 32 33 20 a 0D Sharpness n
= 0 (a=30) ~ 31 (a=33 31)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX24 n 7E 30 30 32 34 20 a 0D Color Settings R
e
d Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX25 n 7E 30 30 32 35 20 a 0D G
r
een Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX26 n 7E 30 30 32 36 20 a 0D Bl
ue Gain n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX27 n 7E 30 30 32 37 20 a 0D R
e
d Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX28 n 7E 30 30 32 38 20 a 0D G
r
een Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX29 n 7E 30 30 32 39 20 a 0D Bl
ue Bias n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX30 n 7E 30 30 33 30 20 a 0D Cy
an n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX31 n 7E 30 30 33 31 20 a 0D Y
e
llow n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX32 n 7E 30 30 33 32 20 a 0D Ma
genta n = -50 (a=2D 35 30) ~ 50 (a=35 30)
~XX33 1 7E 30 30 33 33 20 31 0D Re
se
t
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ----------------------------------
~XX34 n 7E 30 30 33 34 20 a 0D BrilliantColor
TM
n = 0 (a=30) ~ 10 (a=31 30)
~XX35 1 7E 30 30 33 35 20 31 0D Degamma Fi
lm
~XX35 2 7E 30 30 33 35 20 32 0D V
i
deo
~XX35 3 7E 30 30 33 35 20 33 0D G
r
aphics
~XX35 4 7E 30 30 33 35 20 34 0D PC
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ----------------------------------
~XX36 1 7E 30 30 33 36 20 31 0D Color Temp. Wa
rm
~XX36 2 7E 30 30 33 36 20 32 0D Medium
~XX36 3 7E 30 30 33 36 20 33 0D Co
ld
~XX37 1 7E 30 30 33 37 20 31 0D Color Space A
u
to
~XX37 2 7E 30 30 33 37 20 32 0D RG
B
~XX37 3 7E 30 30 33 37 20 33 0D Y
U
V
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- ----------------------------------
~XX44 n 7E 30 30 34 34 20 a 0D Color (Saturation) n
= 0 (a=30) ~ 100 (a=31 30 30)
~XX45 n 7E 30 30 34 35 20 a 0D Tint n
= 0 (a=30) ~ 100 (a=31 30 30)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
English
58
Page 60
Appendices
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX60 1 7E 30 30 36 30 20 31 0D Format
4:3
~XX60 2 7E 30 30 36 30 20 32 0D
16:9-l
~XX60 3 7E 30 30 36 30 20 33 0D
16:9-ll
~XX60 6 7E 30 30 36 30 20 36 0D
Native
~XX60 7 7E 30 30 36 30 20 37 0D
Auto
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX61 n 7E 30 30 36 31 20 a 0D Overscan
n = 0 (a=30) ~ 10 (a=31 30)
~XX62 n 7E 30 30 36 32 20 a 0D Zoom
n = -5 (a=2D 35) ~ 25 (a=32 35)
~XX63 n 7E 30 30 36 33 20 a 0D H Image Shift
n = -50 (a=2D 35 30) ~ +50 (a=35 30)
~XX64 n 7E 30 30 36 34 20 a 0D V Image Shift
n = -50 (a=2D 35 30) ~ +50 (a=35 30)
~XX66 n 7E 30 30 36 36 20 a 0D V Keystone
n = -40 (a=2D 34 30) ~ 40 (a=34 30)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX70 1 7E 30 30 37 30 20 31 0D Language E
nglish
~XX70 2 7E 30 30 37 30 20 32 0D G
erman
~XX70 3 7E 30 30 37 30 20 33 0D Fre
nch
~XX70 4 7E 30 30 37 30 20 34 0D I
talian
~XX70 5 7E 30 30 37 30 20 35 0D S
panish
~XX70 6 7E 30 30 37 30 20 36 0D Por
tuguese
~XX70 7 7E 30 30 37 30 20 37 0D Pol
ish
~XX70 8 7E 30 30 37 30 20 38 0D D
utch
~XX70 9 7E 30 30 37 30 20 39 0D S
wedish
~XX70 10 7 E 30 30 37 30 20 31 30 0D N
orwegian/Danish
~XX70 11 7 E 30 30 37 30 20 31 31 0D F
innish
~XX70 12 7 E 30 30 37 30 20 31 32 0D G
reek
~XX70 13 7 E 30 30 37 30 20 31 33 0D T
raditional Chinese
~XX70 14 7 E 30 30 37 30 20 31 34 0D S
implified Chinese
~XX70 15 7 E 30 30 37 30 20 31 35 0D J
apanese
~XX70 16 7 E 30 30 37 30 20 31 36 0D K
orean
~XX70 17 7 E 30 30 37 30 20 31 37 0D Russ
ian
~XX70 18 7 E 30 30 37 30 20 31 38 0D H
ungarian
~XX70 19 7 E 30 30 37 30 20 31 39 0D C
zechoslovak
~XX70 20 7 E 30 30 37 30 20 32 30 0D A
rabic
~XX70 21 7 E 30 30 37 30 20 32 31 0D T
hai
~XX70 22 7 E 30 30 37 30 20 32 32 0D T
urkish
~XX70 23 7 E 30 30 37 30 20 32 33 0D F
arsi
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX71 1 7E 30 30 37 31 20 31 0D Projection F
ront-Desktop
~XX71 2 7E 30 30 37 31 20 32 0D R
ear-Desktop
~XX71 3 7E 30 30 37 31 20 33 0D F
ront-Ceiling
~XX71 4 7E 30 30 37 31 20 34 0D R
ear-Ceiling
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX72 1 7E 30 30 37 32 20 31 0D Menu Location T
op Left
~XX72 2 7E 30 30 37 32 20 32 0D T
op Right
~XX72 3 7E 30 30 37 32 20 33 0D C
entre
~XX72 4 7E 30 30 37 32 20 34 0D B
ottom Left
~XX72 5 7E 30 30 37 32 20 35 0D B
ottom Right
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX73 n 7E 30 30 37 33 20 a 0D Signal F
requency n = -5 (a=2D 35) ~ 5 (a=35) By signal
~XX74 n 7E 30 30 37 34 20 a 0D P
hase n = 0 (a=30) ~ 31 (a=33 31) By signal
~XX75 n 7E 30 30 37 35 20 a 0D H
. Position n = -5 (a=2D 35) ~ 5 (a=35) By timing
~XX76 n 7E 30 30 37 36 20 a 0D V
. Position n = -5 (a=2D 35) ~ 5 (a=35) By timing
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX77 n 7E 30 30 37 37 20 aabbcc 0D Security S
ecurity Timer Month/Day/Hour n = mm/dd/hh
m
m = 00 (aa=30 30) ~ 12 (aa=31 32)
d
d = 00 (bb=30 30) ~ 30 (bb=33 30)
h
h = 00 (cc=30 30) ~ 24 (cc=32 34)
~XX78 1 7E 30 30 37 38 20 31 0D S
ecurity Settings Enable
~XX78 2 7E 30 30 37 38 20 32 0D Disa
ble
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX79 n 7E 30 30 37 39 20 a 0D Projector ID
n = 00 (a=30 30) ~ 99 (a=39 39)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX80 1 7E 30 30 38 30 20 31 0D Mute O
n
~XX80 0 7E 30 30 38 30 20 30 0D O
ff (0/2 for backward compatible)
~XX81 n 7E 30 30 38 31 20 a 0D Volume
n = 0 (a=30) ~ 10 (a=31 30)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX82 1 7E 30 30 38 32 20 31 0D Logo O
ptoma
~XX82 2 7E 30 30 38 32 20 32 0D U
ser
~XX83 1 7E 30 30 38 33 20 31 0D Logo Capture (
Option)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX88 0 7E 30 30 38 38 20 30 0D Closed Captioning O
ff Only for EX542
~XX88 1 7E 30 30 38 38 20 31 0D c
c1 Only for EX542
~XX88 2 7E 30 30 38 38 20 32 0D c
c2 Only for EX542
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX100 1 7 E 30 30 31 30 30 20 31 0D Source Lock O
n
~XX100 0 7 E 30 30 31 30 30 20 30 0D O
ff (0/2 for backward compatible)
~XX100 3 7 E 30 30 31 30 30 20 33 0D Next Source
~XX101 1 7 E 30 30 31 30 31 20 31 0D High Altitude O
n
~XX101 0 7 E 30 30 31 30 31 20 30 0D O
ff (0/2 for backward compatible)
~XX102 1 7 E 30 30 31 30 32 20 31 0D Information Hide O
n
~XX102 0 7 E 30 30 31 30 32 20 30 0D O
ff (0/2 for backward compatible)
~XX103 1 7 E 30 30 31 30 33 20 31 0D Keypad Lock O
n
~XX103 0 7 E 30 30 31 30 33 20 30 0D O
ff (0/2 for backward compatible)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX104 1 7 E 30 30 31 30 34 20 31 0D Background Color Blue
~XX104 2 7 E 30 30 31 30 34 20 32 0D Black
~XX104 3 7 E 30 30 31 30 34 20 33 0D Red
~XX104 4 7 E 30 30 31 30 34 20 34 0D Green
~XX104 5 7E 30 30 31 30 34 20 35 0D White
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
59
English
Page 61
Appendices
~XX105 1 7E 30 30 31 30 35 20 31 0D Advanced Direct Power On On
~XX105 0 7E 30 30 31 30 35 20 30 0D O
ff (0/2 for backward compatible)
~XX106 n 7E 30 30 31 30 36 20 a 0D Auto Power Off (min) n = 0 (a=30) ~ 180 (a=31 38 30) step:5
~XX107 n 7E 30 30 31 30 37 20 a 0D Sleep Timer (min) n = 0 (a =30) ~ 995 (a=39 39 39) step:5
~XX114 1 7E 30 30 31 31 34 20 31 0D Power
Mode(Standby) Eco.(<=1W)
~XX114 0 7E 30 30 31 31 34 20 30 0D
Active (0/2 for backward compatible)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX109 1 7E 30 30 31 30 39 20 31 0D L
amp Reminder On
~XX109 0 7E 30 30 31 30 39 20 30 0D
Off (0/2 for backward compatible)
~XX110 1 7E 30 30 31 31 30 20 31 0D B
rightness Mode Bright
~XX110 0 7E 30 30 31 31 30 20 30 0D
STD (0/2 for backward compatible)
~XX111 1 7E 30 30 31 31 31 20 31 0D L
amp Reset Yes
~XX111 0 7E 30 30 31 31 31 20 30 0D N
o (0/2 for backward compatible)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX112 1 7E 30 30 31 31 32 20 31 0D Reset
Yes
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
~XX99 1 7E 30 30 39 39 20 31 0D RS232 Alert Reset Reset System Alert
~XX210 n 7E 30 30 32 30 30 20 n 0D Display message on the OSD n: 1-30 characters
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SEND to emulate Remote
~XX140 1 7E 30 30 31 34 30 20 31 0D Power
~XX140 3 7E 30 30 31 34 30 20 33 0D R
emote Mouse Up
~XX140 4 7E 30 30 31 34 30 20 34 0D R
emote Mouse Left
~XX140 5 7E 30 30 31 34 30 20 35 0D R
emote Mouse Enter
~XX140 6 7E 30 30 31 34 30 20 36 0D R
emote Mouse Right
~XX140 7 7E 30 30 31 34 30 20 37 0D R
emote Mouse Down
~XX140 8 7E 30 30 31 34 30 20 38 0D M
ouse Left Click
~XX140 9 7E 30 30 31 34 30 20 39 0D Mo
use Right Click
~XX140 10 7E 30 30 31 34 30 20 31 30 0D U
p/Page +
~XX140 11 7E 30 30 31 34 30 20 31 31 0D L
eft/Source
~XX140 12 7E 30 30 31 34 30 20 31 32 0D E
nter (for projection MENU)
~XX140 13 7E 30 30 31 34 30 20 31 33 0D Rig
ht/Re-SYNC
~XX140 14 7E 30 30 31 34 30 20 31 34 0D D
own/Page -
~XX140 15 7E 30 30 31 34 30 20 31 35 0D K
eystone +
~XX140 16 7E 30 30 31 34 30 20 31 36 0D K
eystone -
~XX140 17 7E 30 30 31 34 30 20 31 37 0D V
olume -
~XX140 18 7E 30 30 31 34 30 20 31 38 0D V
olume +
~XX140 19 7E 30 30 31 34 30 20 31 39 0D Bri
ghtness (1)
~XX140 20 7E 30 30 31 34 30 20 32 30 0D Me
nu (2)
~XX140 21 7E 30 30 31 34 30 20 32 31 0D Z
oom (3)
~XX140 22 7E 30 30 31 34 30 20 32 32 0D H
DMI (4)
~XX140 23 7E 30 30 31 34 30 20 32 33 0D F
reeze (5)
~XX140 24 7E 30 30 31 34 30 20 32 34 0D A
V Mute (6)
~XX140 25 7E 30 30 31 34 30 20 32 35 0D S-Vid
eo (7)
~XX140 26 7E 30 30 31 34 30 20 32 36 0D V
GA1/2 toggle (8)
~XX140 27 7E 30 30 31 34 30 20 32 37 0D V
ideo (9)
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
SEND from projector automatically
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code Function Projector Return Description
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------when Standby/Warming/Cooling/Out of Range/Lamp fail/ I
NFOn n : 1/2/3/4/5/6/7/8/9 = Standby/Warming/Cooling/Out of Range/Lamp fail/
Fan Lock/Over Temperature/Lamp Hours Running Out/Lamp Cover Open F
an Lock/Over Temperature/Lamp Hours Running Out/Lamp Cover Open
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
READ from projector
---------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
232 ASCII Code HEX Code Function Projector Return Description
~XX121 1 7E 30 30 31 32 31 20 31 0D Input Source Commands OKn n : 0/1/2/3/4/5 =
None/VGA1/VGA2/S-Video/Video/HDMI
~XX122 1 7E 30 30 31 32 32 20 31 0D Sofware Version O
Kdddd dddd: FW version
~XX123 1 7E 30 30 31 32 33 20 31 0D Display Mode O
Kn n : 0/1/2/3/4/5/6/7/8 = None/Presentation/Bright/Movie/sRGB/User1/User2/
B
lackboard/Classroom
~XX124 1 7E 30 30 31 32 34 20 31 0D Power State O
Kn n : 0/1 = Off/On
~XX125 1 7E 30 30 31 32 35 20 31 0D Brightness O
Kn
~XX126 1 7E 30 30 31 32 36 20 31 0D Contrast O
Kn
~XX127 1 7E 30 30 31 32 37 20 31 0D Aspect Ratio O
Kn n : 0/1/2/3/4 = 4:3/16:9-l/16:9-ll/
Native/AUTO
~XX128 1 7E 30 30 31 32 38 20 31 0D Color Temperature O
Kn n : 0/1/2 = Warm/Medium/Cold
~XX129 1 7E 30 30 31 32 39 20 31 0D Projection Mode O
Kn n : 0/1/2/3 = Front-Desktop/ Rear-Desktop/ Front-Ceiling/ Rear-Ceiling
~XX150 1 7E 30 30 31 35 30 20 31 0D Information O
Kabbbbccdddde
a
: 0/1 = Off/On
b
bbb: LampHour
c
c: source 00/01/02/03/04/05 = None/VGA1/VGA2/S-Video/Video/HDMI
d
ddd: FW version
e
: Display mode 0/1/2/3/4/5/6/7/8
None/Presentation/Bright/Movie/sRGB/User1/User2/
Blackboard/Classroom
~XX151 1 7E 30 30 31 35 31 20 31 0D Model name O
Kn n:1/2=EX615,EX542
~XX108 1 7E 30 30 31 30 38 20 31 0D Lamp Hours O
Kbbbb bbbb: LampHour
~XX108 2 7E 30 30 31 30 38 20 31 0D Cumulative Lamp Hours OKbbbbb b
bbbb: (5 digits) Total Lamp Hours
English
60
Page 62
61
English
Appendices
Please note that
damage resulting
from incorrect
installation will
invalidate the
warranty.
Ceiling Mount Installation
1. To prevent damage to your projector, please use the
Optoma ceiling mount.
2. If you wish to use a third party ceiling mount kit, please
ensure the screws used to attach a mount to the projector
meet the following specifications:
Screw type: M3*3
Maximum screw length: 10mm
Minimum screw length: 7.5mm
Warning:
1. If you buy a ceiling
mount from another
company, please
be sure to use the
correct screw size.
Screw size will vary
depending on the
thickness of the
mounting plate.
2. Be sure to keep
at least 10 cm gap
between the ceiling
and the bottom of the
projector.
3. Avoid installing the
projector near a heat
source.
Lens
82.3093.60
110.00 137.2076.40
55.00
323.60
233.30
59.01
89.75
Unit: mm
Page 63
Appendices
Regulation & Safety notices
This appendix lists the general notices of your projector.
FCC notice
This device has been tested and found to comply with the
limits for a Class B digital device pursuant to Part 15 of the
FCC rules. These limits are designed to provide reasonable
protection against harmful interference in a residential
installation. This device generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications.
However, there is no guarantee that interference will not
occur in a particular installation. If this device does cause
harmful interference to radio or television reception, which can
be determined by turning the device off and on, the user is
encouraged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the device and receiver.
• Connect the device into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/television
technician for help.
English
Notice: Shielded cables
All connections to other computing devices must be
made using shielded cables to maintain compliance with
FCC regulations.
Caution
Changes or modications not expressly approved by the
manufacturer could void the user’s authority, which is
granted by the Federal Communications Commission, to
operate this projector.
62
Page 64
Appendices
Operation conditions
This device complies with Part 15 of the FCC Rules. Operation
is subject to the following two conditions:
1. This device may not cause harmful interference and
2. This device must accept any interference received,
including interference that may cause undesired
operation.
Notice: Canadian users
This Class B digital apparatus complies with Canadian
ICES-003.
Remarque à l’intention des utilisateurs
canadiens
Cet appareil numerique de la classe B est conforme a la
norme
NMB-003 du Canada.
Declaration of Conformity for EU
countries
• EMC Directive 2004/108/EC (including amendments)
• Low Voltage Directive 2006/95/EC
• R & TTE Directive 1999/5/EC (if product has RF function)
Disposal instructions
Do not throw this electronic device into the
trash when discarding. To minimize pollution
and ensure utmost protection of the global
environment, please recycle it.
63
English
Loading...
