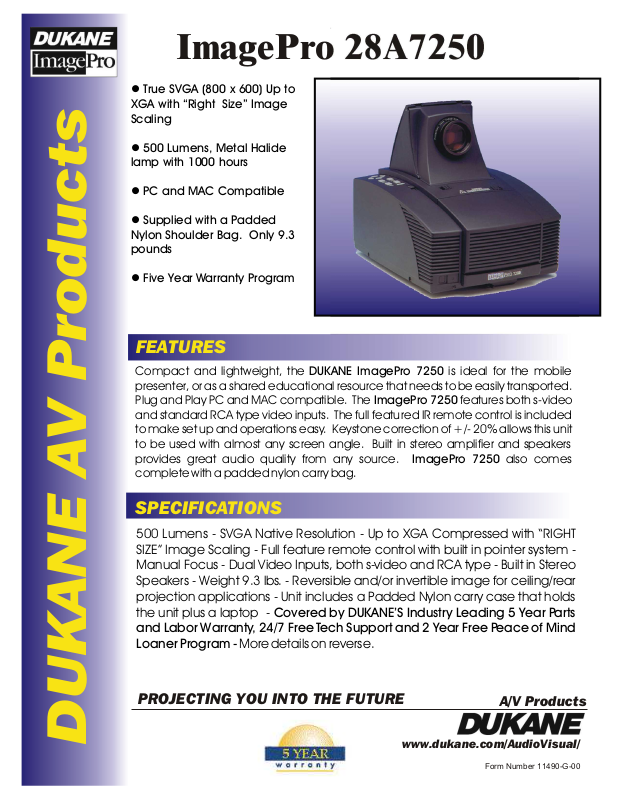

Dukane 7250 Product Sheet

ImagePro 28A7250

l True SVGA (800 x 600) Up to
XGA with “Right Size” Image
Scaling

l 500 Lumens, Metal Halide
lamp with 1000 hours

l PC and MAC Compatible

l Supplied with a Padded

Nylon Shoulder Bag. Only 9.3
pounds

l Five Year Warranty Program

FEATURES

Compact and lightweight, the DUKANE ImagePro 7250 is ideal for the mobile
presenter, or as a shared educational resource that needs to be easily transported.
Plug and Play PC and MAC compatible. The ImagePro 7250 features both s-video
and standard RCA type video inputs. The full featured IR remote control is included
to make set up and operations easy. Keystone correction of +/- 20% allows this unit
to be used with almost any screen angle. Built in stereo amplifier and speakers
provides great audio quality from any source. ImagePro 7250 also comes
complete with a padded nylon carry bag.

SPECIFICATIONS

500 Lumens - SVGA Native Resolution - Up to XGA Compressed with “RIGHT
SIZE” Image Scaling - Full feature remote control with built in pointer system -
Manual Focus - Dual Video Inputs, both s-video and RCA type - Built in Stereo
Speakers - Weight 9.3 lbs. - Reversible and/or invertible image for ceiling/rear
projection applications - Unit includes a Padded Nylon carry case that holds
the unit plus a laptop - Covered by DUKANE’S Industry Leading 5 Year Parts

and Labor Warranty, 24/7 Free Tech Support and 2 Year Free Peace of Mind
Loaner Program - More details on reverse.

DUKANE AV Products

PROJECTING YOU INTO THE FUTURE

A/V Products

www.dukane.com/AudioVisual/

Form Number 11490-G-00

Model 28A7250
SVGA Data/Video
LCD Projector

Specifications

Electronic Features

LCD Type 6.5 inch Active Matrix TFT
Colors 16.7 Million, 24 bit

Resolution 800 x 600 500 TV Lines (Video)
Contrast Ratio 200:1

Lumens 500 ANSI
Projection Distance 5ft to 20ft

Speakers Stereo, 3W+ 3W built-in



Computer Compatibility

IBM VGA compatibles, VESA 72Hz and 75 Hx, Apple Mac
family (640x480) (LC, LCII, LCIII, II, IIx, IIcx, IIci, IIsi, IIvx, livi,
Quadra, Centris, and Powerbook, Power MAC.) NEC PC9801
Series (640x400), NEC PC9821 Series (640x480), Fujitsu FM
Towns Series (640x400, 640x480) VESA Standard SVGA
Modes (800x600).

Video Compatibility

NTSC/PAL/SECAM, Composite and S-Video.

Mechanical

Projection Lens Manual Focus
Keystone CorrectionUp to 20 degrees
Projection Front/Rear/Ceiling
Lamp  330 Watt Metal-Halide 1000 hours

Cooling System Internal fans + ventilation slots

Sound System

Stereo 2 Watt Stereo Speakers and Amplifier

Interface Connections

Computer Input (1) D-Sub 15 Pin
Monitor Output (1) D-Sub 15 Pin

Video Input (1) Female RCA

 (1) 4-pin Mini DIN S-Video
Audio Input (2) Female RCA, Computer

 (2) Female RCA, Video

Audio Output (2) female RCA
Control (1) Mouse Control Port

Remote

Power Requirements

Operating Voltage 110 VAC 60 Hz or 230 VAC 50 Hz,

 420 Watts

Dimensions

10.2"W x 12.5"D X 6.4"H (excluding lens)

Weight

Unit Weight: 9.3 lbs. (6.5 kg) / 15 lbs shipping

Regulatory Compliance

UL/C-UL/FCC Class B/TUV/GS/CE

Accessories (Included)

Remote Control with Batteries, operator's manual, 15 pin
VGA/SVGA cable, audio cable, S-Video cable, PS2 cable,

Composite Video cable, AC power cord, 5-Pin Mac signal
adapter, 15-Pin Mac Monitor adapter, Nylon carrying case.

Accessories (Optional)

ATA Case with wheels and retractable handle (#185-293)
Hard Sided Plastic Case with wheels & retractable handle
(185-401)

Full featured wireless remote
with mouse control

W

E

N

5

YEAR

Specifications (cont.)

Warranty
 Five (5) Year Limited Warranty on Parts and Labor in

 North America; lamps excluded (for other locations,
 Local Warranties Apply).
 Includes Dukane's FREE TWO YEAR Peace-of-Mind
 Loaner Program.



ImagePro LCD Projector Features

TFT Technology gives the Model 7250 rich, superior images.
"Plug and Play" in less than 2 minutes.
SVGA (800x600) resolution allows reproduction of data with

razor sharp accuracy and video images with lifelike color and
detail.

Adaptability--manual keystone correction, built in stereo
speakers, and full wireless remote control allow this projector
to be used anywhere .

Audio Visual Products

Dukane Corporation
Audio Visual Products Division
2900 Dukane Drive
St. Charles, IL 60174-3395

U

L

®

Specifications subject to change without prior notice
