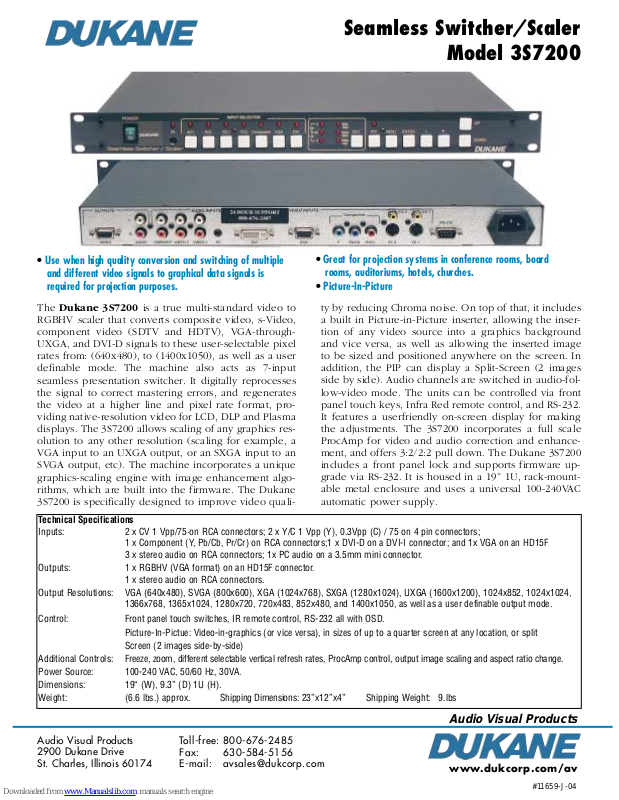

Page 1
Seamless Switcher/Scaler
Model 3S7200
• Use when high quality conversion and switching of multiple
and different video signals to graphical data signals is
required for projection purposes.

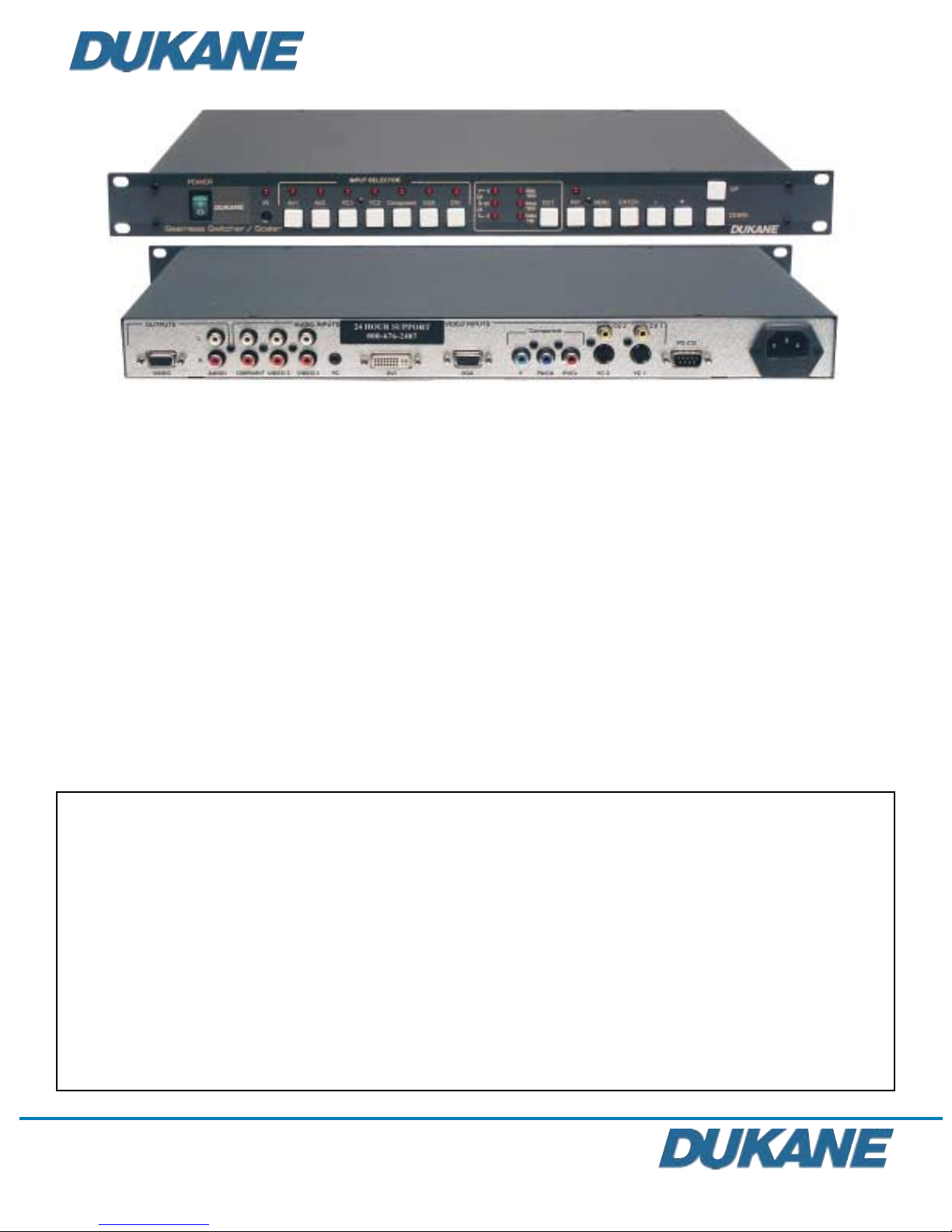

The Dukane 3S7200 is a true multi-standard video to
RGBHV scaler that converts composite video, s-Video,
component video (SDTV and HDTV), VGA-throughUXGA, and DVI-D signals to these user-selectable pixel
rates from: (640x480), to (1400x1050), as well as a user
definable mode. The machine also acts as 7-input
seamless presentation switcher. It digitally reprocesses
the signal to correct mastering errors, and regenerates
the video at a higher line and pixel rate format, providing native-resolution video for LCD, DLP and Plasma
displays. The 3S7200 allows scaling of any graphics resolution to any other resolution (scaling for example, a
VGA input to an UXGA output, or an SXGA input to an
SVGA output, etc). The machine incorporates a unique
graphics-scaling engine with image enhancement algorithms, which are built into the firmware. The Dukane
3S7200 is specifically designed to improve video quali-
Technical Specifications
Inputs: 2 x CV 1 Vpp/75·on RCA connectors; 2 x Y/C 1 Vpp (Y), 0.3Vpp (C) / 75 on 4 pin connectors;
1 x Component (Y, Pb/Cb, Pr/Cr) on RCA connectors;1 x DVI-D on a DVI-I connector; and 1x VGA on an HD15F
3 x stereo audio on RCA connectors; 1x PC audio on a 3.5mm mini connector.
Outputs: 1 x RGBHV (VGA format) on an HD15F connector.
1 x stereo audio on RCA connectors.
Output Resolutions: VGA (640x480), SVGA (800x600), XGA (1024x768), SXGA (1280x1024), UXGA (1600x1200), 1024x852, 1024x1024,
1366x768, 1365x1024, 1280x720, 720x483, 852x480, and 1400x1050, as well as a user definable output mode.
Control: Front panel touch switches, IR remote control, RS-232 all with OSD.
Picture-In-Pictue: Video-in-graphics (or vice versa), in sizes of up to a quarter screen at any location, or split
Screen (2 images side-by-side)
Additional Controls: Freeze, zoom, different selectable vertical refresh rates, ProcAmp control, output image scaling and aspect ratio change.
Power Source: 100-240 VAC, 50/60 Hz, 30VA.
Dimensions: 19“ (W), 9.3” (D) 1U (H).
Weight: (6.6 lbs.) approx. Shipping Dimensions: 23”x12”x4” Shipping Weight: 9.lbs
• Great for projection systems in conference rooms, board
rooms, auditoriums, hotels, churches.
• Picture-In-Picture
ty by reducing Chroma noise. On top of that, it includes
a built in Picture-in-Picture inserter, allowing the insertion of any video source into a graphics background
and vice versa, as well as allowing the inserted image
to be sized and positioned anywhere on the screen. In
addition, the PIP can display a Split-Screen (2 images
side by side). Audio channels are switched in audio-follow-video mode. The units can be controlled via front
panel touch keys, Infra Red remote control, and RS-232.
It features a userfriendly on-screen display for making
the adjustments. The 3S7200 incorporates a full scale
ProcAmp for video and audio correction and enhancement, and offers 3:2/2:2 pull down. The Dukane 3S7200
includes a front panel lock and supports firmware upgrade via RS-232. It is housed in a 19” 1U, rack-mountable metal enclosure and uses a universal 100-240VAC
automatic power supply.
Audio Visual Products
2900 Dukane Drive
St. Charles, Illinois 60174
Audio Visual Products
www.dukcorp.com/av
#11659-J-04
