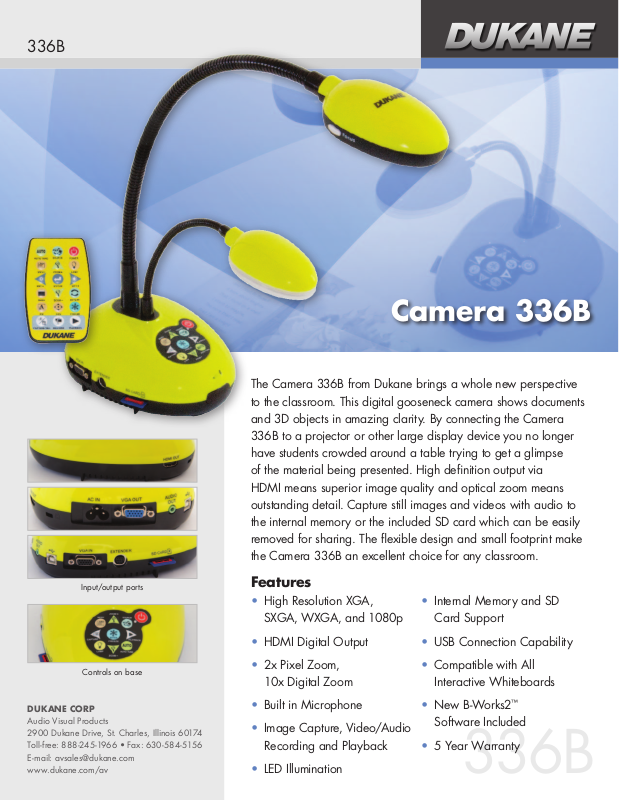

Dukane 336B Specifications

336B

Camera 336B

Input/output ports

Controls on base

The Camera 336B from Dukane brings a whole new perspective
to the classroom. This digital gooseneck camera shows documents
and 3D objects in amazing clarity. By connecting the Camera
336B to a projector or other large display device you no longer
have students crowded around a table trying to get a glimpse
of the material being presented. High definition output via
HDMI means superior image quality and optical zoom means
outstanding detail. Capture still images and videos with audio to
the internal memory or the included SD card which can be easily

removed for sharing. The exible design and small footprint make
the Camera 336B an excellent choice for any classroom.

Features

• High Resolution XGA,

SXGA, WXGA, and 1080p

• HDMI Digital Output

• 2x Pixel Zoom,

10x Digital Zoom

• Internal Memory and SD

Card Support

• USB Connection Capability

• Compatible with All

Interactive Whiteboards

DUKANE CORP

Audio Visual Products
2900 Dukane Drive, St. Charles, Illinois 60174

Toll-free: 888-245-1966 • Fax: [phone]

E-mail: [e-mail]
www.dukane.com/av

• Built in Microphone

• Image Capture, Video/Audio

Recording and Playback

• LED Illumination

• New B-Works2

Software Included

• 5 Year Warranty

™

336B

336B

Imaging

Full screen Video/audio recording and playback

Output Resolution

Frame Rate VGA (SXGA - 1080p) - 30 fps; USB - 20 fps

Zoom Capacity

Capture Area 18” x 12.5” (357.2 x 317.5 mm)

Lamp Type

Power Supply Built-in, 100-240 VAC, auto switching

Digital Out HDMI XGA/SXGA/WXGA/1080p

VGA In Active pass through from the computer

VGA Out VGA outp

Audio In Built-in microphone

Audio Out 3.5mm phone jack for earphones or speakers

Internal Memory Capacity Up to 120 JPEG images

External Memory Capacity Support SD Card

USB Support

RS-232 Yes

C-Video RCA Jack (PAL, NTSC)

™

B-Works2

Video Recording with Audio

Image Capture Single or continuous capture of JPEG images.

Annotation Add annotations directly to live image.

Controls and Operations Same set of controls as the remote control

USB Driver

Standard

UPC 605194002740

Optional RS232 Adapter

Software Included

XGA (1024 x 768), SXGA (1280 x 1024),
WXGA (1280 x 800), 1080p (1920 x 1080)

2x pixel zoom and 10x digital zoom,
mechanical zoom ≥ 8x

Lighting

2 LED lamps for completely even light coverage,
(one in camera head)

Input/Output

ut to the projector

USB 2.0 High Speed (up to 480 Mbps) for
seamless integration with interactive whiteboards

Software

Supports PC Windows 10, 8, 7, XP, Vista and
Mac OSX. (Free download from Dukane website)

Record video with various compression formats.
Playback with audio out- No PC needed.

Supports UVC, WIA and TWAIN for integration
with interactive whiteboards including
Promethean
Mimio™, and others.

Accessories

Power cable, VGA cable, USB cable, Microscope
adapter, Audio Cable, Remote Control

™

, SMART™, Hitachi Starboard™,

YE AR

5

WA R R AN T Y

Operation Functions

Auto Tune

Auto Exposure Yes

Auto White Balance Yes

Auto Focus Yes

Photo/Text Mode Choose photo/grayscale/text mode

Image Mode

Image Capture

Video Recording

Picture In Picture (PIP) Yes

Freeze Yes

Slide Show A

Image Rotation

Annotation Yes, annotation with B-Works2

Spotlight Yes

Low Light Mode Yes

Pan Across the Screen

Mask Yes

Projector Type Yes, supports both LCD and DLP projectors

Volume control Yes, via remote or OSD (on Screen Display)

Lock-Down Mode Lock the unit with password entry

Auto Erase Mode

Anti-Theft

Bolt Holes on Bottom
for Mounting

Weight 5.0 lbs (2.3kg), Ship: 7.8 lbs

Dimensions Operating

Dimensions Folded

Warranty 5 Years (includes lamps)

Standards

Yes, single button to adjust for best
possible images

Choose normal/35mm slide/microscope/
negative film

Single capturing of images to built-in memory,
or to a computer via USB, or to a SD card

One-touch, Video recording and playback with
audio from built-in microphone

utomatically o

Full screen image rotation from 0 to 180
degrees, flip, mirror

Enlarged any part of the image and pan it by
using the arrow keys.

Security

Option to automatically

uring power down

d

Kensington Lock Port on document
camera chassis.

VESA standard 2.95’’ x 2.95’’

Other

11’ x 6’’ x 11’’ (279 x 152.4 x 279 mm)
(L x W x H)

7’’ x 6’’ x 11’’ (177.8 x 152.4 x 279 mm)
(L x W x H), Ship: 15” x 12” x 7”

Compliance

FCC-EMI, cUL, CE-EMC, CE-LVD, RoHS,
and WEEE

r manually

erase internal memory

™

Software

DUKANE CORP

Audio Visual Products
2900 Dukane Drive
St. Charles, Illinois 60174

www.dukane.com/av
Toll-free: 888-245-1966
Fax: [phone]
E-mail: [e-mail]

REV 5-29-13
