Page 1
Camera 335B
Visual Presenter
User’s Guide
UG335B122209V1
English - 0
Page 2
Contents
Chapter 1 Precautions .................................................................................... 3
Safety Precautions....................................................................................... 4
FCC Warning................................................................................................4
Chapter 2 Package Contents.......................................................................... 5
Chapter 3 Product Overview .......................................................................... 6
3.1 Positioning the Presenter and Document........................................... 7
3.2 Correct Usage ....................................................................................7
Chapter 4 Installation and Connections .......................................................8
4.1 System Diagram................................................................................. 8
4.2 Connecting to External Devices ......................................................... 9
4.3 Getting Started.................................................................................. 11
Chapter 5 DIP Switch .................................................................................... 12
5.1 Connecting to a Projector or Monitor ............................................... 12
5.2 Connecting to a TV........................................................................... 13
Chapter 6 Introduction to Control Panel/ Remote Control Buttons and
On-Screen Menu ............................................................................................. 14
6.1 Functions of Control Panel and Remote Control Buttons
6.2 On-screen Menu............................................................................... 15
Chapter 7 Descriptions of Major Functions.................................................. 17
7.1 Switching Image Sources................................................................. 17
7.2 Making Text Clearer and Photos More Colorful ...............................17
7.3 Zoom in /out From an Image ............................................................ 17
7.4 Using Auto Focus ............................................................................. 17
7.5 Adjusting the Brightness................................................................... 17
English - 1
.................. 14
Page 3
7.6 Turning the Lamp on/off ................................................................... 18
7.7 Automatically Adjusting the Image to Optimal Brightness and Focal
Length 18
7.8 Freezing Images............................................................................... 18
7.9 Capturing Images ............................................................................. 18
7.10 Browsing Captured Images.............................................................. 18
7.11 Deleting Captured Images................................................................ 19
7.12 Automatically Deleting Captured Images When the Device is Turned
off (Auto Erase) ............................................................................................ 19
7.13 Panning Across a Live Image (PAN) ................................................20
7.14 Playing a Slides (Slide Show) ..........................................................20
7.15 Comparing Live Images with Stored Images (PBP) ......................... 21
7.16 Restoring Factory Default Settings (Factory Reset)......................... 22
7.17 Computer- Related Functions ..........................................................22

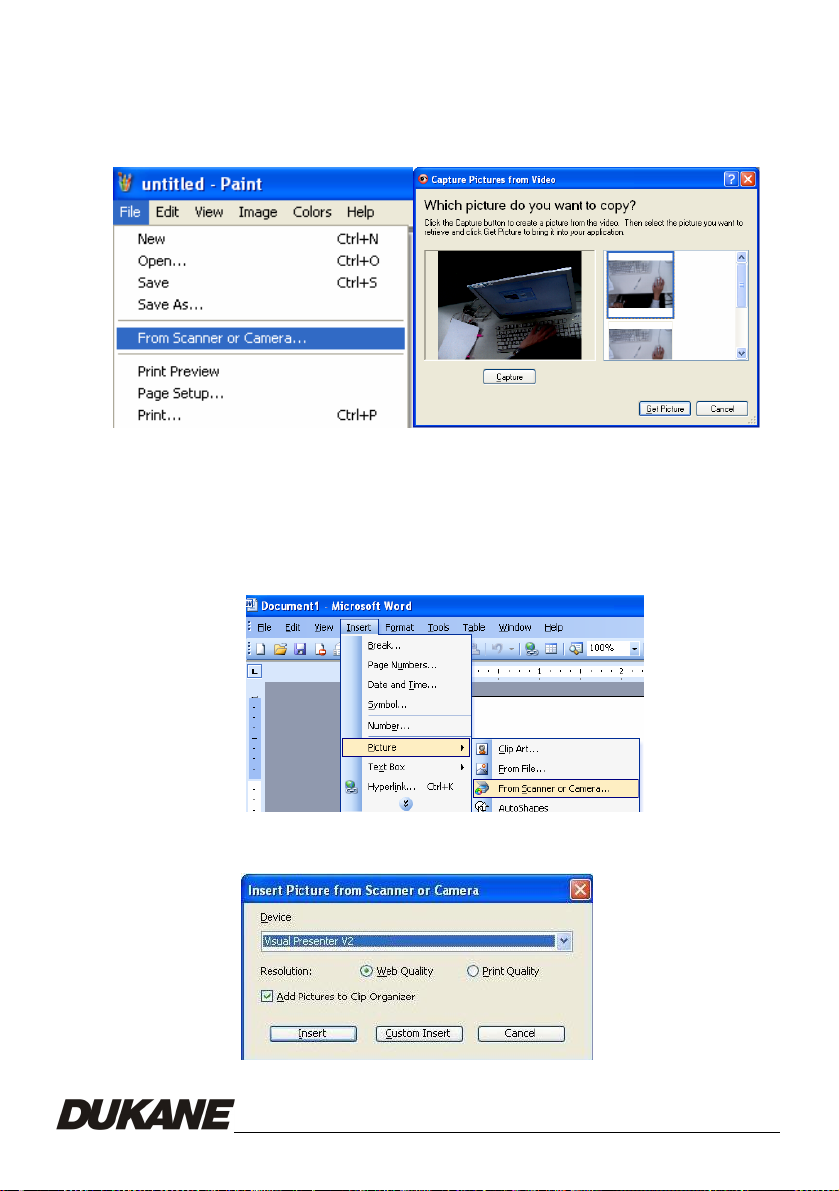

7.17.1 Inserting a Photo in the MS-Paint Application..........................23
7.17.2 Inserting a Photo in a Microsoft Word Document .................... 23
7.17.3 Changing the Setting of the Camera 335B and then Capturing a
Photo in Microsoft Word............................................................................... 24
7.17.4 Setting up the Camera 335B as a Webcam for Skype ............ 25
7.17.5 Setting the Camera 335B as a PC Camera............................. 27
Chapter 8 Connecting to a Microscope ......................................................28
Chapter 9 Software instructions .................................................................. 29
9.1 System Requirements ...................................................................... 29
9.2 Installation & Function ...................................................................... 29
Chapter 10 Troubleshooting........................................................................... 30
English - 2
Page 4
Chapter 1 Precautions
Always follow these safety instructions when setting up and using the Document Camera:
1.
Please do not tilt the machine while using.
2. Do not place the Document Camera on an unstable trolley, stand or table.
3.
Do not use the Document Camera near water or source of heat.
4.
Use attachments only as recommended.
5. Use the type of power source indicated on the Document Camera. If you are not
sure of the type of power available, consult your dealer or local electricity company
for advice.
6.
Place the Document Camera where it can be easily unplugged.
7.
Always take the following precautions when handling the plug. Failure to do so may
result in sparks or fire.
Ensure the plug is free of dust before inserting it into a socket.
Ensure that the plug is inserted into the socket securely.
8.
Do not overload wall sockets, extensions leads or multi-way plug boards as this may
cause fire or electric shock.
9.
Do not place the Document Camera where the cord can be stepped on as this may
result in fraying or damage to the lead or the plug.
10.
Unplug the projector form the wall socket before cleaning. Use a damp cloth for
cleaning. Do not use liquid or aerosol cleaners.
11.
Do not block the slots and openings in the case. They provide ventilation and
prevent the Document Camera from overheating. Do not place the Document
Camera on a sofa, rug or other soft surface or in a built-in installation unless proper
ventilation is provided.
12.
Never push objects of any kind through cabinet slots. Never allow liquid of any kind
to spill into the Document Camera.
13.
Except as specifically instructed in this User’s Manual, do not attempt to operate this
product by yourself. Opening or removing covers may expose you to dangerous
voltages and other hazards. Refer all servicing to licensed service personnel.
14.
Unplug the Document Camera during thunderstorms or if it is not going to be used
for an extended period, do not place the Document Camera or remote control on top
of beat-emitting equipment or heated objects such as a car and etc.
15.
In the following situations, unplug the Document Camera from the wall outlet and
refer servicing to licensed service personnel:
If the power cable or plug becomes damaged or frayed.
English - 3
Page 5
If liquid is spilled into it or the Document Camera has been exposed to rain or
water.
z Safety Precautions
Warning: To reduce the risk of fire or electric shock, do not expose this
appliance to rain or moisture.
This Document Camera has a 3-wire AC line Plug. This is a safety feature to ensure that
the plug will fit into the power outlet. Do not try to defeat this safety feature.
If the Document Camera will not be used for an extended time, unplug it from the power
outlet.
CAUTION
Caution: To reduce the risk of electric shock. Do not remove the cover (or back). No
user-serviceable parts inside. Refer servicing to licensed service Personnel.
This symbol indicates that
dangerous voltage
constituting a risk of electric
shock is present within this
unit.
RISK OF ELECTRIC SHOCK
This symbol indicates that
there are important operating
and maintenance instructions
in this User’s Manual with this
unit.
z FCC Warning
This Document Camera has been certified to comply with the limits for a Class A computing
device, pursuant to Subpart J of Part 15 of FCC Rules. These limits are designed to
provide reasonable protection against a harmful interference when the equipment is
operated in a commercial environment.
English - 4
Page 6
Chapter 2 Package Contents
Camera 335B User Guide
Remote Control
Warranty Card
USB Cable C-Video Cable Power Cord
Appearance may vary in
CD
VGA Cable
different countries
English - 5
Page 7
Chapter 3 Product Overview
3. Control panel
1. Gooseneck
2. Lamp
5. Remote sensor
4. LED indicator
6. Lens
7. DIP switch
(Bottom)
English - 6
Page 8
3.1 Positioning the Presenter and Document
3.2 Correct Usage
* About 400mm distance between camera and the desktop is
recommended.
400 mm
English - 7
Page 9
Chapter 4 Installation and Connections
4.1 System Diagram
Projector Monitor
PC
English - 8
Television
PC
Page 10
4.2 Connecting to External Devices
4.2.1 Step 1: Connect the power cord from the AC In on the
Camera 335B to the power outlet
<Note>: Appearance of the power cord may vary depending on
country/region.
4.2.2 Step 2: Connection projector with other hardware devices
¾ Connecting to a Projector or Monitor
z Connect the VGA cable from the VGA OUT port on the Camera 335B to
the VGA IN port on the projector or monitor.
AC Outlet
¾ Connecting to a TV
1. Connect the C-VIDEO cable from the C-VIDEO port on the Camera
335B to the C-VIDEO port on the TV.
English - 9
Page 11
2. Adjust DIP Switch Setting
NTSC: U.S.A., Taiwan, Panama, Philippine, Canada, Chile, Japan, Korea and
Mexico.
1234
PAL: Country/region not listed above.
2341
<Note> The on-screen display (OSD) is not available in C-VIDEO.
Some functions are not available on the control panel and the remote
control in this mode.
<Note> VGA OUT is not supported once C-VIDEO is enabled.
3. DIP switch settings will not available until the Camera 335B has been
restarted.
¾ Connecting to a Computer
1. Connect the USB cable from the USB port on the Camera 335B to the
USB port on the computer.
English - 10
Page 12
2. Connect the VGA cable from the VGA IN port on the Camera 335B to
the VGA OUT port on the computer.
3. Connect the RS-232 Adapter (Optional) to the RS-232 port on the
Camera 335B and the RS-232 port on the computer.
4.3 Getting Started
Control panel Remote Control
z To turn on the Camera 335B with the remote control, aim at the
remote sensor at the Camera 335B and press the Power button.
z Once the Camera 335B is powered on, the LED on the projector will
flash a few times and then remain lit. Contact your distributor if the
LED fails to light.
English - 11
Page 13
Chapter 5 DIP Switch
<Note>: You must restart the Camera 335B in order for DIP
switch configuration to take effect.

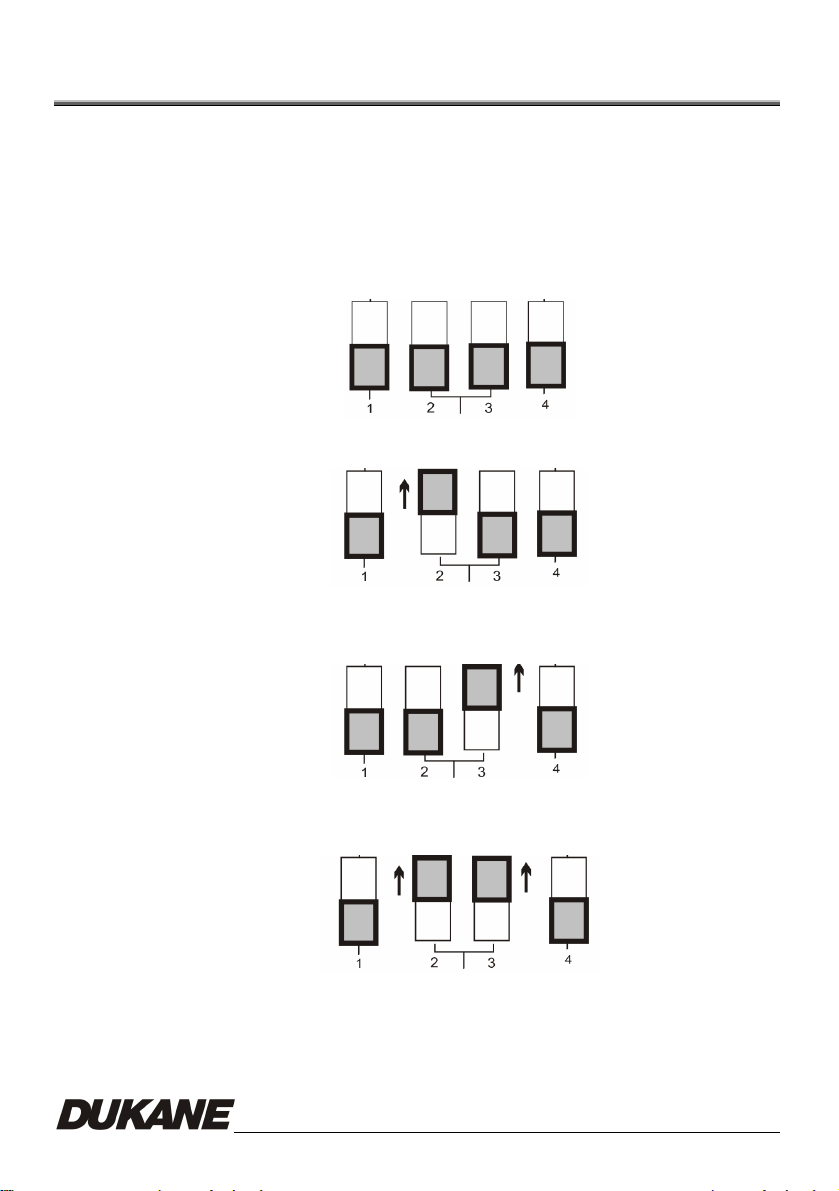

5.1 Connecting to a Projector or Monitor
5.1.1 SXGA output (factory default):
5.1.2
WXGA output
5.1.3 XGA output
5.1.4 Special mode
English - 12
Page 14
5.2 Connecting to a TV
5.2.1 NTSC Settings: U.S.A., Taiwan, Panama, Philippines,
Canada, Chile, Japan, Korea, and Mexico
5.2.2 PAL Settings: Countries/regions not listed above
<Note> VGA OUT is not supported once C-VIDEO is enabled.
English - 13
Page 15
Chapter 6 Introduction to Control Panel/
Remote Control Buttons and
On-Screen Menu
6.1 Functions of Control Panel and Remote Control Buttons
<Remark> The functions below are listed alphabetically
Name Function Descriptions Operation
Remote control /
Control panel
Remote control /
Control panel
Either side of the
unit’s lens
Remote Control
Remote Control
Remote control /
Control panel
Remote Control
Remote control /
Control panel
Remote Control
Remote control /
Control panel
Remote Control
Remote Control
Remote control /
Control panel
Remote Control
Remote Control
Remote control /
Control panel
Remote control /
Control panel
g,h,i,j
AF
AUTO TUNE
BRT+/CAPTURE
DELETE
ENTER
FREEZE
MENU
PAN
PBP
PLAYBACK
ROTATE
SLIDE SHOW
SOURCE
ZOOM +/-
Turns the visual presenter on and off.
Moves up, down, left or right to select the
needed function.
Automatically adjusts the focal length
between the lens and the object being
projected.
Automatically adjusts to the optimal
brightness and focal length.
Adjusts brightness of the image.
Captures the image to the internal memory.
Deletes images stored in the internal
memory.
Accesses/Activates functions.
Freezes the current image temporarily on the
screen. Press again to unfreeze.
Activates the on-screen menu/exits the
menu.
Moves across part of the live image.
Allows users to compare live images with
captured image files.
Plays captured images.
Rotates the image by 0°/90°/180°/270°
Plays the photos in a slide show.
Switches between different image sources:
1. Live images (default).
2. PC.
Increases or decreases image size.
English - 14
Page 16
6.2 On-screen Menu
<Note> Press [Menu] on the remote control or control panel to enter the
on-screen menu, The bold underlined values in the following table are
defaults.
1st Level
Major
Items
Display
Storage
2nd Level
Sub items
Auto Tune
Focus
Mode
Photo/Text Photo/Text/Gray
PBP
PAN ON /OFF
Rotate 0°/90°/180°/270°
Slide Show
Slide Show
Effect
Delay
Delete All Yes/ No
Format Yes/
3rd Level
Adjustment Values
Enter
0~Max
Normal/Slide/Film/
Microscope
Enter
Enter
Off/Shutter/Right/Down/
Side/Open
1 Sec/3 Sec/5 Sec/10
Sec/ Manual
No
Function Descriptions
Press [ENTER] to automatically
adjust to the optimal brightness
and focal length.
Use the left and right arrow keys
to adjust focal length.
Use the left and right arrow keys
to select the image mode.
Use the left and right arrow keys
to select the photo/text/gray
mode.
Press [ENTER] to immediately
activate the image comparison
mode.
Use the left and right arrow keys
to move across the live image.
Use the left and right arrow keys
to rotate the image.
Press [ENTER] to play the photos
stored in the internal memory in
slide show mode.
Use the left and right arrow keys
to select a page-flipping mode.
Use the left and right arrow keys
to select the timing of page flips.
(Select manual mode to switch
images manually.)
Use the left and right arrow keys
to select desired image, and then
press [ENTER] to confirm the
deletion of the photo.
Use the left and right arrow keys
to select, and then format the
internal memory.
English - 15
Page 17
Setting
Advance
Auto Erase ON/
USB Transfer Camera/Storage Device
Lamp ON /OFF
AE ON /OFF
AWB
Night Vision ON /
Language
Preset Load Yes/No
Preset Save Yes/No
Factory Reset Yes/
OFF
Enter
OFF
English/繁體中文
/Deutsch/Français/
Español/Русский/
Nederlands/Suomi/
Polski
No
Use the left and right arrow keys
to enable/disable the auto erase
function, which automatically
deletes all stored images upon
system shutdown.
Use the left and right arrow keys
to select the USB transfer mode.
Use the left and right arrow keys
to turn the lamp on/off.
Use the left and right arrow keys
to turn the Auto Erase (AE) on/off.
Press [ENTER] to activate
Automatic White Balance (AWB)
immediately.
Use the left and right arrow keys
to select the night vision mode.
Use the left and right arrow keys
to select the preferred language.
Read the value of the current
image mode. Use the left and right
arrow keys to select, and then
confirm by pressing [ENTER].
Store the value of the current
image mode. Use the left and right
arrow keys to select, and then
confirm by pressing [ENTER].
Use the left and right arrow keys
to select, and then confirm by
pressing [ENTER] to restore
factory defaults.
English - 16
Page 18
Chapter 7 Descriptions of Major Functions
7.1 Switching Image Sources
Live image is the default image source. Press [SOURCE] on the remote
control or control panel to switch between image sources:
1. Live images (default).
2. PC.
7.2 Making Text Clearer and Photos More Colorful
Photo (Photo mode) is selected by default in the [Photo/Text/Gray] mode
z [Photo] (Default): View photos or text with photos in this mode to
enhance colors in photos.
z [Text]: View text files in this mode to make text clearer.
z [Gray]: View grayscale or black and white photos in this mode.
Change settings with the remote control or control panel:
1. Press [MENU] to enter the on-screen menu.
2. Press [f] or [e] to select [Display].
3. Press [d] to select among [Photo/Text/Gray] modes. (Refer to the
description above for the best choice).
4. Press [f] or [e] to move among [Photo/Text/Gray] modes.
5. Press [MENU] to exit.
7.3 Zoom in /out From an Image
1. Press [ZOOM+] on the remote control or control panel to zoom in to
an image.
2. Press [ZOOM-] on the remote control or control panel to zoom out
from an image.
7.4 Using Auto Focus
1. From the Control Panel, press the [FOCUS] button on the right side of
the lens.
7.5 Adjusting the Brightness
1. From the Remote Control or Control Panel, press [BRT+] to make it
English - 17
Page 19
brighter.
2. From the Remote Control or Control Panel, press [BRT-] to darken the
image.
7.6 Turning the Lamp on/off
From the remote control or control panel:
1. Press [MENU] to enter the on-screen menu.
2. Press [f] or [e] to select [Setting].
3. Press [d] to select [Lamp] modes.
4. Press [f] or [e] to turn [ON]/[OFF].
5. Press [MENU] to exit.
7.7 Automatically Adjusting the Image to Optimal
Brightness and Focal Length
From the remote control:
1. Press [AUTO TUNE] for the optimal brightness and focal length.
From the control panel:
1. Press [MENU] to enter the on-screen menu.
2. Press [f] or [e] to select [Display].
3. Press [d] to select among [Auto Tune] modes.
4. Press [ENTER].
5. Press [MENU] to exit.
7.8 Freezing Images
1. Press [FREEZE] on the remote control to freeze the current image on
the screen. Press again to unfreeze.
7.9 Capturing Images
1. Press [CAPTURE] on the remote control or control panel to capture
and save an image.
7.10 Browsing Captured Images
1. Press [PLAYBACK] on the remote control or control panel to display
thumbnails of all captured images.
English - 18
Page 20
2. Press [c] or [d] or [e] or [f] to select the thumbnail you want you
browse.
3. Press [ENTER] to access the full-screen display of the image.
4. Press [f] or [e] to browse the through saved images.
5. Press [PLAYBACK] to exit.
6. Press [MENU] to exit.
7.11 Deleting Captured Images
From the remote control:
1. Press [PLAYBACK].
2. Press [c] or [d] or [e] or [f] to select the desired thumbnail for deletion.
3. Press [DELETE] to delete the selected file.
4. Press [MENU] to exit.
From the control panel:
1. Press [MENU] to enter the on-screen menu.
2. Press [f] or [e] to select [Storage].
3. Press [d] to select [Delete All].
4. Press [f] or [e] to select [Yes].
5. Press [ENTER] to confirm selection.
6. Press [MENU] to exit.
7.12 Automatically Deleting Captured Images When the
Device is Turned off (Auto Erase)
From the remote control or control panel:
1. Press [MENU] to enter the on-screen menu.
2. Press [f] or [e] to access the [Storage] menu.
3. Press [c] or [d] to enable [Auto Erase].
4. Press [f] or [e] to select among [ON] modes.
5. Press [MENU] to exit.
English - 19
Page 21
7.13 Panning Across a Live Image (PAN)
<Note> Panning and zooming are not available in Microscope Mode.
From the remote control:
1. Press [PAN] on the remote control to zoom in a part of a live image.
2. Press [c] or [d] or [e] or [f] to move around the partially zoomed-in
image.
3. Press [PAN] to exit the partially zoom in mode.
From the control panel:
1. Press [MENU] to enter the on-screen menu.
2. Press [f] or [e] to select the [Display] menu.
3. Press [d] to select [PAN].
4. Press [f] or [e] to select among [ON] modes.
5. Press [MENU] to exit.
6. Press [c] or [d] or [e] or [f] to move around the partially zoomed-in
image.
7.14 Playing a Slides (Slide Show)
7.14.1 Using the slide show effect:
1. Press [MENU] on the remote control or control panel to enter the
on-screen menu.
2. Press [f] or [e] to select the [Storage] menu.
3. Press [d ] to enable [Slide Show Effect].
4. Press [f] or [e] to select page-flipping mode among [Off / Shutter / Right
/ Down / Side / Open].
5. Press [MENU] to exit.
7.14.2 Setting delay time
1. Press [MENU] on the remote control or control panel to enter the
on-screen menu.
2. Press [f] or [e] to select the [Storage] menu.
3. Press [d] to enable [Delay].
4. Press [f] or [e] to select page-flipping interval [1 Sec/3 Sec/5 Sec/10
Sec/Manual].
5. Press [MENU] to exit.
English - 20
Page 22
7.14.3 Start/Pause/Stop Playing Images
<Note> Images over 8MB cannot be played. During playback, the
[ROTATE] function can be activated to rotate the images.
From the remote control:
1. Press [SLIDE SHOW] to start playback.
2. Press [ENTER] to pause playback.
3. Press [ENTER] again to continue playback.
4. Press [SLIDE SHOW] again to stop playback.
From the control panel:
1. Press [MENU] to enter the on-screen menu.
2. Press [f] or [e] to select the [Storage] menu.
3. Press [d] to enable [Slide Show].
4. Press [ENTER] to play back images.
5. Press [ENTER] to pause playback.
6. Press [ENTER] again to continue playback.
7. To stop playing, repeat Steps 1 to 4.
7.15 Comparing Live Images with Stored Images (PBP)
This function allows you to simultaneously display a live image on the right
side and a storage image on the left side for comparison.
From the remote control:
1. Press [PBP] to enter the photo selection screen.
2. Press [c] or [d] or [e] or [f] to select the file to be compared.
3. Press [ENTER] to activate image comparison.
4. Press [ENTER] to switch between the stored image and the live image.
C1
C3 C2C4
C5 C6 C7
Stored image
Live image
English - 21
Page 23
5. Press [f] or [e] to move the selected image left or right.
6. Press [ZOOM+/-] to zoom in/out from the live image
7. Press [PBP] to return to the stored image screen.
8. Press [MENU] to exit.
From the control panel
1. Press [MENU] to enter the on-screen menu.
2. Press [f] or [e] to select the [Display] menu.
3. Press [d] to select [PBP].
4. Press [PBP] to enter the photo selection screen.
5. Press [S] or [T] or [e] or [f] to select the desired file for comparison.
6. Press [ENTER] to activate image comparison.
7. Press [f] or [e] to move through selected images.
8. Press [ZOOM+/-] to zoom in/out from the live image
9. Press [PBP] to return to the stored image screen.
10. Press [MENU] to exit.
7.16 Restoring Factory Default Settings (Factory Reset)
Use the remote control or control panel:
1. Press [MENU] on the remote control or control panel to enter the
on-screen menu.
2. Press [f] or [e] to select the [Advance] menu.
3. Press [d] to select [Factory Reset].
4. Press [f] or [e] to select [Yes].
5. Press [ENTER] to activate.
7.17 Computer- Related Functions
Ensure that the USB cable is connected and the drivers are installed before
using the computer-related functions. Refer to
external devices and 4.4 Installing the driver and application B-Works
in Chapter 4 Installation and Connections in this user manual.
English - 22
4.2.2 Connecting to
Page 24
7.17.1 Inserting a Photo in the MS-Paint Application
1. Click [File> From Scanner or Camera] in the MS-Paint application as
shown in the bottom left figure.
2. Click on [Get Picture] to finish, as shown in the top right figure.
7.17.2 Inserting a Photo in a Microsoft Word Document
1. Click [Insert / Image / From Scanner or Camera] in the Microsoft Word
application.
2. Select [Visual Presenter V2] and click [Custom Insert].
English - 23
Page 25
3. Click [Get Picture] to finish.
7.17.3 Changing the Setting of the Camera 335B and then
Capturing a Photo in Microsoft Word
1. Click [Insert /Image /From Scanner or Camera] in Microsoft Word.
2. Select [Visual Presenter V2 TWAIN] and click [Custom Insert].
English - 24
Page 26
3. A window displaying a live image (see below) will appear.
4. Press [Setting]: When the Camera Settings window pops up, the live
image can be adjusted. The operation is identical from both the remote
control and the control panel. Refer to
Panel/Remote Control Buttons and On-screen Menu for more
information.
5. Press [Capture] to capture images in Microsoft Word.
6. Press [Cancel] to exit.
Chapter 6 Control
7.17.4 Setting up the Camera 335B as a Webcam for Skype
The Camera 335B can be used as a webcam for instant message (IM)
software such as Skype and MSN. Operation with any IM program is similar.
In Skype, for example, complete the following steps:
1. Open the Skype application and choose [Tools] > [Options].
2. Select [Video Settings], check [Start my video automatically when I am in
a call] and select [Visual Presenter V2] as the desired webcam, as
shown below.
English - 25
Page 27
o
p
n
Call your desired contact. When both parties are connected, Skype will
display the video screen.
English - 26
Page 28
7.17.5 Setting the Camera 335B as a PC Camera
1. Open My Computer and click on [Visual Presenter V2] to display a live
image.
English - 27
Page 29
Chapter 8 Connecting to a Microscope
1 Mount the microscope adaptor (optional) in the accessories pack onto the
microscope
<Note> The Microscope adapter fits eyepieces of about Ø28.4mm.
2 Connect the lens of the Camera 335B to the microscope adaptor.
3 Select the Microscope mode
3.1. From the control panel or remote control
3.1.1. Press [MENU] to enter the on-screen menu.
3.1.2. Press [f] or [e] to select [Display].
3.1.3. Press [d] to select among [Mode] modes.
3.1.4. Press [f] or [e] to select [Microscope].
4 If the image is fuzzy:
4.1. Adjust the focus of microscope.
4.2. Press the [FOCUS] button on either side of the Camera 335B lens to
activate the auto focus.
English - 28
Page 30
Chapter 9 Software instructions
Using the Camera with a computer. After installing the B-WORKS, you can use
the software to:
¾ Control the Camera 335B.
¾ Capture and record images.
¾ Annotate images, highlight important details and save them for later use.
¾ Use the full-screen function.
9.1 System Requirements
Windows XP
¾ Min CPU: P4 1.8 GHz
¾ Min Memory: 512MB
¾ Direct X 9 Compatible
¾ Min Resolution: 1024x768
¾ 100MB Min Disc Space
Windows Vista /
Windows 7
¾ Min CPU: P4 2.4 GHz
¾ Min Memory: 1GB (32-bits)
/2GB(64-bits)
¾ Direct X 9 Compatible
¾ Min Resolution: 1024x768
¾ 100MB Min Disc Space
MAC OS X 10.4 / 10.5 /
10.6 (32-bits Kernel)
¾ Min CPU: PowerPC G4
866MHz or Intel Pentium®
¾ 1.83GHz Intel Core 2 Duo
¾ Min Memory: 512MB
¾ Min resolution 1024x768
¾ 24-bit color display
monitor
¾ 100MB Min Disc Space
¾ Min QuickTime 7.4.5
9.2 Installation & Function
Please refer to the B-WORKS user manual in the CD for installation
instructions and functions using.
English - 29
Page 31
Chapter 10 Troubleshooting
This chapter outlines possible solutions to common problems. For other issues,
contact your dealer or service center.
No. Problems Solutions
1 No power signal
2 No image output
from the Camera
335B
3 Unable to focus
4 Cannot see the
entire image
5 Visual Presenter
V2, B-WORKS and
other applications
cannot be used
simultaneously
Check that the power cord is securely connected to
the wall socket and the unit.
1. Check the power outlet.
2. Check the connection. Refer to
to external devices in Chapter 4 Installation
and Connections in this manual.
3. Check the signal sources [SOURCE]. Refer to
Switching image sources in Chapter 7
Descriptions of major functions in this manual.
4. Check the settings for the projector source. Refer
to the projector’s user manual.
5. Check if DIP Switch is properly set. Refer to
Chapter 5 DIP Switch for related settings.
Probably the document is too close to the lens. Press
[ZOOM -] on the remote control or control panel.
Or increase the distance between the lens and the
document, and then press the [FOCUS] button on
the right side of the lens.
Check Auto Image of the projector. Refer to the
projector’s user manual.
Visual Presenter V2, B-WORKS and other
applications cannot be used simultaneously. Please
close the currently running applications and then
execute the desired application.
4.2.2 Connecting
7.1
English - 30
Page 32
v
Information in this Guide may change due to product
improvements. To obtain the latest manuals, literature, and
software please visit the Dukane web site at;
www.dukane.com/av and look at the specific model
SUPPORT or DOWNLOADS section.
DUKANE CORP AV SERVICE DEPT
2900 Dukane Drive
St Charles, IL 60174
800-676-2487 / 630-762-4032
Fax 630-584-5156
avservice@dukane.com
www.dukane.com/a
Loading...
