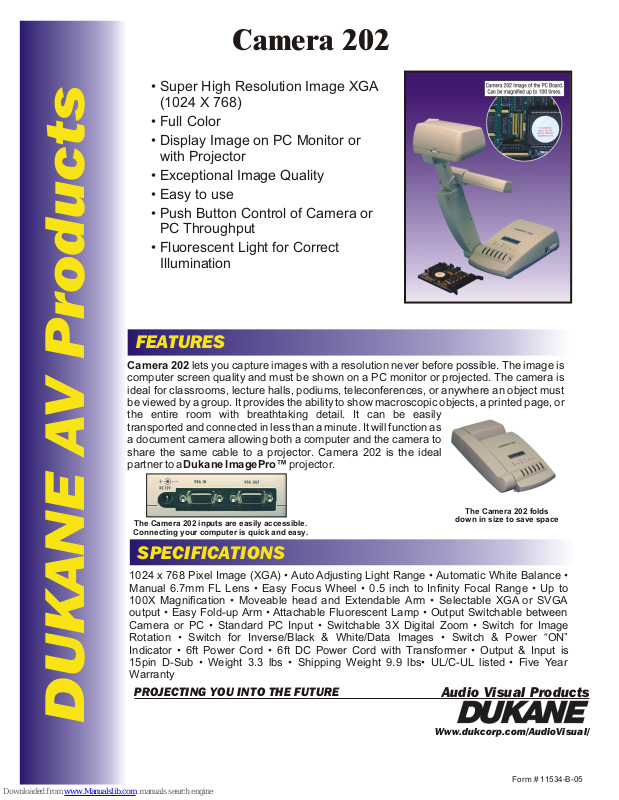

Camera 202
• Super High Resolution Image XGA
(1024 X 768)
• Full Color
• Display Image on PC Monitor or
with Projector
• Exceptional Image Quality
• Easy to use
• Push Button Control of Camera or
PC Throughput
• Fluorescent Light for Correct
Illumination
FEATURES
Camera 202 lets you capture images with a resolution never before possible. The image is
computer screen quality and must be shown on a PC monitor or projected. The camera is
ideal for classrooms, lecture halls, podiums, teleconferences, or anywhere an object must
be viewed by a group. It provides the ability to show macroscopic objects, a printed page, or
the entire room with breathtaking detail. It can be easily
transported and connected in less than a minute. It will function as
a document camera allowing both a computer and the camera to
share the same cable to a projector. Camera 202 is the ideal
partner to a Dukane ImagePro™ projector.
The Camera 202 folds
The Camera 202 inputs are easily accessible.
Connecting your computer is quick and easy.
down in size to save space
SPECIFICATIONS
1024 x 768 Pixel Image (XGA) • Auto Adjusting Light Range • Automatic White Balance •
Manual 6.7mm FL Lens • Easy Focus Wheel • 0.5 inch to Infinity Focal Range • Up to
100X Magnification • Moveable head and Extendable Arm • Selectable XGA or SVGA
output • Easy Fold-up Arm • Attachable Fluorescent Lamp • Output Switchable between
Camera or PC • Standard PC Input • Switchable 3X Digital Zoom • Switch for Image
Rotation • Switch for Inverse/Black & White/Data Images • Switch & Power “ON”
Indicator • 6ft Power Cord • 6ft DC Power Cord with Transformer • Output & Input is
15pin D-Sub • Weight 3.3 lbs • Shipping Weight 9.9 lbs• UL/C-UL listed • Five Year
Warranty
PROJECTING YOU INTO THE FUTURE
DUKANE AV Products
Audio Visual Products
Www.dukcorp.com/AudioVisual/
Form # 11534-B-05
Page 2
Camera 202
Video Camera
Model 28A202
Specifications (Specifications are subject to change without notice)
CAMERA 202
Image Unit 1/3” CCD- Color Array
Picture Array 1077(H) X 788(V)
Effective Pixels 1024 x 768, XGA
Light Range Auto Adjusting
Low Light Level 5 Lux
Image Selection Photo/Text/Invert/Mono
White Balance Automatic
Exposure Automatic
Lens 6.7 mm FL, manual focus
Focus Range 0.5 inch to infinity
Focus Adjustment Fast focus wheel
Image Flip Rotate 180° (switchable)
Magnification, Optical Up to 100 X
Camera Positioning Rotating and extendable arm
Digital Zoom 1 to 3X
Output Switching Camera or Passthrough
Head Rotation +/- 90 degrees
Output Connection “VGA Out”15 pin, D-sub, PC
Output Signal Lever 47 kHz (SVGA), 60kHz
(XGA), H. Sync 75 Hz V.
Input Connections “VGA In,” 15 pin, D-Sub, PC
“DC 12V,” DC jack
Light, Moveable CCFL, 2 Watt Clip Lamp
Power Supply Seperate miniature trans-
former, 120 VAC,12 VDC;
1A; Receptacle for
standard power cord
Power Consumption 10 Watts
Power Cord 6 ft. Std. outlet
Power Supply cable 6 ft.
with DC jack
Power Switch On unit base with indicator LED
Controls, Pushbutton Camera/bypass, Zoom,
Image type, Invert,
brightness
Weight 3.3 lbs.
Carrying Case Softsided bag included
Shipping Weight 9.9 lbs.
Size, folded 12”(L) x 5.8”(w) x 2.4” (H)
Carton Size 14” x 16” x 6”
Safety UL Listed
Accessories Included VGA Cable, Instruction
Manual, Power Supply,
Power Cord, and Soft Bag
Dukane Part No. 28A202
Five year Limited Warranty on Parts and Labor in North
America (for other locations, local warranties apply).
Compact Supper PerformanceCompact Supper Performance
Compact Supper Performance
Compact Supper PerformanceCompact Supper Performance
The high resolution full color Camera 202 permits capture of
documents and objects for display on a standard computer
monitor or they can be shown with a multimedia or data/video
projector. This camera provides an exceptional image in either
XGA or SVGA resolution.
The camera is exceptionally easy to use. It merely requires the
plug in of the power via a small transformer, connection of the
computer cable to the display monitor or projector, and the push
of a power switch. After that a user can position the camera and
adjust the focus as desired. Additional image options exist for
the creative presenter, but the first time user can easily take
command.
This is not a “video” camera that displays TV images. It is a high
resolution, 1024 x 768 pixel, digital camera. The image has a
resolution that is 4 times the resolution of normal TV images. It
is similar to HDTV resolution. Consequently, the image must be
shown on a computer monitor, plasma display, or via an
electronic projector. It permits display of objects with clarity
never before possible.
For example in close-up viewing the dots on a printed page are
easily visible. Magnifications of over 100 times are possible. It
can also show one half of a standard page with sufficient
resolution to read the finest print. Focused for distance it can be
used to show large objects or the entire room.
For use on a podium or in presentations, the output can be
switched from the “camera” to a “computer” input mode with the
touch of a button. Thus, it can function like a document camera,
as the control point for simple presentations.
To view objects the rotating camera head is on a rugged
moveable arm that also be extended. An included small
fluorescent lamp can be quickly positioned on the arm to provide
the necessary illumination.
The camera arm can be folded down in line with the base and
the entire unit can easily be transported or stored in the included
soft carry bag. The base contains a row of touch switches that
provide image functions such as a 3X digital zoom to examine
image areas close-up, and a 180 degree image rotation so the
object can be conveniently positioned relative to the presenter.
Camera 202 lets the user take his audience to a world where
anything placed in the viewing zone can be seen as never
before. It is the perfect partner for Dukane’s projectors and your
key to a new world of super displays.
