530

CNC Knopfannähautomat

CNC Automat for Button Sewing

Bedienanleitung / Operating Instructions

Aufstellanleitung / Installation Instructions

Serviceanleitung / Service Instructions

1 2

Postfach 17 03 51, D-33703 Bielefeld  Potsdamer Straße 190, D-33719 Bielefeld Telefon +49 (0) 5 21/ 9 25-00  Telefax+49(0)521/9252435 www.duerkopp-adler.com

Ausgabe / Edition: Änderungsindex Teile-Nr./Part.-No.:

06/2008 Rev. index: 01.0 Printed in Federal Republic of Germany 0791 530001

Anleitung, komplett Manual, complete

530

Übersicht Summary

Bedienanleitung Aufstellanleitung Serviceanleitung

Bauschaltplan 9890 510001 B

Operating Instructions Installation Instructions Service Instructions

Interconnection-diagram 9890 510001 B

Eigentum der Dürkopp Adler AG und urheberrechtlich geschützt. Jede, auch auszugsweise Wiederverwendung dieser Inhalte ist ohne vorheriges schriftliches Einverständnis der Dürkopp Adler AG verboten.

Property of Dürkopp Adler AG and copyrighted. Reproduction or publication of the content in any manner, even in extracts, without prior written permission of Dürkopp Adler AG, is prohibited.

Dürkopp Adler AG - 2008

Foreword

This instruction manual is intended to help the user to become familiar with the machine and take advantage of its application possibilities in accordance with the recommendations.

The instruction manual contains important information on how to operate the machine securely, properly and economically. Observation of the instructions eliminates danger, reduces costs for repair and down-times, and increases the reliability and life of the machine.

The instruction manual is intended to complement existing national accident prevention and environment protection regulations.

The instruction manual must always be available at the machine/sewing unit.

The instruction manual must be read and applied by any person that is authorized to work on the machine/sewing unit. This means:

– Operation, including equipping, troubleshooting during the work

cycle, removing of fabric waste,

– Service (maintenance, inspection, repair) and/or – Transport.

The user also has to assure that only authorized personnel work on the machine.

The user is obliged to check the machine at least once per shift for apparent damages and to immediatly report any changes (including the performance in service), which impair the safety.

The user company must ensure that the machine is only operated in perfect working order.

Never remove or disable any safety devices.

If safety devices need to be removed for equipping, repairing or maintaining, the safety devices must be remounted directly after completion of the maintenance and repair work.

Unauthorized modification of the machine rules out liability of the manufacturer for damage resulting from this.

Observe all safety and danger recommendations on the machine/unit! The yellow-and-black striped surfaces designate permanend danger areas, eg danger of squashing, cutting, shearing or collision.

Besides the recommendations in this instruction manual also observe the general safety and accident prevention regulations!

General safety instructions

The non-observance of the following safety instructions can cause bodily injuries or damages to the machine.

1. The machine must only be commissioned in full knowledge of the

2. Before putting into service also read the safety rules and

3. The machine must be used only for the purpose intended. Use of

4. When gauge parts are exchanged (e.g. needle, presser foot, needle

5. Daily servicing work must be carried out only by appropriately

instruction book and operated by persons with appropriate training.

instructions of the motor supplier.

the machine without the safety devices is not permitted. Observe all the relevant safety regulations.

plate, feed dog and bobbin) when threading, when the workplace is left, and during service work, the machine must be disconnected from the mains by switching off the master switch or disconnecting the mains plug.

trained persons.

6. Repairs, conversion and special maintenance work must only be carried out by technicians or persons with appropriate training.

7. For service or repair work on pneumatic systems, disconnect the machine from the compressed air supply system (max. 7-10 bar). Before disconnecting, reduce the pressure of the maintenance unit. Exceptions to this are only adjustments and functions checks made by appropriately trained technicians.

8. Work on the electrical equipment must be carried out only by electricians or appropriately trained persons.

9. Work on parts and systems under electric current is not permitted, except as specified in regulations DIN VDE 0105.

10. Conversion or changes to the machine must be authorized by us

and made only in adherence to all safety regulations.

11. For repairs, only replacement parts approved by us must be used.

12. Commissioning of the sewing head is prohibited until such time as

the entire sewing unit is found to comply with EC directives.

13. The line cord should be equipped with a country-specific mains

plug. This work must be carried out by appropriately trained technicians (see paragraph 8).

It is absolutely necessary to respect the safety

instructions marked by these signs.

Danger of bodily injuries !

Please note also the general safety instructions.

Index Page:

Preface and general safety hints

Part 1: Operating Instructions Class 530

(Edition 06/2008)

1. Description of product .......................................... 5

2. Description of proper use ....................................... 6

3. Subclasses ................................................. 6

4. Optional equipment............................................ 7

5. Stands .................................................... 7

6. Technical data

6.1 Technicaldataofthesubclasses..................................... 8

7. Operating

7.1 Threading needle thread.......................................... 9

7.2 Adjust needle thread tension ....................................... 10

7.3 Open needle thread tension ....................................... 10

7.4 Adjust thread regulator........................................... 11

7.5 Wind on bobbin thread ........................................... 12

7.6 Change hook thread bobbin ........................................ 13

7.7 Adjust bobbin thread tension ....................................... 14

7.8 Change needle ............................................... 15

7.9 Button shank shaper ............................................ 16

7.10 Setting the hook feet of button clamp .................................. 17

8. Operating the control of class 530

8.1 The control panel .............................................. 18

8.1.1 Thekeys................................................... 18

8.2 Userinterface................................................ 20

8.2.1 Structureofmenu.............................................. 20

8.3 Alternumericalvalues,parametervalues,selectionofalternatives................ 21

8.3.1 Alternumericalvalues........................................... 21

8.3.2 Selectionofaparameter.......................................... 22

8.3.3 Selectionofalternatives.......................................... 22

8.4 Sewingpatterns............................................... 23

8.5 Mainmenu.................................................. 24

8.5.1 Sewing pattern operation ......................................... 24

Index Page:

8.5.2 Programmingmode............................................. 29

8.5.3 Sewing pattern sequences ........................................ 31

8.5.3.1 Switching the sequence programming mode on/off ......................... 31

8.5.3.2 Sequence programming mode ...................................... 34

8.5.4 Technicianmode .............................................. 35

8.5.4.1 Machine configuration ........................................... 38

8.5.4.2 User configuration ............................................. 45

8.5.4.3 Service functions .............................................. 49

8.5.4.4 Free contours ................................................ 63

8.5.4.5 Memory dongle ............................................... 71

8.6 Error messages ............................................... 78

8.6.1 Error categories............................................... 78

8.6.2 Application messages ........................................... 79

8.6.3 Machineerrors ............................................... 81

9. Sewing .................................................... 86

10. Maintenance

10.1 Cleaning and checking ........................................... 87

10.2 Oillubrication................................................ 88

11. Standard sew ing patterns ........................................ 89

12. Clamping feet................................................ 92

13. Numbering of menu items ........................................ 93

1. Description of product

The Dürkopp Adler 530 is a CNC double lockstitch automat for button sewing. The available button patterns are adjustable in length, width and speed and can be memorized in their modified form. It is also possible to create “free” sewing patterns (by programming).

The button sewing automat is equipped with automatic sewing foot lifts, thread trimmer, thread retractor and integrated DC direct drive.

Technical features

–

The control is executed by the DAC III, that is operated by the user with the control panel BF2B.

–

The fabric drive or the clamp drive is effectuated by two step motors.

–

The oil wick lubrication is central for head and hook, but there exist two separated oil reservoirs that are both supplied through one upper reservoir. So there is only one reservoir to be refilled.

–

A maximum of 50 standard button patterns is available. These standard patterns can temporarily be modified (as regards length, width and speed). When switching off the automat the modified data of the last sewing pattern are maintained.

–

40 modified sewing patterns can additionally be memorized.

–

Additionally there are a maximum of 9 free seam contours with a total of 5000 dynamically controlled stitches at the users disposition. Thus it is possible to sew f. e. free button patterns. The coordinates of free sewing patterns are entered at the control panel. There is no need for further devices.

–

25 sewing pattern sequence programs each with up to 20 sewing patterns per sewing pattern sequence program can be created and memorized.

–

The exactitude of the entered coordinates comes to 0.1 mm.

–

It is possible to lock certain button programs or button sequence programs and/or the modification so that an unauthorized use or modification can be prohibited by the technicians.

–

An in between cut without releasing the button c lamp is possible, so as to avoid a continued thread.

–

It comes with a bobbin thread counter and a daily production counter.

–

The arm shaft of the button sewing automat is directly powered by a brushless direct current motor.

–

Fabric drive by two step motors.

–

The speed can be altered between 0 rpm (manual operation with full operability of the x-y drive) and 2700 rpm in 100 rpm steps.

–

Service and maintenance work is backed up by comprehensive test programs, that allow a separate testing of s ingle functions.

2. Description of proper use

Class 530 is an button sewing automat determined for processing light to medium-weight material, i.e. fabrics made of textile fibres or leather. Such sewing materials are used in the clothing industry and for the production of home and car upholstery.

Furthermore, this button sewing automat can also sew so-called technical seams. However, in this case the user has to estimate the possible risks (preferably in cooperation with DÜRKOPP ADLER AG) because on the one hand such fields of application are comparatively rare and on the other hand there is an immense variety of possibilities. According to the result of this estimation suitable safety measures may have to be taken.

Generally only dry fabrics must be processed on this button sewing automat. The material must not be thicker than 10 mm when compressed by the lowered sewing feet. It must not include any hard objects. The eye protection must be mounted when working with the automat.

In general the seam is produced with sewing threads made of textile fibres (cotton threads, synthetic threads or core threads) with the following dimensions: Class 530-211 threads of the dimension 50/3 - 120/3 If other threads are to be used, it is indispensable also in this case to consider the possible risks and to take corresponding safety measures, if necessary.

This button sewing automat must only be installed and operated in dry and well-kept rooms. In case it is operated in other rooms which are not dry and well-kept further measures can become necessary which have to be agreed upon (see EN 60204-31: 1999).

We as manufacturers of industrial sewing machines take it for granted that at least semi-skilled operators are working with our products so that we can assume that all usual operations and their risks are known to them.

3. Subclasses

Cl. 530-211 Single needle double lockstitch button sewing automat with thread

trimmer and thread wiper. Equipped with a special button clamp for general button attaching operations in outer garments and linen. The standard equipment of the button clamp consists of a clamp insert that can sew buttons of a diameter from 10 to 20 mm and standard thickness.

4. Optional equipment

The following optional equipment is available for the button sewing automat 530:

Order No. Optional equipment

9822 51 002 6 Sewing light 9822 51 002 7 Table clamp 9870 00 102 1 Cable assembly (add-on kit socket for sewing light) 0510 59 004 4 Laser marking lights (3 lights) 0510 59 003 4 Supplementary laser light 0510 59 005 4 Push button 0531 36 074 4 Shank button clamp

Further optional equipments are available. Please contact our application centre (APC). E-mail: marketing@duerkopp-adler.com

5. Stands

The following stand is available for the button sewing automat 530:

MG55 40 029 4 Stand package

Table top size 600 x 1060 mm Stand height 1160 to 1305 mm

6. Technical data

Noise: Lc = 78 dB (A)

Emission value per work place according to DIN 45635-48-A-1-KL-2 Speed: 2.700 min Fabric: G1 DIN 23328 two-ply

-1

6.1 Technical data of the subclasses

Subclass: 211

Stitch type: 301

Hook type: oscillating hook Needle system: DPx17 (135x17) Needle size: [Nm] 80 - 110 Needle size [Nm] 90

standard: Thread size: 50/3 - 120/3

Stitch length: [mm] dependent on seam pattern Max. speed [min-1] 2700 Clamp stroke [mm] 9

Delivery maximum 13

Sewing field size [mm] max. in X-direction: dependent on clamp max. in Y-direction:

Number of standard sewing 50 patterns

Number of storable modifiable sewing patterns 40

Number of sewing pattern sequence programs 25

Number of sewing patterns per sewing pattern sequence program 20

Soft start: on / off option Sewing drive: DC-Motor Rated voltage: [V] 1 ~ 230V/ 50/60 Hz Rated load: [kW] 0,45

7. Operating

7.1 Threading needle thread

Caution: Danger of injury !

Switch off main switch ! Thread the needle thread only when the button sewing automat

is switched off.

–

Put thread reels on the thread reel holder and conduct needle thread and bobbin thread through the unwinding arm. The unwinding arm must be positioned vertically above the thread reels.

–

Thread the needle thread as shown on the following illustration.

7.2 Adjust needle thread tension

321

Pretension 3

With open main tensio n2aminorresidual stress of the needle thread is required. The residual stress is produced by the pretension 3.

At the same time the pretension 3 influences the length of the cut needle thread end (initial thread for the next s eam).

–

Short initial thread: Turn knurled nut 1 in clockwise direction.

–

Long initial thread: Turn knurled nut 1 counter-clockwise.

Main tension 2

The main tension 2 has to be adjusted as low as possible. The interlacing of threads should lie in the middle of the fabric.

In case of thin fabrics too high thread tensions can lead to undesirable ruffling and thread breakage.

–

Adjust main tension 2 in such a way that an even stitch pattern is achieved. Increase tension = Turn knurled nut in clockwise

direction

Reduce tension = Turn knurled nut counter-clockwise

7.3 Open needle thread tension

Automatic

The needle thread tension is automatically opened when trimming the thread and when lifting the fabric clamping feet.

7.4 Adjust thread regulator

32 1

Caution: Danger of injury !

Switch off main switch ! Adjust thread regulator only when the button sewing automat

is switched off.

The thread regulator 3 controls the needle thread quantity required for the stitch formation. Only a precisely adjusted thread regulator guarantees an optimum sewing result.

When the thread regulator is adjusted correctly, the needle thread loop must slide over the thickest spot of the hook with low tension.

–

Loosen screw 1.

–

Change position of the thread regulator 3. Thread regulator to the left = larger needle thread quantity Thread regulator to the right = minor needle thread quantity

–

Tighten screw 1.

Adjustment hint:

If the largest thread quantity is required, the thread controller spring 2 must be pulled down by approx. 0.5 mm from its upper end position. This is the case when the needle thread loop passes the maximum hook diameter.

7.5 Wind on bobbin thread

–

Put bobbin on bobbin winder 4.

–

Pull thread through guide 2 and around tension 1.

–

Wind thread counter-clockwise around the core of the bobbin (approx. 5 times).

–

Press winder lever 3 into the bobbin.

–

Sewing The winder lever s tops as soon as the bobbin is full.

–

Tear off thread at thread clamp 5 after winding on is finished.

Note !

If the thread is to be wound on without sewing, the thread winding mode can be altered in submenu 6 “Special functions”.

Off

If the thread winding mode is active, the sewing motor can be started via pedal or push button independent of the sewing field drive (here unthread at the thread lever).

For adjustment see chapter 8.5.1 “Thread winding mode”.

7.6 Change hook thread bobbin

Caution: Danger of injury !

Switch off main switch ! Change hook thread bobbin only when button sewing automat

is switched off.

Remove empty bobbin

–

Pull down hook cover 3.

–

Lift bobbin case cover 1.

–

Remove top of bobbin case 2 with bobbin 6.

–

Remove empty bobbin from the top of the bobbin c ase 2.

Insert full bobbin

–

Place full bobbin in the top of bobbin case 2.

–

Thread bobbin thread through slot 5 below tension spring 7 in the drill-hole 4.

–

Pull bobbin thread out of bobbin case 2 for a length of approx. 2.5 cm. When winding off the thread the bobbin must turn in the direction of arrow.

–

Reinsert bobbin c ase 2.

–

Shut bobbin case cover 3.

7.7 Adjust bobbin thread tension

Caution: Danger of injury !

Switch off main switch ! Adjust bobbin thread tension only when the button s ewing automat

is switched off.

The required bobbin thread tension is to be produced by tension spring 1. The top of bobbin case 3 should drop s lowly due to its own weight when being held at the threaded-in bobbin thread.

Adjust tension spring

–

Remove top of bobbin case 3 with the bobbin.

–

Adjust tension spring 1 at the regulating screw 2 until the required tension value is reached.

–

Reinsert top of bobbin case.

7.8 Change needle

Caution: Danger of injury !

Switch off main switch ! Change needle only when the button sewing automat is switched off.

–

Loosen screw 1.

–

Push new needle into the drill-hole of needle bar 2 as far as it will go.

ATTENTION !

The hollow groove 3 of the needle must point to the hook.

–

Tighten screw 1.

ATTENTION !

After the changeover to another needle size the distance between hook and needle has to be corrected (see service instructions).

7.9 Button shank shaper

The button clamp of the button sewing automat is equipped with a button shank shaper 1.

Swinging in/out of button shank shaper

–

Swing manually in or out the swivelling lever 2 with button shank shaper while button c lamp is lifted.

Adjust button shank length

–

Turn setting button 3 accordingly. Turn to the right = shorter shank Turn to the left = longer shank

31 2

7.10 Setting the hook feet of button clamp

Caution: Danger of injury !

Set the button clamp while the button sewing automat is switched on with utmost caution only.

The button should be easily pushed and aligned between the hook feet of the button clamp.

It is also important that the button is properly jammed, so that it cannot contort when the material is inserted.

The stop 3 regulates the opening width of the hook feet. –

Switch on the button sewing automat. Theclampbuttonrises.

–

Put the button that is to be attached between the hook feet 1 and 2.

–

Loosen the knurled nut 5.

–

Set the stop 3 so that it approaches the screw 4.

–

Fasten the knurled nut 5 again.

–

Check whether the button can easily be inserted and aligned.

543

8. Operating the control of class 530

8.1 The control panel

For the input and output of data a control panel with an LCD display and function keys is used.

P-key: S-key: Programming mode Sequence-

Programming mode

ESC-key F-key

Technician mode

Cursor keys

OK-key

8.1.1 The keys

Function key Function

Cursor keys

If no text field is activated:

Press key “ï” to r eturn from a submenu to the parent menu.

If a text field is activated:

Change between the points (not when selecting sewing patterns or sequences).

In the sewing mode in case of sequence operation:

Change to the next or to the preceding sewing pattern.

Function key Function

If no text field is activated:

Change between the lines of the menus. The selected line is displayed white on black.

If a text field is activated:

Increase or reduce the value of the respective point by one or change between the parameters in case of functions with several choices.

OK-key If no text field is activated:

Activate the text field. The value can be altered with the keys “ñ” and “ò”.

If a text field is activated:

The set value is taken over.

If the clamping foot has been low ered using the keys OK + F:

The test procedure will be started.

ESC-key If test functions are activated (Multitest / 180° disc):

You return to the selection menu.

If a text field is activated:

An input is aborted. The preceding value is maintained.

In the technician and programming level

The control changes over to the sewing mode.

In the sewing mode

Lift clamping foot and stop sewing operation.

P-key The control changes over from the sewing mode to the programming

mode. In this mode altered stitch patterns can be memorized under a new program number.

S-key The control changes over from the sewing mode or sewing pattern

programming mode to the sequence programming mode. In this mode it is possible to create new sequences or to alter existing ones.

F-key The control changes over from the sewing mode to the technician

mode. This mode can only be activated after a code has been entered. In this operating status it is possible to set basic machine parameters and to retrieve diagnosis and adjustment programs.

OK-key + F-key Starts the testing mode

for the sewing process.

The clamping foot is lowered.

Testing mode = a slow following of the seam contour without effectuating a seam.

8.2 User interface

8.2.1 Structure of menu

Key ESC Key ESC

Switch on

main switch

Key F

Service mode

Code 1

Sewing mode

Key F

Key P Code 1

Key

Programming mode ESC Technician mode

Key S

Key P

Sequence programming mode

Call up the service mode

–

Press the function key “F” and keep it pressed.

–

Switch on main switch. The control unit will be initialized. After a short while the window for entering the code number will appear.

–

Enter the code number (code 1, compare chapter 8.5.4). The display changes to the service menu (see also chapter 8.5.4.3).

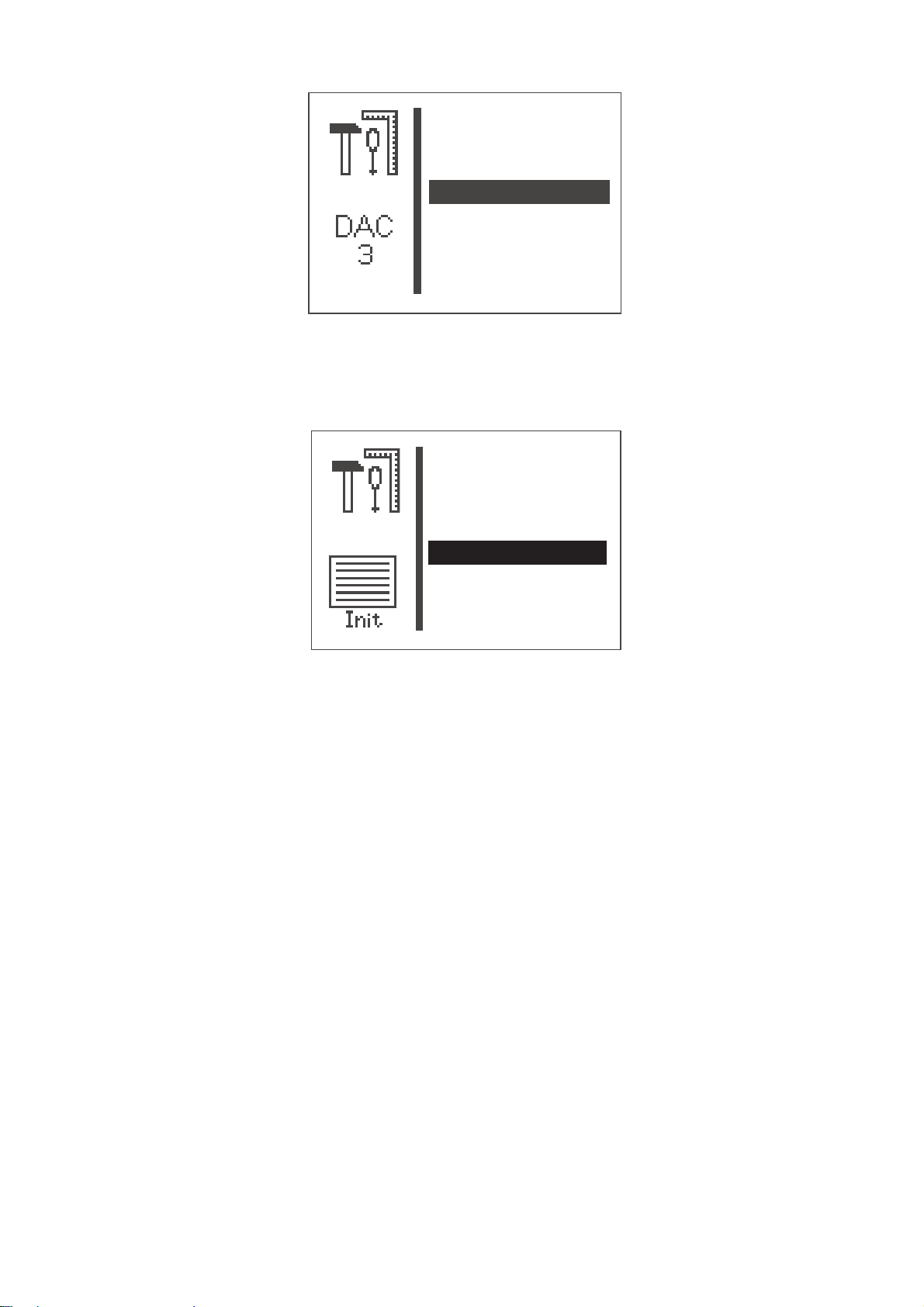

Call up the technician mode

–

Switch on main switch. The control is initialized. The sewing mode menu appears on the display.

–

Press key “ F ”.

–

Enter Code 1 (see Chapter 8.5.4).

–

Press key “OK”. The display changes over to the technician mode.

8.3 Alter numerical values, parameter values, selection of alternatives

8.3.1 Alter numerical values

–

Select the desired line with the keys “ñ”or“ò ”.

–

Press key “OK”. The chosen numerical value is marked by a blinking cursor.

–

Change between the points with the keys “ï”or“ð”. Increase or reduce the value of the selected point by one with the keys “ñ”or“ò”.

–

Press key “OK”.

The currently set value is taken over. or –

Press key “ESC”.

The original value is maintained.

Note

All values can only be altered within the minimum and maximum values.

8.3.2 Selection of a parameter

Some parameters offer a selection of non-modifiable adjustments.

–

Select the desired line with the parameter to be altered with the keys “ñ”or“ò”.

–

Press “OK”key.

–

Change between the given possibilities with the keys “ñ”or“ò” Example: Sewing pattern number

8.3.3 Selection of alternatives

–

Press “OK”key.

The currently set parameter is taken over. or –

Press “ESC“key.

The original parameter is maintained.

Some menu items c an be selected alternatively. The current selection is marked with a checkmark (...ü).

If another alternative is selected, the marking of the current choice is removed and the new menu item is marked.

Alternatively selectable items are optically set off against other menu items by a separating line.

8.4 Sewing patterns

Three different sewing pattern types are available for the button sewing automat 530:

Specified standard sewing patterns (Type 1) (see chapter 11)

The sewing parameters length, width and sewing speed can be altered in the sewing mode; the laser marking lamps can be switched on and off. The alterations are memorized. However, after selection of another sewing pattern the alterations will get lost. For these sewing patterns the sewing pattern numbers 1 to 50 are available which cannot be deleted or overwritten.

Programmable sewing patterns (Type 2)

Specified standard sewing patterns can be altered in the programming level (length, width, sewing speed, laser light 1 to 8) and memorized under a new program number.

For these sewing patterns the sewing pattern numbers 51 to 90

are available which can be deleted or overwritten. Free seam contours (Type 3)

For these seam contours the sewing patterns numbers 91 to 99 are available. The creation of free seam contours is described in chapter 8.5.4.4. The sewing parameters length, width and sewing speed can be altered in the sewing mode; the laser marking lamps can be switched on and off. The alterations are memorized. However, after selection of another sewing pattern the alterations will get lost.

8.5 Main menu

8.5.1 Sewing pattern operation

The parameters for the individual sewing patterns are arranged in the main menu.

The sewing patterns can be altered via these parameters.

–

Switch on main switch.

The control is initialized.

The main menu appears. –

Select desired parameter with the keys “ñ”or“ò”.

The symbol of the selected parameter is displayed white on black. –

Alter selected parameter as described in chapter 8.3.

Menu item

The symbol in the top left corner of the display describes the currently selected menu item.

Button pattern

The symbol down on the left of the display shows the current button pattern.

Sewing pattern

Via this parameter the sewing pattern to be sewn is selected. Selection: 1 .. 51 (52 to 99 if availabe)

Speed

Via this parameter the desired speed is set. Input: 0 to 2700 rpm

Submenu buttonhole distances

Select the present menu to set the buttonhole distance in X-/Y-direction.

Display:present distance in X-/Y-direction

Submenu sewing pattern offset

Select the present menu to shift the sewing pattern in X-/Y-direction. Display:present X-/Y- offset value

Submenu

Behind this symbol there is a submenu.

Number of stitches

By this menu line, the needle throw distribution for standard sewing patterns will be indicated and the complete number of stitches for free contours (cannot be modified).

When selecting the line with key “OK” the submenu “Special functions” opens.

Counter reading

Via this menu line the following counters can be read:

Counter of daily number of pieces

Counter of capacity

When selecting the line with key “OK” the submenu “Counter of daily number of pieces/Counter of capacity” is opened.

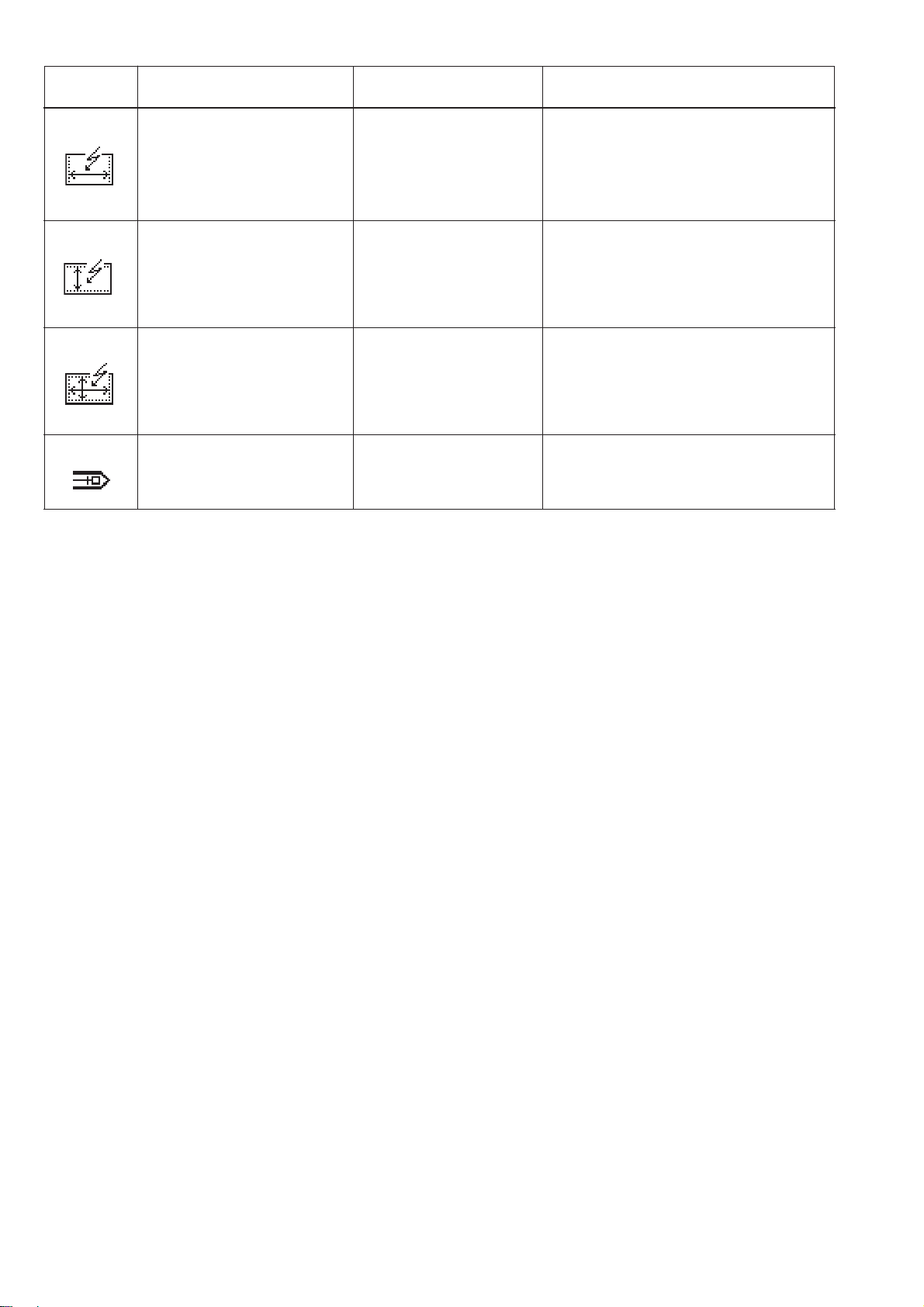

Submenu buttonhole distances

Buttonhole distance in X-direction

Setting the buttonhole distance in X-direction Input: 0,1 ... 40,0 [mm]

Buttonhole distance in Y-direction

Setting the buttonhole distance in Y-direction Input: 0,1 ... 20,0 [mm]

Submenu sewing pattern offset

In this menu to it is possible to change the sewing pattern position in X-/Y-direction. When switching to this menu, the clamping foot will be lowered. If the value for the X- and Y-Offset is changed, the stepping motors will move the material accordingly. When exiting the submenu, the clamping foot will then be raised again.

Caution: Danger of Injury!

Do not reach into the working area of the clamping foot when entering, exiting the above submenu and performing changes within the sewing pattern offset.

X-Offset

Setting the sewing pattern offset in X-direction. Input: -20,0 ... +20,0

Y-Offset

Setting the sewing pattern offset in Y-direction. Input: -10,0 ... +10,0

Submenu “Special function and soft start status”

OFF

Thread winding mode

The bobbin thread winder can be operated separately. At the setting “ON” the sewing motor can be started independent of the step motors via pedal or key.

Input: ON / OFF

Winding thread on to a bobbin:

With pedal –

Step pedal forwards (step 2). The sewing motor starts.

–

Step pedal backwards. The sewing motor stops.

Via control panel BF3 –

Press “F”key. The sewing motor starts.

–

Press “ESC”key. The sewing motor stops.

With push button (optional) –

Press key 2. The sewing motor starts.

–

Press key 1. The sewing motor stops.

Laser marking light (optional)

Soft start

Via this parameter the soft start can be switched on or off. Input : ON/ OFF

The menu item is only available if the laser light is activated in the configuration menu (compare chapter).

Laser light 1 ... 3

Switching on/off of the laser marking lights 1 to 3. Input : ON/ OFF

Submenu counter of daily number of pieces or counter of capacity

Alternative display of counter of daily number of pieces or counter of capacity.

Both counters work in parallel operation. It can be selected which counter is displayed in the main menu.

The counter of the daily number of pieces counts the number of the

sewn sewing patterns

Display: 0 ... 65000

The bobbin thread counter works backwards.

When the value “0" is reached and a sewing operation is started, a

note is indicated.

Display: 9999 ... 0 –

Press key"ESC “.

Back to the main menu.

If the counter of daily number of pieces is set, the follow ing display appears:

OFF

Display: counter of daily number of pieces in the sewing mode Input:Select with key “OK”.

Display: counter of capacity in the sew ing mode Input:Select with key “OK”.

Reset counter of daily number of pieces

–

Press key “OK ”twice.

The piece counter is reset to “0".

Counter of capacity on/off

Input:ON/OFF

Initial value counter of capacity

Input: 0 ... 9999

8.5.2 Programming mode

Under this menu item the parameters for programming of sewing patterns are arranged.

With the help of the parameters shape, length, width, speed etc. of the sewing pattern are entered.

Off

–

Switch on main switch. The control is initialized. The main menu appears.

–

Press function key “P” on the main menu. The display changes over to the menu of the programming mode.

–

Select desired parameter with the keys “ñ”or“ò”. The symbol of the selected parameter is displayed white on black.

–

Alter selected parameter as described in chapter 8.3.

Number of sewing pattern

Via this parameter the number of the sewing pattern to be created or altered is selected.

When preparing a new programme an asterisk (*) is indicated before the number.

Input: 51 ... 90 –

Select desired sewing pattern programme with the keys “ ñ”or“ò”.

–

Press key “OK ”. The program is activated.

Basic sewing pattern

Via this parameter a standard sewing pattern can be selected on the basis of which the new sewing pattern is to be created.

Input: 1 ... 50 or

91 ... 99 if available

Sewing speed

Via this parameter the desired sewing speed can be adjusted. Input: 0 ... 2700 [rpm]

Submenu buttonhole distances

Switch to this menu to change the sewing pattern distances in X-/Y-direction. (see page 25).

Display: present buttonhole distance in X-/Y-direction

Submenu sewing pattern offset

Select the present menu to shift the sewing pattern in X-/Y-direction. Display:present X-/Y- offset value

Number of stitches and stitch distribution

Only indication of needle throw distribution (for standard patterns) or of the complete number of stitches (for free contours).

Softstart

Via this parameter the soft start can be switched on or off. Input : ON/ OFF

Laser light 1 ... 3 (optional)

The menu item is only available if the laser light is activated in the configuration menu. Switching on/off of the laser marking lights 1 to 3.

Input: ON/ OFF

8.5.3 Sewing pattern sequence

8.5.3.1 Switching the sequence programming mode on/off

Changeover from the sewing pattern operation to the sewing pattern sequence operation

–

Actuate the function key “S” while the main menu is being displayed in order to skip to the sequence programming mode.

–

Start the editing by actuating the “OK”key

–

Select any sequence by using the “ñ“ key (1-25)

–

Confirm the selection by actuating the “OK”key. The sewing pattern sequence operation is switched on.

–

Actuate the key “ESC”or the“ï“key. The main menu for the sewing pattern sequence operation will be displayed.

The menu items sequence number and sequence in the main menu will be described at the end of this section.

Skipping from sew ing pattern sequence operation to sewing

pattern operation

–

Actuate the function key “S” while the main menu is being

displayed in order to skip to the sequence programming mode.

–

Start the editing by actuating the “OK”key. –

Select the sequence number 0 by using the “ò“key. –

Confirm the selection with the “OK”key.

The sewing pattern sequence operation is switched off. –

Actuate the “ESC” key or the “ï ”key.

The main menu for the sewing pattern operation will be displayed.

Menu items in the main menu of the sewing pattern sequence

51 52

Sequence

Selection of the sewing pattern sequence. Input: 1 (2 … 25, if available)

Sequence succession

Display of the sequence succession. The current sewing pattern number is marked with a bar (underlined).

In case of more than five numbers the display is scrolled.

–

Further sewing patterns right:

Further sewing patterns left:

Further sewing patterns left and right:

Automatic operation

After the completion of a sewing pattern the control changes over to the next sewing pattern shape automatically. After sewing of the last sewing pattern the control changes over to the first sewing pattern within the sequence again. The current sewing pattern is marked by a bar below the number. The shape of the selected sewing pattern is indicated on the left half of the display.

Manual operation

The control does not change between the sewing patterns automatically.

–

Select the next sewing pattern with the keys “ï”or“ð”. The shape of the selected sewing pattern is indicated on the left half of the display.

Change between automatic and manual operation

–

Select the second menu line with the keys “ñ”or“ò” (sequences) .

–

Press key “OK”.

–

Select the kind of operation with the keys “ñ”or“ò ”. In case of automatic operation arrows are indicated between the sewing patterns.

Automatic operation

Manual operation

8.5.3.2 Sequence programming mode

In this menu item individual sewing patterns are combined to retrievable sewing pattern sequences. Totally 25 independent sewing pattern sequences are available. Every sewing pattern sequence can be combined out of 20 sewing patterns in any order whatever.

In this menu, it is also possible to switch on the sewing pattern sequence operation.

–

Switch on main switch..

The control is initialized.

The main menu appears.

Press function key “S” in the main menu.

The display changes over to the menu of the sequence

programming mode.

Select desired menu item with the keys “ñ”or“ò”.

The menu line is displayed white on black.

Press key “ESC”orkey“ò”.

Back to the main menu.

Sequence number

Selection of the sequence to be created or to be altered.

When preparing a new programme, an asterisk (*) is indicated before

the number. Input: 1 ... 25

–

Select desired sequence number with the keys “ñ”or“ò”.

The sequence number is displayed white on black. –

Press key “OK”.

The program is activated.

Sewing pattern number (1 .. 20)

Via this menu item the sewing pattern number to be taken up in the current sequence is selected.

Input: 1 ... 51 (52 - 99 if available)

8.5.4 Technician mode

Benutzer Service Freie Konturen Memory-Dongle

Maschine

Maschine Service

Freie Konturen Memory-Dongle

Benutzer

Maschine

Freie Konturen Memory-Dongle

Benutzer

Service

In the technician mode the following menus are included:

Machine configurations

machine config user config. service functions free contours memory dongle

In this menu machine-specific adjustments are made.

User configurations

machine config operat.config. service functions free contours memory dongle

In this menu operation-specific adjustments are made.

Service functions

machine config operat.config. service functions free contours memory dongle

The service functions allow a quick verification of all hardware components.

Free contours

Maschine

Memory-Dongle

Benutzer Service

Freie Konturen

Maschine Benutzer Service Freie Konturen

Memory-Dongle

machine config user config. service functions free contours memory dongle

With the automat for button sewing 530 up to nine freely defined seam contours can be created and sewn. The coordinates are entered directly at the control panel.

Memory dongle

machine config user config service functions free contours memory dongle

With the help of the memory dongle, data can be transferred from the machine to the dongle or vice versa.

Recall technician mode

Benutzer Service Freie Konturen Memory-Dongle

Maschine

–

Switch on main switch. The control is initialized. The main menu appears.

–

Press function key “F” in the main menu. The screen for the code entry appears.

–

Enter code number “25483". After input of the correct code number the display changes over to the menu ”Technician mode”.

–

Confirm with key “OK”. The following menu appears:

machine config user config service free contours memory dongle

–

Select desired submenu with the keys “ñ”or“ò”.

–

Switch into the selected submenu with the key “OK”.

Cycle time

Indication of the cycle time of the sewing pattern sewn last. (time from s ewing start to sewing end)

8.5.4.1 Machine configuration

Softstart Einrichtung Zeiten

Parameter

paramete r soft start sewing e quipment times

Parameter

In this submenu different machine parameters can be set.

Soft start

In this submenu the driving speeds for the soft start slope can be set.

Equipment

In this submenu the settings for the sewing equipment and optional units can be actuated.

Times

In this submenu different timings can be set.

Machine cycles

The total number of the sewn cycles is displayed.

Submenu machine parameters

Referenz.: 1

cut.rpm max.rpm stop pos. feeding position

–

Select desired parameter with the keys “ñ”or“ò”. The symbol of the selected parameter / submenu is displayed white on black.

–

Start selected parameter with the key “OK” or change into the submenu.

Cutting speed

Input of the sewing motor speed in the last three stitches. Input: 200 … 300 [rpm]

Maximum sewing speed

Input of the maximum adjustable sewing speed Input: 200 … 2700 [rpm]

Stop position

With the stop position the positioning of the sewing motor / needle bar can be altered.

Input: 0 = thread lever stands in upper dead center

(needle bar is lower)

-15 = thread lever stands 15° before upper dead center (needle bar is higher)

Feeding position

Selection of the material feeding position. Input:

A = Seam beginning point B = Machine neutral point

2–8=Shiftingforwardthefeeding position (in mm),

in order to open the button thrust lever for the shank button clamp.

Note

According to the feeding position the following advantages / disadvantages arise:

Feeding point A = shorter cycle time Feeding point B = easier feeding of large sewing patterns,

longer cycle time

Referencing

In this menu point the referencing mode of the step motor after the sewing process can be configurated.

Input: 0 = no referencing

1 = referencing each time

2 – 10 = referencing after each 2nd to 10th sewing

process

Soft start

In this submenu speed adjustments for the soft start can be made.

Speed first stitch

Input of the speed in the first stitch. Input: 400 ... 900 [rpm]

Speed second stitch

Input of the speed in the second stitch. Input: 400 ... 2700 [rpm]

Speed third stitch

Input of the speed in the third stitch. Input: 400 ... 2700 [rpm]

Speed fourth stitch

Input of the speed in the fourth stitch. Input: 400 ... 2700 [rpm]

Speed fifth stitch

Input of the speed in the fifth stitch. Input: 400 ... 2700 [rpm]

Sewing equipment

10.0

Ausstattung

In this submenu adjustments for the sewing equipment can be made.

w.clamp f. open dimens

number length width

config.

Note

The entry of the clamping foot number serves for the automatic verification, whether the sewing pattern to be currently sewn is positioned within the inner frame of the clamp.

If no clamping feet values are predefined, free dimensions can be defined.

Clamping foot

Selection of a specified clamping foot as equipment. Input: Alternative

Free dimensions

Selection of a clamping foot with free sewing field. Input: Alternative

Number

Selection of a DA clamping foot number. Input: 1

Clamping foot Inner frame of clamp Description

number Dimensions X x Y (mm)

1 10x10 Buttonclamp

Due to the technical circumstances and a safety margin, the sewing f ield is smaller than the inner frame of the clamp.

Length

Input of a freely selectable sewing field. Input only possible in case “free clamp dimension” had been selected. Otherwise the length / width of the selected clamp is indicated (cannot be modified).

Input: 0.5 ... 20.0

Width

Input: 0.5 ... 40.0

Configuration

Via this submenu the optional units can be activated.

Submenu Configuration

Handtast.: Aus

Laserl.: Aus Opt. Anzeige

Belegung Eing. Belegung Ausg.

hand switch:off laser light: off opt. sign.

assignment input assignment output

Hand switch

Activating of optional hand switches. When the option is switched on, a menu item in order to select the operation mode will appear in the menu “User configuration”.

Input:ON/OFF

Laser lights

Activating the 3 optional laser lights. Input:ON/OFF

Optical signalling

Via this submenu an indication of error and event messages and of the message “hook thread is zero” can be configurated and activated via two 24V-outputs.

Optical signalling

Activating of the indication. Beforehand outputs 1 and 2 must be configurated, otherwise this menu item cannot be selected.

Input: ON/OFF

Output 1

Selection of the output for error and event messages. Input: 1 ...8 (if 24V-outputs are vacant)

Output 2

Selection of the output for the message “hook thread is

zero”

Input: 1 ...8 (if 24V-outputs are vacant)

Assignment of the inputs

This menu item gives on overall view of the assignment of the inputs with (optional) units.

Assignment of the 24V-outputs

This menu item gives an overall view of the assignment of the 24V-outputs with optional units.

Submenu Times

t1: 250 t2: 40 t3: 50 t4: 100

Delay between pedal level 1 (low ering the clamping foot) and sewing start (t1)

Time only relevant with quick start via pedal or hand switch (optional). Input: 50 ...300 ms

Preset value: 150 ms

Turn-on delay for the thread wiper magnet (t2)

This menu item will only be displayed if the option “electric thread wiper” is activated in the menu “equipment”.

Input: 30 ...100 ms Preset value: 40 ms

Delay thread w iper magnet off — clamping foot magnet on (t3)

The delay between the switching off of the thread wiper magnet and the switching on of the clamping foot magnet.

This menu item will only be displayed if the option “electric thread wiper” is activated in the menu “equipment”.

Input: 0 ...300 ms Preset value: 50 ms

Delay between clamping foot magnet on — reference run (t4)

The delay between the switching on of the clamping foot magnet and the referencing of the step motors.

Input: 0 ...300 ms Preset value: 70 ms

8.5.4.2 User configuration

Sprache

Par. sperr.: AUS Nähm. sperren Sequ. sperren

Deutsch......

English Parameter

In this menu operation-specific adjustments are made.

language sewing mode manual keys param.mod forced st pattern locking sequence locking

–

Select desired parameter/ submenu with the keys “ñ”or“ò ”. The selected parameter/ submenu is displayed white on black.

–

Start selected parameter with the key “OK” or change into the submenu.

Language

In this submenu the language can be chosen.

German

Selection of the German language for the technician level.

English

Selection of the English language for the technician level.

Parameter

Selection of the numbering of menu items for the technicial level (see chapter 13).

Operating mode push button (optional)

Selection of the push button mode. This menu item is only available if the “hand switch” option in the menu configuration is switched on.

Input: A = Normal

B=Quickstart

In the push button mode “NORMAL” the keys have the following functions:

Key 1:Lifting and lowering of the clamping foot.

Interruption of the sewing operation.

Sewing operation stopped after interruption.

Key 2:Sewing s tart when clamping foot is lowered.

Interruption of the sewing operation.

Sewing operation continued after interruption.

In the push button mode “QUICK START” the keys have the following functions:

Key 1:Lifting and lowering of the clamping foot.

Interruption of the sewing operation.

Sewing operations stopped after interruption.

Key 2:Sewing start.

If clamping foot is not lowered, it will be lowered.

Interruption of the sewing operation.

Sewing operation continued after interruption.

Parameter locking

Switching on / off of the parameter alteration in the sewing and programming mode.

Input: ON / OFF

Note

If the parameter locking is switched on, any alteration of parameters in the sewing and programming mode is no longer possible.

Lock sewing pattern

In this submenu individual sewing patterns can be released or locked for selection in the sewing mode.

lock all unlock all on on on on on on

In general the following restrictions apply:

1. Sewing pattern operation

The sewing pattern currently selected in the sewing mode cannot

be locked. In the sewing mode, locked sewing patterns cannot be chosen from

the selection list. Locked sewing patterns are marked with “#”.

2. Sewing pattern sequence operation

A locked sewing pattern can be selected in a sequence. However,

when starting the sewing process (lowering of the clamping foot) an error message appears. The sewing process cannot be started.

The last s ewing pattern selected in the sewing pattern operation

cannot be locked.

Lock all

All sewing patterns with the restrictions specified above w ill be locked. The status of the displayed sewing pattern number switches to “OFF”.

Unlock all

All sewing patterns will be released. The status of the displayed sewing pattern number switches to “ON”.

Lock/unlock individual sew ing pattern

Input: ON / OFF

Lock sequences

In this submenu individual sequences can be released or locked for selection in the sewing mode.

lock all unlock all

on on

In general the following restrictions apply:

1. Sewing pattern operation

The last s equence selected in the sequence operation cannot be

locked.

2. Sewing pattern sequence operation

The sequence currently selected in the sewing mode cannot be

locked. In the sewing mode locked sequences cannot be chosen from the

selection list. Locked sequences are marked with “#”.

Lock all

All sewing sequences with the r estrictions specified above will be locked.

The status of the displayed sewing sequence number switches to “OFF”.

Unlock all

All sewing sequences will be released. The status of the displayed sewing sequence number switches to “ON”.

Lock/unlock individual sew ing sequence

Input: ON / OFF

8.5.4.3 Service functions

Multitest

180° - Scheibe Ereignisse DAC III INIT

Multitest

DAC III INIT

180° - Scheibe

Ereignisse

Multitest 180° - Scheibe

DAC III INIT

Ereignisse

The service functions allow the quick verification of all hardware components.

Note

The service menu can also be reached directly when switching on the machine (see chapter 8.2.1).

Multitest

multitest 180°-disc events

In the menu “Multitest” all hardware components can be checked.

180° disc

multitest 180°-disc events

This menu item offers a function for the correct adjustment of the reference position of the sewing motor (180° disc) - see service instructions.

Events

multitest 180°-disc events

DAC III

Multitest 180° - Scheibe Ereignisse

INIT

DAC III

Multitest

DAC III

180° - Scheibe Ereignisse

INIT

multitest 180°-disc events DAC III INIT

In this menu are indicated the different parameters of the control unit.

Initialization

multitest 180°-disc events DAC III INIT

Via this menu the event memory buffer and the permanent data can be reset to the factory setting.

Multitest

Selection of the submenu of Multitest

output test PWM-output test input test auto input tst motor test step.motor tst RAM test EEPROM test

Caution: Danger of injury !

Do not reach into the running machine during the function test of the output elements.

Danger of Breakage!

Check before the testing of single output elements, whether the machine mouvements can cause collisions.

Output test

With this test function the function of the output elements is checked.

–

Start the test function with the “OK”key.

–

Select desired output element with the keys “ñ”or“ò”.

–

Switch desired output element on and off with the key “OK”.

output test

output

–

Press function key “ESC” for leaving the test function.

Caution: Danger of injury !

Do not reach into the running machine during the function test of the output elements.

Output element Function

Y 1 Laser marking lamp 1, if the option is activated Y 2 Laser marking lamp 2, if the option is activated Y 3 Laser marking lamp 3, if the option is activated Y 4 Depending on the activated option and the output configuration Y 5 Depending on the activated option and the output configuration Y 6 Depending on the activated option and the output configuration Y 7 Depending on the activated option and the output configuration Y 8 Depending on the activated option and the output configuration

The recent configuration of the outputs is indicated in the submenu “Output configuration” of the menu Configuration.

PWM Output test

This test function checks the function of the magnets.

–

Start the test function by pressing the “OK”key.

–

Select the desired output element by pressing the keys “ñ”or“ò”.

–

Switch the selected output element on and off by pressing the “OK”key.

PWM output test

output

–

The issued value for the selected output element is displayed. The value specifies the impulse rate for the controlling of the output element.

–

Press function key “ESC” to quit the test function.

Caution: Danger of injury !

Do not reach into the running machine during the function test of the output elements.

Output element Function

PWM 1 Clamp foot magnet PWM 2 Trimmer magnet PWM 3 Thread wiper magnet

Input test

With this test function the input element to be tested is selected.

ATTENTION !

The input elements have been carefully adjusted in the factory. Adjusting and correcting must only be done by trained service staff.

–

Start the test function with the “OK”key.

–

Select desired input element with the keys “ñ”or“ò”. The The switching status of the input element is indicated.

input test

input

–

Press function key “ESC” for leaving the test function. The menu Multitest is indicated.

Input element Function

S 1 Pedal 1 S 2 Pedal 2 S 3 Pedal 3 S 4 Pedal 4 S 5 Hand switch key 1, if the option is activated S 6 Hand switch key 2, if the option is activated S 7 Depending on the activated option and the input configuration S 8 Query clamping foot

N-Ref. Sewing motor reference switch

X-Ref. X-reference switch

Y-Ref. Y-reference s witch

The recent configuration of the inputs is indicated in the submenu “Input configuration” of the menu Configuration.

Auto-Input test

With this test function the function of the input elements is checked.

–

Start test function with the “OK”key.

–

Actuate desired input element. The switch status and the number of the actuated input element are indicated.

auto-input test

–

Press the function key “ESC” for leaving the test function. The menu Multitest is indicated.

Input element Function

N-Ref. Sewing motor reference switch

X-Ref. X-reference switch

Y-Ref. Y-reference s witch

The recent configuration of the inputs is indicated in the submenu “Input configuration” of the menu Configuration.

Sewing motor test

With this test function the sewing motor can be checked.

–

Start test function with the “OK”key.

–

Start motor with the key “ñ”.

–

Alter speed with the keys “ñ”or“ò”. The speed is indicated.

–

Press function key “ESC”. The test is finished, the motor stops. The sewing motor control makes a reference run and the clamping foot is lifted. The menu Multitest appears on the display.

Step motor test

With this test function the step motors and the pertaining reference switches can be checked.

ATTENTION ! Risk of breakage !

Before the test: Move needle in position “up” by handwheel.

–

Start test function with the key “OK”.

–

Check transverse motion of the step motor (X-axis). Move step motor w ith the keys “ï ”or“ð”. The number of steps done is indicated on the left of the arrow. The status of the reference switch changes around the reference position.

–

Check longitudinal motion of the step motor (Y-axis). Move step motor w ith the keys “ñ”or“ò ”. The number of steps done is indicated above the arrow. The status of the reference switch changes around the reference position.

–

Press function key “ESC”. The test is finished. The menu Multitest appears on the display.

step.motor tst

RAM test

With this test function the main memory (SRAM and program data memory) is checked.

–

Start test function with the “OK”key. The display shows the test result.

Display Explanation

SRAM OK Main memory works perfectly SRAM ERROR Error in the main memory NV-RAM OK Program data memory is in order NV-RAM ERROR Error in the program data memory

–

Press function key “ESC”. The test is finished. The menu Multitest appears on the display.

EEPROM test

This test function checks the read memory (ROM) of the micro-processor.

–

Start test function with the key “OK”. The display shows the following test results:

-ROM-size

- Machine class

- Software version

- Software date

- Check sum and status

ROM size class version date check sum

Hint:

The data will vary depending on the s oftware version. –

Press function key “ESC”. The test is finished. The menu Multitest appears on the display.

Events

= Ereignisspeicher = E4304: 3 x

E8254: 1 x

= Letzte Ereignisse =

1 E4304 Z 1154889

S 263

1 E4304 Z 1152558

S 263

1 E8254 Z 1150034

S 263

In case of failure the menu can give important hints regarding the cause of the malfunction.

event memory latest events

Event memory

(example)

In this menu item all events that occurred are indicated. –

Exit the menu item by actuating the “ESC” key.

–

Continued display by actuating the “ò”key.

Latest events

(example)

In this menu item the events that occurred last are indicated: Z = milli-seconds after the switching on of the machine S = machine piece counter E = Event/Error number

–

Exit the menu item by actuating the “ESC” key.

–

Continued display by actuating the “ò”key.

DAC III

Temp. (°C): 30

UZK (V): 325

Selection of the submenu for the display of the DAC III parameters.

Temperature

Here the current inside temperature of the control unit is indicated in °C. It should be below 80 ° C. When the temperature of 80°C is exceeded, the error message 3107 will appear.

Intermediate circuit voltage sew ing motor (UZK)

Here the current intermediate circuit voltage for the sewing motor one-level is indicated.

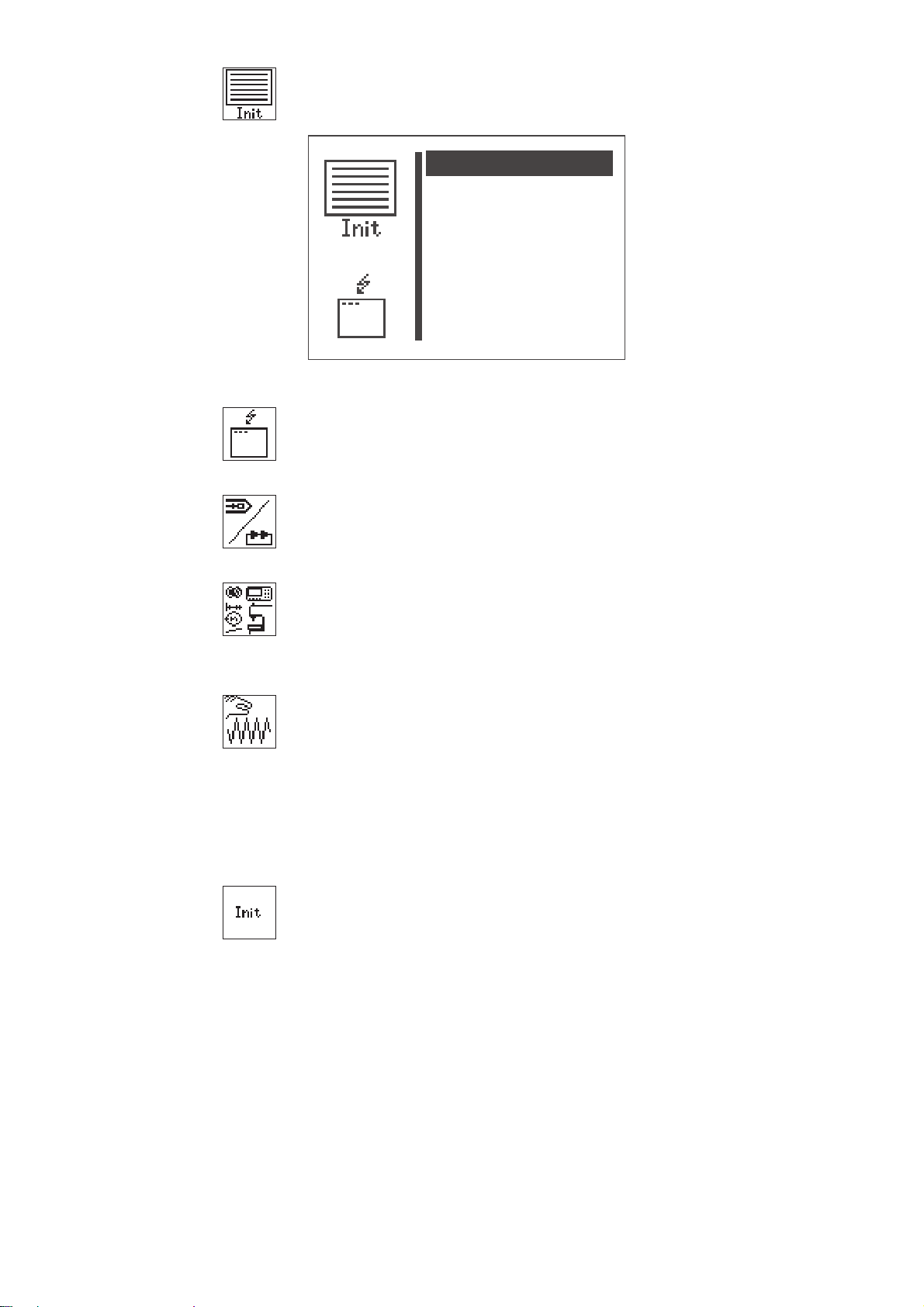

Initialization (Init)

Var . + Sequ. Maschinenpar. Fr. Konturen Masch. kpl!

Ereignissp.

The selection of the submenu for the initialization of the event memory and the permanent data.

event memory variants + sequences machine parameters free contours machine complete

Event memory

Via this menu item the event memory can be reset to zero.

Sewing pattern programs (variants) and sequences

Via this menu item sewing pattern programs and sequences can be deleted.

Machine parameters

Via this menu item machine parameters, soft start driving speeds, timings, user configuration, hook thread counter data and options to factory settings can be reset.

Free seam contours

Via this menu item all free seam contours can be reset (deleted).

Note

Through resetting it may occur that sewing pattern programs and sequences are eventually deleted and numbers of subsequent programs and sequences may be altered.

Machine complete

Via this menu item all permanent data can be reset. After resetting the machine will automatically be restarted.

Note

After the restart of the machine, a new selection of the clamp numbers and the equipment must be carried out (compare installation instruction, chapter 9).

8.5.4.4 Free contours

Maschine

Memory-Dongle

Benutzer Service

Freie Konturen

With the button sewing automat 530 up to nine freely defined seam contours can be created and sewn. The entry of the coordinates is done at the control panel.

design edit clear copy

no.st.av. no.pat.av.

Creating

Via this menu item a new seam contour can be created.

Note

The number of the seam contour is issued automatically.

Altering

After selection of the seam contour to be altered you get into the submenu for altering the seam contour.

Deleting

Via this menu item a selected seam contour can be deleted.

Copying

Any basic sewing pattern number or free seam contour whatever can be copied and altered. After selection of the sewing pattern number you get into the submenu “Alter seam contour”.

–

Select desired sewing pattern with the keys “ñ”or“ò”.

–

Choose selected sewing pattern with the key “OK”.

Number of available stitches:

The number of the stitches still available is indicated (max. 5000)

Number of available contours:

The number of the contours still available is indicated (max. 9)

Determining the contour coordinates

When creating a seam contour every individual stitch has to be entered in the control indicating its position in the coordinate system (X- and Y-axis). Therefore the individual coordinate points have to be determined before. This can be done with the help of millimeter graph paper.

Maximum sewing area Stitch to be determined (grey field)

Sketched seam contour

Machine neutral point

Coordinate system with X- and Y-axis

Note

The seam contour should be laid out in such a way that the machine neutral point is in the middle of the contour, if possible.

–

Sketch the maximum sewing field size on the millimeter graph paper (X = max. 40 mm, Y = max. 20 mm).

–

Draw coordinate system in the centre of the sewing field.

–

Draw in seam contour.

–

Determine the X- and Y-coordinates for every desired stitch.

–

Enter X- and Y-coordinates in the control (see next page).

Create contour

In this menu the X- and Y-coordinates are entered for every individual stitch.

append stitch parameter/end

Note:

In order to enter stitch operations (f. e. intermediate trimming), first finish the contour creating (entering of coordinates) and then insert the stitch operation in the menu change contour by editing.

X1:

Input of the X-coordinate for stitch 1 Input: -20.0 ... +20.0

Y1:

Input of the Y-coordinate for stitch 1 Input: -10.0 ...+10.0

Note:

The value X1 can be altered according to chapter 8.3.1. Select the menu item Y1 with key “ò” after confirmation of the value forX1withkey“OK”. The values for Y1, X2, Y2, X3 and Y3 can be altered as described for the value X1. Select menu item “Add stitch”withkey“ò ” after confirmation of the input of Y3 with key “OK”. After selection of this line with key “OK” the next coordinates Xn+1 and Yn+1 (here: X4 and Y4) are given in the two upper menu lines. The selection bar changes to the line Xn+1 (here: X4) automatically. The values Xn+1 and Yn+1 can be altered as described above when required. This procedure can be repeated until the stitch coordinates are completely entered. When the input of coordinates is finished, the line “Exit” has to be selected in the submenu “Parameter/End”. Then the menu “Free

contours” appears again.

Append stitch

Function for appending a stitch. The coordinates for the first three stitches (here: X1/Y1, X2/Y2 and

X3/Y3) are shifted upwards and the display shows Xn+1/Yn+1 (here: X4/Y4).

Submenu parameter

Abst. X: 3.4 Abst. Y: 3.4

Selection of the submenu for entering the contour parameters

std. rpm dist. x dist. y

Standard rpm:

Standard speed Input: 100 ... 2700 rpm

Distance X:

Hole distance in X-direction Input: 0 ... 40.0 mm

Distance Y:

Hole distance in Y-direction Input: 0 ... 20.0 mm

Preset value = outer stitches in X- and Y- direction The value must be changed to match the hole distance of the button

(as regard to the correct scaling in the main menu).

If the free seam contour from the main screen is selected and one of the distance X/Y or both is changed, the value of the length or the width must be changed correspondingly in the main menu.

Change contour

stitch coordin rem.st. ins.st. append stitch parameters

no.stitch no.st.av.

Stitch coordinates

Selection of the submenu for altering the stitch coordinates.

Delete stitch:

Delete stitch. Input: Stitch number to be deleted

Add stitch:

Add stitch. Input:Stitch number before which a stitch is to be added. The submenu for altering the stitch coordinate appears.

Add stitch (at the end)

The submenu for altering the stitch coordinate appears.

Parameter

Selection of the submenu for altering the contour parameters.

Submenu stitch coordinates

If the contour to be altered has less than 99 stitches, the submenu appears immediately.

If the contour to be altered has more than 99 stitches, the following menu appears first:

–

Select desired range of stitches with the keys “ñ”or“ò ”.

–

Select range of stitches with the key “OK”. The submenu “Stitch coordinates” appears.

–

X10: 0.0

Y10: 0.0 Op10:

Select desired stitch with the keys “ñ”or“ò”.

–

Select stitch with the k ey “OK”. The submenu for altering a stitch coordinate appears.

If a stitch operation is classed with a stitch, this will be marked with an asterisk (*) instead of a diagonal stroke (/) on the display.

Submenu “Alter stitch coordinate”

This submenu appears when selecting a stitch coordinate from the menu “Stitch coordinates” and after adding or altering a stitch.

Example

X10

Altering of the X-coordinate for stitch 10 Input: -20.0 ... +20.0

Y10

Altering of the Y-coordinate for stitch 10 Input: -10.0 ... +10.0

OP10

Altering of the stitch operation for stitch 10 Input: 0 ... 1 (compare to the opposite table)

Hint: The stitch operation entered will be executed after the stitch.

Operation Number Description Note

0 No stitch operation 1 Intermediate trimming The intermediate trimming can be

programmedupto10timeswithina contour. Between 2 intermediate trimmings at least 3 stitches must be sewn.

Delete contour

design edit clear copy

no.st.av. no.pat.av.

–

Select function “Delete”withthekeys“ñ”or“ò”.

–

Select desired contour number with the keys “ñ”or“ò”.

–

Press key “OK”. The contour is deleted.

ATTENTION!

By deleting a free seam contour the numbering of sewing pattern programs and/or sequences can be altered because it is possible that these are deleted, too.

Copy contour

–

Select the menu item “copy“ with the “ñ“or“ò“keys.

–

Actuate the “OK”key.

–

Select the desired sewing pattern number (1-50,91-99) with the “ñ“or“ò“keys.

–

Confirm the selection by actuating the “OK”key. The contour will be copied and the menu “Change contour” will be displayed.

In order to change the contour, please follow the instructions of the paragraph “Change contour” on page number 67.

8.5.4.5 Memorydongle

Maschine Benutzer Service Freie Konturen

Memory-Dongle

Inhalt

Laden Speichern

Formatieren

machine user service free contours memory dongle

By using the functions of this submenu, data can be transferred from the machine to the dongle or vice versa.

contents

load save

formatting

Dongle contents

Via this menu item the contents of a dongle connected to the control unit can be displayed.

Load

Via this menu item program data (sewing pattern programs and sequences) and machine parameters as well as free seam contours can be transferred from the dongle to the machine.

Save

Via this menu item program data (sewing pattern programs and sequences) and machine parameters as well as free seam contours can be memorized on a data dongle.

Formatting

In order to save data on a dongle, the dongle must be formatted as a data dongle.

The dongle is to be inserted on the control unit into the plug connection labelled “Dongle” (X110).

Displaying the dongle contents

Klasse: 530 U-Klasse: 000 Version: A05 Datum: 100105

51: 51 52: -53: -54: -55: -56: -57: -58: --

Boot dongle

If a boot dongle is inserted, information concerning the machine program will be displayed.

class subclass version date

(example)

A boot dongle with a machine program for any machine class can be inserted in order to display the dongle information.

Data dongle

If a data dongle, that has been formatted for the machine class 530 is inserted, the memorized sewing pattern programs or free seam contours will be displayed.

Display of the memorized sewing pattern programs

(example) It is possible to switch between the display of the memorized sewing

pattern programs and the free seam contours by actuating the “ð“key.

Display of the memorized free seam contours

Data Dongle Klasse: 510

Inhalt

Fr. Kont. kpl. Masch. kpl.

(example)

If no sewing pattern program or free seam contour is memorized, „—“ will appear, otherwise the corresponding contour name will be indicated.

If a dongle of another machine class is inserted, the following information will be displayed.

(example)

Transferring data from the dongle to the machine

The memorized program data (sewing pattern programs and sequences) and machine parameter or all free seam contours can be can be transferred from the dongle to the machine.

contents free cont. compl. mach. compl.

Contents

Via this menu item the contents of a memory dongle connected to the control unit c an be displayed.

Free seam contours completely

Via this menu item the loading of all free seam contours will be started. A window to confirm the selection will appear.

–

Actuate the “ï“ key (no), in order to cancel the transaction or the “ð“ key (yes), in order to start the transaction.

All free s eam contours saved on the machine will be deleted when loading the dongle!

Note

The time needed in order to load the data depends on the number of free seam contours saved on the dongle.

Machine completely

Via this menu item the loading of the program data (sewing pattern programs and sequences) and the machine parameters will be started. They consist of:

all sewing pattern programs

all sequences

machine parameters

recent sewing pattern numbers, if the sewing equipment

corresponds recent standard sewing pattern data, if the sewing equipment

corresponds

A window to confirm the selection will appear. –

Actuate the “ï“ key (no), in order to cancel the transaction or the “ð“ key (yes), in order to start the transaction.

The data saved on the machine will be deleted when loading the dongle!

Note

The time needed in order to load the data depends on the number of sewing pattern programs saved on the dongle.

If free seam contours in sewing pattern programs (variants) and sequences are to be transferred, first the free seam contours have to be loaded on the machine and then “machine completely”!

Memorizing data on the dongle

Inhalt

Fr. Kont. kpl. Masch. kpl.

Here program data (sewing pattern programs and sequences) and machine parameters or all free seam contours can be saved from the machine to the dongle.

contents free cont. compl. mach. compl.

Contents

Via this menu item the contents of a memory dongle connected to the control unit c an be displayed.

Free seam contours completely

Via this menu item the saving of all free seam contours will be started. A window to confirm the selection will appear.

–

Actuate the “ï“ key (no), in order to cancel the transaction or the “ð“ key (yes), in order to start the transaction.

All free s eam contours memorized on the dongle will be deleted when the saving is started!

Note

The time needed in order to save the data depends on the number of free seam contours memorized on the machine.

Machine completely

Via this menu item the saving of the program data (sewing pattern programs and sequences) and the machine parameters will be started. They consist of:

all sewing pattern programs

all sequences

machine parameters

recent sewing pattern numbers, if the sewing equipment

corresponds recent standard sewing pattern data, if the sewing equipment

corresponds

A window to confirm the selection will appear.

Data Dongle

–

Actuate the “ï“ key (no), in order to cancel the transaction or the “ð“ key (yes), in order to start the transaction.

The program data and the machine parameters memorized on the dongle will be deleted when the saving is started!

Note The time needed in order to save the data depends on the number of

sewing pattern programs memorized on the machine.

Dongle formatting

In order to save data on a dongle, the dongle must first be formatted as a data dongle.

data dongle

Data dongle

Via this menu item the formatting of the dongle can be started. –

In order to start, actuate the “P”key. A window to confirm the selection will appear.

–

Actuate the “ï“ key (no), in order to cancel the transaction or the “ð“ key (yes), in order to start the transaction.

When formatting a dongle all data memorized on it will be deleted!

Error messages

Number Name Possible cause Elimination

4301 4302

4304 Wrong dongle type Dongle has the wrong

4307 Wrong machine

4311 Error format-ID • Dongle not formatted

4312 Unknown dongle

Dongle missing No dongle inserted Dongle empty

class

type

• No data saved on

dongle

format for the selected function

Data dongle is not formatted for class 510

correctly

• Dongle defect

• Dongle not formatted correctly

• Dongle defect

Insert dongle into control unit

• Save data on the dongle

• Use a different dongle

• Format the dongle

• Use another dongle

• Format the dongle

• Format the dongle again

• Use a new dongle

• Format the dongle again

• Use a new dongle

8.6 Error messages

In case of an error in the control s ystem or in the sewing pattern program the display shows a corresponding symbol and an error number.

With the help of the following tables the cause of the error can be determined and remedial action can be taken.

8.6.1 Error categories

No. Pictogram Name Description

1 Fatal error An emergency stop follows. The button sewing

automat must be switched off and on again.

2 Error Working can only be carried on after

confirmation of the error by the user.

3 Warning Working can only be carried on after

confirmation of the warning by the user

8.6.2 Application messages

Picto- Description Category Reaction/ Problem elimination

gram

· C lamping foot can only

Capacity counter is “zero” Hint

Hand wheel turned manually

Contour exceeds the inner frame of the clamping foot either -X or +X direction

Contour exceeds the inner frame of the clamping foot in -X or +X direction and Y-direction

Contour exceeds the inner frame of the clamping foot in -X and -Y direction or +Y-direction

Contour exceeds the inner frame of the clamping foot in +X and -Y direction or +Y-direction

War ning

be lowered after confirmation via key “OK”.

· W ith the confirmation the hint disappears

· W ith the confirmation the capacity counter is reset to its initial value again.

After interruption of the sewing process:

· Impossible to continue sewing

· Stop the sewing process by stepping the pedal backwards, confirmation by hand key 1 (clamps) or pressing the key “ESC” at the control panel

· No sewing start possible

· Select another clamping foot

· C hoose another sewing pattern

· R educe size of sewing pattern in X-direction

· No sewing start possible

· Select another clamping foot

· C hoose another sewing pattern

· R educe size of sewing pattern in

X-direction

· R educe size of sewing pattern in Y-direction

· No sewing start possible

· Select another clamping foot

· C hoose another sewing pattern

· R educe size of sewing pattern in Y-direction

· No sewing start possible.

· Select another clamping foot

· C hoose another sewing pattern

· R educe size of sewing pattern in both X- and Y-direction

Contour exceeds the inner frame of the clamping foot in X and -Y direction or +Y-direction

Contour exceeds the inner frame of the clamping foot in -Y or +Y direction

War ning

· No sewing start possible.

· Select another clamping foot

· C hoose another sewing pattern

· R educe size of sewing pattern X-direction Reduce Y-Offset in the corresponding direction

· No sewing start possible.

· Select another clamping foot

· C hoose another sewing pattern

· Reduce Y-Offset in the corresponding direction

Picto- Description Category Reaction/ Problem elimination

gram

Contour exceeds the

War ning work surface opening of theclampingfootin X-direction

Contour exceeds the

War ning work surface opening of theclampingfootin Y-direction

Contour exceeds the

War ning work surface opening of theclampingfootin X/Y-direction

Sewing pattern blocked Hint

· No sewing start possible

· Select another clamping foot

· Choose another sewing pattern

· Reduce size of sewing pattern in X-direction

· No sewing start possible

· Select another clamping foot

· Choose another sewing pattern

· Reduce size of sewing pattern in Y-direction

· No sewing start possible

· Select another clamping foot

· Choose another sewing pattern

· Reduce size of sewing pattern in X/Y-direction

· No sewing start possible.

· Choose another sewing pattern Unlock sewing pattern

8.6.3 Machine errors

Error Description Possible causes Troubleshooting code

1051 Sewing motor timeout · Cable to motor faulty

· Reference switch faulty . Sewing motor faulty . Mechanics rough-running

1052 Sewing motor

overcurrent

· Cable to motor faulty

· Sewing motor faulty

· Control faulty . Software not compatible to the control unit version (A/Bxx.x)

1053 Sewing motor

- Mains voltage too high

overvoltage

1055 Sewing motor

overload

· Sewing motor is blocked / rough running

· Sewing motor faulty

· Control faulty

1056 Sewing motor

overheated

· Sewing motor rough running

· Sewing motor faulty

· Control faulty

1058 1059

1062 Sewing motor IDMA

Motor speed (inverted)

Sewing motor faulty

Breakdown

autoincrement

1302 Sewing motor power

source error

-Plug for sewing motor

not plugged in

-Plug for incremental

sensor not plugged in

1342

Sewing motor error Internal error

1344

2101 Step motor X-axis

timeout referencing

· C able to reference switch faulty

· Reference switch faulty

. Step motor faulty . Mechanics rough-running

2152 Step motor X-axis

overcurrent

2153 Step motor X-axis

· Step motor X-axis faulty

· Control faulty

Mains voltage too high

overcurrent

2156 Step motor X-axis

overheated

· Step motor X-axis

rough running

· Step motor X-axis faulty

· Control faulty

2162 Step motor Y-axis

Breakdown

IDMA autoincrement

· Check cable

· Check reference s witch . Check sewing motor . Check mechanics

· Check cable

· Check sewing motor

· Check control . Check the serial number of the

DAC III control unit

, if necessary

load the correct software version.

- Check mains voltage

· Remove cause of block / rough running

· Check sewing motor

· Check control

· Remove cause of rough running

· Check sewing motor

· Check control Check sewing motor

Switch machine off and on again

-Connect the plug for the sewing motor

-Connect the plug for the

incremental sensor

· Switch machine off and on again

· Software update

· Contact the DA-Service staff

· Check cable

· Check reference s witch

. Check step motor . Check mechanics

· Check step motor X -axis

· Check control

Check mains voltage

· Remove cause of rough running

· Check step motor X -axis

· Check control

Switch machine off and on again

Serial numbers 0302-00101 ... 0307-00643: the control unit should be used with an Axx.x-Version

Serial numbers 0307-00644 and higher: the control unit should be used with an Bxx.x-Version

Error Description Possible causes Troubleshooting code

2201 Step motor Y-axis

timeout referencing

2252 Step motor Y-axis

overcurrent

2253 Step motor Y-axis

overcurrent

2256 Step motor Y-axis

overheated

2262 Step motor Y-Axis

IDMA Autoincrement

2911

Step motor error Internal error

2914

3100 Machine voltage

control

3101 Machine power

voltage

3102 Machine

voltage error intermediate circuit sewing motor

3103 Machine

intermediate circuit step motor

3107 Machine

temperature

3215 Machine hook thread

counter zero

· Cable to reference switch faulty

· Reference switch faulty

. Step motor faulty . Mechanics rough-running

· Step motor Y-axis faulty

· Control faulty

Too high mains voltage

· Step motor Y-axis

rough running

· Step motor Y-axis faulty

· Control faulty

Breakdown

Temporary mains voltage drop Fuse F403 faulty

Temporary mains voltage drop Fuse F402 faulty

Temporary mains voltage drop Fuses F400/F404 faulty (ext.)*

Temporary mains voltage drop Fuse F401 faulty

· Vent holes blocked

· Ventilation grid soiled

The counter for the hook thread counter is zero : the bobbin is empty

· Check cable

· Check reference s witch . Check step motor

. Check mechanics

· Check step motor Y-axis

· Check control

Check mains voltage

· Remove cause of rough running

· Check step motor Y-axis·

· Check control

Switch the sewing machine off and on again

· Switch machine off and on again

· Software update

· Contact the DA-Service staff Check mains voltage

Replace fuse F403 Check mains voltage

Replace fuse F402 Check mains voltage

Replace fuses F400/F404 (ext.)

Check mains voltage Replace fuse F401

· Check the vent holes

· Clean the ventilation grid

Confirm the message and replace the bobbin.

* Those fuses could also be faulty when the control unit does not react and/or powering up does nothing!

Error Description Possible causes Troubleshooting code

3301 3320

3322 3330

3332 3340 3341 3350

3351 3353 3360 3361 3400 3401 3403

3358 Sewing procedure:

3500

3506 3520

3530 3540 3545 3721 3722

4301 Dongle missing No dongle plugged in 4302 Dongle empty No data saved on the dongle

Error control procedure / Test procedure /Step motor test procedure / Starting procedure / Sewing procedure / Winding procedure / Adjusting aids

Handwheel turned during interruption

Error command interpreter/ motor synchronization

Internal error

Handwheel turned manually during sewing interruption

Internal error

- Switch the sewing machine off and on again

- Software update

- Contact the DA-Service staff

Cancel the sewing procedure: Step the pedal backwards

· Switch machine off and on again

· Software update

· Contact the DA-Service staff

Connect the dongle to the control Save the data on the dongle

4304 Wrong dongle type The dongle has not the proper

format for the wished function

4307 Wrong machine class The dongle data is not

formatted for the cl. 530

4311 Error Format-ID Dongle not formatted

properly Dongle faulty

4312 Unknown dongle type Dongle not formatted

properly Dongle faulty

4530

4537 4900

5101 NV-RAM empty Control is brand new, no data

5104 NV-RAM

Error menu system / User log-in

Error check sum

Internal error

found Control is for another class, incompatible data

· NV-SRAM faulty

· Breakdown

-Use other dongle type

-Format dongle

-Use other dongle type

-Format dongle

- Format the dongle anew

- U se a new dongle

- Format the dongle anew

- U se a new dongle

· Switch machine off and on again

· Software update

· Contact the DA-Service staff

Data will be reset to factory setting.

· Check through Multitest, if necessary replace control

· Switch machine off and on again Data will be set back to factory setting

Error Description Possible causes Troubleshooting code

5804 Free Contours:

Wrong checksum

5808 Error free s eam

contour Cannot determine the stitch number

5809 Free contours:

Max. number of contour parts

5810 Freecontours:

Min. number of stitches per contour part

5900 Error sequences -

Invalid sequence number

6151

Error input / output Internal error

6154

6351

Error I²C Control faulty

6354

6551

6554 6651

6653 6751

Error Machine head position / AD-Converter / Processorerror/ Error step motor driver

6761 6952

7451 7453

Communication Test interface

7454 7452

7455

7551

Communication test interface

Communication

control panel interface 7555 7558 7559

7556 7557

Communication

control panel interface

7700 Protocol: Max number

of repetition

NV-SRAM faulty

Failure

Internal error

Max. number of contour parts (intermediate cut) exceeded

Cannot keep the min. number of stitches per contour part

Internal error

· Transmission failure

· Cable of test interface faulty

· Internal error

Internal error

· Transmission failure

· Cable of control panel interface faulty

· Transmission failure

· Cable of test interface faulty

-Check via Multitest, check the control

-Switch the sewing machine off and on again

Data will be reset to factory setting.

- Switch the sewing machine off

and on again

- Software update

- Contact the DA-Service staff

Delete some intermediate cut in the free contours

Move some intermediate cut in the free contours

· Switch machine off and on again

· Software update

· Contact the DA-Service staff

· Switch machine off and on again

Replace control Software update Contact the DA-Service staff

· Switch machine off and on again

· Software update

· Contact the DA-Service staff

Switch machine off and on again

-Switch off the source of interference

-Replace cable

- Switch machine off and on again

-Switch off the source of interference

-Replace cable

- Switch machine off and on again

-Switch off the source of interference

-Replace cable

- Switch machine off and on again

-Switch off the source of interference

-Replace cable

Error Description Possible causes Troubleshooting code

7701 Protocol error Internal error

8151 8156

8159

8152

8154 8251 8255

8252 8257 8258 / 8253 8254 8256

8351 8700 8702 8800

8806 8890 8891

9100

9105 9200 9201 9900 9902 9903 9905

Error IDMA · Failure

· Control faulty

Error IDMA / Booting ADSP / Booting

Booting ADSP / Booting XILINX / Booting

Error Testpins / Key simulation / Signals / Event processing / Memory-Wrapper / List of functions

Error Sewing pattern administration / Sewing pattern program / Sewing pattern release / Equipment / Key processing / Memory Output Message

Internal error

Failure

Internal error

· Switch machine off and on again

· Software update

· Contact the DA-Service staff Switch machine off and on again

Check control

· Switch machine off and on again

· Software update

· Contact the DA-Service staff

. Switch machine off and on again

· Switch machine off and on again

· Software update

· Contact the DA-Service staff

· Switch machine off and on again

· Software update

· Contact the DA-Service staff

9. Sewing

Operating and function sequence when sew ing:

Sewing operation Operation/ Explanation

Before the sewing start

Starting position - Pedal in resting position

Button sewing automat stands idle Needle and fabric clamps in position “up”.

Feed material

Sewing - Step pedal forwards up to step 1.

The clamps are lowered.

- Relieve pedal. The clamps are lifted again. The material can be positioned anew.

- Step pedal completely to the front. The button sewing automat sews with the adjusted speed.

During the sewing cycle

Interrupt sewing - Step pedal backwards. Operation The button sewing automat stops.

The clamps stay down.

Continue sewing - Step pedal completely to the front. operation

10. Maintenance

10.1 Cleaning and checking

Caution: Danger of injury !

Switch off main switch. The maintenance of the button sewing automat must only be carried out if the machine is switched off.

Maintenance work has to be done after the intervals indicated in the tables at the latest (see column “Operating hours”).

The processing of fluffy material may require shorter maintenance intervals.

A clean button sewing automat protects from disturbances.

Maintenance work Explanation Operating to be done hours

Machine head

- Remove sewing dust and thread remainders. (e.g. with compressed air pistol)

Spots to be cleaned especially carefully:

- Underside of the throat plate

- Zone around hook 1

- Bobbin case

- Thread trimmer

- Zone around needle 2

Control box

Keep free the ventilation grid.

10.2 Oil lubrication

321

Caution: Danger of injury !

Oil can cause skin eruption. Avoid a longer contact with the skin. Wash yourself thoroughly after a contact.

ATTENTION !

The handling and disposal of mineral oils is subject to legal regulations. Deliver used oil to an authorized collecting station. Protect your environment. Be careful not to spill any oil.

Oil the button sewing automat exclusively with lubricating oil DA-10 or an equivalent oil with the following specification:

–

Viscosity at 40° C: 10 mm

–

Ignition point: 150° C

DA-10 can be bought at the sales points of DÜRKOPP-ADLER AG under the following parts numbers:

250-ml-Container: 9047 000011 1-Litre-Container: 9047 000012 2-Litre-Container: 9047 000013 5-Litre-Container: 9047 000014

Maintenance work Explanation Operating to be done hours

Lubrication of the button sewing automat

The button sewing automat is equipped with a central oil wick lubrication. The oil is provided by the oil reservoirs 2 and 3.

- The oil level must not drop below the red marking of the two oil reservoirs.

- Fill up oil up to the red marking through drill-hole 1.

11. Standard sewing patterns

No. Stitch pattern Stitch Number of Standard size Standard size

repartition connecting threads X-axis (mm) Y-axis (mm)

16-613,43,4

28-813,43,4

38-833,43,4

4 10 - 10 1 3,4 3,4

5 12 - 12 1 3,4 3,4

66-603,43,4

78-803,43,4

8 10 - 10 0 3,4 3,4

9 12 - 12 0 3,4 3,4

10 6 - 6 1 3,4 3,4

11 8 - 8 1 3,4 3,4

12 10 - 10 1 3,4 3,4

13 6 - 6 1 3,4 3,4

14 8 - 8 1 3,4 3,4

15 10 - 10 1 3,4 3,4

16 12 - 12 1 3,4 3,4

17 6 - 6 0 3,4 3,4

18 8 - 8 0 3,4 3,4

19 10 - 10 0 3,4 3,4

20 6 - 6 1 3,4 3,4

21 8 - 8 1 3,4 3,4

No. Stitch pattern Stitch Number of Standard size Standard size

repartition connecting threads X-axis (mm) Y-axis (mm)

22 10 - 10 1 3,4 3,4

23 12 - 12 1 3,4 3,4

24 6 - 3,4 -

25 8 - 3,4 -

26 10 - 3,4 -

27 12 - 3,4 -

28 16 - 3,4 -

29 20 - 3,4 -

30 6 - - 3,4

31 10 - - 3,4

32 12 - - 3,4

33 6 - 6 1 3,4 3,4

34 10 - 10 1 3,4 3,4

35 6 - 6 0 3,4 3,4

36 10 - 10 0 3,4 3,4

37 5-5-5 - 2,9 2,5

38 8-8-8 - 2,9 2,5

39 5-5-5 - 2,9 2,5

40 8-8-8 - 2,9 2,5

41 4-4-4 - 3,4 3,4

42 4-4-4 - 3,4 3,4

43 4-4-4 - 3,4 3,4

No. Stitch pattern Stitch Number of Standard size Standard size

repartition connecting threads X-axis (mm) Y-axis (mm)

44 4-4-4 - 3,4 3,4

45 4-4-4 - 3,4 3,4

46 4-4-4 - 3,4 3,4

47 4-4-4 - 3,4 3,4

48 4-4-4 - 3,4 3,4

49 6-6-6-6 - 3,4 3,4

50 8-8-8-8 - 3,4 3,4

12. Clamping feet

Clamping foot number

1 10 x 10 yes 1 all button clamp

Dimensions X x Y [mm]

inner frame of

clamping foot

Inner frame,

rectangular

Specified standard

sewing pattern number

Due to the technical circumstances and a safety margin, the sewing f ield is smaller than the inner frame of the clamp.

Allowed

standard sewing

patterns

Description

13. Numbering of menu items

Parameter English (displayed on the screen) English (meaning)

0 1 D01 D02 D03 D04 ok Q01? Initialize variants and

Q02? Initialize machine

Q03? Initialize free contoursquestion Q04? Initialize machine complete? Q05? continue? T1 machine T1.1 parameter T1.1 PWM output test T1.1.1 cut.rpm T1.1.2 max.rpm T1.1.3 stop pos. T1.1.4 sew.st.pt. T1.1.5 ref.freq. T1.2 soft start T1.2.1 1.stitch T1.2.2 2.stitch T1.2.3 3.stitch T1.2.4 4.stitch T1.2.5 5.stitch T1.3 equipment T1.3.1 w.clamp f. T1.3.2 open dimens. T1.3.3 number T1.3.4 length T1.3.5 width T1.3.6 configuration T1.3.6.1 hand sw. T1.3.6.2 el.wiper T1.3.6.3 _/-clamp T1.3.6.4 laserl. T1.3.6.4.1 no.laser T1.3.6.5 opt.signalling T1.3.6.5.1 opt.sign. T1.3.6.6 input alloc.

off/a on/b yes no canc

sequencesquestion

off/a on/b yes no cancel OK Initialize variants and sequencesquestion

Initialize machine

Initialize free contoursquestion Initialize machine complete? continue? machine paramet er PWM output test cutting speed maximum sewing speed stop position sewing start position referencing frequency soft start

1.stitch

2.stitch

3.stitch

4.stitch

5.stitch equipment working clamp foot open dimensions number length width configuration hand switch electrical wiper separated clamp foot laserlights number of laserlights optical signalling optical signalling input allocation

Parameter English (displayed on the screen) English (meaning)

T1.3.6.7 output alloc. T1.3.6.8 l.ta cfs T1.4 times T2 user settings T2.1 language T2.2 sewing mode T2.2 hand switch T2.3 par.lock. T2.4 pattern lock. T2.5 sequence lock. T2.6.1 lock all T2.6.2 unlock all T2.7.1 lock all T2.7.2 unlock all T3 service T3.1 multitest T3.1.1 output test T3.1.2 PWM output tst T3.1.3 input test T3.1.4 auto input test T3.1.5 motor test T3.1.6 step.motor tst T3.1.6 step.motor tst T3.1.7 RAM test T3.1.8 EEPROM test T3.2 180 °-disc T3.3 events T3.3.1 event memory T3.3.1 event memory T3.3.2 latest events T3.3.2 latest events T3.4 DACIII T3.4.1 temp.(°C) T3.4.2 UZK (V) T3.5 Init T3.5.1 event memory T3.5.2 var.+sequ. T3.5.3 mach.+usr+opt T3.5.4 free contours T3.5.5 machine cpl. T4 free contours T4.1 design

output allocation long ta clamp foot solenoid times user settings language sewing mode hand switch parameter locking pattern locking sequence locking lock all unlock all lock all unlock all service multitest output test PWM output test input test auto input test motor test stepping motor test stepping motor test RAM test EEPROM test 180 °-disc events event memory event memory latest events latest events DACIII temperature (°C) UZK (V) Init event memory variants + sequences machine + user + options free contours machine complete free contours design

Parameter English (displayed on the screen) English (meaning)

T4.1.7 append stitch T4.1.8 parameter T4.1.8.1 std.rpm T4.1.8.2 orig. X T4.1.8.2 dist. X T4.1.8.3 orig. Y T4.1.8.3 dist. Y T4.1.8.4 end T4.2 edit T4.2.1 stitch coordin T4.2.2 del.st T4.2.3 ins.st. T4.2.4 append stitch T4.2.5 parameter T4.2.5.1 std.rpm T4.2.5.2 orig. X T4.2.5.2 dist. X T4.2.5.3 dist. Y T4.2.5.3 orig. Y T4.2.6 no.stitch T4.2.7 no.st.av. T4.3 delete T4.4 copy T4.5 no.st.av. T4.6 no.pat.av. T5 memory dongle T5.1 dongle index T5.2 load T5.2.1 dongle index T5.2.2 machine c pl. T5.2.3 free contour T5.3 save T5.3.1 dongle index T5.3.2 machine c pl. T5.3.3 free contour T5.4 format T5.4.1 data dongle T5.4.2 boot dongle W01 code W02 WARNING W03 ERROR W04 INFORMATION

append stitch paramet er standard speed origin X distance X origin Y distance Y end edit stitch coordinates delete stitch insert stitch append stitch paramet er standard speed origin X distance X distance Y origin Y number of stitches number stitches available delete copy number stitches available number patterns available memory dongle dongle index load dongle index machine complete free contour save dongle index machine complete free contour format data dongle boot dongle code WARNING ERROR INFORMATION

Parameter English (displayed on the screen) English (meaning)

W05 EMERGENCY-OFF W06 SERIOUS ERROR W07 NOTE W08 INTERNAL ERROR W09 CONFIRMATION W10 read data W11 save data W12 format Z01 output Z02 input Z03 rpm Z04 stop pos. Z05 software Z06 date Z07 e Z08 please wait Z09 ROM size Z10 class Z11 version Z12 check sum Z13 error code Z14 pedal Z15 hand sw. Z16 laserl. Z17 _ /-Klamm Z18 opt.sign. Z19 not alloc. Z20 Subclass

EMERGENCY-OFF SERIOUS ERROR NOTE INTERNAL ERROR CONFIRMATION read data save data format output input rpm stop position software date e please wait ROM size class version check sum error code pedal hand switch laserlights separated clamp foot optical signalling not allocated subclass

Duerkopp Adler 530 Operating Instruction

Specifications and Main Features

Frequently Asked Questions

User Manual
