Duerkopp Adler 281 Parts list [zh]

Download

Parts List and Sewing Equipment

零件样本和缝纫附件

281

Manufacturer:

Contact: Dürkopp Adler AG, PO Box 17 03 51, D-33703 Bielefeld, Potsdamerstr. 190, D-33719 Bielefeld,

ࡦ䙐୶ 

㚄㌫অս  Dürkopp Adler AG, PO Box 17 03 51, D-33703 Bielefeld, Potsdamerstr. 190, D-33719 Bielefeld,

Ausgabe / Edition: Änderungsindex Teile-Nr./Part.-No.: 06/2011 Rev. index: 01.0 Printed in Chinaѝഭঠࡦ 0791 281801

Dürkopp Adler Sewing Machine (Suzhou) Co., Ltd. Wanping E ast Road, Wujiang, Suzhou, Jiangsu Province 215223, China

Phone +49 (0) 521 9 25 00, Fax +49 (0) 521 9 25 24 35, www.duerkopp-adler.com

杜克普爱华缝制设备（苏州）有限公司

中国江苏省苏州市吴江市横扇镇菀坪东路邮政编码：215223

Phone +49 (0) 521 9 25 00, Fax +49 (0) 521 9 25 24 35, www.duerkopp-adler.com

Parts List and Sew ing Equipment

Please enter your Chinese text here!

281

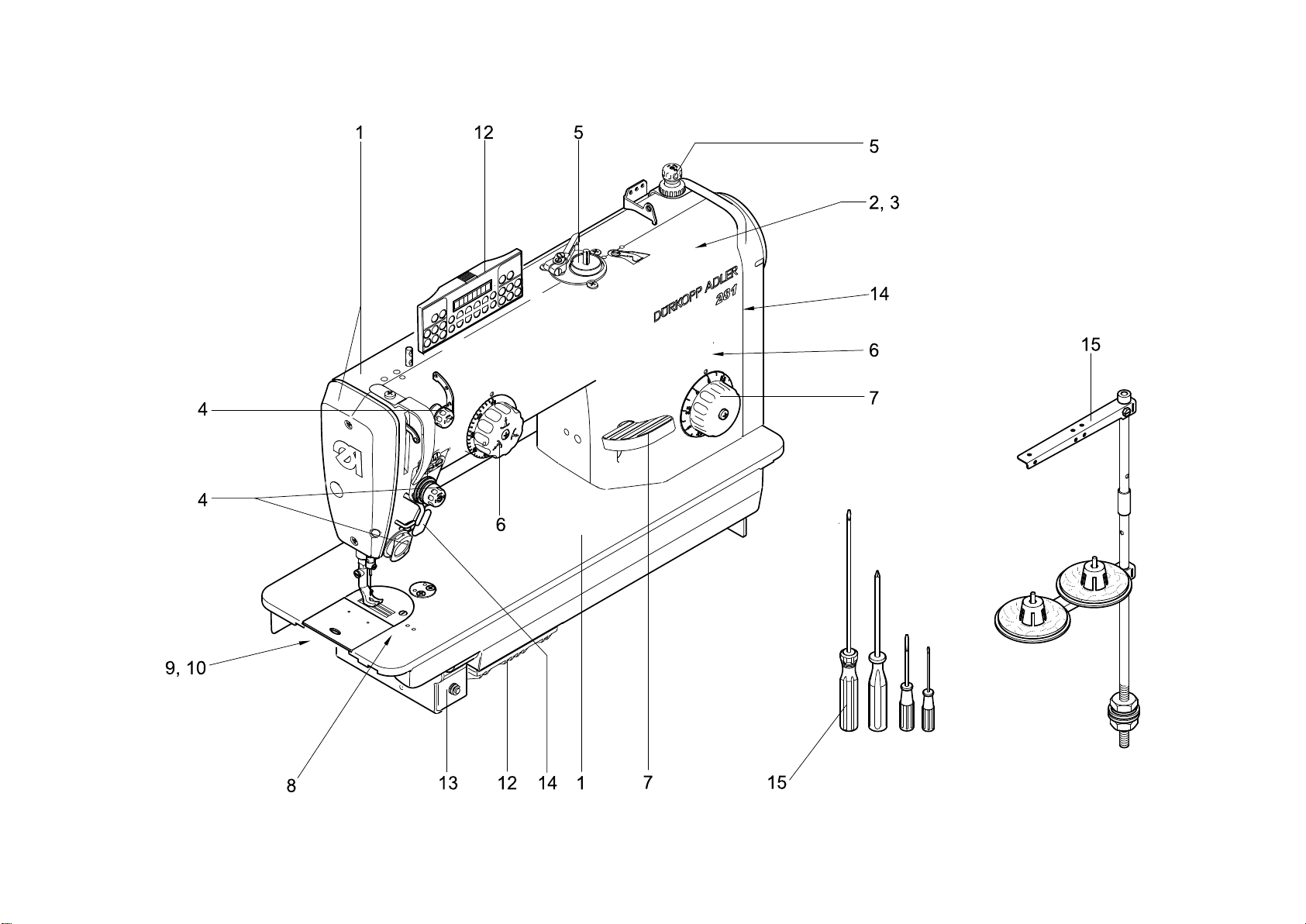

Table of contents Table / Chinese Chinese

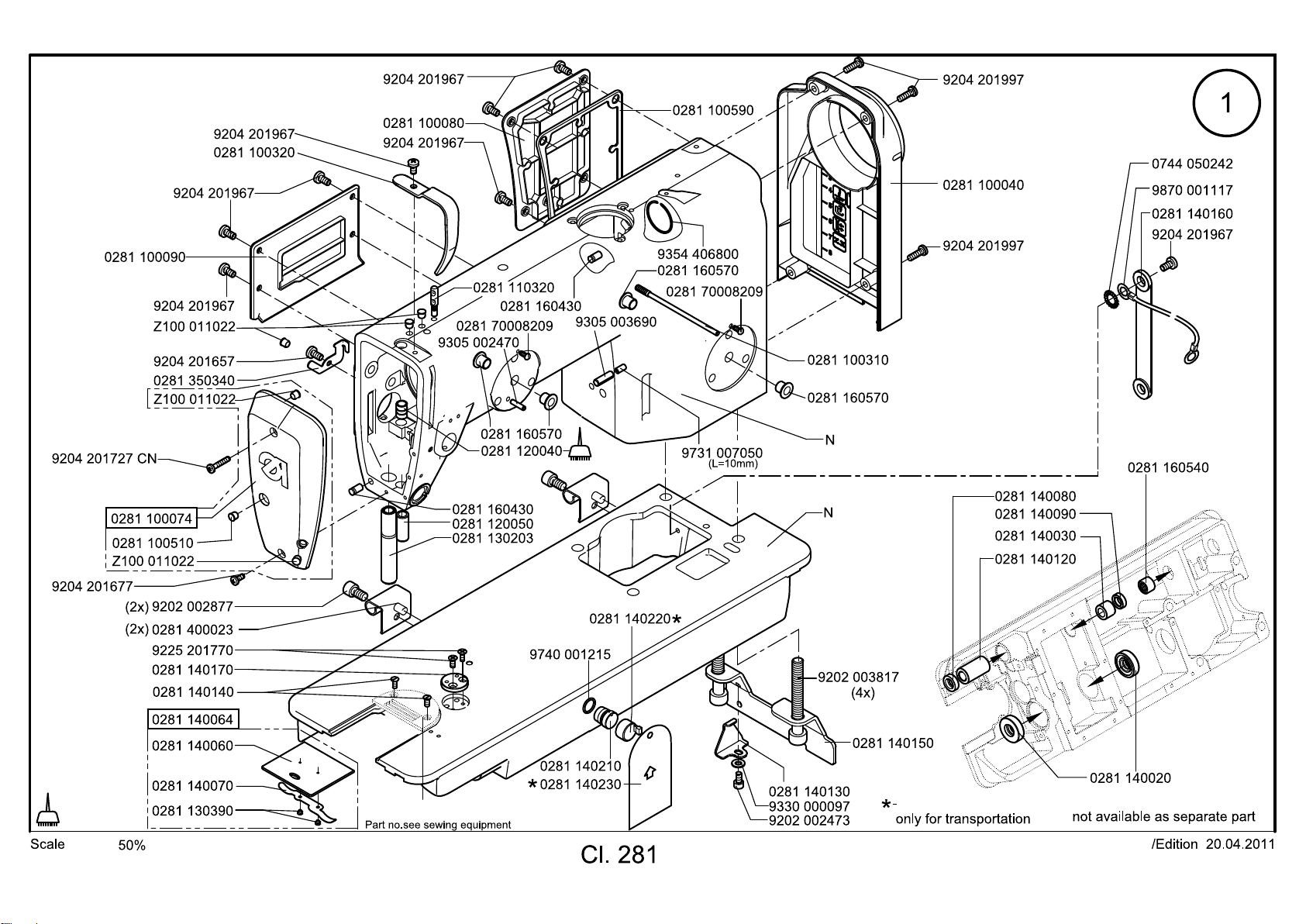

Arm, bed plate, covers 1 Arm, bed plate, covers

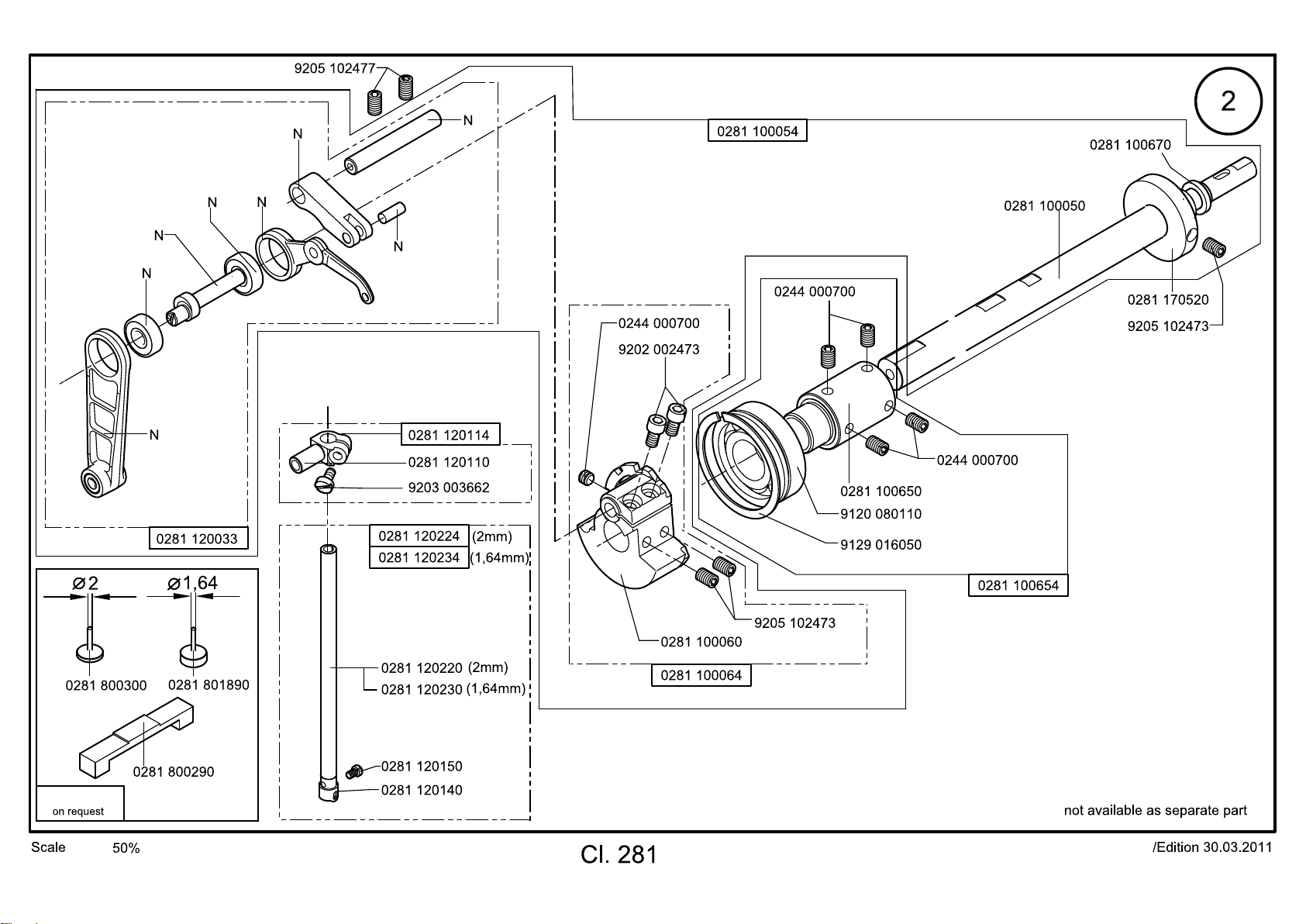

Main shaft, thread take-up 2 Main shaft, thread take-up

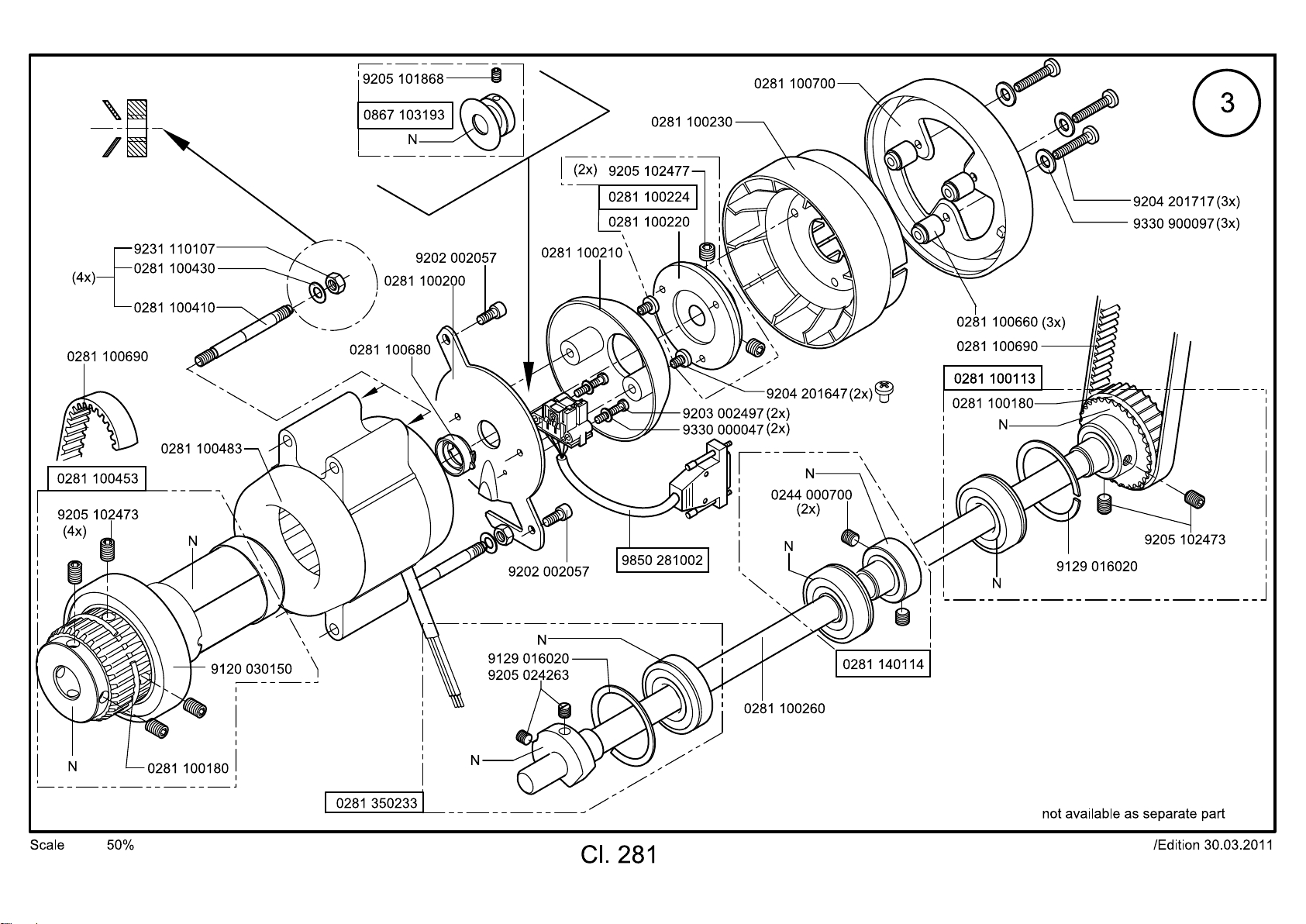

Motor, lower shaft 3 Motor, lower shaft

Thread tension, thread guide 4 Thread tension, thread guide

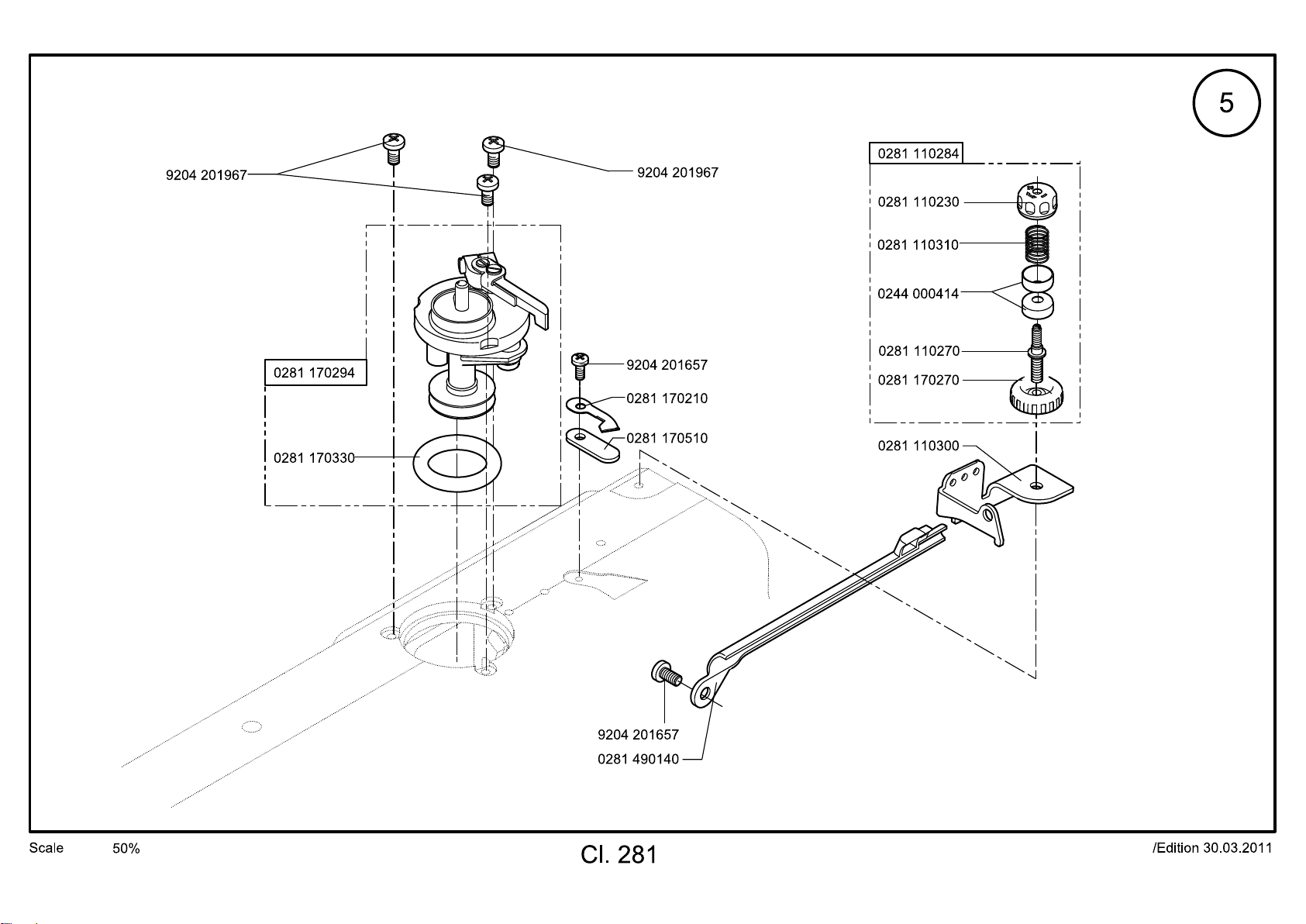

Bobbin winder, pretension 5 Bobbin winder, pretension

Foot lifter mechanism, solenoid 6 Foot lifter mechanism, solenoid

Stitch length mechanism 7 Stitch length mechanism

Feed dog carrier 8 Feed dog carrier

Hook shaft bearing, hook 9 Hook shaft bearing, hook

Gear box cover, control box 10 Gear box cover, control box

with operating panel with operating panel

Thread trimmer 11 Thread trimmer

Cable sets, push button switch 12 Cable sets, push button switch

Accessory box 13 Accessory box

Sewing equipments Sewing equipments

Sewing lamp Sewing lamp

Edge guides Edge guides
