GENERAL INFORMATION
The present spare parts order exactly the right spare parts
When ordering specify:
1) the part's code number followed by its description; quantity needed;
2) the motorcycle's serial number, stamped on the steering head.
Reference to right and left apply to the vehicle in terms of its direction of move-ment.
Spare parts drawings are general
The contents of this catalogue are
VALIDITY
f.m.
Until V.I.N.
d.m.
f.m.m.
d.m.m.
CATALOGUE No:
ISSUED:
From V.I.N.
Up to engine number
From engine number
915.1.148.1A 915.1.148.1A
and do not represent the part.
general and can undergo changes
10 - 01 10 - 01
without prior notice.
CATALOGUE No:
ISSUED:
Ducati Motor Holding S.p.A.
Commercial and Administation Office:
Via A. Cavalieri Ducati n. 3
40132 Bologna, Italy
Telefono 051 6413111
Fax 051 406580
Internet www.ducati.com
1
Page 3

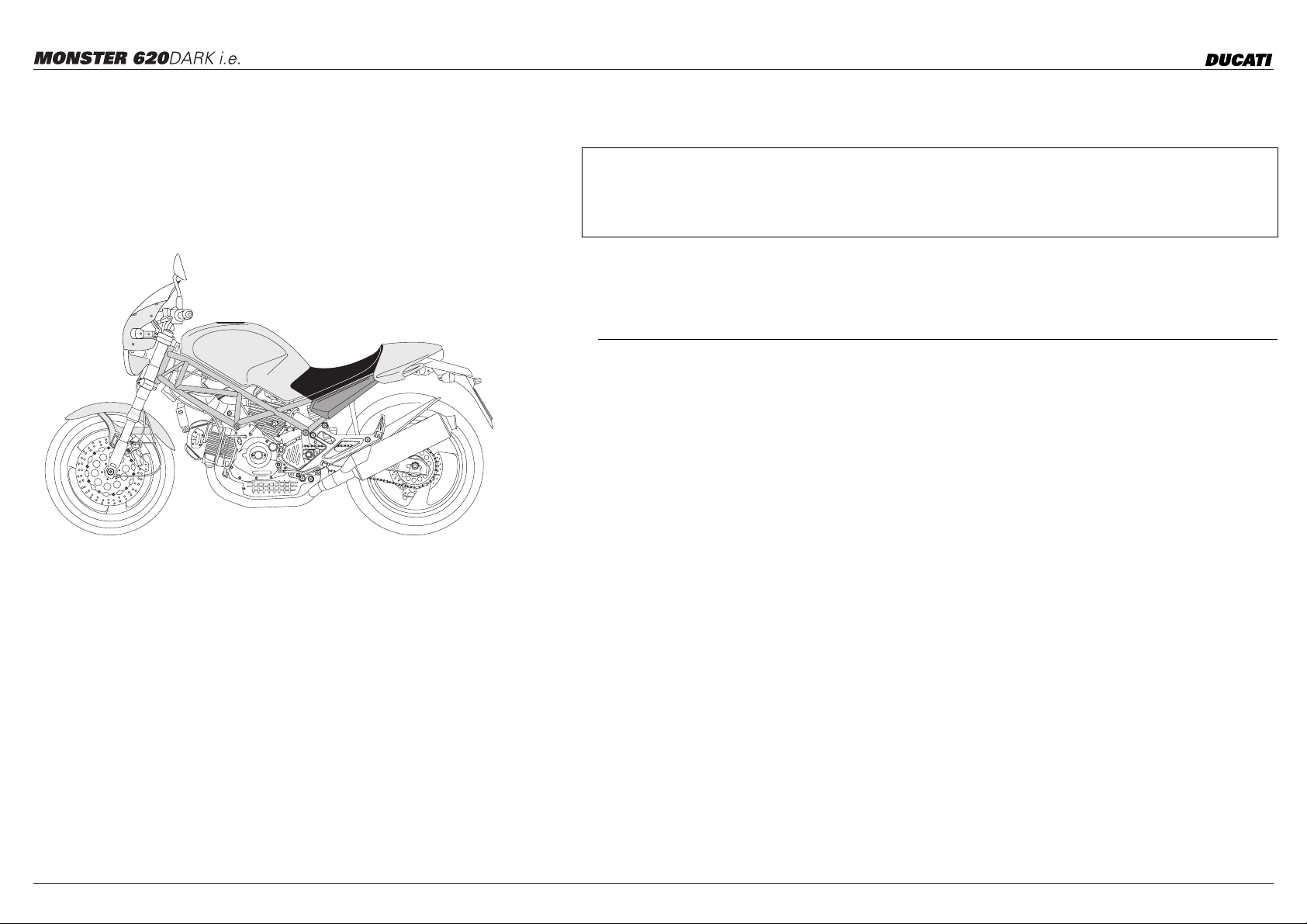

PAINTS
Colore Codice
Paint Code
Vernis Code
Slacken Code
Lacas Codice
"Nero DARK DUCATI" 291.501
PPG
:
CATALOGUE No. :
:
ISSUED :
915.1.148.1A
10 - 01
CATALOGUE No. :
ISSUED :
915.1.148.1A
10 - 01
2
Page 4
CONTENTSpage
001
4
001.1
6
001.2
8
001.3
10
002
12
003
14
004
16
005
18
006
20
007
22
008
24
009
26
010
28
011
30
012
32
013
34
014
36
015
38
016
40
017
42
018
44
019
46
020
48
021
50
022
52
023
54
024
56
025
58
026
60
027
62
028
64
029
66
030
68
031
70
032
72
033
74
034
76
035
78
036
80
037
82
038
84
039
86
WORKSHOP SPECIAL TOOLS
WORKSHOP SPECIAL TOOLS
DIAGNOSIS TESTER MATHESIS
WORKSHOP SPECIAL TOOLS
GEARCHANGE
GEAR-BOX

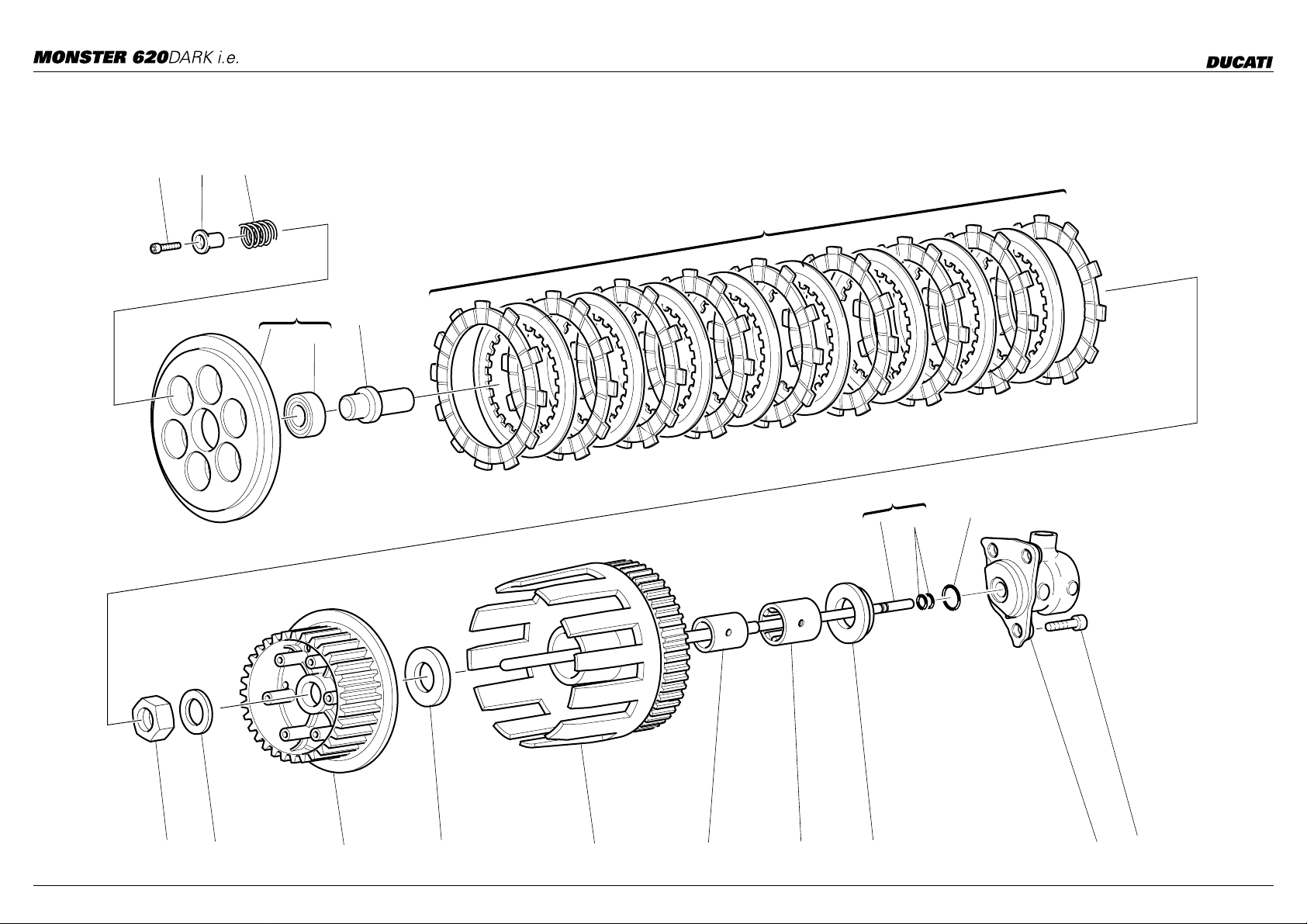

CLUTCH
CLUTCH COVER

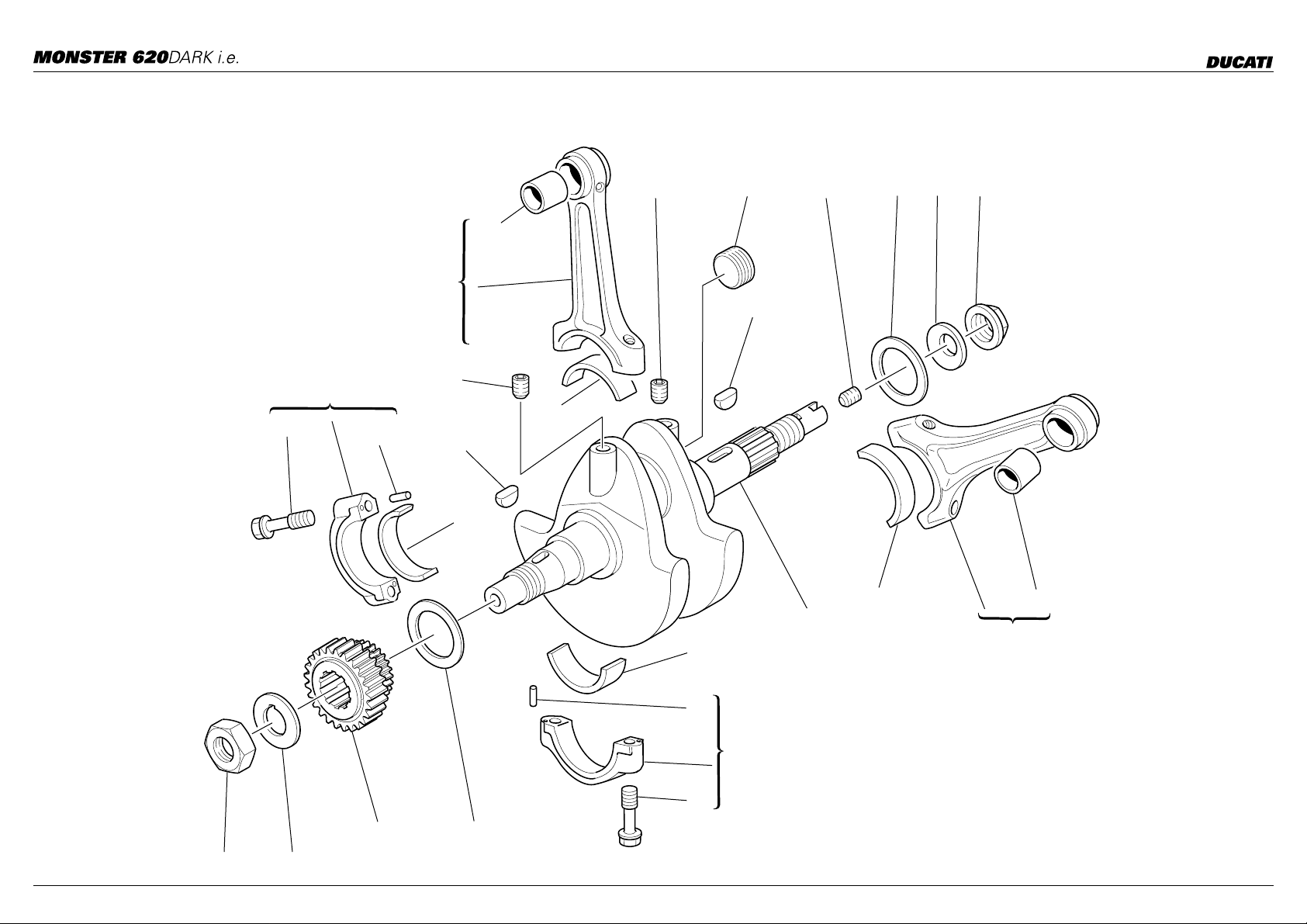

CRANKSHAFT

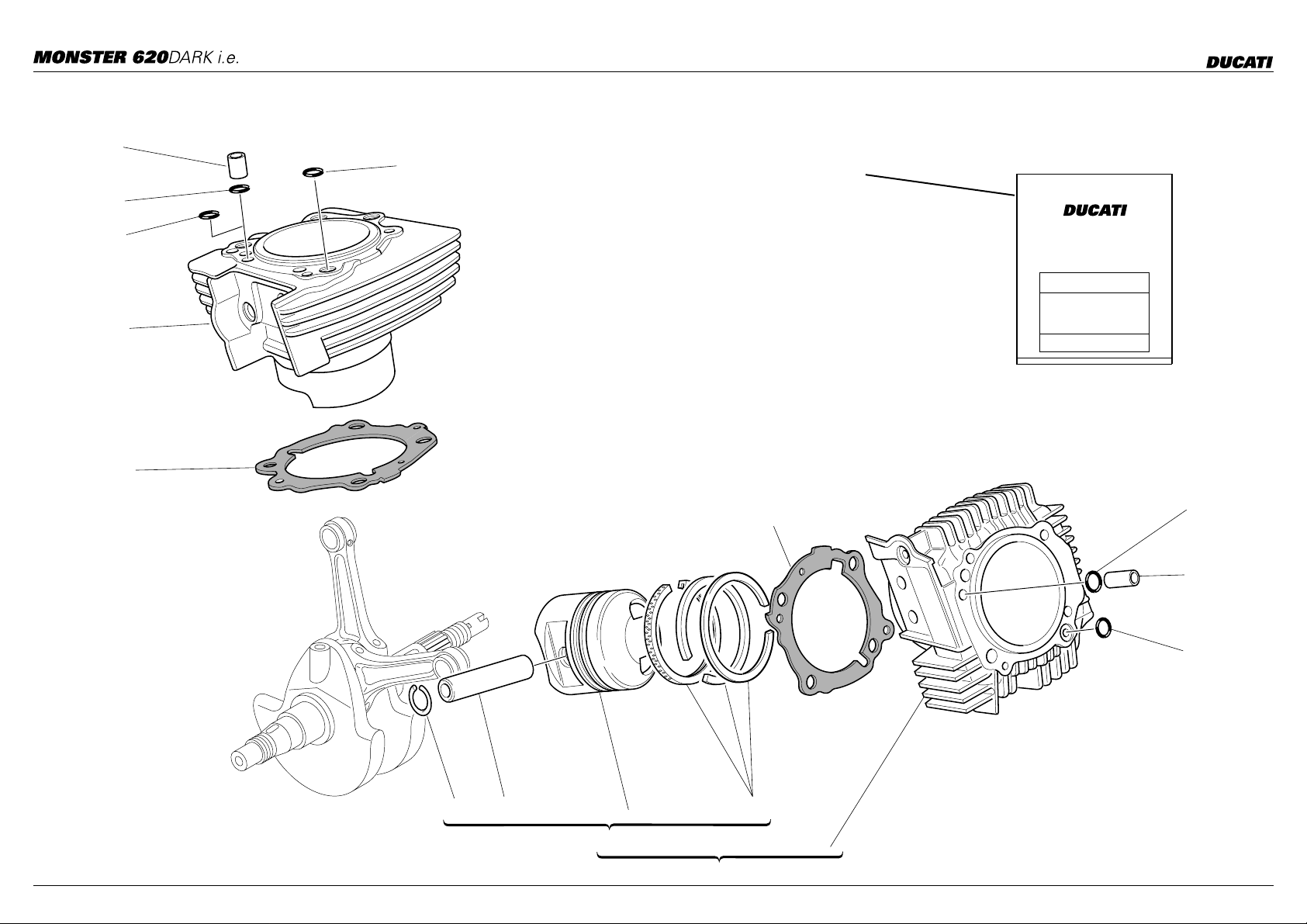

CYLINDERS - PISTONS

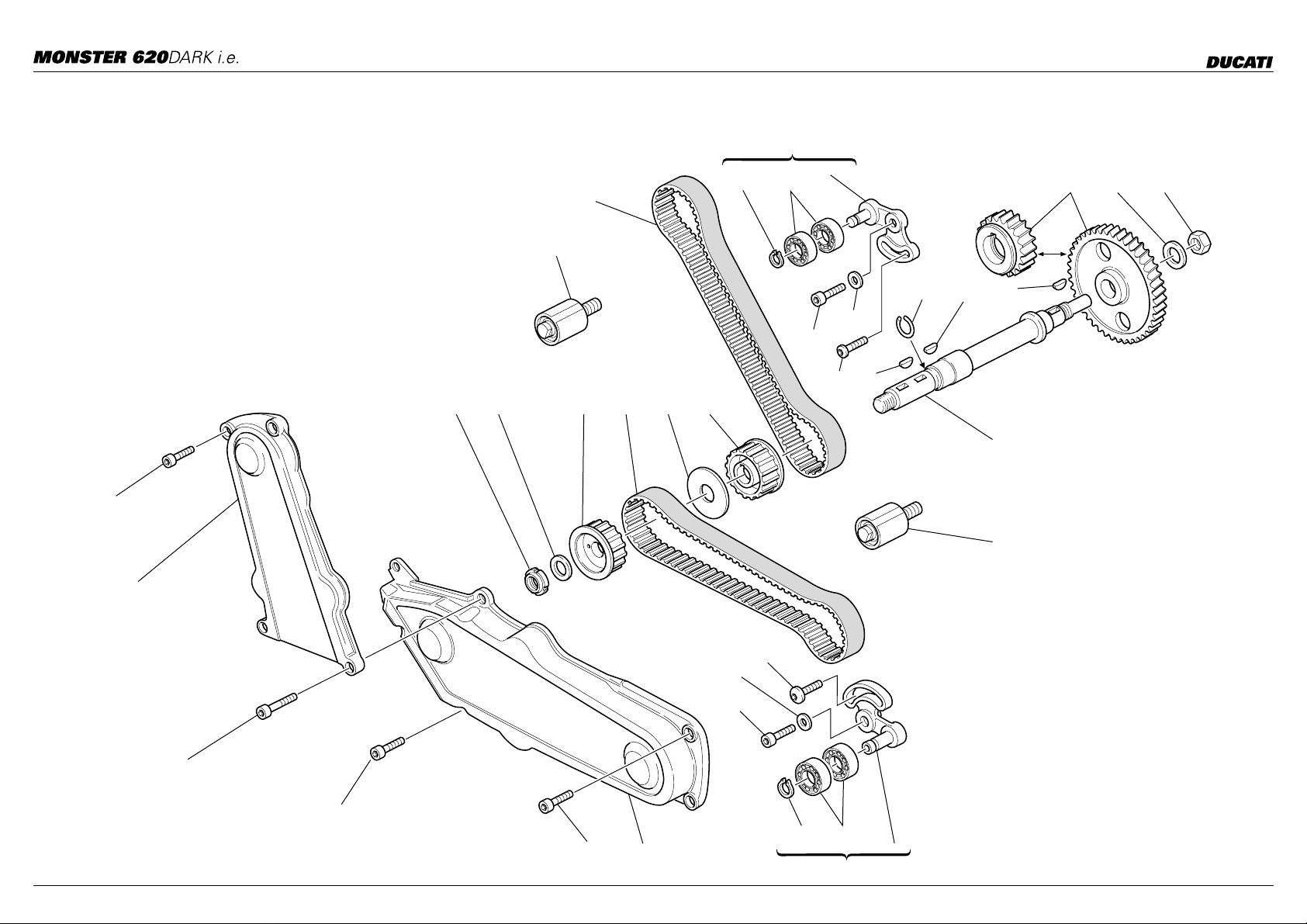

TIMING

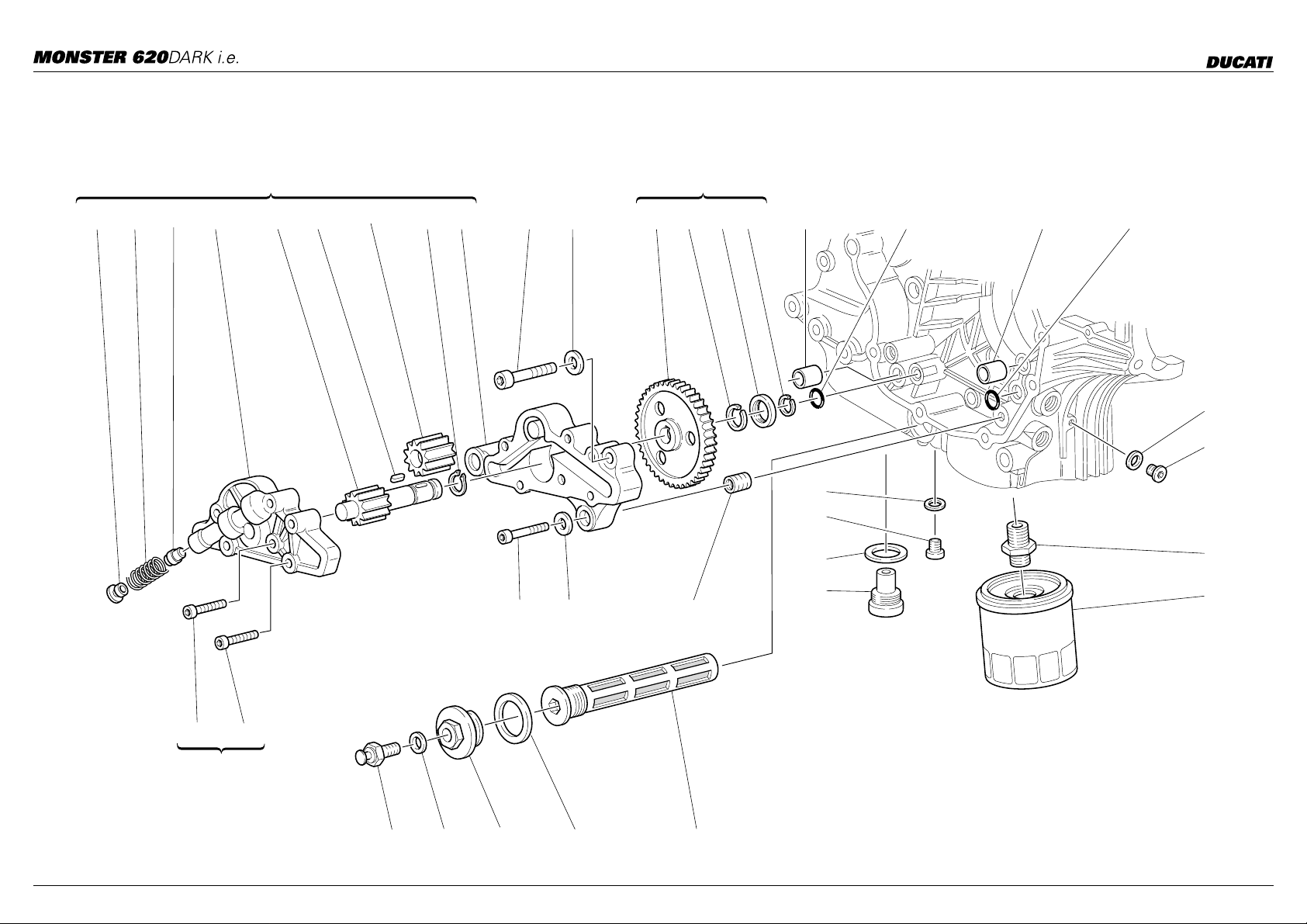

FILTERS AND OIL PUMP

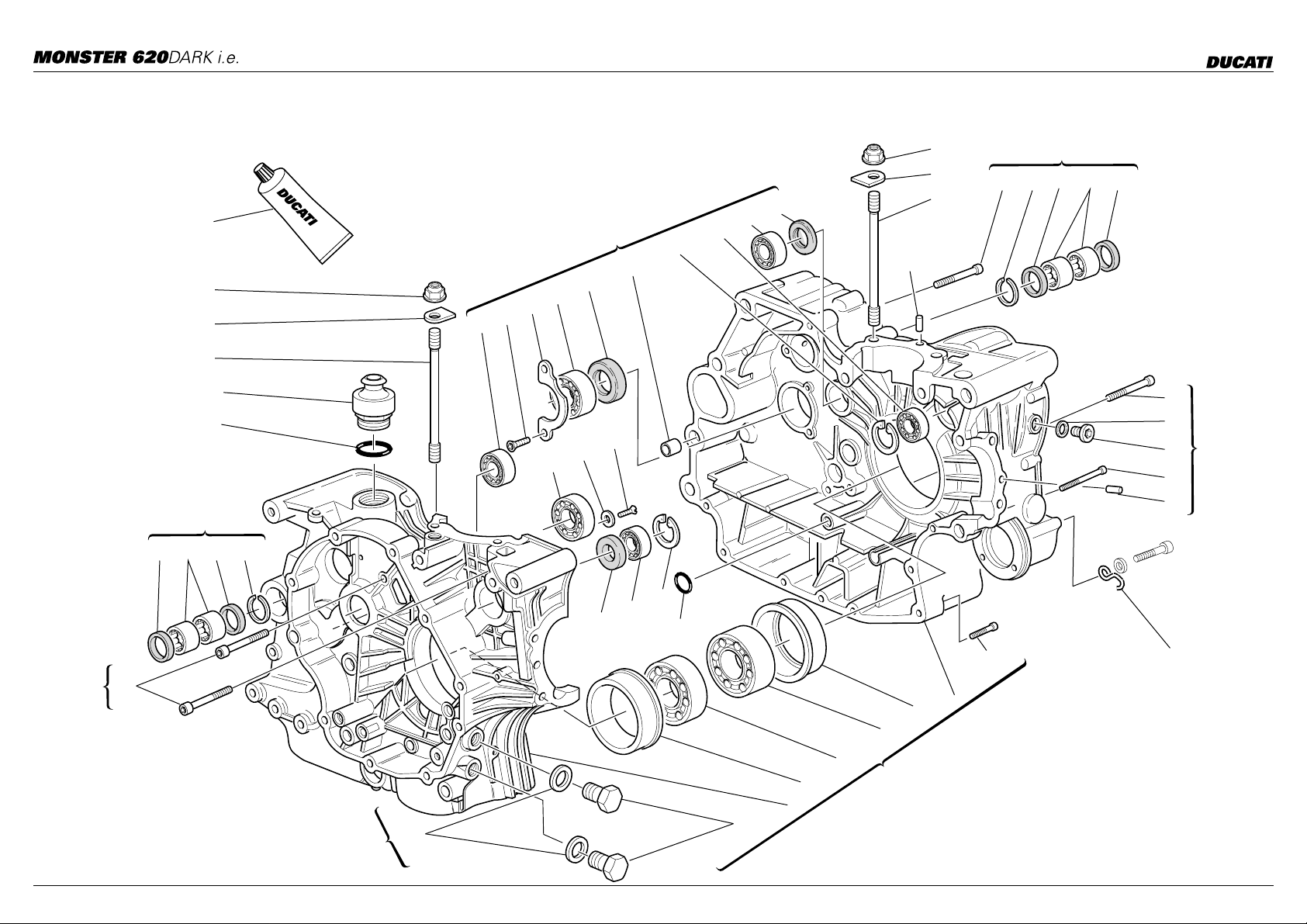

HALF CRANKCASES

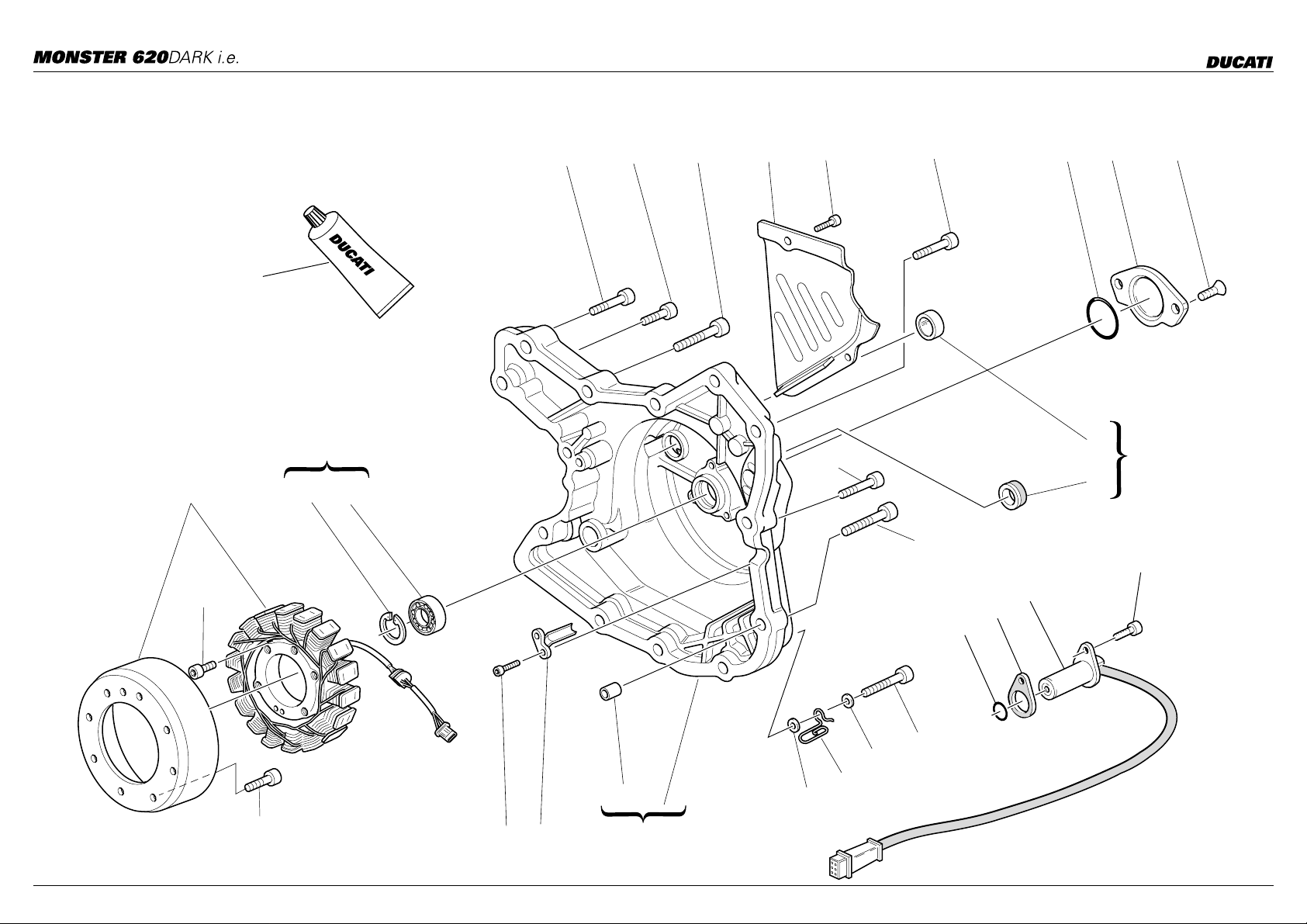

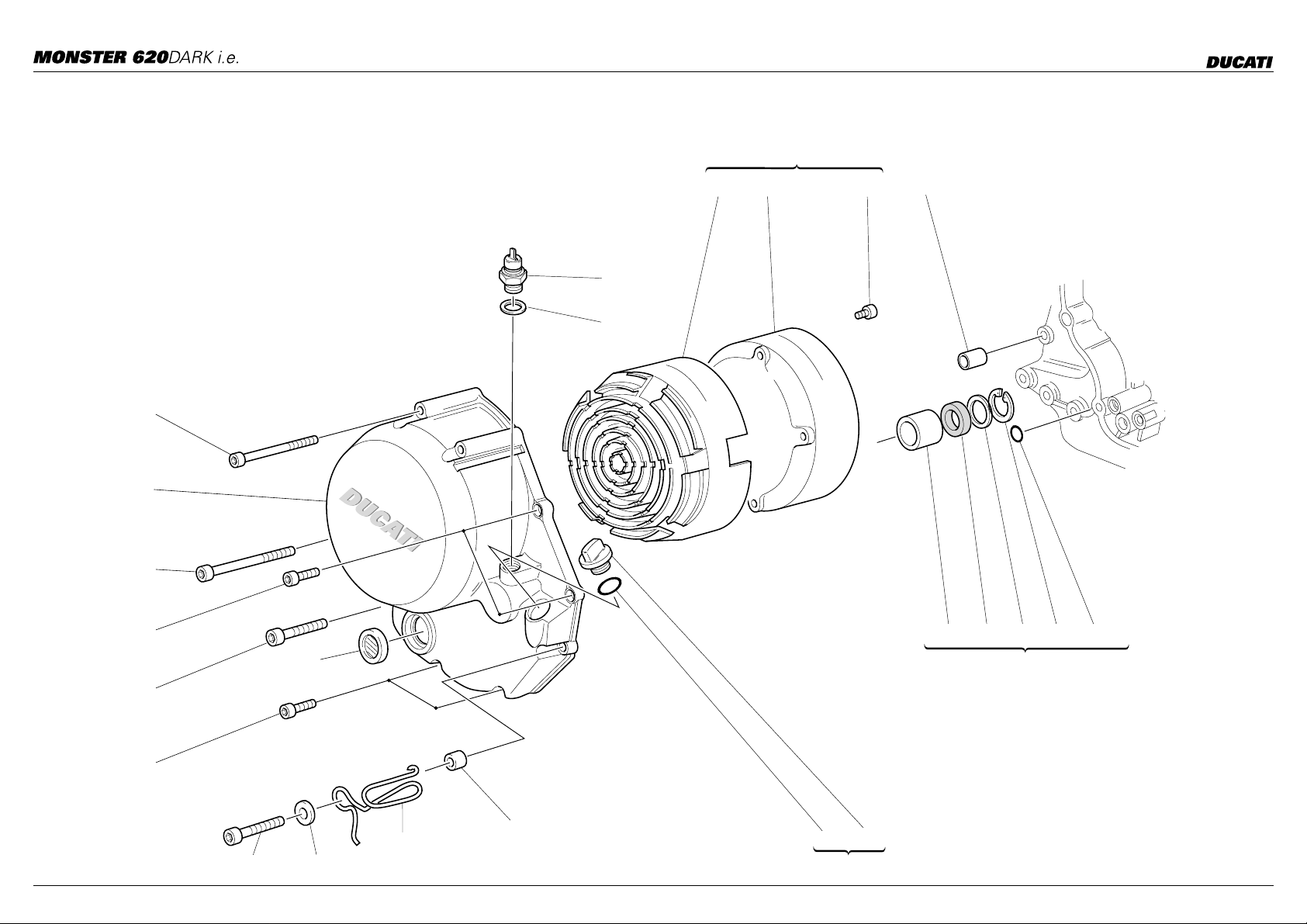

ALTERNATOR COVER

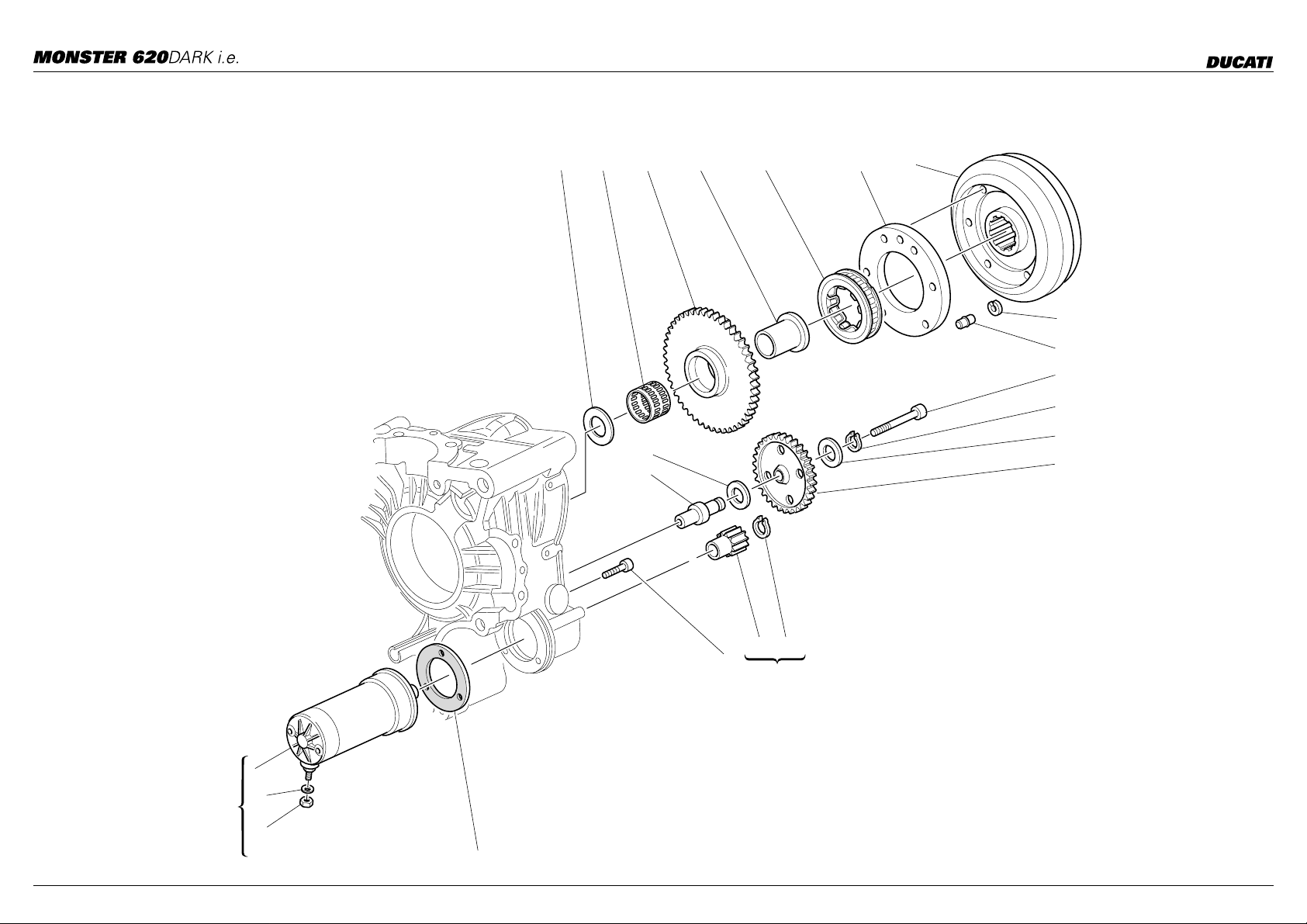

ELECTRIC STARTER AND IGNITION

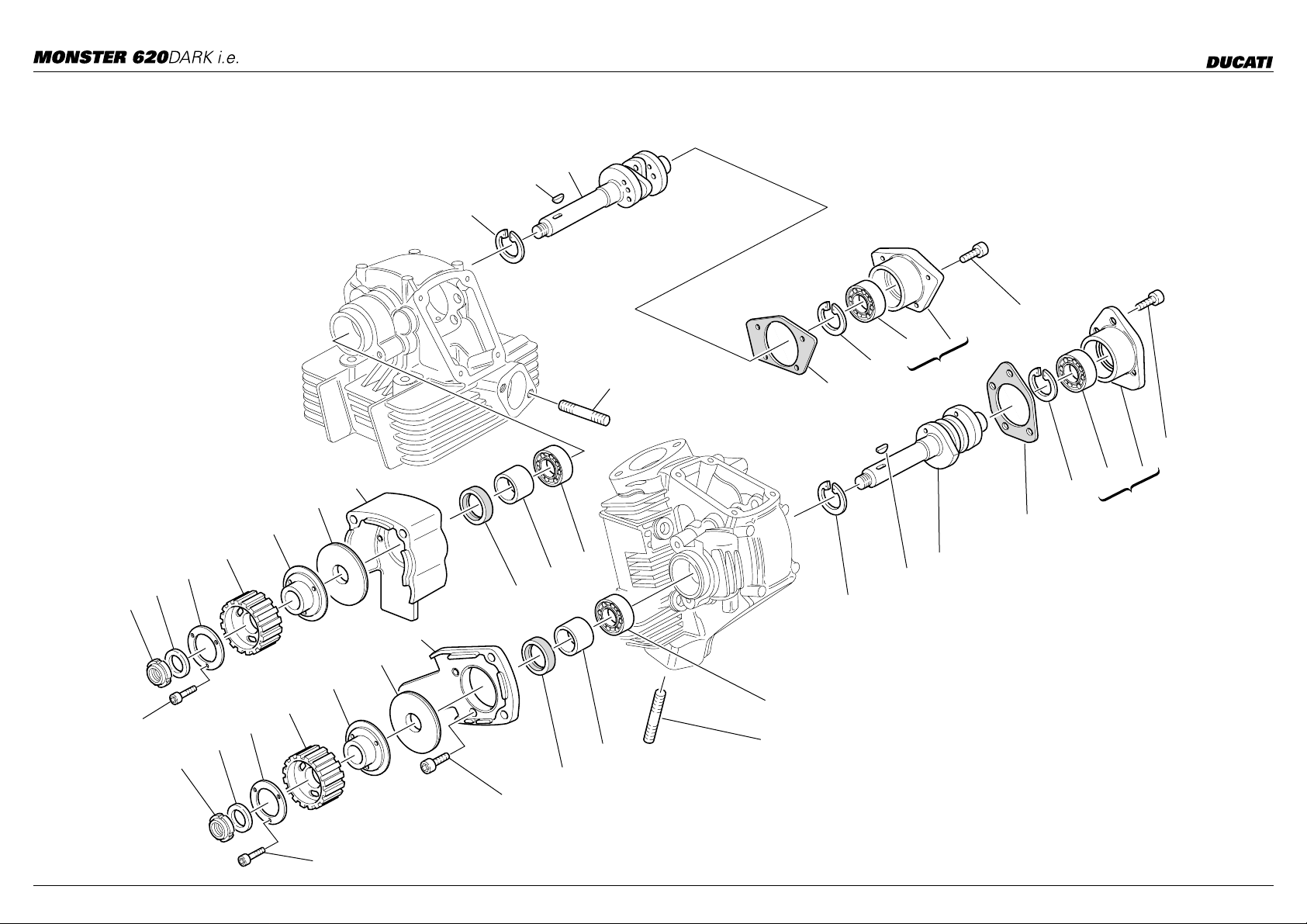

HEAD : TIMING

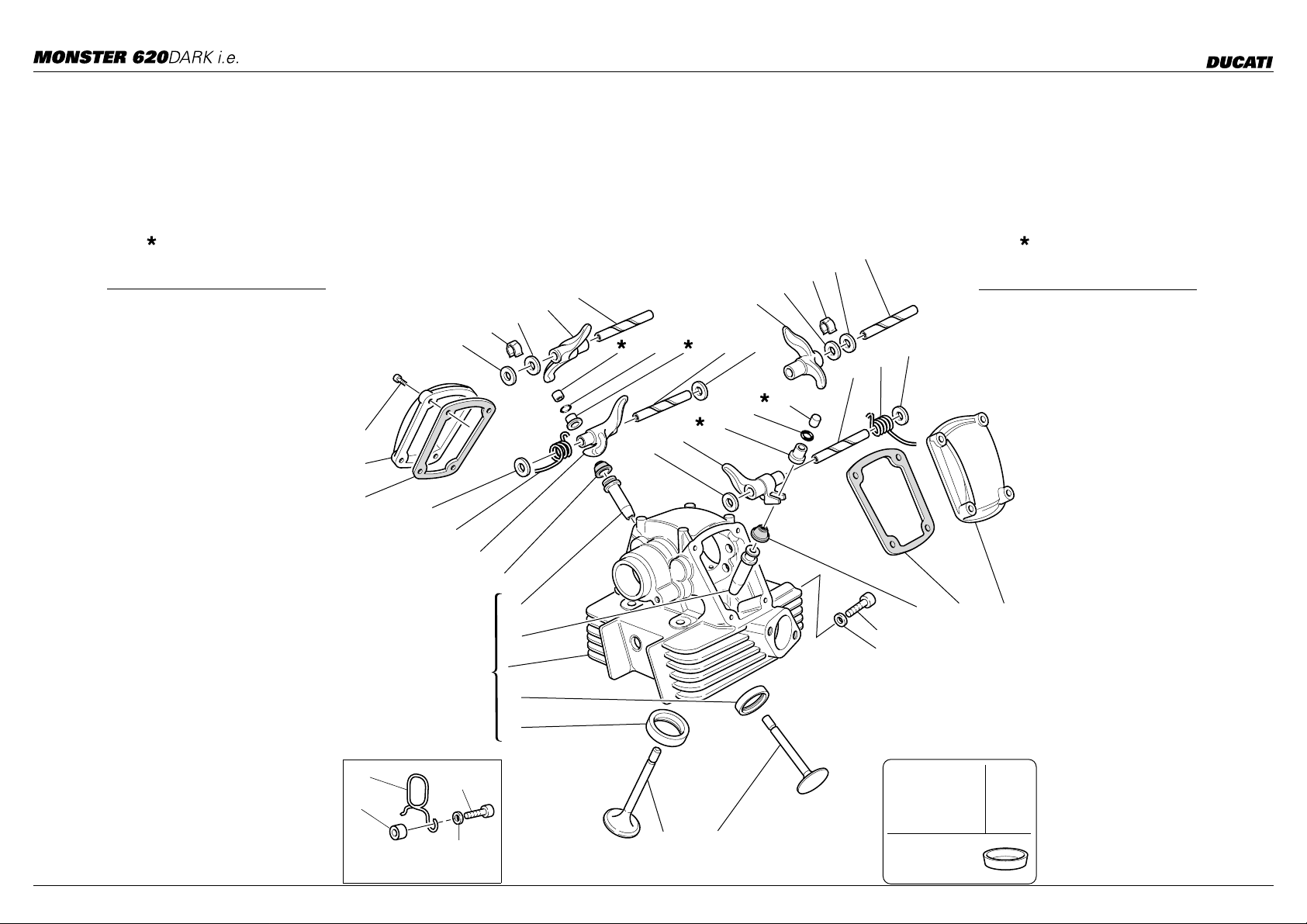

VERTICAL HEAD

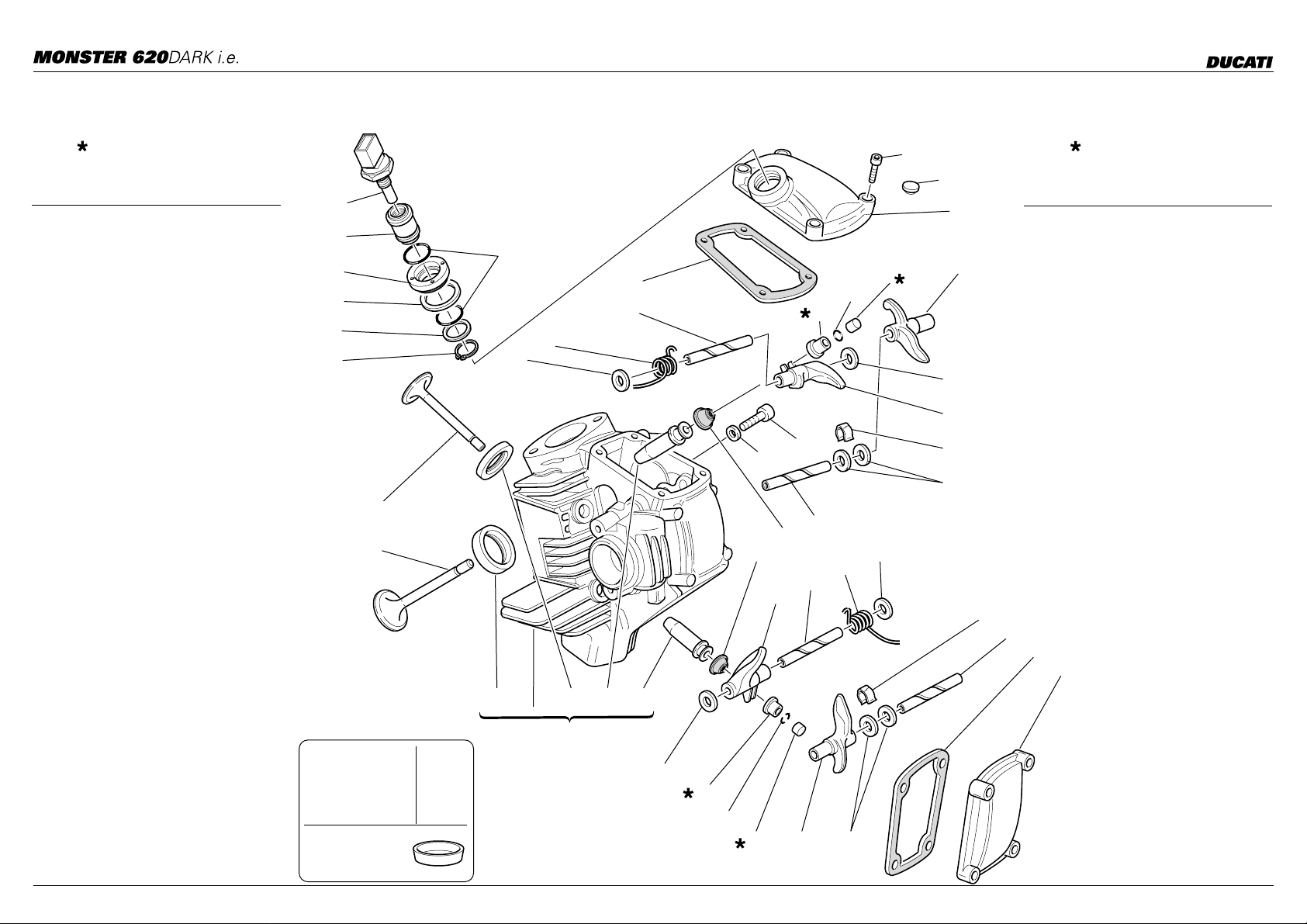

HORIZONTAL HEAD

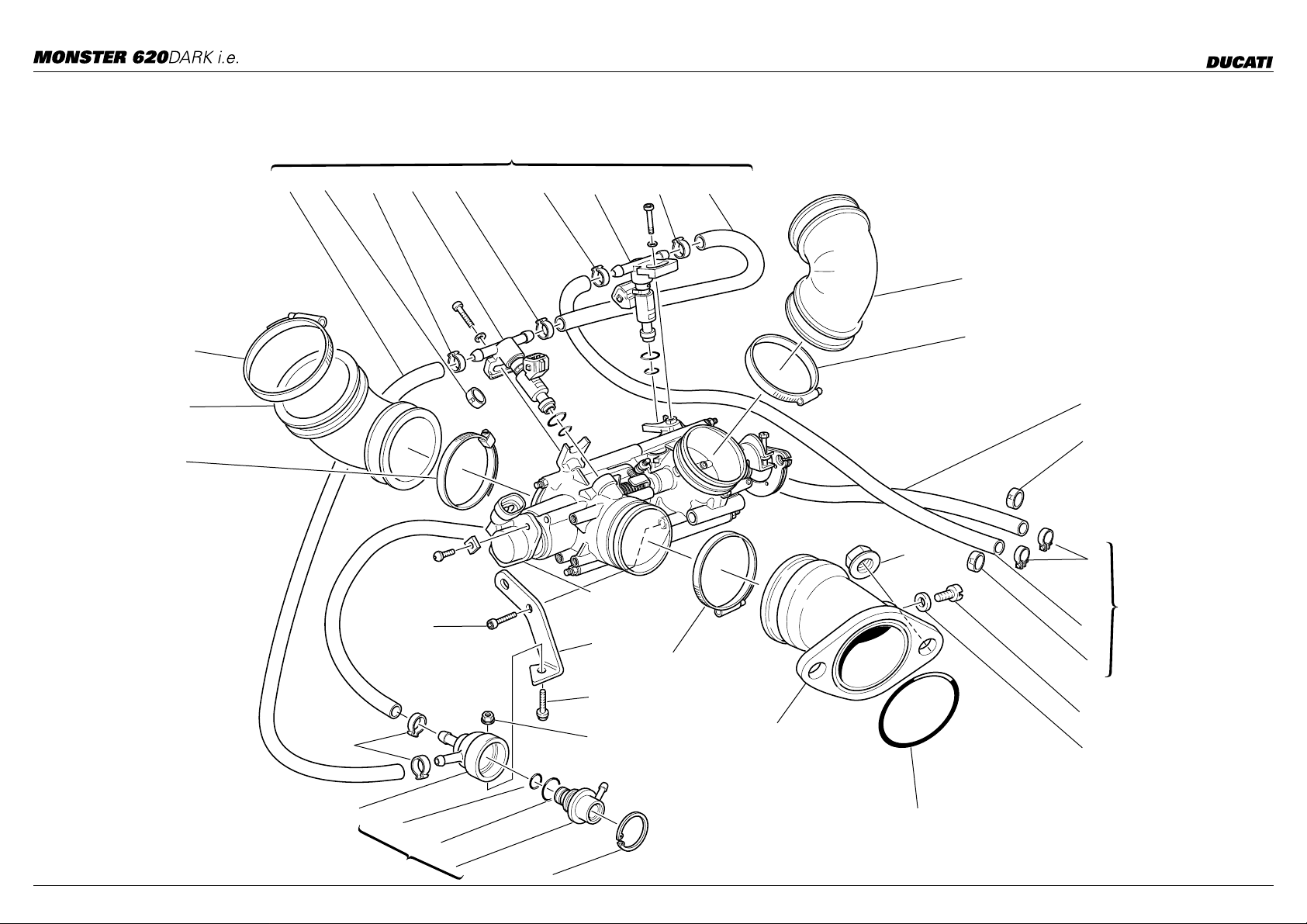

INLET DICT

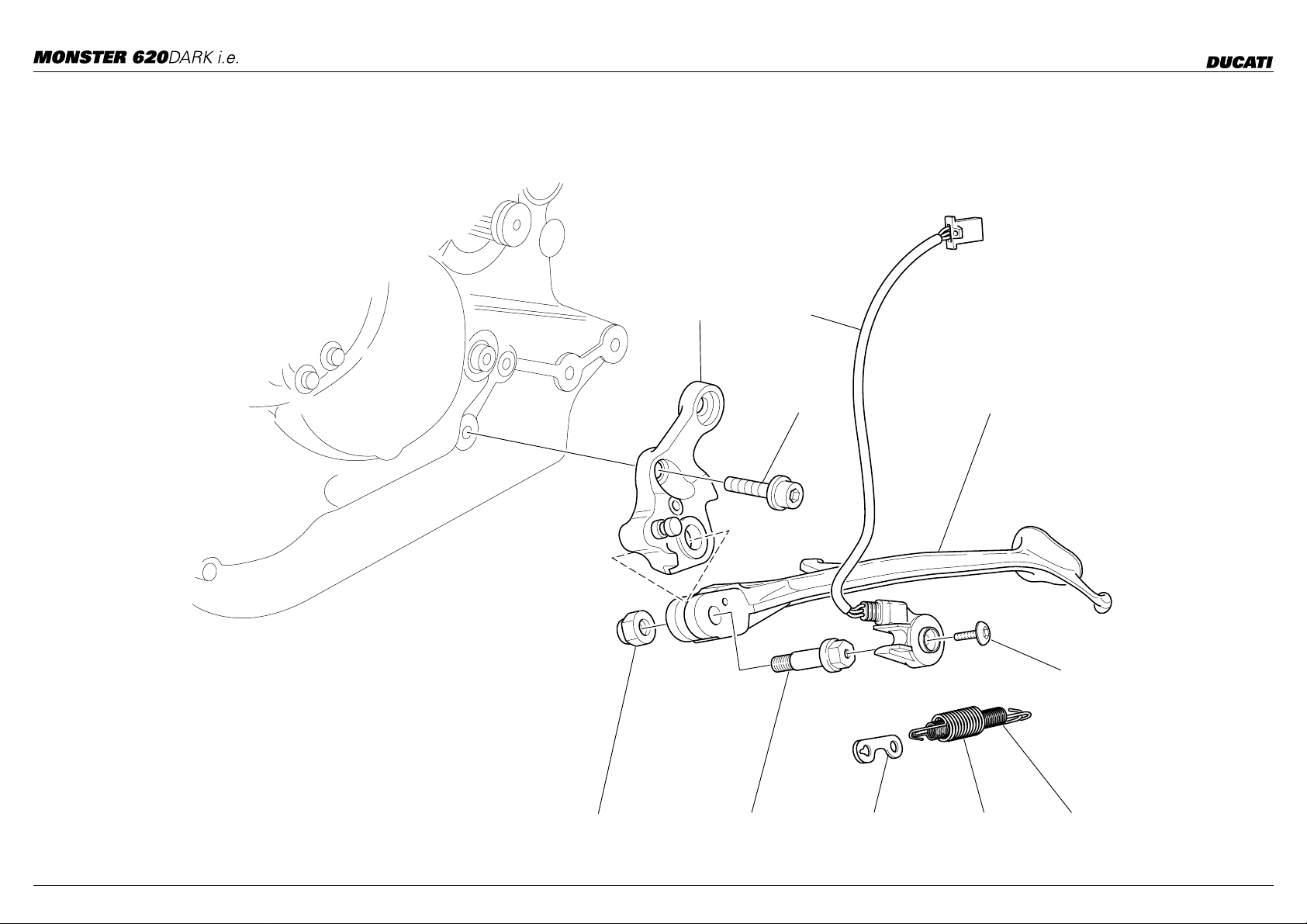

STANDS

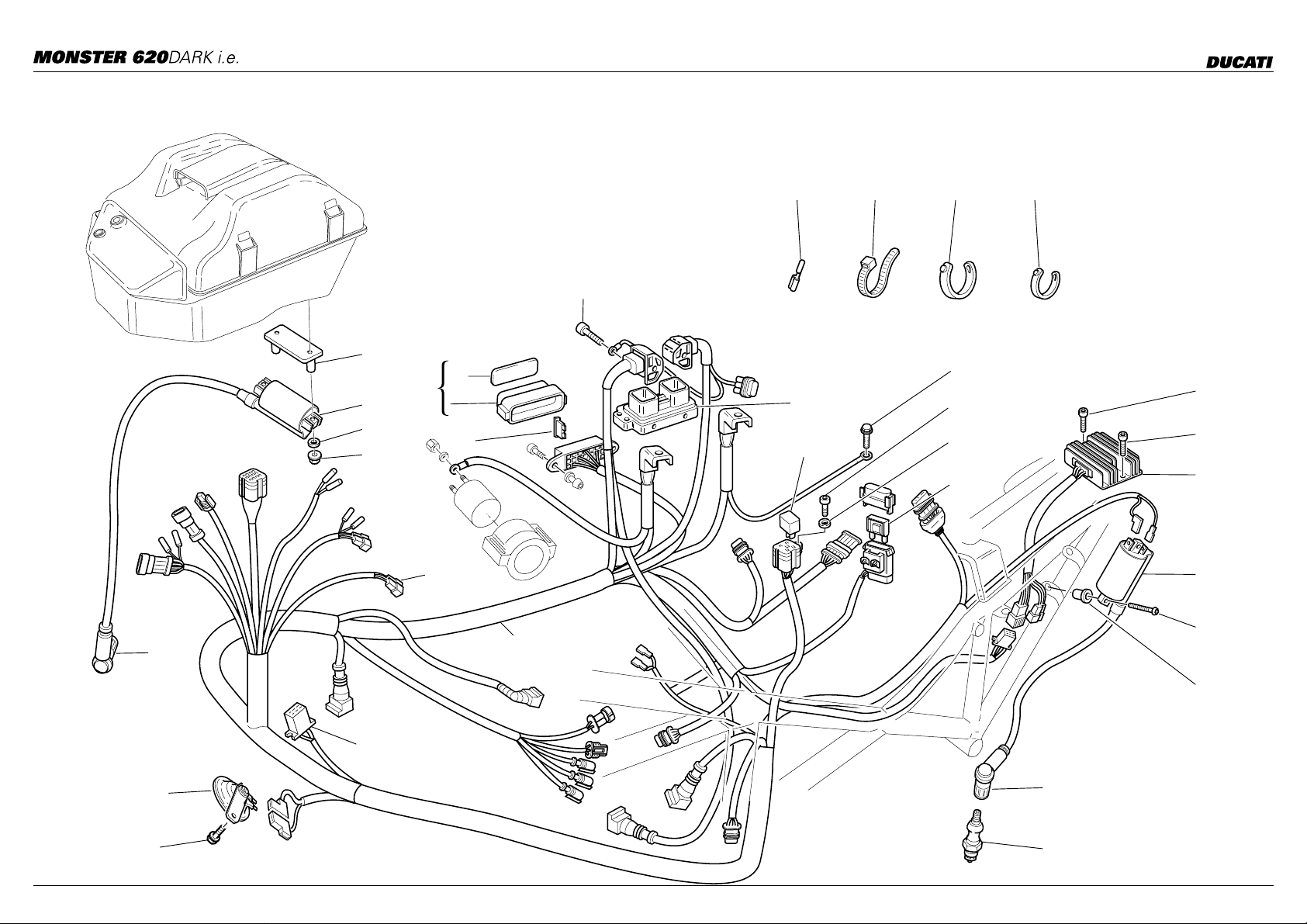

ELECTRIC SYSTEM

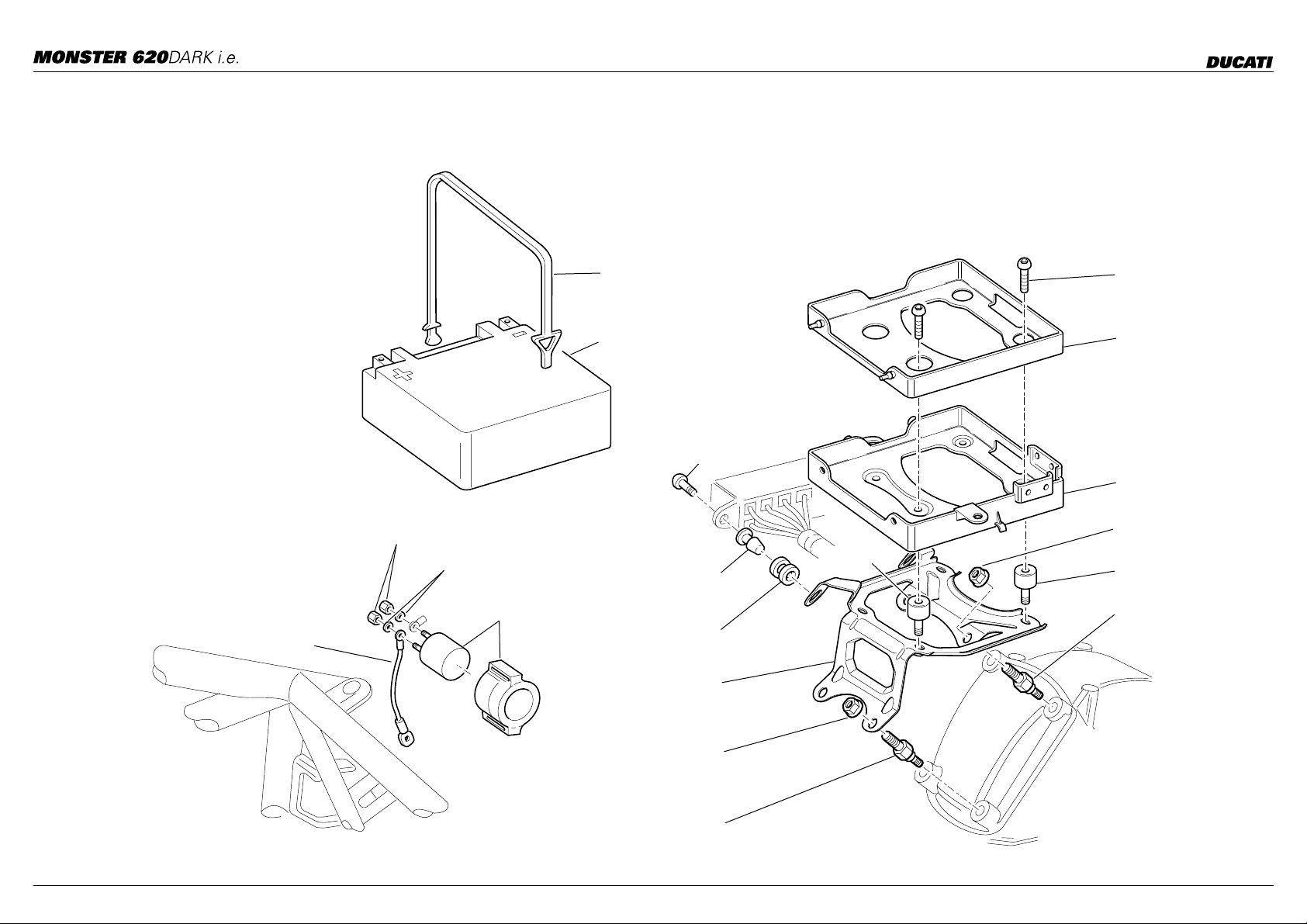

BATTERY BOX MOUNT

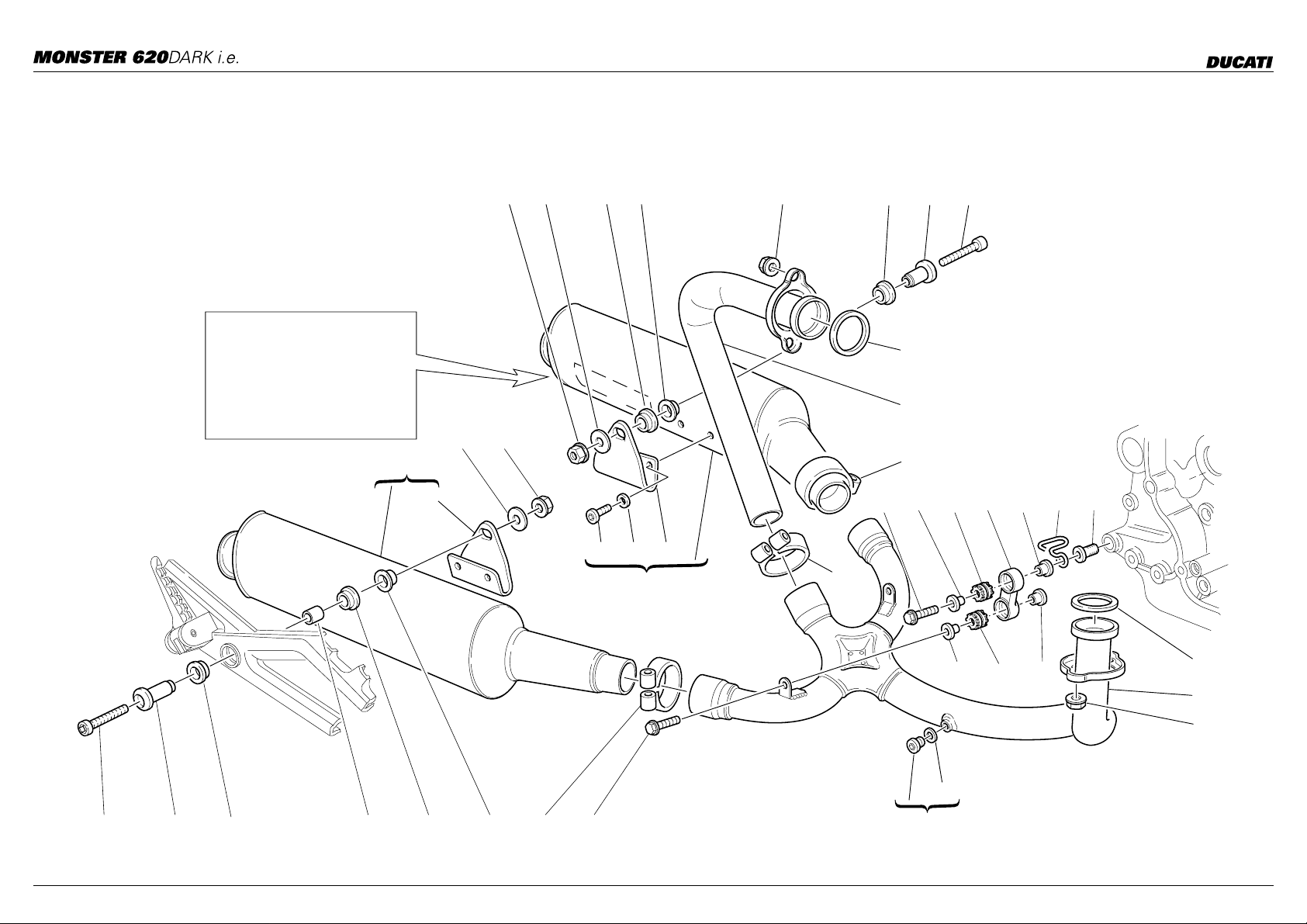

EXHAUST SYSTEM

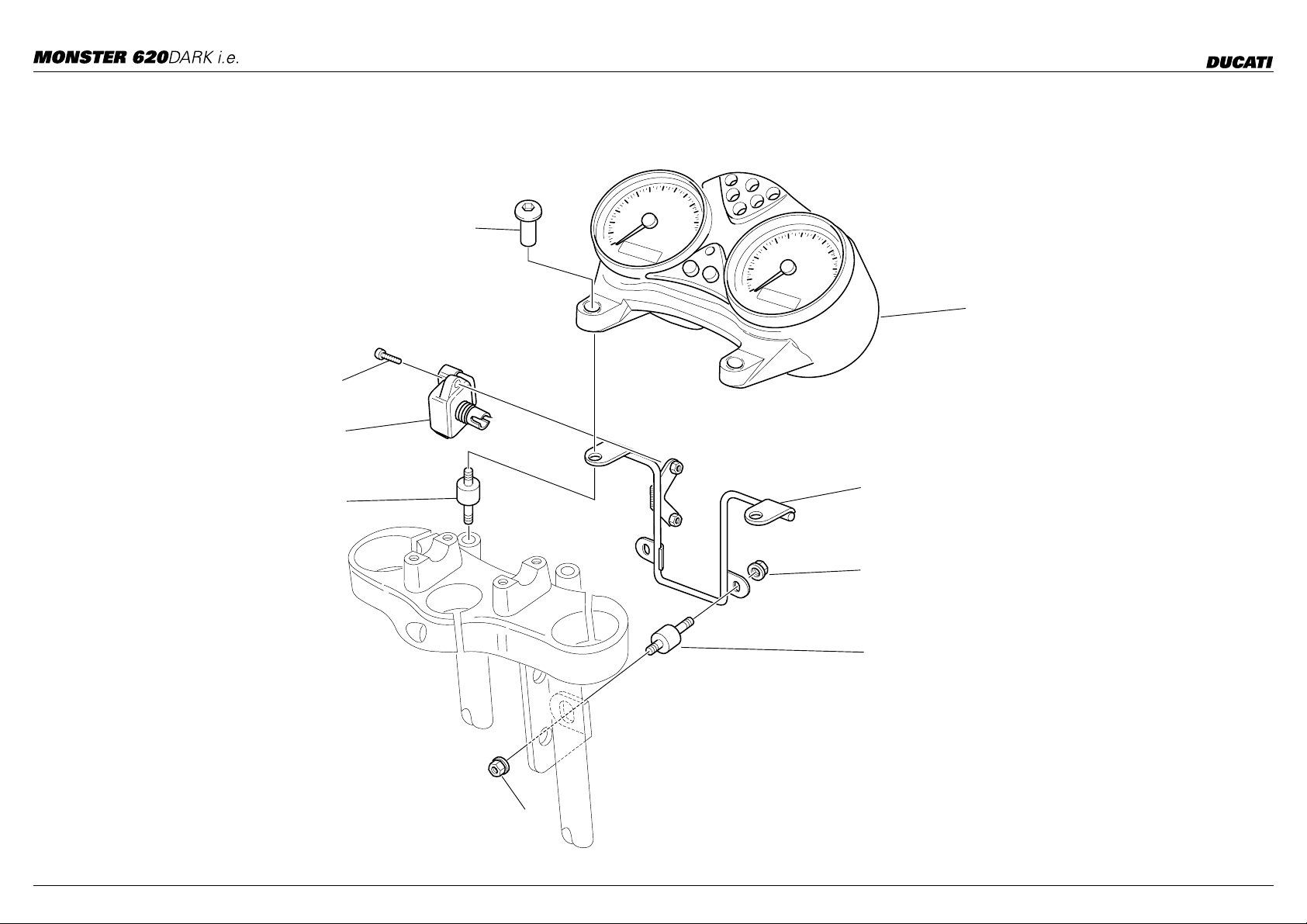

INSTRUMENT PANEL

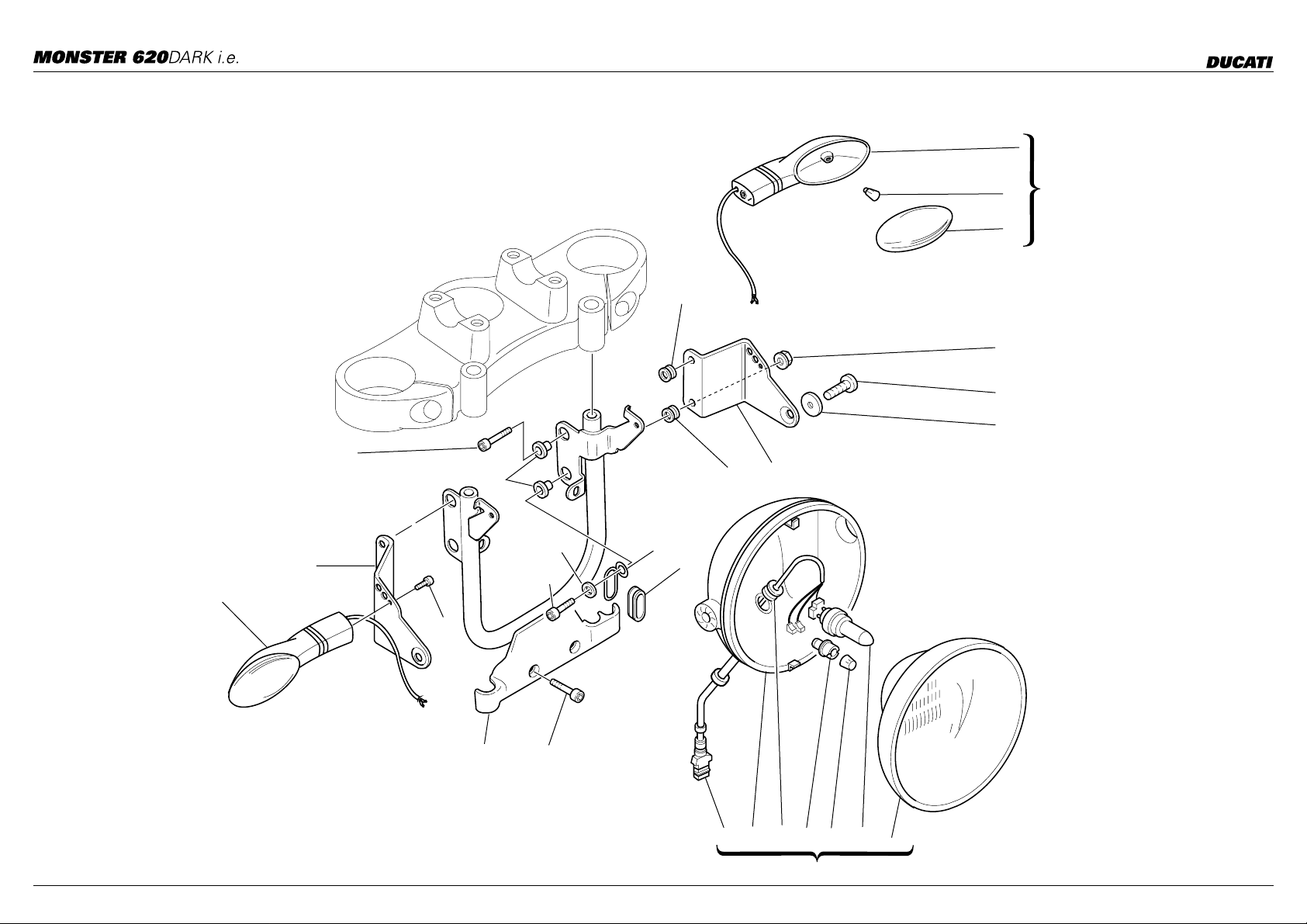

FRONT HEAD-LIGHT

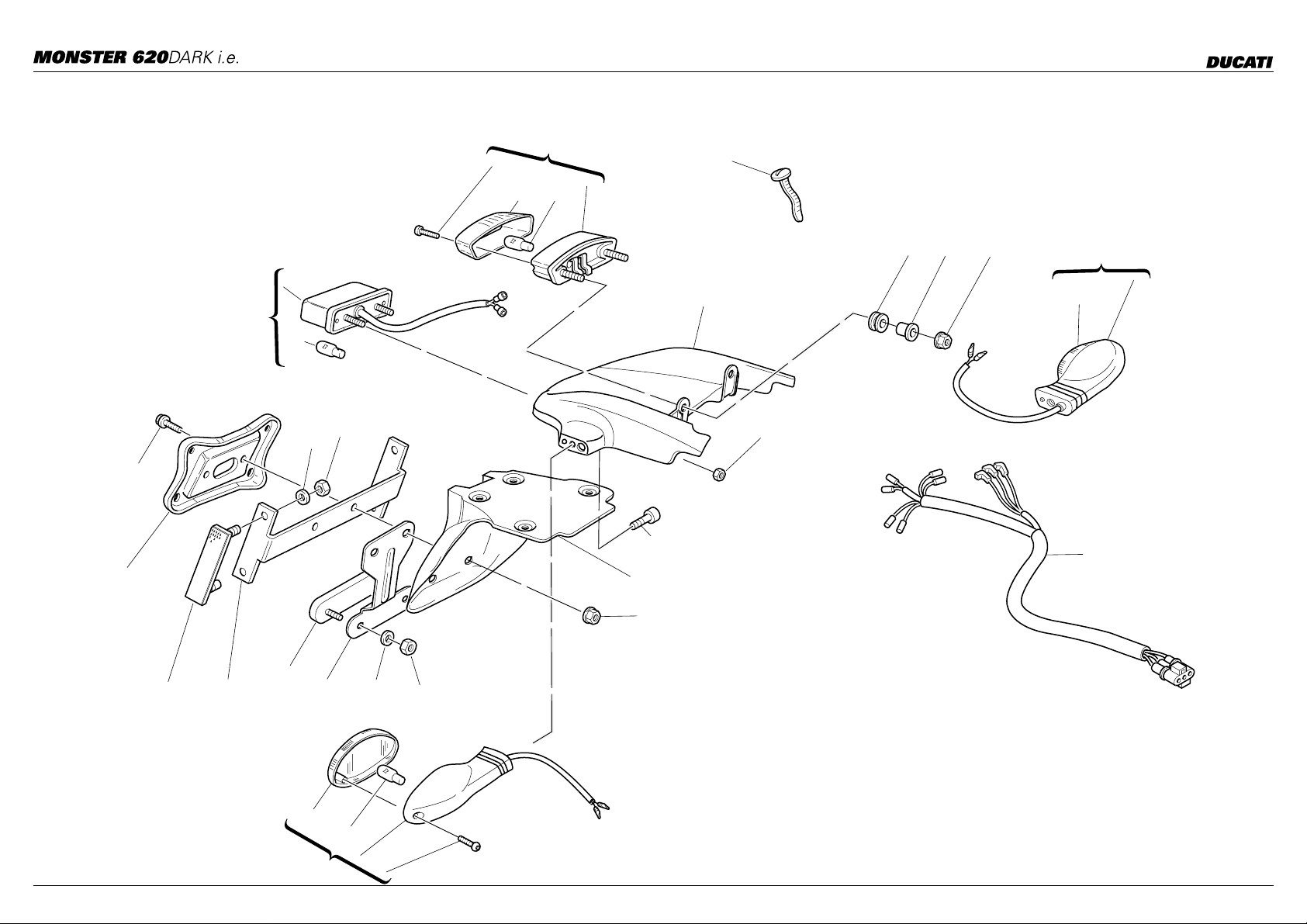

PLATE HOLDER - REAR LIGHT

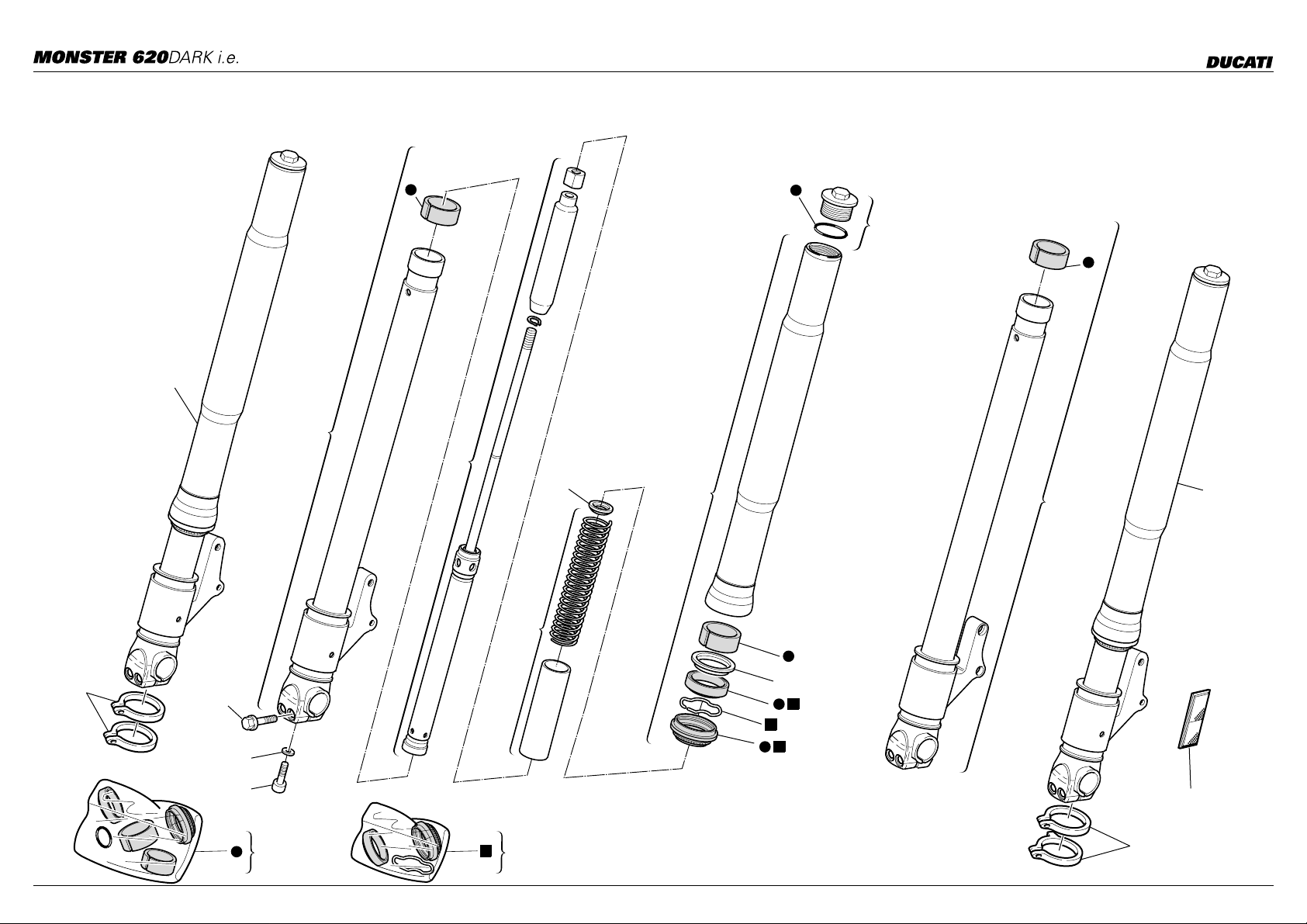

FRONT FORK

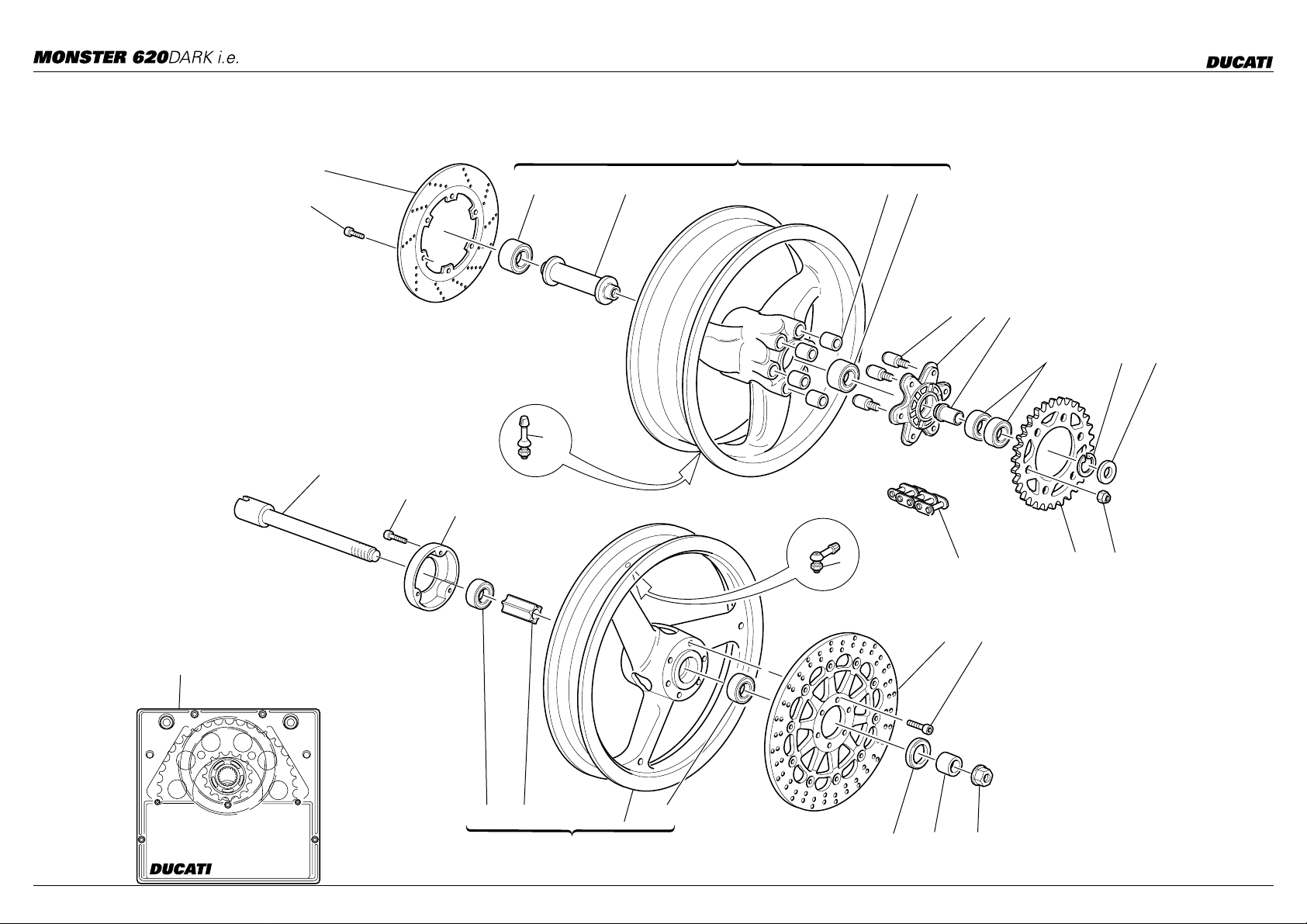

FRONT AND REAR WHEELS

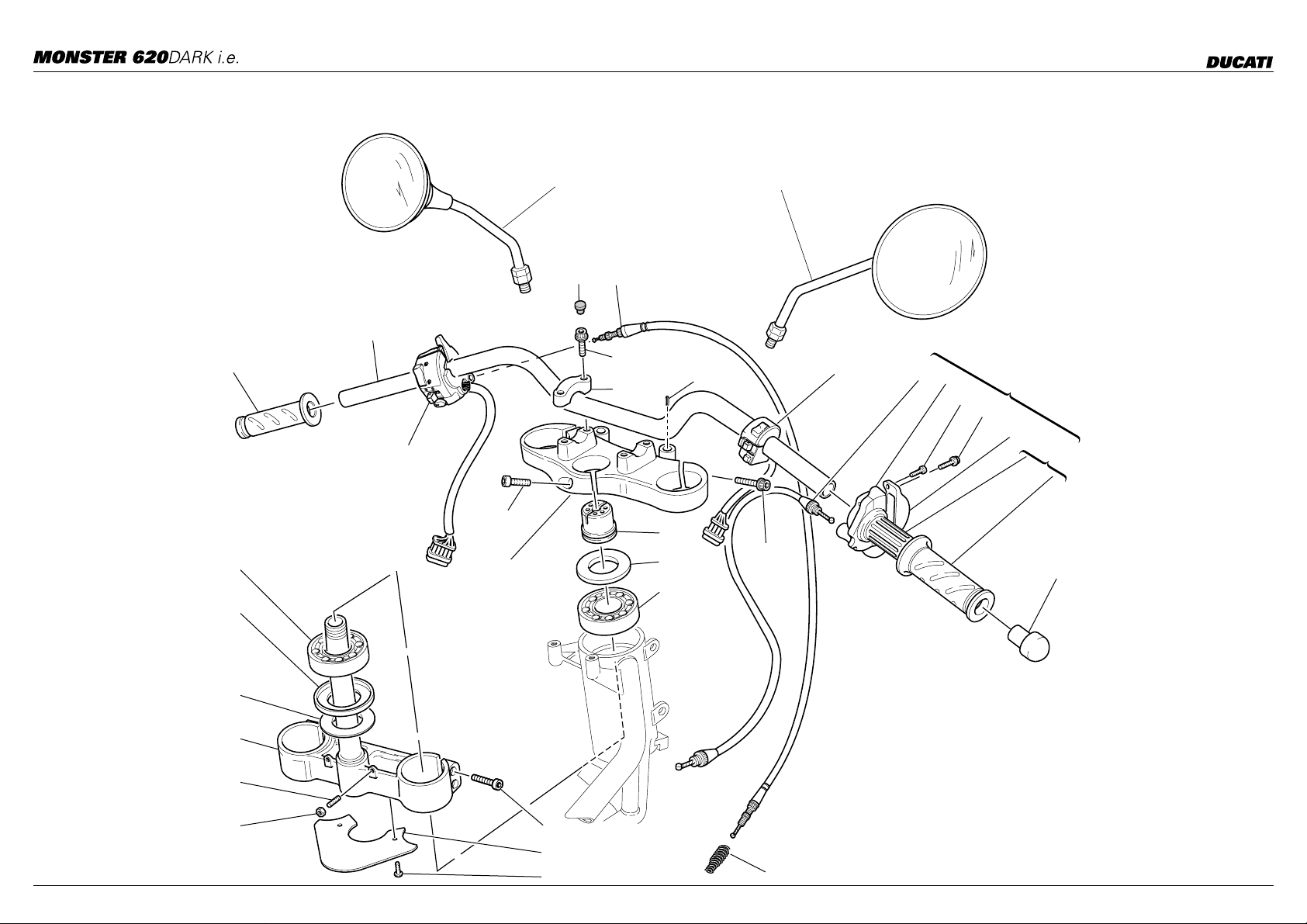

HANDLEBAR AND CONTROLS

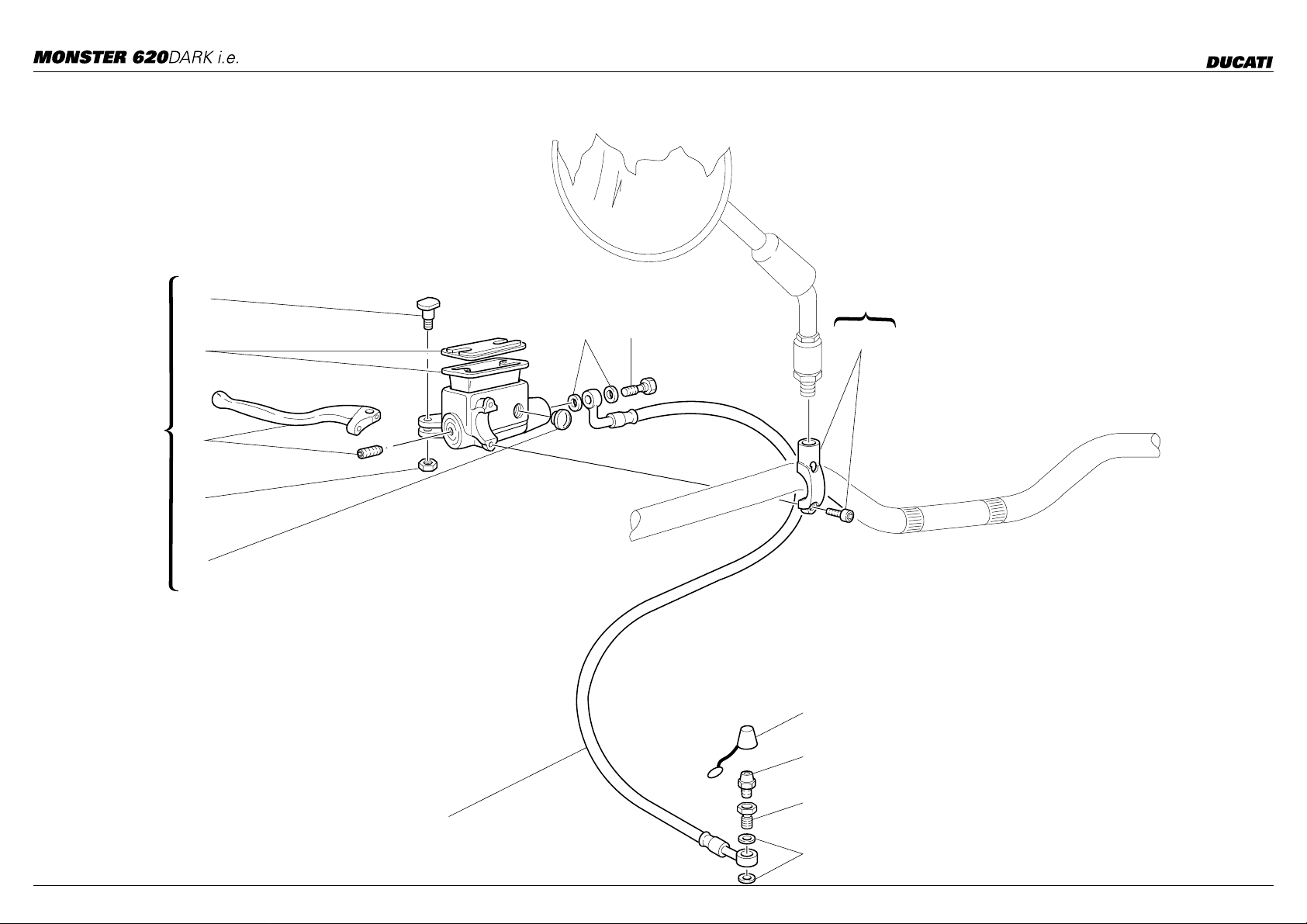

CLUTCH CONTROL

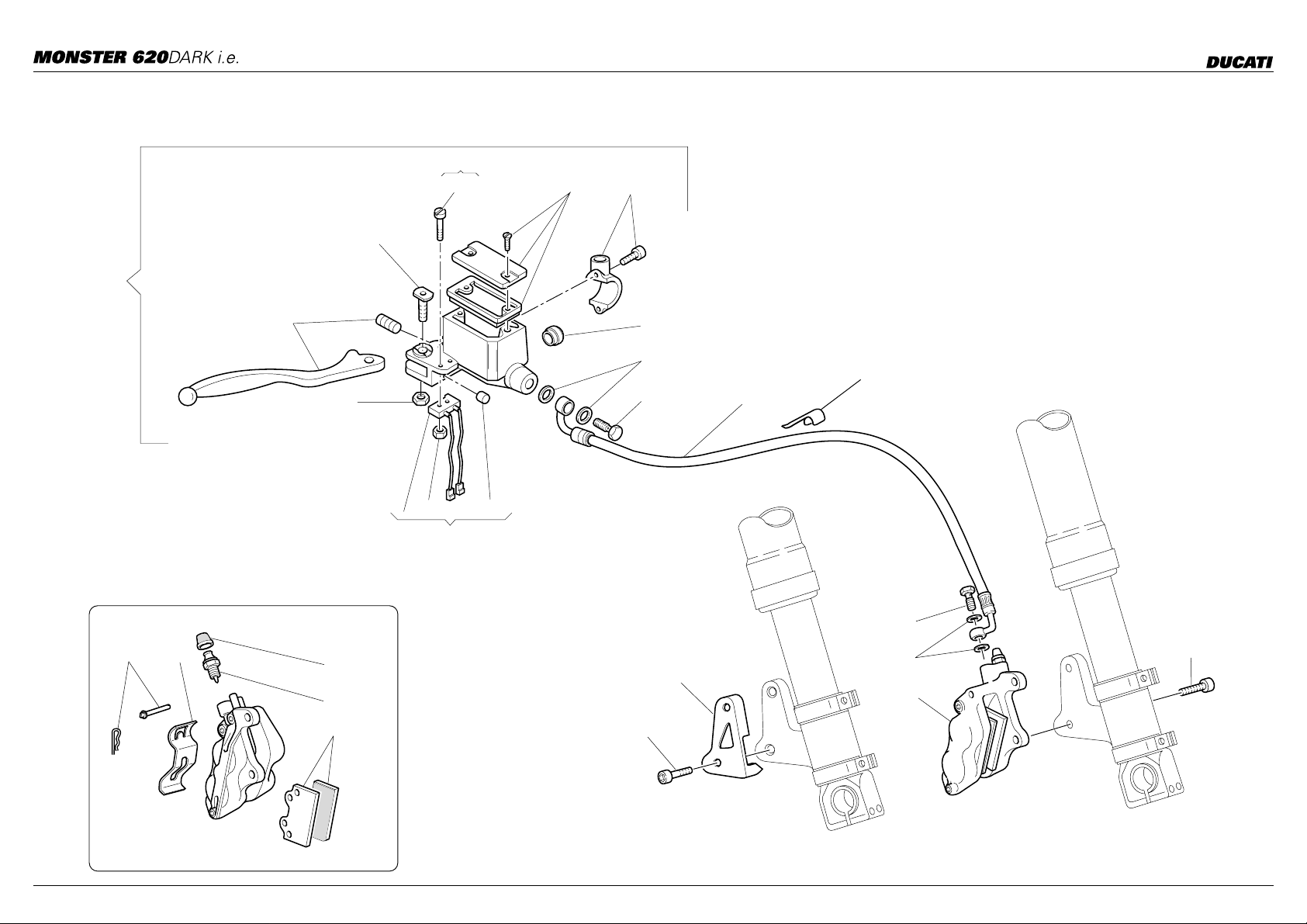

FRONT BRAKE

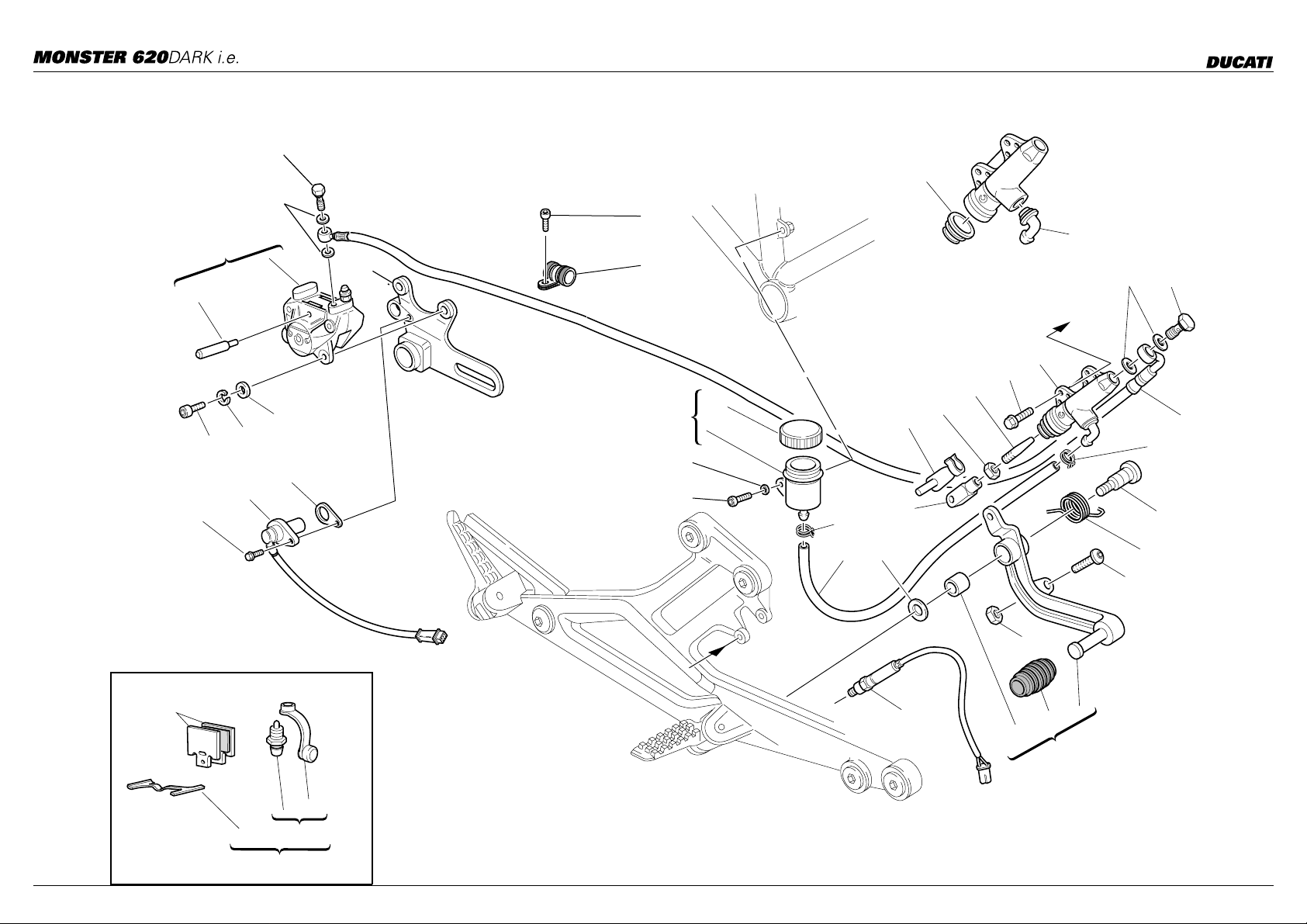

REAR BRAKE

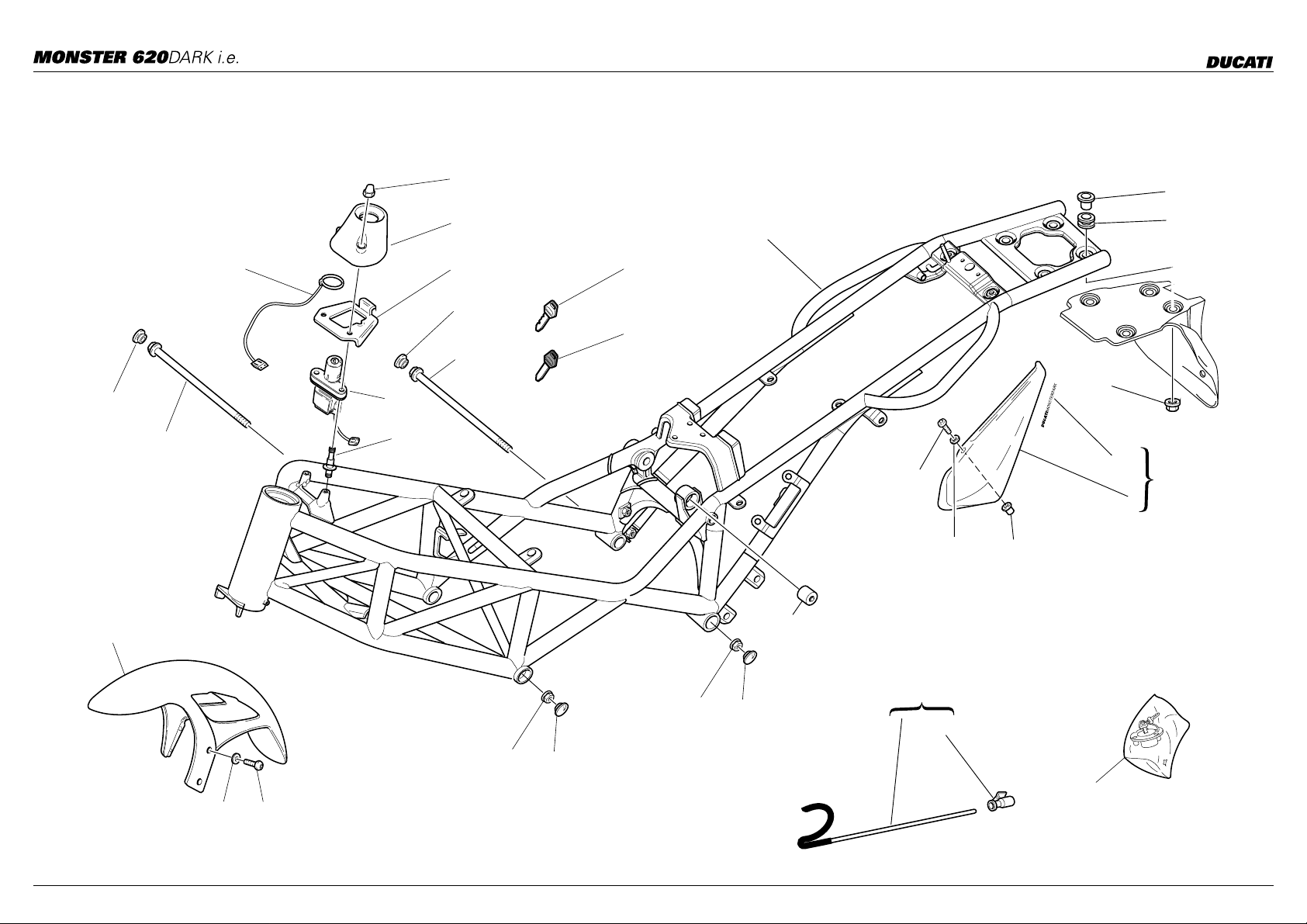

FRAME

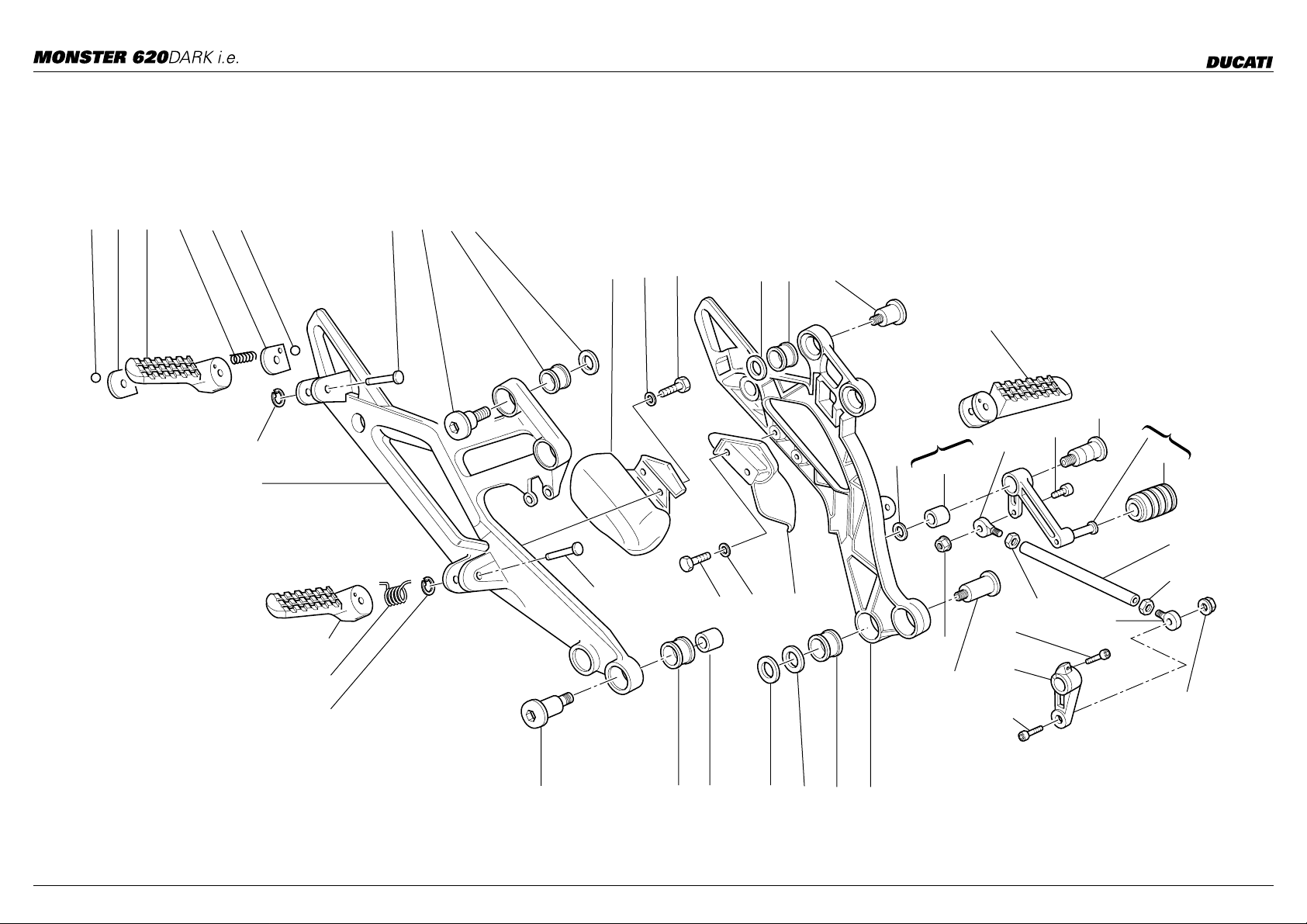

GEARCHANGE LEVER - FOOT REST

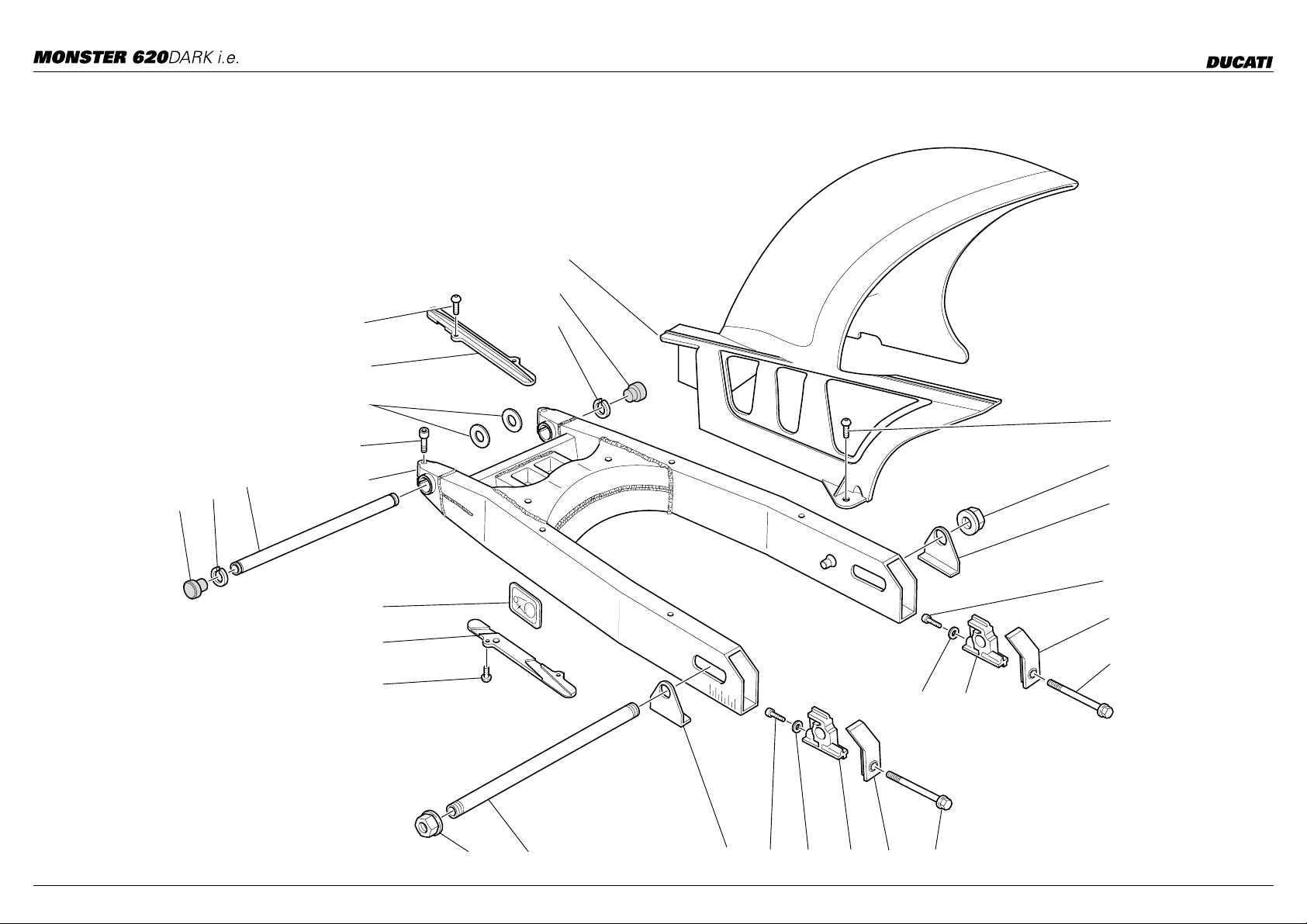

SWINGARM AND CHAIN

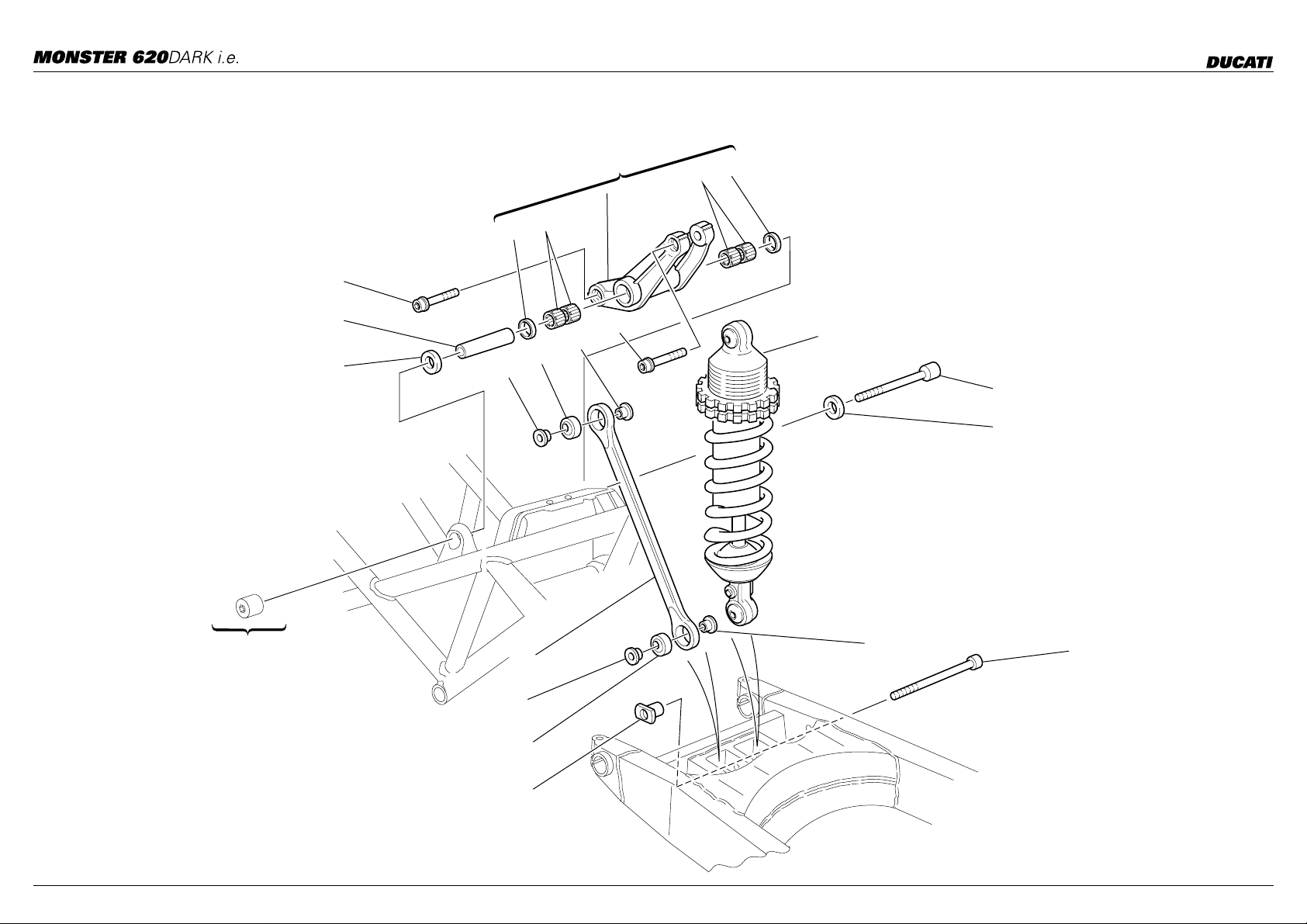

REAR SUSPENSION

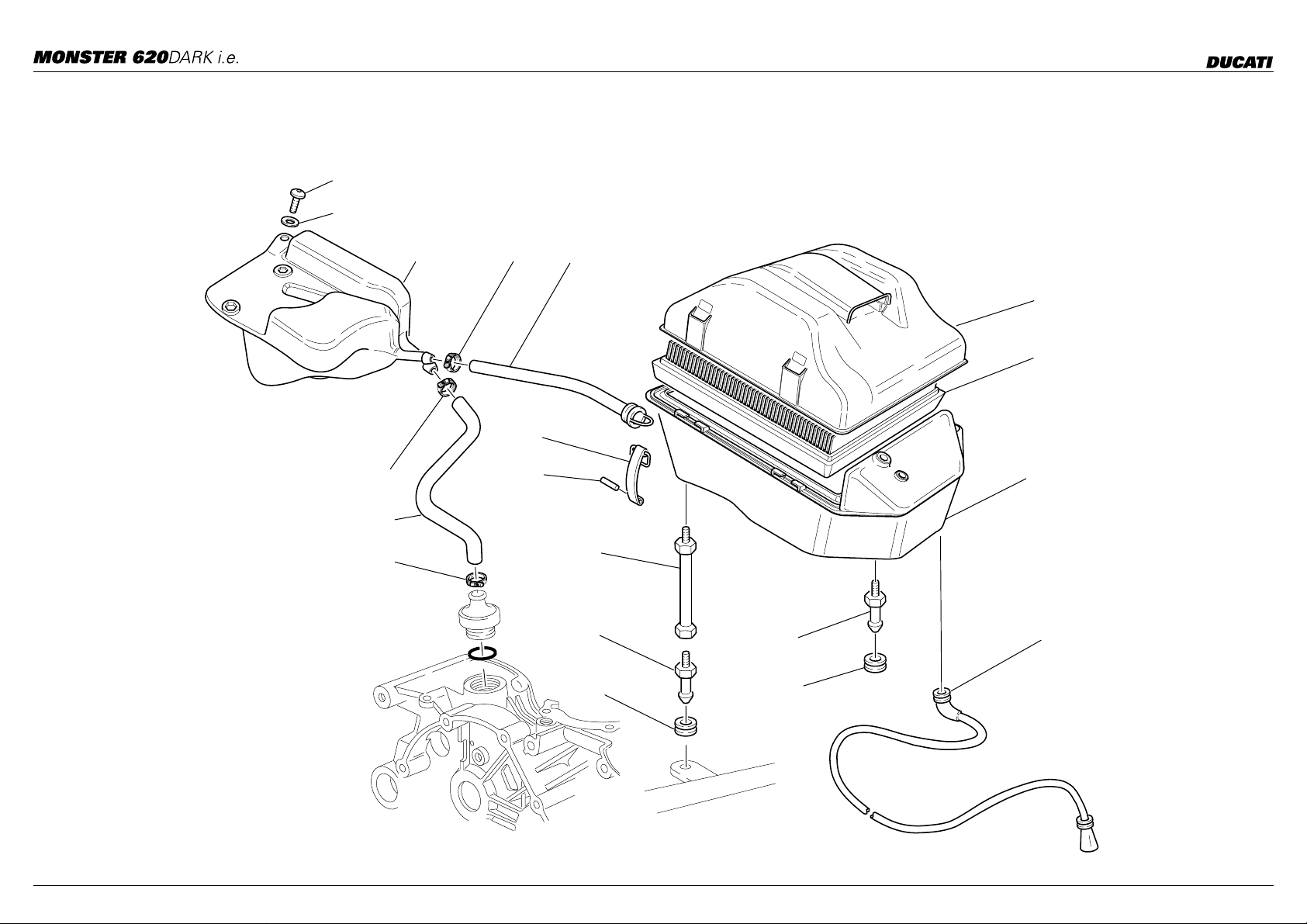

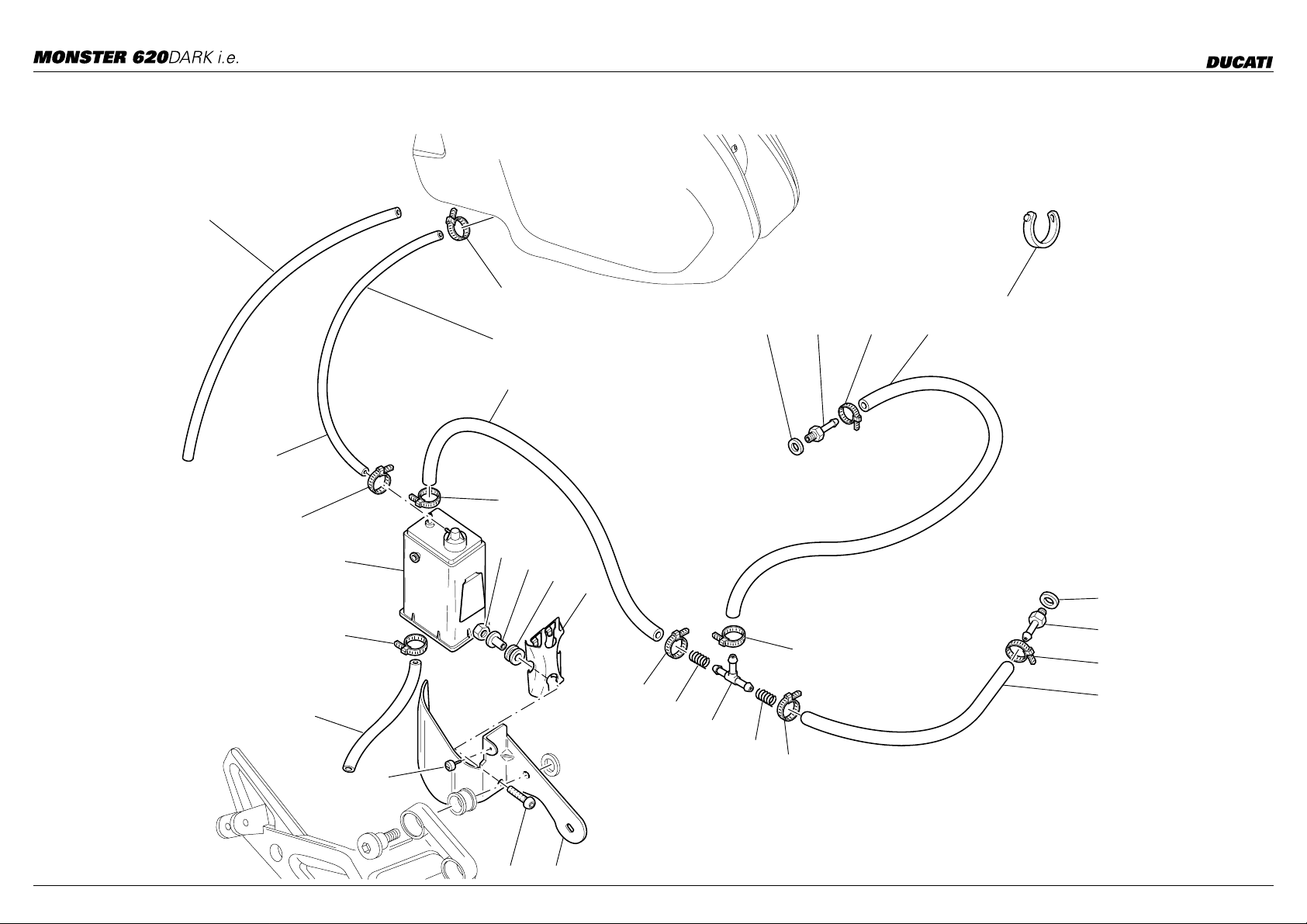

AIR INDUCTIO AND OIL VENT

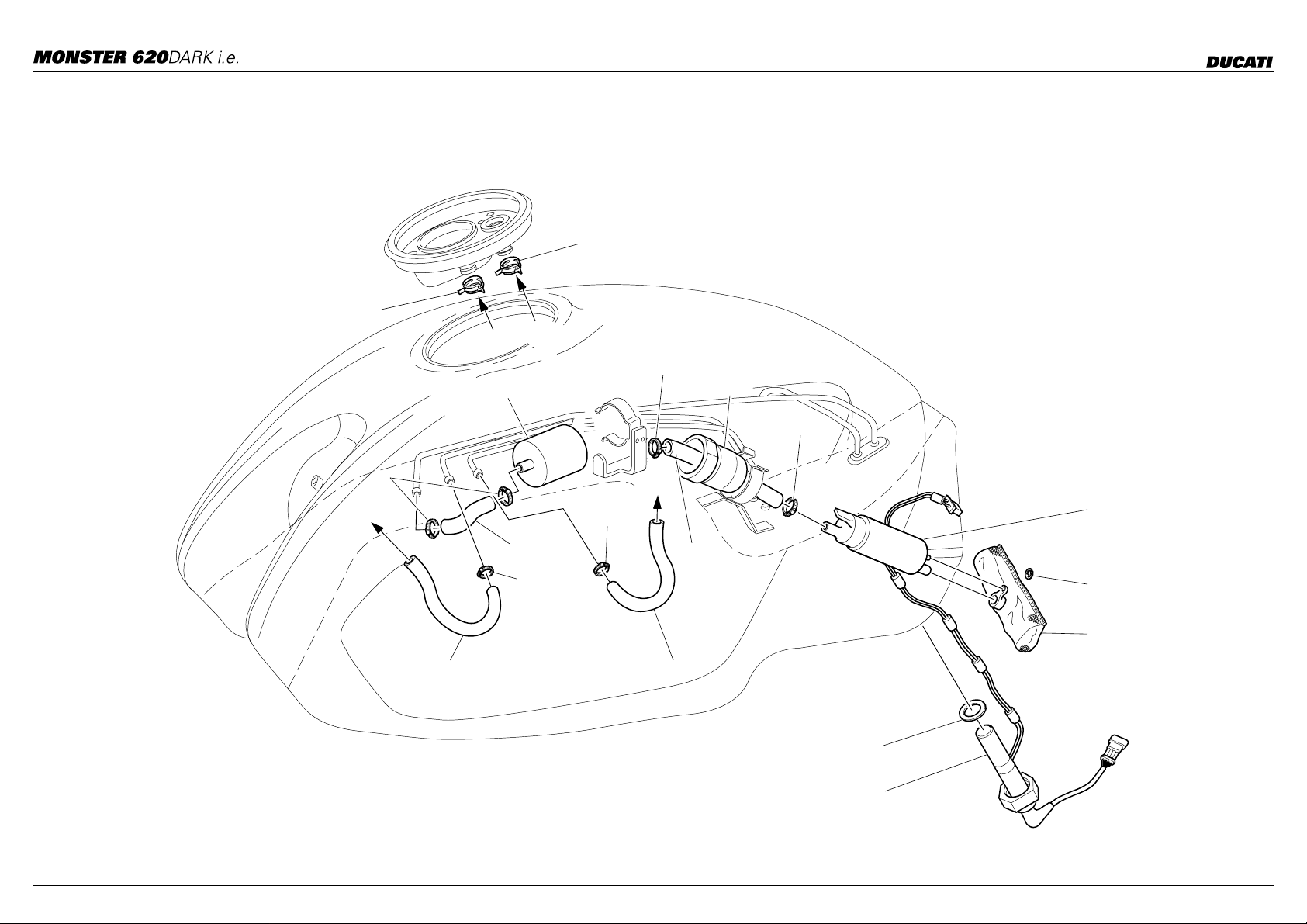

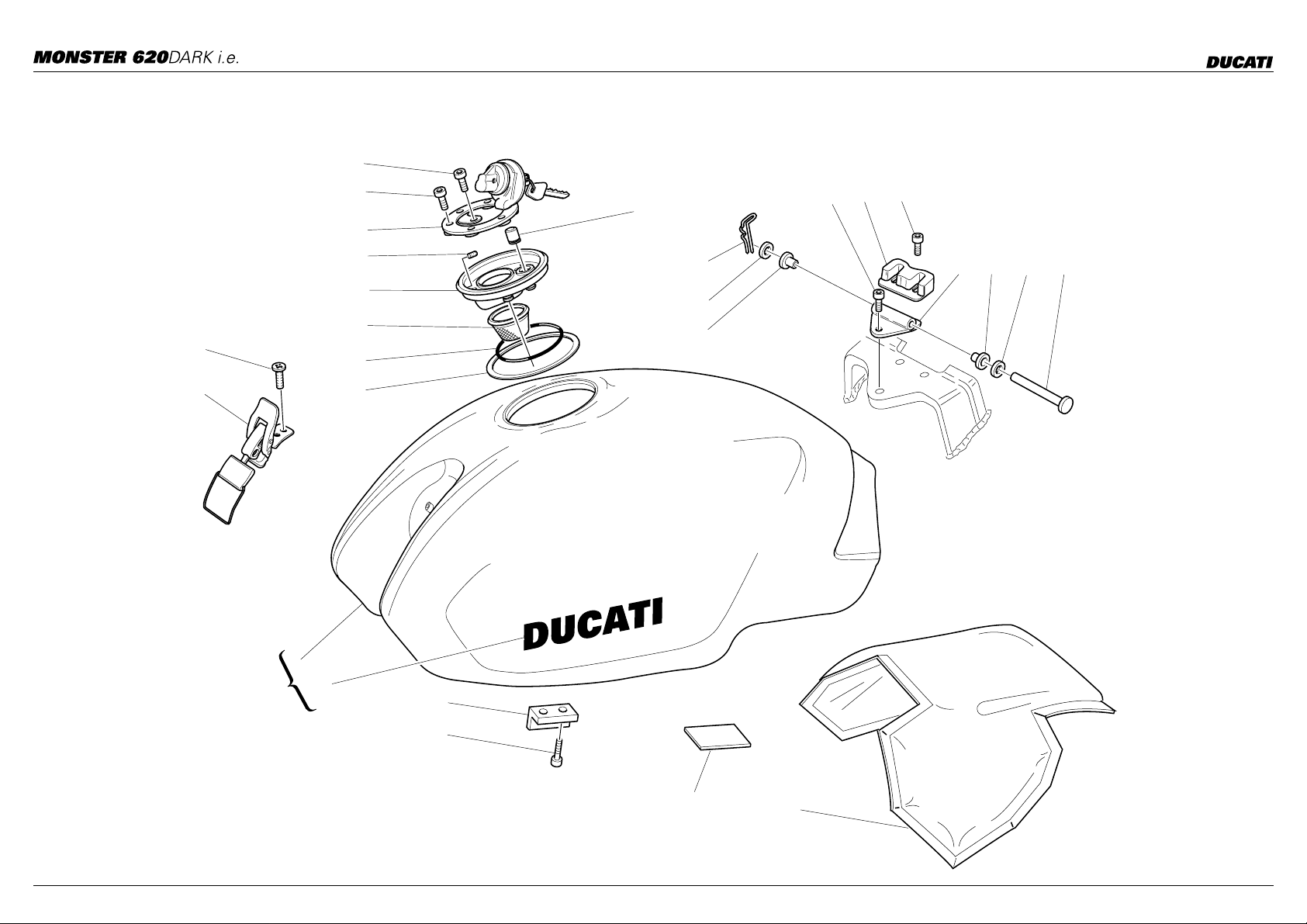

FUEL TANK
FUEL SYSTEM

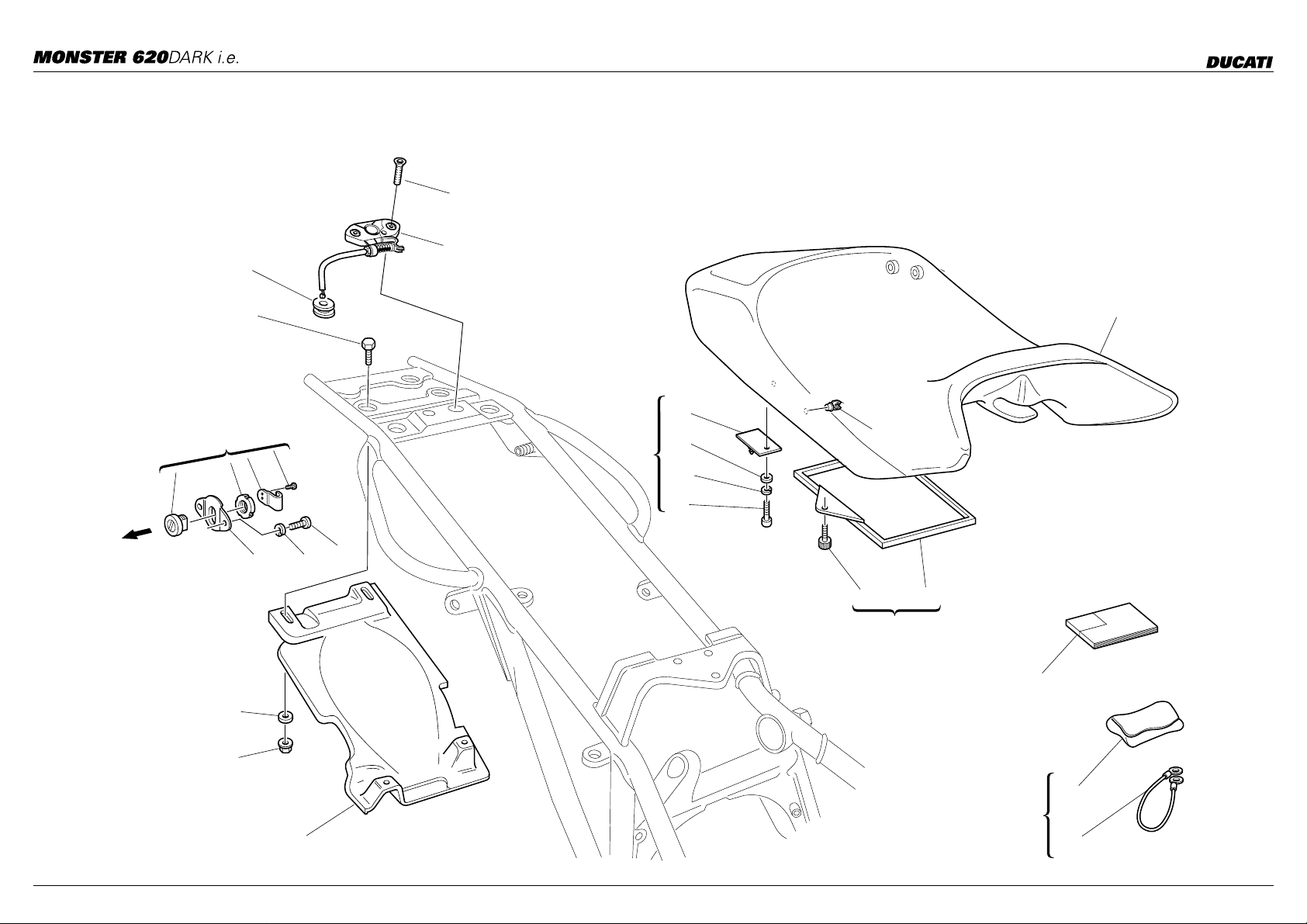

SEAT
FUEL INFEED

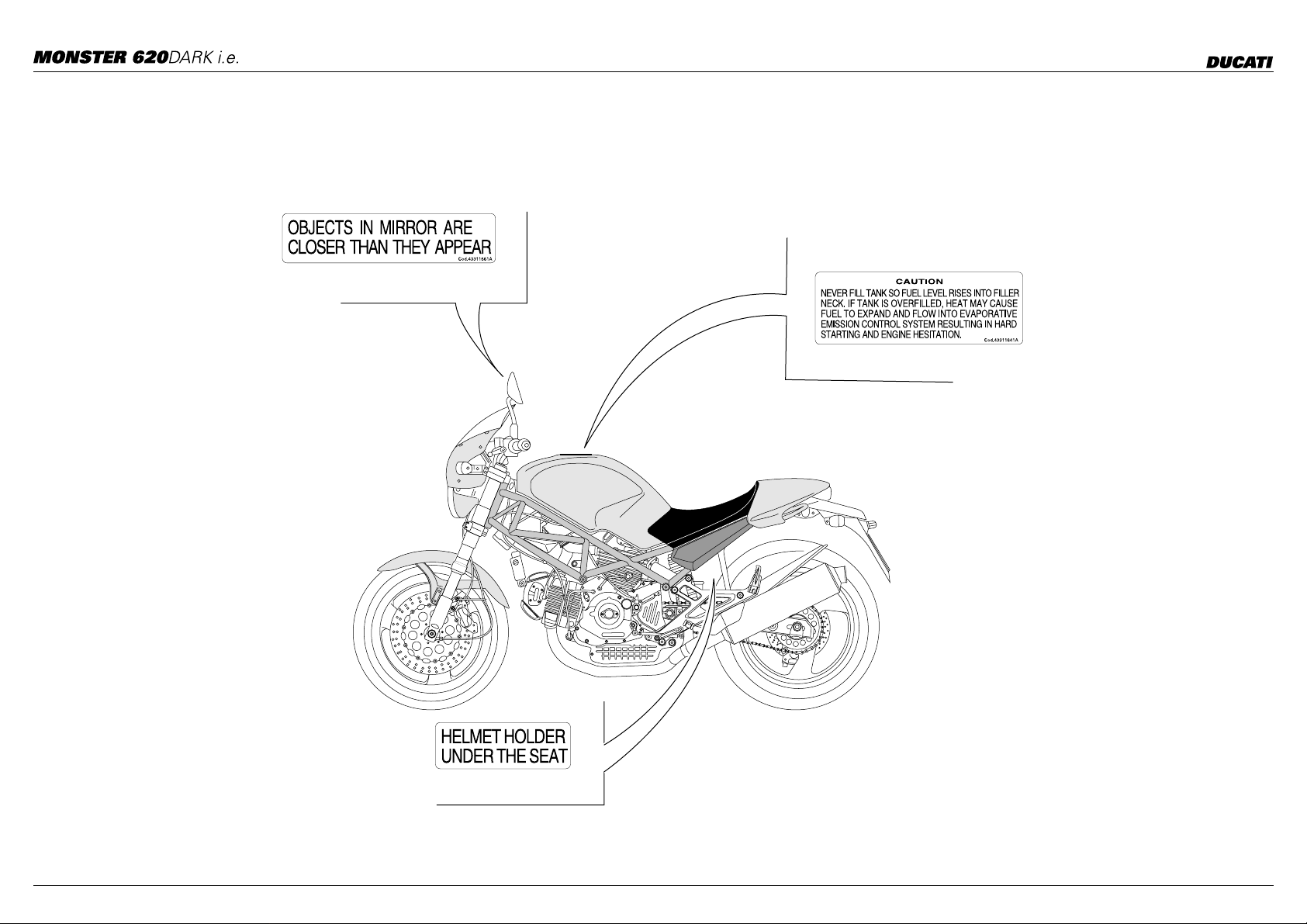

MARKING PLATES
CATALOGUE No:
ISSUED:
915.1.148.1A
10 - 01
CATALOGUE No:
ISSUED:
915.1.148.1A
10 - 01
3
Page 5
DRAWING
001

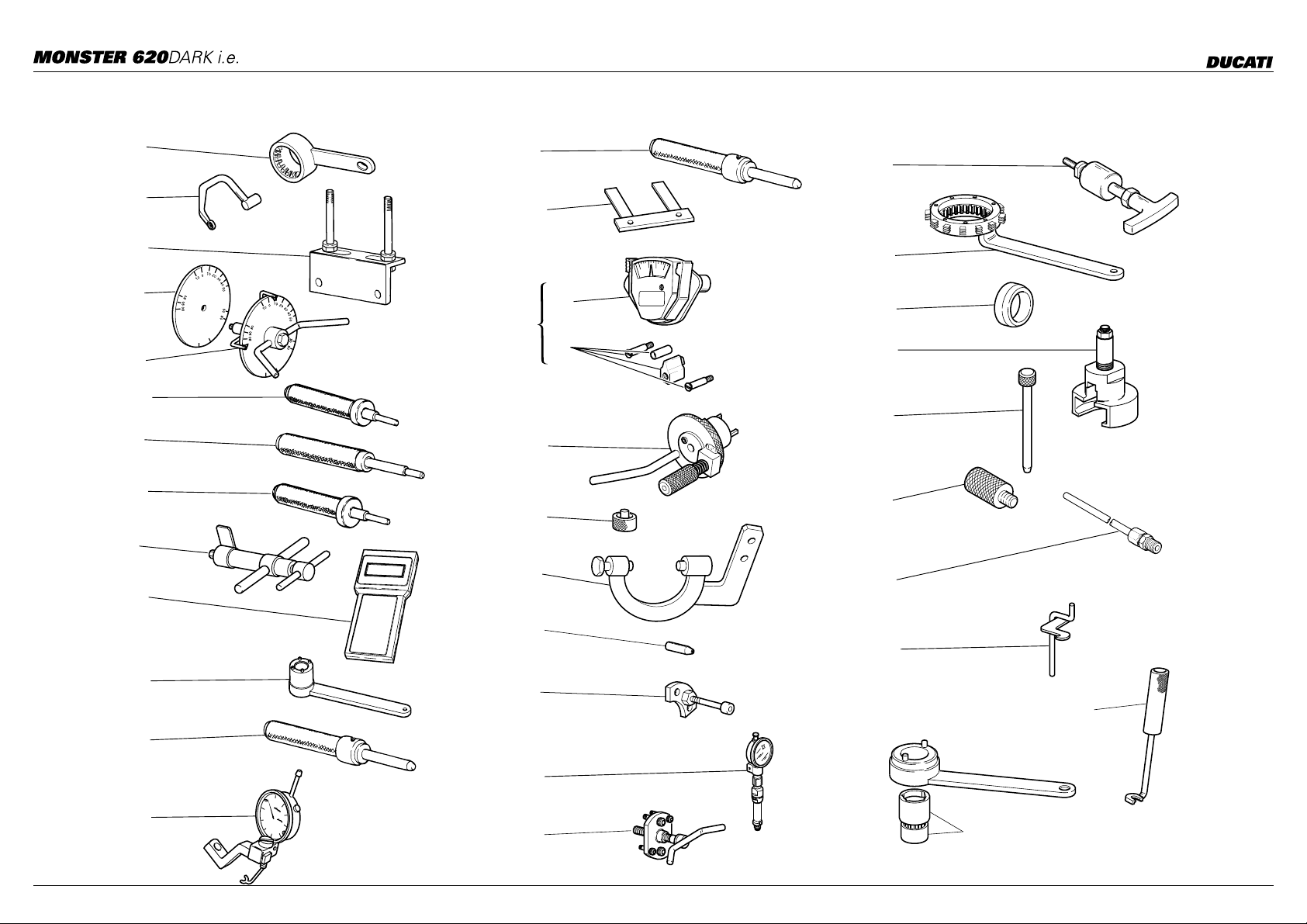

WORKSHOP SPECIAL TOOLS
1
2
3
4
5
6
7
8
9
10
14
15
35
17
18
19
16
22
25
26
27
28
29
30
31
11
12
13
20
21
23
24
32
33
34
4
Page 6
DRAWING
001
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
WORKSHOP SPECIAL TOOLS
1 88713.2107 Wrench for holding timing belt rollers ring nuts 1
2 88713.2096 Head nuts holder wrench 1
3 88713.2103 Head mounting base 1
4 98112.0002 Degree wheel 1
5 88713.0123 Degree wheel holder tool for ignition advance check 1
6 88713.0874 Exhaust valve guide punch tool 1
7 88713.0879 Punch tool to extract valve guide 1
8 88713.0875 Intake valve guide punch tool 1
9 88713.1215 Torque wrench for timing belt 1
10 88765.1236 Check intrument 1
GB 10 88765.1237 Check intrument 1
F 10 88765.1238 Check intrument 1
D 10 88765.1239 Check intrument 1
E 10 88765.1240 Check intrument 1
11 88713.0137 Crankshaft gear holder wrench for tightening nut 1
12 88713.1078 Punch tool for driving exhaust valve seat 1
13 88765.1058 Valve lift gauge 1
14 88713.1079 Punch tool for driving intake valve seat 1
15 88765.1000 Fork feeler gauge 0.1 mm 1
15 88765.1005 Fork feeler gauge 0.2 mm 1
15 88765.1006 Fork feeler gauge 0.3 mm 1
16 88765.0999 Timing belt control gauge 1
17 88713.2011 Tool to hold crankshaft in TDC position 1
18 88765.1322 Spacer for checking lower valve shim 1
19 88713.2036 Flywheel Wrench 1
20 88700.5749 Crankcases assembling cap 1
21 88713.1091 Plate for positioning gear engagement fork 1
22 88765.1086 Conversion kit for 4V belts tensioning tool 1
23 88765.1297 T.D.C. control gauge 1
24 88713.1749 Drive roller puller 1
25 88713.1994 Rocker shaft extractor 1
26 88713.2133 Wrench to hold cluch housing drum steady 1
27 88700.5665 Sleeve for installing clutch bell gear 1
28 88713.2092 Extractor for primary drive gear 1
29 88713.0262 Pin for assembling rocker arms 1
30 88713.2009 Belt roller timing of two-valva head 1
31 88713.1010 Union for exhaust gas suction 1
32 88713.0143 Tool for assembling closing rocker and spring 1
33 88713.0844 Half-rings mounting punch tool 1
34 88700.5644 Wrench for camshaft pulley ring nut adjustment 1
35 051.2.001.1A Torque wrench for timing belt 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
5
Page 7

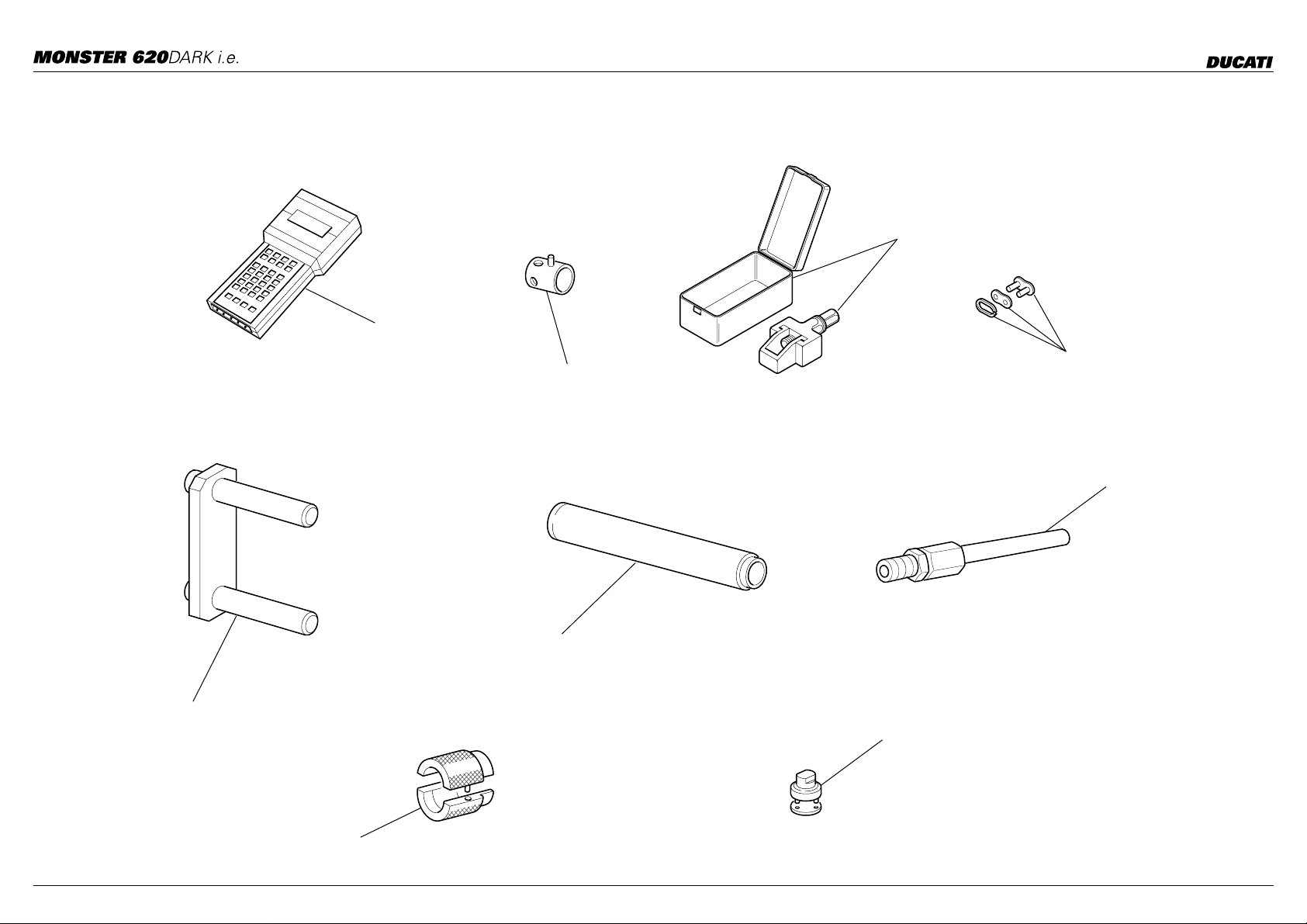

DRAWING
001.1
WORKSHOP SPECIAL TOOLS
3
1
4
2
7
6
5
9
8
6
Page 8
DRAWING
001.1
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
WORKSHOP SPECIAL TOOLS
I 1 88765.1236 Check intrument 1
GB 1 88765.1237 Check intrument 1
D 1 88765.1238 Check intrument 1
F 1 88765.1239 Check intrument 1
E 1 88765.1240 Check intrument 1
2 8000.70139 Wrench for front wheel spindle 1
3 88713.1344 Tool for assembling chain 1
4 677.4.003.1A Coupling 1
5 88713.1515 Frame/engine mount 1
6 88713.1072 Stopper for driving the half bearing of the steering head
base
7 88713.1010 Union for exhaust gas suction 1
8 88713.1096 Tool for overhauling SHOWA forks - assembling seal
ring
9 88713.1058 Wrench for assembling the steering head cap 1
1
1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
7
Page 9

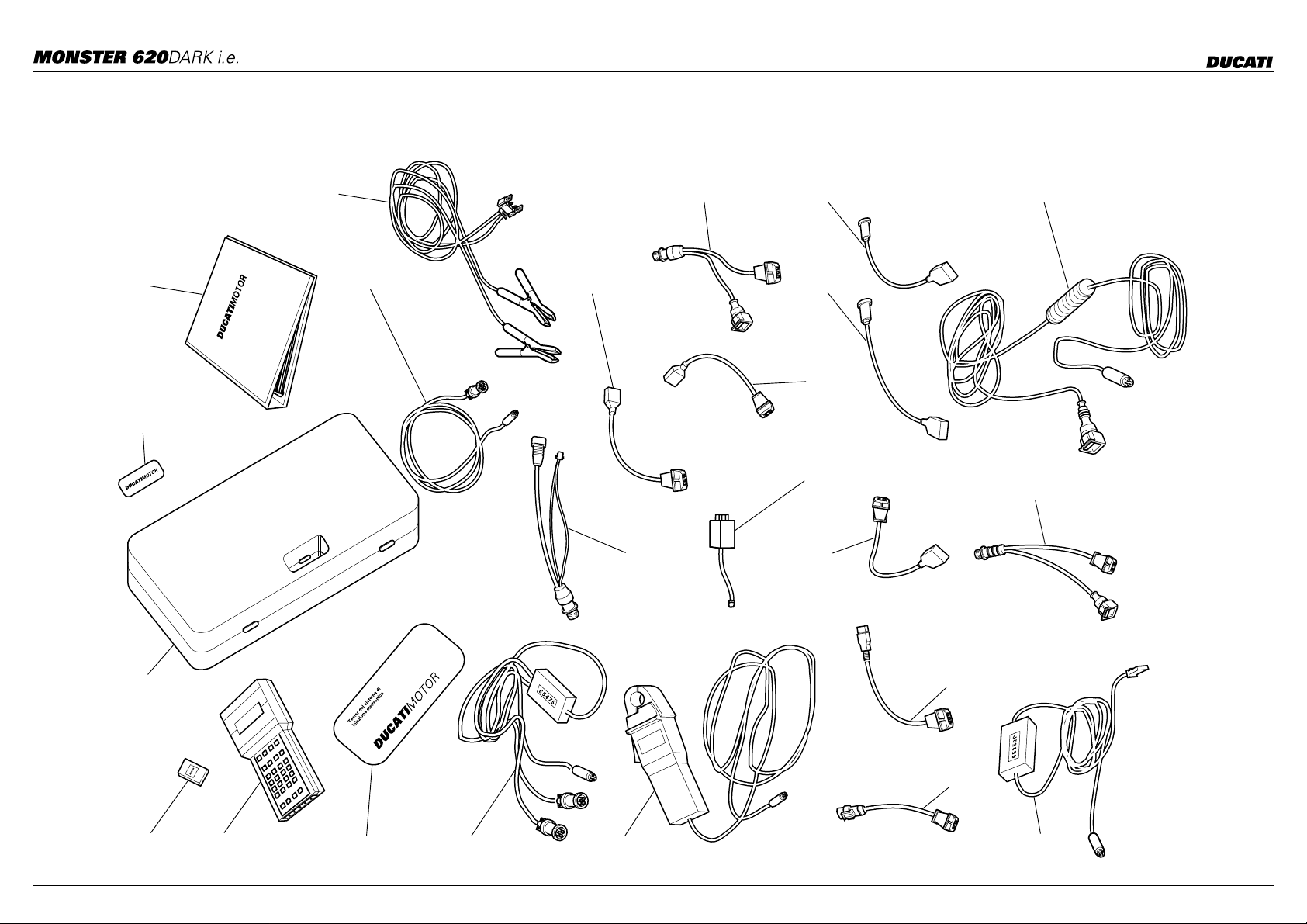

DRAWING
001.2
DIAGNOSIS TESTER MATHESIS
2
23
5
3
715
13 10 11
19
18
9
176
20
16
14
148 1221
22
8
Page 10
DRAWING
001.2
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
DIAGNOSIS TESTER MATHESIS
1 88765.1126Z Bare Mathesis 1
2 914.7.023.1A Italian manual 1
2 914.7.023.1B English manual 1
2 914.7.023.1C German manual 1
2 914.7.023.1D Franch manual 1
2 914.7.023.1E Spanish manual 1
3 88765.1126R Main cable Mathesis 1
4 88765.1126A Pickup Control cable 1
5 88765.1126Q Battery mains cable 1
6 88765.1126 Mains cable adapter for self diagnosis 1
7 88765.1126N Sensor for absolute pressure sampling 1
8 88765.1126V Amperometer plier 1
9 88765.1126E Adapter for 3 wires Pickup test cable 1
10 88765.1126P Sensor for air temperature sampling 1
11 88765.1126C Cable for potentiometer adjustement 1
12 88765.1126B Test cable and speed indicator adjustement 1
13 88765.1126F Adapter for 2 wires Pickup test cable 1
14 88765.1126D Adapter for potentiometer adjustement 1
15 552.4.028.1A Sensor for small throttle potentiometer sampling 1
16 88765.1126H Sensor for throttle potentiomer sampling 1
17 88765.1126G Sensor for air/water temperature sampling 1
18 88765.1126M Sfety remote switch 1
19 88765.1126L 2 Wires sampling Pickup sensor 1
20 88765.1126U Case with sponge 1
21 88765.1073 Italian memory card 1
21 88765.1074 English memory card 1
21 88765.1075 German memory card 1
21 88765.1076 French memory card 1
21 88765.1077 Spanish memory card 1
22 88765.1126S DUCATI sticker for case 1
23 88765.1126T DUCATI sticker RH/LH side 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
9
Page 11
DRAWING
001.3
WORKSHOP SPECIAL TOOLS
1
11
2
8
3
4
5
9
6
10
7
12
13
14
16
15

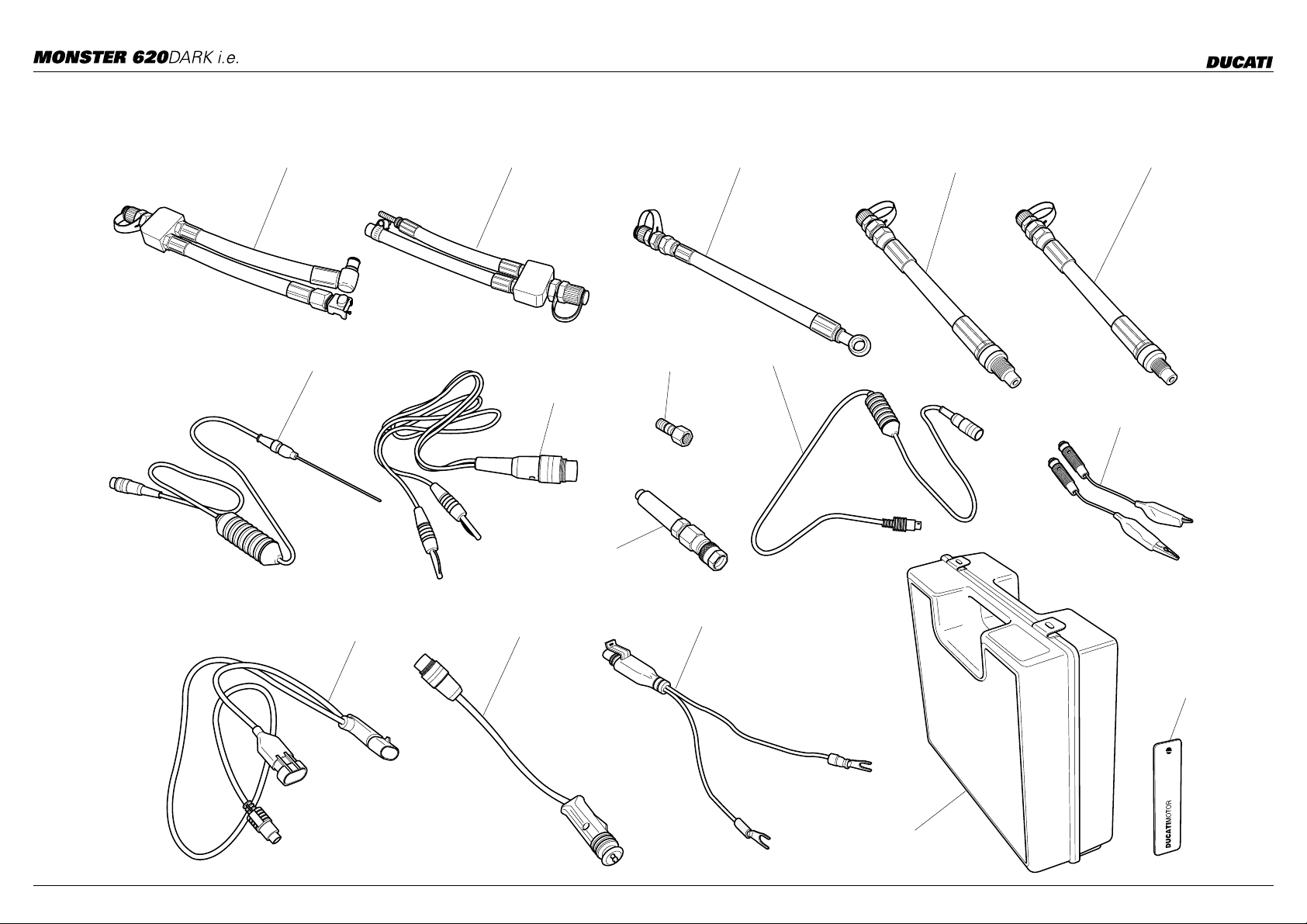

10
Page 12
DRAWING
001.3
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
WORKSHOP SPECIAL TOOLS
- 88765.1241 Check intrument 1
GB - 88765.1242 Check intrument 1
D - 88765.1243 Check intrument 1
F - 88765.1244 Check intrument 1
E - 88765.1245 Check intrument 1
1 590.1.189.1A Fuel pressure line HS. 1
2 590.1.190.1A Fuel pressure line ST/SS/M. 1
3 875.1.065.1A Oil pressure line 1
4 552.1.037.1A Fitting - cylinder compression M12 1
5 552.1.038.1A Fitting - cylinder compression M10 1
6 514.1.037.1A Cable Volt PF DUC 21 1
7 552.1.039.1A Pressure sensor 1
8 814.1.114.1A Oil pressure fitting 1
9 514.1.032.1A Cable for supplementary tests 1
10 514.1.035.1A Red clamp cable 1
10 514.1.036.1A Black clamp cable 1
11 552.1.040.1A Temperature probe 1
12 514.1.034.1A Main cable PF A621 1
13 514.1.033.1A Electric lighter connection adapter (ST) 1
14 514.1.038.1A Battery connection adapter 1
15 698.1.033.1A Red case with sponge rubber 1
16 88765.1126T DUCATI sticker RH/LH side 2
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
11
Page 13

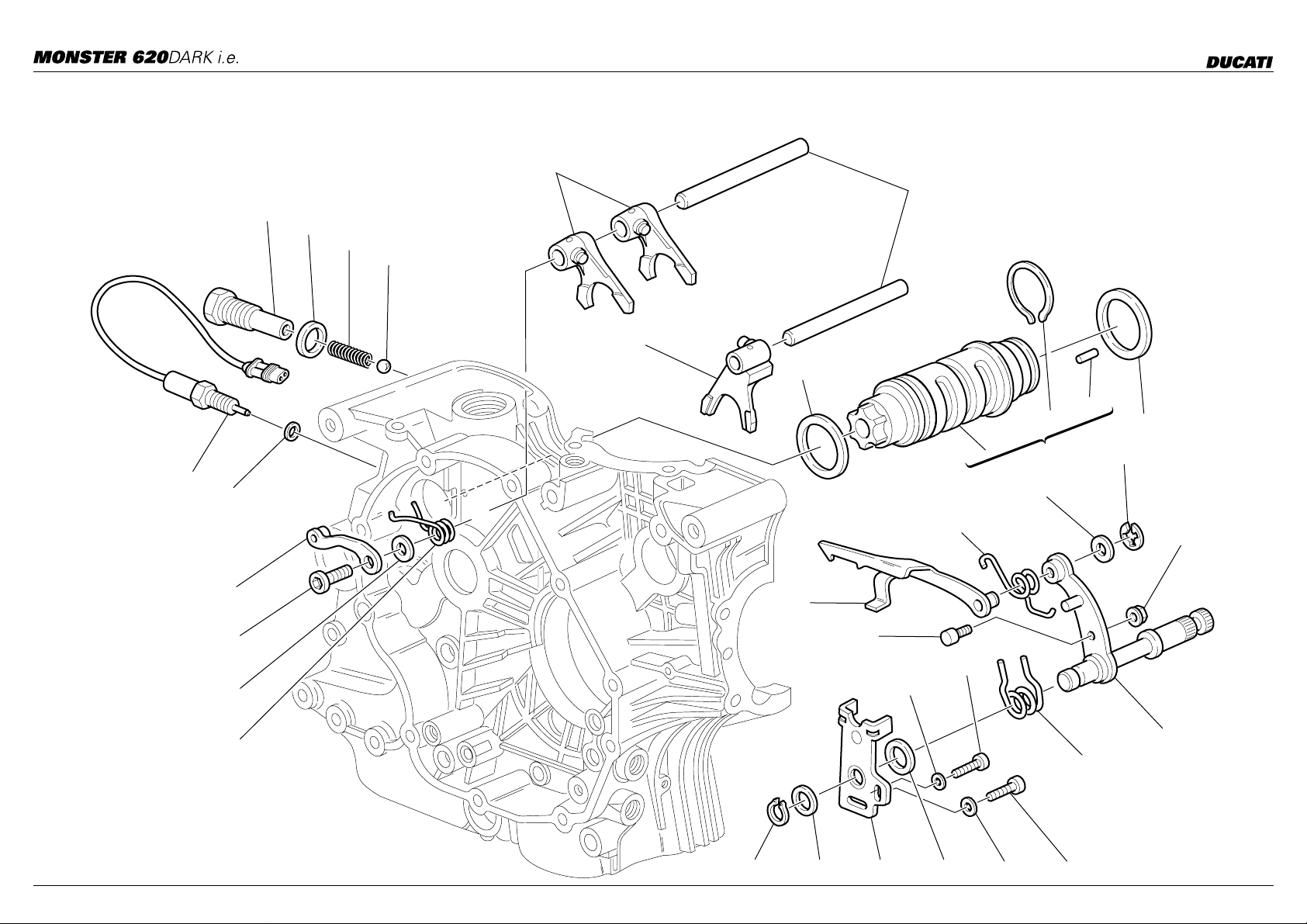

DRAWING
002
GEARCHANGE
7
11
13
8
9
10
12
14
17
16
19
18
6
5
21
22
20
23
4
3
24
25
28
2
1
29
26
27
15 34 33 32 31 30
12
Page 14
DRAWING
002
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
GEARCHANGE
1 799.1.049.1A Return spring 1
2 852.1.053.1A Washer 1
3 779.1.039.1A Special screw 1
4 455.2.003.1A Gear stopper assembly 1
5 420.2.001.0A Gasket th.1 1
6 539.1.021.1A Switch 1
7 779.1.203.1A Push rod holder 1
8 0272.91.090 Gasket 1
9 0660.13.143 Gear selector spring 1
10 76835.1134 Ball 1
11 0670.13.075 1st,3rd-2nd gear selector fork 2
12 0670.13.080 4th,5th gear selector fork 1
13 0660.13.070 Fork pin 2
14 852.1.005.1A Shim th. 1 1
14 852.1.093.1A Shim th. 0.9 1
15 73500.1542 Circlip 1
16 882.1.006.1A Needle retaining ring (square cross-section) 1
17 821.1.070.1A Special roller (square cross-section) 6
18 182.2.012.1A Complete gearbox drum 1
19 0660.13.060 Shim th. 1 1
19 852.1.094.1A Shim th. 0.9 1
20 799.1.025.1A Fork return spring 1
21 0400.09.050 Shim th. 0.5 1
21 0765.92.205 Shim th. 0.2 2
22 0214.07.350 Ring 1
23 750.5.001.1A Nut 1
24 180.1.008.1A Gearbox drum control fork 1
25 0660.13.165 Gearchange lever pin 1
26 821.1.001.1A Pin with gearchange lever 1
27 0799.13.110 Gearchange lever return spring 1
28 60N102509 Screw 1
29 462.3.003.8A Washer 1
30 60N102555 Screw 1
31 462.3.003.7A Washer 1
32 881.1.012.1A Centering ring 1
33 826.1.009.1A Stopper plate 1
34 0400.29.125 Shim th. 0.2 2
34 0400.29.126 Shim th. 0.5 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
13
Page 15
DRAWING
003
1
14

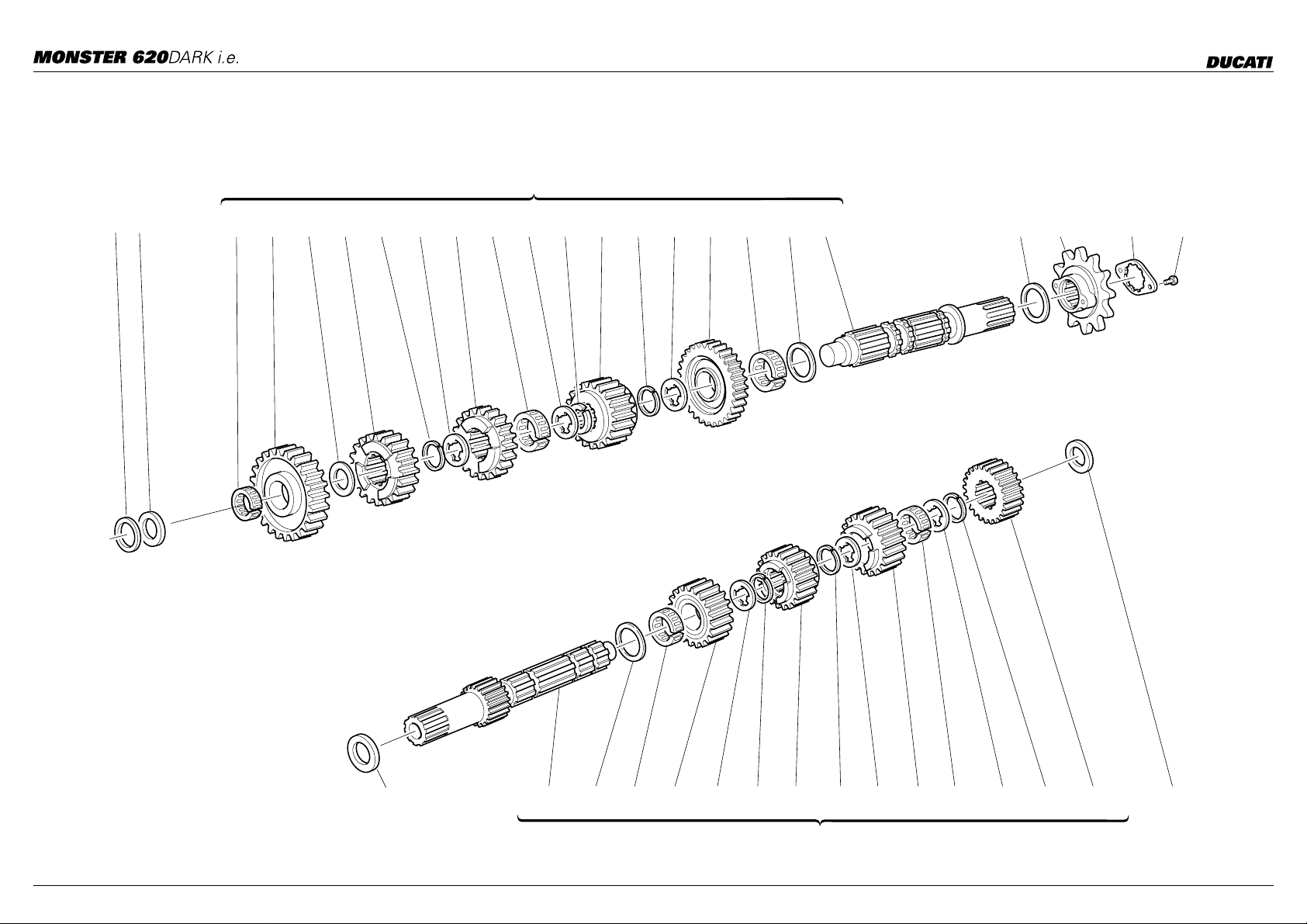

GEAR-BOX
26
23456 7897610 6 7 11 9 12 13
25 15
16 17
23129227 6216 7209 7 6 19 2418
27
14
Page 16
DRAWING
003
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
GEAR-BOX
1 0670.16.184 Shim th. 1 1
1 0670.16.185 Shim th. 1.2 1
1 713.1.014.1A Shim th. 1.5 1
1 713.1.014.1B Shim th. 1.7 1
1 713.1.014.1E Shim th. 1.6 1
2 76402.0003 Needle bearing 1
3 172.1.015.1A Driven gear 1st sp. 1
4 0670.16.155 Shim th. 1 1
5 172.1.018.1A Driven gear 4th sp. 1
6 0670.16.145 Snap ring 6
7 856.1.001.1A Grooved washer th. 0.5 6
8 172.1.017.1A Driven gear 3rd sp. 1
9 701.4.005.1A Needle bearing 4
10 172.1.019.1A Driven gear 5th sp. 1
11 172.1.016.1A Driven gear 2nd sp. 1
12 0670.16.150 Shim th. 0.5 2
13 149.1.029.1A Gearbox lay shaft 1
14 713.1.014.1A Shim th. 1.5 1
15 449.1.003.3A Chain sprocket Z=15 1
16 826.1.011.1A Sprocket keep plate 1
17 8A00.67997 Screw 2
18 0251.47.050 Shim th. 1 1
18 0251.47.054 Shim th. 1.2 1
18 852.1.108.1AH Shim th. 0.9 1
18 852.1.108.1AL Shim th. 1,1 1
18 852.1.108.1AN Shim th. 1,3 1
19 0670.16.023 Driving gear 2nd sp. 1
20 172.1.014.1A Driving gear 5th sp. 1
21 172.1.012.1A Driving gear 3rd sp. 1
22 172.1.013.1A Driving gear 4th sp. 1
23 149.1.028.1B Gearbox main shaft 1
24 0670.16.163 Shim th. 1.8 1
24 0670.16.164 Shim th. 2 1
24 0670.16.184 Shim th. 1 1
24 713.1.014.1B Shim th. 1.7 1
24 713.1.014.1D Shim th. 1,1 1
24 713.1.014.1F Shim th. 1.9 1
25 0670.16.170 Shim th. 0.8 1
25 0670.16.171 Shim th. 1 1
25 852.1.105.1AB Shim th. 0.9 1
25 852.1.105.1AD Shim th. 1,1 1
25 852.1.105.1AG Shim th. 0.7 1
26 150.2.052.1A Complete lay shaft 1
27 150.2.051.1B Complete main shaft 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
15
Page 17
DRAWING
004
CLUTCH
124
7
5
3
6
16
18
17
8 9 10 11 12 13 14 15 19 20
16
Page 18
DRAWING
004
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
CLUTCH
1 771.5.043.2B Screw 6
2 841.1.031.1A Retainer 6
3 818.1.010.1B Clutch control pin 1
4 799.1.099.1A Clutch spring 6
5 194.2.003.1A Pressure plate 1
6 702.5.008.1A Bearing 1
7 190.2.009.2B Clutch plates set 1
8 750.1.007.1A Nut 1
9 851.1.004.1A Lock washer 1
10 196.1.016.2A Clutch drum 1
11 856.1.014.1A Shim 1
12 170.2.031.2A Primary drive gears pair 1
13 881.1.026.1A Inner ring 1
14 702.5.015.1A Bearing 1
15 713.1.119.1A Spacer 1
16 117.2.007.1A Clutch control rod 1
17 886.4.043.1A O-ring 1
18 93823.2018 O-ring 2
19 195.4.003.1A Piston assembly 1
20 60N107335 Screw 3
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
17
Page 19
DRAWING
005
CLUTCH COVER
1
617 1913
21
20
3
1
2
5
4
8 9 10 11 12
1
7
5
18
22
7
16
14 15
1
18
Page 20
DRAWING
005
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
CLUTCH COVER
1 243.2.028.1AC Cover clutch side 1
2 771.5.083.2B Screw 1
3 771.5.081.2B Screw 3
4 254.4.001.1A Oil level sight glass 1
5 60N102510 Screw 4
6 486.1.051.1A Panel (BLACK) 1
7 771.5.072.2B Screw 2
8 0665.49.680 Bush 1
9 93784.2030 Seal ring 1
10 852.1.008.1A Shim th. 0.5 1
11 73503.3075 Circlip 1
12 93827.0114 O-ring 1
13 0400.49.240 Locating bush 1
14 93823.2082 O-ring 1
15 893.1.005.1A Cap 1
16 734306N01 Washer 1
17 243.1.029.1A Cover 1
18 0675.49.540 Spacer 2
19 779.5.031.1A Screw 6
20 0150.70.120 Gasket th.2 1
21 539.4.030.1A Switch 1
22 881.1.030.1A Holder 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
19
Page 21
DRAWING
006
CRANKSHAFT
4
3
2
11
15 16
6
5
14
5
4
8
79
10
8
8
1
6
5
8
7
5
9
Rif. 12
1213
Tav. 4
11
20
Page 22
DRAWING
006
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
CRANKSHAFT
1 146.2.073.1A Crankshaft 1
2 779.1.109.1A Special screw 1
3 780.1.016.1A Cap 1
4 72121.2106 Threaded dowel 2
5 158.2.007.1A Connecting rods pair 1
6 0660.47.290 Standard bush 2
7 74224.0570 Pin 4
8 0660.47.230 Standard half-bearing 4
9 779.1.007.2A Special screw 4
10 74172.1008 Woodruff key 1
11 852.1.104.1A Shim th. 1.9 2
11 852.1.104.1B Shim th. 1.95 2
11 852.1.104.1C Shim th. 2 2
11 852.1.104.1D Shim th. 2,05 2
11 852.1.104.1E Shim th. 2,1 2
11 852.1.104.1F Shim th. 2,15 2
11 852.1.104.1G Shim th. 2.2 2
11 852.1.104.1H Shim th. 2.25 2
11 852.1.104.1I Shim th. 2.3 2
11 852.1.104.1J Shim th. 2.35 2
11 852.1.104.1K Shim th. 2,4 2
11 852.1.104.1L Shim th. 2,45 2
11 852.1.104.1M Shim th. 2.5 2
11 852.1.104.1N Shim th. 2.55 2
12 0619.47.030 Lock washer 1
13 0660.47.040 Nut 1
14 0755.29.025 Woodruff key 1
15 799.1.051.2A Spring washer 1
16 750.1.012.2A Nut 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
21
Page 23
DRAWING
007
7
1
CYLINDERS - PISTONS
2
5
2
GENUINE PARTS
Part - code N.
Quantity N.
4
Made in Italy
6
6
1
7
2
10
3
11
9
8
22
Page 24
DRAWING
007
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
CYLINDERS - PISTONS
1 0400.17.030 O-ring 2
2 463.2.019.6A O-ring 3
3 121.1.027.1A Piston pin 2
4 120.2.076.1A Vertical cylinder-piston fit 1
5 791.2.014.1C Head-cylinder gaskets set 1
6 786.1.069.1A Cylinder-crankcase gasket th. 0.4 2
7 0805.17.125 Bush 2
8 120.2.075.1A Horizontal cylinder-piston fit 1
9 122.2.073.1A Complete piston 2
10 884.4.017.1A Piston pin circlip 4
11 121.2.023.2A Piston rings set 2
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
23
Page 25
DRAWING
008
TIMING
17
24
18
19
10
6
7
14
16
22 23 23
21
20
3
9
12 13 14 15
11
13
4
16
8
9
21
20
5
1
18 19
24 2
17
24
Page 26
DRAWING
008
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
TIMING
1 60N102509 Screw 1
2 245.1.048.1A Horizontal timing belt cover 1
3 74172.1008 Woodruff key 1
4 147.1.015.1A Lay shaft 1
5 60N102510 Screw 2
6 0400.29.040 Lock washer 1
7 0124.40.060 Hexagon nut 1
8 245.1.047.1A Vertical timing belt cover 1
9 772.1.010.2A Screw 2
10 171.2.020.2B Timing gears pair 1
11 72944.1542 Elastic-stop ring nut 1
12 0797.69.040 Washer 1
13 255.1.001.1B Timing belt roller 2
14 737.4.007.2A Timing drive toothed belt 2
15 856.1.002.1A Belt roller separating washer sp. 2 1
16 451.1.025.1A Fixed tensioner assembly 2
17 451.2.006.1A Complete vertical cylinder tensioner roller 2
18 0214.07.350 Ring 2
19 75166.1238 Bearing 4
20 771.5.122.2B Screw 2
21 462.3.003.7A Washer 2
22 882.1.003.1A Snap ring 1
23 0755.29.025 Woodruff key 2
24 771.5.064.2B Screw 4
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
25
Page 27
DRAWING
009
FILTERS AND OIL PUMP
1
31 30 29 2 3 7 25 5 8 9
10 11 26
1
24 13 2512
15 4
15
22
28
27
32
23
16
17
21
20
33
6
1
14 18 193435
26
Page 28
DRAWING
009
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
FILTERS AND OIL PUMP
1 174.2.025.3A Complete oil pump 1
2 247.1.104.1A Pump cover 1
3 174.1.002.1A Pump driving gear 1
4 886.4.037.1A O-ring 1
5 250.2.030.3A Pump body 1
6 779.5.020.1A Screw 3
7 680.1.001.1B Woodruff key 1
8 771.5.129.2B Screw 2
9 462.4.037.8A Spring washer 2
10 60N102510 Screw 1
11 462.4.037.6A Spring washer 1
12 174.1.025.1A Pump drive gear 1
13 710.1.001.1A Bush 1
14 873.1.039.1A Cap 1
15 0759.49.280 Locating bush 2
16 220.3.208.3A Gasket 1
17 0660.49.053 Oil drain plug with magnet 1
18 852.5.005.1A Gasket th.1,5 1
19 894.2.009.1A Oil filter 1
20 0905.49.960 Oil filter cartridge 1
21 0670.49.910 Nipple 1
22 93827.0114 O-ring 1
23 779.1.198.1A Cap 1
24 76267.0012 Snap ring 1
25 73500.1237 Circlip 2
26 0670.49.310 Reduction bush 1
27 779.1.162.1A Cap 1
28 0150.70.120 Gasket th.2 1
29 593.1.018.1A Bypass valve 1
30 799.1.055.1A Bypass spring 1
31 780.1.018.1A Bypass cap 1
32 852.1.120.1A Aluminium gasket 1
33 779.5.019.1A Screw 3
34 420.2.001.0A Gasket th.1 1
35 552.4.004.2A Thermistor 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
27
Page 29
DRAWING
010
HALF CRANKCASES
2
5
8
7
6
33
34
1
3 2 4
8
7
22
9
1
20
18
32
13
12
11
10
9
6
23
24
1
4
32 2
26
37
12
14
15
36
1
27
23
18
17
16
24
1
28
31
38
30
29
25
21
1
35
19
1
28
Page 30
DRAWING
010
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
HALF CRANKCASES
1 225.2.046.1B Complete half-crankcases pair 1
2 0755.49.265 Seal ring 4
3 76400.0004 Needle bearing 4
4 76266.2668 Snap ring 2
5 94247.0014 Fluid sealant 1
6 0377.49.270 Stud bolt for fastening head cylinder 8
7 856.1.025.1A Special washer 8
8 0670.92.010 Nut 8
9 75791.1747 Bearing 2
10 72094.1616 Screw 2
11 0367.49.275 Keep plate 1
12 75120.2567 Bearing 2
13 0660.49.268 Seal ring 1
14 713.1.140.1A Spacer 2
15 60N101079 Screw 2
16 93785.1830 Seal ring 1
17 75794.1542 Bearing 1
18 73503.3380 Circlip 2
19 420.2.006.4A Aluminium gasket 2
20 702.5.008.1A Bearing 1
21 710.1.069.1A Bearing holder bush 1
22 463.4.001.1A Seal ring 1
23 0011.52.010 Locating dowel 2
24 771.5.136.2B Screw 6
25 75143.3380 Bearing 1
26 779.1.029.1A Special screw 1
27 771.5.080.2B Screw 1
28 93827.0114 O-ring 1
29 75191.3380 Bearing 1
30 710.1.070.1A Bearing holder bush 1
31 771.5.072.2B Screw 5
32 711.1.095.1A Bush 2
33 593.1.003.1B Breather valve 1
34 93823.3156 O-ring 1
35 0665.49.365 Cap 2
36 779.1.182.1A Special screw 1
37 420.2.006.2A Aluminium gasket 1
38 829.1.134.1A Ring 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
29
Page 31
DRAWING
011
ALTERNATOR COVER
6
13 4 5 6
17
89 10
15
19
3
1
2
6
7
19
11
17
24
16
12
22
23
14
18
21 20 19
17
25
26
25
30
Page 32
DRAWING
011
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
ALTERNATOR COVER
1 264.4.014.3B Generator 1
2 73503.3380 Circlip 1
3 702.5.008.1A Bearing 1
4 247.1.083.1AE Chain cover 1
5 771.5.064.2B Screw 2
6 60N102510 Screw 8
7 254.1.001.1A Oil level sight glass 1
8 886.4.035.1A O-ring 1
9 247.1.002.1BC Cover 1
10 777.5.049.2C Screw 2
11 93783.1524 Seal ring 1
12 552.4.020.1A Sensor 1
13 60N102509 Screw 1
14 771.4.006.1A Screw 8
15 94247.0014 Fluid sealant 1
16 771.5.073.2B Screw 3
17 60N102511 Screw 3
18 0400.49.240 Locating bush 2
19 242.2.045.1A Generator cover 1
20 830.1.144.1A Bracket 1
21 771.5.040.2B Screw 2
22 788.1.066.1AA Gasket th.0,6 2
22 788.1.066.1AB Gasket th.0,8 1
22 788.1.066.1AC Gasket th.1,0 1
23 886.4.003.1A O-ring 1
24 60N107335 Screw 1
25 734306N01 Washer 2
26 881.1.030.1A Holder 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
31
Page 33
DRAWING
012
ELECTRIC STARTER AND IGNITION
17
19 18
20
9
8
1321
16
15
14
12
11
9
10
67
5
2
1
1
3
4
32
Page 34
DRAWING
012
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
ELECTRIC STARTER AND IGNITION
1 270.4.001.1A Complete starter motor (8-9 included) 1
2 734006N01 Spring washer 1
3 417.9.050.6A Nut 1
4 788.1.054.1A Starter motor gasket 1
5 60N102510 Screw 3
6 176.1.001.1A Starter motor sprocket 1
7 73500.1237 Circlip 1
8 0660.50.020 Intermediate gear pin 1
9 856.1.071.1A Washer 2
10 176.1.009.1A Intermediate gear assembly 1
11 73500.1440 Circlip 1
12 771.5.078.2B Screw 1
13 160.1.057.1A Flange 1
14 863.1.002.1A Locating pin 1
15 0647.29.040 Check ring 1
16 276.1.025.1B Ignition flywheel 1
17 0619.50.065 Washer 1
18 881.1.010.1C Inner ring 1
19 701.4.003.1A Needle bearing 1
20 173.1.012.3A Electric starter driven gear 1
21 701.4.007.1A Starter clutch 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
33
Page 35
DRAWING
013
HEAD : TIMING
13
15
22
23
18
24
21
19
20
21
5
4
17
3
14
2
1
7
8
9
16
15
13
18
24
19
20
11
4
17
3
6
14
2
1
9
8
12
7
10
6
34
Page 36
DRAWING
013
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
HEAD : TIMING
1 72944.1542 Elastic-stop ring nut 2
2 0797.69.040 Washer 2
3 255.1.014.1A Timing belt roller 2
4 856.1.002.1A Belt roller separating washer sp. 2 2
5 235.1.027.1A Vertical rubber cap 1
6 771.5.040.2B Screw 6
7 0204.70.105 Seal ring 2
8 75120.1747 Bearing 2
9 713.1.007.1A Belt roller spacer 2
10 60N107335 Screw 4
11 235.1.026.1A Horizontal rubber cap 1
12 0370.92.050 Stud bolt 4
13 73503.3683 Circlip 2
14 852.1.124.1A Special washer 2
15 74172.1008 Woodruff key 2
16 148.1.123.1A Horizontal head camshaft 1
17 160.1.076.1A Flange 2
18 0660.92.310 Cap gasket 2
19 75173.1542 Bearing 2
20 235.2.031.1A Cap with bearing 2
21 771.5.066.2B Screw 7
22 148.1.122.1A Vertical head camshaft 1
23 417.5.033.7A Stud bolt 4
24 73503.3380 Circlip 2
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
35
Page 37
DRAWING
014
VERTICAL HEAD
17 19Scodellino ritorno
Return cap
Coupelle retour
Einstellhülse
0727.92.050
0727.92.150 5,05
0727.92.051 5,10
0727.92.151 5,15
0727.92.052 5,2
0727.92.152 5,25
0727.92.053 5,30
0727.92.153 5,35
0727.92.054 5,4
0727.92.154 5,45
0727.92.055 5,50
0727.92.155 5,55
0727.92.056 5,6
0727.92.156 5,65
0727.92.057 5,70
0727.92.157 5,75
0727.92.058 5,8
0727.92.158 5,85
0727.92.059 5,90
0727.92.159 5,95
0727.92.060
0727.92.160 6,05
0727.92.061 6,10
0727.92.161 6,15
0727.92.062 6,2
0727.92.162 6,25
0727.92.063 6,30
0727.92.163 6,35
0727.92.064 6,4
0727.92.164 6,45
0727.92.065 6,50
0727.92.165 6,55
0727.92.066 6,6
0727.92.166 6,65
0727.92.067 6,70
0727.92.167 6,75
0727.92.068 6,8
0727.92.168 6,85
0727.92.069 6,90
0727.92.169 6,95
0727.92.070
0727.92.170 7,05
0727.92.071 7,10
0727.92.171 7,15
0727.92.072 7,2
0727.92.172 7,25
0727.92.073 7,30
0727.92.173 7,35
0727.92.074 7,4
0727.92.174 7,45
0727.92.075 7,50
0727.92.175 7,55
0727.92.076 7,6
0727.92.176 7,65
0727.92.077 7,70
0727.92.177 7,75
0727.92.078 7,8
0727.92.178 7,85
0727.92.079 7,90
0727.92.179 7,95
0727.92.080
0727.92.180 8,05
0727.92.081 8,10
0727.92.181 8,15
0727.92.082 8,2
0727.92.182 8,25
0727.92.083 8,3
0727.92.183 8,35
0727.92.084 8,4
0727.92.184 8,45
0727.92.085 8,5
0727.92.185 8,55
0727.92.086 8,6
0727.92.186 8,65
0727.92.087 8,7
0727.92.187 8,75
0727.92.088 8,8
0727.92.188 8,85
0727.92.089 8,9
0727.92.189 8,95
0727.92.090
0727.92.092 9,2
0727.92.094 9,4
0727.92.096 9,6
12
11
10
9
8
7
16
27
26
25
28
VERTICAL HEAD
13
1
15
12
13
14
18
12
19
15
0723.92.500
0723.92.535 2,05
0723.92.501 2,1
8
7
0723.92.545 2,15
0723.92.502 2,2
0723.92.555 2,25
0723.92.503 2,3
0723.92.565 2,35
0723.92.504 2,4
12
14
15
19 18 17 15 8
17
16
8
6
5
4
20 9 10
24
23
3
2
87310201A ¯20
87310051A ¯18
87310011A ¯16
22 21
87310021A ¯10
LOCTITE 510
Registro bilanciere
Adjustment
Ventilkäppchen
0723.92.575 2,45
0723.92.505 2,5
0723.92.585 2,55
0723.92.506 2,6
0723.92.595 2,65
0723.92.507 2,7
0723.92.605 2,75
0723.92.508 2,8
0723.92.615 2,85
0723.92.509 2,9
0723.92.625 2,95
0723.92.510
0723.92.635 3,05
0723.92.511 3,1
0723.92.645 3,15
0723.92.512 3,2
0723.92.655 3,25
0723.92.513 3,3
0723.92.675 3,35
0723.92.514 3,4
0723.92.685 3,45
0723.92.515 3,5
0723.92.695 3,55
0723.92.516 3,6
0723.92.705 3,65
0723.92.517 3,7
0723.92.715 3,75
0723.92.518 3,8
0723.92.725 3,85
0723.92.519 3,9
0723.92.735 3,95
0723.92.520
0723.92.745 4,05
0723.92.521 4,1
0723.92.522 4,2
0723.92.523 4,3
0723.92.524 4,4
0723.92.525 4,5
0723.92.526 4,6
0723.92.527 4,7
0723.92.528 4,8
0723.92.529 4,9
0723.92.530
36
Page 38
DRAWING
014
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
VERTICAL HEAD
1 301.2.105.1A Complete vertical head 1
2 304.1.021.1A Intake valve seat 1
2 304.1.021.1AB Oversize intake valve seat 0.03 1
2 304.1.021.1AC Oversize intake valve seat 0.06 1
3 304.1.022.1A Exhaust valve seat 1
3 304.1.022.1AB Oversize exhaust valve seat 0.03 1
3 304.1.022.1AC Oversize exhaust valve seat 0.06 1
4 303.1.003.1A Intake valve cast iron guide 1
4 303.1.003.1AB Oversize valve guide 0.03 1
4 303.1.003.1AC Oversize valve guide 0.06 1
4 303.1.003.1AD Oversize valve guide 0.09 1
5 303.2.004.1C Exhaust valve bronze guide 1
5 303.2.004.1CB Oversize valve guide 0.03 1
5 303.2.004.1CC Oversize valve guide 0.06 1
5 303.2.004.1CD Oversize valve guide 0.09 1
6 764.1.013.1A Valve seal 1
7 799.1.061.1A Closing rocker spring 2
8 0619.92.180 Shim th. 0.3 6
8 0670.92.190 Shim th. 2 4
8 0765.92.185 Shim th. 1 2
8 0765.92.190 Shim th. 0.5 4
8 0765.92.195 Shim th. 0.1 1
8 0765.92.205 Shim th. 0.2 8
9 788.1.032.2A Valve cover gasket 2
10 240.1.010.1AB Valve cover 2
11 60N102509 Screw 4
12 0647.70.010 Shim 4
13 0375.92.210 Spring 2
14 208.1.012.4A Opening rocker 2
15 821.1.115.1A Rocker shaft 4
16 209.1.012.4A Closing rocker 2
17 0727.92.239 See table 2
18 669.1.003.1A Split rings 4
19 0723.92.239 See table 2
20 764.1.009.1A Valve seal 1
21 211.1.015.2A Exhaust valve 1
22 210.1.015.2A Intake valve 1
23 420.2.000.7A Gasket 1
24 779.1.133.1A Screw 1
25 0675.49.540 Spacer 1
26 60N102510 Screw 1
27 829.1.358.1A Holder 1
28 734306N01 Washer 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
37
Page 39
DRAWING
015
HORIZONTAL HEAD
14 Scodellino ritorno
Return cap
Coupelle retour
Einstellhülse
0727.92.050
0727.92.150 5,05
0727.92.051 5,10
0727.92.151 5,15
0727.92.052 5,2
0727.92.152 5,25
0727.92.053 5,30
0727.92.153 5,35
0727.92.054 5,4
0727.92.154 5,45
0727.92.055 5,50
0727.92.155 5,55
0727.92.056 5,6
0727.92.156 5,65
0727.92.057 5,70
0727.92.157 5,75
0727.92.058 5,8
0727.92.158 5,85
0727.92.059 5,90
0727.92.159 5,95
0727.92.060
0727.92.160 6,05
0727.92.061 6,10
0727.92.161 6,15
0727.92.062 6,2
0727.92.162 6,25
0727.92.063 6,30
0727.92.163 6,35
0727.92.064 6,4
0727.92.164 6,45
0727.92.065 6,50
0727.92.165 6,55
0727.92.066 6,6
0727.92.166 6,65
0727.92.067 6,70
0727.92.167 6,75
0727.92.068 6,8
0727.92.168 6,85
0727.92.069 6,90
0727.92.169 6,95
0727.92.070
0727.92.170 7,05
0727.92.071 7,10
0727.92.171 7,15
0727.92.072 7,2
0727.92.172 7,25
0727.92.073 7,30
0727.92.173 7,35
0727.92.074 7,4
0727.92.174 7,45
0727.92.075 7,50
0727.92.175 7,55
0727.92.076 7,6
0727.92.176 7,65
0727.92.077 7,70
0727.92.177 7,75
0727.92.078 7,8
0727.92.178 7,85
0727.92.079 7,90
0727.92.179 7,95
0727.92.080
0727.92.180 8,05
0727.92.081 8,10
0727.92.181 8,15
0727.92.082 8,2
0727.92.182 8,25
0727.92.083 8,3
0727.92.183 8,35
0727.92.084 8,4
0727.92.184 8,45
0727.92.085 8,5
0727.92.185 8,55
0727.92.086 8,6
0727.92.186 8,65
0727.92.087 8,7
0727.92.187 8,75
0727.92.088 8,8
0727.92.188 8,85
0727.92.089 8,9
0727.92.189 8,95
0727.92.090
0727.92.092 9,2
0727.92.094 9,4
0727.92.096 9,6
32
31
30
29
27
26
7
6
87310201A Ø20
87310051A Ø18
87310011A Ø16
87310021A Ø10
LOCTITE 510
28
9
8
5 4
13
25
24
11
10
16
14
17
8
18
33
23
19
20
10
22
21
8
9
10
18
19
3 2
1
8
14
15
17 20
16
16 Registro bilanciere
Adjustment
Ventilkäppchen
0723.92.500
0723.92.535 2,05
0723.92.501 2,1
0723.92.545 2,15
0723.92.502 2,2
0723.92.555 2,25
0723.92.503 2,3
0723.92.565 2,35
0723.92.504 2,4
10
11
12
0723.92.575 2,45
0723.92.505 2,5
0723.92.585 2,55
0723.92.506 2,6
0723.92.595 2,65
0723.92.507 2,7
0723.92.605 2,75
0723.92.508 2,8
0723.92.615 2,85
0723.92.509 2,9
0723.92.625 2,95
0723.92.510
0723.92.635 3,05
0723.92.511 3,1
0723.92.645 3,15
0723.92.512 3,2
0723.92.655 3,25
0723.92.513 3,3
0723.92.675 3,35
0723.92.514 3,4
0723.92.685 3,45
0723.92.515 3,5
0723.92.695 3,55
0723.92.516 3,6
0723.92.705 3,65
0723.92.517 3,7
0723.92.715 3,75
0723.92.518 3,8
0723.92.725 3,85
0723.92.519 3,9
0723.92.735 3,95
0723.92.520
0723.92.745 4,05
0723.92.521 4,1
0723.92.522 4,2
0723.92.523 4,3
0723.92.524 4,4
0723.92.525 4,5
0723.92.526 4,6
0723.92.527 4,7
0723.92.528 4,8
0723.92.529 4,9
0723.92.530
38
Page 40
DRAWING
015
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
HORIZONTAL HEAD
1 301.2.104.1A Complete horizontal head 1
2 303.2.004.1C Exhaust valve bronze guide 1
2 303.2.004.1CB Oversize valve guide 0.03 1
2 303.2.004.1CC Oversize valve guide 0.06 1
2 303.2.004.1CD Oversize valve guide 0.09 1
3 303.1.003.1A Intake valve cast iron guide 1
3 303.1.003.1AB Oversize valve guide 0.03 1
3 303.1.003.1AC Oversize valve guide 0.06 1
3 303.1.003.1AD Oversize valve guide 0.09 1
4 304.1.022.1A Exhaust valve seat 1
4 304.1.022.1AB Oversize exhaust valve seat 0.03 1
4 304.1.022.1AC Oversize exhaust valve seat 0.06 1
5 304.1.021.1A Intake valve seat 1
5 304.1.021.1AB Oversize intake valve seat 0.03 1
5 304.1.021.1AC Oversize intake valve seat 0.06 1
6 210.1.015.2A Intake valve 1
7 211.1.015.2A Exhaust valve 1
8 0619.92.180 Shim th. 0.3 6
8 0670.92.190 Shim th. 2 4
8 0765.92.185 Shim th. 1 2
8 0765.92.190 Shim th. 0.5 4
8 0765.92.195 Shim th. 0.1 1
9 799.1.061.1A Closing rocker spring 2
10 821.1.115.1A Rocker shaft 4
11 788.1.032.2A Valve cover gasket 2
12 240.1.010.1AB Valve cover 1
13 60N102509 Screw 8
14 0727.92.239 See table 2
15 669.1.003.1A Split rings 4
16 0723.92.239 See table 2
17 208.1.012.4A Opening rocker 2
18 209.1.012.4A Closing rocker 2
19 0375.92.210 Spring 2
20 0647.70.010 Shim 4
21 764.1.009.1A Valve seal 1
22 764.1.013.1A Valve seal 1
23 420.2.000.7A Gasket 1
24 240.1.028.1A Intake valve cover 1
25 300160 Rubber cap 2
26 73500.1747 Snap ring 1
27 713.1.137.1A Spacer 1
28 886.4.028.1A O-Ring 2
29 787.1.008.1A Aluminium gasket 1
30 703.1.019.1A Ring nut 1
31 829.1.235.1A Holder sensor 1
32 552.4.013.1A Sensor 1
33 779.1.133.1A Screw 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
39
Page 41
DRAWING
016
INLET DICT
28
1
6
81087
810 816
4
3
4
17
6
3
15
2
26
5
1
18
27
3
9
20
13
8
25
11
12
19
24
14
23
21
22
40
Page 42
DRAWING
016
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
INLET DICT
1 282.4.033.1A Feed unit assembly 1
2 284.4.002.1A Potentiometer 1
3 741.4.042.1A Clamp 4
4 801.1.027.1A Hose 2
5 741.4.004.1A Clamp 2
6 741.4.041.1A Clamp "R" 1
7 590.1.154.1A Tube 1
8 287.4.024.1B Clamp 6
9 741.4.040.1A Clamp "M" 1
10 280.4.007.1A Injector 2
11 140.2.014.1A Intake duct 2
12 0250.70.223 Aluminium gasket 2
13 776.5.032.2A Screw 2
14 463.2.022.1A O-ring 2
15 748.4.034.1A Nut 4
16 590.1.104.1A Tube 1
17 590.1.162.1A Tube 1
18 590.1.084.1A Tube 1
19 830.1.091.2A Holder 1
20 0000.62729 Screw 1
21 283.4.003.1A Pressure regulator 1
22 73503.3449 Circlip 1
23 886.4.022.1A O-ring 1
24 886.4.021.1A O-ring 1
25 0335.03.465 El-stop nut 1
26 70620.5212 Screw 2
27 827.1.241.1A Regulator bracket 1
28 741.4.067.1A Clamp 2
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
41
Page 43
DRAWING
017
STANDS
15
23
10 9 8 7 6
4
42
Page 44
DRAWING
017
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
STANDS
1 556.2.027.1A Side stand 1
2 771.5.754.2B Screw 1
3 556.1.024.1A Side stand 1
4 779.4.005.1A Screw 1
5 539.1.023.1A Switch 1
6 799.1.089.1A Spring 1
7 799.1.088.1A Outer spring 1
8 827.1.139.2B Plate 1
9 556.1.018.1C Pivot 1
10 749.4.045.2G Nut 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
43
Page 45
DRAWING
018
ELECTRIC SYSTEM
17
16
25
19
26
6
27
5222324
2
7
10
1
4
28
25
15
9
8
14
21
11
12
16
18
3
20
21
137
44
Page 46
DRAWING
018
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
ELECTRIC SYSTEM
1 286.4.051.1A Injection control unit 1
2 771.5.072.2B Screw 2
3 510.1.180.1A Electric wiring 1
4 541.4.003.1A Relay 2
5 0000.66527 End section 4
6 433.1.252.1D Sticker schema fusibili 1
7 772.5.008.1A Screw 2
8 540.4.010.1A Voltage rectifier 1
9 60N102509 Screw 1
10 771.5.073.2B Screw 1
11 0000.56803 Connector 1
12 8000.66526 Connector 1
13 670.4.007.1A Spark plug 2
14 516.4.003.1A Horn (BLACK) 1
15 389.4.014.1A Fuse 40A 1
16 380.4.004.1B Coil 2
17 827.1.236.1A Plate 1
18 775.1.013.1A Screw 2
19 749.5.002.1A El-stop nut 2
20 0000.63150 Insert 2
21 672.1.013.1A Spare cap 2
22 741.1.012.1A Clamp 3
23 0691.91.030 Clamp 37
24 741.4.038.1A Clamp 7
25 734305N01 Washer 3
26 246.1.061.1A Case cover 1
27 389.4.006.1A Fuse 3A 1
27 389.4.007.1A Fuse 7.5A 1
27 389.4.008.1A Fuse 15A 1
27 389.4.010.1A Fuse 30A 1
27 389.4.013.1A Fuse 20A 1
27 389.4.015.1A Fuse 5A 1
27 389.4.016.1A Fuse 10A 2
28 771.5.040.2B Screw 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
45
Page 47
DRAWING
019
BATTERY BOX MOUNT
15
14
13
12
16
11
2
1
5
10
4
3
7
6
10
8
9
6
8
46
Page 48
DRAWING
019
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
BATTERY BOX MOUNT
1 462.4.037.6A Spring washer 2
2 417.9.050.6A Nut 2
3 514.1.031.1A Solenoid starter-starter motor cable 1
4 397.4.001.1B Remote switch 1
5 821.1.054.1A Pin 2
6 748.4.034.1A Nut 4
7 764.1.029.1A Rubber pad 2
8 779.1.239.1A Special screw 4
9 830.1.228.1A Bracket 1
10 700.1.031.1A Vibration damper 4
11 829.1.283.1B Battery box mount 1
12 829.1.285.1A Battery carpet 1
13 0000.56525 Screw 4
14 395.4.013.1A Battery 1
15 759.1.006.1A Spring hook 1
16 779.1.088.1A Screw 2
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
47
Page 49
DRAWING
020
EXHAUST SYSTEM
MARCA E CODICE
MAKE AND CODE
MARQUET ET CODE
FABRIKAT UND CODE
MARCA Y CODICE
12
11
10
942091415
1
6
1514
8
13
27 28 9 92029 824
16
23 22 3222 2526
191817
8
1
22 3 22
5
4
21
7
48
Page 50
DRAWING
020
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
EXHAUST SYSTEM
1 0370.84.005 Exhaust gasket 2
2 80A0.62649 Holder 2
3 764.1.024.1A Vibration damper pad 4
4 748.4.033.1A Nut 4
5 570.1.065.1A Horizontal head exhaust pipe 1
6 571.1.065.1A Vertical head exhaust pipe 1
7 780.1.007.1A Cap 2
8 741.1.028.1A Clamp 3
9 764.1.001.1A Rubber pad 4
10 716.1.055.1A Spacer 1
11 779.5.003.1A Screw 1
12 573.1.050.2D R.H. silencer 1
13 576.1.039.1A R.H. bracket 1
14 0000.30326 Washer 2
15 729906FN1 Nut 2
16 574.1.050.2D L.H. silencer 1
17 770.5.121.9E Screw 4
18 852.5.004.1C Washer 4
19 576.1.038.1A L.H. bracket 1
20 711.1.090.1A Bush 2
21 420.2.001.0A Gasket th.1 2
22 713.1.082.1A Spacer 8
23 0000.62729 Screw 2
24 0000.62730 Screw 2
25 779.1.247.1A Screw 2
26 829.1.124.2A Ring 1
27 779.5.018.1A Screw 1
28 711.1.090.1B Bush 1
29 852.1.118.1A Washer 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
49
Page 51
DRAWING
021
INSTRUMENT PANEL
2
1
3
4
7
5
6
7
6
50
Page 52
DRAWING
021
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
INSTRUMENT PANEL
1 406.1.016.1C Complete instrument panel (speedometer - miles) 1
2 779.1.214.1B Special screw 2
3 72276.1035 Screw 2
4 552.4.031.1A Sensor 1
5 470.1.062.1A Frame 1
6 748.4.026.1B Nut 4
7 700.1.038.1A Vibration damper pad 4
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
51
Page 53
DRAWING
022
FRONT HEAD-LIGHT
16
2
10
12
17
18
19
6
20
13
12
23
8
21
22
24
9
25
7
6
4314 15 11
5
1
52
Page 54
DRAWING
022
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
FRONT HEAD-LIGHT
1 520.4.006.1C Complete headlight 1
2 0000.36726 Bulb 2
3 521.4.005.1A Lamp holder 1
4 723.1.003.1A Cap 1
5 510.1.075.1A Electric wiring 1
6 60N102509 Screw 5
7 829.1.099.1D Headlight holder 1
8 830.1.194.1A R.H. bracket 1
9 530.4.007.2A Turn indicator 1
10 532.4.004.1A Cup 2
11 0796.38.305 Bulb 55/60W 1
12 8000.18048 Rubber pad 4
13 716.1.022.1A Spacer 4
14 758.1.014.1A Fairlead 1
15 0659.38.226 Bulb 4W 1
16 530.4.008.2A Turn indicator 1
17 750.5.001.1A Nut 4
18 707008N01 Screw 2
19 841.1.017.1A Retainer 2
20 830.1.195.1A L.H. bracket 1
21 881.1.023.1A Ring 1
22 0797.41.090 Fairlead rubber ring 1
23 734306N01 Washer 1
24 60N102510 Screw 1
25 60N107335 Screw 2
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
53
Page 55
DRAWING
023
PLATE HOLDER - REAR LIGHT
20
21
3
2
4
22
7
8
9
25
10
6
5
15
17
18
24
16
11
1
13
27
19
12
26
18
17
6
23
14
54
Page 56
DRAWING
023
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
PLATE HOLDER - REAR LIGHT
1 561.1.018.1A Number plate holder 1
2 0691.91.030 Clamp 1
3 525.4.007.2A Tail lamp 1
4 526.4.003.1A Cup 1
5 525.1.004.2A Tail lamp 1
6 532.4.004.1A Cup 2
7 0797.72.068 Vibration damper pad 2
8 0000.44099 Spacer 2
9 750.5.001.1A Nut 2
10 530.4.010.2A Turn indicator 1
11 510.1.076.1B Electric wiring 1
12 0000.44240 Nut 2
13 529.1.006.1A Cat's eye 2
14 530.4.009.2A Turn indicator 1
15 0000.36230 Bulb 1
16 8000.56443 Nut 2
17 749.5.001.1A Nut 6
18 852.5.001.1A Washer 6
19 529.1.009.1A Cat's eye 1
20 561.1.019.1A Plate 1
21 0000.62729 Screw 2
22 390.4.003.1A Two-light bulb 12V 5/21W 1
23 0000.36726 Bulb 2
24 60N107335 Screw 2
25 565.1.026.1A Protection 1
26 827.1.191.2A Plate 1
27 829.1.136.1A Holder 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
55
Page 57
DRAWING
024
FRONT FORK
13
8
5
7
14
16
11
15
12
4
3
17
2
1
10
9
4
6
56
Page 58
DRAWING
024
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
FRONT FORK
1 7150.22.594 Screw 2
2 856.1.057.1A Washer 2
3 8A00.69056 Screw 4
4 8000.70127 Clamp 4
5 350.1.015.1A Complete R.H. slider 1
6 529.1.001.1A Cat's eye 2
7 348.2.012.1A Complete pumping element 2
8 349.2.019.1A Complete cap 2
9 349.2.021.1A Seat kit 1
10 349.2.020.1A Overhaul kit 1
11 345.2.010.1A L.H. fork leg assembly 1
12 347.2.004.1A Spring kit 2
13 344.2.010.1A R.H. fork leg assembly 1
14 349.1.149.1A Check ring 2
15 350.1.014.1A Complete L.H. slider 1
16 349.1.157.1A Stanchion tube 2
17 349.1.152.1A Retainer 2
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
57
Page 59
DRAWING
025
FRONT AND REAR WHEELS
13
15
6
17181417
222119
24
2511
12
8
7
28
2
16
2023
27
7
5
434
1
10 9 26
58
Page 60
DRAWING
025
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
FRONT AND REAR WHEELS
1 501.2.067.1AA Front wheel rim (SILVER) 1
1 501.2.069.1AA Front wheel rim (BLACK) 1
1 501.2.069.1AB Front wheel rim 1
2 497.2.001.2A Valve 1
3 714.1.028.1A Inner spacer 1
4 75162.2566 Bearing 2
5 492.4.024.1A Brake disc 1
6 770.5.123.2B Screw 6
7 771.5.721.2B Screw 9
8 819.1.017.1A Front wheel spindle 1
9 714.1.045.1A Spacer 1
10 0000.64471 Seal ring 1
11 884.5.008.1A Circlip 1
12 0803.77.010 Valve 1
13 502.2.047.1A Rear wheel rim (SILVER) 1
13 502.2.049.1A Rear wheel rim 1
13 502.2.050.1A Rear wheel rim (BLACK) 1
14 714.1.046.1A Inner spacer 1
15 492.4.003.2A Brake disc 1
16 676.4.032.1A Chain 1
17 75162.3075 Bearing 2
18 700.1.005.1A Vibration damper 6
19 821.1.039.1B Pin 6
20 748.4.024.1A Nut 6
21 160.1.049.1B Rear sprocket flange 1
22 710.1.041.1C Bush 1
23 494.1.050.3A Ring gear z=46 1
24 75162.2566 Bearing 2
25 713.1.097.1C Spacer 1
26 748.1.014.1B Fork nut 1
27 676.2.040.1A Final drive kit 1
28 160.1.071.1A Cover 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
59
Page 61
DRAWING
026
HANDLEBAR AND CONTROLS
16
15
14
19
18
31
24
30
89
25
26
27
20
28
29
15
17
6
23
12
5
22
21
6
5
4
3
2
1
7
11
10
13
60
Page 62
DRAWING
026
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
HANDLEBAR AND CONTROLS
1 417.9.030.8A Nut 2
2 779.1.099.1A Special screw 2
3 342.2.015.1C Steering head base 1
4 852.1.103.1A Washer 1
5 930.1.004.1A Seal ring 2
6 702.4.004.1A Bearing 2
7 60N102557 Screw 4
8 523.4.013.1A R.H. rear-view mirror 1
9 523.4.012.1A L.H. rear-view mirror 1
10 772.5.004.1A Screw 2
11 460.1.076.2A Mudflap 1
12 703.1.013.1A Ring nut 1
13 799.1.058.1A Starter control transmission return spring 1
14 651.4.011.1A L.H. switch 1
15 8000.78345 Grips pair 1
16 360.1.035.1A Handlebar 1
17 70700.8N01 Screw 1
18 657.1.015.1A Flexible cable 1
19 0659.37.040 Cap 2
20 654.2.003.1A Throttle control 1
21 872.1.028.1A Cap 2
22 771.5.725.2B Screw 2
23 341.1.030.1C Steering head 1
24 360.1.033.1B Bracket 2
25 650.4.008.1B R.H. switch 1
26 656.1.036.1A Throttle control transmission 1
27 8000.66774 Screw 2
28 772.5.023.1A Screw 2
29 658.4.002.1B Cover 1
30 861.5.003.1A Spring pin 2
31 779.5.012.1A Screw 4
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
61
Page 63
DRAWING
027
CLUTCH CONTROL
3
8
9
1
7
5
1
4
3
2
12
11
10
6
8
62
Page 64
DRAWING
027
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
CLUTCH CONTROL
1 630.4.003.1A Clutch drive pump 1
2 626.4.003.1A Spare inspection window 1
3 0000.46664 Spare lever pin 1
4 626.1.002.1A Lever with dowel 1
5 0000.46665 Spare cap 1
6 632.1.009.2L Clutch control pipe (METAL PLAITED) 1
7 8000.47420 Spare bracket 1
8 420.2.001.0A Gasket th.1 4
9 779.1.058.2A Special screw 1
10 779.1.082.2A Filler 1
11 0000.33552 Bleed 1
12 612.4.005.1A Dust seal 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
63
Page 65
DRAWING
028
1
FRONT BRAKE
5
98
11
6
16
15
2
6
4
3
10
12
13
21
14
5
13
7
19
17
23
12
22
18
20
64
Page 66
DRAWING
028
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
FRONT BRAKE
1 624.4.024.1A Front brake pump 1
2 626.1.002.1A Lever with dowel 1
3 195.4.002.1A Rubber pad 1
4 72465.0214 Nut 2
5 539.4.004.1A Microswitch 1
6 0000.46664 Spare lever pin 1
7 612.4.005.1A Dust seal 1
8 776.5.307.2A Screw 2
9 0000.46665 Spare cap 1
10 626.4.003.1A Spare inspection window 1
11 8000.47420 Spare bracket 1
12 420.2.001.0A Gasket th.1 4
13 779.1.058.2A Special screw 3
14 618.4.042.1A Caliper pump pipe (METAL PLAITED) 1
15 612.4.017.1A Spring 1
16 612.4.014.1A Spare pins and spring 2
17 613.4.020.1A Pads pair 1
18 771.5.064.2B Screw 2
19 631.4.004.1A Spare bleed union 1
20 771.5.431.2B Screw 2
21 829.1.141.1B Fairlead 2
22 610.4.011.2B L.H. brake caliper 1
23 247.1.126.1A Cover 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
65
Page 67
DRAWING
029
REAR BRAKE
20
30
28
27
35
36
1
2
29
37
24
39
34
23
38
21
22
4
16
12
15
11
26
10
19
18
17
25
2
1
3
4
5
6
33
30
20
31
32
13
7
10
8
14
9
66
Page 68
DRAWING
029
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
REAR BRAKE
1 779.1.058.1A Special screw 2
2 420.2.001.0A Gasket th.1 4
3 619.4.018.1A Rear brake line 1
4 741.4.043.1A Clamp 2
5 80A0.53548 Pin 1
6 799.1.044.1A Spring 1
7 779.1.054.1AA Special screw 1
8 765.1.001.1A Rubber pad 1
9 457.2.007.1A Brake control lever 1
10 417.9.030.6A Nut 2
11 850.1.005.1A Spring 1
12 0000.59485 Washer 1
13 539.4.003.1B Switch 1
14 8000.59056 Bush 1
15 184.1.001.1A Fork 1
16 877.1.071.1A Tube 1
17 625.4.005.1AB Rear brake pump 1
18 772.5.023.1A Screw 2
19 8000.62586 Adjuster rod 1
20 611.4.002.4A Rear brake caliper 1
21 707006N02 Screw 1
22 893.4.005.1A Cap 1
23 585.4.001.1A Complete oil tank 1
24 825.1.030.1A Caliper holder plate 1
25 631.4.008.1A Spare union 1
26 626.4.013.1A Dust cover 1
27 771.5.124.2B Screw 2
28 734008N01 Spring washer 2
29 0670.80.010 Washer 2
30 0000.48744 Spare pins and spring 1
31 612.4.008.1A Dust seal 1
32 0000.39727 Spare bleed union 1
33 613.4.031.1A Pads pair 1
34 741.4.062.1A Clip 1
35 552.4.037.1A Sensor 1
36 771.5.066.2B Screw 1
37 713.1.192.1A Spacer 1
38 734406N01 Washer 1
39 8A00.67997 Screw 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
67
Page 69
DRAWING
030
FRAME
18
16
13
28
25
6
26
10
1
3
2
18
24
13
8
23
27
19
20
21
22
7 Dx
12 Sx
9
14
17 18
4
17 18
11
155
68
Page 70
DRAWING
030
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
FRAME
1 470.1.056.1AA Frame 1
1 470.1.056.1AB Frame (BLACK) 1
1 470.1.056.1AC Frame (BRONZE) 1
1 470.1.056.1AD Frame (SILVER) 1
2 764.1.029.1A Rubber pad 4
3 0000.44099 Spacer 4
4 764.1.015.1B Rubber pad 1
5 856.1.042.1A Nylon washer 4
6 518.4.004.1B Antenna 1
7 482.1.061.1BA R.H. body panel 1
8 729906FN1 Nut 4
9 750.1.060.1A Nut 1
10 598.4.018.1A Wrench without Transponder 1
11 598.2.030.1A Locks kit 1
12 482.1.055.1AA L.H. body panel 1
13 779.1.213.1A Screw 2
14 117.2.049.1A Rod 1
15 772.5.023.1A Screw 4
16 564.1.029.1BF Front mudguard (BLACK) 1
17 748.4.002.1A Nut 2
18 872.1.026.1A Cap 4
19 775.1.002.1A Screw 4
20 0000.63161 Washer 4
21 436.1.097.1DA Sticker (DUCATI MONSTER DARK) 2
22 0000.63150 Insert 4
23 652.4.006.1A Key-operated switch 1
24 598.4.016.1A Wrench with Transponder 1
25 246.1.060.2A Cover 1
26 827.1.211.1A Plate 1
27 779.1.221.1A Special screw 2
28 749.4.002.1A Nut 2
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
69
Page 71
DRAWING
031
GEARCHANGE LEVER - FOOT REST
9 10 7 12 10 9
419137
11 1 13333231
29
26
5
20
22
27
23
36
27
28
8
30
14
4
33 32 34
7
6
17
3
25
15
24
16
17
5
25
2
31118
2135
70
Page 72
DRAWING
031
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
GEARCHANGE LEVER - FOOT REST
1 8000.60683 Vibration damper 8
2 852.1.065.1A Washer 2
3 779.1.206.1A Screw 4
4 821.1.090.1A Pin 4
5 0170.91.730 Ring 4
6 8000.60700 Spring 2
7 8000.62562 R.H. foot-rest 2
8 824.1.024.1AB R.H. foot peg holder plate 1
9 847.4.002.1A Ball 2
10 827.1.161.1A Plate 2
11 852.1.099.1A Washer 2
12 8000.62655 Spring 2
13 779.1.204.1A Screw 2
14 417.9.030.6A Nut 1
15 0370.69.020 Gearchange control lever 1
16 76401.0002 Ball joint 1
17 763106N01 El-stop nut 2
18 824.1.023.1AB L.H. foot peg holder plate 1
19 779.1.212.1A Screw 2
20 0000.59485 Washer 1
21 716.1.056.1A Spacer 1
22 8000.59056 Bush 1
23 76401.0003 Ball joint 1
24 747.5.001.1A L.H. nut 1
25 779.5.011.1A Screw 1
26 80A0.53548 Pin 1
27 456.2.009.1A Gearchange lever 1
28 765.1.001.1A Rubber pad 1
29 8000.62563 L.H. foot-rest 2
30 117.1.028.1A Gearbox transmission rod 1
31 460.1.038.2B R.H. protection 1
32 0670.72.010 Washer 4
33 60N101077 Screw 4
34 460.1.039.2B L.H. protection 1
35 852.1.117.1A Washer 2
36 779.5.001.1A Screw 1
37 852.1.116.1A Washer 2
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
71
Page 73
DRAWING
032
SWINGARM AND CHAIN
16
6
3
7
13
12
3
9
1
8
7
6
10
17
11
5
4
18
14
3
15 19
1
2
141819151117
72
Page 74
DRAWING
032
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
SWINGARM AND CHAIN
1 748.1.023.1A Nut 2
2 819.1.030.1A Rear wheel spindle 1
3 779.1.119.2A Screw 8
4 447.1.038.1A Lower chain sliding shoe 1
5 433.1.265.1A Plate 1
6 872.1.019.1A Cap 2
7 884.4.007.1A Snap ring 2
8 369.1.004.1A Swingarm pivot 1
9 60N102584 Screw 2
10 370.1.021.1C Swingarm 1
11 771.5.004.2B Screw 2
12 852.1.001.1A Shim th. 1.8 2
12 852.1.002.1A Shim th. 0.2 3
12 852.1.003.1A Shim th. 0.1 1
13 447.1.037.1A Upper chain sliding shoer 1
14 779.1.037.1A Screw 2
15 852.1.079.1A Washer 2
16 565.1.030.1A Rear mudguard 1
17 373.1.029.1B Plate 2
18 373.1.023.1B Cover 2
19 373.1.028.1B Sliding shoe 2
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
73
Page 75
DRAWING
033
REAR SUSPENSION
14
1
3
2
2
3
7
8
5
4
6
13
4
10
9
Pos. 9
Tav. 30
15
4
13
12
4
11
74
Page 76
DRAWING
033
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
REAR SUSPENSION
1 372.2.008.3A Rocker assembly 1
2 93781.1824 Seal ring 2
3 701.4.006.1A Needle bearing 4
4 710.1.025.1A Bush 4
5 771.5.938.2B Screw 1
6 365.2.045.1A Shock absorber 1
7 771.5.937.2B Screw 1
8 715.1.004.1A Spacer 1
9 710.1.085.1A Spacer 1
10 771.1.015.1A Screw 1
11 771.1.008.1A Screw 1
12 710.1.046.1A Bush 1
13 848.4.011.1A Ball joint 2
14 710.1.088.1A Spacer 1
15 875.1.063.1A Tie rod 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
75
Page 77
DRAWING
034
AIR INDUCTIO AND OIL VENT
5
8
15
14
15
13
15
11
12
1
3
2
6
4
9
10
9
10
7
76
Page 78
DRAWING
034
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
AIR INDUCTIO AND OIL VENT
1 876.1.082.1A Filter/fuel tank outlet pipe 1
2 426.1.010.1A Filter element 1
3 246.2.011.1B Filter case cover 1
4 684.1.026.1A Stud bolt 2
5 60N102510 Screw 1
6 442.2.068.1A Air filter box 1
7 877.2.002.1A Tube 1
8 0670.72.010 Washer 1
9 821.1.075.1A Pin 3
10 8000.18048 Rubber pad 3
11 760.1.003.1A Hook 4
12 74223.1045 Spring pin 4
13 585.1.031.1A Oil breather tank 1
14 876.1.066.1A Breather pipe 1
15 741.4.002.1A Clamp 3
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
77
Page 79
DRAWING
035
FUEL TANK
13
14
111010
20
15
19
9
22
6
78
16
7
17
4
5
21
18
6
2
1
3
12
24
23
78
Page 80
DRAWING
035
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
FUEL TANK
1 586.1.037.1AF Fuel tank (BLACK) 1
2 435.1.032.1AA Sticker "DUCATI" (BLACK DARK) 2
3 866.1.040.1A Pad 2
4 777.5.019.7E Screw 2
5 760.4.006.1B Hook 1
6 712.1.013.3A Bush 2
7 80C0.05893 Shim 2
8 821.1.028.2B Pin 1
9 8000.62705 Split pin 1
10 60N102504 Screw 3
11 866.1.037.1A Pad 1
12 779.5.004.1A Screw 4
13 771.5.040.2B Screw 1
14 771.5.045.7E Screw 3
15 895.4.001.2A Tank cap 1
16 160.1.013.1B Flange 1
17 802.1.005.1A Hose 1
18 791.1.015.1A Gasket 1
19 779.5.007.1A Screw 8
20 791.1.039.1A Gasket 1
21 886.4.011.1A O-Ring 1
22 80B0.62672 Bracket 1
23 486.1.056.1A Panel (BLACK) 1
24 433.1.251.1A Plate sticker 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
79
Page 81
DRAWING
036
FUEL SYSTEM
14
A
12
14
B
8
1
8
8
B
7
11
7
A
2
10
3
4
13
9
6
5
80
Page 82
DRAWING
036
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
FUEL SYSTEM
1 829.1.021.2A Holder 1
2 430.4.004.1A Fuel pump 1
3 884.4.012.1A Circlip 1
4 425.4.008.1A Fuel filter 1
5 592.1.010.1A Low fuel sensor 1
6 789.1.001.1A Gasket 1
7 741.4.008.2A Clamp 2
8 741.4.004.1A Clamp 4
9 590.1.158.1A Tube 1
10 590.1.125.1A Tube 1
11 590.1.157.1A Tube 1
12 425.4.004.1B Fuel filter 1
13 590.1.178.1A Tube 1
14 741.4.066.1A Clamp 2
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
81
Page 83
DRAWING
037
SEAT
18
17
3
19
22
21
5
6
12
10
1
6
11
9
13
4
15
8
7
6
16
20
14
6
2
82
Page 84
DRAWING
037
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
SEAT
1 696.1.008.1A Spring 2
2 732.1.007.1A Helmet anti-theft wire 1
3 764.1.029.1A Rubber pad 1
4 829.1.236.1A Plate 1
5 60N101077 Screw 2
6 595.2.020.3C Seat 1
7 247.1.086.1A Cover 1
8 779.1.104.1A Special screw 2
9 779.5.010.1A Screw 2
10 734306N01 Washer 2
11 734006N01 Spring washer 2
12 829.2.237.1A Pin 1
13 60N102482 Screw 2
14 697.2.006.2B Tool bag 1
15 734005N01 Spring washer 2
16 913.7.060.1M Owner's manual 1
17 732.2.010.2A Flexible cable 1
18 777.5.036.2B Screw 2
19 598.4.019.1A Seat lock 1
20 565.1.017.2A Mudflap 1
21 729906FN1 Nut 2
22 0670.72.010 Washer 4
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
83
Page 85
DRAWING
038
FUEL INFEED
25
12
11
13
24
20 19 18 21
12
14
10
8
9
7
2
6
20
11
19
15
18
11
5
17
16
23
22
11
3
4
84
Page 86
DRAWING
038
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
FUEL INFEED
1 779.1.008.1A Screw 2
2 764.1.029.1A Rubber pad 2
3 8000.66308 Vibration damper pad 1
4 827.1.186.1A Bracket 1
5 590.1.141.1A Tube 1
6 827.1.157.1A Plate 1
7 716.1.043.1A Spacer 2
8 729906FN1 Nut 2
9 426.1.007.1B CANISTER filter 1
10 741.4.058.1A Clamp 1
11 741.4.063.1A Clamp 4
12 590.1.170.1A Filter/fuel tank outlet pipe 1
13 741.4.057.1A Clamp 1
14 590.1.191.1A Tube 1
15 741.4.059.1A Clamp 1
16 590.1.111.1B Tube 1
17 799.1.105.1A Spring 1
18 741.4.013.1B Clamp 2
19 814.1.091.2A Union 2
20 0250.70.223 Aluminium gasket 2
21 590.1.139.1A Tube 1
22 799.1.118.1B Spring 1
23 0361.98.850 Shunt valve 1
24 0691.91.030 Clamp 2
25 590.1.136.1A Breather pipe 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
85
Page 87
DRAWING
039
MARKING PLATES
2
3
1
86
Page 88
DRAWING
039
CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY CODE NO. DESCRIPTION VALIDITYNOTES NO. Q.TY
MARKING PLATES
1 433.1.170.1A Sticker 1
2 433.1.166.1A Label 2
3 433.1.164.1A Sticker 1
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
87
Page 89
INDEX
CODENo.
Drwg.
0000.30326 20 14
0000.33552 27 11
0000.36230 23 15
0000.36726 22 2
0000.36726 23 23
0000.39727 29 32
0000.44099 23 8
0000.44099 30 3
0000.44240 23 12
0000.46664 27 3
0000.46664 28 6
0000.46665 27 5
0000.46665 28 9
0000.48744 29 30
0000.56525 19 13
0000.56803 18 11
0000.59485 29 12
0000.59485 31 20
0000.62729 16 20
0000.62729 20 23
0000.62729 23 21
0000.62730 20 24
0000.63150 18 20
0000.63150 30 22
0000.63161 30 20
0000.64471 25 10
0000.66527 18 5
POS.
N.
CODENo.
Drwg.
0011.52.010 10 23
0124.40.060 8 7
0150.70.120 5 20
0150.70.120 9 28
0170.91.730 31 5
0204.70.105 13 7
0214.07.350 2 22
0214.07.350 8 18
0250.70.223 16 12
0250.70.223 38 20
0251.47.050 3 18
0251.47.054 3 18
0272.91.090 2 8
0335.03.465 16 25
0361.98.850 38 23
0367.49.275 10 11
0370.69.020 31 15
0370.84.005 20 1
0370.92.050 13 12
0375.92.210 14 13
0375.92.210 15 19
0377.49.270 10 6
0400.09.050 2 21
0400.17.030 7 1
0400.29.040 8 6
0400.29.125 2 34
0400.29.126 2 34
POS.
N.
CODENo.
Drwg.
0400.49.240 11 18
0400.49.240 5 13
051.2.001.1A 1 35
0619.47.030 6 12
0619.50.065 12 17
0619.92.180 14 8
0619.92.180 15 8
0647.29.040 12 15
0647.70.010 14 12
0647.70.010 15 20
0659.37.040 26 19
0659.38.226 22 15
0660.13.060 2 19
0660.13.070 2 13
0660.13.143 2 9
0660.13.165 2 25
0660.47.040 6 13
0660.47.230 6 8
0660.47.290 6 6
0660.49.053 9 17
0660.49.268 10 13
0660.50.020 12 8
0660.92.310 13 18
0665.49.365 10 35
0665.49.680 5 8
0670.13.075 2 11
0670.13.080 2 12
POS.
N.
CODENo.
Drwg.
0670.16.023 3 19
0670.16.145 3 6
0670.16.150 3 12
0670.16.155 3 4
0670.16.163 3 24
0670.16.164 3 24
0670.16.170 3 25
0670.16.171 3 25
0670.16.184 3 1
0670.16.184 3 24
0670.16.185 3 1
0670.49.310 9 26
0670.49.910 9 21
0670.72.010 31 32
0670.72.010 34 8
0670.72.010 37 22
0670.80.010 29 29
0670.92.010 10 8
0670.92.190 14 8
0670.92.190 15 8
0675.49.540 14 25
0675.49.540 5 18
0691.91.030 18 23
0691.91.030 23 2
0691.91.030 38 24
0723.92.239 14 19
0723.92.239 15 16
POS.
N.
CODENo.
Drwg.
0727.92.239 14 17
0727.92.239 15 14
0755.29.025 6 14
0755.29.025 8 23
0755.49.265 10 2
0759.49.280 9 15
0765.92.185 14 8
0765.92.185 15 8
0765.92.190 14 8
0765.92.190 15 8
0765.92.195 14 8
0765.92.195 15 8
0765.92.205 14 8
0765.92.205 2 21
0796.38.305 22 11
0797.41.090 22 22
0797.69.040 13 2
0797.69.040 8 12
0797.72.068 23 7
0799.13.110 2 27
0803.77.010 25 12
0805.17.125 7 7
0905.49.960 9 20
117.1.028.1A 31 30
117.2.007.1A 4 16
117.2.049.1A 30 14
120.2.075.1A 7 8
POS.
N.
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
A
Page 90
INDEX
CODENo.
Drwg.
120.2.076.1A 7 4
121.1.027.1A 7 3
121.2.023.2A 7 11
122.2.073.1A 7 9
140.2.014.1A 16 11
146.2.073.1A 6 1
147.1.015.1A 8 4
148.1.122.1A 13 22
148.1.123.1A 13 16
149.1.028.1B 3 23
149.1.029.1A 3 13
150.2.051.1B 3 27
150.2.052.1A 3 26
158.2.007.1A 6 5
160.1.013.1B 35 16
160.1.049.1B 25 21
160.1.057.1A 12 13
160.1.071.1A 25 28
160.1.076.1A 13 17
170.2.031.2A 4 12
171.2.020.2B 8 10
172.1.012.1A 3 21
172.1.013.1A 3 22
172.1.014.1A 3 20
172.1.015.1A 3 3
172.1.016.1A 3 11
172.1.017.1A 3 8
POS.
N.
CODENo.
Drwg.
172.1.018.1A 3 5
172.1.019.1A 3 10
173.1.012.3A 12 20
174.1.002.1A 9 3
174.1.025.1A 9 12
174.2.025.3A 9 1
176.1.001.1A 12 6
176.1.009.1A 12 10
180.1.008.1A 2 24
182.2.012.1A 2 18
184.1.001.1A 29 15
190.2.009.2B 4 7
194.2.003.1A 4 5
195.4.002.1A 28 3
195.4.003.1A 4 19
196.1.016.2A 4 10
208.1.012.4A 14 14
208.1.012.4A 15 17
209.1.012.4A 14 16
209.1.012.4A 15 18
210.1.015.2A 14 22
210.1.015.2A 15 6
211.1.015.2A 14 21
211.1.015.2A 15 7
220.3.208.3A 9 16
225.2.046.1B 10 1
235.1.026.1A 13 11
POS.
N.
CODENo.
Drwg.
235.1.027.1A 13 5
235.2.031.1A 13 20
240.1.010.1AB 14 10
240.1.010.1AB 15 12
240.1.028.1A 15 24
242.2.045.1A 11 19
243.1.029.1A 5 17
243.2.028.1AC 5 1
245.1.047.1A 8 8
245.1.048.1A 8 2
246.1.060.2A 30 25
246.1.061.1A 18 26
246.2.011.1B 34 3
247.1.002.1BC 11 9
247.1.083.1AE 11 4
247.1.086.1A 37 7
247.1.104.1A 9 2
247.1.126.1A 28 23
250.2.030.3A 9 5
254.1.001.1A 11 7
254.4.001.1A 5 4
255.1.001.1B 8 13
255.1.014.1A 13 3
264.4.014.3B 11 1
270.4.001.1A 12 1
276.1.025.1B 12 16
280.4.007.1A 16 10
POS.
N.
CODENo.
Drwg.
282.4.033.1A 16 1
283.4.003.1A 16 21
284.4.002.1A 16 2
286.4.051.1A 18 1
287.4.024.1B 16 8
300160 15 25
301.2.104.1A 15 1
301.2.105.1A 14 1
303.1.003.1A 14 4
303.1.003.1A 15 3
303.1.003.1AB 14 4
303.1.003.1AB 15 3
303.1.003.1AC 14 4
303.1.003.1AC 15 3
303.1.003.1AD 14 4
303.1.003.1AD 15 3
303.2.004.1C 14 5
303.2.004.1C 15 2
303.2.004.1CB 14 5
303.2.004.1CB 15 2
303.2.004.1CC 14 5
303.2.004.1CC 15 2
303.2.004.1CD 14 5
303.2.004.1CD 15 2
304.1.021.1A 14 2
304.1.021.1A 15 5
304.1.021.1AB 14 2
POS.
N.
CODENo.
Drwg.
304.1.021.1AB 15 5
304.1.021.1AC 14 2
304.1.021.1AC 15 5
304.1.022.1A 14 3
304.1.022.1A 15 4
304.1.022.1AB 14 3
304.1.022.1AB 15 4
304.1.022.1AC 14 3
304.1.022.1AC 15 4
341.1.030.1C 26 23
342.2.015.1C 26 3
344.2.010.1A 24 13
345.2.010.1A 24 11
347.2.004.1A 24 12
348.2.012.1A 24 7
349.1.149.1A 24 14
349.1.152.1A 24 17
349.1.157.1A 24 16
349.2.019.1A 24 8
349.2.020.1A 24 10
349.2.021.1A 24 9
350.1.014.1A 24 15
350.1.015.1A 24 5
360.1.033.1B 26 24
360.1.035.1A 26 16
365.2.045.1A 33 6
369.1.004.1A 32 8
POS.
N.
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
B
Page 91
INDEX
CODENo.
Drwg.
370.1.021.1C 32 10
372.2.008.3A 33 1
373.1.023.1B 32 18
373.1.028.1B 32 19
373.1.029.1B 32 17
380.4.004.1B 18 16
389.4.006.1A 18 27
389.4.007.1A 18 27
389.4.008.1A 18 27
389.4.010.1A 18 27
389.4.013.1A 18 27
389.4.014.1A 18 15
389.4.015.1A 18 27
389.4.016.1A 18 27
390.4.003.1A 23 22
395.4.013.1A 19 14
397.4.001.1B 19 4
406.1.016.1C 21 1
417.5.033.7A 13 23
417.9.030.6A 29 10
417.9.030.6A 31 14
417.9.030.8A 26 1
417.9.050.6A 12 3
417.9.050.6A 19 2
420.2.000.7A 14 23
420.2.000.7A 15 23
420.2.001.0A 2 5
POS.
N.
CODENo.
Drwg.
420.2.001.0A 20 21
420.2.001.0A 27 8
420.2.001.0A 28 12
420.2.001.0A 29 2
420.2.001.0A 9 34
420.2.006.2A 10 37
420.2.006.4A 10 19
425.4.004.1B 36 12
425.4.008.1A 36 4
426.1.007.1B 38 9
426.1.010.1A 34 2
430.4.004.1A 36 2
433.1.164.1A 39 3
433.1.166.1A 39 2
433.1.170.1A 39 1
433.1.251.1A 35 24
433.1.252.1D 18 6
433.1.265.1A 32 5
435.1.032.1AA 35 2
436.1.097.1DA 30 21
442.2.068.1A 34 6
447.1.037.1A 32 13
447.1.038.1A 32 4
449.1.003.3A 3 15
451.1.025.1A 8 16
451.2.006.1A 8 17
455.2.003.1A 2 4
POS.
N.
CODENo.
Drwg.
456.2.009.1A 31 27
457.2.007.1A 29 9
460.1.038.2B 31 31
460.1.039.2B 31 34
460.1.076.2A 26 11
462.3.003.7A 2 31
462.3.003.7A 8 21
462.3.003.8A 2 29
462.4.037.6A 19 1
462.4.037.6A 9 11
462.4.037.8A 9 9
463.2.019.6A 7 2
463.2.022.1A 16 14
463.4.001.1A 10 22
470.1.056.1AA 30 1
470.1.056.1AB 30 1
470.1.056.1AC 30 1
470.1.056.1AD 30 1
470.1.062.1A 21 5
482.1.055.1AA 30 12
482.1.061.1BA 30 7
486.1.051.1A 5 6
486.1.056.1A 35 23
492.4.003.2A 25 15
492.4.024.1A 25 5
494.1.050.3A 25 23
497.2.001.2A 25 2
POS.
N.
CODENo.
Drwg.
501.2.067.1AA 25 1
501.2.069.1AA 25 1
501.2.069.1AB 25 1
502.2.047.1A 25 13
502.2.049.1A 25 13
502.2.050.1A 25 13
510.1.075.1A 22 5
510.1.076.1B 23 11
510.1.180.1A 18 3
514.1.031.1A 19 3
514.1.032.1A 1.3 9
514.1.033.1A 1.3 13
514.1.034.1A 1.3 12
514.1.035.1A 1.3 10
514.1.036.1A 1.3 10
514.1.037.1A 1.3 6
514.1.038.1A 1.3 14
516.4.003.1A 18 14
518.4.004.1B 30 6
520.4.006.1C 22 1
521.4.005.1A 22 3
523.4.012.1A 26 9
523.4.013.1A 26 8
525.1.004.2A 23 5
525.4.007.2A 23 3
526.4.003.1A 23 4
529.1.001.1A 24 6
POS.
N.
CODENo.
Drwg.
529.1.006.1A 23 13
529.1.009.1A 23 19
530.4.007.2A 22 9
530.4.008.2A 22 16
530.4.009.2A 23 14
530.4.010.2A 23 10
532.4.004.1A 22 10
532.4.004.1A 23 6
539.1.021.1A 2 6
539.1.023.1A 17 5
539.4.003.1B 29 13
539.4.004.1A 28 5
539.4.030.1A 5 21
540.4.010.1A 18 8
541.4.003.1A 18 4
552.1.037.1A 1.3 4
552.1.038.1A 1.3 5
552.1.039.1A 1.3 7
552.1.040.1A 1.3 11
552.4.004.2A 9 35
552.4.013.1A 15 32
552.4.020.1A 11 12
552.4.028.1A 1.2 15
552.4.031.1A 21 4
552.4.037.1A 29 35
556.1.018.1C 17 9
556.1.024.1A 17 3
POS.
N.
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
C
Page 92
INDEX
CODENo.
Drwg.
556.2.027.1A 17 1
561.1.018.1A 23 1
561.1.019.1A 23 20
564.1.029.1BF 30 16
565.1.017.2A 37 20
565.1.026.1A 23 25
565.1.030.1A 32 16
570.1.065.1A 20 5
571.1.065.1A 20 6
573.1.050.2D 20 12
574.1.050.2D 20 16
576.1.038.1A 20 19
576.1.039.1A 20 13
585.1.031.1A 34 13
585.4.001.1A 29 23
586.1.037.1AF 35 1
590.1.084.1A 16 18
590.1.104.1A 16 16
590.1.111.1B 38 16
590.1.125.1A 36 10
590.1.136.1A 38 25
590.1.139.1A 38 21
590.1.141.1A 38 5
590.1.154.1A 16 7
590.1.157.1A 36 11
590.1.158.1A 36 9
590.1.162.1A 16 17
POS.
N.
CODENo.
Drwg.
590.1.170.1A 38 12
590.1.178.1A 36 13
590.1.189.1A 1.3 1
590.1.190.1A 1.3 2
590.1.191.1A 38 14
592.1.010.1A 36 5
593.1.003.1B 10 33
593.1.018.1A 9 29
595.2.020.3C 37 6
598.2.030.1A 30 11
598.4.016.1A 30 24
598.4.018.1A 30 10
598.4.019.1A 37 19
60N101077 31 33
60N101077 37 5
60N101079 10 15
60N102482 37 13
60N102504 35 10
60N102509 11 13
60N102509 14 11
60N102509 15 13
60N102509 18 9
60N102509 2 28
60N102509 22 6
60N102509 8 1
60N102510 11 6
60N102510 12 5
POS.
N.
CODENo.
Drwg.
60N102510 14 26
60N102510 22 24
60N102510 34 5
60N102510 5 5
60N102510 8 5
60N102510 9 10
60N102511 11 17
60N102555 2 30
60N102557 26 7
60N102584 32 9
60N107335 11 24
60N107335 13 10
60N107335 22 25
60N107335 23 24
60N107335 4 20
610.4.011.2B 28 22
611.4.002.4A 29 20
612.4.005.1A 27 12
612.4.005.1A 28 7
612.4.008.1A 29 31
612.4.014.1A 28 16
612.4.017.1A 28 15
613.4.020.1A 28 17
613.4.031.1A 29 33
618.4.042.1A 28 14
619.4.018.1A 29 3
624.4.024.1A 28 1
POS.
N.
CODENo.
Drwg.
625.4.005.1AB 29 17
626.1.002.1A 27 4
626.1.002.1A 28 2
626.4.003.1A 27 2
626.4.003.1A 28 10
626.4.013.1A 29 26
630.4.003.1A 27 1
631.4.004.1A 28 19
631.4.008.1A 29 25
632.1.009.2L 27 6
650.4.008.1B 26 25
651.4.011.1A 26 14
652.4.006.1A 30 23
654.2.003.1A 26 20
656.1.036.1A 26 26
657.1.015.1A 26 18
658.4.002.1B 26 29
669.1.003.1A 14 18
669.1.003.1A 15 15
670.4.007.1A 18 13
672.1.013.1A 18 21
676.2.040.1A 25 27
676.4.032.1A 25 16
677.4.003.1A 1.1 4
680.1.001.1B 9 7
684.1.026.1A 34 4
696.1.008.1A 37 1
POS.
N.
CODENo.
Drwg.
697.2.006.2B 37 14
698.1.033.1A 1.3 15
700.1.005.1A 25 18
700.1.031.1A 19 10
700.1.038.1A 21 7
701.4.003.1A 12 19
701.4.005.1A 3 9
701.4.006.1A 33 3
701.4.007.1A 12 21
702.4.004.1A 26 6
702.5.008.1A 10 20
702.5.008.1A 11 3
702.5.008.1A 4 6
702.5.015.1A 4 14
703.1.013.1A 26 12
703.1.019.1A 15 30
70620.5212 16 26
70700.8N01 26 17
707006N02 29 21
707008N01 22 18
710.1.001.1A 9 13
710.1.025.1A 33 4
710.1.041.1C 25 22
710.1.046.1A 33 12
710.1.069.1A 10 21
710.1.070.1A 10 30
710.1.085.1A 33 9
POS.
N.
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
D
Page 93
INDEX
CODENo.
Drwg.
710.1.088.1A 33 14
711.1.090.1A 20 20
711.1.090.1B 20 28
711.1.095.1A 10 32
712.1.013.3A 35 6
713.1.007.1A 13 9
713.1.014.1A 3 1
713.1.014.1A 3 14
713.1.014.1B 3 1
713.1.014.1B 3 24
713.1.014.1D 3 24
713.1.014.1E 3 1
713.1.014.1F 3 24
713.1.082.1A 20 22
713.1.097.1C 25 25
713.1.119.1A 4 15
713.1.137.1A 15 27
713.1.140.1A 10 14
713.1.192.1A 29 37
714.1.028.1A 25 3
714.1.045.1A 25 9
714.1.046.1A 25 14
715.1.004.1A 33 8
7150.22.594 24 1
716.1.022.1A 22 13
716.1.043.1A 38 7
716.1.055.1A 20 10
POS.
N.
CODENo.
Drwg.
716.1.056.1A 31 21
72094.1616 10 10
72121.2106 6 4
72276.1035 21 3
723.1.003.1A 22 4
72465.0214 28 4
72944.1542 13 1
72944.1542 8 11
729906FN1 20 15
729906FN1 30 8
729906FN1 37 21
729906FN1 38 8
732.1.007.1A 37 2
732.2.010.2A 37 17
734005N01 37 15
734006N01 12 2
734006N01 37 11
734008N01 29 28
734305N01 18 25
734306N01 11 25
734306N01 14 28
734306N01 22 23
734306N01 37 10
734306N01 5 16
734406N01 29 38
73500.1237 12 7
73500.1237 9 25
POS.
N.
CODENo.
Drwg.
73500.1440 12 11
73500.1542 2 15
73500.1747 15 26
73503.3075 5 11
73503.3380 10 18
73503.3380 11 2
73503.3380 13 24
73503.3449 16 22
73503.3683 13 13
737.4.007.2A 8 14
741.1.012.1A 18 22
741.1.028.1A 20 8
741.4.002.1A 34 15
741.4.004.1A 16 5
741.4.004.1A 36 8
741.4.008.2A 36 7
741.4.013.1B 38 18
741.4.038.1A 18 24
741.4.040.1A 16 9
741.4.041.1A 16 6
741.4.042.1A 16 3
741.4.043.1A 29 4
741.4.057.1A 38 13
741.4.058.1A 38 10
741.4.059.1A 38 15
741.4.062.1A 29 34
741.4.063.1A 38 11
POS.
N.
CODENo.
Drwg.
741.4.066.1A 36 14
741.4.067.1A 16 28
74172.1008 13 15
74172.1008 6 10
74172.1008 8 3
74223.1045 34 12
74224.0570 6 7
747.5.001.1A 31 24
748.1.014.1B 25 26
748.1.023.1A 32 1
748.4.002.1A 30 17
748.4.024.1A 25 20
748.4.026.1B 21 6
748.4.033.1A 20 4
748.4.034.1A 16 15
748.4.034.1A 19 6
749.4.002.1A 30 28
749.4.045.2G 17 10
749.5.001.1A 23 17
749.5.002.1A 18 19
750.1.007.1A 4 8
750.1.012.2A 6 16
750.1.060.1A 30 9
750.5.001.1A 2 23
750.5.001.1A 22 17
750.5.001.1A 23 9
75120.1747 13 8
POS.
N.
CODENo.
Drwg.
75120.2567 10 12
75143.3380 10 25
75162.2566 25 4
75162.2566 25 24
75162.3075 25 17
75166.1238 8 19
75173.1542 13 19
75191.3380 10 29
75791.1747 10 9
75794.1542 10 17
758.1.014.1A 22 14
759.1.006.1A 19 15
760.1.003.1A 34 11
760.4.006.1B 35 5
76266.2668 10 4
76267.0012 9 24
763106N01 31 17
764.1.001.1A 20 9
764.1.009.1A 14 20
764.1.009.1A 15 21
764.1.013.1A 14 6
764.1.013.1A 15 22
764.1.015.1B 30 4
764.1.024.1A 20 3
764.1.029.1A 19 7
764.1.029.1A 30 2
764.1.029.1A 37 3
POS.
N.
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
E
Page 94
INDEX
CODENo.
Drwg.
764.1.029.1A 38 2
76400.0004 10 3
76401.0002 31 16
76401.0003 31 23
76402.0003 3 2
765.1.001.1A 29 8
765.1.001.1A 31 28
76835.1134 2 10
770.5.121.9E 20 17
770.5.123.2B 25 6
771.1.008.1A 33 11
771.1.015.1A 33 10
771.4.006.1A 11 14
771.5.004.2B 32 11
771.5.040.2B 11 21
771.5.040.2B 13 6
771.5.040.2B 18 28
771.5.040.2B 35 13
771.5.043.2B 4 1
771.5.045.7E 35 14
771.5.064.2B 11 5
771.5.064.2B 28 18
771.5.064.2B 8 24
771.5.066.2B 13 21
771.5.066.2B 29 36
771.5.072.2B 10 31
771.5.072.2B 18 2
POS.
N.
CODENo.
Drwg.
771.5.072.2B 5 7
771.5.073.2B 11 16
771.5.073.2B 18 10
771.5.078.2B 12 12
771.5.080.2B 10 27
771.5.081.2B 5 3
771.5.083.2B 5 2
771.5.122.2B 8 20
771.5.124.2B 29 27
771.5.129.2B 9 8
771.5.136.2B 10 24
771.5.431.2B 28 20
771.5.721.2B 25 7
771.5.725.2B 26 22
771.5.754.2B 17 2
771.5.937.2B 33 7
771.5.938.2B 33 5
772.1.010.2A 8 9
772.5.004.1A 26 10
772.5.008.1A 18 7
772.5.023.1A 26 28
772.5.023.1A 29 18
772.5.023.1A 30 15
775.1.002.1A 30 19
775.1.013.1A 18 18
776.5.032.2A 16 13
776.5.307.2A 28 8
POS.
N.
CODENo.
Drwg.
777.5.019.7E 35 4
777.5.036.2B 37 18
777.5.049.2C 11 10
779.1.007.2A 6 9
779.1.008.1A 38 1
779.1.029.1A 10 26
779.1.037.1A 32 14
779.1.039.1A 2 3
779.1.054.1AA 29 7
779.1.058.1A 29 1
779.1.058.2A 27 9
779.1.058.2A 28 13
779.1.082.2A 27 10
779.1.088.1A 19 16
779.1.099.1A 26 2
779.1.104.1A 37 8
779.1.109.1A 6 2
779.1.119.2A 32 3
779.1.133.1A 14 24
779.1.133.1A 15 33
779.1.162.1A 9 27
779.1.182.1A 10 36
779.1.198.1A 9 23
779.1.203.1A 2 7
779.1.204.1A 31 13
779.1.206.1A 31 3
779.1.212.1A 31 19
POS.
N.
CODENo.
Drwg.
779.1.213.1A 30 13
779.1.214.1B 21 2
779.1.221.1A 30 27
779.1.239.1A 19 8
779.1.247.1A 20 25
779.4.005.1A 17 4
779.5.001.1A 31 36
779.5.003.1A 20 11
779.5.004.1A 35 12
779.5.007.1A 35 19
779.5.010.1A 37 9
779.5.011.1A 31 25
779.5.012.1A 26 31
779.5.018.1A 20 27
779.5.019.1A 9 33
779.5.020.1A 9 6
779.5.031.1A 5 19
780.1.007.1A 20 7
780.1.016.1A 6 3
780.1.018.1A 9 31
786.1.069.1A 7 6
787.1.008.1A 15 29
788.1.032.2A 14 9
788.1.032.2A 15 11
788.1.054.1A 12 4
788.1.066.1AA 11 22
788.1.066.1AB 11 22
POS.
N.
CODENo.
Drwg.
788.1.066.1AC 11 22
789.1.001.1A 36 6
791.1.015.1A 35 18
791.1.039.1A 35 20
791.2.014.1C 7 5
799.1.025.1A 2 20
799.1.044.1A 29 6
799.1.049.1A 2 1
799.1.051.2A 6 15
799.1.055.1A 9 30
799.1.058.1A 26 13
799.1.061.1A 14 7
799.1.061.1A 15 9
799.1.088.1A 17 7
799.1.089.1A 17 6
799.1.099.1A 4 4
799.1.105.1A 38 17
799.1.118.1B 38 22
8000.18048 22 12
8000.18048 34 10
8000.47420 27 7
8000.47420 28 11
8000.56443 23 16
8000.59056 29 14
8000.59056 31 22
8000.60683 31 1
8000.60700 31 6
POS.
N.
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
F
Page 95
INDEX
CODENo.
Drwg.
8000.62562 31 7
8000.62563 31 29
8000.62586 29 19
8000.62655 31 12
8000.62705 35 9
8000.66308 38 3
8000.66526 18 12
8000.66774 26 27
8000.70127 24 4
8000.70139 1.1 2
8000.78345 26 15
801.1.027.1A 16 4
802.1.005.1A 35 17
80A0.53548 29 5
80A0.53548 31 26
80A0.62649 20 2
80B0.62672 35 22
80C0.05893 35 7
814.1.091.2A 38 19
814.1.114.1A 1.3 8
818.1.010.1B 4 3
819.1.017.1A 25 8
819.1.030.1A 32 2
821.1.001.1A 2 26
821.1.028.2B 35 8
821.1.039.1B 25 19
821.1.054.1A 19 5
POS.
N.
CODENo.
Drwg.
821.1.070.1A 2 17
821.1.075.1A 34 9
821.1.090.1A 31 4
821.1.115.1A 14 15
821.1.115.1A 15 10
824.1.023.1AB 31 18
824.1.024.1AB 31 8
825.1.030.1A 29 24
826.1.009.1A 2 33
826.1.011.1A 3 16
827.1.139.2B 17 8
827.1.157.1A 38 6
827.1.161.1A 31 10
827.1.186.1A 38 4
827.1.191.2A 23 26
827.1.211.1A 30 26
827.1.236.1A 18 17
827.1.241.1A 16 27
829.1.021.2A 36 1
829.1.099.1D 22 7
829.1.124.2A 20 26
829.1.134.1A 10 38
829.1.136.1A 23 27
829.1.141.1B 28 21
829.1.235.1A 15 31
829.1.236.1A 37 4
829.1.283.1B 19 11
POS.
N.
CODENo.
Drwg.
829.1.285.1A 19 12
829.1.358.1A 14 27
829.2.237.1A 37 12
830.1.091.2A 16 19
830.1.144.1A 11 20
830.1.194.1A 22 8
830.1.195.1A 22 20
830.1.228.1A 19 9
840.1.001.1A 13 11
840.1.002.1A 13 11
840.1.003.1A 13 11
840.1.004.1A 13 11
840.1.005.1A 13 11
840.1.006.1A 13 11
840.1.007.1A 13 11
840.1.008.1A 13 11
840.1.009.1A 13 11
840.1.010.1A 13 11
840.1.011.1A 13 11
840.1.012.1A 13 11
840.1.013.1A 13 11
840.1.014.1A 13 11
840.1.015.1A 13 11
840.1.016.1A 13 11
840.1.017.1A 13 11
840.1.018.1A 13 11
840.1.019.1A 13 11
POS.
N.
CODENo.
Drwg.
840.1.020.1A 13 11
840.1.021.1A 13 11
840.1.022.1A 13 11
840.1.023.1A 13 11
840.1.024.1A 13 11
840.1.025.1A 13 11
840.1.026.1A 13 11
840.1.027.1A 13 11
840.1.028.1A 13 11
840.1.029.1A 13 11
840.1.030.1A 13 11
840.1.031.1A 13 11
840.1.032.1A 13 11
840.1.033.1A 13 11
840.1.034.1A 13 11
840.1.051.1B 13 9
840.1.052.1B 13 9
840.1.053.1B 13 9
840.1.054.1B 13 9
840.1.055.1B 13 9
840.1.056.1B 13 9
840.1.057.1B 13 9
840.1.058.1B 13 9
840.1.059.1B 13 9
840.1.060.1B 13 9
840.1.061.1B 13 9
840.1.062.1B 13 9
POS.
N.
CODENo.
Drwg.
840.1.063.1B 13 9
840.1.064.1B 13 9
840.1.065.1B 13 9
840.1.066.1B 13 9
840.1.067.1B 13 9
840.1.068.1B 13 9
840.1.069.1B 13 9
840.1.070.1B 13 9
840.1.071.1B 13 9
841.1.017.1A 22 19
841.1.031.1A 4 2
847.4.002.1A 31 9
848.4.011.1A 33 13
850.1.005.1A 29 11
851.1.004.1A 4 9
852.1.001.1A 32 12
852.1.002.1A 32 12
852.1.003.1A 32 12
852.1.005.1A 2 14
852.1.008.1A 5 10
852.1.053.1A 2 2
852.1.065.1A 31 2
852.1.079.1A 32 15
852.1.093.1A 2 14
852.1.094.1A 2 19
852.1.099.1A 31 11
852.1.103.1A 26 4
POS.
N.
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
G
Page 96
INDEX
CODENo.
Drwg.
852.1.104.1A 6 11
852.1.104.1B 6 11
852.1.104.1C 6 11
852.1.104.1D 6 11
852.1.104.1E 6 11
852.1.104.1F 6 11
852.1.104.1G 6 11
852.1.104.1H 6 11
852.1.104.1I 6 11
852.1.104.1J 6 11
852.1.104.1K 6 11
852.1.104.1L 6 11
852.1.104.1M 6 11
852.1.104.1N 6 11
852.1.105.1AB 3 25
852.1.105.1AD 3 25
852.1.105.1AG 3 25
852.1.108.1AH 3 18
852.1.108.1AL 3 18
852.1.108.1AN 3 18
852.1.116.1A 31 37
852.1.117.1A 31 35
852.1.118.1A 20 29
852.1.120.1A 9 32
852.1.124.1A 13 14
852.5.001.1A 23 18
852.5.004.1C 20 18
POS.
N.
CODENo.
Drwg.
852.5.005.1A 9 18
856.1.001.1A 3 7
856.1.002.1A 13 4
856.1.002.1A 8 15
856.1.014.1A 4 11
856.1.025.1A 10 7
856.1.042.1A 30 5
856.1.057.1A 24 2
856.1.071.1A 12 9
861.5.003.1A 26 30
863.1.002.1A 12 14
866.1.037.1A 35 11
866.1.040.1A 35 3
872.1.019.1A 32 6
872.1.026.1A 30 18
872.1.028.1A 26 21
873.1.039.1A 9 14
875.1.063.1A 33 15
875.1.065.1A 1.3 3
876.1.066.1A 34 14
876.1.082.1A 34 1
877.1.071.1A 29 16
877.2.002.1A 34 7
881.1.010.1C 12 18
881.1.012.1A 2 32
881.1.023.1A 22 21
881.1.026.1A 4 13
POS.
N.
CODENo.
Drwg.
881.1.030.1A 11 26
881.1.030.1A 5 22
882.1.003.1A 8 22
882.1.006.1A 2 16
884.4.007.1A 32 7
884.4.012.1A 36 3
884.4.017.1A 7 10
884.5.008.1A 25 11
886.4.003.1A 11 23
886.4.011.1A 35 21
886.4.021.1A 16 24
886.4.022.1A 16 23
886.4.028.1A 15 28
886.4.035.1A 11 8
886.4.037.1A 9 4
886.4.043.1A 4 17
88700.5644 1 34
88700.5665 1 27
88700.5749 1 20
88713.0123 1 5
88713.0137 1 11
88713.0143 1 32
88713.0262 1 29
88713.0844 1 33
88713.0874 1 6
88713.0875 1 8
88713.0879 1 7
POS.
N.
CODENo.
Drwg.
88713.1010 1 31
88713.1010 1.1 7
88713.1058 1.1 9
88713.1072 1.1 6
88713.1078 1 12
88713.1079 1 14
88713.1091 1 21
88713.1096 1.1 8
88713.1215 1 9
88713.1344 1.1 3
88713.1515 1.1 5
88713.1749 1 24
88713.1994 1 25
88713.2009 1 30
88713.2011 1 17
88713.2036 1 19
88713.2092 1 28
88713.2096 1 2
88713.2103 1 3
88713.2107 1 1
88713.2133 1 26
88765.0999 1 16
88765.1000 1 15
88765.1005 1 15
88765.1006 1 15
88765.1058 1 13
88765.1073 1.2 21
POS.
N.
CODENo.
Drwg.
88765.1074 1.2 21
88765.1075 1.2 21
88765.1076 1.2 21
88765.1077 1.2 21
88765.1086 1 22
88765.1126 1.2 6
88765.1126A 1.2 4
88765.1126B 1.2 12
88765.1126C 1.2 11
88765.1126D 1.2 14
88765.1126E 1.2 9
88765.1126F 1.2 13
88765.1126G 1.2 17
88765.1126H 1.2 16
88765.1126L 1.2 19
88765.1126M 1.2 18
88765.1126N 1.2 7
88765.1126P 1.2 10
88765.1126Q 1.2 5
88765.1126R 1.2 3
88765.1126S 1.2 22
88765.1126T 1.2 23
88765.1126T 1.3 16
88765.1126U 1.2 20
88765.1126V 1.2 8
88765.1126Z 1.2 1
88765.1236 1 10
POS.
N.
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
H
Page 97
INDEX
CODENo.
Drwg.
88765.1236 1.1 1
88765.1237 1 10
88765.1237 1.1 1
88765.1238 1 10
88765.1238 1.1 1
88765.1239 1 10
88765.1239 1.1 1
88765.1240 1 10
88765.1240 1.1 1
88765.1241 1.3 0
88765.1242 1.3 0
88765.1243 1.3 0
88765.1244 1.3 0
88765.1245 1.3 0
88765.1297 1 23
88765.1322 1 18
893.1.005.1A 5 15
893.4.005.1A 29 22
894.2.009.1A 9 19
895.4.001.2A 35 15
8A00.67997 29 39
8A00.67997 3 17
8A00.69056 24 3
913.7.060.1M 37 16
914.7.023.1A 1.2 2
914.7.023.1B 1.2 2
914.7.023.1C 1.2 2
POS.
N.
CODENo.
Drwg.
914.7.023.1D 1.2 2
914.7.023.1E 1.2 2
930.1.004.1A 26 5
93781.1824 33 2
93783.1524 11 11
93784.2030 5 9
93785.1830 10 16
93823.2018 4 18
93823.2082 5 14
93823.3156 10 34
93827.0114 10 28
93827.0114 5 12
93827.0114 9 22
94247.0014 10 5
94247.0014 11 15
98112.0002 1 4
POS.
N.
CODENo.
Drwg.
POS.
N.
CODENo.
Drwg.
POS.
N.
CODENo.
Drwg.
POS.
N.
CATALOGUE No:
ISSUED:
915.1.148.1A 915.1.148.1A
10 - 01 10 - 01
CATALOGUE No:
ISSUED:
I
Page 98
DUCATIMOTOR HOLDING
.
Spare Sparts Department
DUCATIMOTOR HOLDING
Spare Sparts Department
DUCATIMOTOR HOLDING
Spare Sparts Department
DUCATIMOTOR HOLDING
Spare Sparts Department
P.N. 91511481A Ottobre - October '01 Edizione - Edition 00
.
P.N. 91511481A Ottobre - October '01 Edizione - Edition 00
.
P.N. 91511481A Ottobre - October '01 Edizione - Edition 00
.
P.N. 91511481A Ottobre - October '01 Edizione - Edition 00
Loading...
