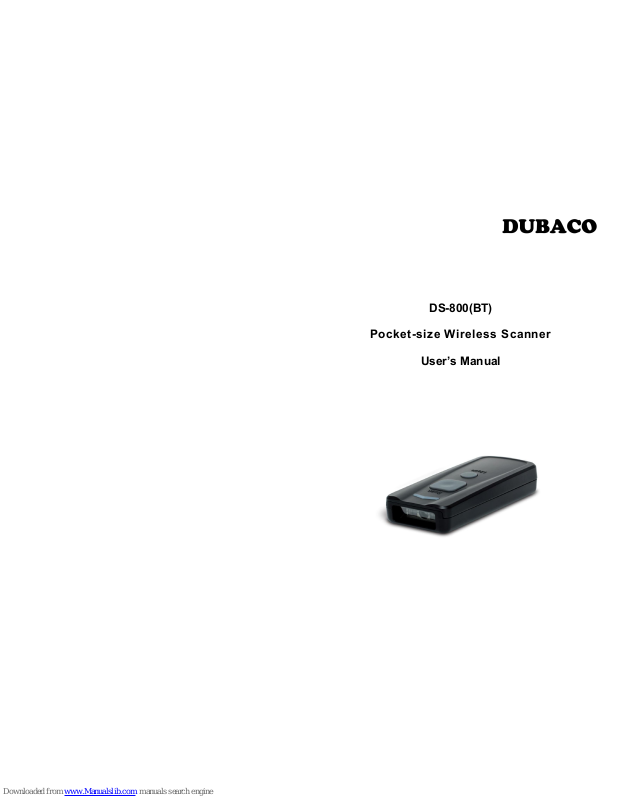

Dubaco DS-800BT, DS-800 User Manual
DS-800(BT)
Pocket-size Wireless Scanner
User’s Manual
Table of Contents
Memory Mode ---------------------------------------------------------------------------3
BT Local name---------------------------------------------------------------------------3
Bluetooth mode configuration------------------------------------------------------4
Remote Mac Address------------------------------------------------------------------5
Pin Code-----------------------------------------------------------------------------------5
Bluetooth parameter configuration by software-----------------------------6
USB-HID / USB-COM Mode----------------------------------------------------------6
Memory Mode Setting-----------------------------------------------------------------7
Ext Transmission Delay-------------------------------------------------------------10
Lamp OFF Delay-----------------------------------------------------------------------10
Standby Time---------------------------------------------------------------------------11
Separator---------------------------------------------------------------------------------11
Bluetooth Mode Setting-------------------------------------------------------------12
Lamp OFF Delay-----------------------------------------------------------------------12
Connect OFF Time--------------------------------------------------------------------14
Standby Time---------------------------------------------------------------------------14
Time out----------------------------------------------------------------------------------15
Grneral Configuration Setting----------------------------------------------------17
USB-HID Keyboard Type-----------------------------------------------------------17
Transmission Gap--------------------------------------------------------------------18
Transmission Delay------------------------------------------------------------------19
Timeout----------------------------------------------------------------------------------20
Keyboard Layout Setting----------------------------------------------------------21
Bluetooth HID Dongle Keyboard Layout Setting--------------------------22
Virtual COM Type---------------------------------------------------------------------23
Time out----------------------------------------------------------------------------------23
Transmission Gap---------------------------------------------------------------------24
Transmission Delay--------------------------------------------------------------------25
System Control------------------------------------------------------------------------26
Trigger Mode-------------------- -------------------------------------------------------28
Buzzer----------------- -------------------------------------------------------------------29
Beep Volume-----------------------------------------------------------------------------29
Beep Tone-------------------------------------------------- ------------------------------30
Beep Time -------------------------------------------------------------------------------31
Standby Time---------------------------------------------------------------------------32
LED OFF Delay-------------------------------------------------------------------------33
Lamp OFF Delay-----------------------------------------------------------------------34
Good Read Time-----------------------------------------------------------------------35
Setup Timeout--------------------------------------------------------------------------36
Vibrator OFF Delay--------------------------------------------------------------------37
Double Confirm------------------------------------------------------------------------38
Global Min. / Max. Length-----------------------------------------------------------39
Global Min. Length---------------------------------------------------------------------39
Global Max. Length -------------------------------------------------------------------40
Set Data & Time-----------------------------------------------------------------------41
Symbology Settings-----------------------------------------------------------------42
UPC-A--------------- --------------------------------------------------------------------43
UPC-E---------------- -------------------------------------------------------------------44
EAN-13-----------------------------------------------------------------------------------46
EAN-8-------------------------- ----------------------------------------------------------48
Code-39------------------------------------------------------- --------------------------50
Codabar / NW7--- ---------------------------------------------------------------------52
Code-128---------------------------------------------------------------------------------54
Interleaved 2 of 5 ---------------------------------------------------------------------56
Industrial 2 of 5----- -------------------------------------------------------------------57
Matrix 2 of 5---- ------------------------------------------------------------------------58
Code 93------ -------------------- -------------------------------------------------------59
Code 11-- ------------ -------------------------------------------------------------------60
MSI / Plessey---------------------------------------------------------------------------61
UK / Plessey --------------------------------------------- -----------------------------62
Telepen-----------------------------------------------------------------------------------63
RSS (GS1 DataBar) 14---------------------------------------------------------------64
RSS (GS1 DataBar) Limited--------------------------------------------------------65
RSS (GS1 DataBar) 14 Stack-------------------------------------------------------66
RSS (GS1 DataBar) Expansion----------------------------------------------------67
RSS (GS1 DataBar) Expansion Stack ------------------------------------------68
Output Format Settings-------------------------------------------------------------69
Transmission Preamble---------------------------------------------------------------69
Transmission Postamble -------------------------------------------------------------69
Preamble Data--------------------------------------------------------------------------70
Postamble Data ------------------------------------------------------------------------71
Prefix / Suffix---------------------------------------------------------------------------72
Prefix Data-------------------------------------------------------------------------------72
Suffix Data ---------- --------------------------------------------------------------------73
Code ID / Sub Code ID--------------------------------------------------------------74
Code ID Setting------------------------------------------------------------------------74
Wait Add-On Count------- ----------------------------------------------------------76
Min. / Max. Length---------------------------------------- ---------------------------77
Min. Length------------------------------------------------------------------------------77
Max. Length -----------------------------------------------------------------------------79
Truncate Zero--------------------------------------------------------------------------81
Truncate Leading ---------------------------------------------------------------------86
Truncate Ending-----------------------------------------------------------------------89
Insert 0 Position---------------- ------------------------------------------------------92
Insert 1 Position -----------------------------------------------------------------------95
Insert 0 Data----- -----------------------------------------------------------------------98
Insert 1 Data -------------------------------------------- ------------------------------101

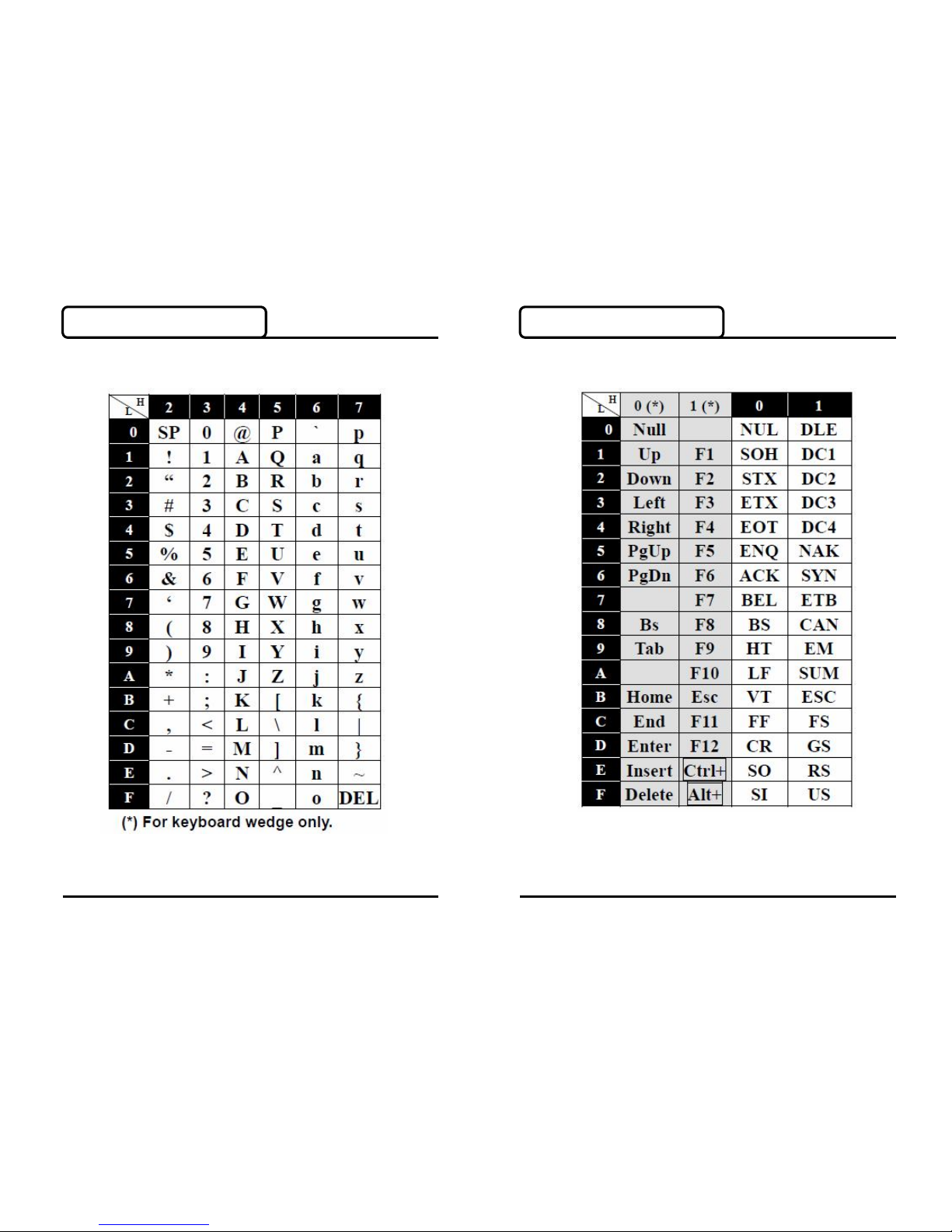

Hexadecimal / Decimal Table----------------------------------------------------104
ASCII Code Table--------------------------------------------------------------------105
Memory Mode
Switch from Bluetooth to Memory Mode
Send
Connect the USB cable between scanner
and PC, and scan the below “Send” barcode.
Clear
Clear all barcode data in the memory
Bluetooth mode configuration
Enter
End
Mode
Slave Mode : Third party Bluetooth devices ( Mode:0)
Master Mode - Third party Bluetooth devices (Mode:1)
Econnect Bluetooth dongle Mode I (Mode:2)
HID Mode - For third party Bluetooth devices (Mode:3)
iPad OSK MODE (Mode selection code:4)
Econnect Bluetooth dongle Mode II (Mode:5)
OK
BT Local name
Enter
BT Local name
OK
End
Set Local name as ‘BT Scanner’
(A) Scan “BT Module Enter” barcode
(B) Scan “BT Local name” barcode
(C) Scan parameters from Hexadecimal / Decimal
barcode table =>“4”,”2”,
“5”,”4”, “2”,”0”, “5”,”3”, “6”,”3”, “6”,”1”, “6”,”E”, “6”,”E”,
“6”,”5”, “7”,”2”→”OK”(configured as ‘BT Scanner’,
Please refer to ASCII TABLE)
(D) Scan “End” Barcode
3 4
Remote Mac Address
Enter
Remote Mac Address
OK
End
Set Remote Mac Address to 00126F006EAA
A. Scan “BT Module Enter” barcode
B. Scan “Remote Mac Address” barcode
C. Scan parameters from Hexadecimal /decimal
barcode table =>“0”, “0”,“1”,”2”, “6”,”F”, “0”,”0”,
“6”,”E”, “A”,”A”→”OK” (Set “Remote Mac Address
“ value to 00126F006EAA)
D. Scan “End” barcode
Pin Code
Enter
Pin Code
OK
End
Set Pin Code to 5678
(A) Scan “BT Module Enter” Barcode
(B) Scan “Pin Code” Barcode
(C) Scan parameters from Hexadecimal/Decimal
table =>“5”,”6”, “7”,”8”→”OK”
(Set “Pin Code “ value to 5678)
(D) Scan “End” Barcode
Bluetooth parameter configuration by software
Enter
ISP
Connect scanner with PC by USB cable, and
set the scanner to ISP mode.
Scan the below barcodes step by step to set the
scanner to ISP mode.
USB-HID / USB-COM Mode
Enter
USB-HID
USB-COM
Before scan the barcode, make sure the
scanner and the Bluetooth
Dongle is in paired status.
5 6
Memory Mode Setting
Enter
Header Transmission
Disabel
*Enabel
Date & Time Transmission
Disabel
*Enabel
Reject Same
End
*Disabel
Enabel
Good Read Beep
Disabel
*Enabel
Good Read Vibrator
*Disabel
Enabel
Time Format
*hh：mm：ss
hh：mm
7 8
Date Format
*yyyy/mm/dd
mm/dd/yyyy
yy/mm/dd
mm/dd/yy
yyyy-mm-dd
mm-dd-yyyy
yy-mm-dd
mm-dd-yy
dd/mm/yyyy
dd/mm/yy
dd-mm-yyyy
dd-mm-yy
Enter
End
Ext Transmission Delay
This configuration enables the delay time (time gap) setting in between
each barcode data sending to PC.
(1) Enter
(2) Ext Transmission Delay barcode
(3) Scan parameters from Hexadecimal /
Decimal table
(Range:0~250 = 0~2.5sec)
(4) OK
(5) End
Lamp Off Delay
The configuration enables the setting of duration time of scanner LED
power off.
(1) Enter
(2) Lamp Off Delay barcode
(3) Scan parameters from Hexadecimal /
Decimal table
(Range:0~255 = 0~255sec)
(4) OK
(5) End
9 10
Standby Time Bluetooth Mode Setting
This configuration enables the time configuration for the main power
switching off after scanner LED turned off.
(1) Enter
(2) Standby Time barcode
(3) Scan parameters from Hexadecimal /
Decimal table
(Range:0~99 = 0~99sec)
(4) OK
(5) End
Separator
This configuration enables separator setting in between date, time and
barcode data. In order for the date and time to be display in front of each
barcode data, Date & time transmission must be enabled.
(1) Enter
(2) Separator barcode
(3) Scan parameters from Hexadecimal /
Decimal table
(Max:1digit)
(4) OK
(5) End
BT List
Enter
List
User can simply understand their Bluetooth
parameter setting by scanning the following
barcode, and use the notepad to receive the
Bluetooth parameter configuration data.
BT Default Setting
Enter
Default
User can restore the default setting for the
Bluetooth Parameter.
The configuration enables the setting of duration time of scanner LED
power on and off
Lamp Off Delay
(1) Enter
(2) Lamp Off Delay barcode
(3) Scan parameters from Hexadecimal /
Decimal table
(Range:0~255 = 0~255sec)
(4) OK
(5) End
12 11
Enter
End
Good Read Beep
*Enabel
Disabel
Good Read Vibrator
Enabel
*Disabel
The vibration configuration if barcode reading
is successfully decoded. Note:Vibration
function is only available for the scanner with
vibrator installed.
Connect Off Time
(1) Enter
Under the Bluetooth mode, when the Bluetooth connection is
established while the scanner is not working. This configuration enables
to set the duration of scanner sleep time. (Note: Default value is 6 as
60 seconds)
(2) Connect Off Time barcode
(3) Scan parameters from Hexadecimal /
Decimal table
(Range:0~255 = 0~42Min 30sec)
(4) OK
(5) End
Standby Time
This configuration enables the time configuration for the main power
switching off after scanner LED turned off.
(1) Enter
(2) Standby Time barcode
(3) Scan parameters from Hexadecimal /
Decimal table
(Range:0~99 = 0~99sec)
(4) OK
(5) End
Data & Time Transmission
*Enabel
Disabel
Under Bluetooth mode, user can enabled/
disable the time stamp function in front of the
barcode data.
Time Format
*hh：mm：ss
hh：mm
Time format configuration, in order for the time
stamp to be display in front of each barcode
data, Date and Time Transmission must be
enabled and configure the following formats:
13 14
Timeout
The timeout setting for the handshaking acknowledgment from the host
PC, if scanner did not receive acknowledgement from the host PC, the
warning sound will be active. This function is particular useful for some
applications which host PC takes longer response time.
(1) Enter
(2) Timeout barcode
(3) Scan parameters from Hexadecimal /
Decimal table
(Range:0~99 = 0~99sec)
(4) OK
(5) End
Enter
End
Date Format
*yyyy/mm/dd
mm/dd/yyyy
yy/mm/dd
mm/dd/yy
yyyy-mm-dd
mm-dd-yyyy
yy-mm-dd
mm-dd-yy
dd/mm/yyyy
dd/mm/yy
dd-mm-yyyy
dd-mm-yy
16 15
Enter
End
Grneral Configuration Setting
Factory Default
Version
Abort Setting
USB-HID Keyboard Type
USB-HID Keyboard
Caps lock
Auto
Alt+Keypad
*Caps lock off
Caps lock On
Transmission Gap
(1) Enter
(2) Transmission gap barcode
(3) Scan parameters from Hexadecimal /
Decimal table
(Range:0~250 = 0~0.25sec)
This is the delay time setting between each barcode data characters. If
the delay time setting is too high, the application program may not be
able to receive all the barcode data characters due to transmission
speed.
(4) OK
(5) End
17 18
Transmission Delay
The delay time settings between the barcode data output, this enables
the user to set the output timing between each barcode data scanned.
(1) Enter
(2) Transmission Delay barcode
(3) Scan parameters from Hexadecimal /
Decimal table
(Range:0~250 = 0~0.25sec)
(4) OK
(5) End
Timeout
The timeout setting for the handshaking acknowledgment from host PC,
if scanner did not receive acknowledgement from the host PC, the
warning sound will be active. This function is particularly useful for some
application which host PC takes longer response time.
(1) Enter
(2) Timeout barcode
(3) Scan parameters from Hexadecimal /
Decimal table
(Range:0~255 = 0~4min15sec)
(4) OK
(5) End
19 20
Enter Enter
End
End
Keyboard Layout Setting
*US
UK
JP
FR
GR
IT
SP
PO
Bluetooth HID Dongle Keyboard Layout Setting
*US
UK
JP
FR
GR
IT
SP
PO
22
21
Enter
End
Virtual Com Type
Transmission Gap
This is the delay time setting between each barcode data characters. If
the delay time setting is too high, the application program may not be
able to receive all the barcode data characters due to transmission
speed.
(1) Enter
(2) Transmission gap barcode
(3) Scan parameters from Hexadecimal /
Decimal table
(Range:0~250 = 0~0.25sec)
(4) OK
(5) End
Timeout
The timeout setting for the handshaking acknowledgment from host PC,
if scanner did not receive acknowledgement from the host PC, the
warning sound will be active. This function is particularly useful for some
application which host PC takes longer response time.
(1) Enter
(2) Timeout barcode
(3) Scan parameters from Hexadecimal /
Decimal table
(Range:0~250 = 0~0.25sec)
(4) OK
(5) End
23 24
Transmission Delay
The delay time settings between the barcode data output, this enables
the user to set the output timing between each barcode data scanned.
(1) Enter
(2) Transmission Delay barcode
(3) Scan parameters from Hexadecimal /
Decimal table
(Range:0~250 = 0~0.25sec)
(4) OK
(5) End
System Control
Power On Music
*Enabel
Disabel
Good Read Beep
*Enabel
Disabel
Good Read Vibrator
Enabel
*Disabel
Transmission Length
Enabel
*Disabel
Enter
End
26 25
Enter Enter
End
End
Force Caes
*None
Inverse
Lowercase
Uppercase
This configuration enables to convert all output
digits to be same printing-case; even one
barcode may have two kinds of case
Transmission Code ID
Enabel
*Disabel
When scanning the barcode, User might want
to know the symbology of the barcode ID, This
configuration enables to display the Code ID or
Sub Code ID.
Code ID Position
After
*Before
When “Transmission Code ID” is “Enable”, user
can configure the output position of Code ID or
Sub Code ID (Before / After).
Transmission Code Name
Enabel
*Disabel
This configuration enables to show the barcode
symbology name. Symbology name will be
showing in front of barcode data.
Trigger Mode
Good Read Off
Momentary
Alternate
Timeout Off
Continue
Test
27 28
Buzzer
(1) Enter
Beep Volume
Beep volume configuration enables to configure the volume of the Beep
sound
(2) Beep Volume barcode
(3) Scan parameters from Hexadecimal /
Decimal table
(Range:1~10)
(4) OK
(5) End
Beep Tone
Beep Tone configuration enables to configure the frequency of beep
sound.
(1) Enter
(2) Beep Tone barcode
(3) Scan parameters from Hexadecimal /
Decimal table
(Range:1~50 = 100~5000HZ)
(4) OK
(5) End
30 29
Loading...
