DUALi Inc.
DE-ABCM5
Specifiation
Document Version: 1.00
Last Revised Date: 4th. April 2018
Copyright ⓒ 2016 DUALi Inc. All rights reserved. You are strictly prohibited to
copy, disclose, distribute, or use this document in part or as a whole for any
purposes other than those for which this document is disclosed. This document is
copyrighted and contains confidential information and other intellectual property
rights of DUALi Inc. Any unauthorized use, copy, disclosure or distribution
constitutes infringement of DUALi’s intellectual property rights.
Page 2
DE-ABCM5 Specification, Version: 1.0
www.duali.com 2
Revision History
2018.04.04 (Ver. 1.00) : First Release
Page 3
DE-ABCM5 Specification, Version: 1.0
www.duali.com 3
DUALi Inc. reserves the right to make changes to its applications or services or to
discontinue any application or service at any time without notice. DUALi provides customer
assistance in various technical areas, but does not have full access to data concerning
the use and applications of customer's products.
Therefore, DUALi assumes no liability and is not responsible for customer applications or
software design or performance relating to systems or applications incorporating DUALi
products. In addition, DUALi assumes no liability and is not responsible for infringement
of patents and/or any other intellectual or industrial property rights of third parties,
which may result from assistance provided by DUALi.
Composition of the information in this manual has been done to the best of our knowledge.
DUALi does not guarantee the correctness and completeness of the details given in this
manual and may not be held liable for damages ensuing from incorrect or incomplete
information. Since, despite all our efforts, errors may not be completely avoided, we are
always grateful for your useful tips.
We have our development center in South Korea to provide technical support. For any
technical assistance can contact our technical support team as below;
Tel: +82 31 213 0074
e-mail : [email protected]
Tel: 031)213-0074
e-mail : [email protected]
Page 4
DE-ABCM5 Specification, Version: 1.0
www.duali.com 4
FeliCa™ is registered trademark of SONY Corporation.
Mifare® is registered trademarks of NXP Semiconductors
CONTENTS
01. Introduction ................................................................................................................................................. 5
02. Hardware Specification .......................................................................................................................... 5
03. BLOCK DIAGRAM ............................................................................................................................................... 5
04. Components...................................................................................................................................................... 5
05. Cable Specification ................................................................................................................................. 6
05.1 USB Connector – USB(D+ and D- are switchable) .................................................................. 6
05.2 Serial .......................................................................................................................................................... 6
06. Certifications............................................................................................................................................. 7
07. Warranty & Service ................................................................................................................................ 10
Page 5
DE-ABCM5 Specification, Version: 1.0
www.duali.com 5

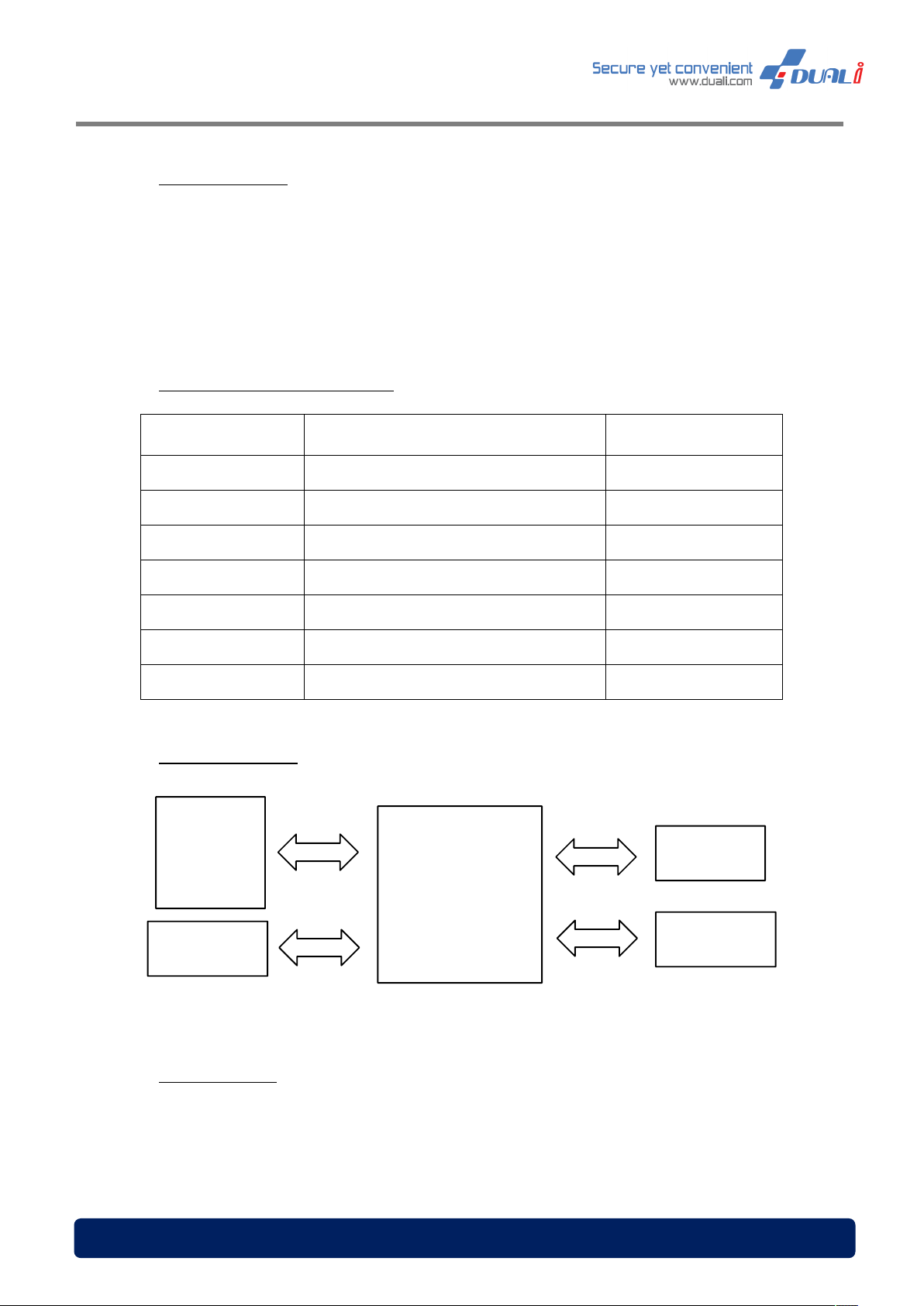

01. Introduction
DE-ABCM5 is a contactless card reader. It supports RS-232 serial
communication and USB communication via HOST.
DE-ABCM5 support all NFC forum standard and ISO-7816 contact SIM/SAM.
02. Hardware Specification
CPU
Program Memory 512Kbyte FLASH
Data Memory 128Kbyte SRAM
Communication USB
SAM 1 SAM slots supported
IC CARD ISO 7816 Smart Card Interface IC TDA8035
RF 13.56MHz, ISO-14443 A/B, MIFARE, NFC PN5180
INPUT POWER EXTERNAL ADAPTOR (DC 5V)
STM32F411CCU6
ARM Corcex-M4, 100MHz, 32bit RISC
03. BLOCK DIAGRAM
USB
RS-232
CPU
SAM
RF
IC CARD
04. Components
- DE-ABCM5 Module
- USB Cable(Option)
Page 6
DE-ABCM5 Specification, Version: 1.0
www.duali.com 6
05. Cable Specification
05.1 USB Connector – USB(D+ and D- are switchable)
PIN NAME COLOR PIN NUMBER
VDD 5.0V RED 1
05.2 Serial
USB D- GREEN 2
USB D+ WHITE 3
GND BLACK 4
PIN NAME COLOR PIN NUMBER
VDD 5.0V RED 1
USB D+ WHITE 2
USB D- GREEN 3
GND BLACK 4
PIN NAME COLOR PIN NUMBER
VDD 5.0V RED 1
RS232-TXD2 WHITE 2
RS232-RXD2 GREEN 3
GND BLACK 4
Ex_GPIO YELLOW 5
Page 7
DE-ABCM5 Specification, Version: 1.0
www.duali.com 7
06. Certifications
FCC STATEMENT
- CAUTION: Changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate the
equipment.
NOTE: This equipment has been tested and found to comply with the limits for
a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate
radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However,
there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and
on, the user is encouraged to try to correct the interference by one or more
of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
*Please contact our service team for the technical/ sales supports.
Page 8
DE-ABCM5 Specification, Version: 1.0
www.duali.com 8
FCC MODULAR APPROVAL INFORMATION EXAMPLES for Manual
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.
CAUTION: Changes or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates uses and can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by one or more of the following
measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. This equipment should be installed and operated with minimum distance 20cm
between the radiator & your body.
OEM INTEGRATION INSTRUCTIONS:
This device is intended only for OEM integrators under the following conditions:
The module must be installed in the host equipment such that 20 cm is maintained between
the antenna and users, and the transmitter module may not be co-located with any other
transmitter or antenna. The module shall be only used with the internal on-board antenna
that has been originally tested and certified with this module. External antennas are not
supported. As long as these 3 conditions above are met, further transmitter test will not
be required.
However, the OEM integrator is still responsible for testing their end-product for any
additional compliance requirements required with this module installed (for example,
digital device emissions, PC peripheral requirements, etc.). The end-product may need
Verification testing, Declaration of Conformity testing, a Permissive Class II Change or
new Certification. Please involve a FCC certification specialist in order to determine
Page 9
DE-ABCM5 Specification, Version: 1.0
www.duali.com 9
what will be exactly applicable for the end-product.
Validity of using the module certification:
In the event that these conditions cannot be met (for example certain laptop
configurations or co-location with another transmitter), then the FCC authorization for
this module in combination with the host equipment is no longer considered valid and the
FCC ID of the module cannot be used on the final product. In these circumstances, the OEM
integrator will be responsible for re-evaluating the end product (including the
transmitter) and obtaining a separate FCC authorization. In such cases, please involve a
FCC certification specialist in order to determine if a Permissive Class II Change or new
Certification is required.
Upgrade Firmware:
The software provided for firmware upgrade will not be capable to affect any RF parameters
as certified for the FCC for this module, in order to prevent compliance issues.
End product labeling:
This transmitter module is authorized only for use in device where the antenna may be
installed such that 20 cm may be maintained between the antenna and users. The final end
product must be labeled in a visible area with the following: “Contains FCC ID:
SWUDEABCM5”.
Information that must be placed in the end user manual:
The OEM integrator has to be aware not to provide information to the end user regarding
how to install or remove this RF module in the user's manual of the end product which
integrates this module. The end user manual shall include all required regulatory
information/warning as show in this manual.
Page 10
DE-ABCM5 Specification, Version: 1.0
www.duali.com 10
07. Warranty & Service
Warranty and Repair service
- DUALi Inc. warrants to the original consumer or other end user that this
product, DE-ABCM5, is free from defects in materials and workmanship for a
period of 1 year from the date of purchase.
※ Note Warranty/non-warranty repair fees do not include shipping charges.
‣ The damages(defaults) prescribed below are NOT to be covered by warranty.
- User’s misuse of part/component against the provided manual.
- Fault by the unqualified user’s own intention of repairs.
- Adding certain functions or extension of system.
PRECAUTIONS
Do not drop the device.
Do not modify, repair, or disassemble.
Do not expose directly to water, alcohol, benzene, etc for cleaning.
Do not expose directly to flammables.
Do not place or keep the device near flammables.
Keep the device away from excessive humidity and dust.
Do not place heavy objects on the device.
Changes or modifications not expressly approved by the party
responsible
for compliance could void the user’s authority to operate the
equipment.
*Please contact our service team for the technical/ sales supports.
Page 11
DE-ABCM5 Specification, Version: 1.0
www.duali.com 11
DUALi Inc.
Innoplex 1dong 309ho 306, Sinwon-ro,
Yeongtong-gu, Suwon-si, Gyeonggi-do,
Republic of Korea,
16675
Tel : +82 31-213-0074
Fax : +82 31-213-0078
E-mail : [email protected]
Web-site : http://www.duali.com
