DE-620
pp
pp
(RF CARD READER)
Table of Contents
1. Specifications
2. Overview
User´s Manual
DUALi INC.
Made in KOREA
3. Product Contents
4. Installation
5. Operation
6. Dimension and Characteristic
7. Technical Su
(Document Number : EP13-09-001)
ort
Page 2
1. Specifications
Read Range
Inside 4 cm
Sensitive to the installed environment
CPU ARM 32-bit Cortex-M3
2. Overview
1.1 DE-600S
Host
Communication
Compatible ISO 14443 Type-A (Include
Card MIFARE) and Type-B, FeliCa
Frequency 13.56MHz
Power USB Power (DC 5V), Max 250mA
Consumption
Operating
Environment
Size 68 ☓ 120 ☓ 28(mm)
USB 2.0(1.1)
card, ISO 7816 Contact Card
and SIM Type
-20ﾟC 〜 50ﾟC
- Support read / write the ISO14443 Type A
& B RF-Card, FeliCa card, Mifare Card
Protocol.
- Host Communication : USB
1.2 Caution
- Do not expose to the hot temperature,
hot sunny, wet condition.
- Fragile on the shake, outside damage.
-
do not expose in the iron metal around
the reader, it should cause the fatal
defection
,
Page 3

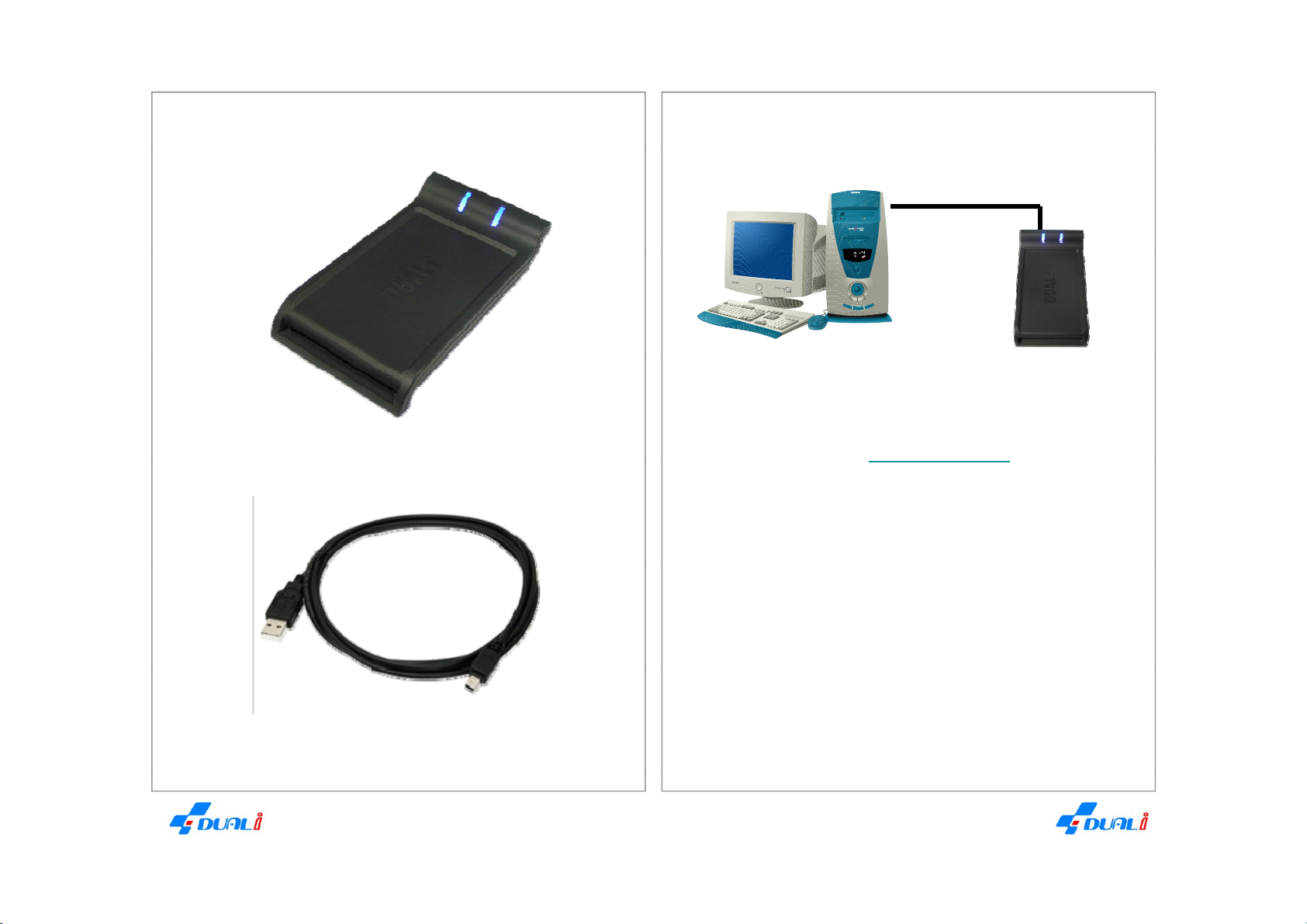

3. Product Contents
and function protocol
4. Installation
READER
PC
USB CABLE
- USB communication : Download USB
Driver from www.duali.com
- Provided communication protocol:
Length high + Length low + Command or
Response Code + Data
-Sample working test program
- Ask to the Service provider
( Program provider ) for more command
USB CABLE
Page 4
5. Operation 6. Dimension and Characteristic
DLL
* LED On/Off
68
28
- You can test it with Duali test program
to read / write on the specific card.
- You can develop many different program
such as Access, time & attendance,
card issuing, PC security with the
provided Duali
and Protocol.
- Functions.
* Mifare card Read/Write
* ISO 14443 A-Type Card Read/Write
* ISO 14443 B-Type Card Read/Write
* FeliCa card Read/Write
* ISO 7816 T=0 (Contact or SIM Type)

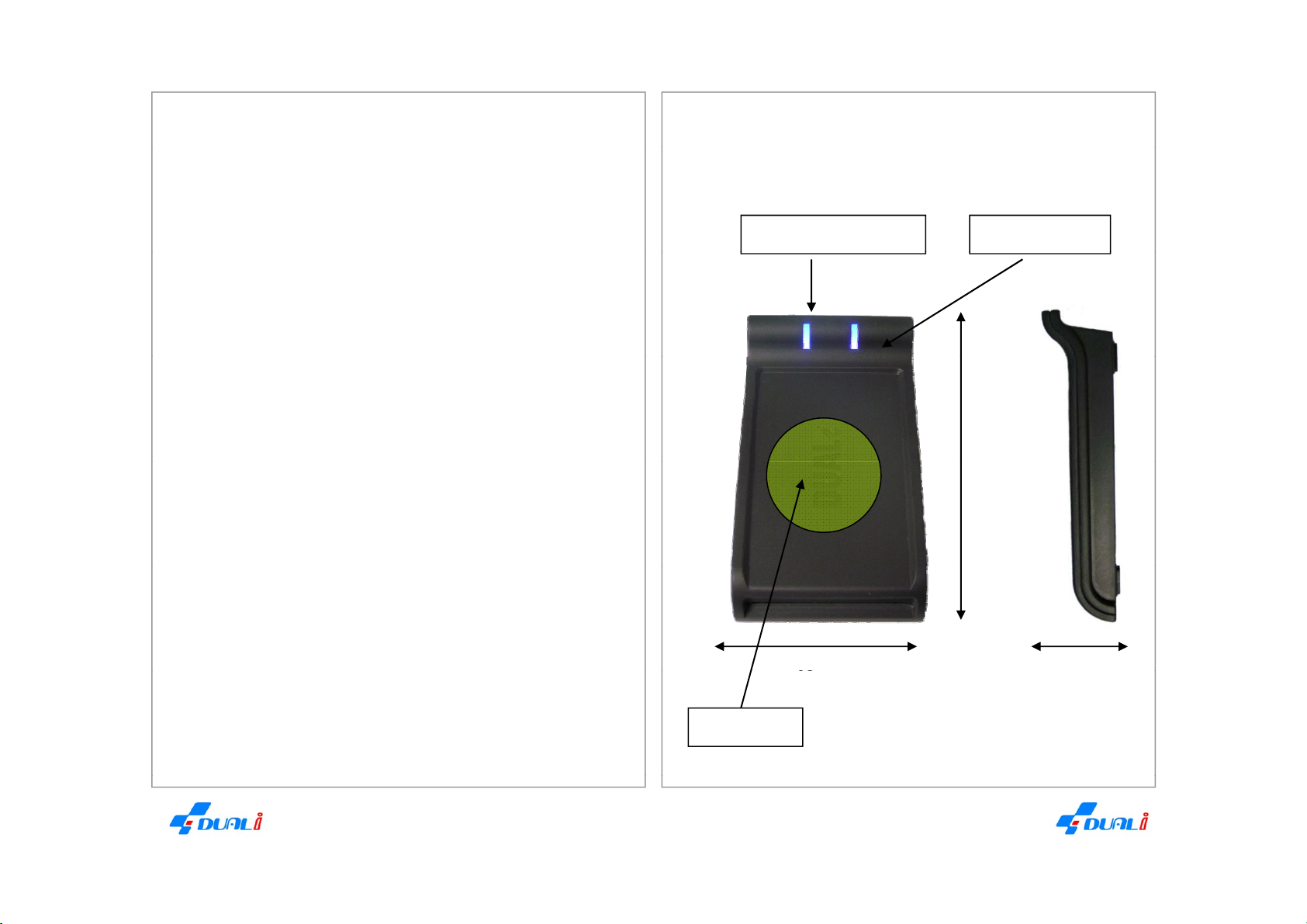

5.1 Dimension
Power LEDUSB connector
120mm
* Buzzer On/Off
Antenna
mm
mm
Page 5
5.2 Characteristic
- Operation Temperature : -20℃ 〜 50℃
This equipment has been tested and found to comply with the limits for a
However, there is no guarantee that interference will not occur in a
Gyeonggi
443380, Korea.
1. This devi
d
- Input Volatge : DC 5V (USB)
- Card Reading Range : Inside 10 Cm
7. Technical Support
- Address : Room 505 Samsung Technopark,
FCC (Federal Communications Commission)
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference
in a residential installation. This equipment generates uses and can radiate
radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications.
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
- Consult the dealer or an experienced radio/TV technical for help.
#471 Wonchen, Youngtong, Suwon,
- URL : www.duali.com
- Tel : +82-31-213-0074
WARNING:
This equipment may generate or use radio frequency energy.
Changes or modifications to this equipment may cause
harmful interference unless the modifications are expressly
approved in the instruction manual. The user could lose the
authority to operate this equipment if an unauthorized
change or modification is made.
This device complies with Part 15 of the FCC`s Rules. Operation is subject
to the following two Conditions:
ce may not cause harmful interference, an
2. This device must accept ant interference received, including
interference that may cause undesirable operation.
