Page 1
L83BK
INSTALLATION/OWNER’S MANUAL
Indoor/Outdoor 3-Way Dynamic Loudspeakers
®
Page 2
®
L83BK
INTRODUCTION
Introduction
Introduction
Important
Warranty Coverage
The DUAL outdoor speaker series is designed as a multipurpose speaker and will deliver accurate high fidelity sound
in exterior or interior environments. Weather-resistant design
and construction provide optimum durability for permanent or
temporary outdoor use. Both models are available in black
or white.
For simplicity, we will call your AV receiver or amplifier
the “receiver.”
The grilles are not designed or intended to be removed. Do
not remove the grilles from your speakers. There are no
user-serviceable parts behind the grille and removal will
damage the speaker.
You must have proof of purchase to receive warranty service.
Please keep your original sales receipt and be prepared to
provide this receipt in the event you require service, as your
original receipt is considered the best proof of purchase and
indicates the date you purchased your Dual product.
For Your Records
2
Model
Dealer Name
Dealer Phone
Purchase Date
Note: You may want to keep your original sales receipt or a
photo copy with this installation/owner’s manual.
Page 3
L83BK PLACEMENT
Speaker Placement
®
Mounting Placement
Speaker Placement
Wall and Ceiling
Placement
Experiment for Better
Sound
If mounting is desired, mounting both speakers on a
common solid
the best audio results.
Do NOT mount speakers on wall surfaces that have
hazards concealed behind them, such as electrical wires
or plumbing. Always mount speaker on surfaces that are
sturdy enough to support the speakers’ weight, and make
sure they cannot fall or cause injury.
Your speakers can be placed in many convenient locations
in your home or patio area - as stereo pairs on either
side of your receiver - as surround speakers in home
theater surround sound systems - in your computer room
to enhance the multimedia experience - or as remote
speakers.
For wall and ceiling applications, DUAL mounting brackets
are included. In addition, the L83BK has a rear inset
keyhole for surface hanging if aftermarket mounting
systems will be used.
You should experiment with various placements. Room
acoustics can produce large apparent differences in the
sound when small changes in the placement are employed.
For example, although the speaker may be located at any
height above the floor, directing the tweeter toward ear
level (32" – 36") or angling the entire speaker toward the
listening position often provides the most realistic imaging
experience. The amount of bass perceived increases as you
move a speaker closer to solid intersecting room surfaces
(walls, ceiling, floor).
surface facing the listening area will provide
(6’10”)
Recommended minimum distance
between speakers
3
Page 4
®
L83BK
INSTALLATION
Placement & Mounting Speakers
Outdoor Placement
he DUAL L83BK speakers have been tested for
T
environmental usage and are weather resistant, but not
waterproof. Occasional moisture will not affect performance.
The speakers should be allowed to ventilate and dry after
water exposure.
The speakers can be placed permanently outdoors for yearround enjoyment. To maximize speaker life, position in areas
protected from the elements, such as the underside of eaves
and overhangs. Popular locations include decks, gazebos,
porches, atriums, garages, and covered spa areas.
For temporary placement, remove the speaker from the
mounting brackets and replace the thumb screws to maintain
stability if placing the speakers on end.

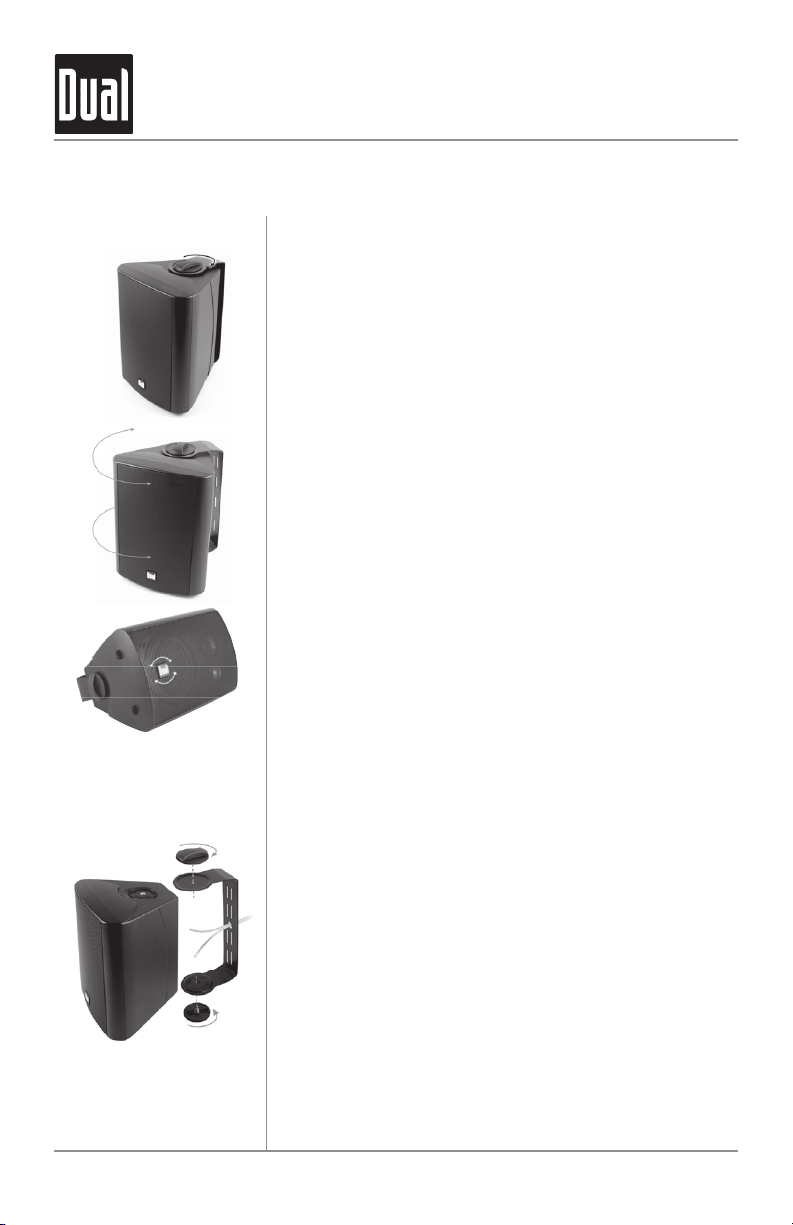

The L83BK speakers have a DUAL logo that can be rotated.
The logo is located on the face of the grille in the event a
vertical installation is needed. The logo is spring loaded. Use
gentle force when adjusting the logo to a new orientation. To
rotate the logo, elevate two ends of the logo equally by
placing your nail under and lifting lightly. While the logo is
elevated, turn the logo to the desired orientation and release.
Mounting
Your Speakers
4
For ease of installation, the DUAL L83BK includes an easily
removable mounting bracket. Once mounted, the bracket
allows the speaker to be pivoted to its ideal location. The
included thumb screws knobs will hold the selected speaker
position when properly tightened. Avoid over tightening the
knob. Before attempting the installation, carefully evaluate
the mounting surface, making sure that its composition and
construction are strong enough to support the load safely.
If you are unsure about the type of mounting hardware
for your installation, consult a professional contractor or a
knowledgeable hardware store. The anchors and screws to
attach the speakers are not included and must be purchased
separately. The hardened steel brackets are suitable only for
attaching the speaker to walls or ceilings constructed of solid
wood, brickwork, concrete, hollow buildings block or wood
studs.
Do not mount the bracket to non-reinforced plaster sheetrock
(gypsum board). Once the bracket is secure, reattach the
speaker using the thumb screws included.
Page 5
L83BK CONNECTION
Connecting Speakers
®
Connecting
Your Speakers
Speaker Wire -Typical speaker
speaker wires with insulating jackets that are molded
together. Dual recommends the use of two conductor
18-gauge speaker wire to connect your speakers to your
receiver. Measure enough wire to reach from your receiver
to each speaker plus additional length to allow moving the
speakers or receiver without having to disconnect the wires.
When connecting the speakers in a stereo configuration,
the wire length should be similar. One length should not be
dramatically longer or shorter then the other. Maintaining
similar wire lengths will provide superior sound quality.
Polarity - Speaker wires are marked for polarity consistency
so that you can determine the positive and negative identity
of the individual wires within the molded pair insulation.
Polarity is shown by either a color stripe on the insulation,
by ridges molded into one side of the insulation, the color of
the insulation case around the wire, or by the colortype or
colors of the wires/wire itself (copper or silver).
Important - Always connect speaker wire using the positive
(+) terminal on the receiver to the positive (+) terminal, and
the negative (-) terminal on the receiver to the negative
(-) terminal. All speakers in a system must be connected
with the same respective polarity. The speaker inputs are
located on the rear-mounted terminal cup on the back of
the speaker.
wire has a pair of separate
L83BK

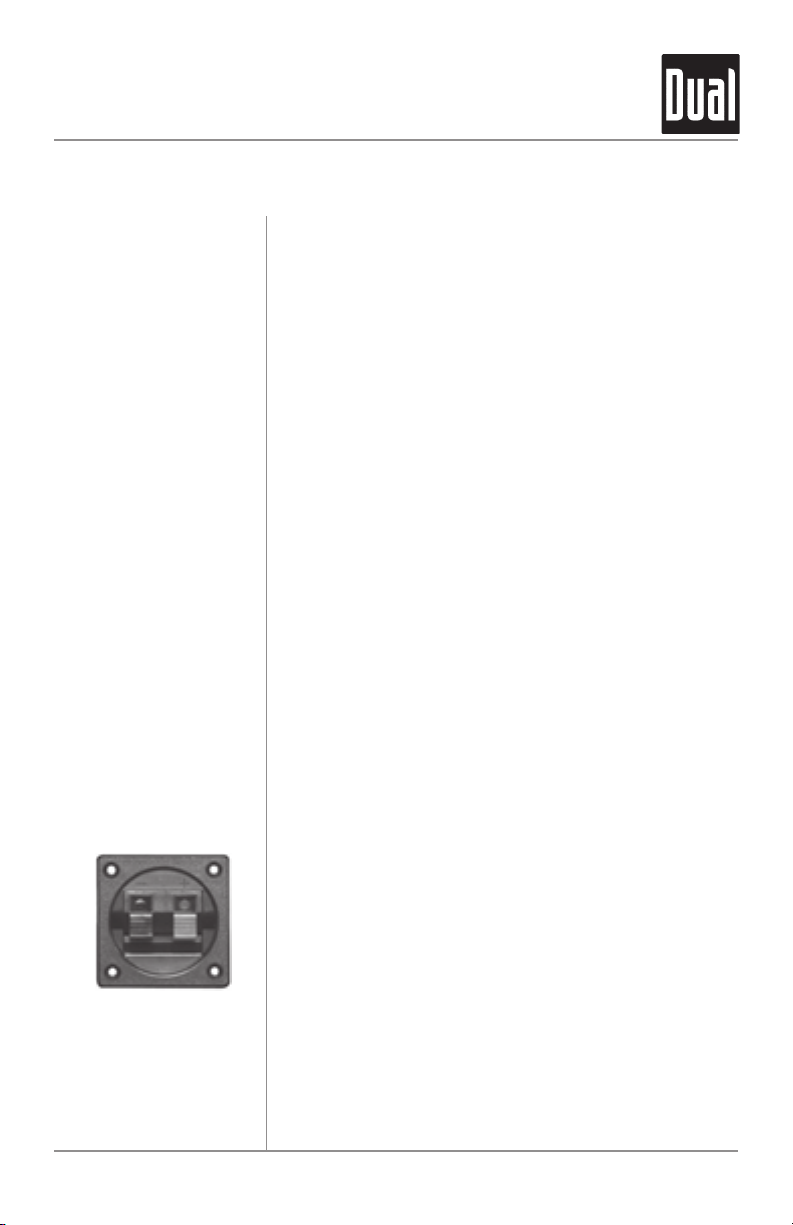

Terminal Type - The L83BK utilizes a push-pin design.
Gently depress the colored lever and insert the stiped end of
the wire directly into the opening located in the center of the
input housing.
5
Page 6
®
L83BK
CONNECTION & TROUBLESHOOTING LU83BK SPECIFICATIONS
Connecting Speakers
Your Speakers
The speaker wire must be securely connected and tightened
properly to the speaker inputs. Do not over-tighten. Do
not allow the positive and negative speaker wire from the
receiver to make contact, as this will cause a short.
It is recommended that the wire insulation be stripped back
approximately 3/8”, allowing the wire conductor to make
a proper connection. Make sure that the wire insulation
is stripped back far enough so that the bare speaker wire
will make a proper connection to the metal clip inside
the terminal and be securely held in place. This can be
confirmed visually.
Troubleshooting
Distortion/Knocking
If you hear obvious distortion from the speakers, immediately
lower the volume level of your receiver. Those sounds often
indicate that either the receiver or the speaker is being
overdriven, and damage can result in playing your source
material (music-CDs-DVD-MP3) at high volume levels for
prolonged periods of time. You should also avoid turning the
bass or treble controls fully up and using your "Loudness
button" when the volume level is at or above normal listening
levels. Note: The Loudness button on most receivers is
designed to add depth when your system is being used for
background music or at very low volume.
Distorted or unnatural sound can indicate poor connections,
defective electronics, damaged source material or speaker
failure. If only one of your speakers has poor sound quality,
check the speaker wire and audio connections. If that doesn’t
fix the problem, try putting each speaker in place of one
another (swapping). If the sound remains poor on the suspect
speaker after swapping location and the distortion moves
with the speaker to the new location, the speaker may be the
problem. If the distortion remains in the original location then
the problem is eleswhere in your audio/video system.
6
Page 7
®
Specifications
L83BK
SPECIFICATIONS
Specifications
Model L83BK
Frequency Response
Woofer 4" (100mm) Polyelite PVA Surround
Midrange 40mm polypropylene
Tweeter 20mm Piezo Dome
Sensitivity 85.5 dB (2.83v @ 1 meter)
Nominal Impedance 4-6 ohms
Power Handling* 50 watts RMS - 100 watts (IPP)
Dimensions (Inches H x W x D) 8.25 x 5.25 x 5.25
Weight 2.8 lbs.
Finish Black
* Power handling is based on amplifier volume never being
set above the point of audible distortion.
All Rights Reserved. All specifications subject to change without notice.
100 Hz-20kHz
7
Page 8
Limited One-Year Warranty
This warranty gives you specific legal rights. You
may also have other rights which vary from state
to state.
Dual Electronics Corp. warrants this product to
the original purchaser to be free from defects in
material and workmanship for a period of one year
from the date of the original purchase.
Dual Electronics Corp. agrees, at our option,
during the warranty period, to repair any defect in
material or workmanship or to furnish an equal
new, renewed or comparable product (whichever is
deemed necessary) in exchange without charges,
subject to verification of the defect or malfunction
and proof of the date of purchase. Subsequent
replacement products are warranted for the balance
of the original warranty period.
What to do?
1. Before you call for service, check the
troubleshooting guide in your owner’s manual.
A slight adjustment of any custom controls may
save you a service call.
2. If you require service during the warranty period,
you must carefully pack the product (preferably
in the original package) and ship it by prepaid
transportation with a copy of the original receipt
from the retailer to an
authorized service center.
Who is covered? This warranty is extended to the
original retail purchaser for products purchased
from an authorized Dual dealer and used in the
U.S.A.
What is covered? This warranty covers all defects
in material and workmanship in this product. The
following are not covered: software, installation/
removal costs, damage resulting from accident,
misuse, abuse, neglect, product modification,
improper installation, incorrect line voltage,
unauthorized repair or failure to follow instructions
supplied with the product, or damage occurring
during return shipment of the product. Specific
license conditions and copyright notices for the
software can be found via www.dualav.com.
Dual Electronics Corp.
Toll Free: 1-866-382-5476
Monday-Friday, 9AM-5PM EST
©2016 Dual Electronics Corp. All rights reserved.
www.dualav.com
NSA0616-V01
Printed in China
3. Please describe your problem in writing and
include your name, a return UPS shipping
address (P.O. Box not acceptable), and a daytime
phone number with your shipment.
4. For more information and for the location of the
nearest authorized service center please contact
us by one of the following methods:
• Call us toll-free at 1-866-382-5476
• E-mail us at [email protected]
Exclusion of Certain Damages: This warranty is
exclusive and in lieu of any and all other warranties,
expressed or implied, including without limitation
the implied warranties of merchantability and fitness
for a particular purpose and any obligation, liability,
right, claim or remedy in contract or tort, whether or
not arising from the company’s negligence, actual or
imputed. No person or representative is authorized
Loading...
