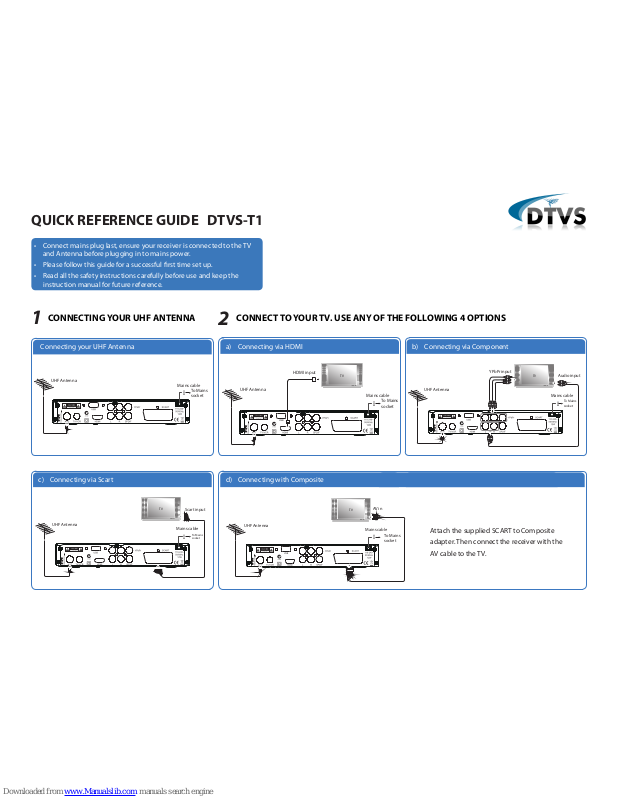

DTVS DTVS-T1 Quick Reference Manual
Mains cable
To Mains
socket
SS
UHF Antenna
Mains cable
HDMI input
To Mains
socket
SS
TV
UHF Antenna
Mains cable
YPbPr input
To Mains
socket
SS
TV
Audio input
UHF Antenna
Mains cable
To Mains
socket
SS
TV
Scart input
UHF Antenna
Mains cable
To Mains
socket
SS
TV
AV in
UHF Antenna
CONNECT TO YOUR TV. USE ANY OF THE FOLLOWING 4 OPTIONS
CONNECTING YOUR UHF ANTENNA
c) Connecting via Scart
a) Connecting via HDMI
Connecting your UHF Antenna
d) Connecting with Composite
b) Connecting via Component
Attach the supplied SCART to Composite
adapter. Then connect the receiver with the
AV cable to the TV.
2
1
QUICK REFERENCE GUIDE DTVS-T1
• Connect mains plug last, ensure your receiver is connected to the TV
and Antenna before plugging in to mains power.
• Please follow this guide for a successful rst time set up.
• Read all the safety instructions carefully before use and keep the
instruction manual for future reference.
TUNING INSTRUCTIONS
3
Step 1 Step 3Step 2
When your set-top-box is switched on for the rst
time, a Welcome Page will be displayed. Use the
buttons to select the Aspect Ratio and press
the OK button on the remote control or the Unit to
conrm.
The receiver will display the channels found and the
progress bar while searching. Once all the channels
are found the receiver will save the channels and exit
automatically. You can then begin watching your
programmes.
Troubleshooting
If you get a "Tuning Failed" or "Database Empty" message, please try the following:
1) Check your connections to the UHF Antenna.
2) Ensure your Antenna is installed correctly.
3) Retry installation after performing "Factory Default"
The receiver will automatically detect the signal
and will show progress and signal quality. Once a
signal is found, the receiver will begin searching for
channels.
For further assistance you can check for more information on the DTV Solutions website, www.dtvs.co.nz or call the help line number. 0800 388 765
