Page 1

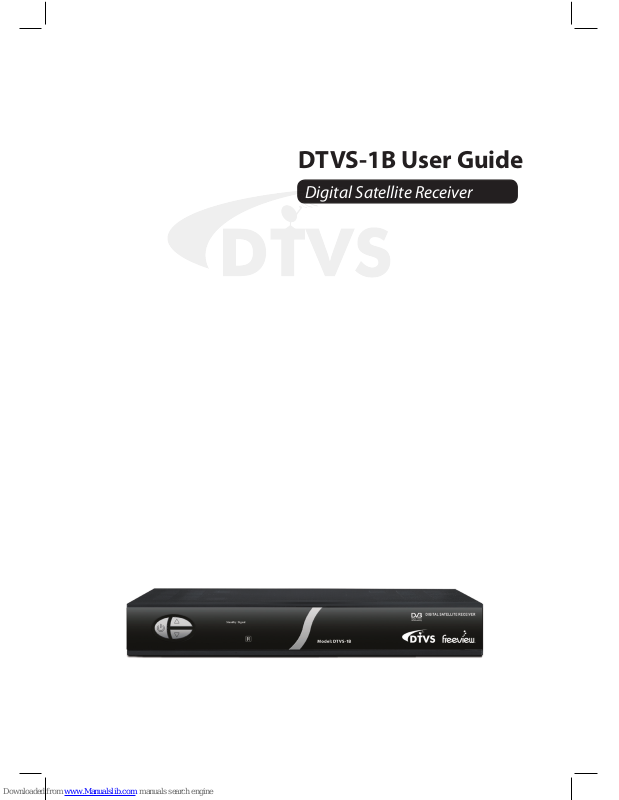

DTVS-1B User Guide

Digital Satellite Receiver

Page 2

Digital Satellite Receiver DTVS-1B User Guide

- Always read the safety instructions carefully.

- Keep this User's Manual for future reference.

- Keep this equipment away from humidity.

- Lay this equipment on a reliable at surface before setting it up.

- Do not stand it on soft furnishings.

- If any of the following situation arises, get the equipment checked by a service Technician:

● The equipment has been exposed to moisture.

● The equipment has been dropped and damaged.

● The equipment has obvious sign of breakage.

● The equipment has not been working well or you cannot get it work according to User's Manual.

Warning

- To prevent the risk of electric shock, do not open the cover or the back of the receiver.

- Do not block the ventilation holes of the device. Leave an appropriate gap above and around it to

allow for adequate ventilation.

- Do not place the device in an unventilated cabinet or on top of a unit which emits heat.

No part of this publication may be reproduced in any form by any means without the prior written

permission. Other trademarks or brand names mentioned herein are trademarks or registered

trademarks of their respective companies.

Disclaimer

Information in this document is subject to change without notice. The manufacturer does not make

any representations or warranties (implied or otherwise) regarding the accuracy and completeness

of this document and shall in no event be liable for any loss of prot or any commercial damage,

including but not limited to special,incidental,consequential,or other damage.

This symbol indicates that this product incorporates double insulation between

hazardous mains voltage and user accessible parts. When servicing use only

identical replacement parts.

WARNING:

To reduce the risk of re or electric shock, do not expose this apparatus to water or colds.

Safety Instructions

Page 3

Safety Instructions ........................................................................................................................................................... 2

Contents .............................................................................................................................................................................. 3

About the Set Top Box ..................................................................................................................................................... 4

Front Panel and Rear Panel Illustration ................................................................................................................. 5

Remote Control .............................................................................................................................................................. 6

Installing the Batteries ................................................................................................................................................... 7

Connecting to Equipment ......................................................................................................................................... 8

First Time Installation .................................................................................................................................................... 9

Basic Operations ............................................................................................................................................................ 10

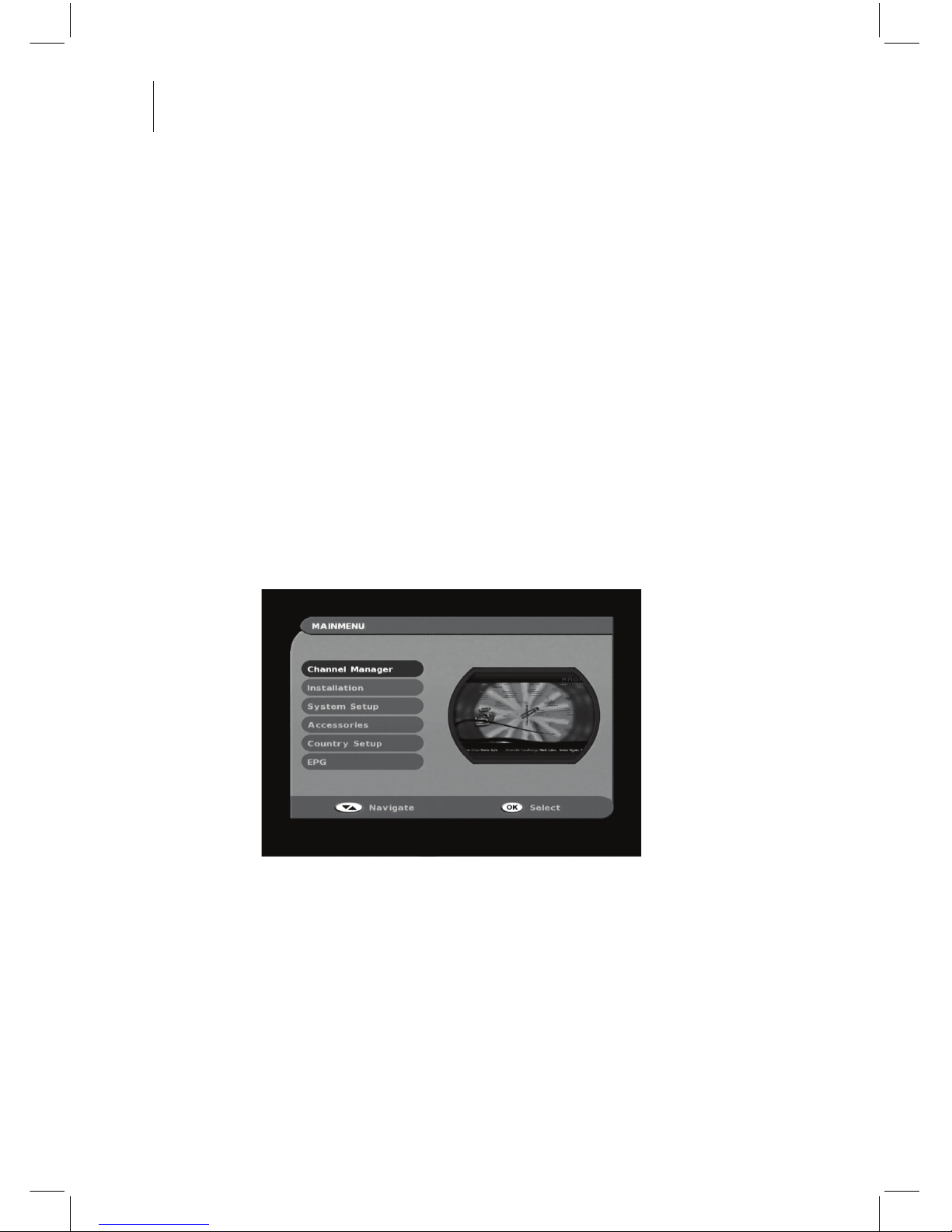

Main Menu ..................................................................................................................................................................... 12

Channel Organiser ......................................................................................................................................................... 14

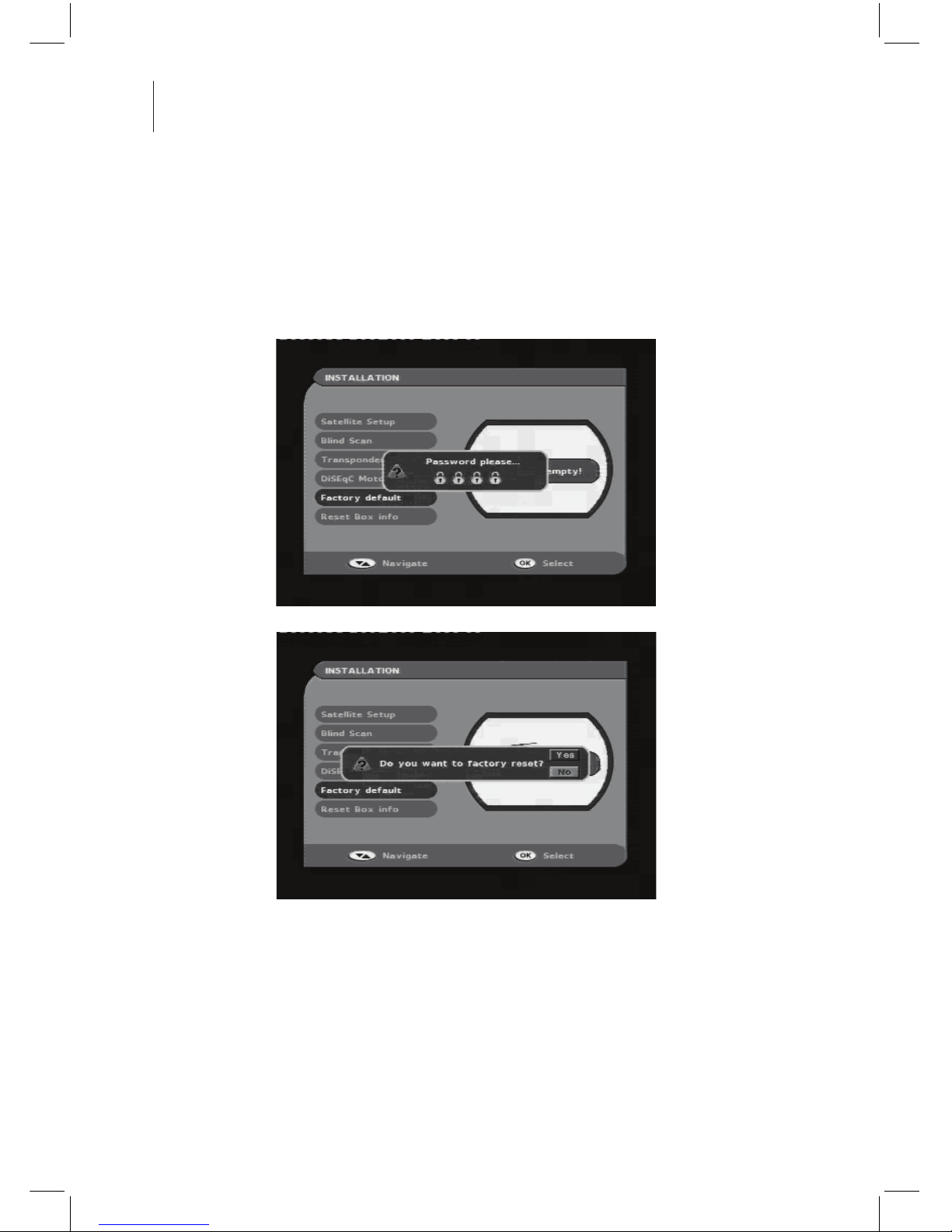

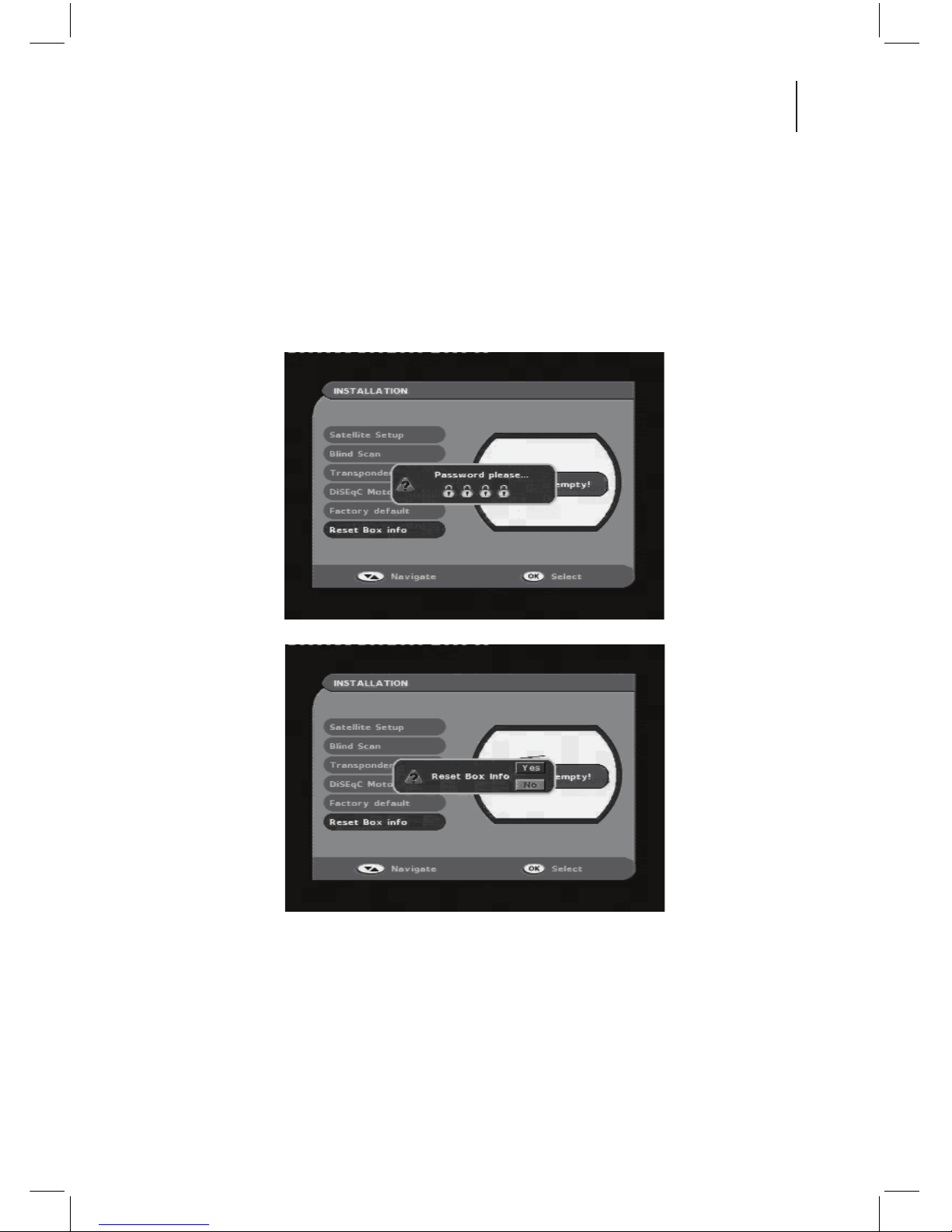

Installation ........................................................................................................................................................................ 16

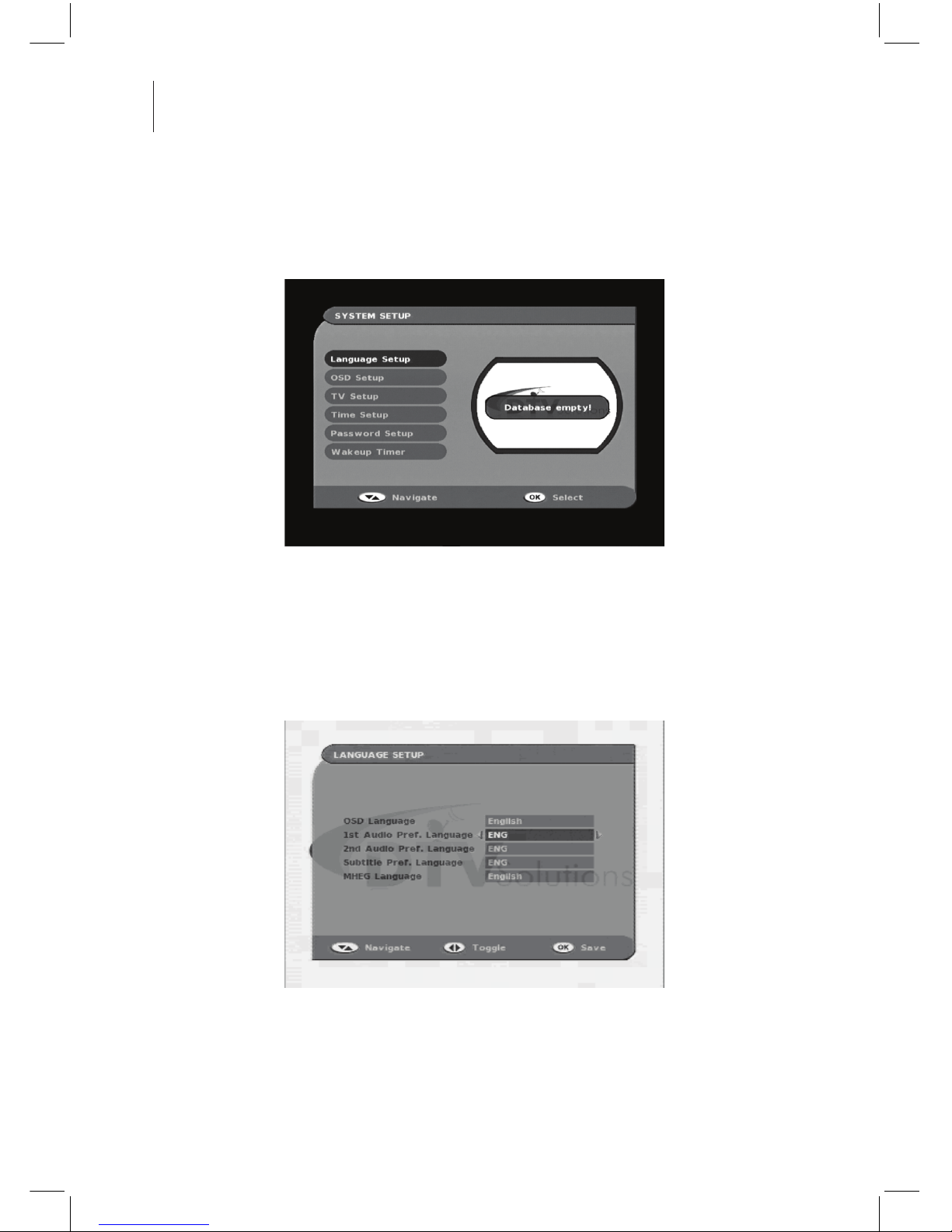

System Setup .................................................................................................................................................................... 21

Accessories ....................................................................................................................................................................... 26

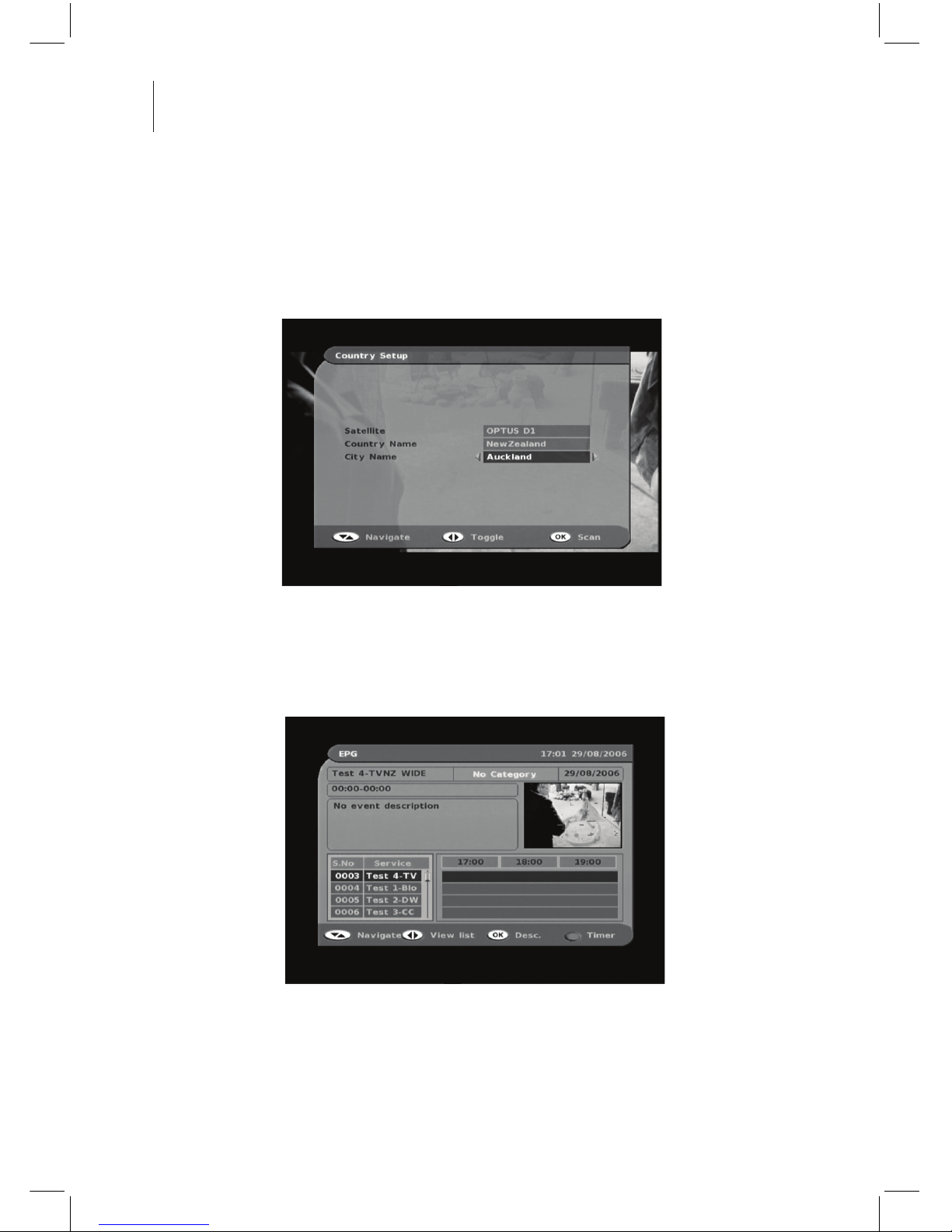

Country Setup/EPG ......................................................................................................................................................... 28

Troubleshooting ........................................................................................................................................................... 29

Receiver Specications ............................................................................................................................................... 30

Warranty ........................................................................................................................................................................... 31

Contents

Page 4

Digital Satellite Receiver DTVS-1B User Guide

This DVB-S Satellite Receiver is a Free-To-Air digital satellite receiver, allowing you to access free-

to-air digital Satellite TV channels and radio broadcasts on your TV set. Its digital reception covers

VHF & UHF band. Compared with analog TV programs, digital TV programs eliminate the noise

and interference by oering high quality video and audio. An on-screen initial installation guide is

provided so that you can easily start to enjoy watching the programs. In addition, a fully featured

remote control is included that oers you access to every feature with a simple press of a button.

Main Features

- Fully compliant with New Zealand DVB-S standards

- Full MPEG2 ISO/IEC 13818 transport stream compliant audio/video decoding

- Bandwidth of 8MHz supported

- QPSK demodulator

- Automatic/manual channel search

- Channel edit and deletion

- Parental lock control

- EPG (Electronic Program Guide) and teletext function (where available)

- Tuner RF in/loop through

- Component/Video/Digital Audio via coaxial YCbCr output

- RF Modulator support

- Full function remote control

Package Contents

Before installation, please check the items of the package. The package should contain the

following items:

1. DVB-S satellite receiver x 1

2. Remote control x 1

3. AAA size battery x 2

4. Instruction manual x 1

5. AV Cable x 1

6. RF Cable x1

7. Warranty label x 1

8. Quick start guide x 1

About the Set Top Box

Page 5

Front panel

1. POWER To turn the standby mode ON/OFF

2. ▲ To change the channel upward

3. ▼ To change the channel downward

4. LED digital display: To display the status of the receiver: when playing menu, it shows "MENU";

when watching TV channel, it shows the channel No.; when in standby mode, it shows the time.

When searching channels, it shows "TUNE".

Rear panel

1. LNB INPUT To connect to a satellite antenna and cable jacks

2. LNB OUT Used to connect a RF signal from the STB to either the RF input jack on your TV or to the

STB

3. YCbCr High quality video output to connect to your TV

4. VIDEO Video connection port to the TV or other equipment

5. AUDIO R/L Audio connection port to the TV or other equipment

6. S/PDIF Digital audio output

7. TO TV To connect a TV via a coaxial cable

8. AV ANT IN To connect to television antenna input

9. RS-232 To connect to a personal computer for software upgrade

10. POWER Switch ON/OFF

Z1082

Seria l No.

Model N o: DTVS -1B

Digit al Sate llite R eceiv er

MADE IN CH INA

AC 170-2 40~ 50/60Hz 3 0W Max .

RS-2 32

LNB I NPUT

LNB O UT

TO TV

TV ANT I N

13/1 8V 500m A Max .

Y Cb Cr V IDEO

S/PD IF

R AUDI O L

3 5 8

4 6 7

1 2

3 4

Front Panel and Rear Panel Illustration

Page 6

Digital Satellite Receiver DTVS-1B User Guide

Remote key functions

1. POWER To turn the standby mode ON/OFF

2. MUTE To mute or recover the sound of

the receiver

3. Numeric buttons (0-9) To control the

numerical operation and to change

programs directly

4. SUBTL To select closed caption

5. TV/RADIO To switch the program between

TV and Radio

6. EPG To introduce some program info to the user

7. TXT To switch the teletext service ON/OFF

8. Up/Down Arrow (

▲/▼

) To move focused item

in menu or channel list, to change the program

upward/downward

9. Left/Right Arrow (

◄/►

)

- To switch to favorite channel list in channel

list menu

- To change selection in menu

10. OK

- To select a channel or menu option

- To show the channel list

11. MENU To enter the main menu

12. EXIT To cancel operation or exit the menu to the

previous one

13. VOL+/- To increase or decrease the volume

14. CH

▲/▼

To change the channels

15. INFO To display the current program information.

It could be an instruction as “help” to tell you the function of the available keys on the bottom of the

16. AUDIO To change audio mode to left, right and stereo

17. TEXT To access to Digitext service

18. 4 COLOR KEY Used to operate dierent functions in MPEG, TEXT,OSD and other menus

19. FAV To show the favourite channel list

20. RECALL To turn to view the previous program

7 8 9

TV/RA DIO

RECAL L

FAV

AUDIO

VOL. CH.

TEXT

INFO

EPG TXT

SUBT L

EXIT

Remote Control

Page 7

Remove the battery cover from the remote control and put two AAA size batteries inside the

compartment. The diagram inside the battery compartment shows the correct way to install the

batteries

Caution:

1. Keep batteries out of childrens’ reach.

2. Don’t attempt to recharge, short-circuit, disassemble, heat or throw the

batteries into re.

3. Always replace both batteries at the same time. Never mix new and old

batteries or batteries of a dierent type.

4. If you don’t intend on using the remote control for an extended period,

remove the batteries to prevent possible leakage and corrosion.

5. Do not drop, apply shock or step on the remote control.

6. Do not spill water on the remote control.

Notes: If the receiver does not operate when operating the remote

control from a close range, you may need to replace the batteries.

Using the Remote Control

1. Point the remote control towards the front of the digital set top box.

2. The remote control has a range of up to 7 metres from the set top box at an angle of up to 60

degrees.

3. The remote control will not operate if its path is blocked.

Note: Sunlight or very bright light will decrease the sensitivity of the remote control.

Installing the Batteries

Page 8

Digital Satellite Receiver DTVS-1B User Guide

How to get good reception

There are many ways to connect the satellite receiver to your home entertainment system,

depending on the equipment and connection types you have. However, for the best video/audio

quality, use the higher quality YCbCr and S/PDIF connections if available.

Note: Please always remember to disconnect the satellite decoder from the power source prior to

connecting or disconnecting the antenna cable to the LNB (on the satellite dish). This is necessary as

the LNB installed on your dish may be powered via the antenna cable that connects to the antenna

IN on the rear of the STB.

Connections to a TV

There are several ways of connecting your STB receiver to the TV and Hi-Fi System. Connection

between the STB receiver and TV is possible via YCbCr component or via CVBS.

Connect the STB receiver via Video L/R, YCbCr SPDIF and Audio

Z1082

Serial N o.

Model N o: DTVS -1B

Digit al Sate llite R eceiv er

MADE IN CHI NA

AC 170-2 40~ 50/60Hz 3 0W Max .

RS-2 32

LNB I NPUT

LNB O UT

TO TV

TV ANT I N

13/18 V 500m A Max .

Y Cb Cr V IDEO

S/PD IF

R AUDI O L

Digital Output: SPDIF

VIDEO, L/G, R/D Output

Satellite antenna input

Outside aerial

L/G

R/D

YCbCr Output

VIDEO

Connecting to Equipment

Page 9

Note: Be sure to turn on the main power at the rear of your receiver before using the receiver. Before

you press power button, the receiver is on standby mode.

After all the connections have been made properly switch on your TV. Make sure the receiver is

connected to the mains and press the POWER button to switch the receiver on. If you are using the

receiver for the rst time or restored to factory default, the Main Menu will be displayed. Select the

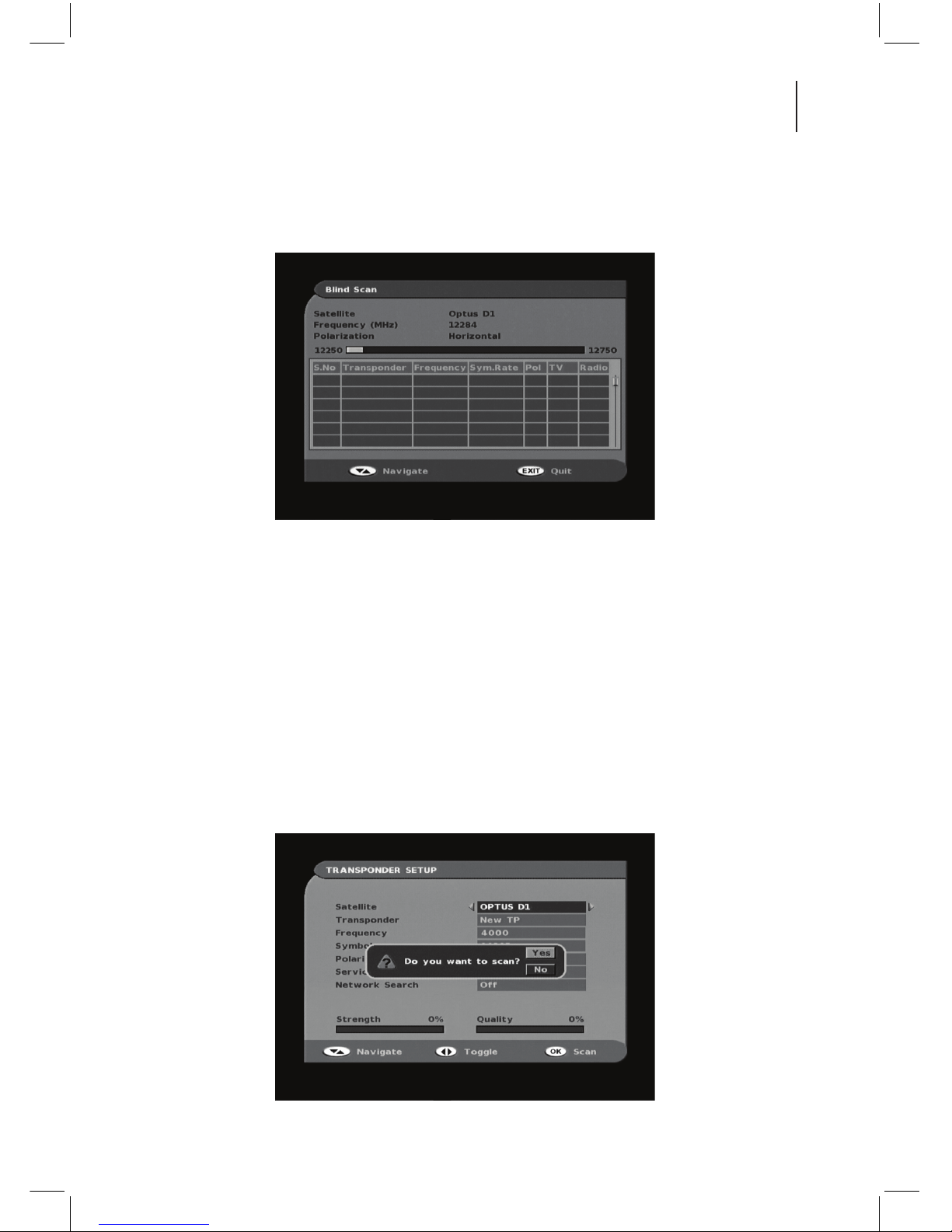

installation and choose blind scan to search for channels (see the detailed information on page 17).

When the unit has nished scanning, all active channels found will be stored automatically. The

last found channel will be viewed. ( If you wish to stop scanning, press the EXIT button to exit. The

channels already found will be stored ).

Now you are ready to watch digital satellite TV channels and radio broadcasts.

First Time Installation

Page 10

Digital Satellite Receiver DTVS-1B User Guide

Switch program

1. Press the numeric buttons (0~9) on the remote control to select the channel number you want.

2. Press the CH

▲/▼

key on the remote control or the front panel to change the available channels

upward/downward.

3. Press the RECALL button to view the previous channel selected.

Volume control

1. Press the Vol+/- button on the remote control or front panel to adjust the volume. The following

volume bar will appear on screen.

Mute

1. Press the button to temporarily stop the sound.

2. To cancel mute, press the key again or press VOL+/- Key.

Text

Press the TEXT button to access to Digitext service.

Quick Select

Press the OK button to show the channel list. Press

▲/▼

to choose the channel you want. Press EXIT

to exit.

Change an audio language and audio mode

Press the AUDIO button on the remote control to select the audio control menu, press the

▲/▼

select the audio languge, press

◄/►

to select the audio mode you want. Press the EXIT button to

exit the menu.

Change TV/Radio mode

Press the TV/RADIO button to change the program list mode between TV and Radio.

Radio signal for example.View program INFO

1. Press the INFO button once and twice to view the detailed information of current program.

2. Press the INFO button the third time/EXIT to exit view.

SUBTL

Press the SUBTL button to switch subtitles on/o.

NOTE: Transmission of subtitles depends on the program providers.

Basic Operations

Page 11

Teletext service

1. Press the TXT button to open a teletextpage (if the teletext is transmitted)

2. Press the TXT button again or press the EXIT button to close the teletext.

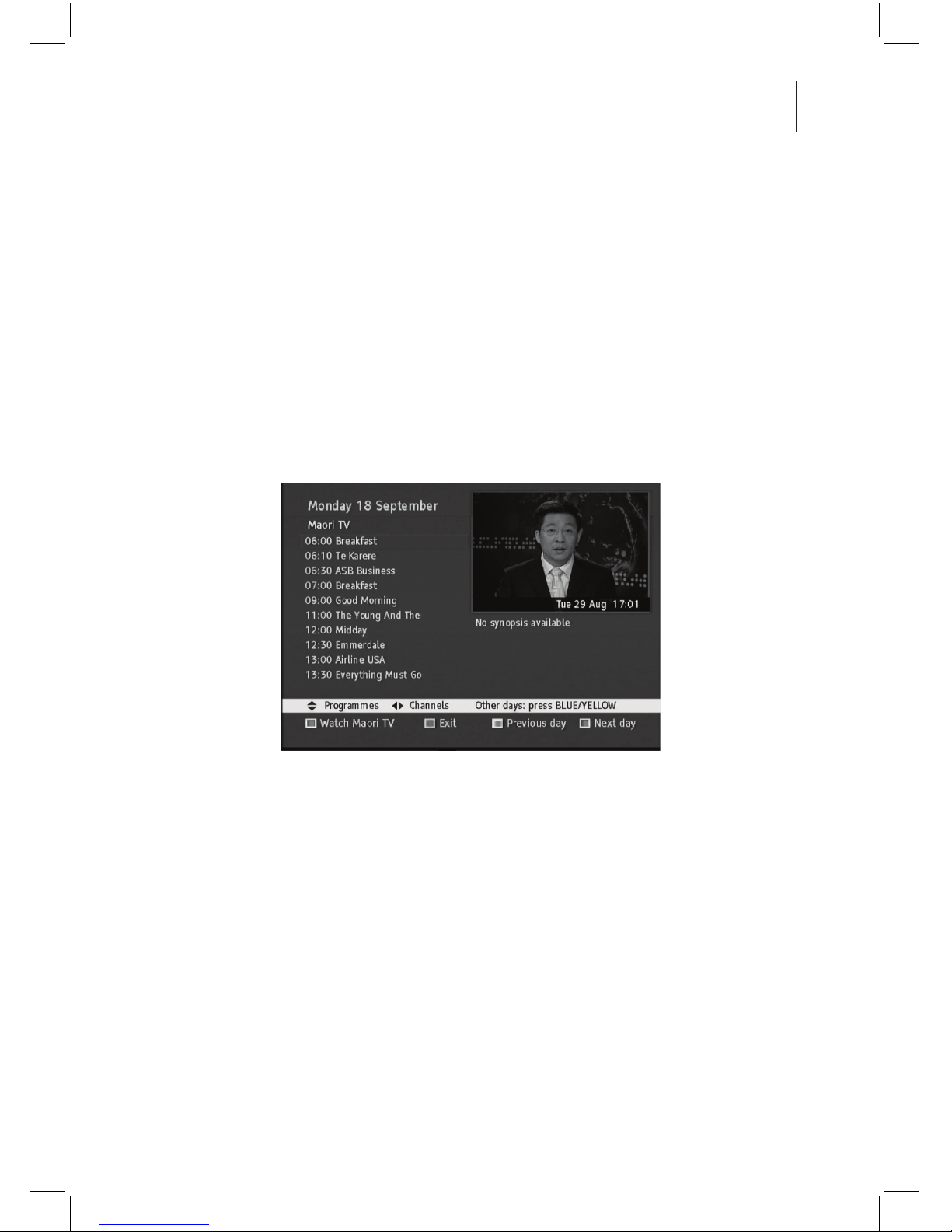

EPG (Electric Program Guide)

1. Press the EPG button to view the EPG information that are provided by the content providers.

2. Press

◄/►

show EPG for the adjacent channels, and then press OK to select the program/channel

to watch.

3. Press the RED button to watch TV; press the EXIT/GREEN button to exit the EPG; press the

YELLOW button to view the event information of the previous day; press the BLUE button to view

the event information of the next day.

4. Press the EXIT button to exit the menu.

Basic Operations

Page 12

Digital Satellite Receiver DTVS-1B User Guide

This section guides you to walk through of all options on the Menu screen.

Navigation in the main menu

1. Press the MENU button to bring up the main menu.

2. Press the ▲/▼ button to move upward/downward to the desired menu. press the

◄/►

button to

move to the sub menu and press

▲/▼

to choose the one you want.

3. Press the OK button to enter into the sub menu you select.

4. Press the EXIT button to exit the main menu.

The main menu is divided into 6 sections, please refer to the menu tree in the next page.

Channel Manager

Installation

System Setup

Accessories

Country Setup

EPG

Main Menu

Page 13

Main Menu

Channel Manager

Channel Organiser

New Channel

Edit Channel

Delete All

Installation

Satellite Setup

Blind Scan

Transponder Setup

DisEqc Motor Setup

Factory Default

Reset Box Info

System Setup

Language Setup

OSD Setup

TV Setup

Time Setup

Password Setup

Wakeup Timer

Accessories

S/W Upgrade

Version

Signal Monitoring

Country Setup

EPG

Menu Tree

Page 14

Digital Satellite Receiver DTVS-1B User Guide

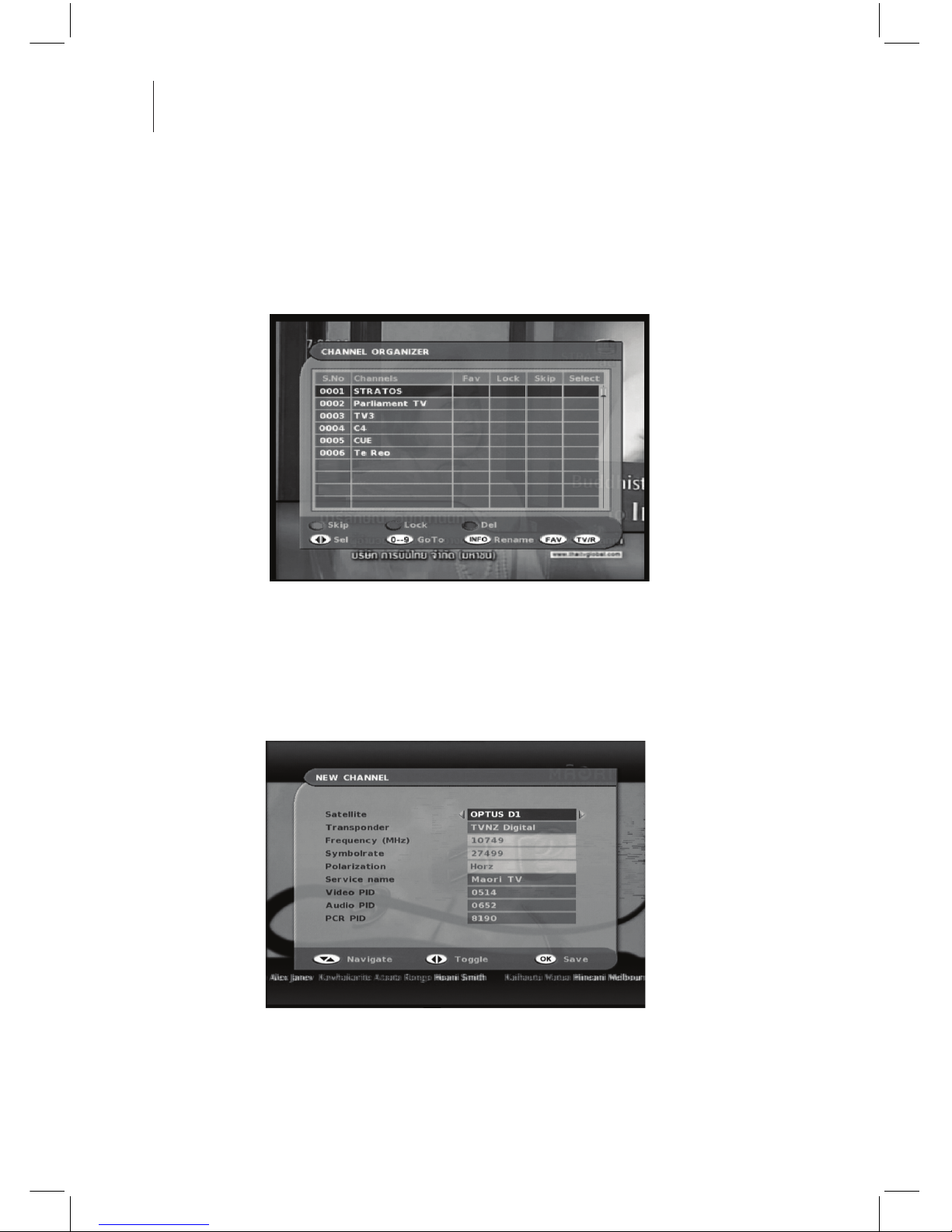

Channel Organiser

1. Go to Main Menu > Channel Manager > Channel Organiser.

2. Press RED button to Skip, GREEN button to lock the channel, BLUE button to delete the channel;

press

▲/▼

to select the channel; press INFO button to rename the channel name; press FAV button

to set the favourite list; press TV/R button to change the program mode between TV and Radio.

3. Press EXIT to exit the menu.

New Channel

1. Go to Main Menu > Channel Manager > New Channel

2. Press

▲/▼

to select the item and press

◄/►

and do the change according to the menu

showed on the below menu bar.

3. Press EXIT to exit the menu.

Channel Organiser

Page 15

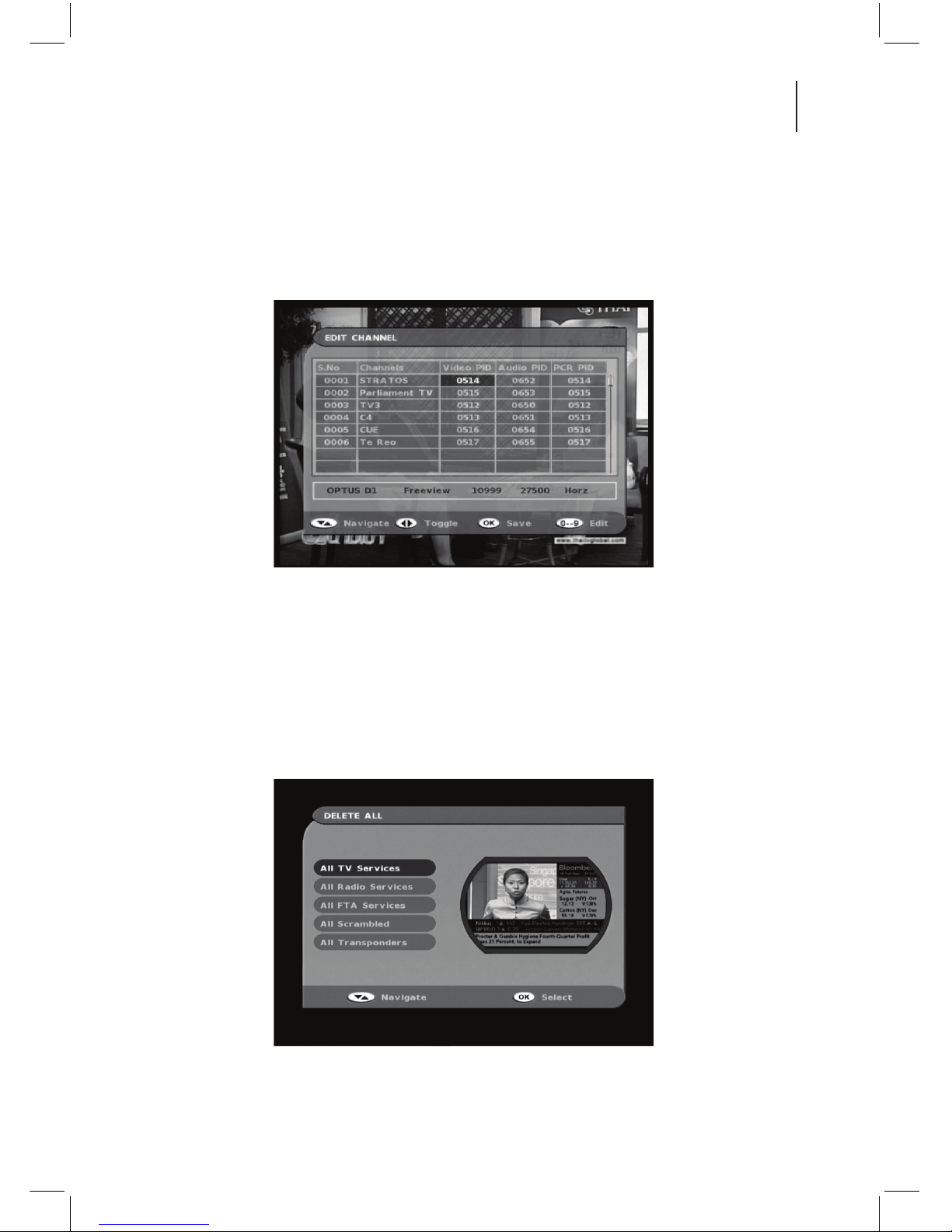

Edit Channel

1. Go to Main Menu > Channel Manager > Edit Channel

2. Press

▲/▼

and

◄/►

to select the item and press numerical 0~9 to set as you want, then Press

OK .

3. Press EXIT to exit the menu.

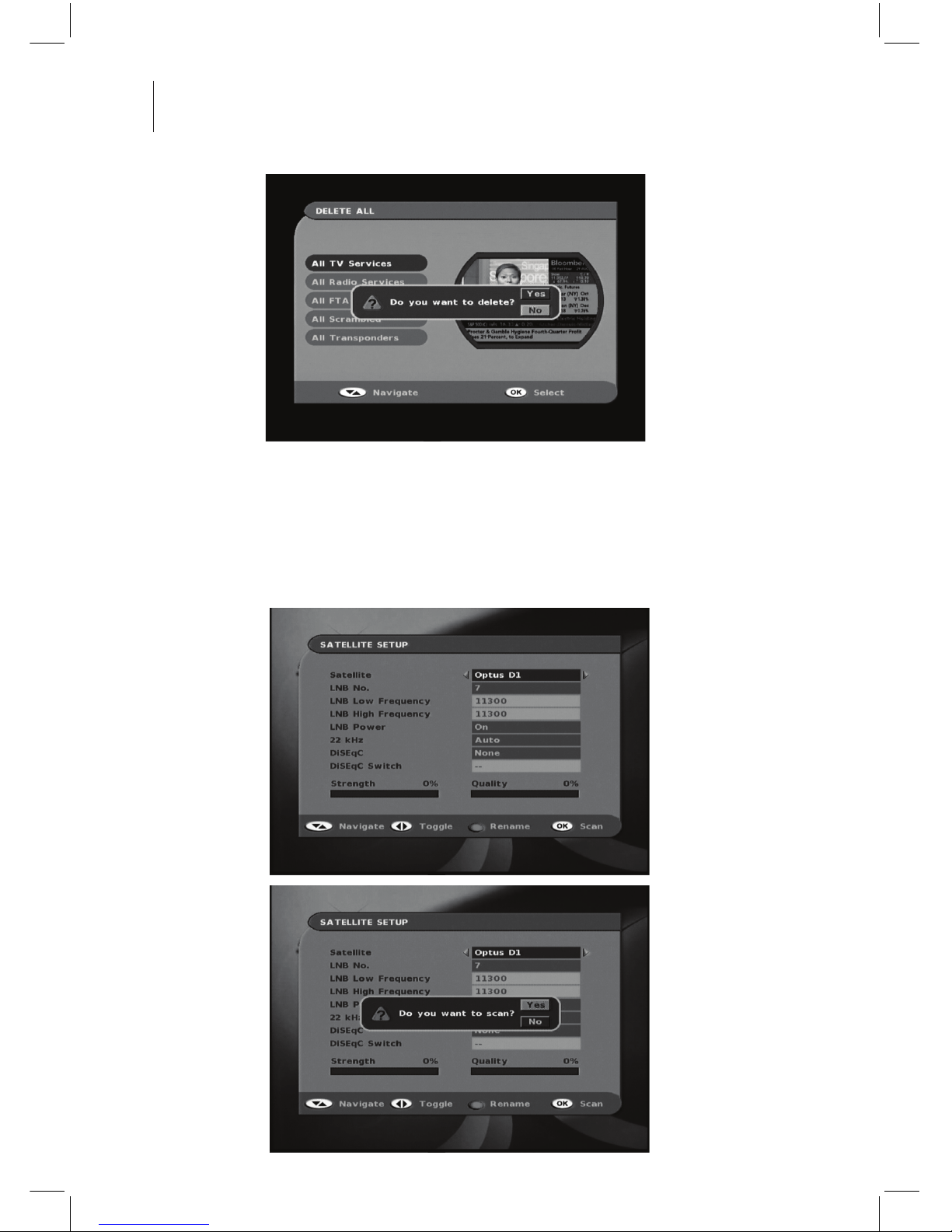

Delete All

1. Go to Main Menu > Channel Manager > Delete All

2. There are ve items you can chose: All TV Service, ALL Radio Service, All FTA Service, All Scrambled,

All Transponders. Press

▲/▼

to choose the item you want to delete. Then a menu will be showed to

conrm with you if you want to do that, press

▲/▼

to choose Yes or No then press OK to conrm. If

you choose Yes, the item you chose will be delete.

3. Press EXIT to exit the menu.

Channel Organiser

Page 16

Digital Satellite Receiver DTVS-1B User Guide

Satellite Setup

1. Go to main menu > Installation > Satellite Setup

2. Press

▲/▼

to choose LNB No., LNB power, 22kHz, DisEqc, DisEqc Switch and press OK to select the

satellite that you want to scan. There will be a window displayed to conrm with you if you want to

scan. Press

▲/▼

to choose YES or NO, and then OK.

3. Press EXIT to exit the menu.

Installation

Page 17

Blind Scan

1. Go to main menu > Installation >Blind Scan

2. Press OK to start scanning.

3. Press EXIT to exit the menu.

Transponder Setup

1. Go to main menu > Installation > Transponder Setup

2. You can perform the transponder scan [Add/Edit] based on the LNB frequency, LNB power, 22KHz

and DiSEqc values stored in the satellite setup for that selected satellite.

3. There are three items you can choose: Add, Edit, Delete. Press

◄/►

to choose the item you want

to do.

- Add: Add new carrier into the selected satellite with the corresponding frequency, symbol rate and

polarization.

- Edit: Edit or rescan the carriers which were available in database.

- Delete: Delete the selected carrier or group of carriers.

4. Press EXIT to exit the menu.

Installation

Page 18

Digital Satellite Receiver DTVS-1B User Guide

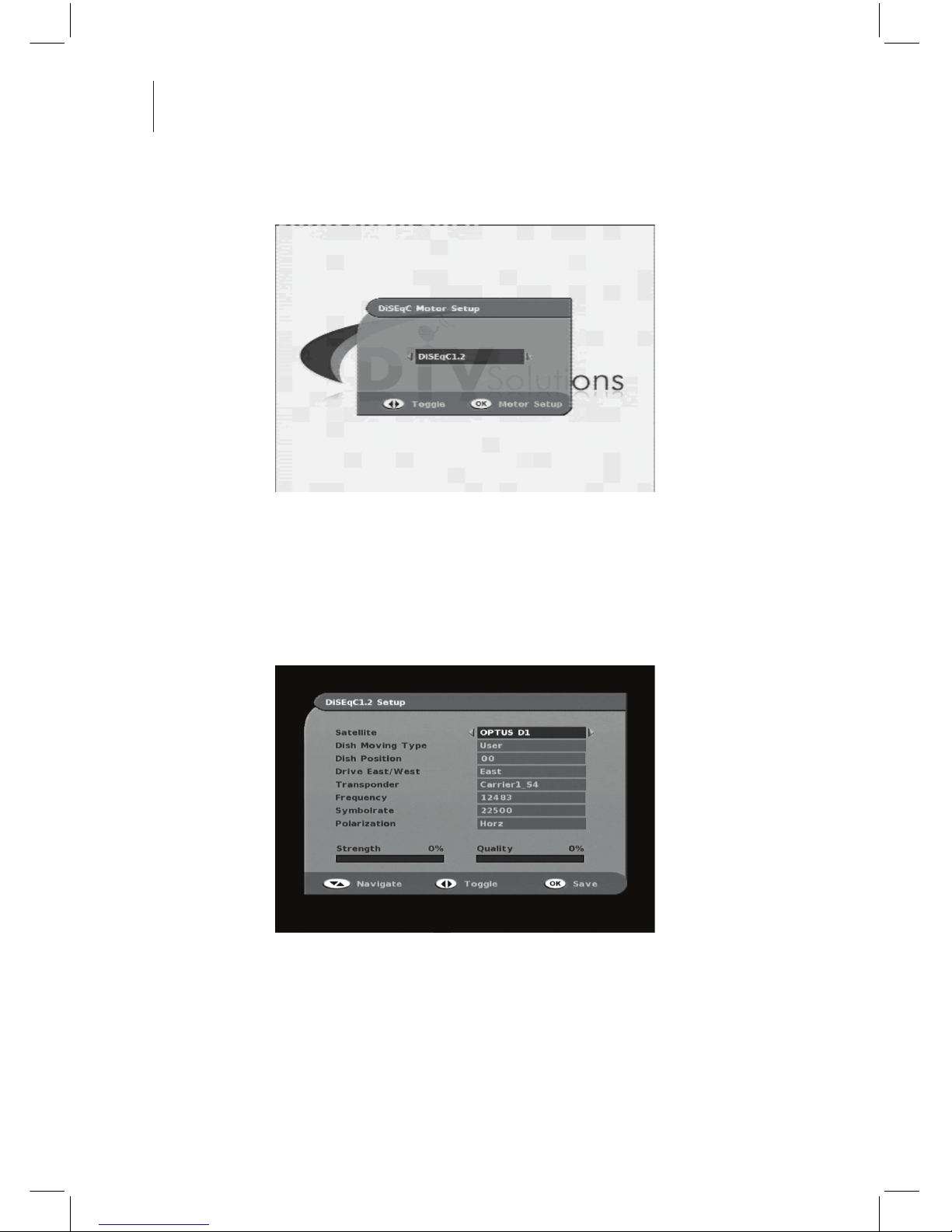

DisEqC Motor Setup

There are two items you can choose: DisEqc1.2 Setup and USALS Setup.

a) DisEqC1.2 setup

1. If you have only one Set Top box, but you like to watch all coverage of satellite signal then you

need to go for motorized dish which is called DiSEqC1.2.

2. For positioning the dish to particular satellite, you can select the satellite along with dish moving

type as User/Installer/GotoX/Advanced, dish position, direction [East/West] and carrier along with its

parameters like frequency, symbol rate and polarization.

Dish Moving Type

1. User - While pressing Left/Right key in Drive East/West option to move the motor, the motor will

be move slowly [step by step movement]. Motor movement will be stop when you stop the key

pressing.

2. Installer - While pressing Left/Right key in Drive East/West option to move the motor, the motor

will be move fastly [Continuous movement]. Motor movement will be stop when you press again

Installation

Page 19

LEFT/RIGHT key.

3. Goto X - GoTo X option is used to move the motor to specied Dish position. To perform this

option - select Dish moving type as GoTo X and enter the Dish position by pressing numeric keys and

now press OK key to move the dish to specied position.

4. Advanced - This setup is used to perform the below listed Motor related settings,

* DiSEqC 1.2 Enable/Disable - To enable (or) disable the DiSEqC option by pressing OK key.

* Enable /Disable limit - To enable (or) disable the Motor limits by pressing OK key.

* Drive East/West - You can drive the motor to East/West direction by pressing Left/Right key.

* Set EAST/WEST limit - You can set the East or West limit of the motor through this option.

* Recalculate Position - This Recalculate position option will replace the logical positions set by the

user.

* Reset Position - The motor position can be reset to its reference position [0°] by using the Reset

Position option.

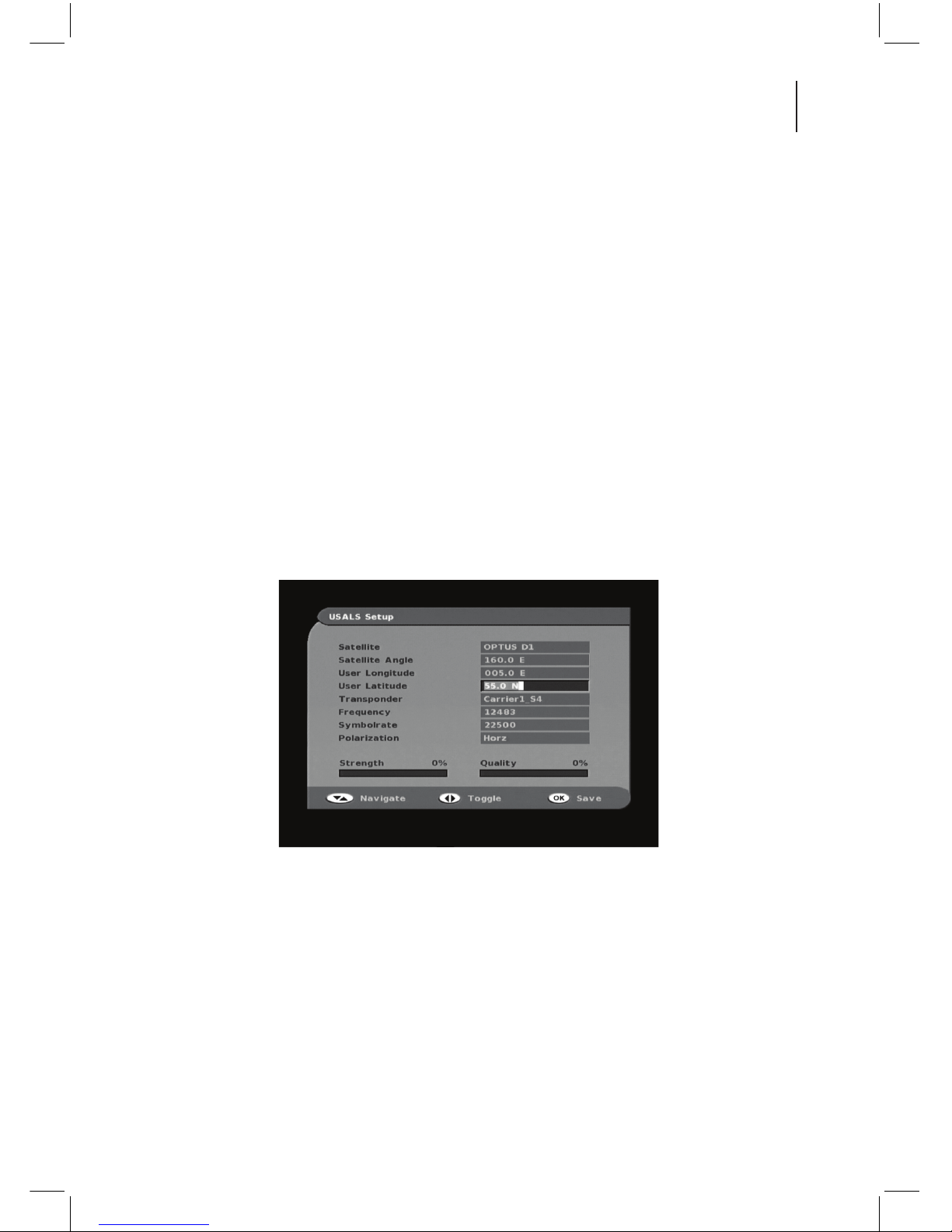

b) USALS setup - Advanced concept of DiSEqC1.2. It is used to position the dish automatically

without user stress. By giving the input of satellite angle, user latitude & longitude angle, motor will

be positioned automatically to the selected satellite.

Installation

Page 20

Digital Satellite Receiver DTVS-1B User Guide

Factory Default

1. Go to main menu > Installation > Factory Default

2. Press OK, there will be a window to displayed to conrm with you if you want to default all of the

settings. Press

▲/▼

to choose YES or NO, and then OK. If you choose YES, there will be a window

asking you to enter the password, if you have not set a new password, press 0000; if you have, enter

the password that you have set.

3. Press EXIT to exit the menu

Installation

Page 21

Reset Box Info

1. Go to main menu > Installation > Reset Box Info

2. Press OK, there will be a window displayed to conrm with you if you want to set the box

information. Press

▲/▼

to choose YES or NO, and then OK. If you choose YES, there will be a window

asking you to enter the password, if you have not set a new password, press 0000; if you have, enter

the password that you have set.

3. Press EXIT to exit the menu.

System Setup

Page 22

Digital Satellite Receiver DTVS-1B User Guide

System Setup

Go to Main Menu > System Setup.

There will be the following items, such as: Language Setup, OSD Setup, TV Setup, Time Setup,

Password Setup, Wakeup Timer.

Language Setup

1. Select Language Setup , and press OK to enter into it.

2. Press

▲/▼

to choose the item you want to set. Press

◄/►

and OK to select what you would like.

There are six languages for OSD item: ENG, FRA, ITA, ESL, DEU, RUS.

3. Press EXIT to exit the menu.

System Setup

Page 23

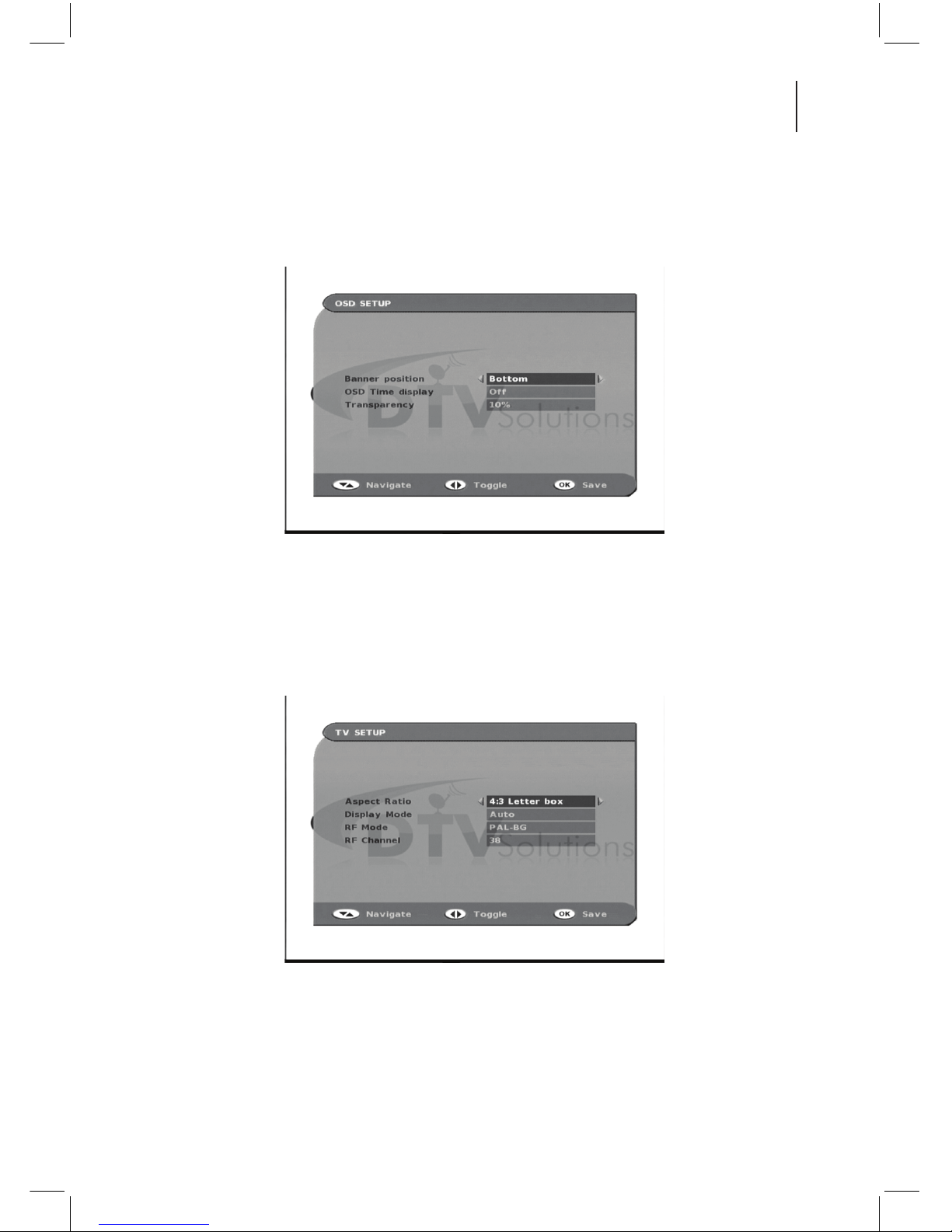

OSD Setup

1. Select OSD setup, and press OK to enter into it.

2. Press

▲/▼

to choose the item you want to set. Press

◄/►

and to select what you would like.

3. Press EXIT to exit the menu.

TV Setup

1. Select TV srtup, and press OK to enter into it.

2. Press

▲/▼

to choose the item, and press

◄/►

to match with your TV set and press OK. The

receiver; can support aspect ratios: 4:3 Letter box, 4:3 full screen, 16:9

3. Press EXIT to exit the menu.

System Setup

Page 24

Digital Satellite Receiver DTVS-1B User Guide

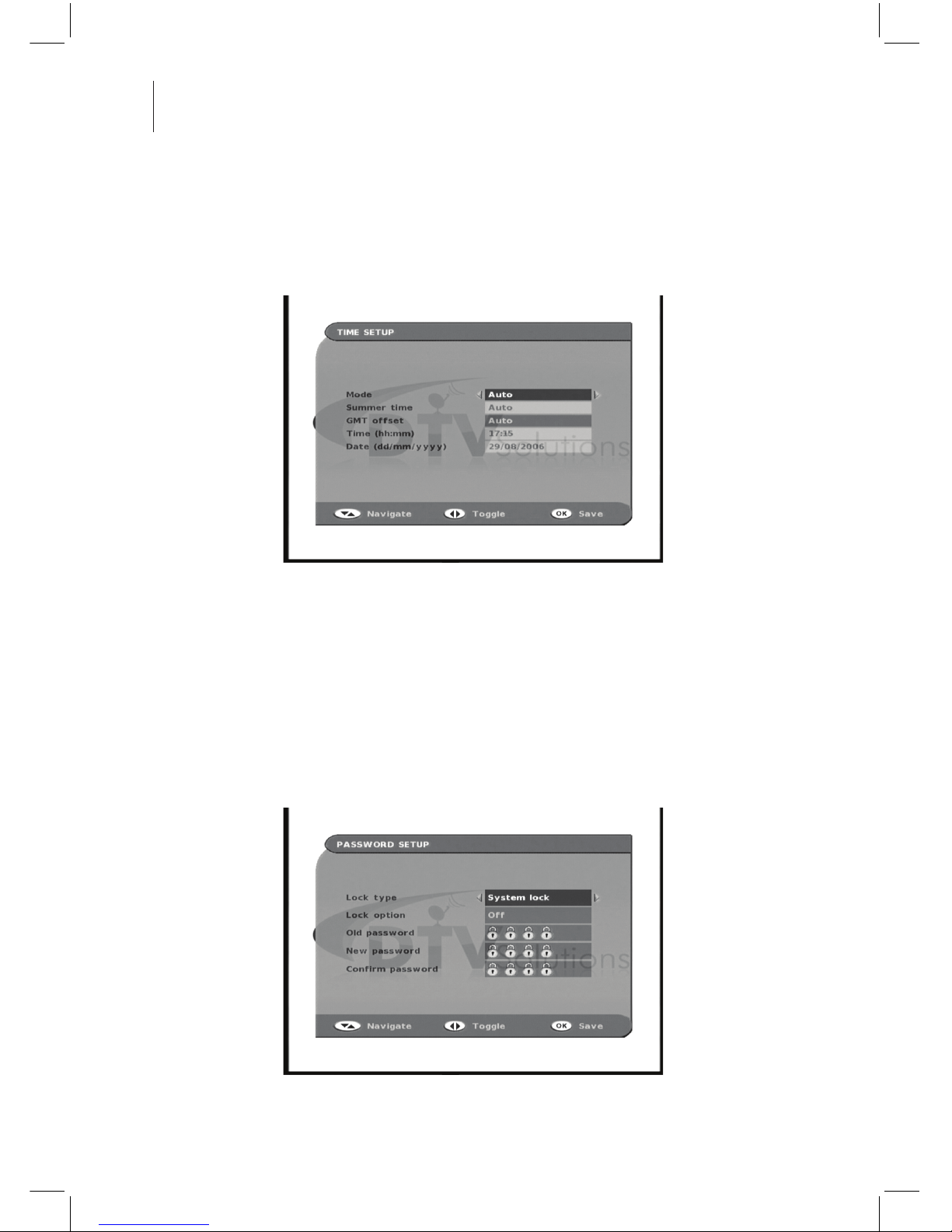

Time Setup

1. Select Time setup, and press OK to enter into it.

2. Press

▲/▼

to choose the item, and press

◄/►

to choose timer mode, if you select Manual, you

can set the date and time with the numeric keys 0~9.

3. Press EXIT to exit the menu.

Password Setup

1. Select Password Setup, Press OK to enter into it.

2. Select Lock Type to set the type you want select old password to change the password to a

password that you can easily remember. If this is the rst time that you are changing the password,

press 0000(this is the default password), then press the numeric keys 0~9 to set the new password

and once again to con rm the new password. If you forget the new password, 4000 is the master

password for you to get into the menu to set the new password.

3. Press EXIT to exit the menu.

System Setup

Page 25

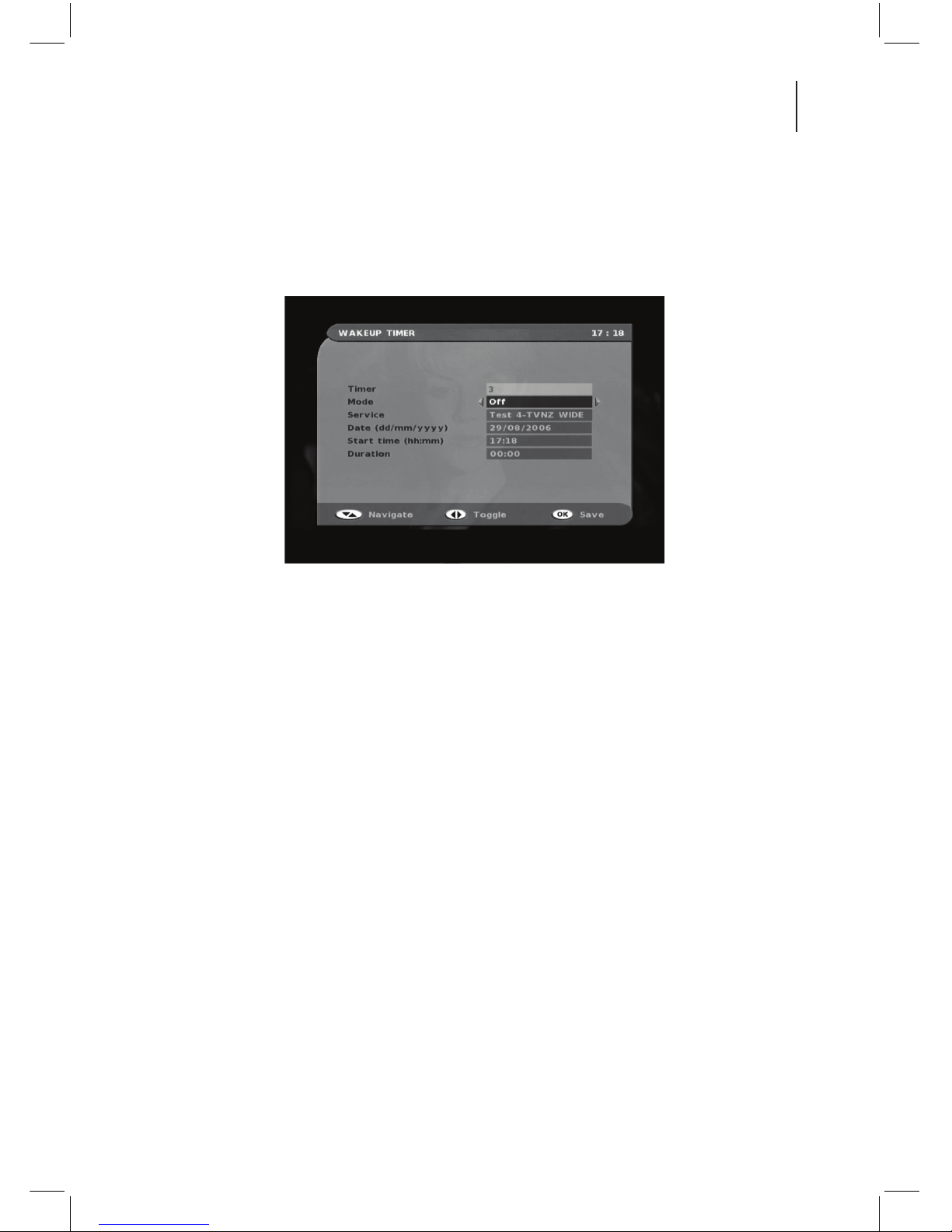

Wakeup Timer

1. Select Wakeup Timer, and press OK to enter into.

2. Press

▲/▼

to choose the item, and press

◄/►

or numeric keys 0~9 to set Timer., Timer Mode,

Service, Date, Start Time, Duration and press OK.

3. Press EXIT to exit.

System Setup

Page 26

Digital Satellite Receiver DTVS-1B User Guide

In this menu, there are three submenus: S/W upgrade, Version and Signal Monitoring

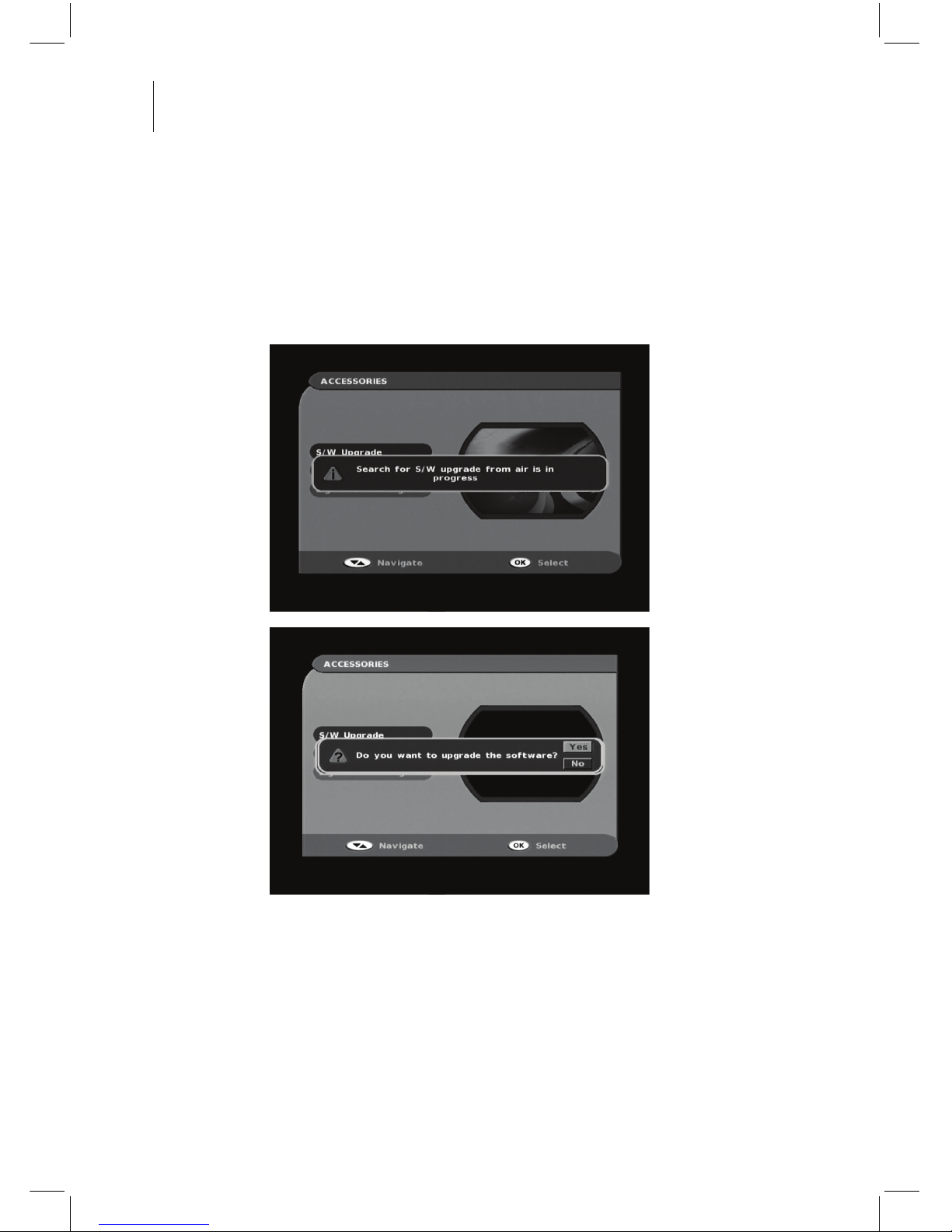

S/W Upgrade

1. Select S/W upgrade and and press OK to enter it.

2. There will be a window showed “search for S/W upgrade from air is in progress and you will wait

for about 20 seconds. Then a menu will be showed to conrm with you if you want to upgrade the

software. Press

▲/▼

to choose YES or NO, if you choose YES, the software will be upgraded.

Accessories

Page 27

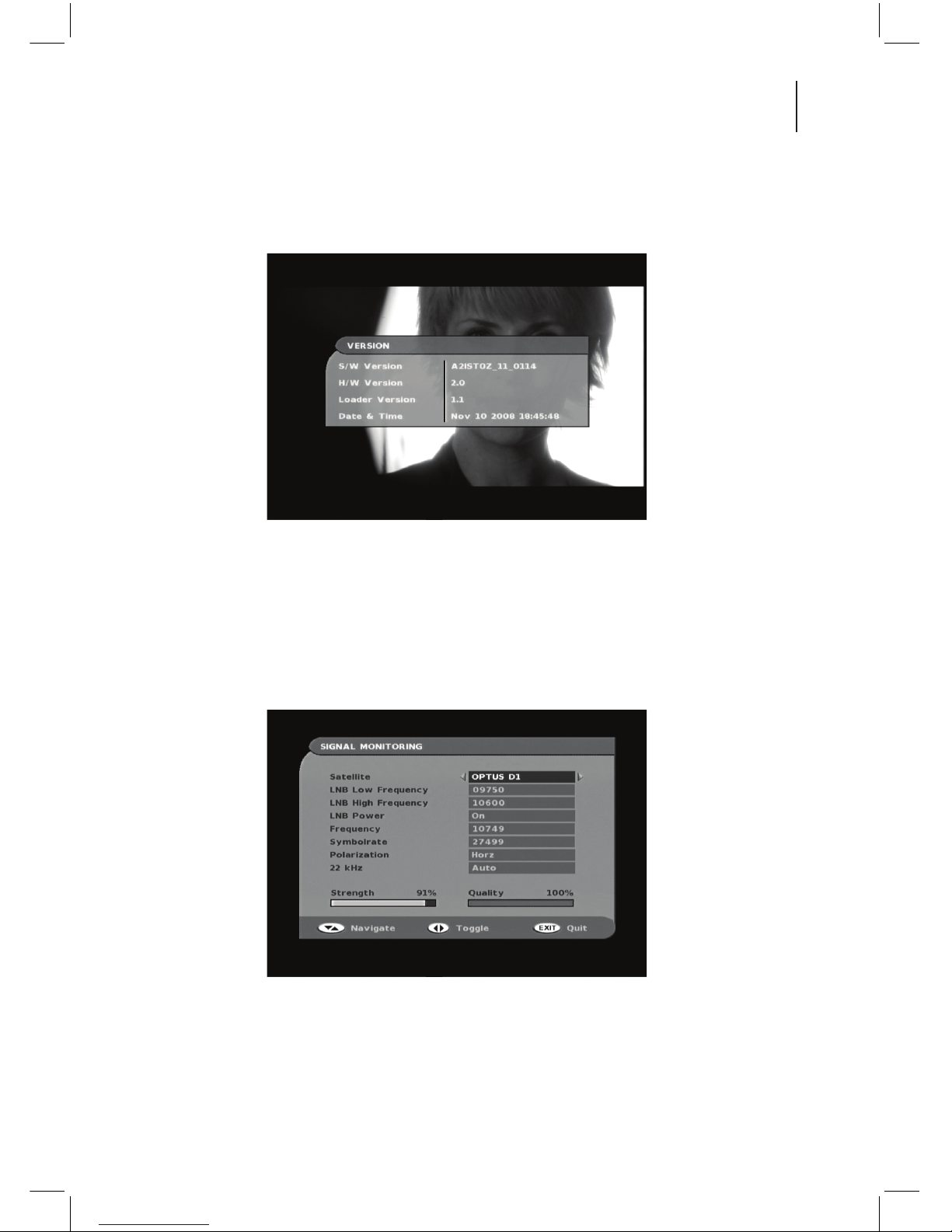

Version

1. Select Version, and press OK.

2. You can nd the version information of your receiver.

3. Press OK or EXIT to exit.

Signal Monitoring

1. Go to main menu > Accessories > Signal Monitoring

2. You can check the availability of signal, such as signal strength and signal quality by changing

these parameters: Satellite name, LNB Low & High frequency, LNB Power, Frequency, Symbol rate,

Polarization, 22KHz mode.

3. Press EXIT to exit the menu.

Accessories

Page 28

Digital Satellite Receiver DTVS-1B User Guide

Country Setup

1. Go to main menu > Country Setup

2. In this menu, there are twenty major areas to choose from: Southern Lakes, Canterbury, Westcoast,

Wellington, Wairarapa, Manawatu, Wanganui, Taranaki, Hastings, Napier, Gisborne, Taupo, Bay of

Plenty, Rotorua, Waikato, Auckland, Northland, All free channels, Southland and Otago.

3. Press EXIT to exit the menu.

EPG

1. Go to main menu > EPG

2. Press OK to enter EPG and press

◄/►

to view the program list.

Country Setup/EPG

Page 29

If you experience problems with this receiver or its installation, in the rst instance please read

carefully the relevant sections of this User Manual and this Troubleshooting section.

Problem Possible cause What to do

Display on front panel not lit

Main lead unplugged Check mains lead Main fuse blown Check fuse

Tuning failed or Database empty or No signal found

Aerial is disconnected Aerial is damaged / misaligned

Check aerial lead Check aerial

Out of digital signal area Check with dealer

No picture or sound Program not broadcasting now Return to another channel

Mosaic blocks in picture or picture freezes

Aerial may not be compatible Check aerial

Scrambled channel message Channel is scrambled Select an alternative channel Forgotten channel lock code Use the override code(4000)

No response to remote control

Receiver o Plug in and turn on receiver Handset not aimed correctly Aim handset at front panel Front panel obstructed Check for obstructions

Remote control batteries are inserted incorrectly

Check batteries direction

Handset batteries exhausted

Replace remote control batteries

After moving the receiver to another room, nd can't receive the digital reception

The aerial feed may come through a distribution system which may reduce the digital signal now received by the receiver

Try a direct feed from the antenna

Warning: If this doesn’t work, contact a qualied repair technician, never attempt to repair the

receiver yourself.

Troubleshooting

Page 30

Digital Satellite Receiver DTVS-1B User Guide

Item Specication

Connectors

LNB INPUT IF in, connects to your dish antenna

LNB OUT IF out, provides a loop out for a second STB

TV ANT IN IEC female connector

To TV Anlog RF output

RS232C Serial port for software upgrade

S/PDIF RCA, for SPDIF digital audio output

Video RCA, for CVBS video output

YCbCr RCA, for component video output

L/R x 2 RCA, Analog audio output

Power supply

Input AC 170 - 240V ~ 50/60Hz

Consumption 30W max. Standby mode < 6W

Display

Resolution 720X576i

Aspect Ratio 4:3(Letterbox, Panscan), 16:9 fullscreen, Auto

Others

Sound Mode Right, Left, Stereo

Size 250x175x38mm

Weight (Net) 0.96kg

* Specications are subject to change without prior notice.

This marking shown on the product or its literature, indicates that it should

not be disposed with other household wastes at the end of its working life. To prevent

possible harm to the environment or human health from uncontrolled waste disposal,

please separate this from other types of wastes and recycle it responsibly to promote

the sustainable reuse of material resources.

Receiver Specications

Page 31

Please keep your receipt as proof of purchase. This product is warranted for any defect in materials

or workmanship for one year after the original date of purchase. This product is for normal domestic

and oce use only. This warranty does not cover damage from misuse or neglect, accidental

damage, vermin in festation, excessive voltages such us lightning or power surges or any alternation

that aects the performance or reliability of product.

In the unlikely event that your product fails to work normally, please contact the supplier the and

have your receipt of purchase on hand.

This guarantee is subject to the following provisions:

- It is only valid within boundaries of the country of purchase;

- The product must be correctly assembled and operated in accordance with the Instructions

contained in the manual;

- This product must be used solely for domestic purposes;

- The guarantee does not cover accidental damage;

- The guarantee will be rendered invalid if the product is resold or has been damaged by inexpert

repair;

- The manufacturer disclaims any liability for incidental or consequential damaged.

This guarantee is in addition to, and does not diminish, your statutory or legal rights.

Warranty

Page 32
