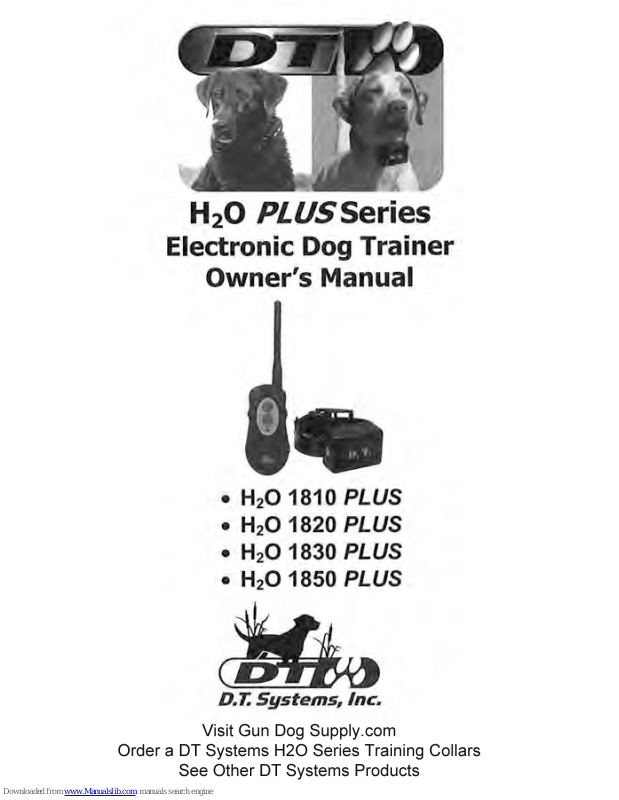

D.T.Systems H20 1810 PLUS, H20 1820 PLUS, H20 1830 PLUS, H20 1850 PLUS Owner's Manual
NOTICE!
According to how you use your
transmitter, the transmitting range
might be much different.
You
will have more range if you
use your transmitter apart from your
body as
follows:
Maximum Range
Typical Range
Minimum Range
TABLE
OF
CONTENTS
• Table of Contents ....................................... 3
• Introduction ................................................ 4
• Package Contents ...................................... 5
• Model Features .......................................... 6
• Parts & Functions ....................................... 7
• Charging the Batteries ................................ 12
• Turning ON and OFF ..................................
13
• Testing ....................................................... 14
• Programming the Collar .............................. 16
• Properly Fitting the Collar ........................... 17
• Setting Intensity Levels ............................... 18
• Maintenance ............................................... 20
• Important
Safety Notes ...............................
21
• Warranty ..................................................... 22
• FCC Compliance ........................................ 23
• Contact Information .................................... 24
3
INTRODUCTION
Congratulations and thank you for purchasing our H
2
0
PLUS Series ™ Training Collar with "Add-On"
capability. It
offers the Maxx-Range ™ Internal
Antenna System, the industry's only internally woven
antenna
in
the collar. With up to a one mile range,
they are perfect
for
hunting, basic obedience, and
professional training. H20 PLUS series collars feature
sixteen
levels
of
intensity easily selected by one hand
for maximum
control and safety. Each model includes
both Momentary "Nick" and Continuous stimulations.
Additional
features include Positive Vibration, Jump
stimulation, Rise stimulation, and a Beeper with
Locate, Run & Point mode, and Point
Only mode. The
transmitter and
collars are both 100% waterproof.
The transmitter
FLOATS on water and the collar can
be worn even when the dog is submerged. The
H20
PLUS Series Dog Training Collar is durable, safe, and
very humane when used
correctly. The automatic
safety shut-off feature stops the
stimulation after 8
seconds to prevent
accidental or prolonged
stimulation.
Thanks again for choosing D.T. Systems
to help bring out the best
in
your best friend!
4
IMPORTANT NOTE:
Please read this owner's manual
in
its entirety
before operating this unit.
Should you have any
questions about our
collars or their operation
please contact our Customer Service department
(see back page for address and phone number
information
).
PACKAGE
CONTENTS
• Transmitter
• Collar Receiver
• Antenna for the Transmitter
• Rechargeable NiMH Batteries for both the Collar
and Transmitter (already installed)
•
Battery Charger
• Splitter Cable for simultaneous charging
• Test Light
• Owner's Manual
•
Carrying Case
5
MODEL
FEATURES
.thO PLUS Series
• Digital Technology
• Up to one mile range
• Expandable to
2-
or 3-dog* system with H
2
0
Add-
On collar units (sold separately)
• Lightweight, waterproof collar and transmitter
• No-Slip/Soft-Grip transmitter FLOA
TS
on water!
• 16 adjustable intensity levels
of
Momentary ('Nick')
Stimulation and Continuous Stimulation
• MAXX-Range ™ Internal Antenna System in collar
belt
•
Rechargeable NiMH battery system
• Gentle Touch System™ Extra Mild Stimulation
• Built in safety shut-off system
• Positive Vibration (H
2
0 1820 PLUS only)
•
Jump
feature makes intensity level instantly "jump"
to a user-programmed intensity level
(H
2
0 1830
PLUS only)
•
Rise feature gradually increases stimulation level
while
the "Rise" button is being held down
(H
2
0
1830 PLUS only)
•
Three Beeper functions - Locate, Run & Point
mode, Point
Only
mode
(H
2
0 1850 PLUS only)
* H
2
0 1850 PLUS can expand
to
a 2-dog model. All
other
H20 PLUS
models can expand
up
to
a 3-dog model.
6
PARTS
&
FUNCTIONS
The H20 1810 PLUS will
not
have the
#1
or
#2
buttons
.
Red LED Indicator
Light
Button #1*
(Function varies
according
to
model)
Transmitter
7
Momentary 'Nick'
Stimulation
Button #2*
(Function varies
according
to
model)
Battery
Charging
Receptacle
PARTS
&
FUNCTIONS
Collar
Belt
with
MAXX.Range ™
Antenna
Collar Receiver
'H20 1850 PLUS only.
/I
other
models
will
not
ON/OFF
Button
PARTS
&
FUNCTIONS
Intensity Selection Dial
The intensity selection dial can be
set from
level 1 to level 16 to find
the exact
stimulation level for your
dog (see
page 18).
Transmitter Indicator Light
When one
of
the buttons on the transmitter
is
pushed,
the Red LED
light will turn on to indicate that the
transmitter
is
being operated. When the battery needs
charging, the Red LED
light will blink rapidly after
pressing any transmitter button. The Red LED
light
will
stay
on
solid while plugged into the charger.
8
