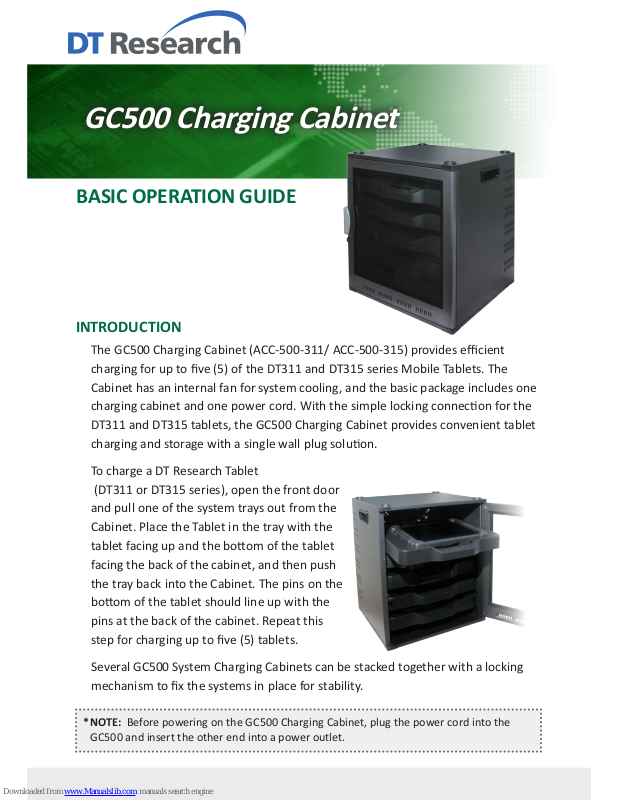

BASIC OPERATION GUIDE
GC500 Charging Cabinet
INTRODUCTION
The GC500 Charging Cabinet (ACC-500-311/ ACC-500-315) provides efficient
charging for up to ve (5) of the DT311 and DT315 series Mobile Tablets. The
Cabinet has an internal fan for system cooling, and the basic package includes one
charging cabinet and one power cord. With the simple locking connecon for the
DT311 and DT315 tablets, the GC500 Charging Cabinet provides convenient tablet
charging and storage with a single wall plug soluon.
To charge a DT Research Tablet
(DT311 or DT315 series), open the front door
and pull one of the system trays out from the
Cabinet. Place the Tablet in the tray with the
tablet facing up and the boom of the tablet
facing the back of the cabinet, and then push
the tray back into the Cabinet. The pins on the
boom of the tablet should line up with the
pins at the back of the cabinet. Repeat this
step for charging up to ve (5) tablets.
Several GC500 System Charging Cabinets can be stacked together with a locking
mechanism to x the systems in place for stability.
* NOTE: Before powering on the GC500 Charging Cabinet, plug the power cord into the
GC500 and insert the other end into a power outlet.
Precauons
1. Always exercise care when operang and handling the GC500 and DT Research
Tablets.
2. Do not disassemble any poron of the charger and adapter, as this will void any
product warranty.
3. Do not use any power adapter other than the one provided with the GC500
Charging Cabinet or acquired from the manufacturer or its partners.
4. In the unlikely event that abnormal noise, strange odor, or smoke is present,
immediately disconnect all power sources. Please report the problem to your
device provider immediately.
Specificaons
Package Contents:
1. One GC500 Charging Cabinet
2. One power cord
3. Basic operaon guide
DT Research, Inc.
2000 Concourse Drive, San Jose, CA 95131 hp://www.dtresearch.com
Copyright © 2015, DT Research, Inc. All Rights Reserved.
BOG 101915 GC500ENG
System
Tablet Models Supported
Up to ve (5) DT311, DT315, or DT395BV series
Cooling
Two (2) fans with automac on/o control
Control Switch
One (1) RJ45 Ethernet connector for remote tablet management
I/O Ports
LAN
One (1) RJ45 Ethernet connector for remote tablet management
AC-in
One (1) IEC connecter (Male)
Mechanical and Environmental
Power Supply
100 – 240V AC; 10A/5A @ 50/60Hz
Enclosure
ABS + PC plascs, aluminum, and steel
Regulatory
FCC Class B, CE, RoHS compliant
Dimensions (H x W x D)
449 x 398 x 405 mm
Weigh
22 kg
Temperature
Operaon: 0°C – 35°C; Storage: -20°C – 60°C
Humidity
0% – 90% non-condensing
* Specicaons subject to change without noce.
