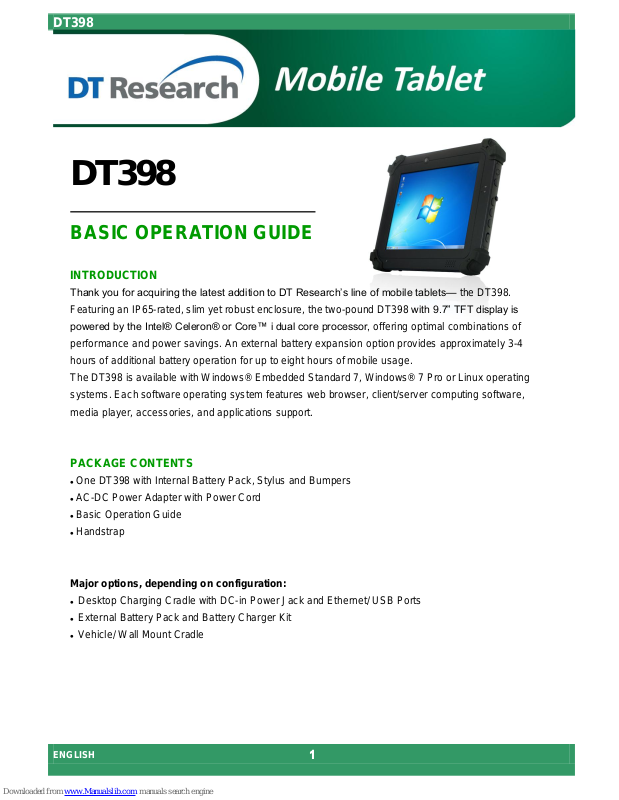

DT Research DT398 Basic Operation Manual

DT398

ENGLISH 1

DT398

BASIC OPERATION GUIDE

INTRODUCTION

Thank you for acquiring the latest addition to DT Research’s line of mobile tablets— the DT398.
Featuring an IP65-rated, slim yet robust enclosure, the two-pound DT398 with 9.7” TFT display is
powered by the Intel® Celeron® or Core™ i dual core processor, offering optimal combinations of
performance and power savings. An external battery expansion option provides approximately 3-4
hours of additional battery operation for up to eight hours of mobile usage.
The DT398 is available with Windows® Embedded Standard 7, Windows® 7 Pro or Linux operating
systems. Each software operating system features web browser, client/server computing software,
media player, accessories, and applications support.

PACKAGE CONTENTS

 One DT398 with Internal Battery Pack, Stylus and Bumpers
 AC-DC Power Adapter with Power Cord
 Basic Operation Guide
 Handstrap

Major options, depending on configuration:

 Desktop Charging Cradle with DC-in Power Jack and Ethernet/ USB Ports
 External Battery Pack and Battery Charger Kit
 Vehicle/ Wall Mount Cradle

DT398

ENGLISH 2

The DT398

Input/ Output Ports

A

USB Port

B

Headphone Jack

C

DC Power Input

D

Full Slot Smart Card Reader

E

SD Slot

Button Functions

BUTTON

ACTION



Power on,
Push/release typically enters Standby
mode, or Push/release exits Standby mode
or restarts device (software dependent)
Push and hold (over 4 seconds) invokes
hardware shutdown



Programmable,
As scanner trigger when equipped with
the scanner module



Programmable

DT398

ENGLISH 3

Power/Battery LED Status:

 Blue indicates the battery is 25% to 100% charged
 Blinking blue indicates the battery is charging
 Orange indicates that the battery is between 11% to 25%
 Blinking orange indicates that the battery is below 10%
 Blinking blue and orange alternately indicates the battery is being warmed up.

Do not unplug the AC/DC adapter.

Precautions

 Always exercise care when operating and handling the DT398.
 Do NOT apply excessive pressure to the display screen.
 We recommend using the Stylus provided to keep the screen clean.
 Avoid prolonged exposure of the display panel to any strong heat source. Wherever possible, the DT398

should face away from direct light to reduce glare.

 If the AC-DC power adapter is used to recharge or power the device, do NOT use any AC-DC adapter other

than the one provided with the device or acquired from the manufacturer or its partners.

 In the unlikely event that smoke, abnormal noise, or strange odor is present, immediately power off the DT398

and disconnect all power sources. Report the problem to your device provider immediately.

 Never attempt to disassemble the DT398, as this will void the warranty.
 The DT398 internal battery is designed for wide temperature usage. Please do not use it for other tablet

models.

 (The wide temperature design is not applicable for external batteries.)

THE DT398

Basic Features

The DT398 tablet integrates a bright and responsive touch display, 1 USB port, and embedded networking
elements such as 3G. The DT398 is complemented by a suite of accessories, including battery expansion,
docking cradles, and wall/ vehicle mount cradles, for a comprehensive user experience.
