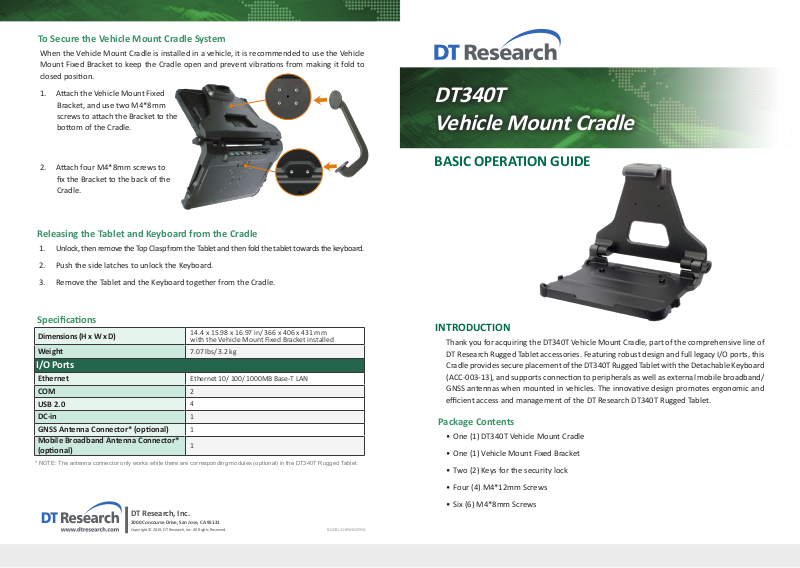

BASIC OPERATION GUIDE

DT340T
Vehicle Mount Cradle

To Secure the Vehicle Mount Cradle System

When the Vehicle Mount Cradle is installed in a vehicle, it is recommended to use the Vehicle
Mount Fixed Bracket to keep the Cradle open and prevent vibraons from making it fold to
closed posion.

Aach the Vehicle Mount Fixed 1.

Bracket, and use two M4*8mm
screws to aach the Bracket to the
boom of the Cradle.

Aach four M4*8mm screws to 2.

fix the Bra
Cradle.

cket to the back of the

Releasing the Tablet and Keyboard from the Cradle

Unlock, then remove the Top Clasp from the Tablet and then fold the tablet towards the keyboard.1.

Push the side latches to unlock the Keyboard.2.

Remove the Tablet and the Keyboard together from the Cradle.3.

Specificaons

Dimensions (H x W x D)

Weight

14.4 x 15.98 x 16.97 in/ 366 x 406 x 431 mm
with the Vehicle Mount Fixed Bracket installed

7.07 lbs/ 3.2 kg

I/O Ports

Ethernet

COM

USB 2.0

DC-in

GNSS Antenna Connector* (oponal)

Mobile Broadband Antenna Connector*

(oponal)

* NOTE: The a ntenna co nnecto r only wor ks while th ere are co rresp onding mo dules (opt ional) in t he DT340T Rugged Tablet .

DT Research, Inc.

2000 Concourse Drive, San Jose, CA 95131

Copyright © 2019, DT Research, Inc. All Rights Reserved.

Ethernet 10/ 100/ 1000MB Base-T LAN

2

4

1

1

1

BOG012119WMCENG

INTRODUCTION

Thank you for acquiring the DT340T Vehicle Mount Cradle, part of the comprehensive line of
DT Research Rugged Tablet accessories. Featuring robust design and full legacy I/O ports, this
Cradle provides secure placement of the DT340T Rugged Tablet with the Detachable Keyboard
(ACC-003-13), and supports connecon to peripherals as well as external mobile broadband/
GNSS antennas when moun
efficient access and management of the DT Research DT340T Rugged Tablet.

Package Contents

One (1) DT340T Vehicle Mount Cradle•

One (1) Vehicle Mount Fixed Bracket•

Two (2) Keys for the security lock•

Four (4) M4*12mm Screws•

Six (6) M4*8mm Screws•

ted in vehicles. The innovave design promotes ergonomic and

Front-View Layout

Back View

Top Clasp Lock Latch

Mounng the Cradle

The Vehicle Mount Cradle supports VESA standard mounng opons. Aach the four
M4*12mm to fix and mount the cradle from the boom on a VESA arm.

A

B C D

A

E

F

NOTE: The antenna connector only works while there are corresponding modules (oponal)
in the DT340T Rugged Tablet.

B C D

DC-in USB 2.0 Ports Ethernet COM Ports

GNSS Antenna Connector (oponal)

Mobile Broadband Antenna Connector (oponal)

Side-View Layout

Knob to loosen/fix the Axle

Latch to Lock the Keyboard Latch to Lock the Keyboard

Top-View Layout Boom-View Layout

E F

Placing the Tablet and Keyboard in the Cradle

Aach the DT340T Rugged Tablet on the Detachable Keyboard. 1.

NOTE: The Tablet and Keyboard are not included in the Cradle package.

Place the Keyboard boom-side into the Cradle properly. 2.

Slide the le and right latches to lock the keyboard into place.

Use the Key to unlock the Top Clasp. 3.

Slide the Lock Latch on the back of the Cradle to 4.

loosen the Top Clasp.

Li

 upward on the Tablet and move the Top Clasp forward to secure 5.

the top of the Tablet (under the Tablet handle).

NOTE: Before unfolding, screw the Knob
counterclockwise to loosen the axle.

Security Lock Key Hole

Top Clasp

Connect to the power cable to make the I/O ports and connectors able to funcon.6.
