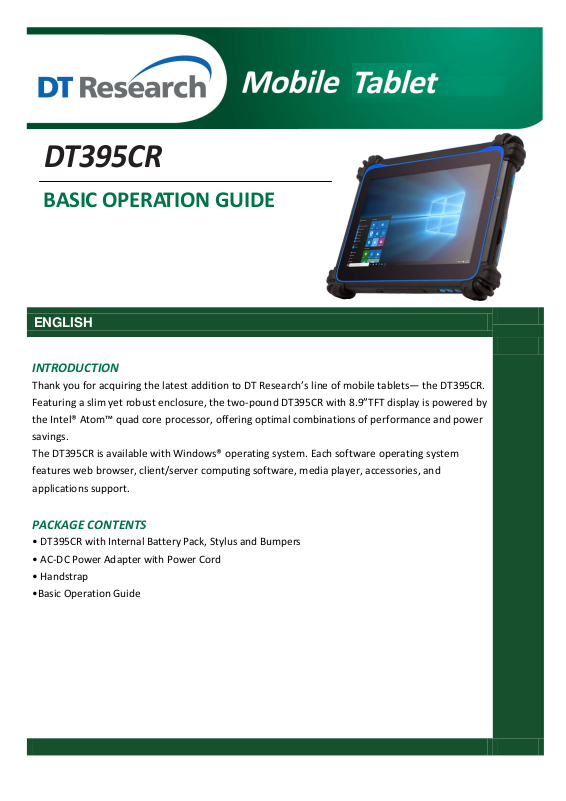

BASIC OPERATION GUIDE
ENGLISH
INTRODUCTION
Thank you for acquiring the latest addition to DT Research’s line of mobile tablets— the DT395CR.
Featuring a slim yet robust enclosure, the two-pound DT395CR with 8.9”TFT display is powered by
the Intel® Atom™ quad core processor, offering optimal combinations of performance and power
savings.
The DT395CR is available with Windows® operating system. Each software operating system
features web browser, client/server computing software, media player, accessories, and
applications support.
P
ACKAGE CONTENTS
• DT395CR with Internal Battery Pack, Stylus and Bumpers
• AC-DC Power Adapter with Power Cord
• Handstrap
•Basic Operation Guide
DT395CR
DT395CR:
ENGLISH 2
Input/ Output Ports
A Barcode Scanner (optional)
B Headphone Jack
C USB Port
D DC Power Input
E Camera (optional)
F LAN and HDMI-in (optional)
G LAN and 6-pin lockable connector for EIA/RS-232/422/485 (adapter cable required) (optional)
Button Functions
BUTTON ACTION
1
Programmable button without the scanner module
As scanner trigger when equipped with the scanner module
2
Power on.
Push/release typically enters Standby mode, or Push/release exits Standby mode or
restarts (software dependent)
Push and hold (over 4 seconds) invokes hardware shutdown
3 Brightness control button, 5 levels
4 Up/ down button
To adjust the speaker volume
5
Display mode switch.
To switch to display the video signal from HDMI port
Battery and Power Management
The DT395CR is equipped with an internal Li-Ion battery pack and an optional battery pack that clips
(hot-pluggable) onto the back of the tablet. The period between battery recharges can be significantly
lengthened by putting the tablet into Standby mode through the Power Button (see Buttons Function Table)
whenever the tablet is not in use. Depending on the operating software, the DT395CR may also be configured
to enter various power-saving modes via the Power Button or through timed entry.
ENGLISH 3
