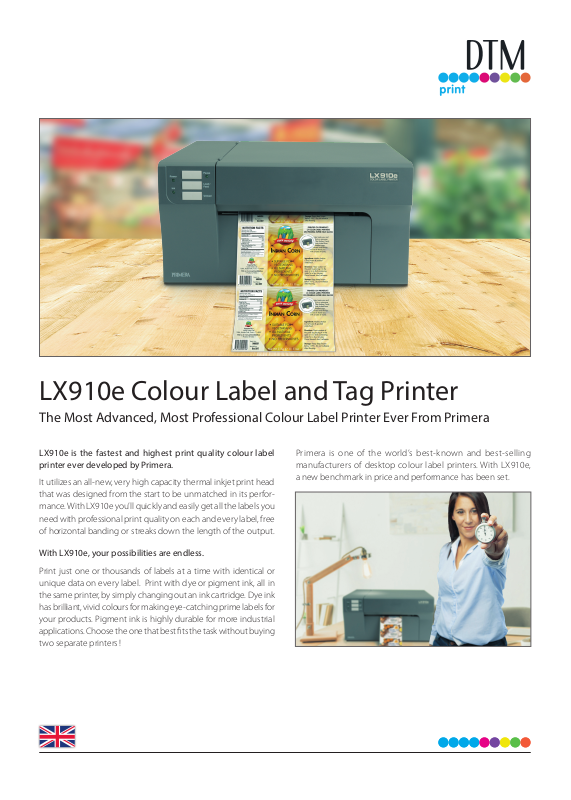

LX910e Colour Label and Tag Printer

The Most Advanced, Most Professional Colour Label Printer Ever From Primera

LX910e is the fastest and highest print quality colour label
printer ever developed by Primera.

It utilizes an all-new, very high capacity thermal inkjet print head
that was designed from the start to be unmatched in its perfor­mance. With LX910e you’ll quickly and easily get all the labels you
need with professional print quality on each and every label, free
of horizontal banding or streaks down the length of the output.

With LX910e, your possibilities are endless.

Print just one or thousands of labels at a time with identical or
unique data on every label. Print with dye or pigment ink, all in
the same printer, by simply changing out an ink cartridge. Dye ink
has brilliant, vivid colours for making eye-catching prime labels for
your products. Pigment ink is highly durable for more industrial
applications. Choose the one that best ts the task without buying
two separate printers !

Primera is one of the world’s best-known and best-selling
manufacturers of desktop colour label printers. With LX910e,
a new benchmark in price and performance has been set.

Technical Specifications

Print Method: Thermal inkjet; dye or pigment ink

cartridges

Print Resolution: Up to 4800 dpi

Print Speeds: Draft Mode: 114 mm (4.5”) per second

Normal Mode: 33 mm (1.3”) per second
Highest Quality Mode: 13.72 mm
(0.54”) per second

Inks: Interchangeable dye-based or
pigment-based ink cartridges

Colours: 16.7 million

Colour Matching: ICC colour proles included for gloss

white, matte white and clear label
materials from DTM Print; additional
colour proles can be loaded by user

Max. Print Width: 210 mm (8.25”)

Media Width: 213 mm (8.375”)

Media Types: Roll-fed pressure-sensitive labels,

or roll-fed tags, fan-fold labels or tags

Media Sensing: Moveable see-through sensor for
die-cut labels; reective sensor for
labels and tags with black stripe; can
also use continuous and pre-printed
labels and tags

Supply Roll: 152 mm (6”) maximum diameter on
76 mm (3”) core

Cutter: Built-in fully automatic pizza-wheel
cutter

Ink Level Warning: Calculates actual number of prints
remaining based upon ink usage of
graphics being printed

Indicator Lights: Power, Pause, Ink

Controls: Pause, Load/Feed, Unload

Operating Systems: Windows® 7/10+, Mac® OS X v10.9+

Data Interfaces: USB 2.0

Label Design Software: BarTender UltraLite and NiceLabel Free

2019 included. Can also be used with
most other popular label design and
graphics software programs

Electrical Rating: 12 V DC, 5.0 A

Power Requirements: 100-240 V AC, 50/60 Hz, 1.7 A

Certications: UL, UL-C, CE, FCC Class B

Weight: 16.6 kg (36.5 lbs.)

Dimensions (WxHxD): 438 mm x 231 mm x 438 mm

(17.25” x 9.1” x 17.25”)

Manufacturer Primera Technology Inc.

Features

Fast Print Speeds. With up to 114 mm (4.5”) per second print

speeds, your labels will be produced quickly and eciently.

Best Print Quality. Print quality on LX910e is the best we’ve ever
oered, and likely the best you’ll ever nd. Dare to compare! Get
identical samples from each printer you are considering. Selling
your products is much easier when you have the most profes­sional-looking labels!

Dual Ink System. Print with dye-based ink for the most colourful
and vibrant looking labels. Swap out the all-in-one ink cartridge
in 2-3 seconds and print with pigment ink for the most durable
inkjet labels.

One Single Multi-Colour Ink Cartridge. The all-new, highly
advanced ink technology used by LX910e is unique in the busi­ness. It requires only a single ink cartridge to produce incredible,
best-in-class results. The secret is in the nozzles. Ink droplets are
red so precisely that there’s absolutely no need for a separate
black ink cartridge. The resulting “process” black is exceptional. It
also costs no more to use than dealing with an extra black ink
cartridge. With LX910e, you’ve got just one ink SKU to keep track
of – without compromising results.

Sturdy metal enclosure. The LX910e comes with a powder
coated metal enclosure which had been certied for many years
in areas with higher safety regulations. Especially suitable for use
in mechanical and plant engineering, or when electromagnetic
screening (EMC) is required.

What’s in the Box? LX910e Color Label Printer, 4x3” DTM Paper
High Gloss starter roll, dye ink cartridge, USB 2.0 cable, power
cable and transformer and Quick Start instructions. Operator’s
Manuals in many languages are available online at

http://dtm-print.eu/manuals.html
