ULTRASONIC SCALER INSTRUCTION MANUAL
Contents
1. The installation and components of equipment ..............................................................1
2. Installation and adjustment .............................................................................................5
3. Maintenance and sterilization .........................................................................................6
4. Precaution .....................................................................................................................10
5. After service .................................................................................................................12
6. Symbol instruction .......................................................................................................12
7. Environmental protection .............................................................................................13
8. Manufacturer’s right .....................................................................................................13
9. European authorized representative ............................................................................. 13
10. EMC - Declaration of conformity .............................................................................. 13
11. Statement ....................................................................................................................16
1. The installation and components of equipment
1.1 Instruction
Guilin Woodpecker Medical Instrument Co., Ltd. is a professional manufacturer researching, developing and producing ultrasonic scalers. The
product is mainly used for teeth cleaning and also an indisensable equipment for teeth disease prevention and treatment.
The ultrasonic scaler S6 LED has scaling, perio functions with the following features:
1.1.1 The handpiece can be autoclaved to high temperature 134°C and high pressure 0.22Mpa.
1.1.2 Automatic frequency tracking ensures that the machine always works on the best frequency and more steadily.
1.1.3 Digital control, easy operation and more ecient for scaling.
1.2 Components
1.2.1 The components of machine are listed in the packing list.
1.2.2 Product performance and structural composition
Ultrasonic scaler S6 LED is composed of electrocircuit, water way and ultrasonic transducer.
1.2.3 Scope of application
Ultrasonic scaler S6 LED is used for the dental calculus elimination and root canal treatment.
1.3 The main technical specications
Technical description is included in the instructions for use.
1.3.1 Power supply input: 220-240V~ 50Hz/60Hz 150mA
1.3.2 Main unit input: 24V~ 50Hz/60Hz 1.3A
1.3.3 Output primary tip vibration excursion: ≤90μm
1.3.4 Output half-excursion force: ≤2N
1.3.5 Output tip vibration frequency: 28kHz±3kHz
1.3.6 Output power: 3W to 20W
1.3.7 Main unit fuse: T1.6AL 250V
1.3.8 Power supply fuse: T0.5AL 250V
1.3.9 Water pressure: 0.01MPa to 0.5MPa
1.3.10 Weight of main unit: 0.65kg
1.3.11 Operating mode: Continuous operation
1.3.12 Type of protection against electric shock: class II equipment
1.3.13 Degree of protection against electric shock: Type B applied part
1.3.14 Applied part of the equipment: handpiece and tip
1
1.3.15 Degree of protection against harmful ingress of water: Ordinary equipment, the foot switch is drip-proof equipment (IPX1)
1.3.16 Degree of safety of application in the presence of a Flammable Anesthetic Mixture with air, Oxygen or Nitrous Oxide: Equipment not
suitable for being used in the presence of a ammable anesthetic mixture with air, oxygen or nitrous oxide.
1.3.17 The main unit use a power adapter to connet network power supply, isolation mode from network power supply is transformer isolation
and solid insulation of the enclosure.
1.4 Instruction of the main components
Instruction and component sketch map
1.4.1 Front of the main unit sketch
2
map
Picture 1
1.4.2 Back of the main unit sketch map

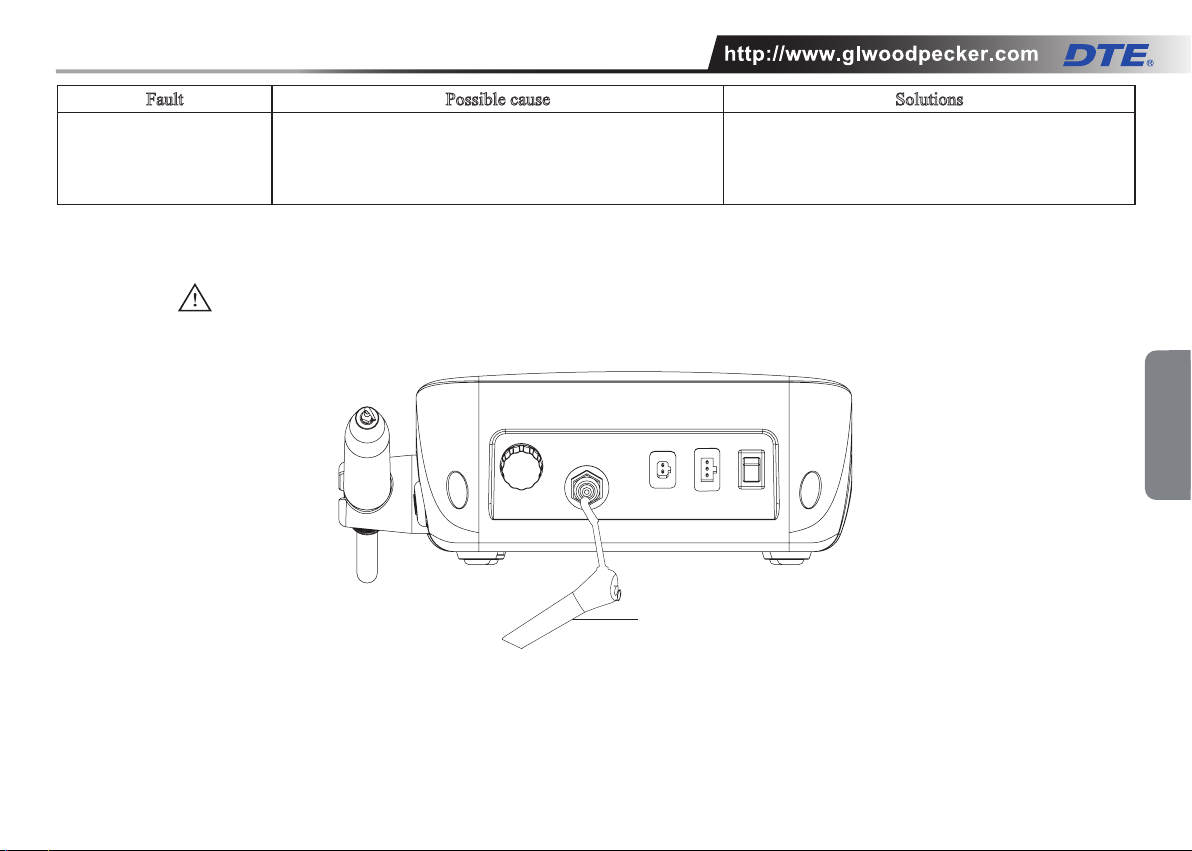

1.4.3 Instruction of using wrench
3
Picture 2
Picture 3
4
Picture 4
1.4.4 List of removable parts
Picture 5 Picture 6
