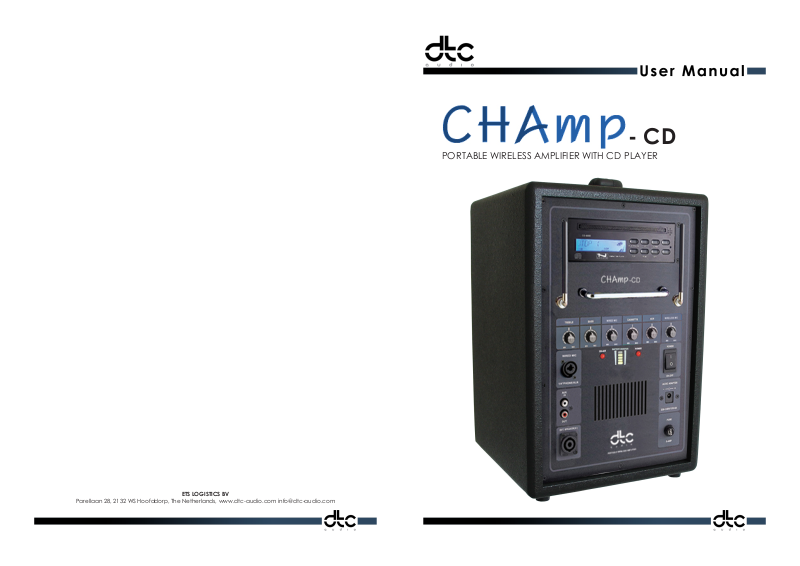

DTC Audio Champ-CD User Manual

- CD

PORTABLE WIRELESS AMPLIFIER WITH CD PLAYER

Parellaan 28, 2132 WS Hoofddorp, The Netherlands, www.dtc-audio.com [e-mail]

ETS LOGISTICS BV

Contents 6. Technical Specication

Amplier Specication

Max. Power Output RMS100-Watt
No. of Mic Input 1 x Wired Microphone by combination jack

Volume Control 1 x Wired Microphone

Tone Control 1 x Treble, Independent

Aux. Input/Output 1 x In-RCA / 1 x Out-RCA
Speaker 8” Dynamic Full range + 2” Tweeter
External Speaker >16Ω
Built-In Battery 12V/14A, Rechargeable & Explosion-proof
Charging Approx. 12-hours for a Single charge
Discharge Protection 10.4V (Factory set: Lowest voltage for ABMR)

1) Champ-CD Panel

2) Operating Instructions

3) Battery Operation & Recharging

4) Important Notes

5) Warranty Information

6) Technical Specication

AC/DC Adapter (SMPS) AC100-240V 50-60Hz / DC15-16V/4.5A UL/CE/CSA/TÜV
Weight Approx. 16Kg-Nett
Dimensions 270mm(L) x 270mm(W) x 420mm(H) Nett

Wireless System Specication

Carrier Frequency UHF 863-865MHz (Other frequencies are optional)
Pre-set Frequency 16-Ch Selectable Frequencies
Frequency Stability ±0.002%
Modulation PLL Synthesized
Frequency Response 50Hz – 15khz ±2dB
Max. Distortion ≥0.3% at 1kHz, 15kHz DAV
Dynamic Range More than 90dB
RF Transmitter Power 10mW (Can be adjusted basing on regulation)
Max. SPL 110dB SPL
Receiving Method F3E
S/N (15kHz DAV 100µV) More than 90dB

1 x UHF Wireless Microphone (Other frequencies are option)

1 x Wireless Microphone
1 x Aux

1 x Bass, Independent

350mm(L) x 350mm(W) x 560mm(H) Gross

ESP CD Deck Specication

Function Play, Eject, Up-Down, Scan, Repeat
Shock Proof Mechanical shock proof + ESP 40sec
Output Level 1.3V ± 2dB / 1KHz 0dB
Frequency Response 20Hz/-0.5±1dB, 100Hz/0±1dB, 10KHz/0±2dB, 20KHz/-1±2dB
Separation More than 80dB / 1KHz
S/N Ratio More than 80dB / 1KHz
THD Less than 0.3% / 1KHz

3. Battery Operation & Recharging

Automatic Battery Monitoring & Recovery System (ABMR)

The main amplier is equipped with an auto battery monitoring and recovery system. This continuously monitors the battery
and will automatically turn-off the amplier completely if the voltage drops to a dangerous level, which might harm

the battery. The system can instantly recover by switching on the supplied AC/DC adapter. When the low-battery LED
illuminates, the built-in battery needs to be charged immediately. Plug in the AC/DC adapter to input jack on the front
panel. The charge LED will illuminate and will automatically turn off when the charging completed in approx. 10h. Continue
to charge some extra hours to ensure battery fully charged.

4. Important Notes

- The impendance of the external speaker should be greater than 16Ω.

- Do not use an AC/DC adapter other than that supplied otherwise guarantee void.

- Please do not use a fuse other than the specied rated one of 250V/5A.

- Charging should be done at regular intervals to conpensate for natural discharging.

5. Warranty information

DTC Audio hereby warrants that this product will be free from defects in material and workmanship for a period of one year
from the date of purchase. At our option, we will repair or replace the defective product and promptly return it to you. You
should retain proof of purchase to validate the purchase date and return it with any warranty claim.

If you believe this product is defective within the warranty period, carefully repack the unit, insure it, and return it freight
prepaid to your nearest dealer or authorized service center or direct to us.

This warranty does not apply in case of abuse of the product use contrary to our instructions, or unauthorized repair. All
implied WARRANTIES of MERCHANTABILITY of FITTNESS FOR A PARTICULAR PURPOSE are disclaimed and we hereby disclaim
liability for incidental, special or consequential damages resulting from the use or unavailability of this product.

THIS WARRANTY SUPERSEDES ALL WARRANTIES THAT ARE INCLUDED WITH THIS PRODUCT.

Memo

1. -CD Panel

NOTE: The information contained in this manual is believed to be correct at the time of going to press. However, DTC Audio

reserves the right to change or modify the specication without notice or obligation to update existing units

2. Operating Instructions How to operate the MP3-CD Player

Using the UHF Wireless Microphone

1. Open the battery compartment of wireless hand-held mic or belt-pack transmitter mic
and insert supplied 2 x AA type batteries in their correct +/- polarity.

2. Set Ch-number of amplier and microphone both to same number by Ch-selector
switch using supplied plastic “I” screw driver. ( Please see the schematic below )

3. Clockwise insert the supplied BNC wireless antenna into it’s socket on the operating panel.

4. Plug your wired microphone into the combination jack on the operating panel.

5. Turn on the main power on/off switch. Power-on LED will be illuminated.

6. Adjust the volume level of wired mic and try while setting treble/bass to proper level.

7. Adjust the volume level of wireless mic on the amplier. Turn on the switch of wireless
mic and try. The on-air LED next to the Ch-selector switch will be illuminated.

8. In the case of frequency interference occurring, try to set Ch to another Ch-number.

9. Use the aux in/out RCA jack to feed out or feed in audio signals to and from another source.

Using the Wired Microphone

1. Turn on the main power on/off switch, the power-on LED will be illuminated

2. Plug 1/4” plug into the wired mic socket and adjust the volume using the wired mic volume knob.
(see number 6 and 9) on the operating panel.

NOTE: Wired microphones are also as sensitive to feedback as wireless microphones, therefore it is advisable to follow the same advice as in the
above information for optimum performance

Using Auxiliary Equipment

1. Use the Aux in/out jack connection to feed in or out audio signals from another source

2. Typical sources to feed into the amplier are MP3 players, DVD players, laptops and palm devices
etc. where you want to amplify the sound to larger audiences.

3. The feed out socket can be used to connect to ampliers and mixers.

5

6

1. To Switch On

Press POWER button(10) to turn the unit ON and press again to turn it OFF.

2. To Insert a CD

Put a disc into slot(5) with label side up. The disc will automatically start to play.
The display(6) will indicate S-CDP mode, show the Track number, it’s played time,
a moving disc and audio frequency bar-graph symbols.

3. To Eject a CD

Press the EJECT button(4) to eject the disc from the slot. If the disc is not removed within 10 seconds it will automatically load
again.

4. To Play/Pause a CD

When the disc has loaded, press the PLAY/PAUSE button(1) to start play.
press PLAY/PAUSE button(1) The display(6) will show the CD is in Pause mode. Press the button to resume play.

5. To Forward Track

IPress the UP button(2) to advance the disc to the next track. The track number will
be shown on the LCD display(6) To fast forward through the tracks hold down the UP button(2). While this is
happening the display(6) will show track number and play time advancing. The disc will resume play when the button is
released.

6. To Back Track

Press the DOWN button(3) to back track to the previous track. The track number will be shown on the LCD display(6).
To fast back track through the tracks hold down the DOWN button(3). While this is happening the display(6) will show track
number and the play time decreasing. The disc will resume play when the button is released.

7. To Repeat a Track

Press RPT button(9) to repeat the same track of the disc. Repeat play will continue until the RPT button(9) is pressed again.
During play the display(6) will show that CD is in RPT mode.

8. To Play Tracks in Random Order

Press SHF button(8) to play tracks in random order. The LCD display(6) will show that CD is in S-SHF mode Press the button
again to resume normal order play.

9. To Scan and Sample the Tracks.

Press SCAN button(7) to set the CD in S-SCN mode whereby each track will play in sequence for 10 seconds. The LCD
display(6) will show track number. Press the button to resume normal play.

10. When Playing MP3 Format Discs
The LCD display(6) will indicate S-CDP mode MP3, the Track number, and can also scroll the Song Title and Artist’s Name.

11. Remote Control Unit

Point the Remote Control Unit infra red beam at the CD desk and press desired
function button on the CD/MP3 Player Section to control. The buttons allow you to Switch On/Off (Power), Select Track (Up/
Down), Play/Pause, Random Play (SHF), Repeat Track (RPT), Scan.

Note: This unit does not control the volume, which needs to be adjusted manually.

1

2

8

7

4

3

9

10

1

PLAY/PAUSE

2

UP (Forward Track)

3

DOWN (Backward Track)

4

EJECT

5

CD SLOT

6

LCD Display

7

CD TRACK SCAN KEY

8

TRACK RANDOM PLAY

9

TRACK REPEAT PLAY

10

POWER ON/OFF
