MP-9908R
AM/FM TUNER
OWNER’S MANUAL
Before operating, please read this manual completely.
FEATURES
z Digital tuner with MPU control.
z Touch key and VFD display.
z 20 memories for each AM & FM.
z Auto save with auto station search.
z Level meter for audio output.
z Memory function after power dropped.
1
Left blank for memo
2

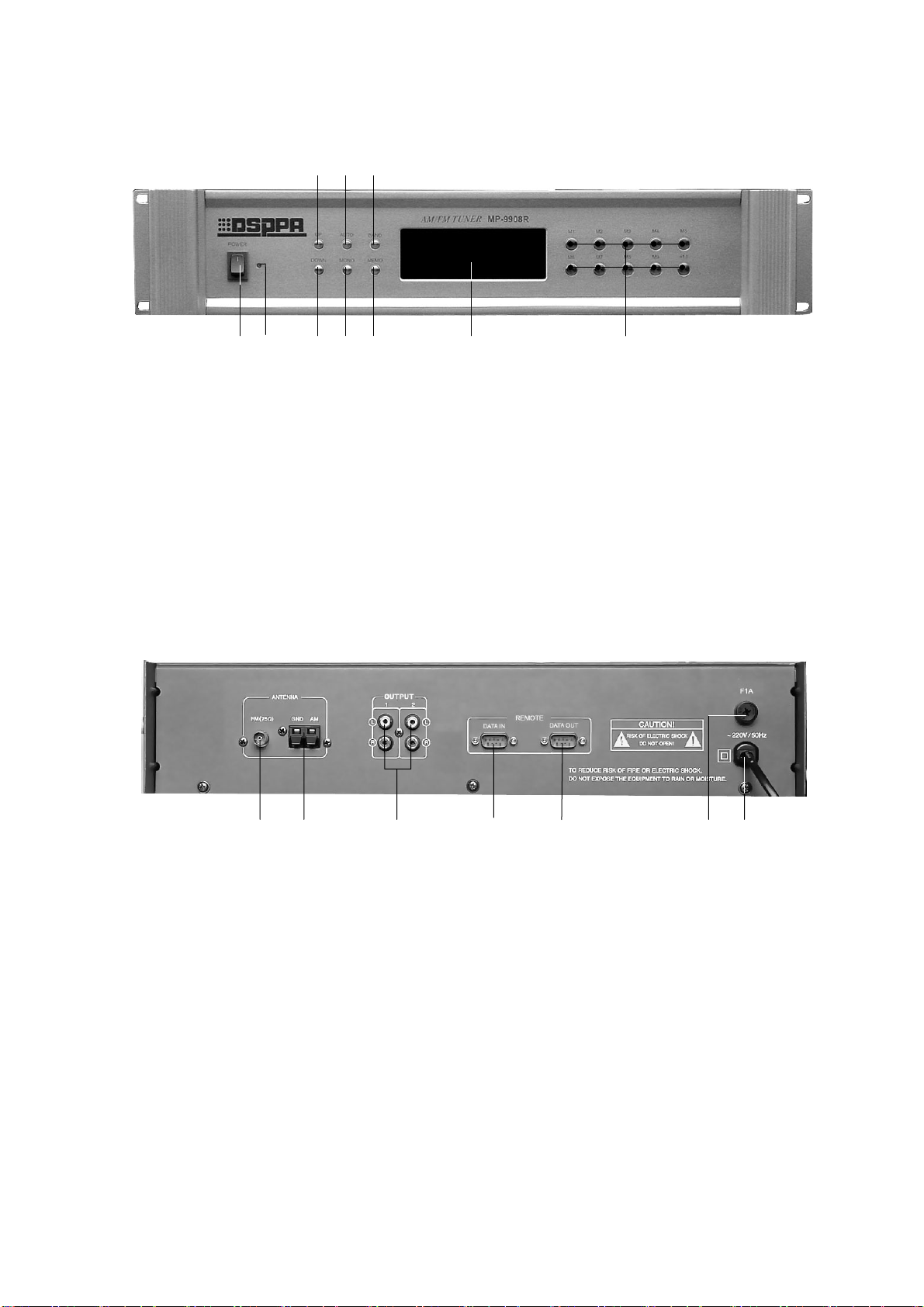

FRONT PANEL
4 5
1 3 2
1 Power switch 6 Down keys
2 Power indicator 7 Mono keys
3 Up keys 8 Memo keys
4 Auto keys 9 Display screen
5 Band keys 10 M1~+10 Location keys
6 7 8 9
10
REAR PANEL
1 FM antenna jack 5 Remote output
2 AM antenna jack 6 AC fuse
3 Output jack 7 Mains
4 Remote input
1
2
3
4
5
6
7
3
CONNECTIONS
FM Antenna
AM Antenna
Pre Amp. MP9911P
To control center
4
OPERATION
1 Select a station
A Tuning in Click BAND key for band selecting. Click UP or DOWN key for tuning step by
step (FM: 50kHz/step, AM: 9 kHz/step). If keeping UP or DOWN pressed down for 1 second, it will
search continuously until a station tuned in or don’t in 30 seconds.
B Calling out Click BAND key for band selecting. Click one key of M1~+10 for calling
out a station which stored in M1~M10. Press down M+10 key for 1 second with CH1_ appears on the
VFD screen, and then click one of M1~M9 for calling out the station stored in M11~M19. Press down
M+10 key for 2 seconds for calling out the station stored in M20.
2 Save a station
A Save with auto search Click BAND key for band selecting. Click AUTO key with the
symbol “AUTO” flashing on the VFD screen, and then click UP or DOWN key for starting to search
station from the lowest frequency to the highest frequency of the band or in reverse order. The stations
received will be saved into the memories from M1 to M20 until searching to the end of the band or all
memories filled up. The station stored in M1 will be called out when AUTO SEARCH comes to the
end.
B Save manually Click MEMO key with the symbols “MEN” and “CH_ _” flashing on the
VFD screen. Click one key of M1~M+10 as the way mentioned in section 1·B for memory selection
and then click MEMO key once again to save the station received at present into the memory selected.
The screen will resume to receiving mode when done.
3 Mono/Stereo switching
Click MONO key in circle for switching between Stereo Mode and Mono Mode of the receiver.
Stereo Mode is for FM only. The stereo function will be activated automatically with the symbol
“STEREO” flashing in Stereo Mode while the FM stereo signal is strong enough. But the S/N of
Mono Mode is better than that of Stereo Mode.
4 Remote with compute link
This set can be controlled by a program manager of ABK-PA series (or DSPPA-MP series and
DSPPA-MAG series) via a link cord. For this purpose，fit a link cord from the Remote Link port of this
set to the link port of the program manager. We can use the manager to make programs or timings for
this set.
5
SPECIFICATIONS
Band
Sensitivity
S/N
Freq. Step
MF
Output level
Protection
Power Requirement
Dimensions
Gross weight
Net weight
FM 87.0 ~ 108.0 MHz
AM 522 ~ 1611 kHz
FM
AM
FM
16dBμ
49dBμ
Mono 75dB，Stereo 70 dB
AM 40dB
FM 50kHz
AM 9kHz
FM 10.7 MHz
AM 450 kHz
0dBV
AC fuse ×1
AC 220 –240 V / 50～60 Hz
485×88×378 mm
6.5 kg
5.2 kg
Specifications are subject to be changed without notice.
CAUTION
To reduce the risk of electric shock, do not remove the cover.
No user parts inside. Refer servicing to qualified service personnel.
DSPPA ACOUSTIC TECHNOLOGY CO. LTD.
6
MP-9908R
AM/FM 调谐器
使用说明
欢迎惠顾。您对本产品之选用显示了您的专业眼光。使用前请仔细阅读本说明书。
性能特点
z 微电脑控制，数字调谐系统。
z 全轻触按键控制，VFD 显示。
z AM/FM 各 20 个电台存储功能。
z 具有自动搜索存储电台功能。
z 具有音频信号电平指示。
z 具有断电记忆功能。
7
此页留空供用户记事
。
8
前面板
4 5
1 电源开关 6下微调/下搜索键
2电源指示 7 立体声/单声道选择键
3上微调/上搜索键 8 存储键
4 自动搜索键 9 VFD 显示屏
5 AM/FM 波段选择键 10 M1~+10 存储选择键
1 3 2
後面板及连接
6 7 8 9 10
2
1
3
4
5
1 FM 天线输入插座 5 遥控输出口
2 AM 天线输入插座 6 电源保险丝
3 音频信号输出插座 7 电源线
4 遥控输入口
6
7
9
连接图
FM 天线
AM 天线
MP9911P 前置放大器
去控制中心
10
使用方法
1、选择电台
本机提供 2 种选择电台方式
A. 直接选台方式 按 BAND 键选择接收波段；按 UP 或 DOWN 键，每按一下接收频率增加或减
少一步（FM 一步为 50kHz，AM 一步为 9kHz），如果按下 UP 或 DOWN 键超过 1 秒钟，即
进入自动搜索状态，接收频率连续增加或减少，当收到电台时自动停止搜索，如果自动搜索达
30 秒钟仍没有收到电台也将停止搜索。
B. 存储调用方式 按 BAND 键选择接收波段；按 M1~+10 键可调出 M1-M10 存储的电台；按下+10
键 1 秒钟松开，屏幕显示‘CH1_’，其中‘ 1_’闪烁显示，此时再按 M1~ M9 键可调出 M11~
M19 存储的电台；按下+10 键超过 2 秒钟可调出 M20 存储的电台。
2、存储电台
本机提供 2 种存储电台方式
A. 自动搜索存储方式 按 BAND 键选择接收波段；按 AUTO 键，屏幕‘AUTO’闪烁显示，此时
再按 UP 或 DOWN 键即进入自动搜索存储方式，如果是按 UP 键就由频率低端至高端自动搜索
存储，收到的电台将按顺序存储到由 M1 开始的 20 个存储号；如果是按 DOWN 键就由频率高
端至低端自动搜索存储，收到的电台也按顺序存储到由 M1 开始的 20 个存储号。当自动搜索
完该波段的接收频率范围或收到的电台超过 20 个时将停止自动搜索存储。自动搜索存储完毕
将自动调用 M1 。
B. 人工存储方式 存储的电台可以是当前正接收的电台，也可以是通过上述 2 种选台方式选择的
电台。按 MEMO 键，屏幕‘MEM’闪烁显示，同时显示‘CH_ _’，其中‘_ _’闪烁，显
示的是上次的操作数。可仿照存储调用方法按 M1~+10 键, 改变该数，然后再按 MEMO 键，
当前的电台即被存储到相应的存储器中，同时屏幕恢复接收显示，表示存储成功。
3、立体声/单声选择
该功能仅在接收 FM 时有效。按 MONO 键循环切换立体声与单声状态。在立体声状态时，当
FM 电台具有立体声信号且信号场强足够便自动工作于立体声方式，同时屏幕中的‘STEREO’
（立体声）灯点亮，否则工作于单声方式。在单声状态时，则强制工作于单声方式。单声方式
的信噪比优于立体声方式。
4、遥控运行
本机可以接受 ABK-PA 系列（或 DSPPA-MP 系列，DSPPA-MAG 系列）的定时器遥控编程。
把本机的遥控链接口与相应设备的链接口用电缆对接起来，即可由后者对本机编程，实现自定
时运行。
11
性能规格
接收范围
调谐频率步距
中频频率
输出电平
保护
电源
尺寸
毛重
净重
FM 87.0 ~ 108.0 MHz
AM 522 ~ 1611 kHz
FM
AM
FM
16dBμ 灵敏度
49dBμ
单声道 76dB，立体声 70dB 信噪比
AM 40dB
FM 50kHz
AM 9kHz
FM 10.7 MHz
AM 450 kHz
0dBV
AC fuse ×1
AC 220 –240 V / 50～60 Hz
485×88×378 mm
6.5 kg
5.2 kg
性能规格如有改变恕不另行通知。
请勿随意打开机器盖板，以防触电。必要时须由有专业证书之专业人员进行修理。
注 意
DSPPA ACOUSTIC TECHNOLOGY CO. LTD.
12
