DSPeaker Servo 300 User Manual

DSPeaker Servo 300 User's Manual

Revision History

Rev. Date Author Affected

chapters

Description

1.0 10.6.2010 ToLi All Original English version

DSPEAKER SERVO 300

Congratulations for making a wise choice

A DSPeaker product is all about authentic sound – sound without the usual coloration and

distortions that draw the attention away from the content -- be it recorded music or other

sonic content whose quality matters -- into the equipment that is reproducing it.

On the path towards the ultimate goal of perfect audio, our design philosophy has always

been to remove the biggest obstacles first – with solutions that are both efficient and

effortless for the user. We are confident that DSPeaker Servo's unmatched sonic

performance and ease of use will exceed your expectations.

Please take a moment to familiarize yourself with the product. This manual contains valuable

information for safe and successful use.

We wish you many great moments with true, uncompromised audio!

DSPeaker Team

Rev. 1.6 21.06.2010 Page 2 (16)

DSPEAKER SERVO 300

Table of contents

1 Connections and Buttons..................................................................................................4

1.1 Rear Panel:...................................................................................................................4

1.2 Front Side.....................................................................................................................5

2 Quick Set-up Guide............................................................................................................6

2.1 Usage...........................................................................................................................8

2.1.1 Control Button.....................................................................................................8

2.1.2 Status LED..........................................................................................................8

2.1.3 Input Gain Control...............................................................................................8

2.1.4 Automatic Wake-up and Stand-by......................................................................9

2.2 Errors and Warnings.....................................................................................................9

2.2.1 Blinking Red Status LED....................................................................................9

2.2.2 Status LED is Lit Red.........................................................................................9

2.2.3 Thermal Shut-down..........................................................................................10

2.3 Placing the Servo 300 Speaker..................................................................................10

2.4 Anti-ModeTM: Automatic Room Correction................................................................10

2.5 ASCM Calibration........................................................................................................11

2.6 Output Gain Switch.....................................................................................................12

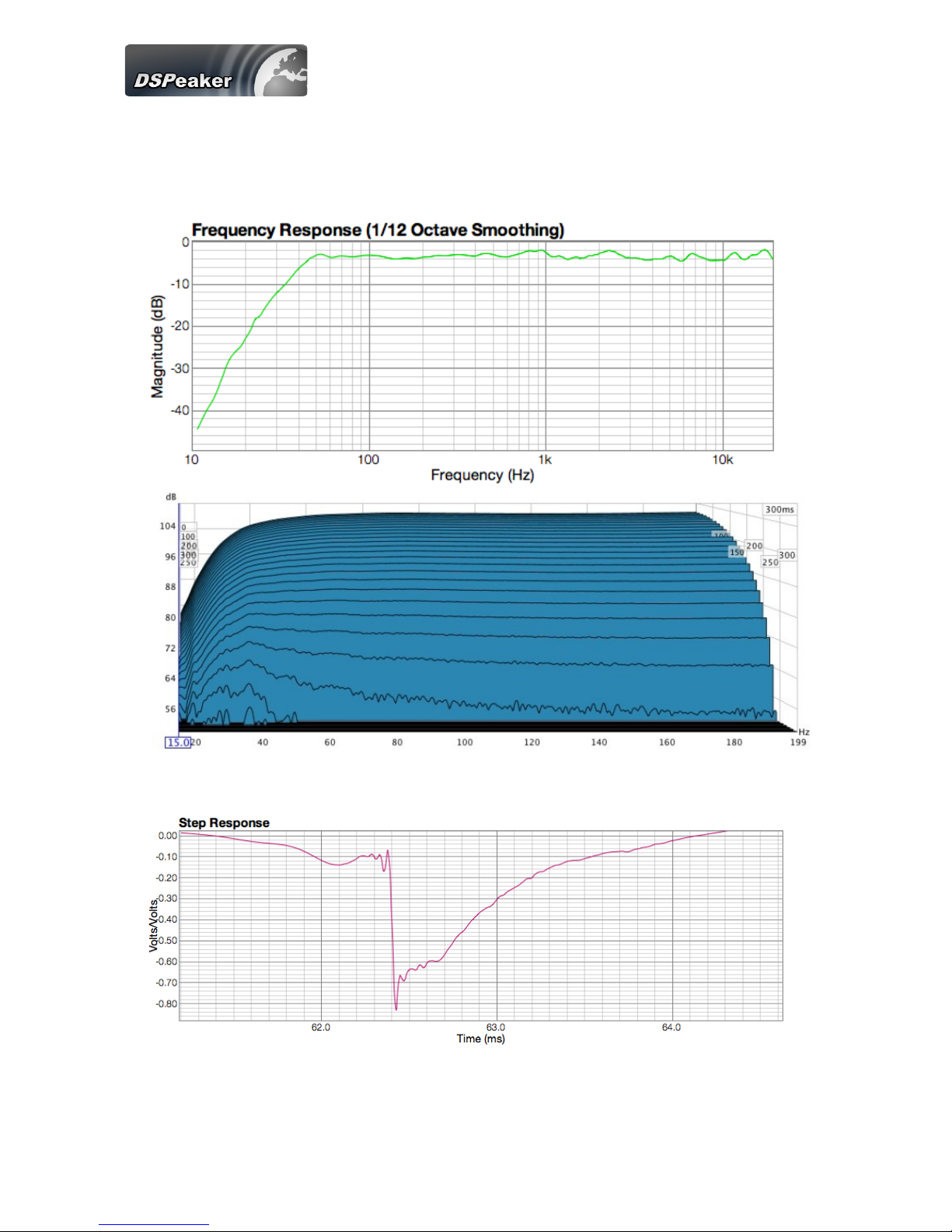

3 Measurements..................................................................................................................13

4 Technical specification....................................................................................................14

5 Manufacturer.....................................................................................................................14

6 Support.............................................................................................................................14

Rev. 1.6 21.06.2010 Page 3 (16)

DSPEAKER SERVO 300

DSPeaker Servo 300 User's Manual

1 Connections and Buttons

1.1 Rear Panel:

1. Control button

2. Anti-ModeTM calibration microphone input jack

3. Output gain switch (Servo-control)

4. Input gain control

5. Service port (PC connection)

6. Balanced XLR audio input connector

7. Power cord connector (MAINS INPUT)

8. Power switch

Rev. 1.6 21.06.2010 Page 4 (16)

1.

2.

3.

4.

5.

6.

7.

8.

DSPEAKER SERVO 300

1.2 Front

1. Status LED

Rev. 1.6 21.06.2010 Page 5 (16)

1.
