DSPeaker Anti-Mode 8033 User Manual

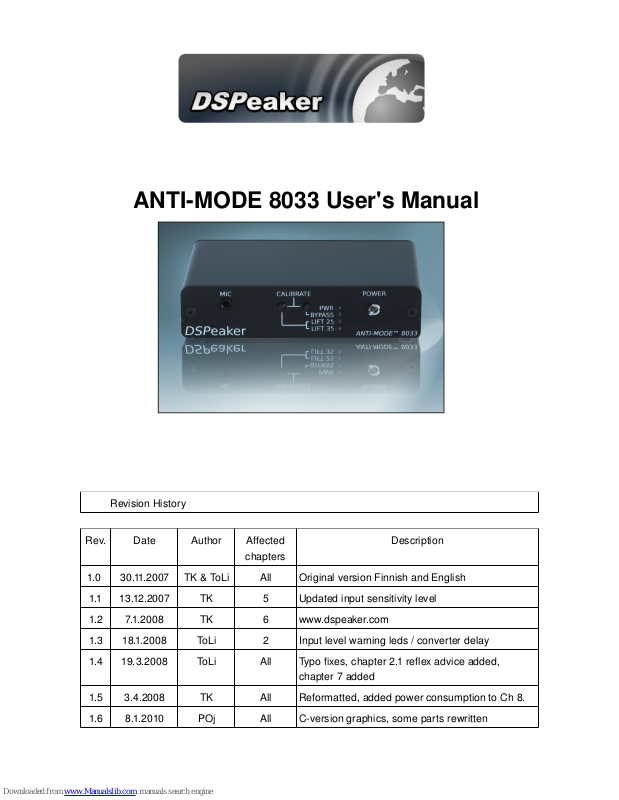

ANTI-MODE 8033 User's Manual

Revision History

Rev. Date Author Affected

chapters

Description

1.0 30.11.2007 TK & ToLi All Original version Finnish and English

1.1 13.12.2007 TK 5 Updated input sensitivity level

1.2 7.1.2008 TK 6 www.dspeaker.com

1.3 18.1.2008 ToLi 2 Input level warning leds / converter delay

1.4 19.3.2008 ToLi All Typo fixes, chapter 2.1 reflex advice added,
chapter 7 added

1.5 3.4.2008 TK All Reformatted, added power consumption to Ch 8.

1.6 8.1.2010 POj All C-version graphics, some parts rewritten

ANTI-MODE 8033

Rev. 1.6 08.01.2010 Page 2 (12)

ANTI-MODE 8033

Table of contents

1. Connections and buttons.................................................................................................3

1.1. Front panel:..................................................................................................................3

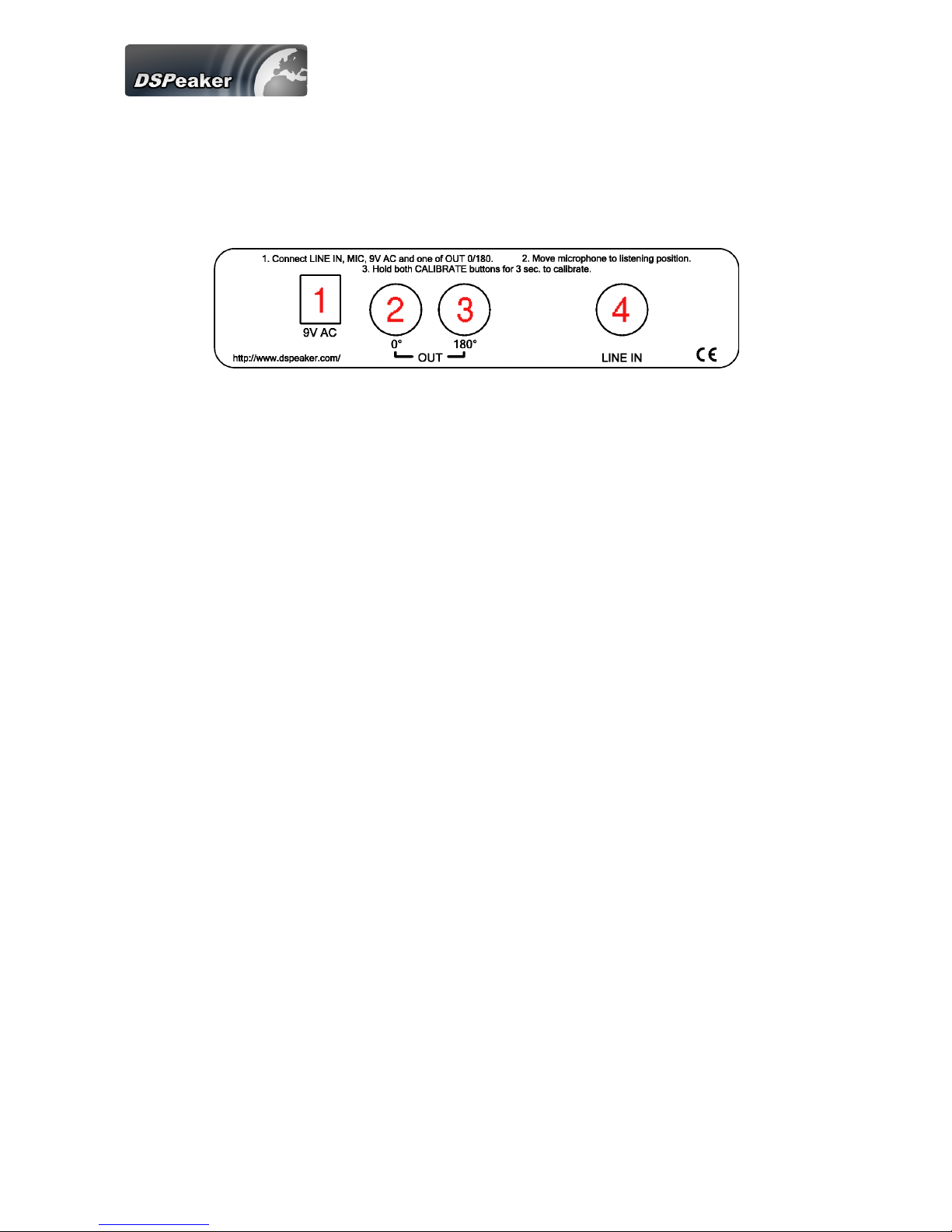

1.2. Back Panel:..................................................................................................................4

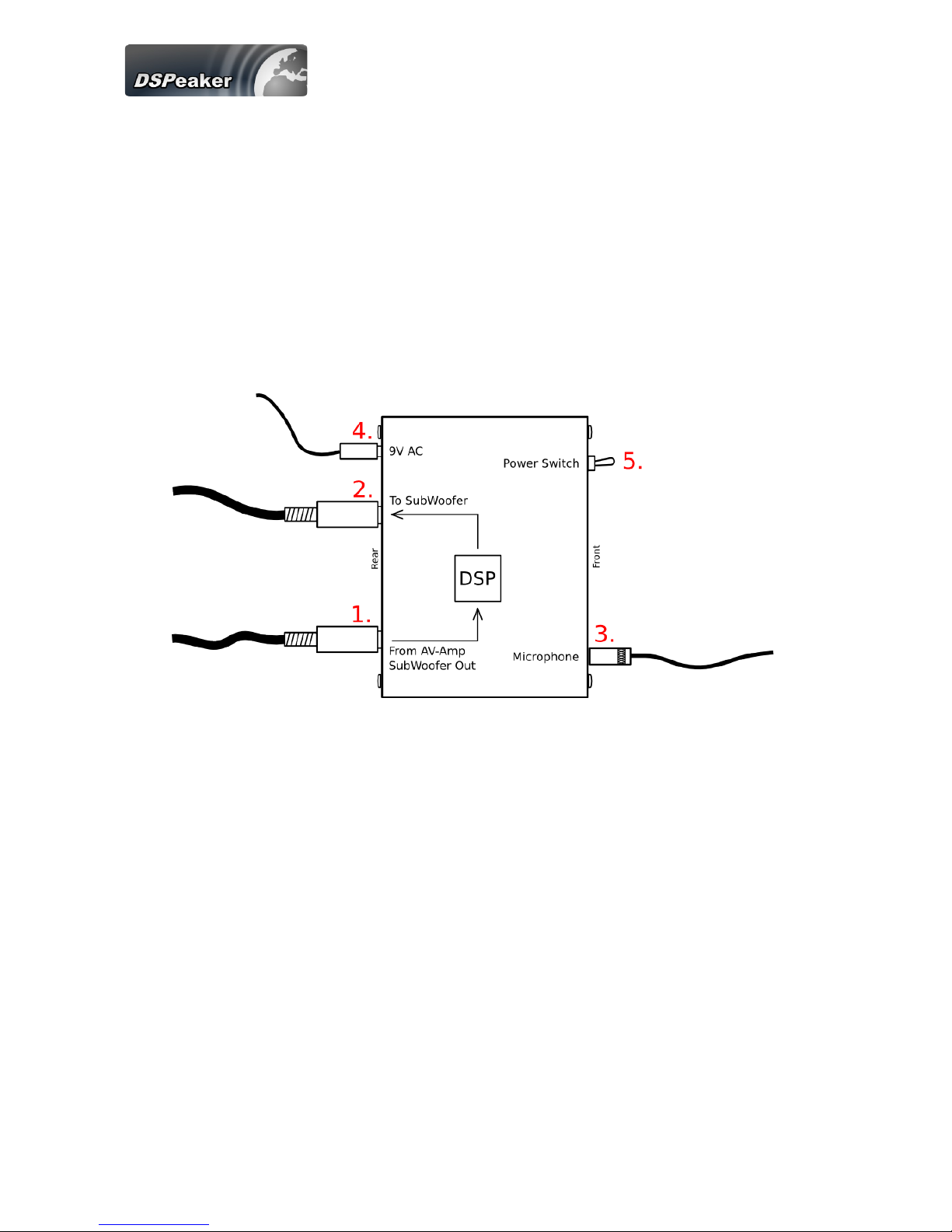

2. Quick setup guide.............................................................................................................5

2.1. Before calibration.........................................................................................................5

2.2. Calibration...................................................................................................................6

2.3. After calibration............................................................................................................6

3. Wider area correction.......................................................................................................7

3.1. Strategy 1, “Compensation of the weakest point”:........................................................7

3.2. Strategy 2, “Gradient compensation”:..........................................................................7

4. Basic operation.................................................................................................................8

4.1. Bypass mode...............................................................................................................8

4.2. Lifting EQ.....................................................................................................................8

4.2.1. “Flat”..................................................................................................................8

4.2.2. Lifting 15-25Hz..................................................................................................8

4.2.3. Lifting 25-35Hz..................................................................................................8

4.3. Bridging.......................................................................................................................9

4.4. ADC level warning.......................................................................................................9

5. Technical specification...................................................................................................10

6. Manufacturer...................................................................................................................10

7. Support.............................................................................................................................11

Rev. 1.6 08.01.2010 Page 3 (12)

ANTI-MODE 8033

ANTI-MODE 8033 User's Manual

1. Connections and buttons

1.1.Front panel:

1. Microphone input jack

2. Button A: LIFT 25 / LIFT 35 / FLAT selector
Short press: Selects low frequency boost
Long press: Store current low frequency boost setting

3. Button B: BYPASS
Short Presss: Disable/enable processing
Long press: Begin second-phase calibration for wide area correction
Buttons A & B simultaneously long press: Begin calibration

4. PWR LED: Lit when the device is on

5. BYPASS LED: Lit when bypassed

6. LIFT 25 LED: Lit when 15-25Hz lifting EQ and subsonic filter is on

7. LIFT 35 LED: Lit when 25-35Hz lifting EQ and subsonic filter is on

8. POWER switch: Switches power on/off

Rev. 1.6 08.01.2010 Page 4 (12)

Figure 1: ANTI-MODE 8033 Front panel
