96M5771o
Single Board Computer
User’s Manual
Edition 1.0
2007
k
Preface
96M5771o User's Manual / Page 2
Copyright
This publication, including all photographs, illustrations and software, is protected under
international copyright laws, with all rights reserved. No part of this manual maybe reproduced,
copied, translated or transmitted in any form or by any means without the prior written consent
from DSM Computer AG.
Version 1.0
Copyright 2007
Disclaimer
The information in this document is subject to change without prior notice and does not
represent commitment from DSM Computer AG. How ever , users may update their
knowledge of any product in use by constantly checking its manual posted on our website:
http://www.DSM.AG. The DSM shall not be liable for direct, indirect, special, incidental, or
consequential damages arising out of the use of any product, nor for any infringements upon
the rights of third parties, which may result from such use. Any implied warranties of
merchantability of fitness for any particular purpose is also disclaimed.
Acknowledgements
The 96M5771o is a trademark of DSM Computer AG. All other product names mentioned herein
are registered trademarks of their respective owners.
Regulatory Compliance Statements
This section provides the FCC compliance statement for Class A devices and describes how to
keep the system CE compliant.
Federal Communications Commission (FCC) For Class A Device
This equipment has been tested and verified to comply with the limits for a Class A digital
device, pursuant to Part 15 of FCC Rules. These limits are designed to provide reasonable
protection against harmful interference when the equipment is operated in a commercial
environment. This equipment generates, uses, and can radiate radio frequency energy and, if
not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. Operation of this equipment in a residential area (domestic environment)
is likely to cause harmful interference, in which case the user will be required to correct the
interference (take adequate measures) at their own expense.
CE Certification
96M5771o User's Manual / Page 3
The product(s) described in this manual complies with all applicable European Union (CE)
directives if it has a CE marking. For computer systems to remain CE compliant, only
CE-compliant parts may be used. Maintaining CE compliance also requires proper cable and
cabling techniques.
WARNINGS
Read and adhere to all warnings, cautions, and notices in this guide and
the documentation supplied with the chassis, power supply, and accessory
modules. If the instructions for the chassis and power supply are inconsistent
with these instructions or the instructions for accessory modules, contact
the supplier to find out how you can ensure that your computer meets
safety and regulatory requirements.
CAUTION
Electrostatic discharge (ESD) can damage NSA components. Do the
described procedures only at an ESD workstation. If no such station is
available, you can provide some ESD protection by wearing an antistatic
wrist strap and attaching it to a metal part of the computer chassis.
Safety Information
Before installing and using the 96m5771o, note the following precautions:
Read all instructions carefully.
Do not place the unit on an unstable surface, cart, or stand.
Follow all warnings and cautions in this manual.
When replacing parts, ensure that your service technician uses parts specified by the
manufacturer.
Avoid using the system near water, in direct sunlight, or near a hearing device.
Table of Content
96M5771o User's Manual / Page 4
Preface
2
Copyright 2
Disclaimer 2
Acknowledgements 2
Regulatory Compliance Statements 2
Federal Communications Commission (FCC) For Class A Device 3
CE Certification 3
Safety Information 3
Table of Content 3
Chapter 1 General Information
1.1 Main Feature 6
1.2 Specifications 7
1.3 Power Consumption Measurement 9
1.4 Board Layout 11
1.5 Board Dimensions 11
Chapter 2 Jumper Setting
2.1 Before you begin 13
2.2 Precautions 13
2.3 Setting Jumpers 14
2.4 Location of Jumpers 15
2.5 Function of Jumper 15
Chapter 3 Expansion
3.1 System Memory 30
3.2 Installing DIMM 30

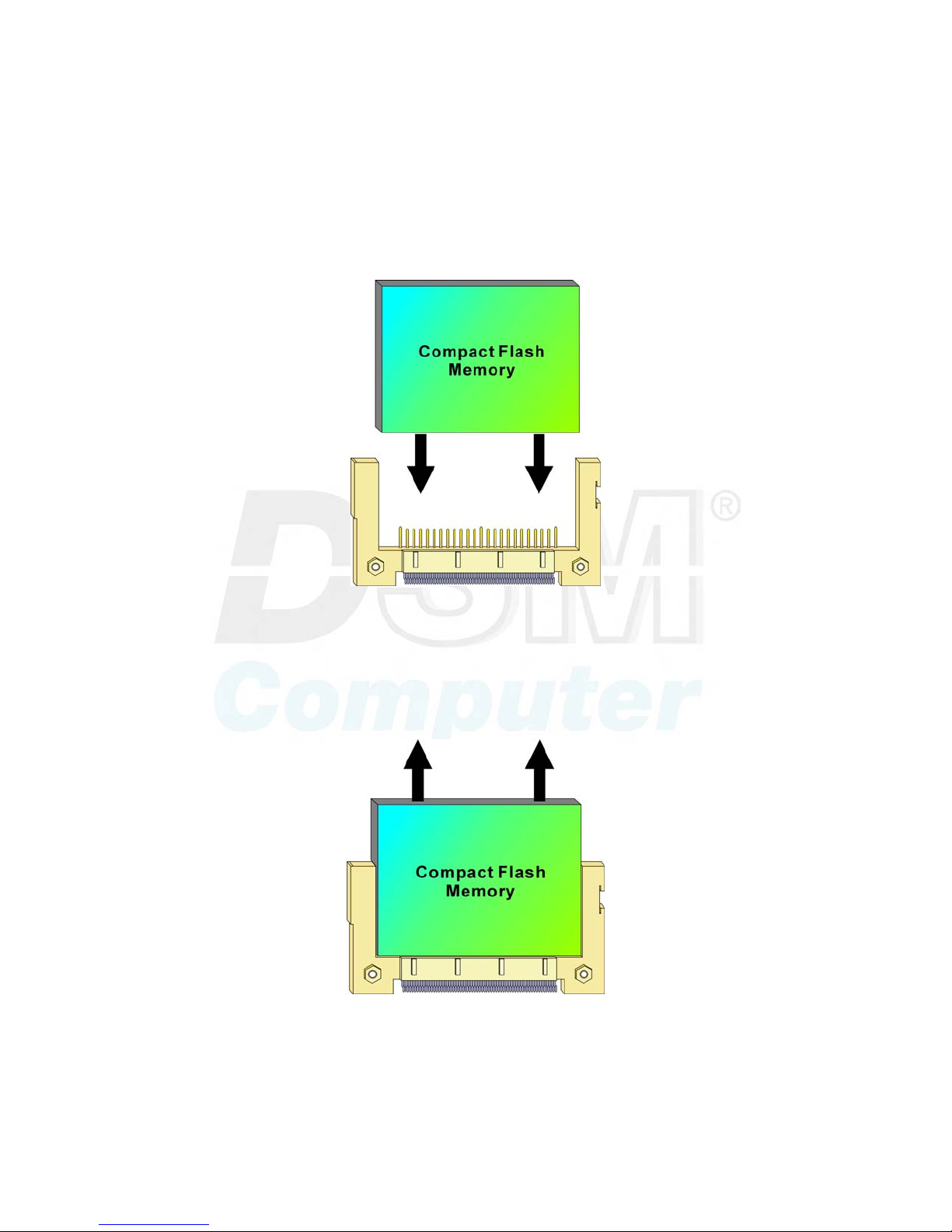

3.3 Installing Compact Flash 32
96M5771o User's Manual / Page 5
General Information
Chapter 1
96M5771o User's Manual / Page 6
1.1 Product Feature
Intel Core Solo & Core Duo and Core 2 Duo Processor Family support
Intel 945GM Chipsets
Two 240-pin DDR2 DIMM Socket support un-buffered non-ECC
DDR2 400/533/667 up to 4GB
Intel 82573L PCI Express Gigabit LAN X 2
Support LVDS /VGA Display and one x16 PCI Express
slot
CompactFlash Socket
Product Overview:
The 96M5771o is a 5.25” embedded board featuring Intel Core Solo, Core Duo and Core 2 Duo processor with
533/667 MHz FSB; speed up to 2.33 (2.0) GHz.
The 96M5771o offers high p erformance and various proce
ssors a
nd PCI Express; versatile display and I/O port
selections, which is the best solution for advanced embedded applications
Block Diagram:
Intel® Core 2 D uo,
Core Duo,Core Solo
533 / 667
MHz FSB
DD R2 C hannel A
DDR2 DIMM Mod ule s
DDR2 533 / 667 MHz
DD R2 C hannel B
PCIex1 Port (1)
PCI 32 Bit / 33 M Hz Bus
PCIex16 Slot
Front Panel
Internal Conn .
CF & IDE
SATA 1
SATA 2
LVDS
VGA
0/1
2,3/4/5
USB2.0
UltraDMA
33/66/100
SATA
Intel® 945GM
4 Lanes
2GB/s
Intel®
ICH7-M DH
LPC B US
.
DDR2 Slot
DDR2 Sl ot
82573 L GbE
82573 L GbE
INTEL
INTEL
PCI-Slot
ALC655
RJ45
(LAN 1)
RJ45
(LAN 2)
SIO1
IT8712 F
KB/MS
IrDA
COM1,2
LPT
GPIO
SIO2
IT 8712F
COM3,4
96M5771o User's Manual / Page 7
1.2 Specification:
General
CPU
Front Side Bus 533/667 MHz
Chipset Intel 945GM and ICH7-M DH
Memory
Super I/O ITE 8712F
BIOS
Expansion interface
Dimensions (Lx W) mm/inch 203mm(L) x 143mm(W)
System Management
Watchdog Timer
Monitoring
Display
Chipset
Display Memory Up to 64 MB of dynamic video memory allocation
Display interface and
Resolution
Ethernet
Controller
Intel® Core Solo and Core Duo family processors
Core 2 Duo family CPU (optional)
2 x 240-pin DDR2 DIMM socket, up to 4GB un-buffered non-ECC DDR2
533/667 SDRAM
Award system BIOS
Plug & Play support
Advanced Po
Interface support
4M bits flash ROM
1 x PCI Slot
1 x PCI Express x 16 Slot
1 minute in
1 second increments from 1 to 255 seconds
Tolerance 15% under room temperature 25°C
Derived from Super IO to support system monitor.
Monitoring of 5 voltag
5 voltage (For +3.3V, +5V, +12V, Vcore and +2.5V)
3 Temperatures (CPU, two external Temperature Sensor)
3 FANs spee
Intel® 945GM integrated graphics solution w/ Intel® Extreme Graphics 2
technology
CRT- Analog Display Support
Drive a standard progressiv e scan analog monitor with pixel resolution
up to 1400 x 1050
LVDS - LFP (local flat panel) LVDS interface
Single- or dual-pixel LVDS panel support
CCFL x1 f or LCD Panel Backlight Inverter Power
Pin 2,3 support 12VDC power source for inverter:
Max. 12VDC@2A fo
Intel® 82573L PCI Express Gigabit Ethernet Controller x 2 supporting
two GbE LAN ports
Support Boot From LAN (PXE)
Support Wake on LAN (When 5Vsb po
wer Management and Advanced Configuration & Power
crements from 1 to 255 minutes
es, 3 temperature and 3 fans Speed.
d (CPU and System FANs)
r each
wer available).
(LAN1 only)
Interface 2 x RJ45 with LED connector
LED
Active, Link 100, and 1000 LAN LED
LAN Status LED defined:
10: LED Off / 100: Green LED / 1000: Orange LED
Extr
a (External) LED: 2
x 4 pin header
96M5771o User's Manual / Page 8
Audio
Realtek RTL655 CODEC for AC97 v2.1 CO DEC
AC97 Audio CODEC
I/O Interface
USB 2.0
Serial ports
Parallel ports 1 x Box header 26-pin connector
PS/2 1 x PS/2 connector for Keyboard and Mouse
GPIO
FAN
IrDA On board pin header for IrDA Tx Rx
Others
On-board RTC
Line in with pin header
Microphone in and Speaker out Interface
6 x USB 2.0 port (2 on front, 4 on Board by one 2.0 mm JST
Connectors), bandwidth: 480 Mb/s
SIO× 4, support RS-232 with pin headers
1 x3-pin jumper to switch 5V and 12V power source
8 GPIO lines via header (GPI 0~3 and GPO 0~3); GPO0 and GPO1
could be connected to LED for programmable feature
TTL Level (0/5
1x 4-pin FAN JST connector (for CPU)
2x 3-pin FAN connector x 2 (for System)
On Board buzzer
Power LED/HDD Power LED
SMBus 2.0 controller (2 pi
On board 2 pin header for reset (for po
V)
n header)
wer on button switch)
Storage Support
CF
SATA 2 x SATA ports, support Raid 0,1, bandwidth: 150 MB/s
IDE 1 x 44-pin IDE connector
Disk on Module 1 x 2-pin Jst power (+5V,GND ) for DOM
Power Supply
Type
ATX mode
AT mode
Power consumption 43.2 W in 12V, 121.2 W in 5V, and 11.5W in 5Vsb
Environment
Operating Temperature 0°C ~ 60°C
Storage Temperature -20˚C to 85˚C
Relative Humidity
Certifications
On-chi
External Lithium battery x 1
RTC Toler
1x Internal CompactFlash socket
Support One Type I& II Compact Flash Card (Primary Master)
Support both AT and ATX Mode
Factory defau lt setting is AT mode
+5V / -5V / 5Vsb Po wer In (+12V/-12V for PC 104 plus)
When Change to ATX Mode, the BIOS default setting is as f
POWER -SUPPLY TYPE [ATX]
AUTO PWR-FAILURE RESUME [ON
+5V Power in
No Po w er On push Button, Software Shutdown function and LAN remote
Operating 10%~90%, non-condensing
Non-operating 5%~95%, non-condensing
CE approval
FCC Class A
p RTC with battery back up
ance less than 2sec (24 hours) under 25˚C environment
wake up
]
ollow:
96M5771o User's Manual / Page 9
Ordering Information:
96M5771o
5.25” Embedded Board supporting Intel Core Solo, Core Duo and
Core 2 Duo CPU w/VGA/ Dual LVDS/Audio/4 COMs/6 USB2.0 /Dual
Gigabit LAN
1.3 Power Consumption Measurement
96M5771o User's Manual / Page 10
The Data is based on fully possible configurations installed on 96M5771o includ e the Add-on Card, and pe ri pherals
such as USB devices, SCSI Card and SCSI HDD.
Test Criteria:
1. Test configuration is include 96M5771o, HDD, CD-ROM, and FDD.
2. Full loading mode should utilize CPU 100% with run Burn-in test program.
3. Light loading mode will utilize CPU loading below
5%, and there is no data or application running.
96M5771o User's Manual / Page 11
1.4 Board Layout
1.5 Board Dimensions
Figure 1.2: Overview
Figure 1.3:
Mechanical
Drawing
96M5771o User's Manual / Page 12
Chapter 2
Jumper Setting
96M5771o User's Manual / Page 13
This chapter of the User’s Manual describes how to set jumpers.
2.1 Before you begin
Ensure you have a stable, clean working environment. Dust and dirt can get into components
and cause a malfunction. Use containers to keep small components separated.
Adequate lighting and proper tools can prevent you from accidentally damaging the internal
components. Most of the procedures that follow require only a few simple tools, including the
following:
• A Philips screwdriver • A flat-tipped screwdriver
• A set of jewelers Screwdrivers • A grounding strap
• An anti-static pad
Using your fingers can disconnect most of the connections. It is recommended that you do not
use needle-nosed pliers to disconnect connections as these can damage the soft metal or
plastic parts of the connectors.
Before working on internal components, make sure that the power is off. Ground yourself
before touching any internal components, by touching a metal object. Static electricity can
damage many of the electronic components. Humid environment tend to have less static
electricity than dry environments. A grounding strap is warranted whenever danger of static
electricity exists.
2.2 Precautions
Computer components and electronic circuit boards can be damaged by discharges of static
electricity.
Working on the computers that are still connected to a power supply can be extremely
dangerous. Follow the guidelines below to avoid damage to your computer or yourself:
• Always disconnect the unit from the power outlet whenever you are working inside the case.
• If possible, wear a grounded wrist strap when you are working inside the computer case.
Alternatively, discharge any static electricity by touching the bare metal chassis of the unit
case, or the bare metal body of any other grounded appliance.
• Hold electronic circuit boards by the edges only. Do not touch the components on the board
unless it is necessary to do so. Don’t flex or stress the circuit board.
96M5771o User's Manual / Page 14
• Leave all components inside the static-proof packaging that they shipped with until they are
ready for installation.
• Use correct screws and do not over tighten screws.
2.3 Setting Jumpers
A jumper is the simplest kind of electr ic switch. It consists of two metal pins and a cap. When
setting the jumpers, ensure that the jumper caps are placed on the correct pins. When the
jumper cap is placed on both pins, the jumper is SHORT. If you remove the jumper cap, or
place the jumper cap on just one pin, the jumper is OPEN. Please see the f ollo wing illustrations
The illustrations on the right
show a 2-pin jumper. When the
jumper cap is placed on both
pins, the jumper is SHORT. If
you remove the jumper cap, or
place the jumper cap on just
one pin, the jumper is OPEN.
These illustrations show a
3-pin jumper. Pins 1 and 2 are
SHORT.
Table 2-1: Setting Jumpers
Open (Off) Short (On)
96M5771o User's Manual / Page 15
2.4 Location of Jumpers
L
P
T
DIMM
x 2
CON 1 (ATX Power CON.)
1
CPU
NB
(INTEL,945GM)
LVDS
J1
LVDS
1
JP1
11
JP4
1
11
CN4
JP3
1
J5
JP7
1
1
1
JP8JP5
PCI
=PIN 1
J7
J3
SB
(INTEL,ICH7)
1
JP6
JP9 PCI-e x 16 Slot
CCFL
J2
USB USB
1
J4J6
Figure 2-1: Jumper Location
JP12
JP11
1
1
SATA SATA
COM x 4
Compact
Flash
CON 2 (ATX AUX
Power CON.)
JP13
1
Speaker
Out
IDE
JP19
1
JP20
JP14
111
MIC
IN
1
J11
V
G
A
JP15
JP16
1
1
1
JP17
LAN1
LAN2
USBx
2
KB/
MS
1
JP18
1
1
1
JP21
J10
2.5 Functions of Jumpers and Connectors
SATA1/SATA0 connector (J8, J9)
A . Connector size : 7 Pin , 1.27mm ,180°, SATA Connector
B . Connector location
C. Connector pin definition
Pin Definition Pin Definition
1 GND 5 SATA_RXN
2 SATA_TXP 6 SATA_RXP
3 SATA_TXN 7 GND
4 GND
96M5771o User's Manual / Page 16
PIO Connector (CN1)
A . Connector size : 2 X 13 = 26 Pin ,2.0 mm, 180° ,BOX Header
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 Line Print Strobe 14 Auto Feed#
2 Parallel Data 0 15 Error#
3 Parallel Data 1 16 Initialize#
4 Parallel Data 2 17 Select Input#
5 Parallel Data 3 18 GND
6 Parallel Data 4 19 GND
7 Parallel Data 5 20 GND
8 Parallel Data 6 21 GND
9 Parallel Data 7 22 GND
10 Acknowledge# 23 GND
11 Busy 24 GND
12 Paper empty 25 GND
13 Select 26 NC
SIO Connector (CN6)
A . Connector size: 2 X 20 = 40 Pin ,2.0 mm, 180° ,BOX Header
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 DCD1 21 DCD3
2 DSR1 22 DSR3
3 RXD1 23 RXD3
96M5771o User's Manual / Page 17
4 RTS1 24 RTS3
5 TXD1 25 TXD3
6 CTS1 26 CTS3
7 DTR1 27 DTR3
8 RI1 28 RI3
9 GND 29 GND
10 NC 30 NC
11 DCD2 31 DCD4
12 DSR2 32 DSR4
13 RXD2 33 RXD4
14 RTS2 34 RTS4
15 TXD2 35 TXD4
16 CTS2 36 CTS4
17 DTR2 37 DTR4
18 RI2 38 RI4
19 GND 39 GND
20 NC 40 NC
CPU FAN Connector(CN4)
A . Connector size : 1 X 4 = 4 Pin , 2.54mm ,180°, FAN Connector
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 GND 3 Sense
2 +12V 4 NC
SYSTEM FAN1/FAN2 Connector(J1 , J5)
A . Connector size : 1 X 3 = 3 Pin , 2.54mm ,180°, FAN Connector
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 GND 3 Sense
2 +12V
96M5771o User's Manual / Page 18
USB 2.0 , 0/1/4/5 Connector (J4 , J6 )
A . Connector size : 1 X 6 = 6 Pin , 2.0mm ,180°, JST Connector
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 +5VSB 4 Data 1-/Data 52 Data 0-/Data 4- 5 Data 1+/Data 5+
3 Data 0+/Data 4+ 6 GND
USB 2.0 , 2/3 Connector (CN9)
A . Connector size : 1 X 6 = 6 Pin , 15.2x16.8x17mm, 90°, FEMALE
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 +5VSB 5 +5VSB
2 Data 2- 6 Data 33 Data 2+ 7 Data 3+
4 GND 8 GND
96M5771o User's Manual / Page 19
IDE Connector Primary (CN8)
A . Connector size : 2 x 22 = 44pins,2.0mm, 180°,BOX Header
B . Connector location
C. Connector pin definition
Pin Definition Pin Definition
1 Reset# 23 IOW#
2 GND 24 GND
3 Data 7 25 IOR#
4 Data 8 26 GND
5 Data 6 27 IOCHRDY
6 Data 9 28 GND
7 Data 5 29 DMA ACK#
8 Data 10 30 GND
9 Data 4 31 Interrupt
10 Data 11 32 NC
11 Data 3 33 DiskAddress 1
12 Data 12 34 DMA66 Detect
13 Data 2 35 DiskAddress 0
14 Data 13 36 DiskAddress 2
15 Data 1 37 HDCCS1#
16 Data 14 38 HDCCS3#
17 Data 0 39 HDD Active #
18 Data 15 40 GND
19 GND 41 +5V
20 NC 42 +5V
21 DMA REQ 43 GND
22 GND 44 GND
96M5771o User's Manual / Page 20
Compact Flash Connector (CN7)
A . Connector size : Compact Flash Socket 50 Pin Connector
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 GND 26 GND
2 Data 3 27 Data 11
3 Data 4 28 Data 12
4 Data 5 29 Data 13
5 Data 6 30 Data 14
6 Data 7 31 Data 15
7 HDCCS1# 32 HDCCS3#
8 GND 33 N/C
9 GND 34 IOR#
10 GND 35 IOW#
11 GND 36 +5V
12 GND 37 Interrupt
13 +5V 38 +5V
14 GND 39 CF_CSEL#
15 GND 40 NC
16 GND 41 Reset#
17 GND 42 IOCHRDY
18 Disk Address 2 43 DMA REQ
19 Disk Address 1 44 DMA ACK#
20 Disk Address 0 45 HDD Activ e#
21 Data 0 46 DMA66 Dectec
22 Data 1 47 Data 8
96M5771o User's Manual / Page 21
23 Data 2 48 Data 9
24 NC 49 Data 10
25 GND 50 GND
GPIO (J10)
A . Connector size : 2X5 = 10 PIN , 2.0mm , 180° , PIN Header
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 +5V 6 GP25_D_OUT1(PIN22)
2 GND 7 GP22_D_IN2(PIN25)
3 GP20_D_IN0(PIN27) 8 GP26_D_OUT2(PIN21)
4 GP24_D_OUT0(PIN23) 9 GP23_D_IN3(PIN24)
5 GP21_D_IN1(PIN26) 10 GP27_D_OUT3(PIN20)
*Digital I/O Used Port 801
Output Input
O0 GP24_D_OUT0(PIN23) I0 GP20_D_IN0(PIN27)
O1 GP25_D_OUT1(PIN22) I1 GP21_D_IN1(PIN26)
O2 GP26_D_OUT2(PIN21) I2 GP22_D_IN2(PIN25)
O3 GP27_D_OUT3(PIN20) I3 GP23_D_IN3(PIN24)
Disk On Module External Power (J11)
A . Connector size : 1X2 = 2 PIN , 2.5mm , 180°, JST Connector
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 +5V 2 GND
82573L LAN1 / LAN2 LINK 100LED(JP15 /JP21)
A . Connector size : 1X2 = 2 PIN , 2.54mm , 180° , PIN Header
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 +3VSB 2 Speed100#
96M5771o User's Manual / Page 22
82573L LAN1 /LAN2 LINK 1000LED (JP17/JP19)
A . Connector size : 1X2 = 2 PIN , 2.54mm , 180° , PIN Header
B . Connector location
C .Connector pin definition
Pin Definition Pin Definition
1 +3VSB 2 Speed1000#
82573L LAN1 / LAN2 Activity LED (JP16/JP18)
A . Connector size : 1X2 = 2 PIN , 2.54mm , 180° , PIN Header
B . Connector location
C .Connector pin definition
Pin Definition Pin Definition
1 +3VSB 2 Activity#
IR (JP7)
A . Connector size : 1X5 = 5 PIN , 2.54mm , 180°, PIN Header
B . Connector location
C .Connector pin definition
Pin Definition Pin Definition
1 +5V 4 GND
2 CIRRX 5 IRTX
3 IRRX
System Thermal Connector( J3 , J7 )
A . Connector size : 1X2 = 2 PIN , 2.54mm , 180°, PIN Header
B . Connector location
C .Connector pin definition
Pin Definition Pin Definition
1 Thermal Pin 2 Thermal GND
96M5771o User's Manual / Page 23
Key board + mouse Connector(KM1)
A . Connector size : MINI DIN 6 Pin Connector
B . Connector location
C .Connector pin definition
Pin Definition Pin Definition
1 Keyboard Data 5 +5VSB
2 Mouse Data 6 Keyboard Clock
3 GND 7 NC
4 NC 8 Mouse Clock
82573L LAN1 / LAN2 Connector (CN10 , CN11)
A . Connector size : RJ45 LAN Connector
B . Connector location
C .Connector pin definition
Pin Definition Pin Definition
1 MDI0P 7 MDI3P
2 MDI0N 8 MDI3N
3 MDI1P 9 ACTIVITY#
4 MDI2P 10 +5VSB
5 MDI2N 11 LINK100#
6 MDI1N 12 LINK1000#
VGA Connector(VGA1)
A . Connector size : VGA D-SUB 15 Pin Connector
B . Connector location
C .Connector pin definition
Pin Definition Pin Definition
1 Red 9 +5V
2 Green 10 GND
3 Blue 11 NC
4 NC 12 DDC Data
5 GND 13 HSYNC
6 GND 14 VSYNC
7 GND 15 DDC Clock
8 GND
96M5771o User's Manual / Page 24
RTC Clear (JP6)
A . Connector size : 1X3 = 3 PIN , 2.54mm , 180° , PIN Header
B . Connector location
C . Connector pin definition
Normal Clear CMOS
JP9 *1-2 2-3
* = DEFAULT SET
(21) CF Card Master/Slave Select (JP14)
A . Connector size : 1 X 3 = 3 PIN , 2.54mm , 180° , PIN Header
B . Connector location
C . Connector pin definition
Master Slave
J13 *1-2 2-3
* = DEFAULT SET
CCFL Connector(J2)
A . Connector size : 1 X 7 = 7 PIN , 2.5mm JST Connector.
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 +5V 5 GND
2 +12V 6 GND
3 +12V 7 Backlight Enable
4 Backlight control 8
Panel Voltage Select (JP1)
A . Connector size : 1 X 3 = 3 PIN , 2.54mm , 180° , PIN Header
B . Connector location
C . Connector pin definition
PIN 1-2 *2-3
Def. +5V +3.3V
* = DEFAULT SET
96M5771o User's Manual / Page 25
Line_in Connector (JP13)
A . Connector size : 1X4 = 4 PIN , 2.54mm , 180°, PIN Header
B . Connector location
C .Connector pin definition
Pin Definition Pin Definition
1 LINE-IN-L 3 DETECT
2 GND 4 LINE-IN-R
HDD LED (JP20)
A . Connector size : 1X2 = 2 PIN , 2.54mm , 180° , PIN Header
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 +5V 2 HDD_ACTIVE#
SMBUS Connector(JP12)
A . Connector size : 1X2 = 2 PIN , 2.54mm , 180° , PIN Header
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 SMB_CLK 2 SMB_DATA
RESET Connector (JP11)
A . Connector size : 1X2 = 2 PIN , 2.54mm , 180° , PIN Header
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 GND 2 RESET#
POWER LED (JP8)
A . Connector size : 1X2 = 2 PIN , 2.54mm , 180° , PIN Header
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 PULL UP TO +5V 2 GND
96M5771o User's Manual / Page 26
PUSH BOTTON Connector (JP5)
A . Connector size : 1X2 = 2 PIN , 2.54mm , 180° , PIN Header
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 PWRBT 2 GND
COM4 RS232 RI# Pin Power Select & RI# Pin Select(JP4)
A . Connector size : 1X5 = 5 PIN , 2.54mm , 180° , PIN Header
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 +5V 4 RI4#_SELECT
2 RI4#_SELECT 5 RI4#
3 +12V
AT/ATX power mode select (JP3)
A . Connector size : 1X2 = 2 PIN , 2.54mm , 180° , PIN Header
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 PSON# 2 GND
POWER Connector (CON1)
A . Connector size : 2X5 = 10PIN , 4.2mm , FEMALE
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 PSON# 6 +5VSB
2 GND 7 +5V
3 GND 8 +5V
4 +12V 9 -12V
5 NC 10 GND
96M5771o User's Manual / Page 27
ATX AUX POWER Connector (CON2)
A . Connector size : 2X2 = 2 PIN , 3.5mm , FEMALE r
B . Connector location
C . Connector pin definition
Pin Definition Pin Definition
1 GND 3 +12V
2 GND 4 +12V
LVDS Connector (CN2, CN3)
CN2
Pin No. Description Pin No. Description
1 L_DDC_CLK 2 L_DDC_DATA
3 PANEL1_VDD 4 LB_DATAP0
5 NC 6 LB_DATAN0
7 NC 8 PANEL1_VDD
9 GND 10 LB_DATAP1
11 LB_CLKP 12 LB_DATAN1
13 LB_CLKN 14 GND
15 GND 16 PANEL1_BACKLIGHT
17 LB_DATAP2 18 PANEL1_BACKLIGHT
19 LB_DATAN2 20 GND
CN3
Pin No. Description Pin No. Description
1 L_DDC_CLK 2 L_DDC_DATA
3 PANEL1_VDD 4 LA_DATAP0
5 NC 6 LA_DATAN0
7 NC 8 PANEL1_VDD
9 GND 10 LA_DATAP1
11 LA_CLKP 12 LA_DATAN1
13 LA_CLKN 14 GND
15 GND 16 PANEL1_BACKLIGHT
17 LA_DATAP2 18 PANEL1_BACKLIGHT
19 LA_DATAN2 20 GND
PCI SLOT (CN5)
PIN Side B Side A PIN Side B Side A
1 -12V TRST# 2 TCK +12V
3 GND TMS 4 NC TDI
5 +5V +5V 6 +5V INTA#
96M5771o User's Manual / Page 28
7 INTB# INTC# 8 INTD# +5V
9 NC CLKRUN# 10 REQ1# +5V
11 NC GNT1# 12 GND GND
13 GND GND 14 CLK1 +3.3V STANDBY
15 GND PCI_RST# 16 CLK0 +5V
17 GND GNT0# 18 REQ0# GND
19 +5V PME# 20 AD31 AD30
21 AD29 +3.3V 22 GND AD28
23 AD27 AD26 24 AD25 GND
25 +3.3V AD24 26 C/BE#3 IDSEL_AD26
27 AD23 +3.3V 28 GND AD22
29 AD21 AD20 30 AD19 GND
31 +3.3V AD18 32 AD17 AD16
33 C/BE#2 +3.3V 34 GND FRAME#
35 IRDY# GND 36 +3.3V TRDY#
37 DEVSEL# GND 38 GND STOP#
39 LOCK# +3.3V 40 PERR# RSV
41 +3.3V RSV 42 SERR# GND
43 +3.3V PAR 44 C/BE#1 AD15
45 AD14 +3.3V 46 GND AD13
47 AD12 AD11 48 AD10 GND
49 GND AD9 50 KEYWAY KEYWAY
51 KEYWAY KEYWAY 52 AD8 C/BE#0
53 AD7 +3.3V 54 +3.3V AD6
55 AD5 AD4 56 AD3 GND
57 GND AD2 58 AD1 AD0
59 +5V +5V 60 RSV RSV
61 +5V +5V 62 +5V +5V
PCI Device interrupt and BUS Assignments
Chipset Configuration
PCI INT# REQ# /GNT# Special feature description
BUS/DEVIC/FUNCTION
PCI Slot1 1 / 17 / 0
1 / 18 / 0
A,B,C,D
D,A,B,C
0,1
96M5771o User's Manual / Page 29
Chapter 3
Expansion
96M5771o User's Manual / Page 30
3.1 System Memory
96M5771o incorporates Intel 945GM chipset supports up to 4GB un-buffered non-ECC DDR2
533/667 SDRAM
.
3.2 Installing DIMM
To install DIMM
1. Make sure the two handles of the DIMM sockets are in the “open” position, i.e. the handles
stay outward.
Figure 3-1: How to install DIMM (1)
2. Slowly slide the DIMM modules along the plastic guides in the both ends of the socket.
Figure 3-2: How to install DIMM (2)
96M5771o User's Manual / Page 31
3. Then press the DIMM module down right into the socket, until a click is heard. That means
the two handles automatically locked the memory modules into the right position of the DIMM
socket.
Figure 3-3: How to install DIMM (3)
4. To take away the memory module, just push the both handles outward, the memory module
will be ejected by the mechanism in the socket.
Figure 3-4: How to install DIMM (4)
96M5771o User's Manual / Page 32
3.3 Installing Compact Flash
1. To install a Compact Flash memory card into 96M5771o, align the notches on the card with
the Compact Flash socket in the 96M5771o. Then firmly insert the card into the socket until
it is completely seated.
Figure 3-5: How to install Compact Flash (1)
2. To remove the Compact Flash memory card from 96M5771o, pull out the memory card from
the Compact Flash socket.
Figure 3-6: How to uninstall Compact Flash (2)
Loading...
