Page 1
DL2002D
Indication : This manual is for user's safety and preventing any
property-loss. Before using our device, please inevitably read this
manual carefully.
Page 2
Many thanks for using our device.
For safe using our device
● Before using our device, please precisely read the manual.
● Keep this manual near to the device for easily reading it.
● This manual presents the details to be kept by users for preventing any danger or
property-loss and for safe using the device.

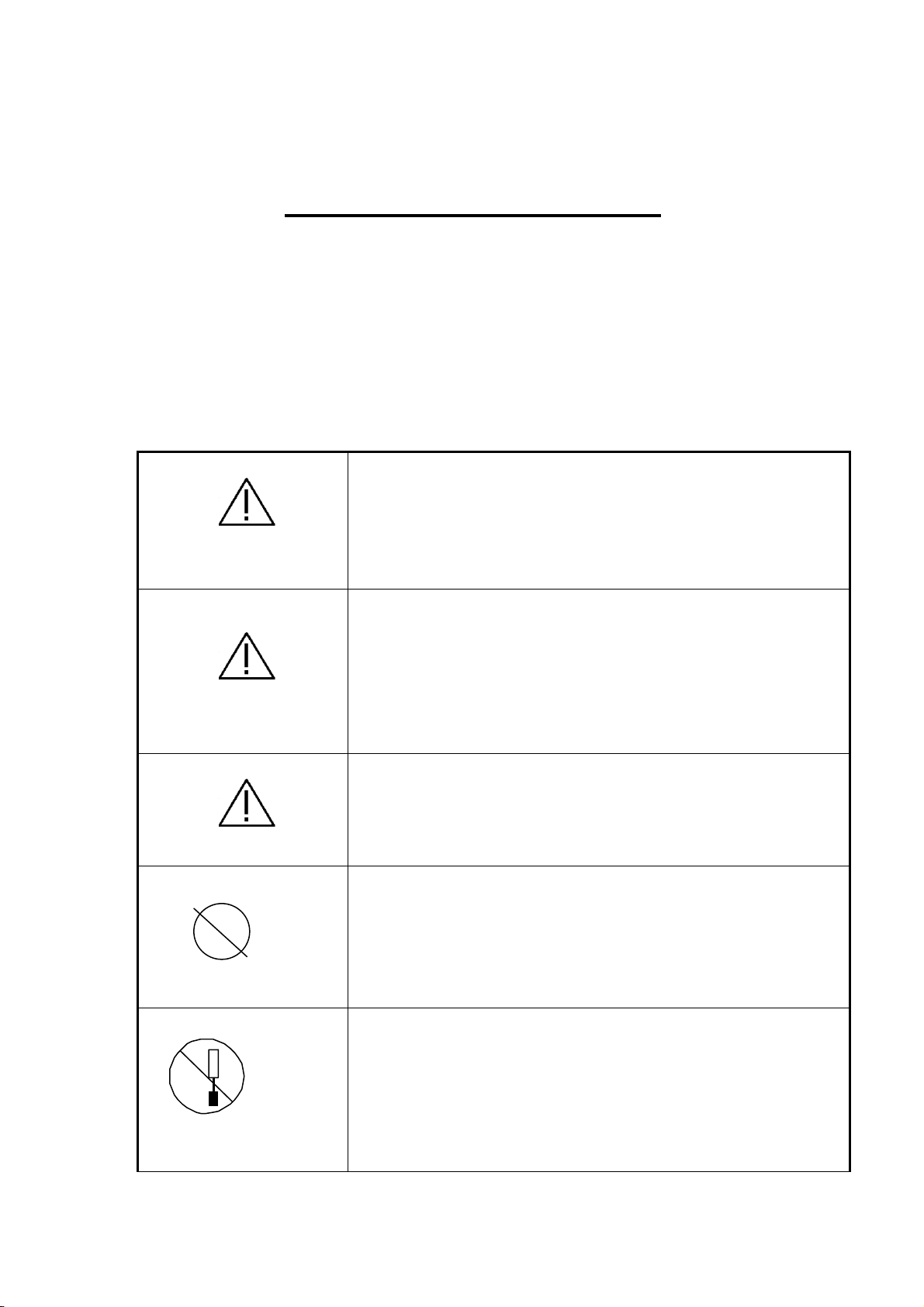

Guidance of indications
Death or serious wound can be happened if users don't follow
the instruction.
warning
CAUTION
PROHIBITION
prohibition of disjointing
Wound or property-loss can be happened in case of disregarding
the instruction.
Instruction to be surely observed.
Instruction to be prohibited.
Don't disjoint the device.
2
Page 3
CONTENTS
SAFETY PRINCIPLES
1) Electrical safety (4)
2) Safety for Body (5)
3) Safe use and maintenance of a device (6)
4) Safe use of cuff (7)
5) Cleaning and others (8)
1. NAEM OF PARTS-------------------------------------------------------------------------------------- 9
2. NAME AND EXPLANATION OF OPERATORS---------------------------------------------- 10
3. SPECIFICATIONS-------------------------------------------------------------------------------------10
4. HOW TO USE
1) Feature of a device-------------------------------------------------------------------------------- 11
2) Cautions for beginners--------------------------------------------------------------------------- 11
3) How to set pressure ------------------------------------------------------------------------------ 12
4) How to use a Timer-------------------------------------------------------------------------------- 12
5) How to set Move mode--------------------------------------------------------------------------- 13
6) How to connect air plug and air socket------------------------------------------------------- 13
7) How to connect four hose jacks and a cuff------------------------------------------------------- 14
8) How to use one leg cuffs------------------------------------------------------------------------- 14
9) How to use two leg cuffs------------------------------------------------------------------------- 14
10) How to use an arm cuff and a leg cuff simultaneously----------------------------------- 15
11) How to a waist cuff---------------------------------------------------------------------------------15
12) In the case that cuff is too small to be used------------------------------------------------- 15
13) How to start/stop the operation of device---------------------------------------------------- 16
14) How to change a fuse----------------------------------------------------------------------------- 16
5. BEFORE THINKING OF SOMETHING WRONG-------------------------------------------- 17
6. WARRANTY-------------------------------------------------------------------------------------------------------- 18
Indications for general home case users -----------------------------------------------------------19
Detail medical Indications-------------------------------------------------------------------------------19
3
Page 4

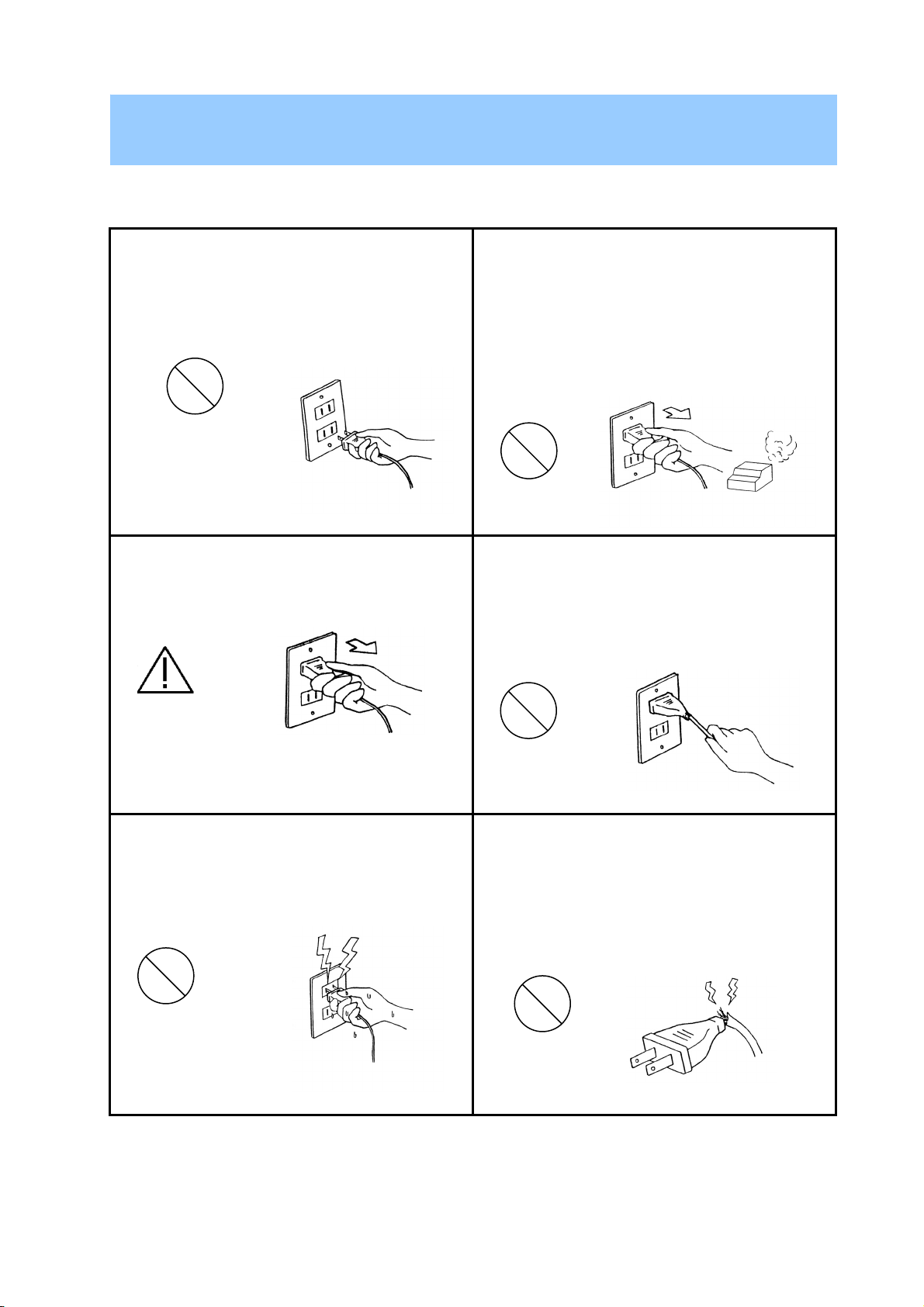

1) Electrical Safety
This device is for domestic using.
After checking your local voltage, please use a
device!
(Fire and electric shock possible)
PROHIBITION
Pull out plug when not using or in case of lighting,
thunder.
Stop using the device in case of smelling during
using the device. In this case, put off the electric
power and pull out plug from socket. And then
inform it to service center. (Fire & electric shock
possible)
금지
When insert or pull out plug, hold the plug itself
not cord.
주의
Don't insert or pull out plug with wet hand.
(Electric shock possible)
금지
금지
Don't damage or bend or twist the power cord.
(Fire & electric shock possible)
금지
4
Page 5

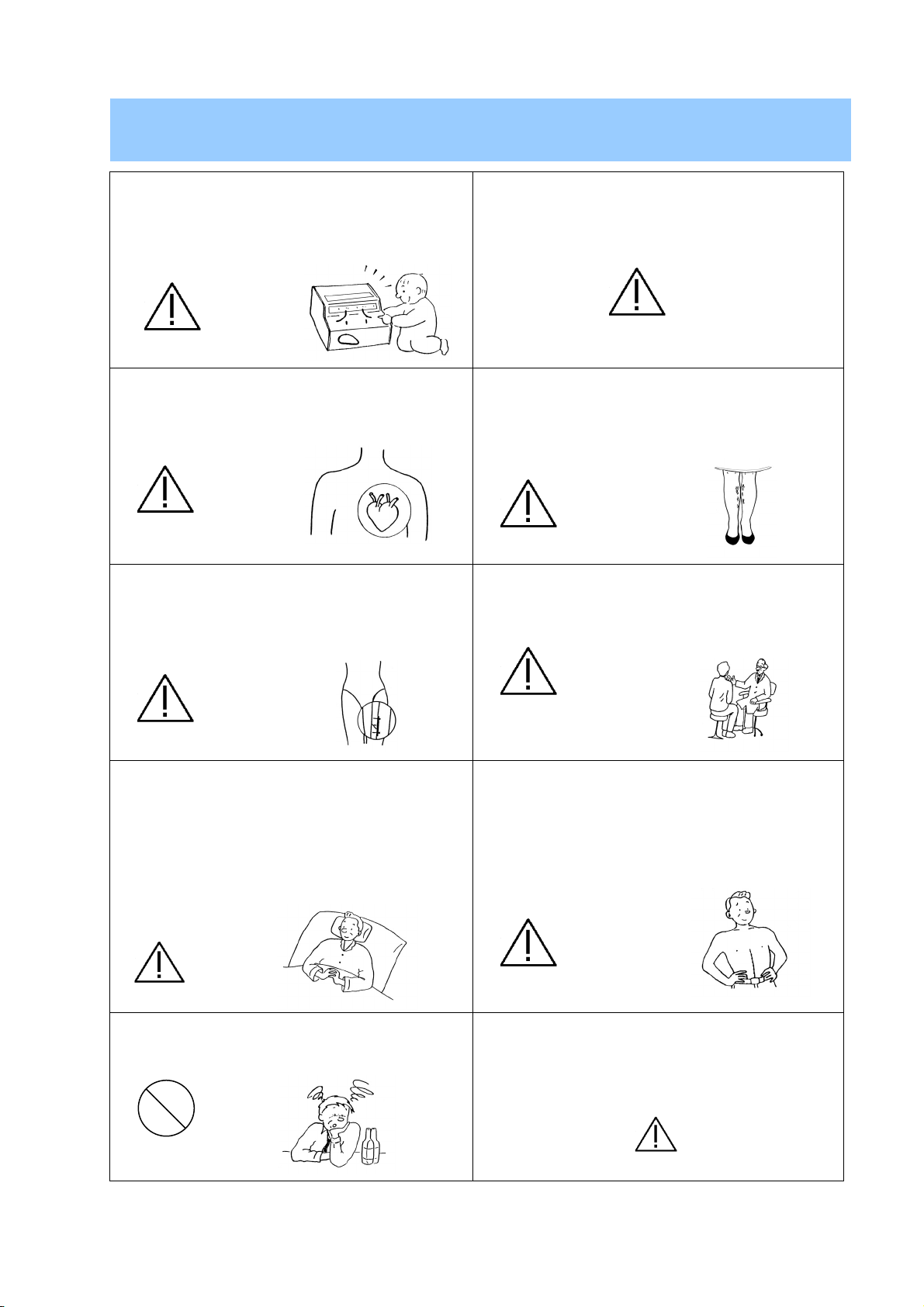

2) Safety for Body
Forbid child to use the device.
In case of blowing air into cuff with wearing cuff by
child, serious wound possible
경고
Prohibit using the device in case of artificial-heart
etc.
경고
Prohibit using the device to the patients of
artificial-joint, metal-inserting etc.
(Harmful to health such as aversion)
Don't use air hose to nose, mouth and ears.
(Injuring possible)
경고
Prohibit using the device in case of vein cancer,
deep thrombophlebitis, phlebothrombosis patient.
(Blood vessel can be stopped up)
경고
If feel any abnormal symptom during using the
device, stop using it and consult to doctor.
경고
Prohibit using the device to the patients of heart
disease, pretension, acute inflamed skin disease,
lung edema, acute vicious or malignant tumor,
erysipelas, circulatory disorders in the artenes,
fevering etc.
경고
In case of drunken, don't use the device till getting rid of
the effect of alcohol.
금지
PROHIBI
TIO N
Surgical operation patients don't use the device till
recovered perfectly (especially operation patients of
internal organs, nerve and brain)
(Bad effect possible)
경고
Please wear cuff in at least thin clothing and close the
zipper of cuff perfectly. If not so, during operation user’s
skin can be hurt by a zipper as zipper going down.
경고
5
Page 6

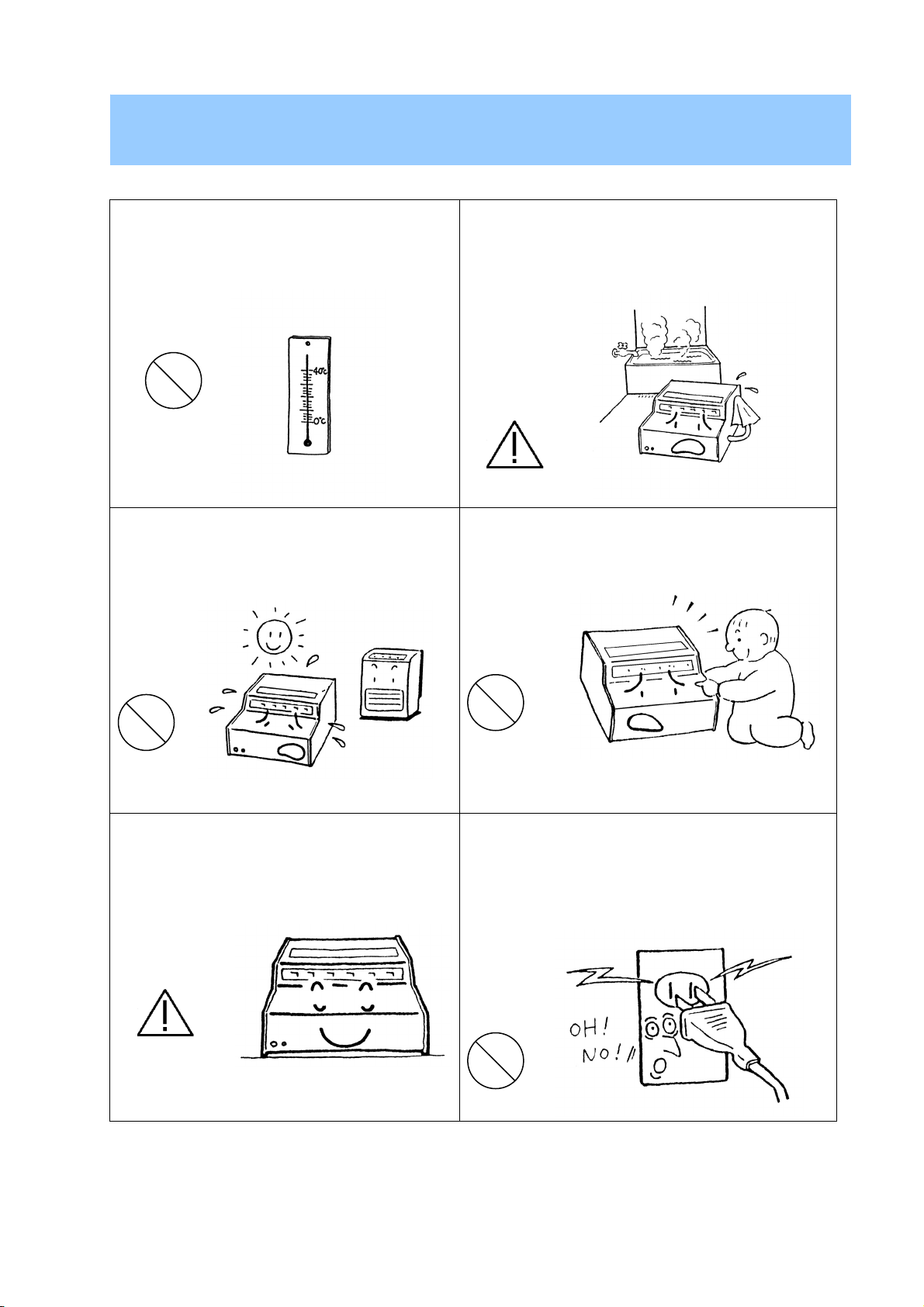

3) Safe use and maintenance of a device
Use the device indoors of 0 ~40.
Keep the device under humidity of 60%.
(If not, trouble/fire possible)
금지
Don't use or keep the device near to heating
equipment or direct ray of light.
(Trouble, fire, transformation possible)
Don't use the device in high humidity place.
(Bathroom/sauna etc.)
(Fire, electric shock possible)
경고
Forbidden from children's touch.
Disorder can be happened due to children's touch.
금지
Keep the device horizontally. (In case of leaning,
trouble/disorder possible)
주의
금지
In the case that you use a device in other country,
please check voltage of the country before using a
device. (If not so, fire, electric shock or break down
of a device possible)
금지
6
Page 7

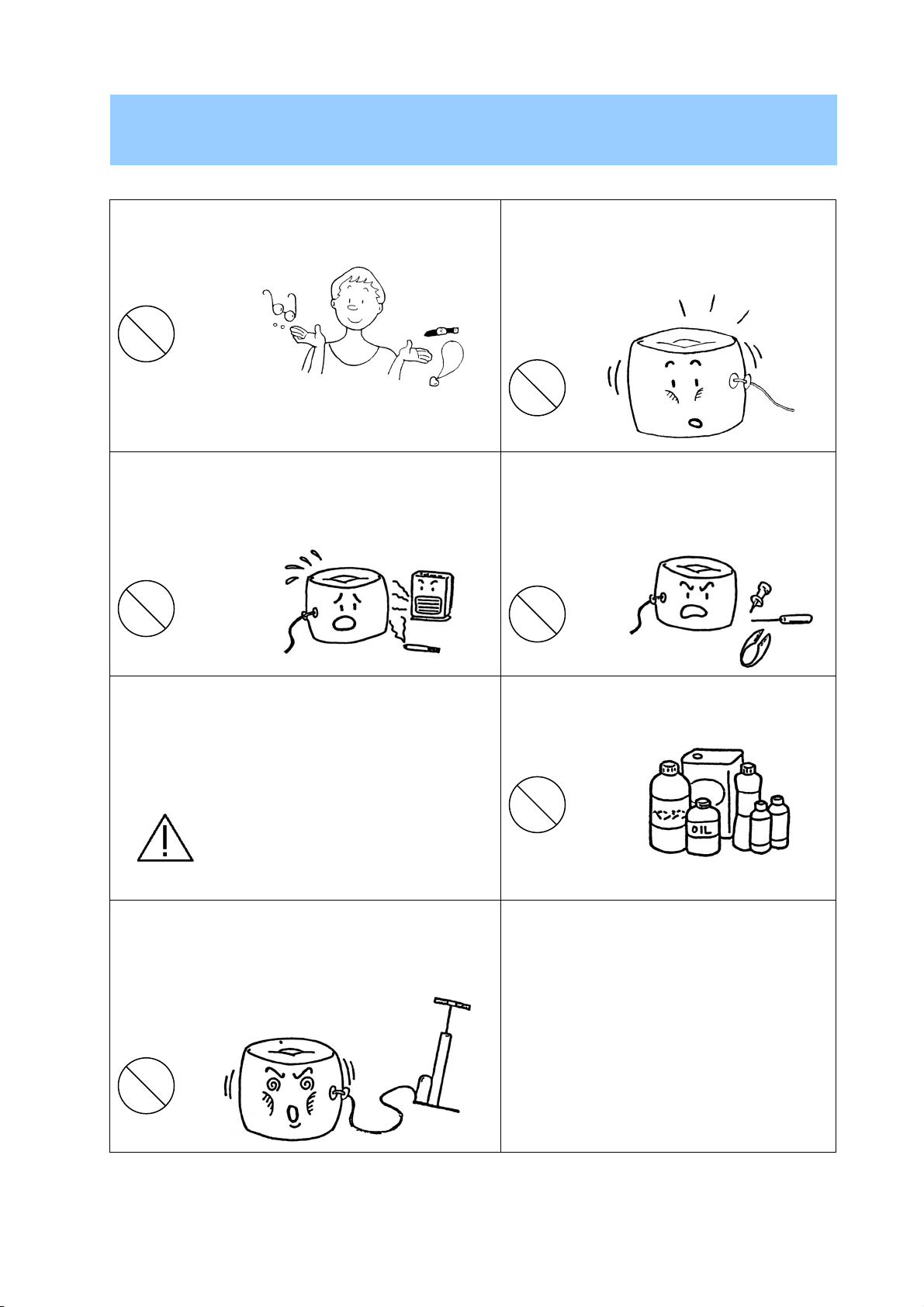

4) Safe use of cuff
Don't use a cuff with accessories, watch etc. (Physical
damage of user’s skin and breakage of cuff possible)
금지
Don't keep cuff near to heating materials such as
stove, cigarettes etc.
(Leaking of air or fire possible)
금지
Don't use cuff to naked body.
Except testing, don't blow air into cuff under
the condition of not wearing cuff on body
(Damage, anti-endurance possible).
금지
Don't keep cuff near to dangerous keen
materials such as needle, scissors.
(Cuff can be damaged and disorder possible)
금지
Don't stain cuff by oil, benzene, alcohol,
In wearing thin underwear, use the cuff.
(Cuff's endurance can be weakened due to sweat,
cosmetics and sebum)
주의
When blowing air into cuff, don't use other tool except
our machine.
(Damage of glove and bodily harm possible)
금지
gasoline etc.(Anti-endurance possible)
금지
7
Page 8

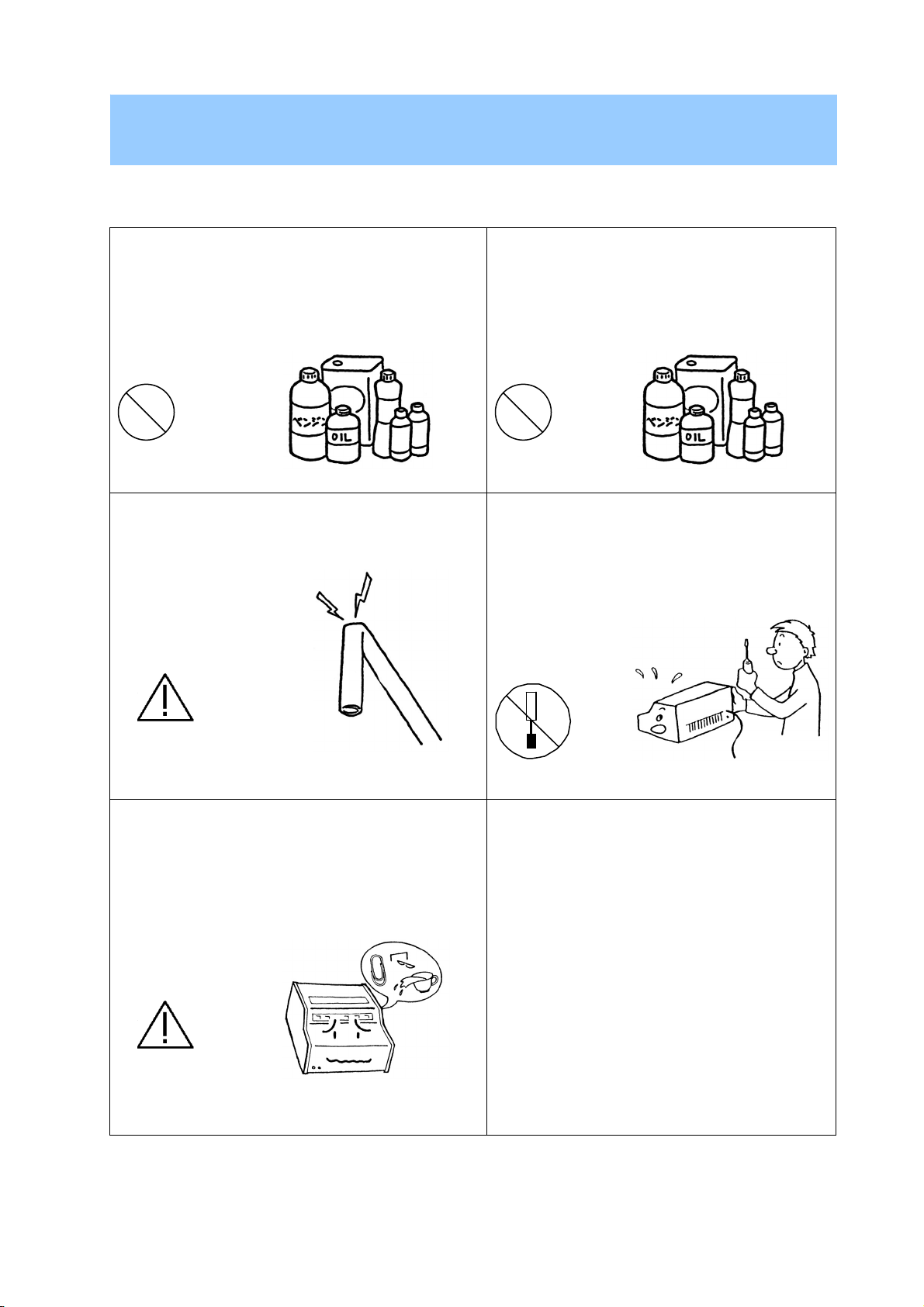

5) Cleaning and Others
When cleaning the device, don't use water, oil,
benzene, alcohol, gasoline, chemicals etc. (If not so,
the life of the cuff will be very shorten)
Use dry towel.
Don't fold or bend the hose.
When cleaning the device, don't use water, oil,
benzene, alcohol, gasoline, chemicals etc. (If
not so, the life of the cuff will be very shorten)
Use little wet towel.
금지금지
Users prohibit repairing, reproducing or
disjointing the device. (Fire, electric shock
possible)
주의
Be careful not put clip, staplers, needle, metal or
food into the device.
(Short, heating generation possible)
If happened, inform it to concerned agent.
주의
8
Page 9

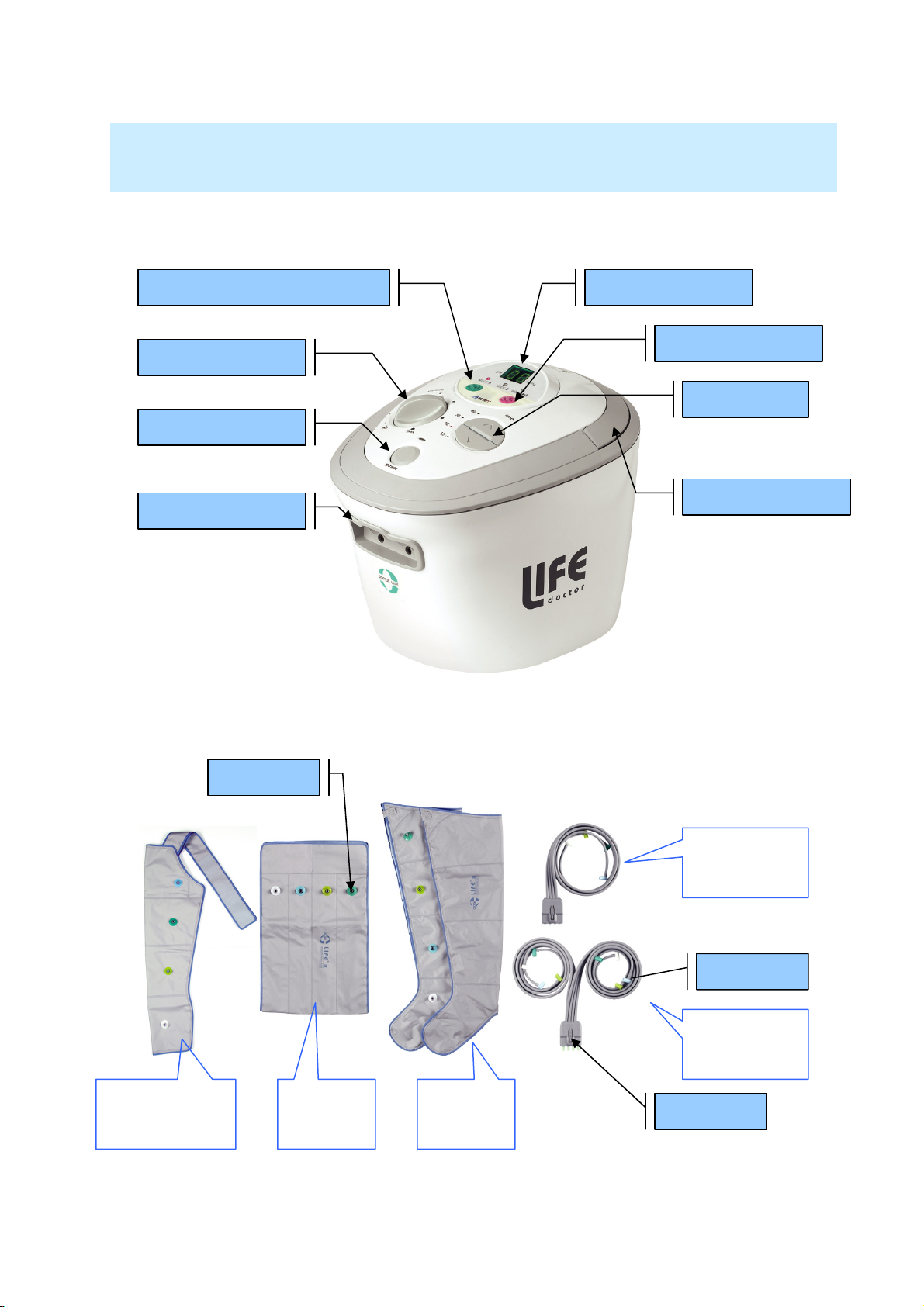

1. NAME OF PARTS
A MAIN BODY
Move mode selector
Pressure Gauge
Pressure knob
ON/OFF button
Air socket
ACCESSORIES
Start/Stop
Timer
Handle
Cuff Jack
Arm cuff
(Separate)
One waist
cuff
Two leg
cuffs
9
Hose plug
1-line hose
for one cuff
Hose jack
2-line hose
for two cuffs
Page 10

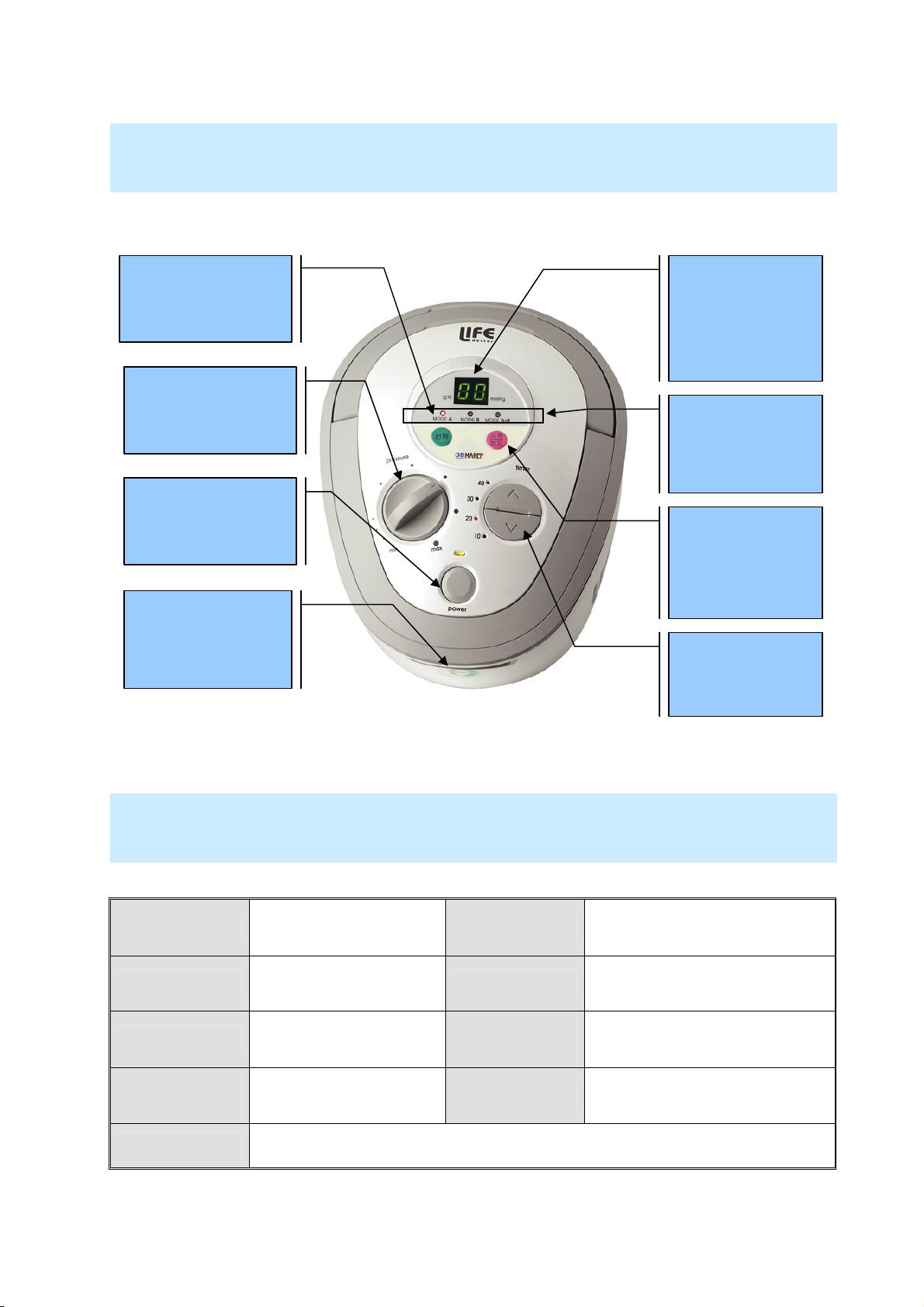

2. NAME AND EXPLANATION OF OPERATORS
MOVE SELECTOR
Selects 1 from 3 modes
according to patient’s
state.
PRESSURE KNOB
Sets and control to
the suitable pressure
for user’s therapy
ON/OFF BUTTON
Turn on and off power
of a device
PRESSURE
GAUGE
Shows the set
pressure on LCD
MOVE INDICATOR
Indicates the set
move mode
START /STOP
BUTTON
Starts or stop the set
operation
AIR SOCKET
Air comes out from
air socket
3. SPECIFICATIONS
MODEL
VOLTAGE
REGULAR FUSE
DL2002D
AC220V 50/60Hz
AC220V 3A 20mm
Glass Tube Fuse
PLACE
TIME RANGE
PRESSURE
RANGE
TIMER
Sets the using time
Indoors
10, 30, 60, 90min
10~180mmHg (±20mmHg)
POWER
CONSUMPTION
WEIGHT
60W
DIMENSION
190 X 250 X 210mm
3Kg (A main body), 7~8Kg (Package)
10
Page 11
4. HOW TO USE
1) Feature of a device
3 Move mode
There are 3 Move modes. (Mode A, Mode B, Mode A+B)
Pressure sensor
The pressure is kept regularly to the set point of pressure by the perception of pressure sensor
regardless of the size of user’s body.
Digital pressure gauge
User can check the correct pressure intensity easily by digital pressure gauge.
Digital Timer
User can set the use time correctly with Digital Timer.
One touch connection type of hose plug and air socket(Simple hose type)
It protects a hose plug not to fall out from air socket during operation.
As hose type is one body, user can connect hose to the air socket or cuff simply.
SAFETY SYSTEM
When the power gives out suddenly during the operation of device, it is very safe because
safety system discharges automatically air from cuff.
2)
Cautions for beginners
Pressure setting
From the first use, if pressure is set too strong, it can give a burden to the body.
Beginners should use it by setting the pressure to 6 (60mmHg) in the beginning.
Fist, please use it at the low pressure and increase the pressure step by step.
Leg cuff
In using leg cuff(s), please apply with stretching the leg(s) definitely. If not so, user can feel pain
on knee.
Waist cuff
In using a waist cuff, please rap user’s abdomen and hip simultaneously with a waist cuff. If user
applies it to only abdomen, user can feel pain on abdomen.
Arm cuff
Please set the cuff to user’s arm with a fixing band for arm cuff not to drop during operation.
Air hose
Air hose should be applied differently according to cuff number.
Please use 1-line air hose in wearing one cuff.
Please use 2-line air hose in wearing two cuffs.
11
Page 12

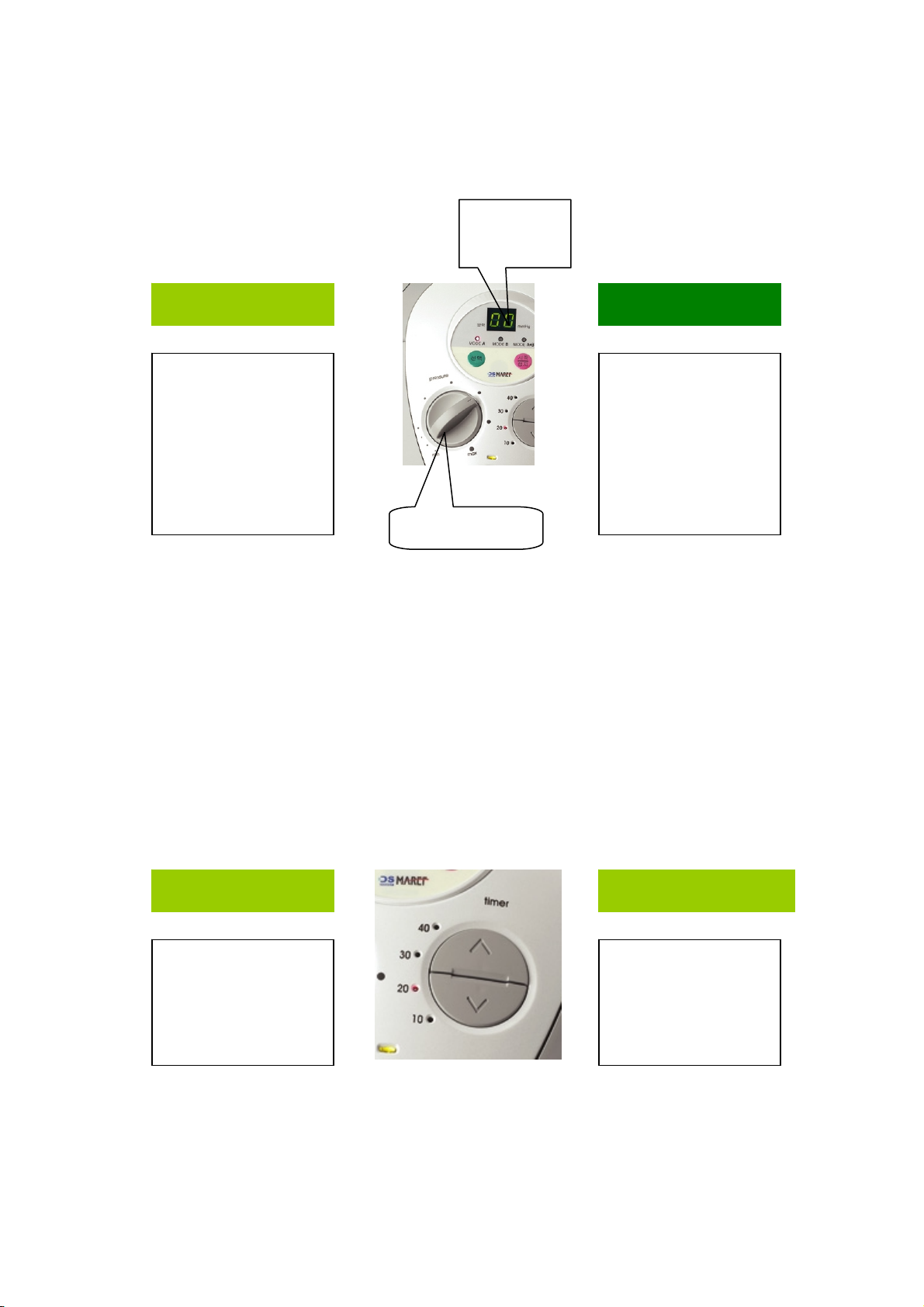

3)
How to set pressure Pressure range: 10~180mmHg (Unit: 10mmHg) ±20mmHg
Suitable pressure setting is 60mmHg~120mmHg.
Please read the pressure to the indicated pressure X10mmHg.
EX) When the set pressure is 11, read the pressure to 11X10mmHg=110mmHg!
To lower pressure
The pressure is
weakened as turning
pressure knob to the
left. The set point of
pressure will be
indicated on LCD.
Pressure knob
The pressure of cuff is perceived and reached automatically to the set pressure by pressure
sensor regardless of pressing time.
If user feel weak the pressure than the set pressure, please check whether air leaks from cuff or
not.
Pressure
gauge
To increase pressure
The pressure gets
strong if turning
pressure knob to the
right.
(Max. 180mmHg)
When air is leaking from the ripped cuff, the pressure sensor perceives the leaking and stay for
only 10 seconds and then skips to the next chamber automatically
4) How to use a timer
Timer setting: 10min., 20min., 30min, 40min
The suitable using time is 10 minutes.
To shorten using time To increase using time
If pressing ∨
button, using time
is shorten to
40→30→20→10min.
If pressing ∧
button, time is
increased to
10→20→30→40 min.
12
Page 13

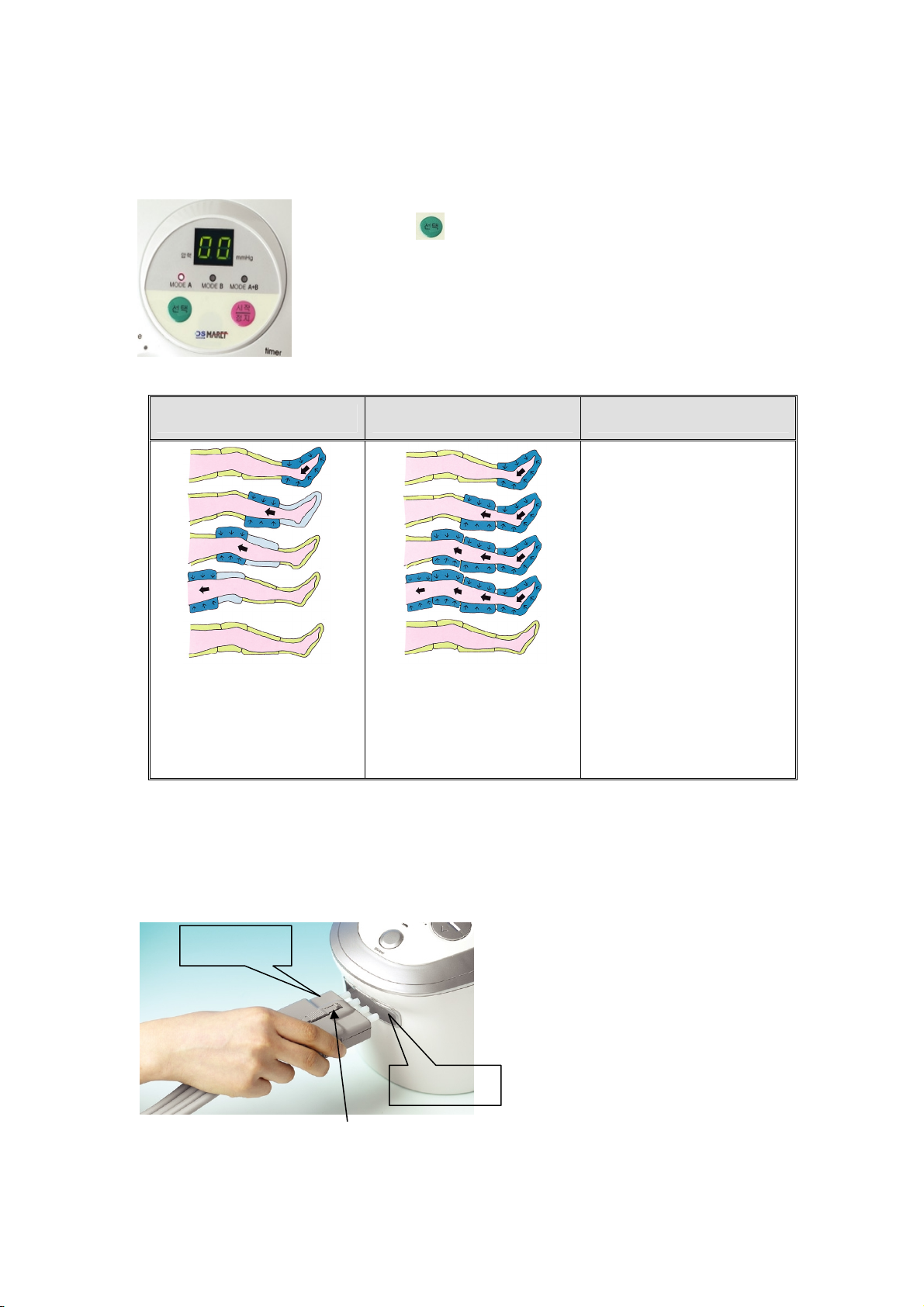

5) How to set move mode
There are three move modes.
We recommend suitable mode to mode A+B.
If pressing
mode B, mode A+B.
Please select the suitable mode as referring to the below table.
MODE A MODE B MODE A+B
button, the move mode moves in order of mode A,
This mode repeats Mode A
and Mode B
alternatively.
To get better effect to
massage therapy of
muscles, etc.
Notice) during operation, if you change the move mode, the changed mode is applied after finishing
the movement of previous mode.
To get better effect to the
circulation of lymph and
blood (for lymphoedemas)
We recommend this mode
which has two therapies at
one application.
6) How to connect hose plug to air socket
Hose plug
Air socket
Lock
projection
As side picture, insert air plug to air
socket by fitting a lock projection on air
plug to lock hole above air socket.
Please put air plug to the end of air
socket. If not so, air can leak from air
socket.
13
Page 14
7)
How to connect 4 hose jacks to a cuff
Put 4 hose jacks to 4 caps of the same color on cuff!
The effect of therapy will drop if the order of putting is not right.
Please check definitely the order of pressurization is applied from foot→calf→knee→thigh in turn.

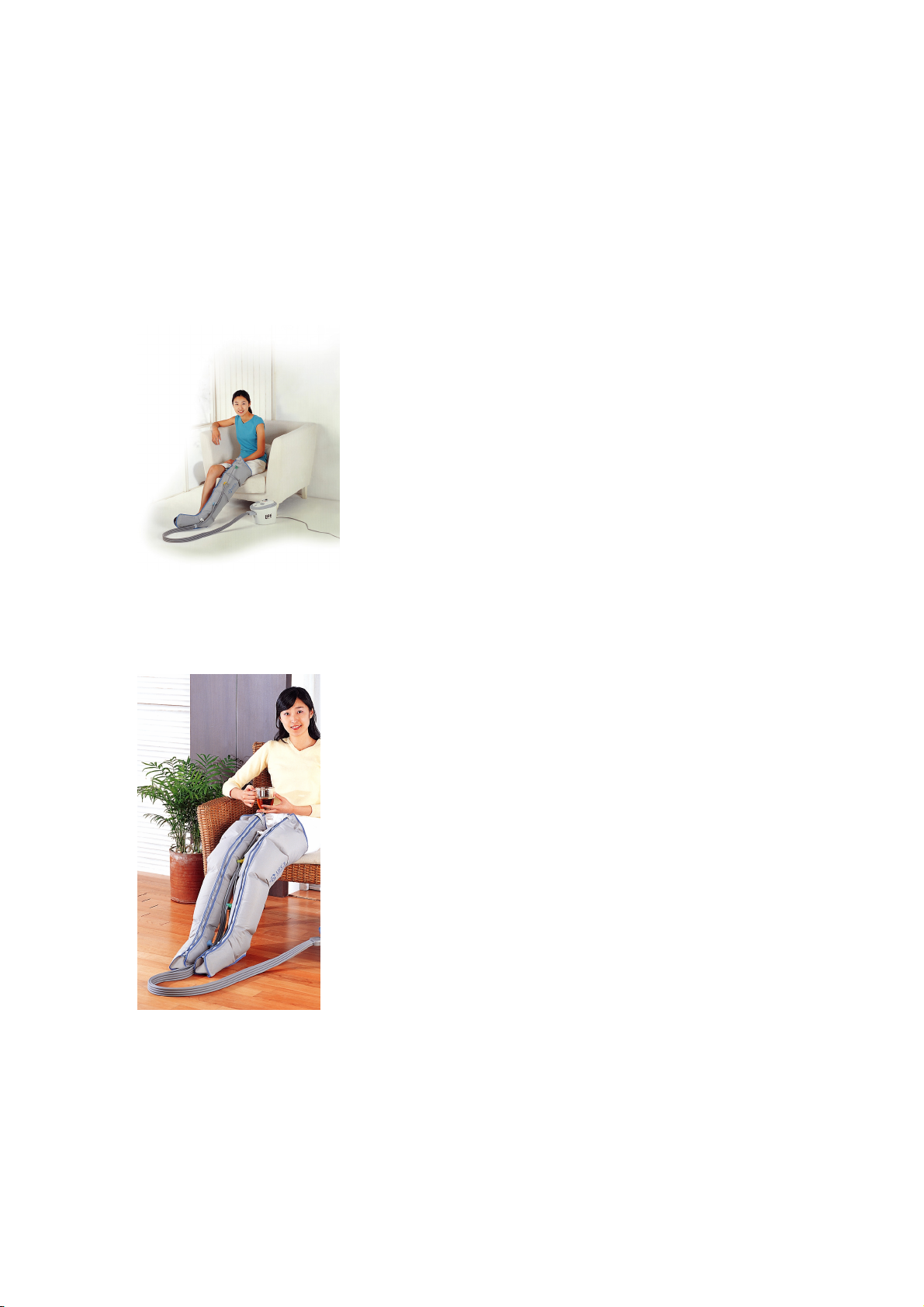

8) How to use one leg cuff
- As side picture, wear a leg cuff to user’s leg and put
1-line hose plug perfectly to air socket of a main body.
If not so, air can leak from air socket.
- You can just use 1-line hose in using only one cuff.
9) How to use two leg cuffs
- As side picture, wear two leg cuffs to user’s two legs and
- You can just use 2-line hose in using two cuffs.
put 2-line hose plug perfectly to air socket of a main body.
If not so, air can leak from air socket.
14
Page 15

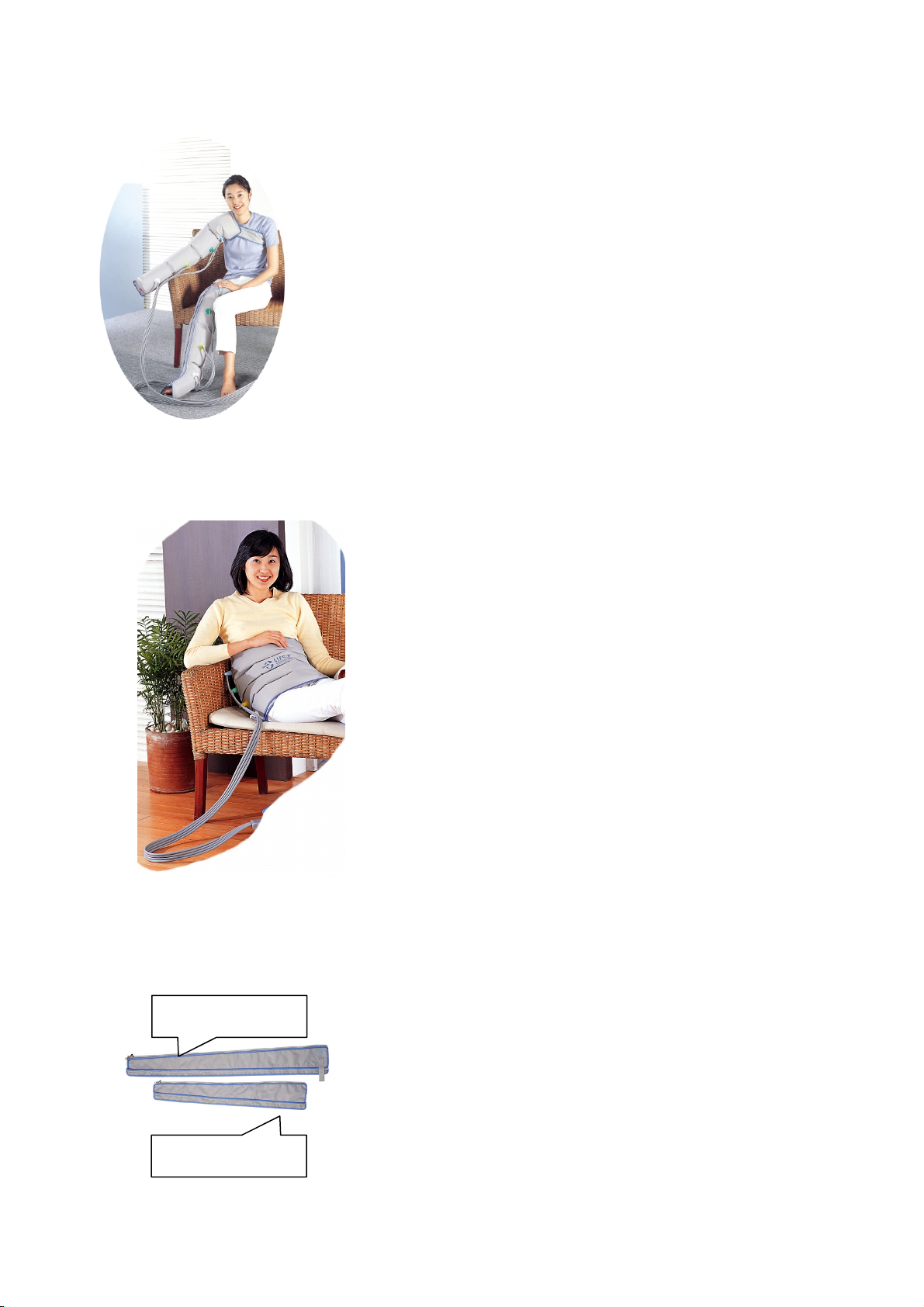

10)
How to use an arm and a leg cuff simultaneously
- As side picture, wear an arm cuff and a leg cuff to each
user’s arm and leg and put 2-line hose plug perfectly to
air socket of a main body. If not so, air can leak from
air socket.
- You can just use 2-line hose in using two cuffs.
Caution: In the case of the old, the weak or especially
a user having a weak heart, please use only one arm cuff.
As arm cuff is applied near to a heart, the compressible
therapy of two arm cuffs may give excessive burden to
the heart of user.
11) How to use a waist cuff
- As side picture, wear a waist cuff to user’s waist and put
1-line hose plug perfectly to air socket of a main body.
If not so, air can leak from air socket.
- You can just use 1-line hose in using only one cuff.
12) In the case that cuff is too small to use
- Separate purchase -
- If an arm or leg cuff is too small to user, user can select one of
Leg extension zipper
extension zipper or cuff of XL size and in the case that a waist cuff is
too small, user can apply the waist cuff of XL size.
- To use the zipper, open the zipper of arm or leg cuff to the last
extremity and then connect an extension zipper in the middle of cuff as
running up the zippers.
Arm extension zipper
15
Page 16
13) How to start/stop the operation of device
Power up and set the pressure 60mmHg), Timer(10분), Move mode(A+B) and then press the
Start/Stop button to start the operation and press again Start/Stop button to stop operating a device.
(NOTICE)
If stop a device by pressing a power on/off button, as wind in each chamber keeps without
discharge from a cuff, user should stop a device with a timer knob.
14) How to change a fuse
In case of fuse-short, use the spare fuse keeping in AC jack at the back side. Open the AC jack cover
and use the spare fuse.
16
Page 17
5. BEFORE THINKING OF SOMETHING WRONG
Operating condition Checking points
-Plug correctly inserted into outlet?
No electric power
Power on but not-operating -Pull out power plug and reinsert it into outlet.
Noisy during operating
No air in the hose
When the pressurization stays for
only 10 seconds at any chamber
-Correct the voltage of product with your local
voltage?
-Fuse short?
-Horizontally installed?
-Any material on the device?
-There any bending place?
-Hose plug correctly inserted into the device?
It is evidence that the chamber is leaking. The
chamber should be repaired but user can user can
continue to use regardless of the trouble chamber
until the cuff is repaired. (Pressure sensor perceives
and skips to the next chamber,
the leaking automatically and operation program
makes keep for only 10 sec on the trouble chamber
and skip to the next chamber.
17
Page 18
Warranty
Much appreciated on using our device. We, Daesung Maref are doing our best to
improve the quality of our products. We will do our best effort to be a good
companion of users.
* In case of followings, we can not repair our device gratuitously
even though warranty period:
1. Disorder happened by strong impact.
2. In case user repair or reproduce internal part arbitrarily.
3. In case of using the device in prohibited place.
4. In case of against our <HOW TO USE>.
5. Cuff is articles of consumption.
Name Compressible limb therapy system
Model DOCTOR LIFE III (DL2002D)
Serial No.
Warranty period
Main body : 1 year , Cuff : 2 months.
Buying place
Buying date.
18
Page 19
DETAIL MEDICAL INDICAITO
Chronic disease by the venous cause
Improvement of intestines, dissolution Constipation
Disease by interruption in blood circulation
The old and the weak, fatigue, bore dome, insomnia
Indications for home care
Lymph edema
Fat dissolution
Rheumatoid arthritis
Benumbed feet and hands
Settlement of stress
Effect of exercise
Person who want to be elastic skin and a healthier body
Medical Indications
Acute edema (post-operative, post-burn)
Chronic edema by the venous cause
Chronic venous insufficiency venous stasis
Cellulite
Deep vein thrombosis (DVT)
From dependent, positioning
Inguinal lymphangiectomy
Lymph edema
Post-paralytic (post-stroke, spinal cord injury)
Post-mastectomy
Post-traumatic (post-cast, fracture,
amputation shoulder-hand syndrome)
Prophylaxis of venous thrombosis
Rheumatic edema
Sciatica
Spinal cord injury
Sprains
Varicosis
Venosclerosis
689-31, GUMJUNG-DONG, GUNPO-SHI, KOREA
TEL : +82-31-459-7211 FAX: +82-31-459-7215
http://www.dsmaref.com
E-mail :[email protected]
19
Loading...
