DS5-AX User Manual Ver.0 2016. 03.17

DS5-AX

User Manual

Android 4.4.2 Kitkat Sep 10, 2015

ISO 9001 Certified Quality Management System

DS5-AX User Manual Ver.0 2016. 03.17

○C 2015 DSIC Co., Ltd.

Notice While reasonable efforts were made to ensure that the information in this document was complete and accurate at the time of printing, DSIC Co., Ltd. can assume to no liability for any errors. Changes and corrections to the information in this document might be incorporated in future release.

Document disclaimer

DSIC Co., Ltd. Is not responsible for any modifications, additions, or deletions to the original published version of this documentation unless Customer and/or End User agree to indemnity and hold harmless DSIC, DSIC’s agents, servants, and employees against all claims, lawsuits, demands and judgments arising out of, or in connection with, subsequent modifications, additions or deletions to this documentation to the extent made by the Customer or End User.

Link disclaimer

DSIC Co., Ltd. is not responsible for the contents or reliability of any linked Web sites referenced elsewhere within this documentation, and DSIC does not necessarily endorse the products, services, or information described or offered within them. We cannot guarantee that these links will work all the time and we have no control over the availability of the linked pages.

Warranty DSIC Co., Ltd. provides a limited warranty on this product. Refer to your sales agreement to establish the terms of the limited warranty. In addition, DSIC’s standard warranty language, as well as information regarding support for this product, while under warranty, is available through the DSIC Support Web site: http://www.mobilebase.co.kr

Except where expressly stated otherwise, the Product is protected by copyright and other laws respecting proprietary rights. Unauthorized reproduction, transfer, and or use can be a criminal, as well as a civil offense under the applicable law.

Third-party components

Certain software programs or portions thereof included in the Product may contain software distributed under third party agreements (“Third Party Components”), which may contain terms that expand or limit rights to use certain portions of the Product (“Third Party Terms”).

DS5-AX User Manual Ver.0 2016. 03.17

Trademarks

All other trademarks are the property of their respective owners.

Downloading documents

For the most current versions of documentation, see DSIC support Web site:

http://www.mobilebase.co.kr

Contact DSIC Support

DSIC Co., Ltd. provides a technical support email account for you to report problems or to ask questions about your product. The support account is support_pda@dsic.co.kr For additional support, See the DSIC Web site: http://www.mobilebase.co.kr

DS5 is a trademark of DSIC Co., Ltd. Mobile Base is a brand name of DSIC rugged mobile computer..

Windows○R and the Windows Logo are trademarks or registered trademarks of Microsoft Corporation

The Bluetooth word mark and logos are owned by Bluetooth SIG, Inc. All trademarks and trade names are the property of their respective owners.

DS5-AX User Manual Ver.0 2016. 03.17

Contents

Safety Instruction ...................................................................................................................................................................... 7

Chapter 1: Introduction to the DS5-AX ........................................................................................................................ 9

Specifications .................................................................................................................................................................... 10

Overview of terminal features ................................................................................................................................... 11

DS5-AX Front View ............................................................................................................................................. 11

DS5-AX Back View ............................................................................................................................................... 12

Hand Strap Removal and Replacement................................................................................................... 13

Battery .................................................................................................................................................................................. 13

Battery power source ........................................................................................................................................ 13

Power Adapter .................................................................................................................................................................. 14

Chapter 2: Getting Started ................................................................................................................................................ 15

Installation micro SD card ........................................................................................................................................... 16

Battery Mounting and Operation ............................................................................................................................ 17

Connecting Power Source ........................................................................................................................................... 18

To use mini USB Travel Charger .................................................................................................................. 18

To use Cradle ......................................................................................................................................................... 19

Operating power of the terminal ............................................................................................................................ 19

Home Screen ..................................................................................................................................................................... 20

Organize your Home screens .................................................................................................................................... 21

Touch & type .................................................................................................................................................................... 22

Android version & updates ........................................................................................................................................ 23

Chapter 3: Essentials ............................................................................................................................................................. 24

Notifications & settings ............................................................................................................................................... 24

Quick Settings ................................................................................................................................................................... 25

Lock screen ........................................................................................................................................................................ 26

Lock screen actions ........................................................................................................................................................ 26

Android Beam ................................................................................................................................................................... 27

File storage ......................................................................................................................................................................... 27

Screenshots ........................................................................................................................................................................ 28

Chapter 4: Use the keyboard ........................................................................................................................................... 29

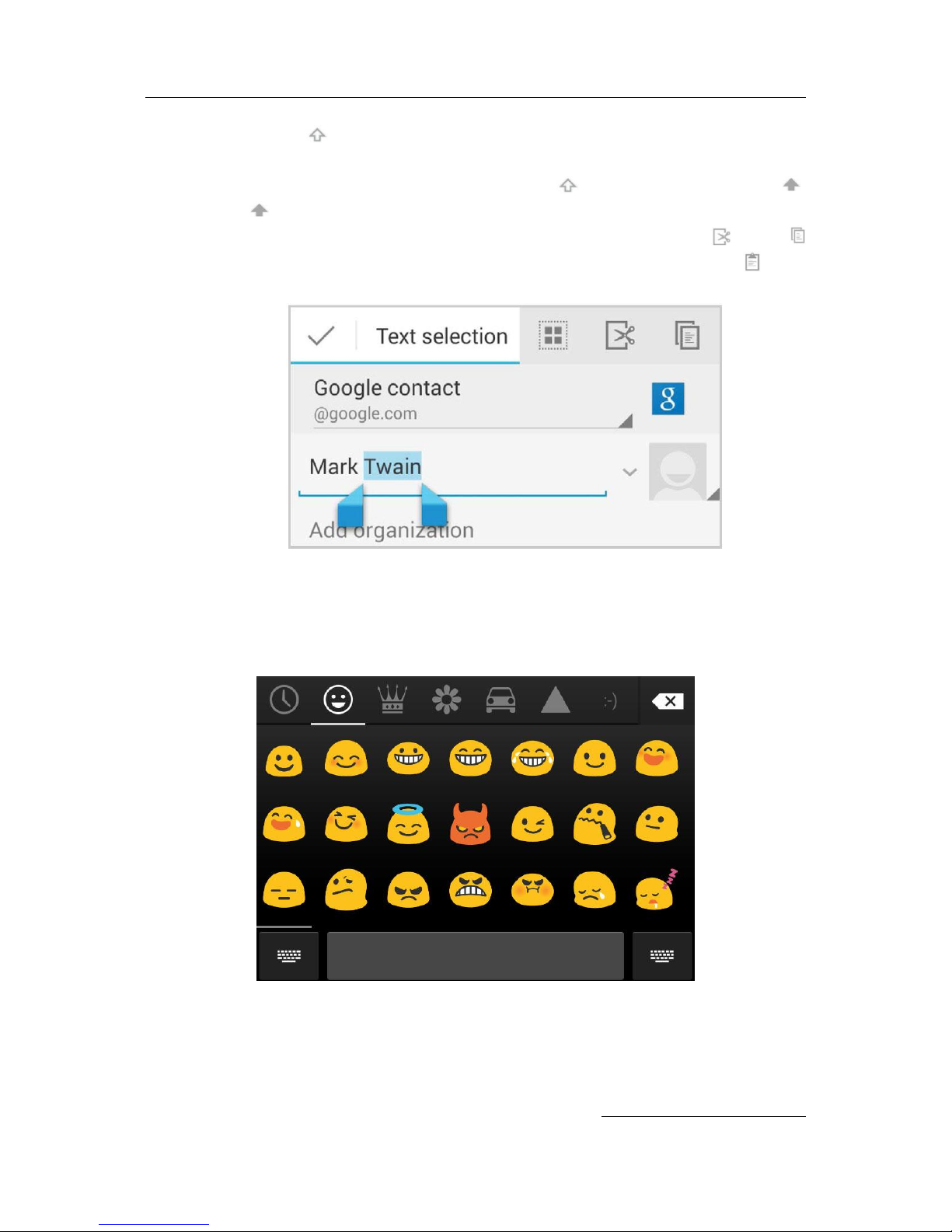

Enter & edit text .............................................................................................................................................................. 29

Keyboard dictionaries .................................................................................................................................................... 31

LEDs ....................................................................................................................................................................................... 32

LED Appearance upon terminal feature ................................................................................................. 32

Keypad .................................................................................................................................................................................. 33

Enter characters on Numeric Keypad ....................................................................................................... 34

Enter characters on Full Alphanumeric Keypad ................................................................................. 35

DS5-AX User Manual Ver.0 2016. 03.17

Configure the Display Back Light ............................................................................................................... 35

Adjust Volume ....................................................................................................................................................... 36

Chapter 5: Try some apps ................................................................................................................................................. 37

All Apps ............................................................................................................................................................................... 37

Phone .................................................................................................................................................................................... 37

Camera ................................................................................................................................................................................. 38

Gallery .................................................................................................................................................................................. 38

People ................................................................................................................................................................................... 39

Chapter 6: Settings ................................................................................................................................................................ 41

Chapter 7: Accessibility ....................................................................................................................................................... 42

Chapter 8: Application Guide .......................................................................................................................................... 43

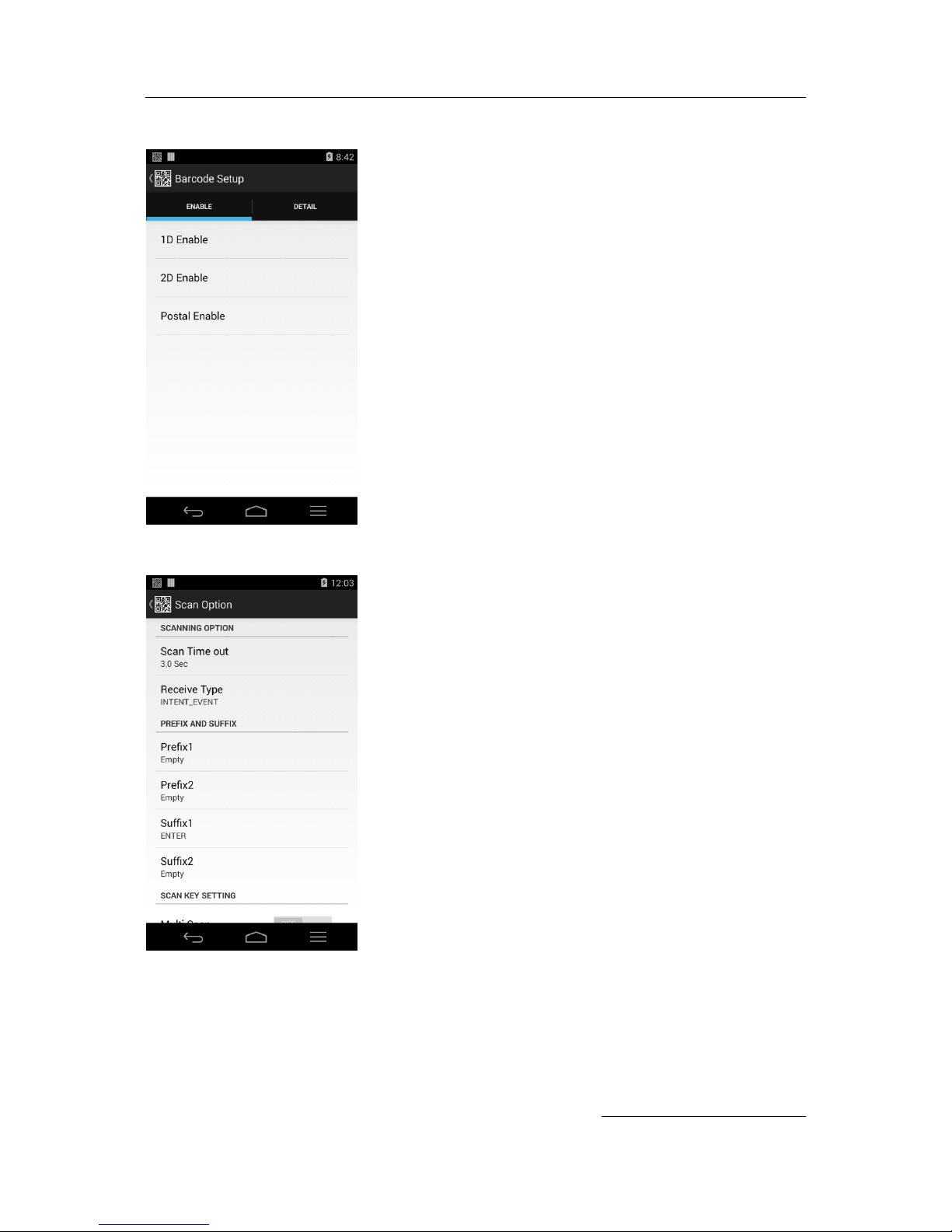

Barcode Tray ...................................................................................................................................................................... 43

File Manager ...................................................................................................................................................................... 47

Key Mapping ..................................................................................................................................................................... 47

OTA Update........................................................................................................................................................................ 51

Chapter 9: Developer’s Guide ......................................................................................................................................... 54

USB Driver .......................................................................................................................................................................... 54

OS Update .......................................................................................................................................................................... 54

Barcode scanner API ...................................................................................................................................................... 56

Environments ........................................................................................................................................................... 56

Basic Implementation .......................................................................................................................................... 57

Controlling scanning & barcode using AIDL ............................................................................................ 60

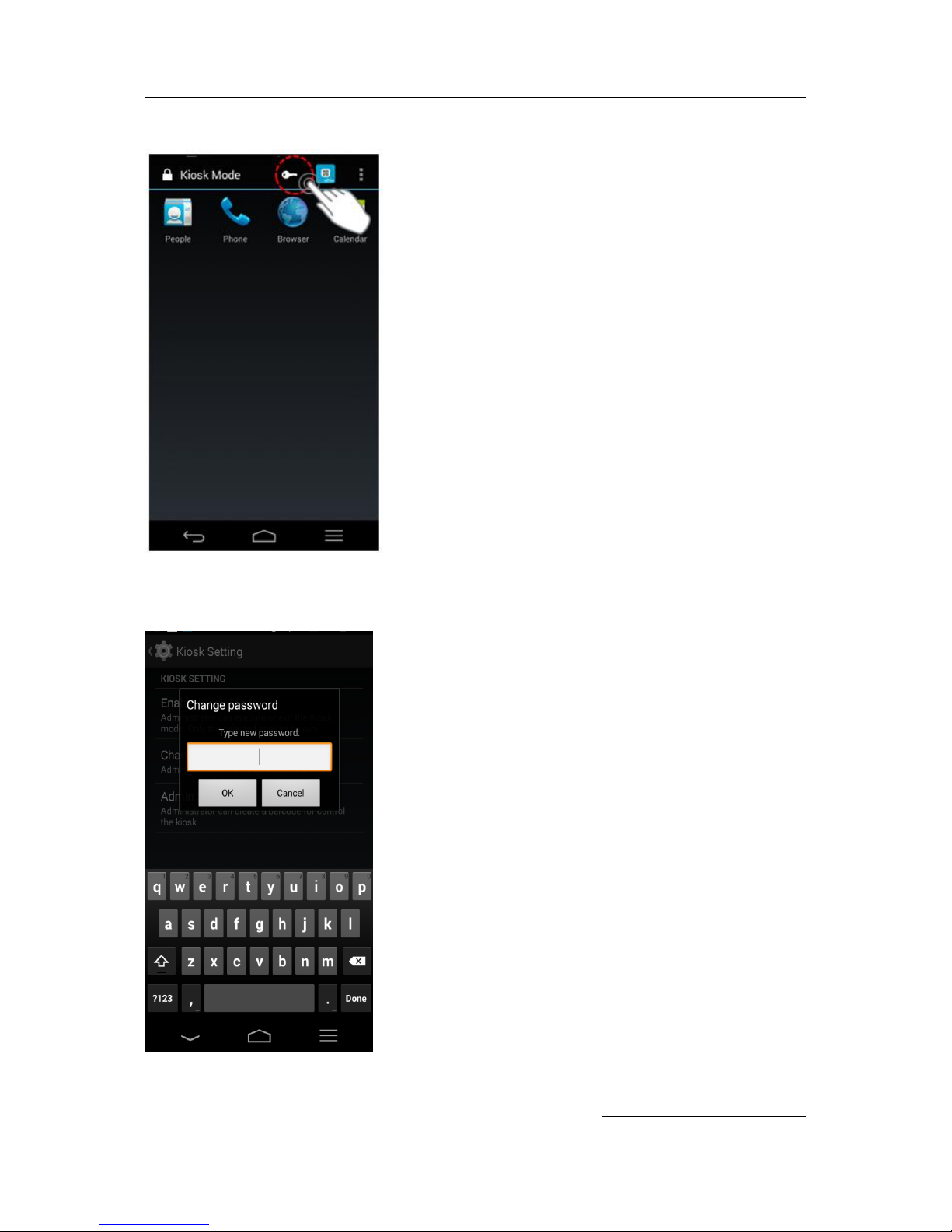

KIOSK MODE ..................................................................................................................................................................... 67

Password change ................................................................................................................................................... 68

Notification clear .................................................................................................................................................... 69

Setting Background .............................................................................................................................................. 69

Admin Setting.......................................................................................................................................................... 70

KIOSK and eZGo ..................................................................................................................................................... 71

eZGo ...................................................................................................................................................................................... 72

Create your QR CODE ......................................................................................................................................... 72

Barcode scanner API ......................................................................오류! 책갈피가 정의되어 있지 않습니다.

Device Administration ................................................................................................................................................... 74

Appendix Ⅰ Key Strokes.................................................................................................................................................... 75

DS5-AX 34 Key Descriptions ...................................................................................................................................... 75

DS5-AX 54 Key Description ........................................................................................................................................ 76

DS5-AX Alphanumeric Characters ........................................................................................................................... 77

DS5-AX Special Functions ........................................................................................................................................... 79

DS5-AX User Manual Ver.0 2016. 03.17

Safety Instruction

Read this instruction carefully to keep yourself safe and to avoid loss of property.

 Make sure that battery terminals (metal part) should not contact with any conductive

materials like a necklace or coin. Also make sure that batteries should not be damaged by teeth or a nail. Impact may cause an explosion of batteries

 Use dedicated batteries only and do not use the batteries for any other purpose than

operating this product. Using an inauthentic battery may reduce life of the product, or cause an explosion.

 Make sure to use the adapter or the standard charger supplied with this product. Using

an inauthentic charger may reduce life of batteries or cause an explosion.

Caution in relation with Laser Scanner

Do not flashing scanner light in human and animal’s eyes. It could cause the damage of retina and

amblyopia.

Caution in relation with Batteries

 Batteries may explode when damaged, impacted, heated, flooded or taken apart with

a gimlet. Make sure to keep the batteries out of reach of children or pets.

 Do not use the Product in the area with the risk of explosion.

Safety information

 This Product is compliant with EMC. For safety and health, use the authentic parts

supplied by the manufacturer. Any inauthentic parts may affect safety.

 Do not press the power button when the product is wet. Touching the adapter, or power

cord with wet hands may cause an electric shock.

 Do not modify, disassemble or repair the product at your discretion. Also make sure to

follow the safety instructions.

 Record the data in the Product and keep it in a separate place. Data stored in the

product may be deleted during repairing or upgrading the product. So, make sure to back up important data.

 Do not use this Product in a hot or humid place. Using the product under a hot/humid

temperature such as rain or sauna may cause a trouble.

 Keep this Product away from magnetic products such as credit card, telephone card,

bank book and traffic ticket. The magnetic field of the terminal may affect the data.

DS5-AX User Manual Ver.0 2016. 03.17

 When storing a battery for a long period of time, recharge it and keep it at a room

temperature. Even a fully charged battery will suffer reduced life due to the characteristics of the battery.

DS5-AX User Manual Ver.0 2016. 03.17

Chapter 1: Introduction to the DS5-AX

The DS5-AX is rugged mobile computer for use data capture and automation in retail, warehouse and other field applications. The DS5-AX convenient features and capabilities at your hand, including barcode scanning, image capturing with built-in camera, and realtime mobile communications through WWAN and WLAN network.

This chapter will describe features of DS5-AX by front, back views, battery and power adapters.

Not all features described in this guide may be available on your device. If you find that a feature is not available, contact your system administrator

DS5-AX User Manual Ver.0 2016. 03.17

Specifications

Characters

Descriptions

Display

4.3inch WVGA (480x800) IPS / Capacitive multi-touch

Dimensions (mm)

78(Grip: 58) x 225 x 58

Weight (g)

410g including battery

Battery

Li-ion 3.7V 5200mAh

Backup Battery

Li-ion 130mAh

Operating System

Android AOSP 4.4.2 KitKat

Processor

Exynos 5260 Hexa-Core (1.7GHz dual-core Cortex-A15 x 2, 1.3GHz quad-core Cortex-A7 x 4)

Memories(RAM/ROM)

LPDDR3 2GB/ 8GB

USB

USB2.0 On-The-Go (B-type)

External Interface

Micro USB, Micro SD slot, SIM slot (optional), SAM slot (optional)

Sound & Mic

Louder Speaker, Receiver, Mic

LED & Indication

Charging LED, Notification LED (Multi-color & Programmable), Vibration

Key buttons

34 Numeric Keys, Programmable F1~F10 keys) 54 Full Alpha Numeric Keys

Sensors

Ambient light sensor & Proximity sensor, 3-axis compass Motion tracking sensors (3-axis gyroscope, 3-axis accelerometer, Digital motion processor)

Sealing & Drop

IP67, 1.8m multi-drop resistance to concrete

Storage Temperature

-20°C to 70°C

Operating Temperature

-20°C to 60°C

Humidity

95% non-condensing

Regulatory

KCC, CE, FCC, CCC, RoHS complaint

Optional Integration Features

WWAN

3.75G HSPA+/ 3G UMTS/ 2G GSM|GPRS|EDGE 4G LTE: T.B.D

WLAN

IEEE 802.11 a/b/g/n/ac

WLAN Security

WEP, WPA-PSK, WPA2-PSK, 802.1x EAP (PEAP-MSCHAPV2, PEAP-GTC, TLS, TTLS-PAP, TTLSMSCHAP, TTLS-MSCHAPV2, TTLS-GTC, PWD)

WPAN

Bluetooth v4.0 (Bluetooth

○

Smart Technology)

Scanner

SE4750 imager (1D & 2D) Extraordinary scan range – Code39 barcode

- 20Mil: 4.5cm - 81.3cm

- 3mil: 7.9cm – 14.2cm

RFID (NFC) – T.B.D

13.56 MHz, ISO14443A&B, ISO15693, MIFARE, Felica, NFCIP-1, NFCIP-2

Camera

8.0M Pixel AF with Flash

GPS

Stand alone, A-GPS

Warranty

1 year manufacturer’s warranty

Default Accessories

· micro USB cable for charging & PC sync

· AC/DC Adapter & Country configured adaptor plug

· Screen protection film · Hand strap

Optional Accessories

· Desktop cradle: power, micro USB(OTG), RS232

· Gun Trigger

· Bumper · Quad Battery Charger

DS5-AX User Manual Ver.0 2016. 03.17

Overview of terminal features

DS5-AX Front View

Receiver

Scan Triggers

Reset button

LCD Back Light

Controller

Scan LED Indicator

Charging LED Indicator

Network LED Indicator (Phone only)

Micro phone

Modifier LED Indicator

Display

Scanner Window

Power button

DS5-AX User Manual Ver.0 2016. 03.17

DS5-AX Back View

Camera Lens

Camera Flash

Hand belt

Speaker

Stylus Pen

Mini USB Port

DS5-AX User Manual Ver.0 2016. 03.17

Hand Strap Removal and Replacement

To remove hand strap:

1. Rip the Velcro strap off

2. Take out the Velcro strap from the upper loop

3. Force to pull out lower loop from the terminal

Battery

Caution

If the Product is wet, do not put it in a device that may heat the terminal (heater, microwave oven, etc.). Heating batteries may cause an explosion, deformation or fault. (Water or any other liquid will change the color of the label inside the terminal.

Battery power source

Series

Description

DS5-AX

3.7V, 5200mAh (14.8Wh)

You may need to fully charge the battery before using your terminal for the first time. Battery can be charged using below listed accessories

Charging Accessory

Charging Time

mini USB cable

About 4hours 30minutes

Desktop cradle and AC adapter

About 4hours 30minutes

Snap on

About 4hours 30minutes

Quad battery charger

About 4hours 30minutes

DS5-AX User Manual Ver.0 2016. 03.17

Note

In combination with Vehicle cradle with Snap on, the terminal can be charged on vehicle

Power Adapter

Recharge only with the charger specified by the manufacturer.

Power Adapter

Specification

mini USB Cable

5V, 3A

Desktop cradle

5V, 3A

Snap on

5V, 3A

Quad battery charger

5V, 12A

DS5-AX User Manual Ver.0 2016. 03.17

Chapter 2: Getting Started

This chapter will describe how to install and charge battery, mount micro SD card and start up the terminal

To start up the terminal:

 Install Micro SD card  Mount Battery  Connect power source  Operate power of the terminal

DS5-AX User Manual Ver.0 2016. 03.17

Installation micro SD card

Insert the micro SD card carefully as shown in the following illustrations. Make sure the micro SD card terminal position before insert the micro SD card. Push the back end of the micro SD card to fix it at the last step.

Note

 Do not use the power too much when you insert the micro SD card. The micro SD card may be damaged  If you install the micro SD card in the wrong position, the micro SD card may be damaged or it may cause the

malfunction of the micro SD card Slot.

 Keep the terminal part of the micro SD card in clean. Be careful the terminal part of the micro SD card not to

dusty

 As the micro SD card is consumable, the micro SD card end its days and may be not able to save data if you

use it more than over certain times. In this case, replace micro SD card to buy a new one.

DS5-AX User Manual Ver.0 2016. 03.17

Battery Mounting and Operation

Push the battery release and mount clear the battery to terminal and gently release it.

Inserting the battery

Push the battery release toward the top of terminal until the battery released and lift it up

Remove the battery

Note

Battery Maintenance

Lithium-ion batteries have a limited life, which is affected by several factors; environment, storage, the number of charge/ discharge cycles, and level of discharge/ charge

To extend battery lifespan and battery life, we recommend following these simple guideline;

 Avoid heat and humidity  If do not use the terminal regularly, fully recharge the battery at least once per month.  Do not leave the terminal connected to a charging device for longer than 3 days.  Use only charging adapter approved  In case of storing terminal 3 months or longer,

- The best temperature for proper care and storage is between 0~25°C

- Extended storage can cause batteries to discharge deeply, which can deteriorate the cell and reduce

battery capacity, service life and ability to recharge. It is suggested, therefore, that the battery be fully charged before putting to the terminal in extended storage and that it be recharged fully every three months while in storage

 Update the terminal Operating System as new updates available. OS updates may contain new programs to

optimize battery life.

Transportation

The contained lithium ion batteries are subject to the Dangerous Goods Legislation requirements. The user can transport the batteries by road without further requirements. When being transported by third parties (e.g: air transport or forwarding agency), special requirements on packaging and labeling must be observed. For preparation of the item being shipped, consulting an expert hazardous material is required.

DS5-AX User Manual Ver.0 2016. 03.17

Disposal

Rechargeable batteries should be sorted for environmental friendly recycling. Do not disposal batteries into household waste. According to the European Guideline 2006/66/EC, defective or used battery packs/ batteries, must be collected separately and disposed of in an environmentally correct manner. Batteries no longer suitable for use can be directly returned at

DSIC Co., Ltd.

2F, Daeryung Technotown 3 Bldg, 115 Gasandigital2-ro, Geumchun-Gu, Seoul, Korea Tel. Service: +82-2-2107-5152 Fax: +82-2-2107-5178 Email:pda_service@dsic.co.kr

Subject to change without notice

Connecting Power Source

Connect power, using one of the methods listed below.

Caution

Verity that the terminal battery is installed prior to connection. If the battery is not properly installed and the wall charger is connected, the terminal may power off and on continuously, preventing proper operation.

Note

Failure to unplug the wall charger before you remove the battery, can cause damage to the terminal

To use mini USB Travel Charger

1. Plug the flat end of the mini USB Travel Charger into the Power interface connector and

the other end into standard AC wall outlet

2. When charging is finished, remove the flat end from the interface connector jack on the

terminal

DS5-AX User Manual Ver.0 2016. 03.17

To use Cradle

Plug the AC power cord into cradle and plug the other end into a wall outlet

Operating power of the terminal

 Power on / off

Make a long press Power button at the right side of the terminal to turn on. When you first turn on your device, you’ll see a Welcome screen. Choose the right language you want and touch Start or the Start icon.

Make a long press Power button and select Power off

 Sleep and Wake up

Press Power button shortly to enter Sleep, or Wake up the device

 Power restart

Make a long press Power button at the right side of the terminal. Select Power restart. Your device will shut down and restart

Note

In case you need to force to restart your device, such as device hang up, long press Power button for 10

DS5-AX User Manual Ver.0 2016. 03.17

seconds. Your device will shut down and restart

 Hot swap

To replace your battery without shutting down your device system, long press the Power button and select Hot swap. Then quickly replace battery. Blue LED shall be blinked.

Home Screen

Make yourself at home. After you finish setting up your device, the Home screen appears for the first time. To move between Home screens, swipe left or right.

Get around

At the bottom of every Home screen you’ll find the Favorites tray: another quick way to get to your apps. Here’s what it looks like on a DS5-AX.

DS5-AX User Manual Ver.0 2016. 03.17

To open an app, touch it. To drag an app in or out of the Favorites tray or anywhere else on a Home screen, touch & hold it, then move it with your finger into position.

DS5-AX navigation buttons

At the bottom of every DS5-AX screen, no matter what you’re doing, you’ll always find the navigation bar with three buttons:

Back

Opens the previous screen you were working in, even if it was in a different app. Once you back up to the Home screen, you can’t go back any further.

Home

Opens the central Home screen.

Recent apps

Press Home for few seconds to browse a list of thumbnail images of app you’ve worked with recently. To open an app, touch it. To remove a thumbnail from the list, swipe it left or right.

Menus

Many screens in apps and Settings include either a menu icon or items in the permanent Menu button at the bottom of the screen. Touch it to explore additional options, including help.

Organize your Home screens

To change the wallpaper for your Home screens, touch & hold the back ground.

To add an app icon to a Home screen:

1. Go to the Home screen where you want to place the app.

2. Touch the All Apps icon.

3. Swipe from right to left, if necessary, to find the app you want.

4. Touch & hold the app until the Home screen appears, slide it into place, and lift your

finger.

To add a widget to the Home screen on a DS5-AX, swiping right through the All Apps screens to find the widget you want.

On DS5-AX, touch & hold the background of any home screen to reveal the widgets control.

To move an app or widget to another position:

1. Touch & gold the icon.

DS5-AX User Manual Ver.0 2016. 03.17

2. Slide your finger to the new position.

To move between Home screens, slide toward the edge of the screen. To bump another icon out of the way, slide slowly into it.

3. Lift your finger.

To create a folder, slide one icon quickly over another. To name of rename a folder, open it and touch its name.

Touch & type

To select or activate something, touch it.

To type something, such as a name, password, or search terms, just touch where you want to type. A keyboard pops up that lets you type into the field.

Other common gestures include:

 Touch & hold. Touch & hold an item on the screen by touching it and not lifting your

finger until it responds. For example, this is how you access accent and other special characters on the keyboard.

 Touch, hold & drag. Touch & hold an item for a moment and then, without lifting your

finger, move your finger on the screen until you reach the target position. For example, you can move apps around on the Home screen.

 Swipe or slide. Quickly move your finger across the surface of the screen, without

pausing when you first touch (so you don’t drag something instead). For example, you can slide a Home screen left of right to view the other Home screens.

 Double-tap. Tap quickly twice on a webpage, map, or other screen to zoom. For example,

double-tap a picture in Chrome to zoom in, and double-tap again to zoom out.

 Scale. In some apps (such as Gallery), you can scale by placing two or more fingers on

the screen at once and pinching them together (to enlarge scale) or spreading them apart (to reduce it). Alternatively, in some apps you can double-tap and then, without lifting your finger, drag up to reduce or down to enlarge the scale or the image.

 Rotate the screen. The orientation of most screens rotates with your device as you turn

it. To lock or unlock a device’s vertical orientations, swipe down from the top right of any

DS5-AX User Manual Ver.0 2016. 03.17

screen and touch the Rotation icon in Quick Settings. To do the same thing on a device, go to Settings > Device > Display.

You can open your device’s Settings app from the All Apps screen or from Quick Settings. For example, to change notification sounds, volumes, and more, go to Settings >

Device > Sound To change brightness, font size, and more, go to Settings > Device > Display.

Android version & updates

To check your version number or get the latest system update for a DS5-AX, first go to Settings > System > About tablet. Then look for these labels:

 Android version. Look partway down the list for this heading and the number just below

it.

 OTA Update Start. Touch to check whether you have any pending system updates.

For comprehensive online help and support, including details about Android 4.4, visit

http://support.google.com/android

DS5-AX User Manual Ver.0 2016. 03.17

Chapter 3: Essentials

Notifications & settings

Notifications alert you to the arrival of new messages, calendar events, and alarms, as well as ongoing events, such as video downloads.

When a notification arrives, its icon appears at the top of the screen. Icons for pending notifications appear on the left, and system icons showing things like Wi-Fi signal, mobile carrier signal, or battery strength on the right:

TIP: Wi-Fi and mobile signal strength are indicated at the top of the screen by white bars. To see whether the selected Wi-Fi network has a full internet connection, open Quick Settings: swipe down from the top right on tablets, or with two fingers on the phones.

In Quick Settings only, white bars in the Wi-Fi or mobile signal indicators indicate the signal strength of a normal internet connection.

Certain notifications can be expanded to show more information, such as email preview. The one at the top is always expanded when possible. To expand a notification, position one finger inside it and swipe down slowly.

To open the related app, touch the notification icon on the left. Some notifications also allow you to take specific actions by touching icons within the notification.

When you finished with a notification, just swipe it away. To dismiss all notifications, touch the Dismiss icon at the top right.

DS5-AX User Manual Ver.0 2016. 03.17

Quick Settings

Use Quick Setting to easily access Wi-Fi settings, manage display brightness, open the main Settings menu, and more. To open Quick Settings, swipe down from the top of the screen with two fingers

DS5-AX User Manual Ver.0 2016. 03.17

If you have a signal but no internet connection, the bars indicating the strength of the Wi-Fi or mobile signal turn orange.

Lock screen

If a lock is set for your screen, the screen goes dark and locks when the display goes to sleep or if you press the Power button.

You can set locks of different strengths using lock settings:

1. Go to Settings > Personal > Security > Screen lock.

2. Touch the type of lock you’d like to use.

Lock screen actions

From the lock screen:

 One a phone, regardless of the lock you choose, it’s always easy to take a picture. Swipe

left from the right edge to bring Camera into view.

DS5-AX User Manual Ver.0 2016. 03.17

For more information, visit Customize the lock screen.

Android Beam

You can beam a web page, a video, or other content from your screen to another device by bringing the devices together (typically back to back).

Before you begin: Make sure both devices are unlocked, support Near Field Communication (NFC), and have both NFC and Android Beam turned on. To check, go to Settings > Wireless & networks > More. Also make sure you know where the NFC area is on the back of both devices – typically in the center.

1. Open a screen that contains something you’d like to share, such as a webpage, YouTube

video, or place page in Maps.

2. Move the back of your device toward the back of the other device. When the devices

connect, you hear a sound, the image on your screen reduces in size, and you see the message Touch to beam.

3. Touch your screen anywhere.

The other device displays the transferred content.

To turn on NFC, go to Settings > Wireless & networks > More > NFC. To turn on Android Beam, go to Settings > Wireless & Networks > More >

Android Beam.

File storage

Android 4.4 makes it easy to store and browse through pictures, videos, and other files on your device and attach them to an email, Hangout message, and so on. You can also use stored images as your Home screen wallpaper.

For example, to attach an image to an email you’re composing, choose Menu > Attach picture or Attach Video.

A set of thumbnails appears. To view more choices, touch the Drawer icon at the top left. You’ll see something like this:

DS5-AX User Manual Ver.0 2016. 03.17

From here, you can view any of these sources:

 Recent shows you the photos or video you’ve taken or opened most recently.  Images displays any photos, videos, or other images on your device.  Downloads includes most files (excluding Play content) you’ve downloaded from emails

or the Web

 Gallery lets you browse all the images and videos that have been uploaded to your

account.

Use the Downloads app to view, reopen, or delete files you download from email or other sources (excluding videos, magazines and other media)

In the downloads app:

 Touch an item to open it.  Touch headings for earlier downloads to view them.

 Check items you want to share. Then touch the Share icon and choose a sharing

method from the list.

 Check items you want to delete. Then touch the Trash icon.  At the bottom of the screen, touch Sort by size or Sort by date to switch back and forth.

Screenshots

To take a screenshot from DS5-AX:

1. Make sure the image you want to capture is displayed on the screen.

2. Press the Power and Volume down buttons simultaneously.

The screenshot is automatically saved in your Gallery. TIP: To easily share your screenshot via message, or Bluetooth, and email, swipe down the

notification shade and touch the Share icon, or email icon below the previous of your screen shot.

DS5-AX User Manual Ver.0 2016. 03.17

Chapter 4: Use the keyboard

Enter & edit text

Use the onscreen keyboard to enter text. Here’s what it looks like on a DS5-AX device:

To make the keyboard go away, touch the Back button below it.

Some apps open the keyboard automatically. In others, you first need to touch where you want to type.

Basic editing

 Move the insertion point. Touch where you want to type. The cursor blinks in the new

position, and a blue tab appears below it. Drag the tab to move the cursor.

 Select Text. Touch & hold or double-tap within the text. The nearest word highlights,

with a tab at each end of the selection. Drag the tabs to change the selection. The tab disappears after a few moments. To make it reappear, touch the text again.

 Delete text. Touch to delete selected text or the characters before the cursor.  Type capital letters. Touch the Shift key once to switch to capital letters for one letter. Or

DS5-AX User Manual Ver.0 2016. 03.17

touch & hold Shift key while you type. When you release the key, the lowercase letters reappear.

 Turn caps lock on. Double-tap or touch & hold Shift key, so it changes to .

Touch Shift key again to return to lowercase.

 Cut, copy, paste. Select the text you want to manipulate. Then touch the Cut or

Copy icons. If there’s something on the clipboard to paste, you’ll also see a paste button:

Emoji

Android 4.4 vastly expands the variety of emoji available at your fingertips. Touch and hold the Return key to display emoji. You‘ll see a panel like this. To move between categories, swipe left or right or touch the symbols in the top row. To type an emoji, touch it:

Use next-word suggestions

1. Touch the location where you want to input text.

2. Start typing out a word. When the word you want is displayed in a list above the key

DS5-AX User Manual Ver.0 2016. 03.17

board, touch it.

3. Continue to touch words unless the one you want doesn’t appear. If so, type it. Android

continues to suggest words as you type.

To change your keyboard and input methods, go to Settings > Personal > Language & input.

To turn next-word suggestion on or off, go to Setting > Personal > Language & input methods > Android keyboard. Touch the Setting icon, then check the box next to Next-word suggestions.

Keyboard dictionaries

To manage keyboard dictionaries, go to Setting > Personal > Language & input.

Personal dictionary

You can add your own words to your personal dictionary so that your device remembers them. To add a word or phrase, including an optional shortcut, touch Personal Dictionary, then the Add icon.

Add-on dictionaries

1. Touch the Settings icon next to Android keyboard.

2. Touch Add-on dictionaries. You’ll see dictionaries for other languages that you can

download to your device.

3. Touch the dictionary you want, then Install.

DS5-AX User Manual Ver.0 2016. 03.17

LEDs

LED indicates status of the terminal in power sourcing, data capture, network connection

Location of the DS5 Status LEDs

LED Appearance upon terminal feature

Feature

Color

Description

Data capture status LED

Blue

Good read barcode, or RFID

Charging LED

Red

The terminal is in charging status

Green

The terminal has fully charged

Notification LED

Off

Phone off status, or modem is not included in the terminal configuration

Blue blinking

When battery change when select Hot Swap menu

Data Capture Status LED

Charging LED

Notification LED

Modifier LED

DS5-AX User Manual Ver.0 2016. 03.17

Keypad

DS5-A comes with large numeric keypad including function 1~10, full alphanumeric keypad

Numeric Keypad

Full Alphanumeric Keypad

DS5-AX User Manual Ver.0 2016. 03.17

Enter characters on Numeric Keypad

Following explains how to make continuous character input. For single character input, please refer Key Strokes.

You need to use orange modifier key and blue modifier key to access all characters and functions on Numeric Keypad

Input lower character continuously

- Press twice

- Toggle key one to four times depending on the position of the alphabet.

- Press one time to return to numeric input

Input upper character continuously

- Press twice

- Press

twice, then shall be displayed right bottom of the screen.

- Toggle key one to four times depending on the position of the alphabet.

- Press one time to return lower character

- Press one time to return to numeric input

For example

- type DEF

- Press twice, twice, , ,

Upon repetition of key press, input method varied

Status Bar

Shift Repetition

Remark

Default

Return to default

Single shift function. Return back to default after 1 time key stroke

Fixed shift function. Shift functions are effective at multi key strokes

DS5-AX User Manual Ver.0 2016. 03.17

Enter characters on Full Alphanumeric Keypad

Following explains how to make continuous character input. For single character input, please refer Key Strokes.

Input numeric

- Press required numeric key button from 1~0.

- With modifier keys, special functions can be programmable from F1 to F20.

- Press , then press Numeric key to use F1 ~ F10.

- Press to use F11 ~ F20

Input Alphabet

- Default input is lower alphabet character

- In case single Alphabet character input, press then press a Alphabet

- In case continuous Alphabet character input, press twice then press Alphabet

keys

For Example

- Input A1a2

- Press , , , ,

Note

When you press key 1 time, it is effective only 1 time. Input icon status:

If you need continuous upper character input, press twice to fix the function. Input icon status:

- Input ACDZY

- Press , then , , , ,

Configure the Display Back Light

Set LCD display brightness of your terminal.

Press twice , then configure level of your favorable LCD back light brightness pressing to brighter ( ) and to dimmer ( ). Dimmer lessens power consumption of the terminal.

function lets you to switch back and forth to the brightness you have configured. Press

button and then to dimmed brightness, and press again the button to back to the

brighter display.

DS5-AX User Manual Ver.0 2016. 03.17

Adjust Volume

Press twice amber green modifier then configure level of your sound volume pressing

to volume up ( )and button to volume down ( )

DS5-AX User Manual Ver.0 2016. 03.17

Chapter 5: Try some apps

All Apps

To see all your apps, touch the All Apps icon in the Favorites tray on any Home screen.

This is where you can see all your apps. You can move app icons to any of your Home screens.

From All Apps, you can:

 Move between screens. Swipe left or right.  Open an app. Touch its icon.  Place an app icon on a Home screen. Touch & hold the app icon, slide your finger, and

lift your finger to drop the icon in place.

 Brose widgets. Touch the Widgets tab at the top of any All Apps screen.

To remove an app icon from the Home screen without removing it permanently from your device, touch & hold it, slide your finger toward the top of the screen, and drop the app over the Remove icon.

To view info about an app from an All App screen, touch & hold it, slide your finger toward the

top of the screen, and drop the app over the App Info icon.

Phone

Using a DS5-AX, you can place calls from the Phone app, the People app, or other apps or widgets that display contact information. Wherever you see a phone number, you can usually touch it to dial.

To place a call to one of your contacts:

1. Touch the Phone icon on a Home or All Apps screen

2. To choose someone to call, scroll or search. If the keypad’s in the way, touch the Back

button to lower it.

3. To place a call, touch the contact’s name.

To view recent calls, touch the call log icon at the bottom of the screen. To use the keypad,

DS5-AX User Manual Ver.0 2016. 03.17

touch keypad icon.

Camera

The Camera app lets you take photos, panoramic photos, videos, and immersive 360degree photo sphere shots, including what’s above and below you.

To open Camera:

 From the lock screen, swipe from right to left.  From the Home screen, touch the Camera icon.

The first time you open Camera, you may be asked if you want it to remember photo locations. The shutter and other controls float above the framed image at the bottom of the screen.

The camera icon indicates Camera mode. To take a picture in this mode:

1. Frame your subject and watch for the focus ring:

To focus on a different part of the image, touch it.

2. When the focus ring brackets change color, touch the shutter.

3. To see the image you just took, swipe from right to left.

Keep swiping to see other images in your Gallery.

To change to a different mode, touch the Mode icon:

Video

To start recording a video, touch the red shutter button. Touch it again to stop.

Panorama

To take a panoramic , touch the blue shutter button, slowly pan across the scene, and touch the button again to stop.

Gallery

The Gallery app gives you an easy way to browse pictures and videos you’ve taken with Camera. It also displays screenshots and auto backups from other devices.

DS5-AX User Manual Ver.0 2016. 03.17

To open Gallery from the:

 Camera app. Swipe from right to left.  Home screen. Touch the Gallery icon.

To get to the top level of the Gallery app, touch the icon at the upper left. From there, open the drop-down menu to view the available categories.

Within each category you can browse groups of images, crop, edit, and tag them, create slideshows, make pictures or videos available offline, and share with friends.

People

The People app gives you quick access to everyone you want to reach. To open it, touch the People icon on a Home or All Apps screen. If you use Exchange, you can also sync that contact information with People.

When you open the People app, you can:

 View all contacts, favorites, or groups. Choose from the top left of the screen.  Read details. Touch a name to see details for a contact or group.  View recent activity. When viewing a contact, swipe to the right to see recent updates.

 Edit details. While viewing a contact, touch icons at the top of the screen or the

Menu icon to edit or share contact details, delete a contact, and so on. You can touch the star besides the contact’s name to add that contact to your Favorites list.

 Change your settings. While viewing the main list screen, touch the menu to import or

export contacts, choose display options for the Group and All tabs, and add or edit accounts.

DS5-AX User Manual Ver.0 2016. 03.17

No matter where you are within People, you can always get back to the main lists by touch the

People icon at the top of the screen.

DS5-AX User Manual Ver.0 2016. 03.17

Chapter 6: Settings

Most apps include their own settings, typically available from Menu > Settings on DS5-AX devices. The fastest way to adjust system settings that you access frequently, such as Wi-Fi or brightness, is through Quick Settings. Here are the Quick Settings for a DS5-AX phone:

To open Quick Settings, swipe down from the top of the screen the Settings icon.

The Settings app controls the core Android settings for networks, hardware, location, security, language, accounts, and so on.

DS5-AX User Manual Ver.0 2016. 03.17

Chapter 7: Accessibility

To use the accessibility options, open Settings > System > Accessibility. Accessibility settings let you modify your device’s display and sound options, such as increasing the text size, changing the speed at which text is spoken, and more.

You can also try magnification gestures which allow you to zoom in and out, as well as temporarily magnify what’s under your finger. To try magnification gestures, go to Settings > Accessibility > Magnification gestures.

DS5-AX User Manual Ver.0 2016. 03.17

Chapter 8: Application Guide

Barcode Tray

To activate Barcode Tray program, touch barcode tray icon at your screen.

Scan Detail Text view the scanned barcode

Barcode Setup Setting to enable, or disable barcode types

Scan Option

Setting scanning feature, such as time out, prefix and suffix, scanner key setting, notification options and etc.

Image Capture

View image and capture the view from the imager scanner

Export And Import Setting

Set up barcode configuration by programming, or export the set up to file

Info

Demonstrate the installed barcode scanner to your device and application version information of your barcode scanner.

Scan Detail

Demonstrate scanning data details

DS5-AX User Manual Ver.0 2016. 03.17

Barcode Setup

Setting to enable, or disable barcode types

Scan Option

Setting scanning feature, such as time out, prefix and suffix, scanner key setting, notification options and etc.

DS5-AX User Manual Ver.0 2016. 03.17

Image Capture

View image and capture the view from the imager scanner

Export And Import Setting

Set up barcode configuration by programming, or export the set up to file

DS5-AX User Manual Ver.0 2016. 03.17

Info

Demonstrate the installed barcode scanner to your device and application version information of your barcode scanner.

Barcode tray program is able to be updated by OTA Update

DS5-AX User Manual Ver.0 2016. 03.17

File Manager

It demonstrates capacity of internal memory and SD card memory. File search, move, delete, rename. share, and property is available.

Key Mapping

It is enabling you to create a shortcut for repeating a sequence of keys or commands. Go Settings > Personal > Key Mapping

Total 9 hardware Keys as below are able to be set as your sequenced key or short cut to execute application.

Fn, Fn1, Fn2, Fn3, Volume (Up), Volume (Down), Power, Scan (Left), Scan (Right)

Key Mapping is On by default. Fn1, Fn2, Fn3 has set by Back, Home

DS5-AX User Manual Ver.0 2016. 03.17

Select one of key in PROGRAMMABLE KEY

You can select an application to short cut for execution

DS5-AX User Manual Ver.0 2016. 03.17

Or, swipe the screen to left to set sequence. When you select No use, then the key has no function

To reset the function key, press the icon. Then you can reset the config.

DS5-AX User Manual Ver.0 2016. 03.17

Press Menu icon to import, export, remove, or reset your key mapping configuration

Key Position

You can set your key mapping with graphic interface as below

DS5-AX User Manual Ver.0 2016. 03.17

OTA Update

This is to update OS through your local network server over-the-air.

- Required device OS version: version 1196 and above.

Note:

If your device OS is below than version 1196, please update to your device OS to 1196 and higher through SD card. Go to OS Update

1. Set URL of your OTA server

This is an example using mobilebase website which is having HTTP server. http://www.mobilebase.co.kr

∙ Required 3 files

- Patch_note.txt : described patch information

- File_info.txt : Information of OTA file

- ds_ota_update.zip : OTA image file

Below is an example to create a test folder at http server, input new OS images and input its URL using OTA application.

∙ Create test folder (otatest) at your HTTP server to Upload image of OTA

- ex) http://www.mobilebase.co.kr/otatest

∙ Copy file patch_note.txt into your test folder of http server.

DS5-AX User Manual Ver.0 2016. 03.17

∙ Create new OS version folder under otatest folder, below example version is 1201. And copy file_info.txt & ds_ota_update.zip. Below picture shows create OS version folder with 1201 and copy above 2 files into the folder.

- otatest/1201/ds_ota_update.zip

- otatest/1201/file_info.txt

Note:

In case uploading multiple OS version at your HTTP server, repeat this process. And over-write and maintain as the latest released version the patch_note.txt file.

2. Edit OTA URL

When all the process of setting URL of your OTA server has been completed, please follow below procedures.

∙ Entering OTA Update menu Go settings > About tablet, or About Phone > OTA Update Start > OTA Start OS information shall be displayed at your device UI.

Current version and latest version which is updatable shall be displayed..

Press Select Version button at the left bottom of your device screen. Upgradable Version List will be pop up.

Select 1201 which is upgradable.

DS5-AX User Manual Ver.0 2016. 03.17

Press Start Update button.

After notification as above, new OS shall be downloaded through wireless network.

After download completion, your device shall be installed to new OS automatically.

Check Build number 1201

DS5-AX User Manual Ver.0 2016. 03.17

Chapter 9: Developer’s Guide

USB Driver

If you are Android developer, please download from below link and install on your PC before you connect DS5-AX to your PC. This is shell for ADB synchronization between your PC and DS5-AX.

ADB: Android Development Bridge

This driver is useful when you have “Unknown device” message at your PC while you are connecting DS5-AX to your PC.

https://www.dropbox.com/s/zkfqn3hesnnr60v/DS9_usb_driver.zip?dl=0

OS Update

You shall need below 5 types of files

- Boot.img

- Boot_ui_logo.bin

- Recovery.img

- System.img

- U-boot.bin

Update Instruction

Download your OS and install on your device as below

- Copy the firmware 5 images to root/sdfuse folder of the SD card

- Input micro SD card into your device

- WHILE pressing and holding ESC + 2 simultaneously, short press Reset key for seconds to turn on your device and, afterward to enter

DS5-AX User Manual Ver.0 2016. 03.17

DSIC SD Download screen

- When OS image file has been copied and installed completely, Done will be displayed on your device screen.

- After the Done message, long press reset key to restart your device

For latest OS, please contact your sales, or http://www.mobilebaseglobal.com

DS5-AX User Manual Ver.0 2016. 03.17

Barcode scanner API

Environments

To develop barcode scanner feature on your application, please download 2 files from below link.

- Barcode Sample_dsic

- DS9_usb_driver

https://www.dropbox.com/sh/ptm624a0gdfppl6/AACl0WrBVNxDp1DG0em5Fg6Za?dl=0

SDK made by AIDL(Android Interface Definition Language) and Android SDK 19 version (Kitkat). AIDL service starts at Barcode Tray. To use SDK, Barcode Tray must be turned on.

Software Development Framework

Please refer below environment description of Barcode Sample

- Development Tool: Android Studio

- Android SDK version: API 19 (Kitkat 4.4.2)

- Interface: AIDL and Broadcast

 Tested version: JDK 1.6.0_45

Please refer Scan Start button and Stop button on the API. The structure is to control scanner module using AIDL for binding to barcode service

DS5-AX User Manual Ver.0 2016. 03.17

Basic Implementation

In case decode data without AIDL, The decoded data is spread by Broadcast. Two action shall be required, such as Declaration and registry.

- Example of global declaration of broadcast

BroadcastReceiver mBarcodeReadBroadCast = new BroadcastReceiver() { @Override public void onReceive(Context context, Intent intent) { if (intent.getAction().equals("app.dsic.barcodetray.BARCODE_BR_DECODING_DATA")) { BarcodeDeclaration.SYMBOLOGY_IDENT symbology_ident = BarcodeDeclaration.SYMBOLOGY_IDENT.fromInteger( intent.getIntExtra("EXTRA_BARCODE_DECODED_SYMBOLE", -1)); TextView editText = (TextView) findViewById(R.id.editText); if (symbology_ident != BarcodeDeclaration.SYMBOLOGY_IDENT.NOT_READ) { String data = "["+symbology_ident.toString()+"]"+ intent.getStringExtra("EXTRA_BARCODE_DECODED_DATA"); editText.setText(data); }else { editText.setText("NOT READ"); } } }

DS5-AX User Manual Ver.0 2016. 03.17

};

- Name of Decoding Broadcast (

Modifiable

): app.dsic.barcodetray.BARCODE_BR_DECODING_DATA

 In case to modify the name of Decoding Broadcast, please use AIDL API.

 Decoding Broadcast contains below

Symbology Identification

and

Decoding data

Contents

Type

Default Value

Description

Symbology identification

Integer

-1

It will be get with getIntExtra function.

- Name of Extra: EXTRA_BARCODE_DECODED_SYMBOLE

In case your decoding fail, such as

Scan stop

, or

Scan Time out

, you still shall be received

Broadcast without decoded data.

Decoding data

String

UTF-8

It will be get with getStringExtra function.

- Name of Extra: EXTRA_BARCODE_DECODED_DATA

DS5-AX User Manual Ver.0 2016. 03.17

- Example of registry broadcast

@Override

protected void onResume() { super.onResume();

/*Set Broadcast receiver*/ registerReceiver(mBarcodeReadBroadCast, new IntentFilter("app.dsic.barcodetray.BARCODE_BR_DECODING_DATA")); }

@Override protected void onPause() { super.onPause(); /*AIDL Service disconnect*/ unregisterReceiver(mBarcodeReadBroadCast);

}

Note: Above examples are an example. You can also add at Androidmanifest.xml.

DS5-AX User Manual Ver.0 2016. 03.17

Controlling scanning & barcode using AIDL

It is able to control scanning and barcode setting used by AIDL, such as start and stop, disabling specific symbology identification. Below is

introduction of some general part of function out of AIDL which is including many functions. Many of functions don’t need to intent service

implement. Some are using only barcode tray. For details, please refer Common APIs.

Step 1: Connect to AIDL

import app.dsic.barcodetray.IBarcodeInterface;

private IBarcodeInterface mBarcode;

/*AIDL Service Connection*/ private ServiceConnection srvConn = new ServiceConnection() { @Override public void onServiceConnected(ComponentName name, IBinder service) { mBarcode = IBarcodeInterface.Stub.asInterface(service); }

@Override public void onServiceDisconnected(ComponentName name) { mBarcode = null; }

DS5-AX User Manual Ver.0 2016. 03.17

};

@Override

protected void onResume() {

super.onResume(); /*AIDL Service connect*/ bindService(new Intent("app.dsic.barcodetray.IBarcodeInterface"), srvConn, BIND_AUTO_CREATE);

}

@Override

protected void onPause() {

super.onPause(); /*AIDL Service disconnect*/

unbindService(srvConn);

}

Step 2: Copy

IBarcodeInterface.aidl

package in your source code. Then, make

serviceConnection

global value and set barcode.

Barcode interface value. Bind and unbind service at resume and pause.

DS5-AX User Manual Ver.0 2016. 03.17

The API related files

API has consisted as below;

- BarcodeDeclaration.java

- IBarcodeInterface.aidl

BarcodeDeclaration.java

This is declaration files related to return value and parameter. Below is meaning of each declaration in the file;

 BARCODE_RESULT: API return value  RECEIVE_TYPE: Receiving method for decoded data  SCAN_NOTIFICATION: Determine how to notification when decoding barcode  DELAY_MODE: Determine the speed of data transmission when keyboard event mode  SYMBOLOGY_IDENT: It changes the broadcasted

Symbology ident integer

to actual data

 SYMBOLOGY_ENABLE: It determines usability for a specific symbology

Please refer below table for return values and parameters of each declaration

Declaration

Type

Related APIs

Values

Applied Version

Value

Description

BARCODE_RESULT

Return Value

All APIs

RESULT_SUCEESS

Success

1.0.11

RESULT_UNKNOWN

Unknown result

1.0.11

RESULT_NOT_YET_IMPLEMENT

Unimplemented API

1.0.11

RESULT_NOT_SUPPORT

Not supporting in this version

1.0.11

RESULT_OPENED

You are trying to open again, even while it has been open already

1.0.11 RESULT_CLOSED

You are trying to close again, even while it has been closed

1.0.11

DS5-AX User Manual Ver.0 2016. 03.17

already

RESULT_OPEN_FAIL

Barcode scanner open fail

1.0.11

RESULT_NOT_ON_SCANNING

Do not use anymore

1.0.11

RESULT_SCAN_DISABLE

Scanning disable status

1.0.11

RESULT_DRIVER_ERROR

Error in barcode driver layer

1.0.11

RECEIVE_TYPE

Parameter Value

ㆍvoid SetRecvType(int nRecvType) ㆍint GetRecvType()

INTENT_EVENT

It is receiving data with INTENT method. Regarding Action Name and Extra Value of the specific INTENT, please refer below;

ㆍGetIntentName()

ㆍGetIntentBarcodeData() ㆍGetIntentSymData()

1.0.11

KEYBOARD_EVENT

Print decoding data typing with virtual keyboard

1.0.11

CLIPBOARD_EVENT

After putting the decoded data in Clipboard, print it using Menu + V key

1.0.11

SCAN_NOTIFICATION

Parameter Value

ㆍInt GetScanSuccessNoti() ㆍvoid SetScanSuccessNoti(int nNoti) ㆍint GetScanFailNoti() ㆍvoid SetScanFailNoti(int nNoti)

NOTI_MUTE

No sound

1.0.11

NOTI_SOUND

Sound

1.0.11

NOTI_VIB

Vibration

1.0.11

NOTI_SOUND_VIB

Sound and vibration

1.0.11

DELAY_MODE

Parameter Value

ㆍint GetDelayMode() ㆍvoid SetDelayMode(int nMode) ㆍint GetCustomDelayTime() ㆍvoid SetCustomDelayTime(int

nDelayTime) ㆍint GetDelayTime()

DELAYMODE_NONE

0 sec

1.0.11

DELAYMODE_SLOWLY

0.1 sec

1.0.11

DELAYMODE_NORMAL

0.01 sec

1.0.11

DELAYMODE_FAST

0.001 sec

1.0.11

DELAYMODE_USER_DEFINITION

User programmable option

1.0.11

SYMBOLOGY_IDENT

Symbology identity

ㆍBroadcastReceiver (@Override public void onReceive(Context context, Intent intent)

Please refer BarcodeDeclaration.java file

1.0.11

SYMBOLOGY_ENABLE

Parameter Value

ㆍboolean SE4750_SetSymbologyEnable(int nIdent,boolean bEnable)

Please refer BarcodeDeclaration.java file

1.0.11

DS5-AX User Manual Ver.0 2016. 03.17

IBarcodeInterface.aidl

These files are to communicate with barcode service

Name

Description of function

Parameter

Return Value

User Accessibility

Version

Open()

It activates barcode scanner module

None

Int (BARCODE_RESULT)

1.0.11

Close()

It deactivates barcode scanner module

None

Int (BARCODE_RESULT)

1.0.11

IsBarcodeOpened()

It is to check activation status of barcode scanner module

None

boolean

√

1.0.11

ScanStart()

It starts barcode scanning

None

Int (BARCODE_RESULT)

√

1.0.11

ScanStop()

It stops barcode scanning

None

Int (BARCODE_RESULT)

√

1.0.11

IsScanEnable()

It is to check usability of barcode scanning

None

boolean

√

1.0.11

SetScanEnable(booleanbEnable)

It is to set to enable/disable scanning

boolean bEnable

void √ 1.0.11

GetVersionInfo()

It brings version information of the scanner module

None

String √ 1.0.11

SetScanTimeout()

It is to set maximum term of reading per single trigging

float nTimeout

boolean

√

1.0.11

GetScanTimeout()

It is to get maximum term of reading per single trigging

None

float √ 1.0.11

GetRecvType()

It determines how to receive decoded data between Intent, keyboard, or clipboard methods

None

Int (RECEIVE_TYPE)

√

1.0.11

SetRecvType(int nRecvType)

it is to check how to receive decoded data between Intent, keyboard, and clipboard methods

int nRecvType

void √ 1.0.11

SetPrefix1(String strPrefix1)

It determines value of the first prefix in KEYBOARD_EVENT, or CLIPBOARD_EVENT

String strPrefix1

boolean

1.0.11

GetPrefix1()

It is to check value of the first prefix in KEYBOARD_EVENT, or CLIPBOARD_EVENT

None

String 1.0.11

SetPrefix2(String strPrefix2)

It determines value of the second prefix in KEYBOARD_EVENT, or CLIPBOARD_EVENT

String strPrefix2

boolean

1.0.11

GetPrefix2()

It is to check value of the second prefix in KEYBOARD_EVENT, or CLIPBOARD_EVENT

None

String 1.0.11

SetSuffix1(String strSuffix1)

It determines value of the first suffix in KEYBOARD_EVENT, or CLIPBOARD_EVENT

String strSuffix1

boolean

1.0.11

GetSuffix1()

It is to check value of the first suffix in KEYBOARD_EVENT, or CLIPBOARD_EVENT

None

String 1.0.11

SetSuffix2(String strSuffix2)

It determines value of the second suffix in KEYBOARD_EVENT, or CLIPBOARD_EVENT

String strSuffix2

It is available for only 1 character.

boolean

1.0.11

DS5-AX User Manual Ver.0 2016. 03.17

Example:

“A” “a” “B” “b”

Exception:

EMPTY: “EMPTY” TAB: “TAB” ENTER: “ENTER” SPACE: “SPACE”

GetSuffix2()

It is to check value of the second suffix in KEYBOARD_EVENT, or CLIPBOARD_EVENT

None

String 1.0.11

GetEnableKeyupStop()

It is to determine scan stop, or maintain until time out after release scanner trigger. If you set to true, it stops immediately. If false, it maintains until time out

None

Boolean

1.0.11

SetEnableKeyupStop(boolean bSetEnableKeyupStop)

It is to determine scan stop, or maintain until time out after release scanner trigger. If you set to true, it stops immediately. If false, it maintains until time out

boolean bSetEnableKeyupStop

void 1.0.11

GetMultiScan()

It gets choice of multi scanning availability

void

Boolean

1.0.11

SetMultiScan(boolean bEnable)

It set choice of multi scanning availability

boolean bEnable

void 1.0.11

GetScanSuccessNoti()

It gets what kind of alarm event when scanning succeed

void

Int (SCAN_NOTIFICATION)

√

1.0.11

SetScanSuccessNoti(int nNoti)

It set what kind of alarm event when scanning succeed

int nNoti

void √ 1.0.11

GetScanFailNoti()

It gets what kind of alarm event when scanning fail

void

Int (SCAN_NOTIFICATION)

√

1.0.11

SetScanFailNoti(int nNoti)

It set what kind of alarm event when scanning fail

int nNoti

void √ 1.0.11

GetDelayMode()

It gets Delay Mode

void

Int (DELAY_MODE)

√

1.0.11

SetDelayMode(int nMode)

It sets Delay Mode

int nMode

void 1.0.11

GetCustomDelayTime()

It gets Delay Time for user customized delay

void

Int 1.0.11

SetCustomDelayTime(int nDelayTime)

It set Delay Time for user customized delay

int nDelayTime

void 1.0.11 GetDelayTime()

It gets current Delay Time

void

Int 1.0.11

GetIntentName()

It gets Action Name of broadcast when Intent Event Default value: “app.dsic.barcodetray.BARCODE_BR_DECODING_DATA”

void

String √ 1.0.11 SetIntentName(String

It is to set Action Name of broadcast when Intent Event

String IntentName

void √ 1.0.11

DS5-AX User Manual Ver.0 2016. 03.17

IntentName)

GetIntentBarcodeData()

It gets Action Name of broadcast when Intent Event. Default value: “EXTRA_BARCODE_DECODED_DATA”

Void

String √

SetIntentBarcodeData(String BarcodeData)

It is to set Barcode Data Name when Intent Event

String BarcodeData

void √

GetIntentSymData()

It gets name of barcode symbology data of broadcast when Intent event Default value: “EXTRA_BARCODE_DECODED_SYMBOLE”

Void

String √

SetIntentSymData(String SymData)

It set barcode symbology name of broadcast when Intent Event

String SymData

void √ GetDecodingCharset()

It gets the used charset when decoding

Void

String √

SetDecodingCharset(String strCharset)

It sets using Character Set when decoding

SetDecodingCharset(String

strCharset)

boolean

√

GetURLDirection()

It get the choice to view with internet browser when barcode has included URL

Void

boolean

SetURLDirection(boolean bEnable)

It determines to show with internet browser when barcode has included URL

boolean bEnable

boolean SetAllSymbologyEnable()

It is enabling all types of barcode symbologies

None

Void √

SetAllSymbologyDisable()

It is disabling all types of barcode symbologies

None

Void √

SetSymbologyEnable(int nIdentifier,boolean bEnable)

It is enabling/ disabling for specific barcode symbologies

int nIdent * SYMBOLOGY_IDENT

Boolean

√

boolean bEnable * Scanning availability

Available character set: IBM00858, IBM437, IBM775, IB M850, IBM852, IBM855, IBM857, IBM862, IBM866, ISO-8859-1, ISO-8859-2, ISO-8859-4, ISO-8859-5, ISO-8859-7, ISO-8859-9, ISO-8859-13, ISO-8859-15,

KOI8-R,KOI8-U, US-ASCII, UTF-8, UTF-16, UTF-16BE, UTF-16LE, UTF-32, UTF-32BE, UTF-32LE, x-UTF-32BE-BOM, x-UTF-32LE-BOM, windows-1250, windows-1251, windows-1252, windows-1253, windows-1254, windows-1257, x-IBM737, x-IBM874, x-UTF-16LE-BOM, Big5, Big5-HKSCS, EUC-JP, EUC-KR, GB18030, GB2312, GB K, IBM-Thai, IBM01140, IBM01141, IBM01142, IBM01143, IBM01144, IBM01145, IBM01146, IBM01147, IBM01148, IBM01149, IBM037, IBM1026, IBM1047, IBM273, IBM277, IBM278, IBM280, IBM284, IBM285, IBM297, IBM420, IBM424, IB M500, IBM860, IBM861, IBM863, IBM864, IBM865, IBM868, IB M869, IBM870, IBM871, IBM918, ISO-2022-CN, ISO-2022-JP, ISO-2022-KR, ISO-8859-3, ISO-8859-6, ISO-8859-8, JIS_X0201, JIS_X0212-1990, Shift_JIS, TIS-620, windows-1255, windows-1256, windows-1258, windows-31j, x-Big5Solaris, x-euc-jp-linux, x-EUC-TW, x-euc JP-Open, x-IBM1006, x-IBM1025, windows-1258, windows-31j, x-Big5-Solaris, x-eu c-jp-linux, x-EUC-TW, x-eucJP-Open, x-IB M1006, x-IBM1025, x-IBM1046, x-IBM1097, xIBM1098, x-IBM1112, x-IBM1122, x-IBM1123, x-IBM1124, x-IBM1381, x-IBM1383, x-IBM33722, x-IBM834, x-IBM856, x-IBM875, x-IBM921, x-IBM922, x-IBM930, x-IB M933, x-IBM935, x-IBM937, x-IBM939, x-IBM942, xIBM942C, x-IBM943, x-IBM943C, x-IBM948, x-IBM949, x-IBM949C, x-IBM950, x-IBM964, x-IBM970, x-ISCII91, x-ISO2022-CN-CNS, x-ISO2022-CN-GB, x-iso-8859-11, x-JIS0208, x-JISAutoDetect, x-Johab, x-MacArabic, x-MacCentralEurope, x-MacCroatian, x-MacCyrillic, x-MacDingbat, x-MacGreek, x- MacHebrew, x-MacIceland, x-MacRoman, x-MacRomania, x-MacSymbol, x-MacThai, x-MacTurkish, x-MacUkraine, x-MS950-HKSCS, xmswin-936, x-PCK, x-SJIS_0213, x-windows-50220, x-windows-50221, x-windows-874, x-windows-949, UTx-windows-950, x-windows-iso2022jp

DS5-AX User Manual Ver.0 2016. 03.17

KIOSK MODE

Kiosk mode is enabling to lock down unwanted device misuse. It is to control which application and device features can be used by user such as blocking access to games, social media apps and etc. When you allow access to business application apps, KIOSK MODE will ensure that the user can not access anything other than those allowed application.

Select Settings > Kiosk Mode > Enable Kiosk Mode > Input Admin Password: default “374254675”

After enter Kiosk Mode, select necessary applications from Kiosk App List as below. Then touch Start

DS5-AX User Manual Ver.0 2016. 03.17

To return Kiosk App List, touch key icon on top of the screen.

Password change

Input new password more than 4 characters

DS5-AX User Manual Ver.0 2016. 03.17

Notification clear

Setting Background

Select Menu > Background > Wall pager image

DS5-AX User Manual Ver.0 2016. 03.17

Admin Setting

Select Admin Setting to export KIOSK setting information of the device by email, or xml file, such as allowed APP List, KIOSK On, KISOK Off and new password. If you want to assign special email account, then select Receive Email.

To check the exported file, go File Manager > DSIC > kiosk >

DS5-AX User Manual Ver.0 2016. 03.17

KIOSK and eZGo Export your KIOSK setting information of the device and transfer by email, or xml file to generate with QR code. Activate eZGo application, and scan the QR code to simply set another device’s KIOSK MODE.

DS5-AX User Manual Ver.0 2016. 03.17

eZGo

The eZGo is a utility to make enrollment quickly and easily with simple scanning QR code. You can create a configuration profile containing various settings into your barcode, then simply scan it with your device and deploy the profiles, such as;

- Set Wi-Fi configuration and connect to your network

- Download files from HTTP servers

- Admin settings of KIOSK MODE

Create your QR CODE QR CODE Command

- Commands are classified by ; (semi colon)

- If you need to input data into your command, use : (colon)

- Use lower case (Small letter) to all commands

Function

Command

Parameter

Description

Start

{

Start of command

Wi-Fi

won

Wi-Fi On

wof

Wi-Fi Off

apc

SSID

Set Wi-Fi SSID

Password

Set password of the SSID

Server address

udl

Server address

Download APK files from URL. http is available

KIOSK MODE

kon

KIOSK MODE On

kof

KIOSK MODE Off

kpw

Change password of KIOSK MODE

Reset

frs

Factory reset

srs

Soft reset

Barcode

bes

Barcode type

Barcode enabling setting. It is supporting only EAN13, EAN8, ITF code types

True

Enabling the barcode type

False

Disabling the barcode type

End

}

End of command

☞ KIOSK MODE parameter is able to set using a device, then export the information with encrypted data file by email, or xml file.

DS5-AX User Manual Ver.0 2016. 03.17

- Example 1) Wi-Fi on and setting SSID / Password

SSID: dsic Password: dsic1234

{won;apc:dsic,dsic1234}

- Example 2) if your APK files are in www.dsic.co.kr, and you want to download them

and install on your device using above Wi-Fi connection,

{udl:http://www.dsic.co.kr}

- Example 3) Enabling EAN 13, and EAN 8 barcode decoding only. And ITF barcode

disabling {bes:ean13,true;bes:ean8,true,bes:itf,false}

Device Administration

Go Settings > Security > Device administrators > XXXXX (Your application) > Activate

You use the Device Administration API to write device admin applications that users install on their devices. The device admin application enforces the desired policies. Here's how it works:

- A system administrator writes a device admin application that enforces remote/local

device security policies. These policies could be hard-coded into the app, or the application could dynamically fetch policies from a third-party server.

- The application is installed on users' devices. Android does not currently have an

automated provisioning solution. Some of the ways a sysadmin might distribute the application to users are as follows:

 Google Play (Not supported in DS5-AX)  Enabling installation from another store  Enabling installation from another store

- The system prompts the user to enable the device admin application. How and

when this happens depends on how the application is implemented.

- Once users enable the device admin application, they are subject to its policies.

Complying with those policies typically confers benefits, such as access to sensitive systems and data.

For more information, please refer below link

http://developer.android.com/guide/topics/admin/device-admin.html

DS5-AX User Manual Ver.0 2016. 03.17

User Manual for DS5-AX September 2015 75

Appendix Ⅰ Key Strokes

DS5 series inter-changeable different types of keyboards in simple manual way. Following tables are how to make key character entry using keypads. Characters are not mentioned at this key stroke sequence, it is also available in Soft Input Panel (SIP)

- 38-key Descriptions

- 54-key Descriptions

- DS5 and DS5 wide Alphanumeric Characters

- DS5 and DS5 wide Special Functions

DS5-AX 34 Key Descriptions

34K-key has Alpha and numeric input in a key. Also, programmable keys are available using function keys from up to F1~F10

Key

Description

Power

Turns on the terminal and off.

Back

Opens the previous screen you were working in, even if it was in a different app. Once you back up to the Home screen, you can’t go back any further.

Menus

Many screens in apps and Settings include either a menu icon or items in the permanent Menu button at the bottom of the screen. Touch it to explore additional options, including help.

Scan Trigger

Scanning button barcode scanner, or RFID

ESC

Escape the current operation

Enter

Execute selected item or function

Move Left/Right

Moves left and right. With blue modifier on. it can adjust LCD back light levels

Move Up/Down

Moves page, or items lists up and down. With blue modifier, it can adjust volume level

Alphanumeric

Input numeric in default. With orange modifier, it can switch numeric to alphabet character input

Tab/Back Tab

Tabulator key which is used to advance the cursor to the next tab stop. With Orange modifier on, the function switch to back tab.

DS5-AX User Manual Ver.0 2016. 03.17

User Manual for DS5-AX September 2015 76

Shift

It is modifier key which is used to type capital letters and other alternative upper characters.

Control

It is modifier key which, when pressed in conjunction with another key, performs a special operation, for example Ctrl+C. similar to the Shift key. Pressing Blue modifier key, the function change to Alt key

Space/ Back Space

Space: its main purpose is to conveniently enter a space. Back Space: it moves the display cursor one position backwards, delete the character at that position. And shift back the text after that position by one position.

Function

Programmable key buttons. Default F1~F5, press blue modifier key for F6~F10

Orange Modifier

Function key to input Alphabet. Pressing 1 time is to apply single effect and back to default. Press 2 times to keep the function continuously.

Blue Modifier

Function key to execute special function, or special characters. Press 1 time is to apply single effect and press 2 times to keep its function continuously.

Home

It opens central Home screen.

DS5-AX 54 Key Description

54 key has full alpha-numeric key board. Programmable keys are able to be assigned from F1 to F20 using modifier keys.

Key

Description

Power

Turns on the terminal and off.

Back

Opens the previous screen you were working in, even if it was in a different app. Once you back up to the Home screen, you can’t go back any further.

Menus

Many screens in apps and Settings include either a menu icon or items in the permanent Menu button at the bottom of the screen. Touch it to explore additional options, including help.

Scan Trigger

Scanning button barcode scanner, or RFID

ESC

Exit the current operation

Tab Tabulator key which is used to advance the cursor to the next tab stop. With Orange modifier on, the function switch to back tab.

DS5-AX User Manual Ver.0 2016. 03.17

User Manual for DS5-AX September 2015 77

Enter

Execute selected item or function

Move Left/Right

Moves left and right. With blue modifier on. it can adjust LCD back light levels

Page Up/Down

Moves page, or items lists up and down. With blue modifier, it can adjust volume level

Numeric

Input numeric. Execute preset function, or application by your IT desk, press blue modifier for F1~F10 and orange modifier for F11 ~ F20

Alphabet

Input alphabet. Default is lower characters. Press SHIFT to input upper characters.

Shift

It is modifier key which is used to type capital letters and other alternative upper characters.

Control

Back Space

It moves the display cursor one position backwards, delete the character at that position. And shift back the text after that position by one position. Press Blue modifier for Space function.

Modifier (Orange)

Function key to access F11 ~F20

Modifier (Blue)

Function key to access F1~F10 and special characters and features Home

It opens central Home screen.

DS5-AX Alphanumeric Characters

Character

Numeric Keypad

Full Alpha Numeric Keypad

b c d e

DS5-AX User Manual Ver.0 2016. 03.17

User Manual for DS5-AX September 2015 78

K L

N O P

DS5-AX User Manual Ver.0 2016. 03.17

User Manual for DS5-AX September 2015 79

DS5-AX Special Functions

Character

Numeric Keypad

Full Alpha Numeric Keypad

Decimal/Full stop

Plus

Hyphen/Minus

Asterisk

Slash(Punctuatio

Number Sign

Start Menu

Equals

Less-than

DS5-AX User Manual Ver.0 2016. 03.17

User Manual for DS5-AX September 2015 80

Greater-than

Colon

;

Semicolon

Comma

Question

Dollar

Percent

Caret

Ampersand

‘

Apostrophe

“

Quotation

(

Parentheses

)

Parentheses

Vertical bar

Tilde

Exclamation

DS5-AX User Manual Ver.0 2016. 03.17

User Manual for DS5-AX September 2015 81

DSIC DS5-AX, DS9 series User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
