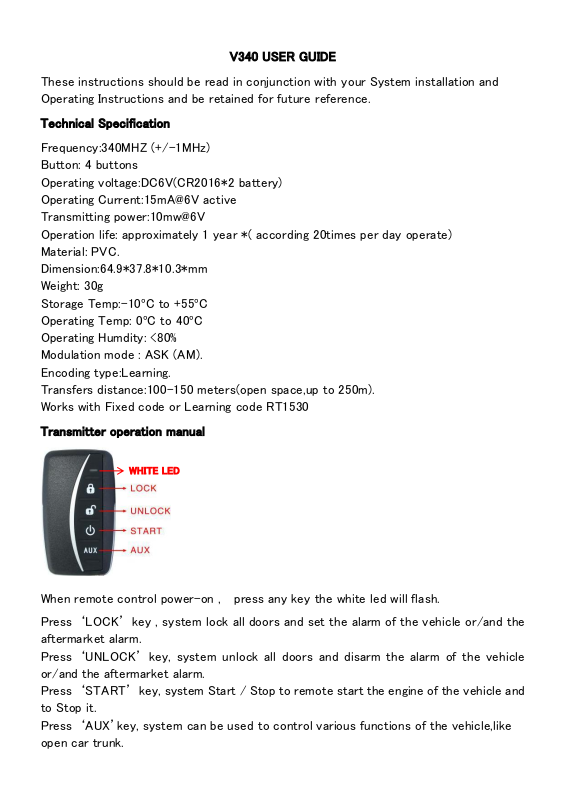

V340 USER GUIDE
WHITE LED
These instructions should be read in conjunction with your System installation and
Operating Instructions and be retained for future reference.
Technical Specification
Frequency:340MHZ (+/-1MHz)
Button: 4 buttons
Operating voltage:DC6V(CR2016*2 battery)
Operating Current:15mA@6V active
Transmitting power:10mw@6V
Operation life: approximately 1 year *( according 20times per day operate)
Material: PVC.
Dimension:64.9*37.8*10.3*mm
Weight: 30g
Storage Temp:-10ºC to +55ºC
Operating Temp: 0ºC to 40ºC
Operating Humdity: <80%
Modulation mode : ASK (AM).
Encoding type:Learning.
Transfers distance:100-150 meters(open space,up to 250m).
Works with Fixed code or Learning code RT1530
Transmitter operation manual
When remote control power-on , press any key the white led will flash.
Press ‘LOCK’ key , system lock all doors and set the alarm of the vehicle or/and the
aftermarket alarm.
Press ‘UNLOCK’ key, system unlock all doors and disarm the alarm of the vehicle
or/and the aftermarket alarm.
Press ‘START’ key, system Start / Stop to remote start the engine of the vehicle and
to Stop it.
Press ‘AUX’key, system can be used to control various functions of the vehicle,like
open car trunk.
Change the battery
When press any key without white led flash, it means remote control out of
battery ,please change battery with two pcs CR2025.
Unfasten the screw
Find the finger point on the top left of the case
Open the case from the finger point with 2 fingers
After open the case the battery can be seen
This remote use 2 CR2016 button battery
The 2 CR2025 button battery are stacked up
Remove the battery
Put one new CR2025 in the battery socket
The battery + face down to the case
Another battery place on the first battery
Also the battery + face down to the case
Put the metal frame on the case
Put the chain on the frame
Close the case
Fasten the screw
FCC Warning
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
o Reorient or relocate the receiving antenna.
o Increase the separation between the equipment and receiver.
o Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
o Consult the dealer or an experienced radio/TV technician for help.
Caution: Any changes or modifications to this device not explicitly approved by manufacturer
could void your authority to operate this equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.
