DSE DSE5510 Operating Manual

COMPLEX SOLUTIONS MADE SIMPLE

DSEPOWER®

DEEP SEA ELECTRONICS PLC

DSE5510

AUTOSTART CONTROL MODULE

OPERATING MANUAL

http://bestgenerator.spb.ru/?page_id=6765

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 2

Deep Sea Electronics Plc Highfield House Hunmanby North Yorkshire YO14 0PH ENGLAND

Sales Tel: +44 (0) 1723 890099 Sales Fax: +44 (0) 1723 893303

E-mail: sales@Deepseaplc.com

Website: www.deepseaplc.com

DSE Model 5510 Control and Instrumentation System Operators Manual © Deep Sea Electronics Plc

All rights reserved. No part of this publication may be reproduced in any material form (including photocopying or storing in any medium by electronic means or other) without the written permission of the copyright holder except in accordance with the provisions of the Copyright, Designs and Patents Act 1988. Applications for the copyright holder’s written permission to reproduce any part of this publication should be addressed to Deep Sea Electronics Plc at the address above.

Any reference to trademarked product names used within this publication is owned by their respective companies.

Deep Sea Electronics Plc reserves the right to change the contents of this document without prior notice.

1 BIBLIOGRAPHY

1. IEEE Std C37.2-1996 IEEE Standard Electrical Power System Device Function Numbers and Contact Designations. Institute of Electrical and Electronics Engineers Inc. ISBN 1-55937-879-4

2. Diesel generator handbook. L.L.J.Mahon. ISBN 0-7506-1147-2

3. On-Site Power Generation. EGSA Education Committee. ISBN 0-9625949-3-8

http://bestgenerator.spb.ru/?page_id=6765

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 3

TABLE OF CONTENTS

Section Page

1 BIBLIOGRAPHY ........................................................................................... 2

2 INTRODUCTION ........................................................................................... 5

2.1 CLARIFICATION OF NOTATION USED WITHIN THIS PUBLICATION. .......................... 6

2.2 ICON DESCRIPTIONS ................................................................................................. 6

3 OPERATION................................................................................................. 7

3.1 CONTROL .................................................................................................................. 7

3.2 AUTOMATIC MODE OF OPERATION.......................................................................... 8

3.3 MANUAL OPERATION .............................................................................................. 11

4 PROTECTIONS .......................................................................................... 13

4.1 WARNINGS .............................................................................................................. 15

4.2 ANALOGUE PRE-ALARMS ....................................................................................... 19

4.3 SHUTDOWNS ........................................................................................................... 21

4.4 ELECTRICAL TRIPS ................................................................................................. 27

4.5 ROCOF / VECTOR SHIFT ......................................................................................... 30

5 DESCRIPTION OF CONTROLS .................................................................. 31

5.1 TYPICAL LCD DISPLAY SCREENS ........................................................................... 31

5.1.1 TYPICAL STATUS DISPLAY ............................................................................... 31

5.1.2 TYPICAL INSTRUMENT DISPLAY ....................................................................... 32

5.1.3 TYPICAL ALARM DISPLAY................................................................................. 32

5.1.4 TYPICAL EVENT DISPLAY ................................................................................. 33

5.2 VIEWING THE INSTRUMENT AND EVENT LOG PAGES ........................................... 34

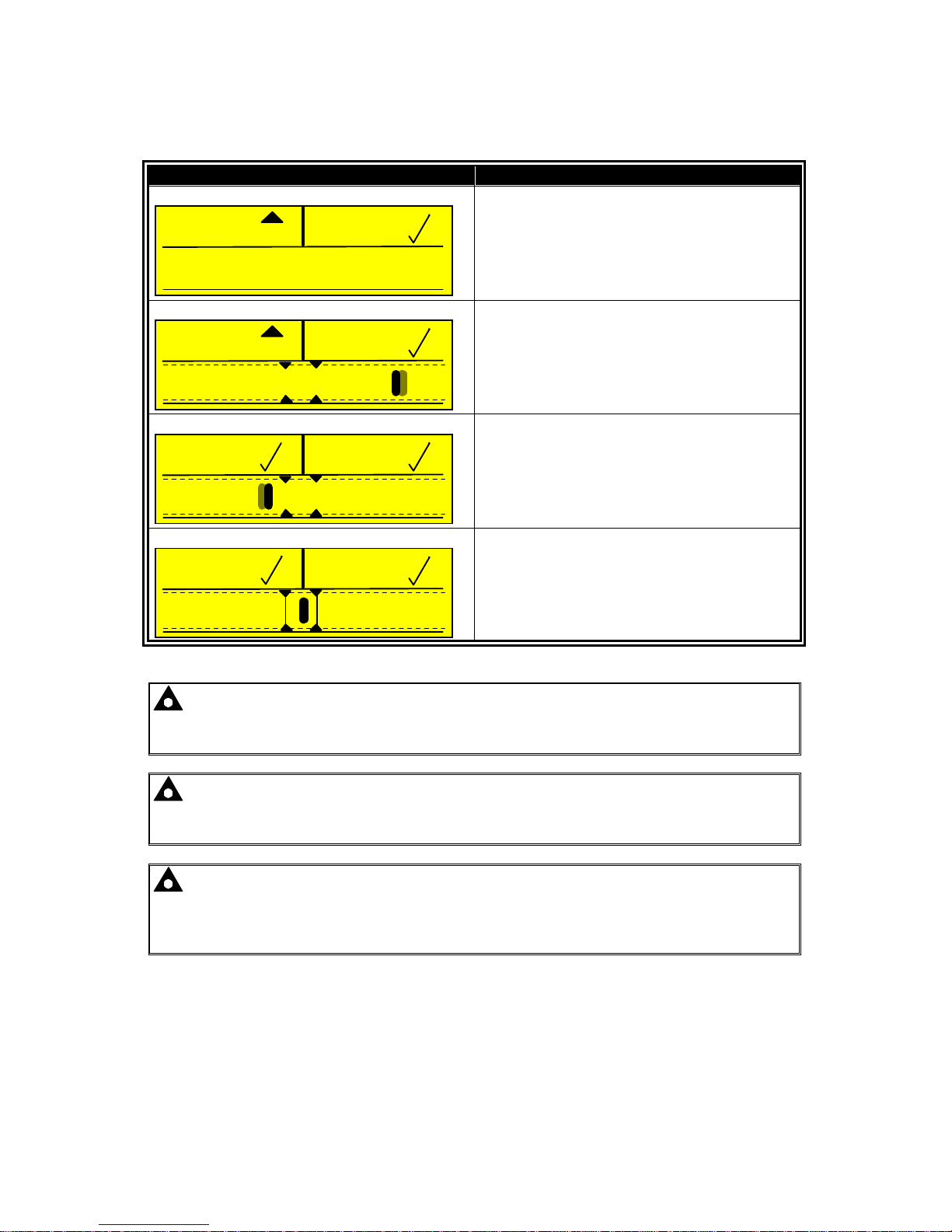

5.2.1 SYNCHROSCOPE OPERATION .......................................................................... 35

5.3 COMPLETE INSTRUMENTATION LIST ..................................................................... 36

5.3.1 BASIC INSTRUMENTATION ................................................................................ 36

5.3.2 ENHANCED ENGINE INSTRUMENTATION ........................................................... 36

5.4 ACCESSING THE FRONT PANEL CONFIGURATION EDITOR ................................... 37

5.4.1 ENTERING THE CONFIGURATION EDITOR PIN NUMBER ................................... 37

5.4.2 EDITING VALUES ............................................................................................... 38

5.4.3 LIST OF ADJUSTABLE PARAMETERS IN ‘MAIN CONFIGURATION EDITOR’ ....... 39

5.4.4 LIST OF ADJUSTABLE PARAMETERS IN ‘APPLICATION EDITOR’ ...................... 40

5.4.5 DISPLAY EDITOR .............................................................................................. 41

5.4.6 EDITING ‘DISPLAY EDITOR’ CONFIGURATION VALUES..................................... 41

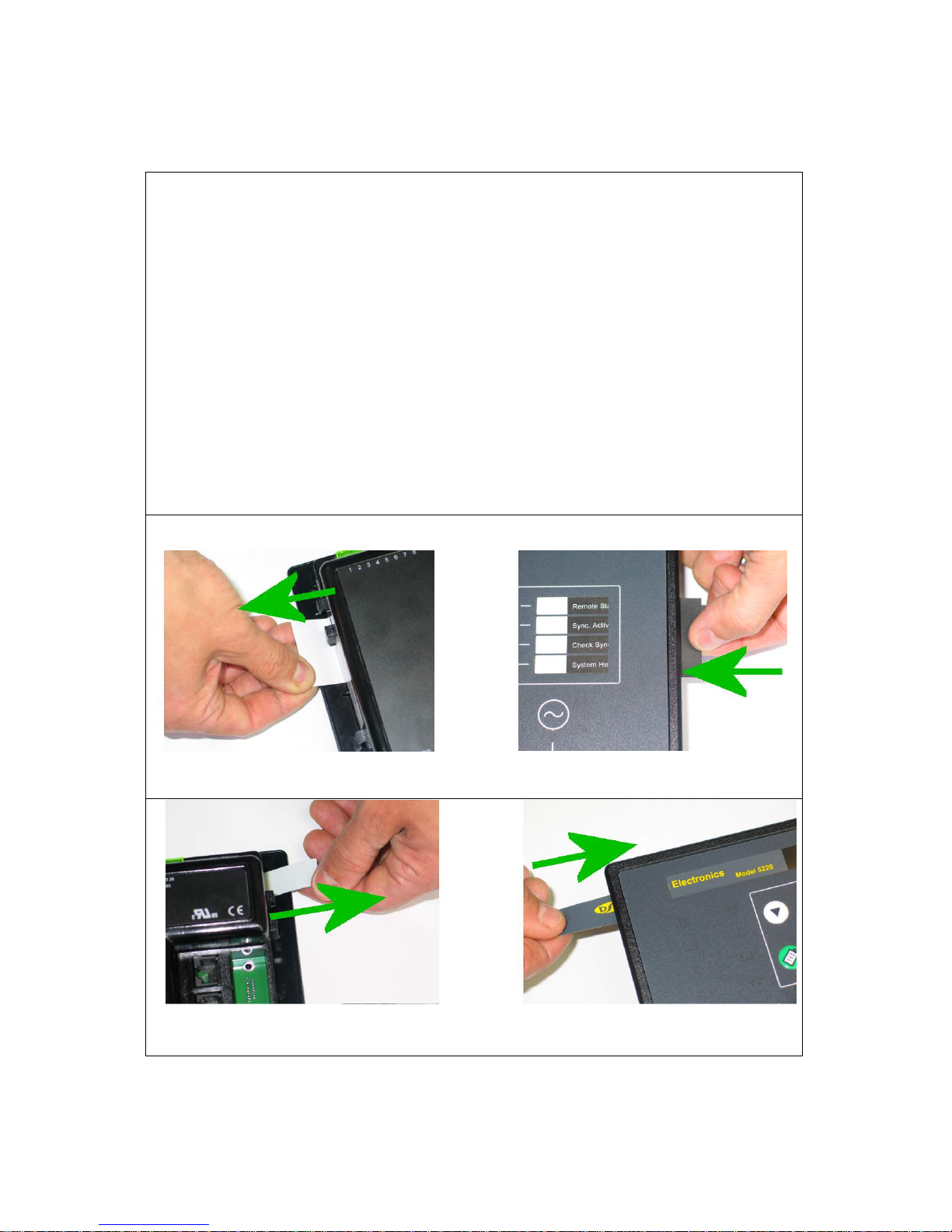

6 LED INDICATORS AND LOGO INSERT ..................................................... 43

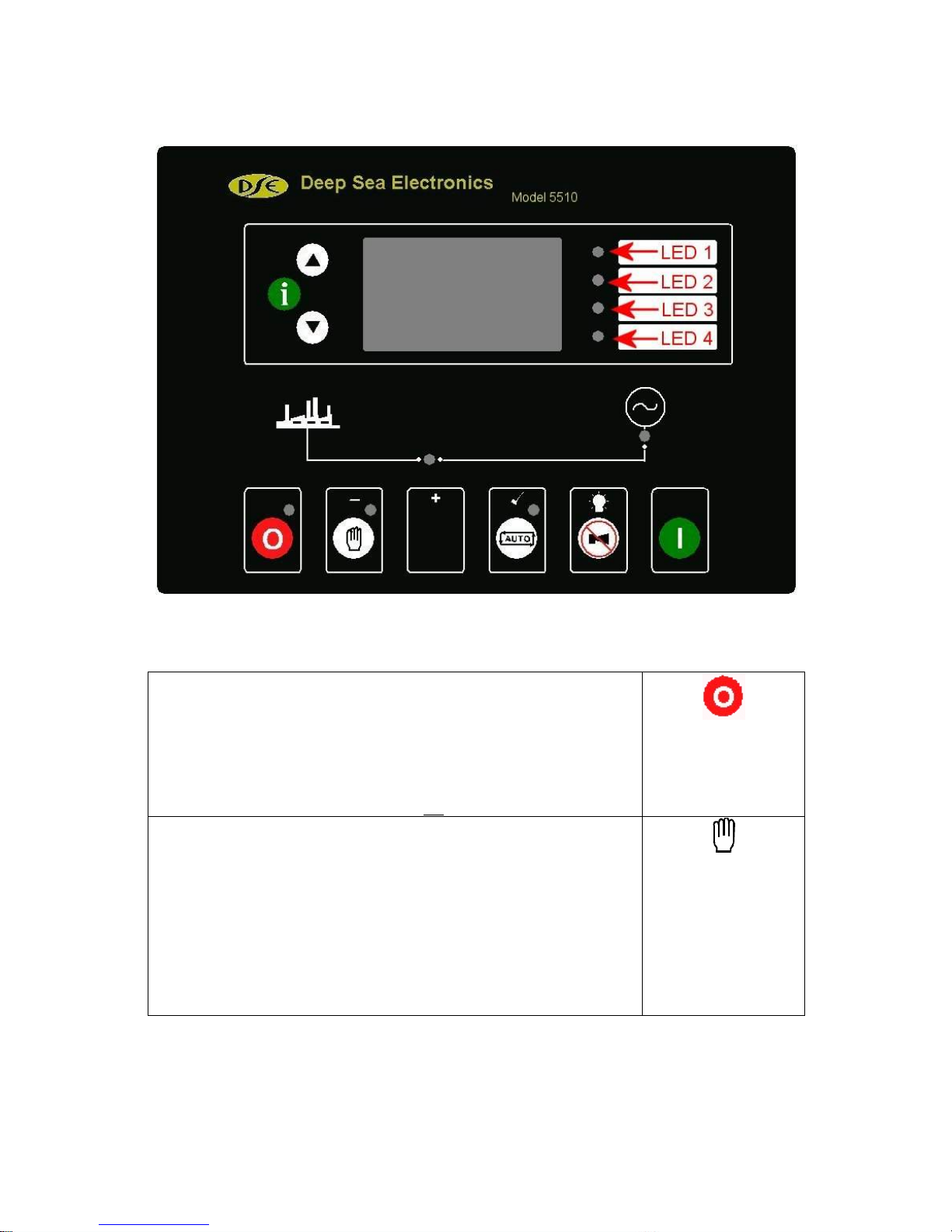

6.1 LED IDENTIFICATION AND FRONT PANEL LAYOUT ................................................ 44

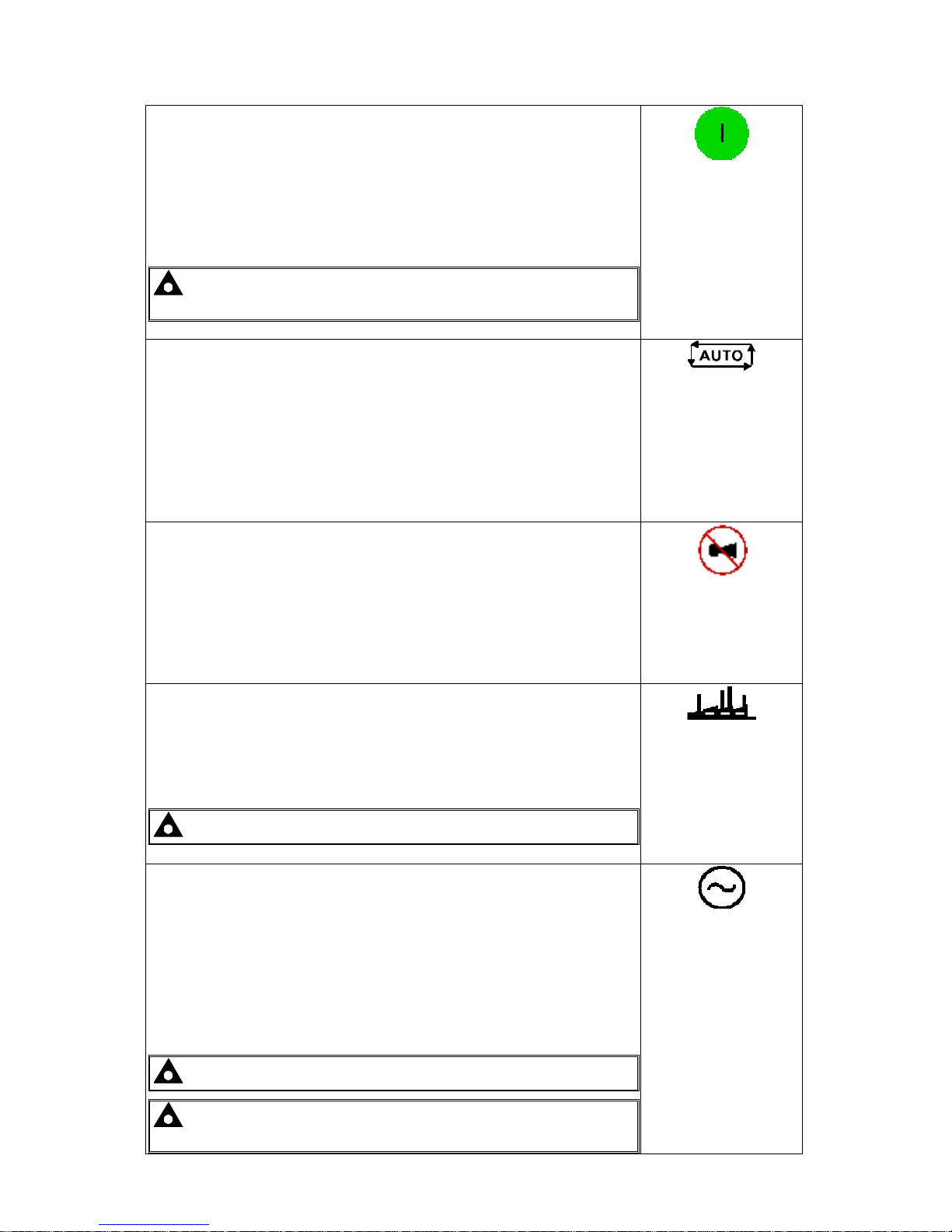

7 CONTROL PUSH-BUTTONS ...................................................................... 44

8 INSTALLATION INSTRUCTIONS ............................................................... 47

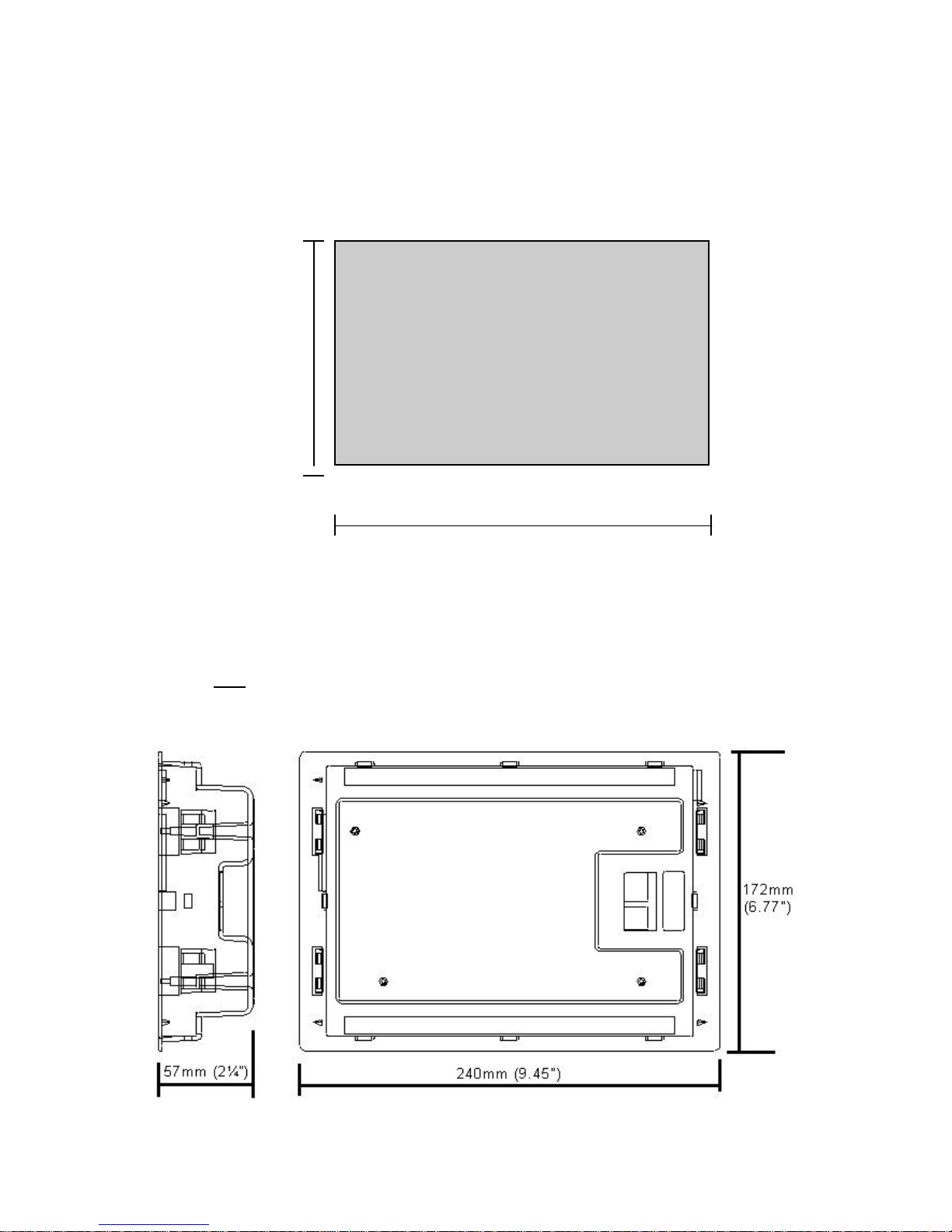

8.1 PANEL CUT-OUT ..................................................................................................... 47

8.2 COOLING ................................................................................................................. 47

8.3 UNIT DIMENSIONS ................................................................................................... 47

9 ELECTRICAL CONNECTIONS ................................................................... 48

9.1 CONNECTION DETAILS ........................................................................................... 48

9.1.1 PLUG “A” 8 WAY ................................................................................................ 48

9.1.2 PLUG “B” 11 WAY .............................................................................................. 48

9.1.3 PLUG “C” 9 WAY ................................................................................................ 49

9.1.4 PLUG “D” 3 WAY ................................................................................................ 49

9.1.5 PLUG “E” 5 WAY ................................................................................................ 49

9.1.6 PLUG “F” 8 WAY ................................................................................................ 50

9.1.7 PLUG “G” 4 WAY ............................................................................................... 50

http://bestgenerator.spb.ru/?page_id=6765

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 4

9.1.8 PLUG “H” 12 WAY.............................................................................................. 51

9.1.9 PC CONFIGURATION INTERFACE CONNECTOR ............................................... 51

9.1.10 EXPANSION INTERFACE CONNECTOR ............................................................. 51

9.2 CONNECTOR FUNCTION DETAILS .......................................................................... 52

9.2.1 PLUG “A” 8 WAY ............................................................................................... 52

9.2.2 PLUG “B” 11 WAY.............................................................................................. 52

9.2.3 PLUG “C” 9 WAY ............................................................................................... 53

9.2.4 PLUG “D” 3 WAY ............................................................................................... 53

9.2.5 PLUG “E” 5 WAY ............................................................................................... 53

9.2.6 PLUG “F” 8 WAY................................................................................................ 54

9.2.7 PLUG “G” 4 WAY ............................................................................................... 54

9.2.8 PLUG “H” 12 WAY.............................................................................................. 54

9.3 ENGINE CONTROL UNIT INTERFACE ...................................................................... 55

10 SPECIFICATION ...................................................................................... 56

11 COMMISSIONING .................................................................................... 58

11.1 BYPASSING ALARMS AT STARTUP ..................................................................... 59

11.2 COMMISSIONING SCREENS ................................................................................ 59

11.2.1 SCREEN 1 ......................................................................................................... 59

11.2.2 SCREEN 2 ......................................................................................................... 59

12 FAULT FINDING ...................................................................................... 60

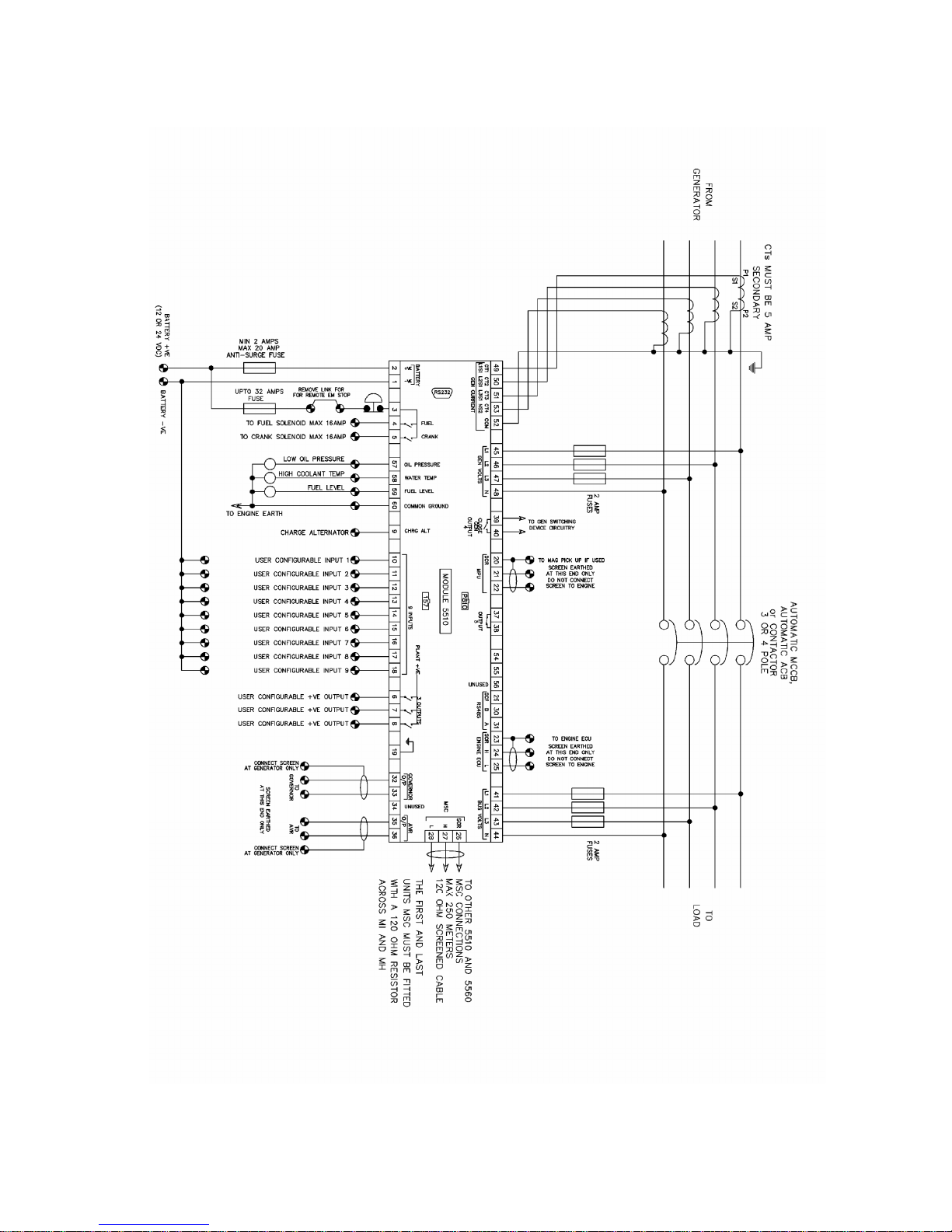

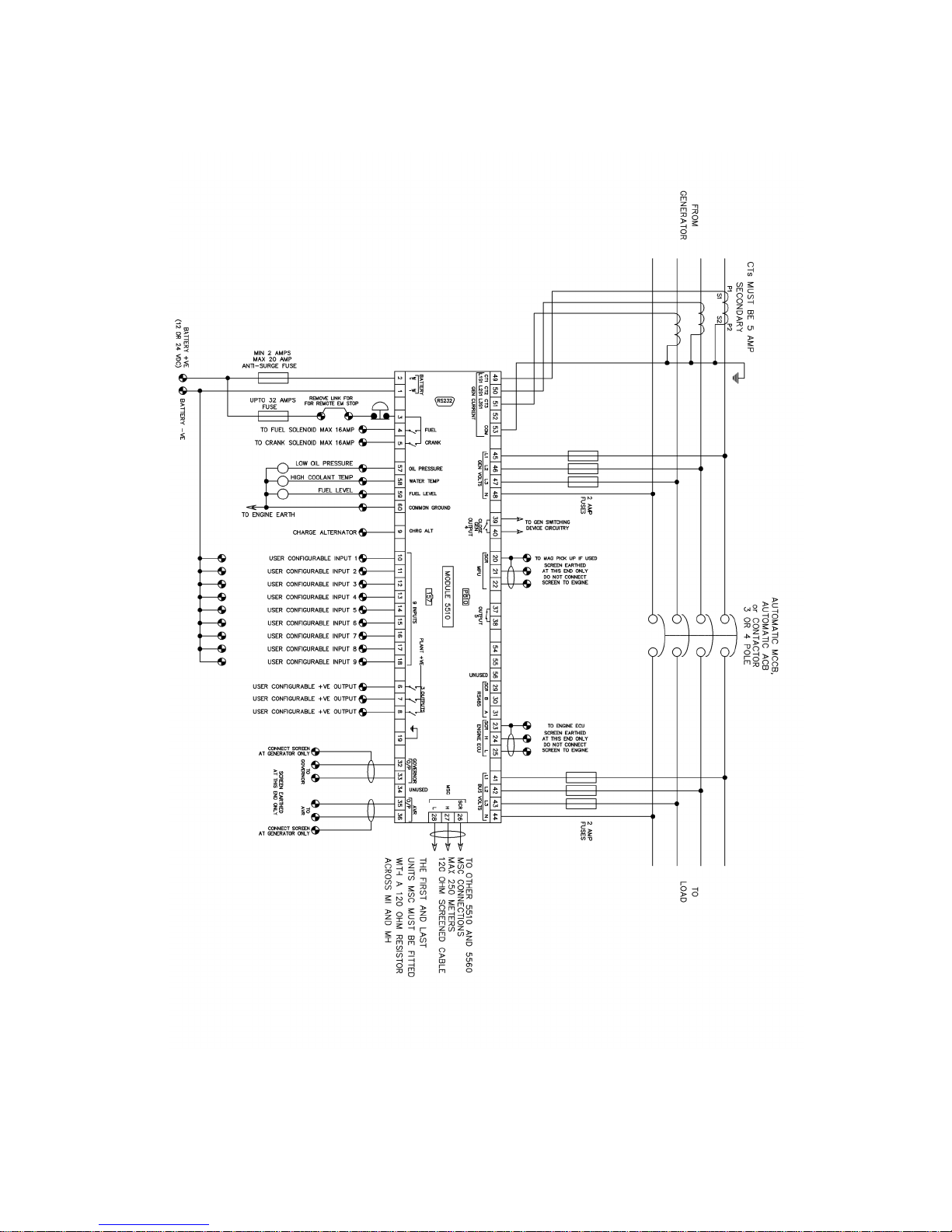

13 TYPICAL WIRING DIAGRAM................................................................... 61

13.1 CONNECTIONS FOR 3 CT SYSTEM ..................................................................... 61

13.2 CONNECTIONS FOR 4 CT SYSTEM ..................................................................... 62

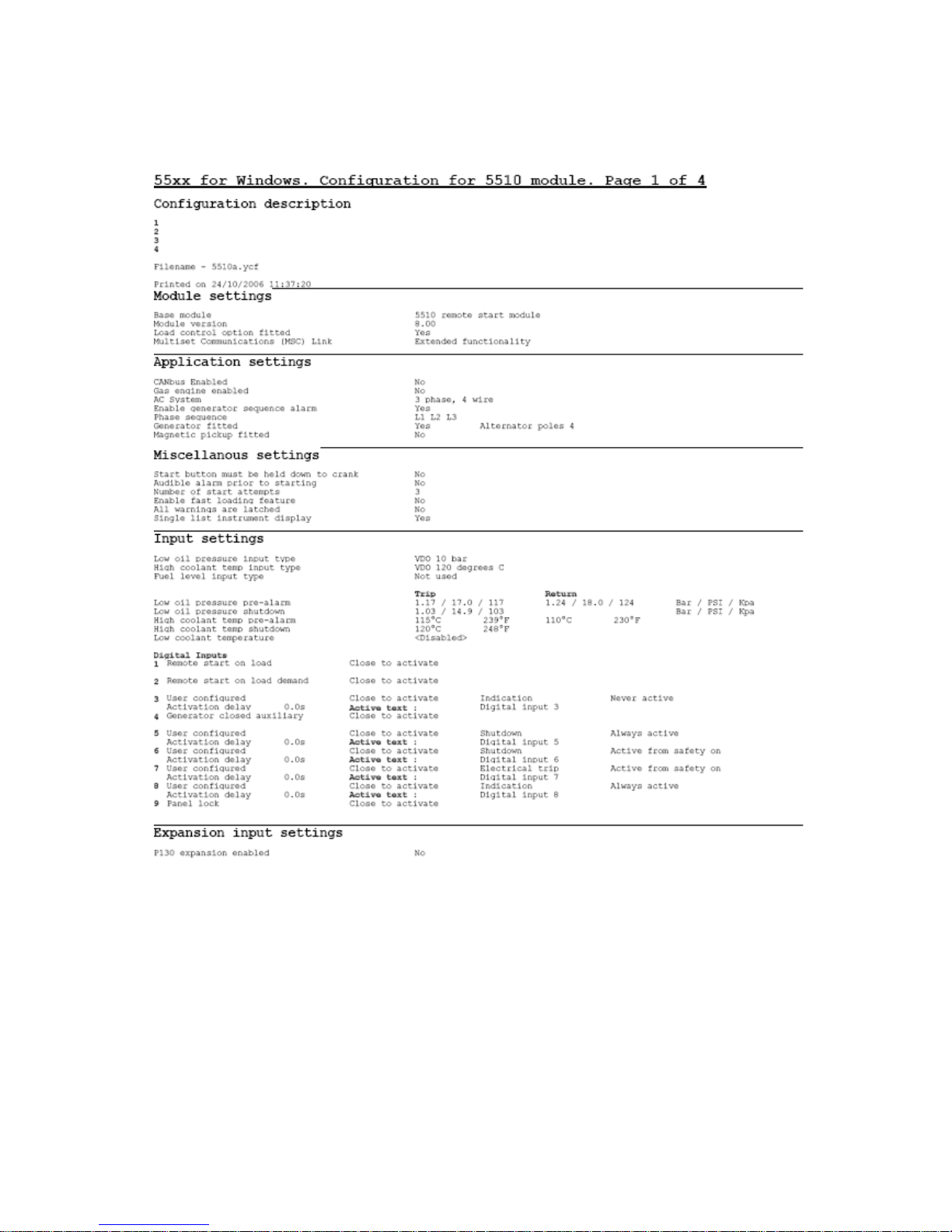

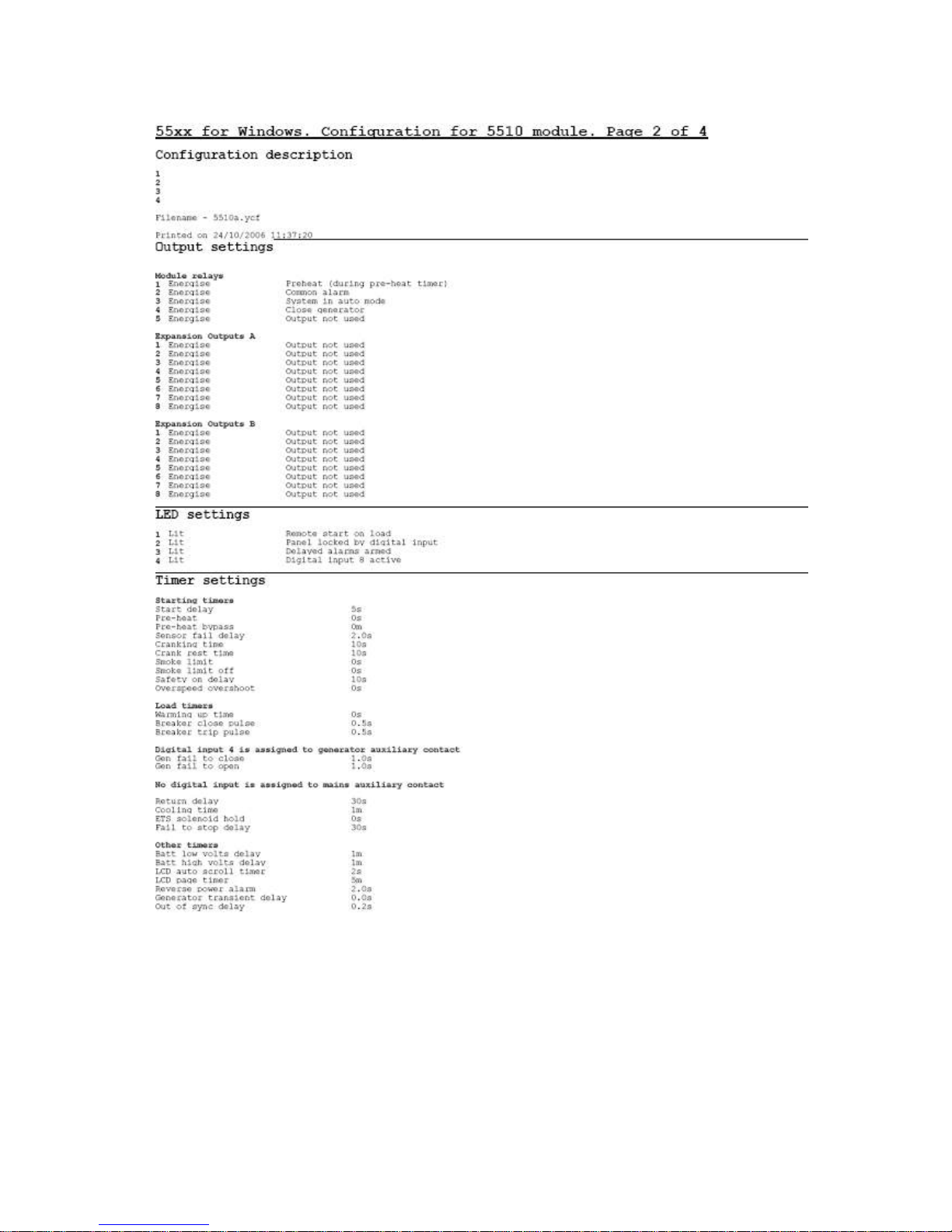

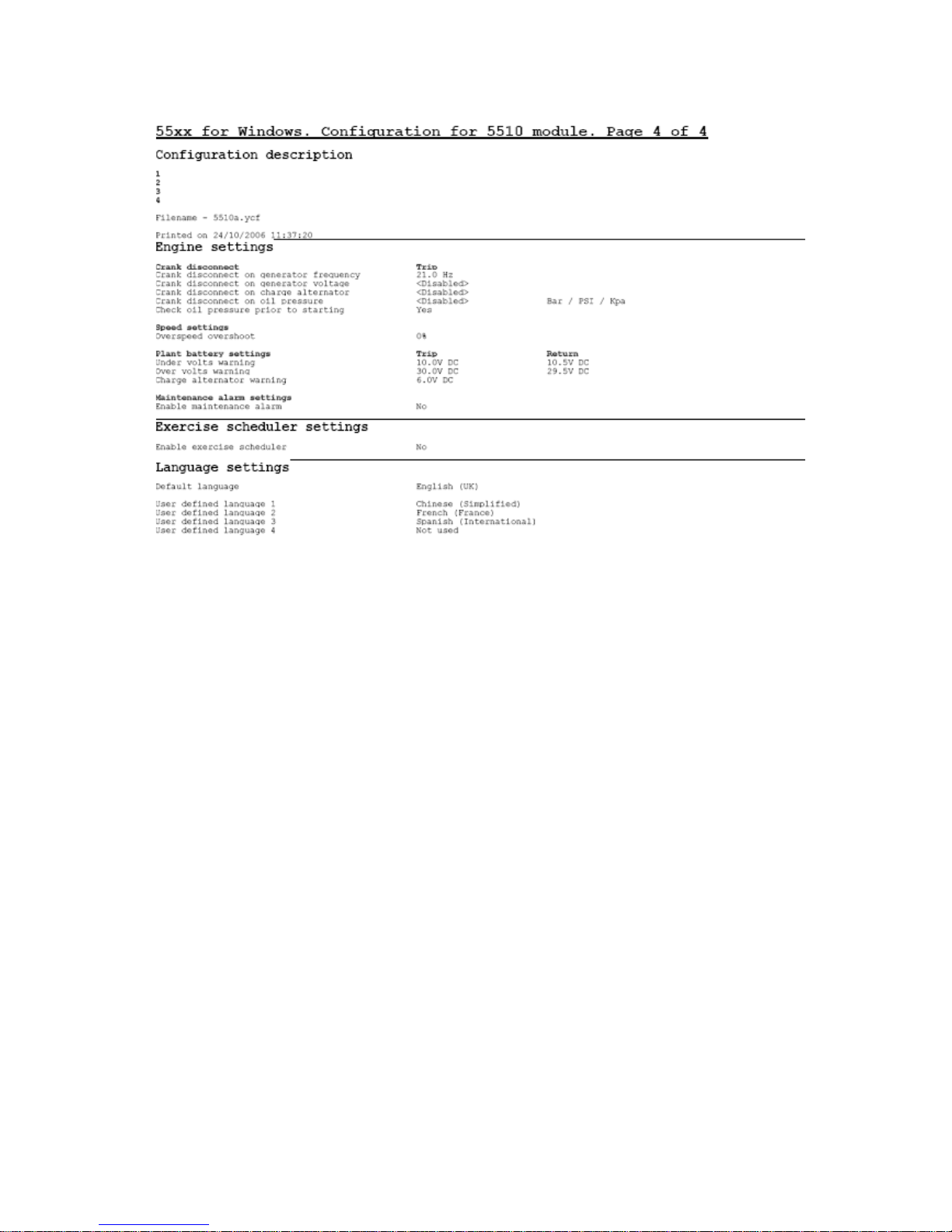

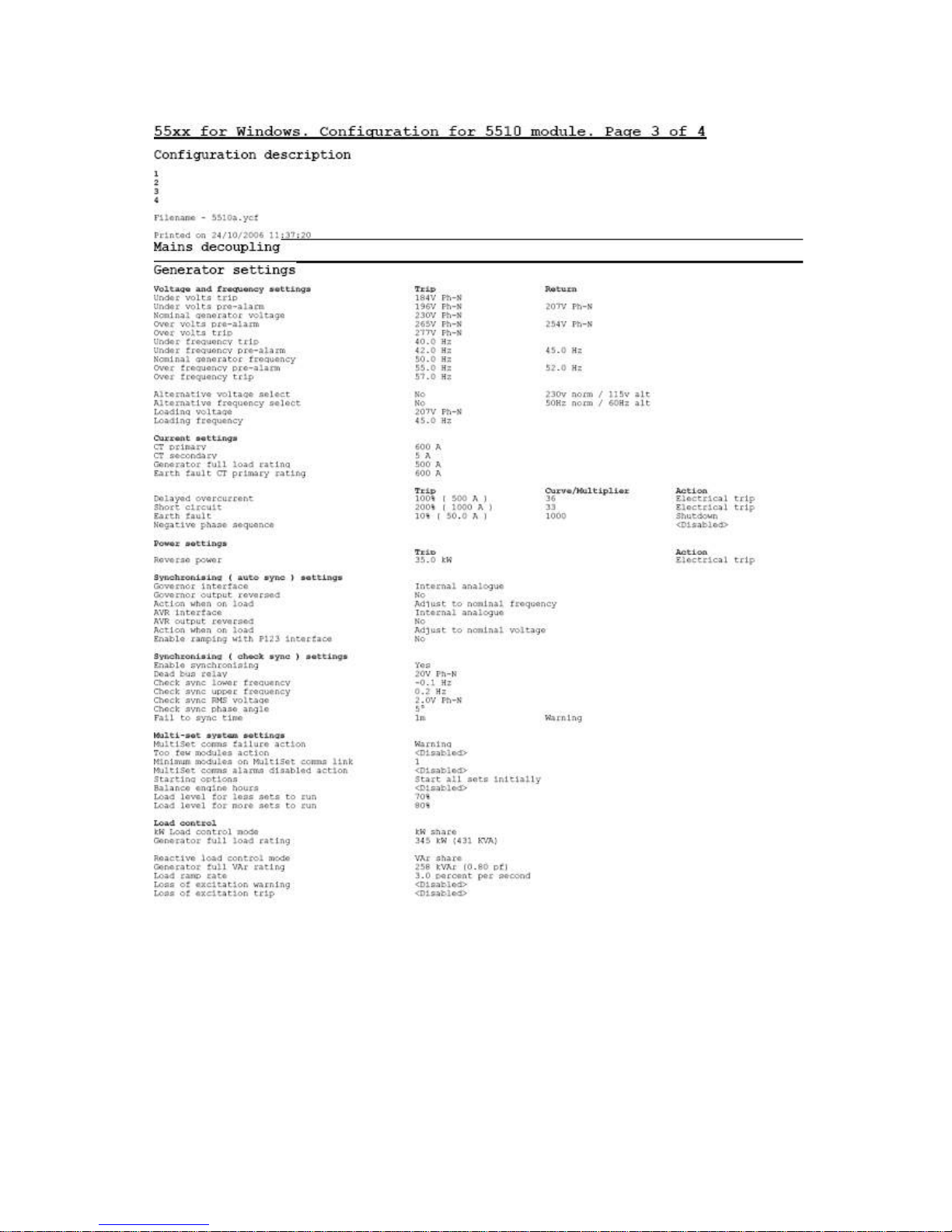

14 FACTORY DEFAULT CONFIGURATION ................................................. 63

15 SENDER WIRING RECOMMENDATIONS ................................................ 67

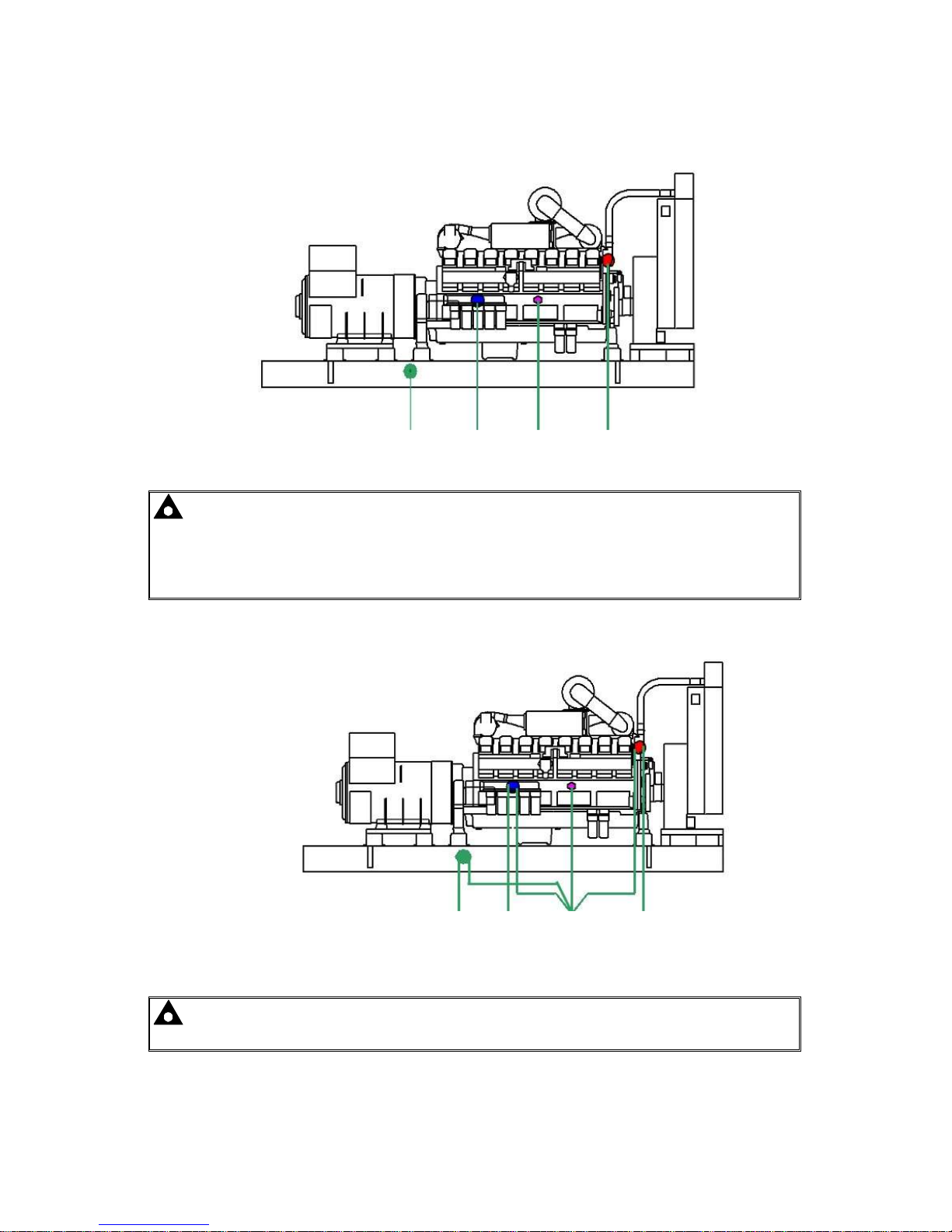

15.1 USING EARTH RETURN (SINGLE WIRE) SENDERS. ............................................. 67

15.2 USING INSULATED RETURN (TWO WIRE) SENDERS........................................... 67

16 APPENDIX ............................................................................................... 68

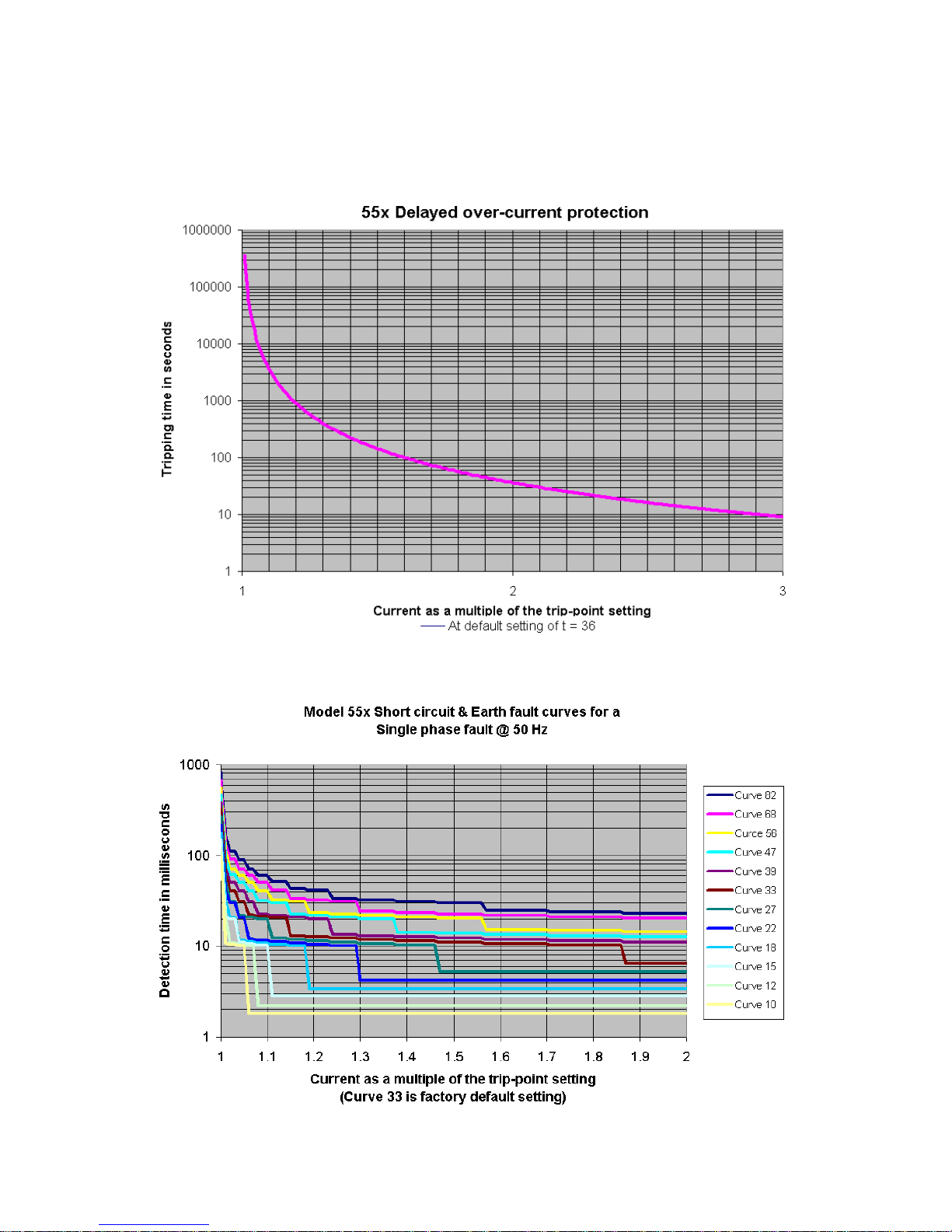

16.1 5510 IDMT TRIPPING CURVES (TYPICAL) ............................................................ 68

16.2 5510 SHORT CIRCUIT TRIPPING CURVES (TYPICAL) .......................................... 68

16.3 ACCESSORIES ..................................................................................................... 69

16.3.1 OUTPUT EXPANSION ........................................................................................ 69

RELAY OUTPUT EXPANSION (157).............................................................................. 69

LED OUTPUT EXPANSION (548) .................................................................................. 69

16.3.2 INPUT EXPANSION (P130/P540/P541)................................................................ 69

16.4 COMMUNICATIONS OPTION ................................................................................ 70

16.4.1 DESCRIPTION ................................................................................................... 70

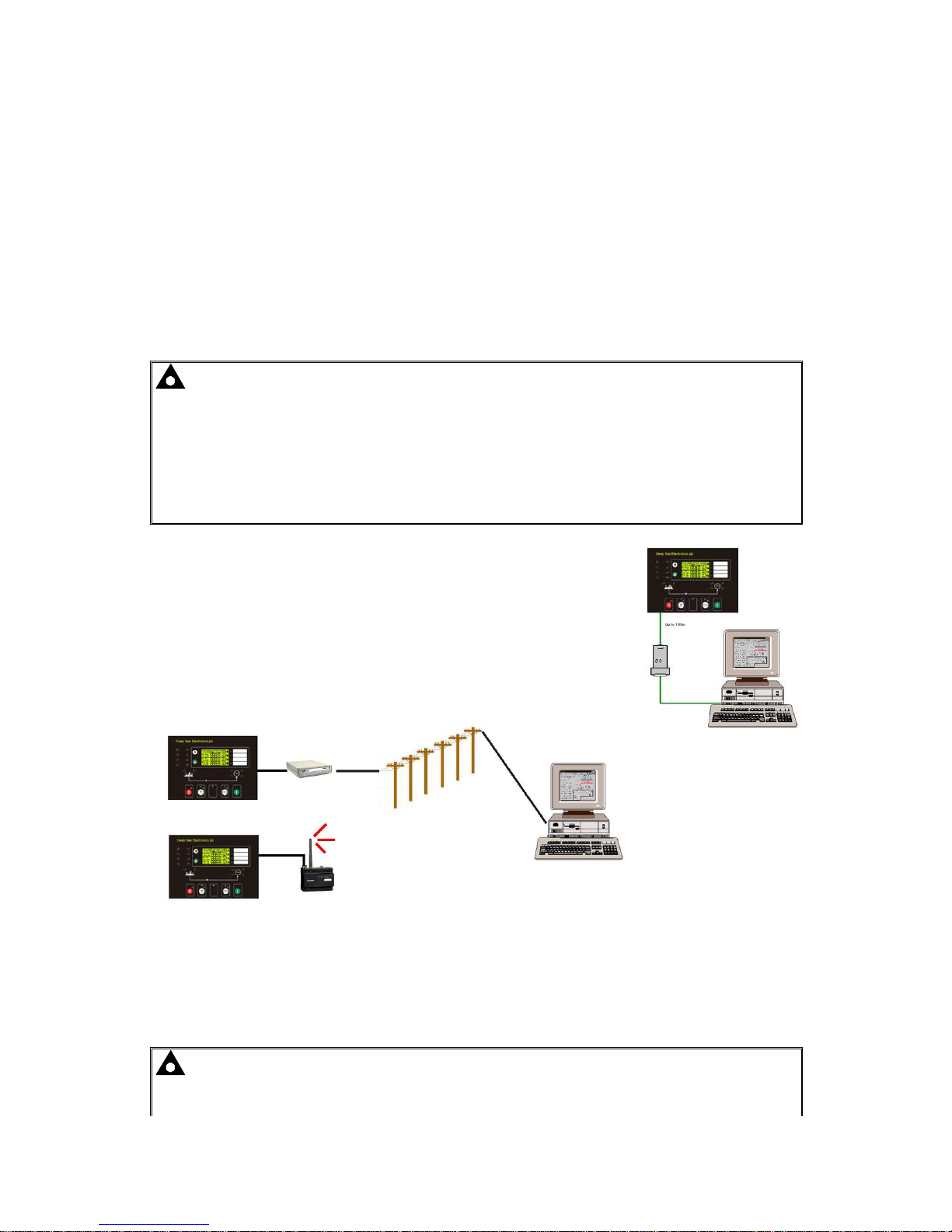

16.4.2 PC TO CONTROLLER (DIRECT) CONNECTION.................................................. 70

16.4.3 MODEM TO CONTROLLER CONNECTION ......................................................... 70

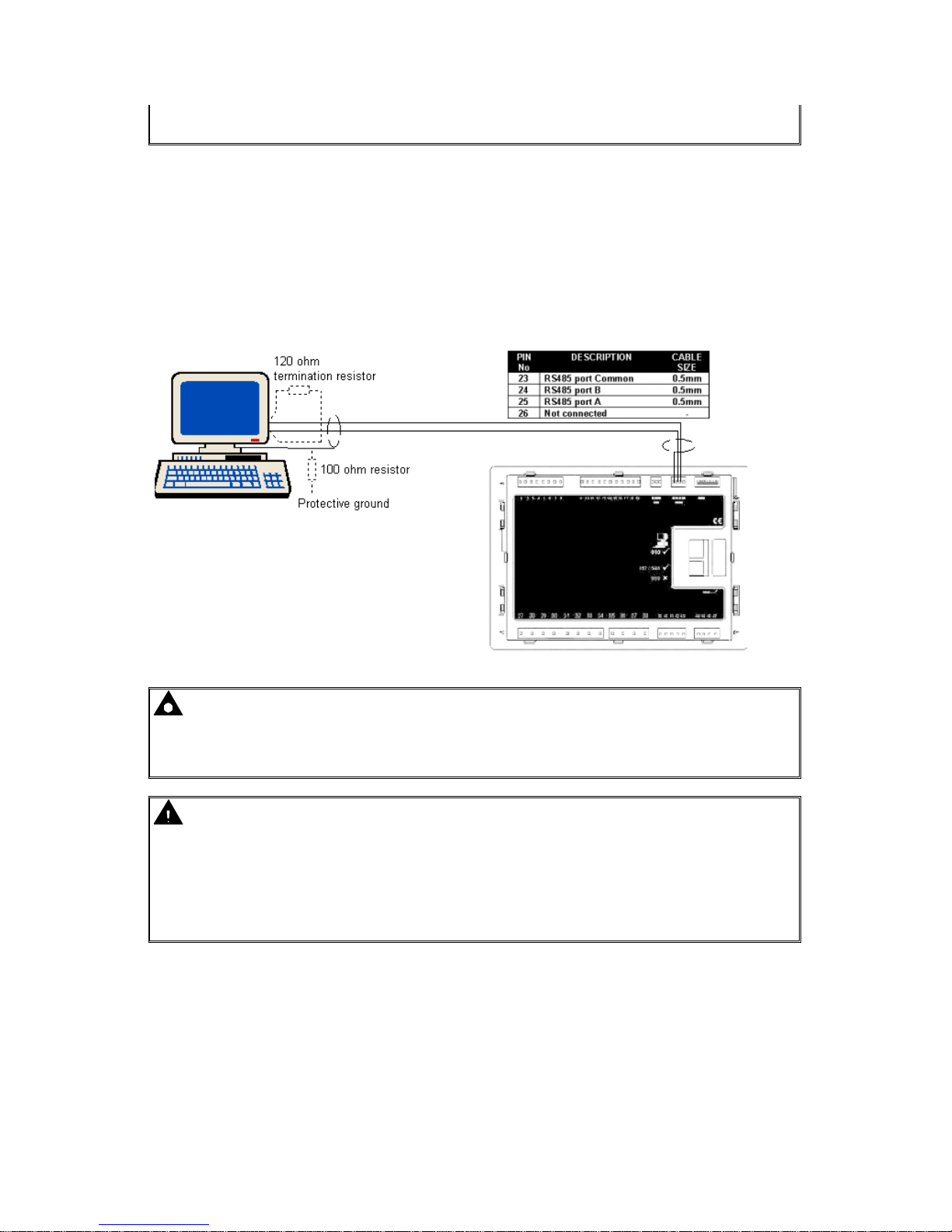

16.4.4 RS485 LINK TO CONTROLLER .......................................................................... 71

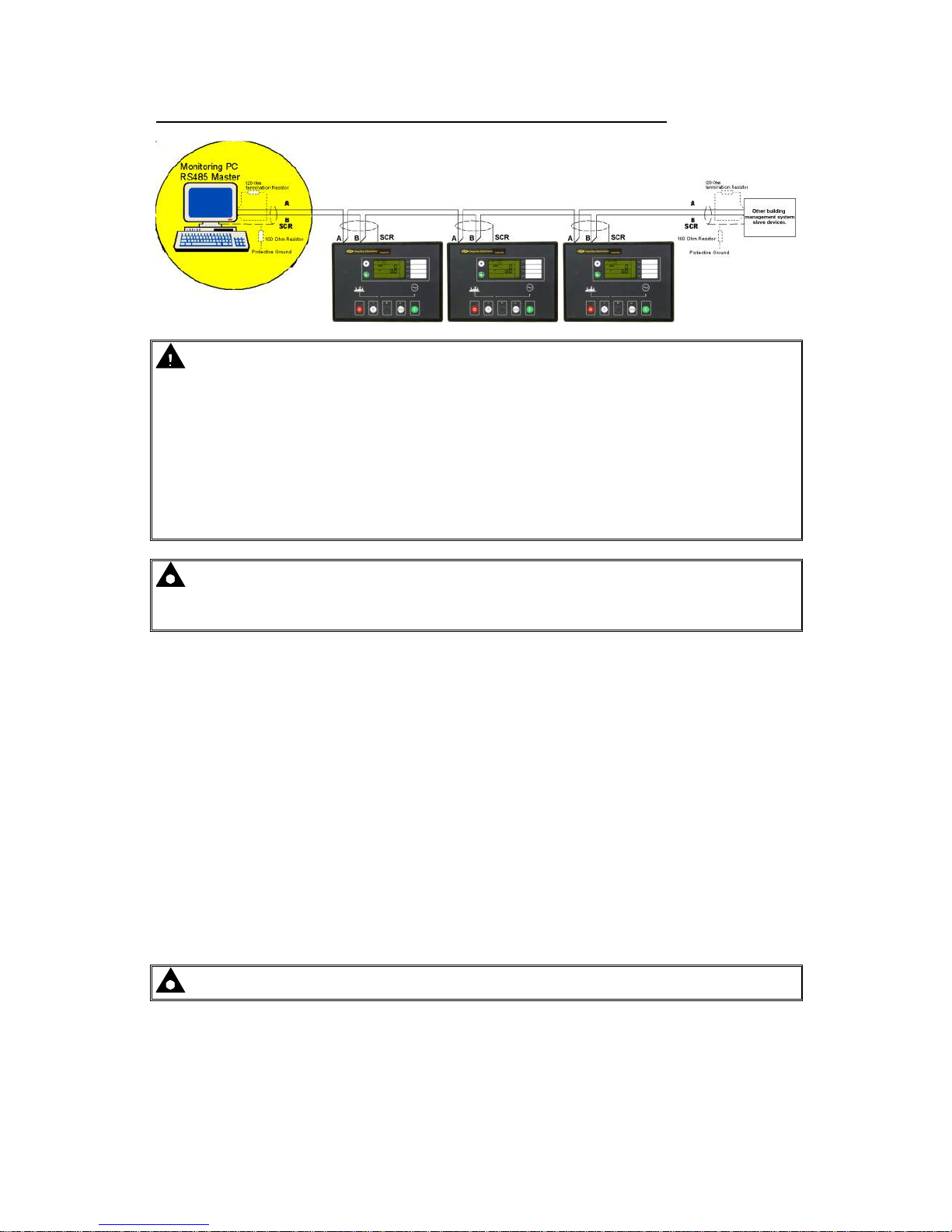

TYPICAL BUILDING MANAGEMENT SCHEME USING RS485 MONITORING ................. 72

16.4.5 MODBUS™........................................................................................................ 72

16.5 ENCLOSURE CLASSIFICATIONS .......................................................................... 73

IP CLASSIFICATIONS .................................................................................................. 73

NEMA CLASSIFICATIONS ............................................................................................ 74

16.6 IEEE C37.2 STANDARD ELECTRICAL POWER SYSTEM DEVICE FUNCTION

NUMBERS ......................................................................................................................... 75

16.7 SYNCHRONISING NOTES..................................................................................... 77

16.7.1 CHECK SYNC .................................................................................................... 77

16.7.2 AUTO SYNC ...................................................................................................... 77

16.7.3 LOAD CONTROL ............................................................................................... 77

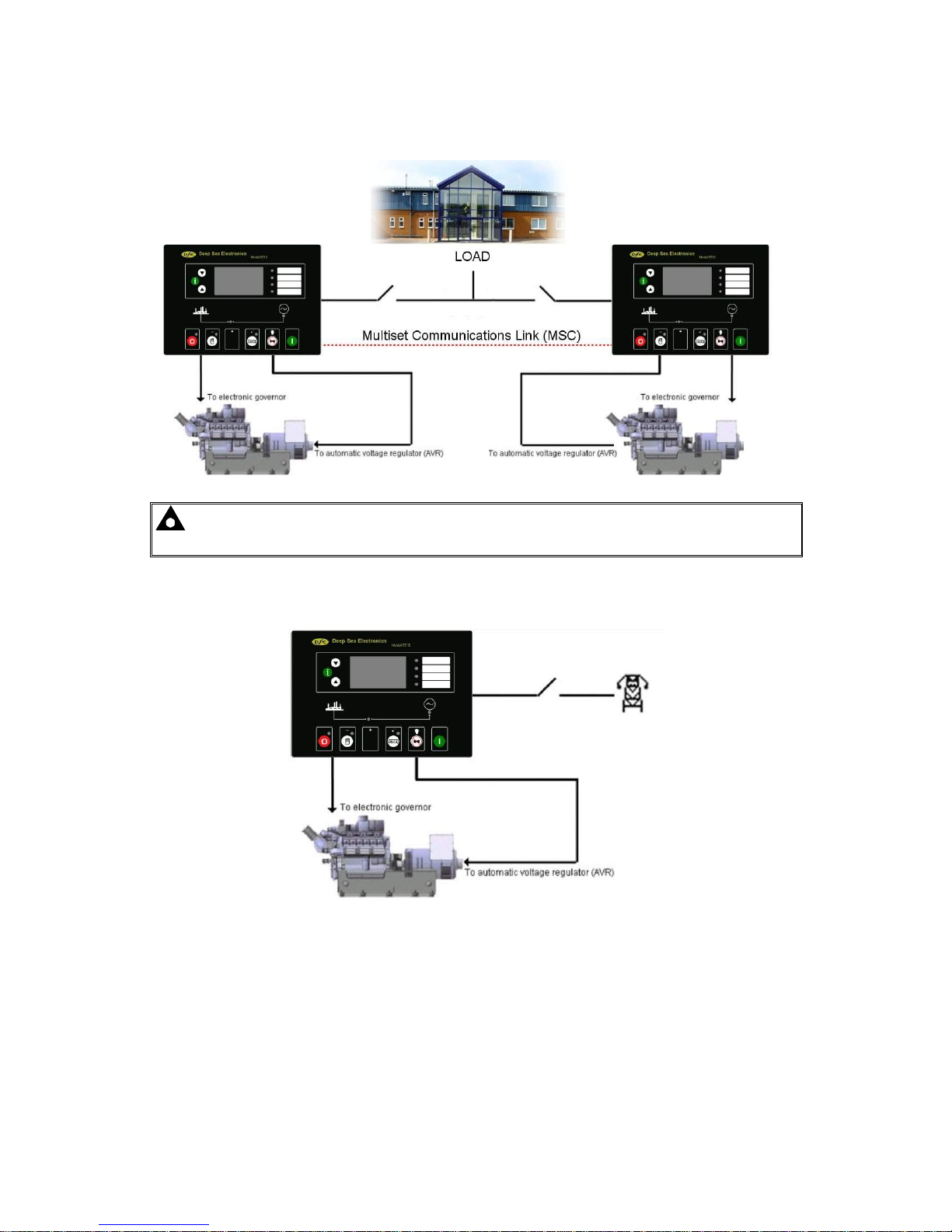

16.7.4 TYPICAL LOAD SHARING SYSTEM ................................................................... 78

16.7.5 TYPICAL PEAK SHAVING SYSTEM.................................................................... 78

http://bestgenerator.spb.ru/?page_id=6765

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 5

2 INTRODUCTION

The DSE 5510 Module allows the OEM to meet demand for increased capability within the industry. It allows the user to start and stop the generator and if required, transfer the load to the generator either manually or automatically. The user also has the facility to view the system operating parameters via the LCD display. Utilising the inbuilt synchronising, volts matching and paralleling functions, the controller is able to parallel with the mains supply for simple peak lopping (fixed generator output). Alternatively, the 5510 can be used to parallel with other DSE 5510 load sharing controllers. Up to 16 sets can be connected in paralleling and load share as a standalone (prime power) system. Additionally they can parallel with the mains supply (when used in conjunction with DSE 5560).

The DSE 5510 module also monitors the engine, indicating the operational status and fault conditions, automatically shutting down the engine. Exact failure mode information is indicated by the LCD display on the front panel.

The powerful Microprocessor contained within the module allows for many features to be incorporated as standard;

• Full Multilingual LCD display (including non-western character fonts).

• True R.M.S. voltage monitoring.

• Power measurement.

• Communications capability (RS485 or RS232 including GSM/SMS functions)

• Check Sync capability

• Automatic Sync capability

• Load share / control capability

• Fully configurable inputs for use as alarms or a range of different functions also available on

P130 expansion inputs (optional)

• Extensive range of output functions using built in relay outputs or relay expansion available.

• Instrumentation and diagnostics from electronic engines when connected to an engine ECU.

Selective operational sequences, timers and alarm trips can be altered by the customer via a PC using the 5xxx For Windows ™ software and 810 interface or via the integral front panel configuration editor.

Access to critical operational sequences and timers for use by qualified engineers, can be protected by a security code. Module access can also be protected by PIN code. Selected parameters can be changed from the module’s front panel.

The module is housed in a robust plastic case suitable for panel mounting. Connections to the module are via locking plug and sockets.

http://bestgenerator.spb.ru/?page_id=6765

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 6

2.1 CLARIFICATION OF NOTATION USED WITHIN THIS PUBLICATION.

NOTE:

Highlights an essential element of a procedure to ensure correctness.

CAUTION!:

Indicates a procedure or practice which, if not strictly observed, could result in damage or destruction of equipment.

WARNING!:

Indicates a procedure or practice which could result in injury to personnel or loss of life if not followed correctly.







Deep Sea Electronics Plc owns the copyright to this manual, which cannot be copied, reproduced or disclosed to a third party without prior written permission.

2.2 ICON DESCRIPTIONS

Symbol Meaning Description

Stop/Reset Stop the generator and reset any alarm conditions.

Start Start the generator (if in an appropriate mode).

Auto

The controller will automatically start the generator when given a remote start command.

Manual

The controller will start the generator under manual control. (Separate Start command may be necessary)

Alarm Mute and lamp test

Silences the audible warning device and illuminates all

LEDs to provide lamp test functionality. Information Changes the display to another page Up Selects the previous item on the page

Down Selects the next item on the page Open generator

Open generator load switching device (manual mode

only) Close generator

Close generator load switching device (manual mode

only)



Accept Edit or save current selection (configuration mode only)

Increase Increase current selection (configuration mode only)

Decrease Decrease current selection (configuration mode only)

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 7

3 OPERATION

3.1 CONTROL

Control of the DSE 5510 module is via push buttons mounted on the front of the module with STOP/RESET, MANUAL, AUTO, ALARM MUTE/LAMP TEST and START functions. For normal

operation these are the only controls which need to be operated. The smaller push buttons are used to access further information such as engine instruments and load switching. Detail of their operation is covered later in this document.

The following descriptions detail the sequences followed by a module containing the standard ‘factory configuration’. Always refer to your configuration source for the exact sequences and timers observed by any particular module in the field.

CAUTION: - The module may instruct an engine start event due to external influences. Therefore, it is possible for the engine to start at any time without warning. Prior to performing any maintenance on the system, it is recommended that steps are taken to remove the battery and isolate supplies.

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 8

3.2 AUTOMATIC MODE OF OPERATION

Automatic mode is used to start the set in response to an external start requirement from another device. A number of options exist for the remote start input (selectable using 5xxx configuration software).

• Remote Start on Load input indicates to the controller that it should start the set, and run ‘off load’.

• Remote Start on Load input indicates to the controller that it should start the set, synchronise (if required) and share load with any other sets in the system.

• Remote Start on Load Demand input indicates to the controller that it should start the sets, synchronise (if required) and share load with any other sets in the system, automatically starting and stopping sets on changing load demand.

NOTE: - If a digital input configured to panel lock is active, changing module modes will

not be possible. Viewing the instruments and iis NOT affected by panel lock. If panel lock is active the Panel lock indicator (if configured) illuminates.

This mode is activated by pressing the pushbutton. An LED indicator beside the button will illuminate to confirm this operation.

Should the remote start input (if configured) become active then the following sequence is observed. To allow for short term or false remote start signals, the Start Delay timer is initiated. After this

delay, if the pre-heat output option is selected then the pre-heat timer is initiated and the corresponding auxiliary output (if configured) will energise.

NOTE:- If the Remote Start signal is removed during the Start Delay timer, the unit will

return to a stand-by state.

After the above delays the Fuel Solenoid (or enable ECU output if configured) is energised, then one second later, the Starter Motor is engaged.

NOTE:- If the unit has been configured for CAN Bus, compatible ECU’s will receive the start command via CAN Bus. Refer to the Manual CAN and DSE Wiring. Part No. 057-004 for more information on utilising DSE modules with electronically controlled engines.

The engine is cranked for a pre-set time. If the engine fails to fire during this cranking attempt then the starter motor is disengaged for the pre-set rest period. Should this sequence continue beyond the set number of attempts, the start sequence will be terminated and Fail to Start fault will be displayed.

Alarm

Shutdown Failed to start

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 9

When the engine fires, the starter motor is disengaged and locked out at a pre-set frequency measured from the alternator output. Alternatively, a Magnetic Pickup mounted on the flywheel housing can be used for speed detection (This is selected by PC using the 5xxx series configuration software). Rising oil pressure can also be used to disconnect the starter motor, however it cannot be used for underspeed or overspeed detection.

NOTE:- If the unit has been configured for use with an electronic engine, speed sensing

is via the data-link.

After the starter motor has disengaged, the Safety On timer is activated, allowing Oil Pressure, High Engine Temperature, Under-speed, Charge Fail and any delayed Auxiliary fault inputs to stabilise without triggering the fault.

If the system has been started by a ‘remote start off load’ input, the set will run ‘off load’. Otherwise, the Warm Up timer, if selected, is initiated, allowing the engine to stabilise. After the Warm-up timer has expired then the module will close the load switching device.

In the case of a single generator system, the Generator Contactor/Breaker will be instructed to close. The generator will then supply the requirements of the load.

On a multi-set system, if the common generator bus is live, the 5510 module will first synchronise the generator to the bus before closing the Generator Contactor/Breaker. A ‘token‘ is held by the module that first closed onto the dead bus and as only one token exists for each multi-set system, this prevents other sets in the system from attempting to close their own breakers. For added security, the modules also monitor the bus. If this is found to be live, then the synchronisation process begins.

Once the load switching device is closed, the 5510 will then ramp to share the load with the other generators in the system.

NOTE:-A load transfer will not be initiated until the Oil Pressure has risen. This prevents

excessive wear on the engine.

When the Remote start signal is removed, the Stop delay timer is initiated. Once this has expired, the module will ramp the load from the generator to remaining set (Multi-set systems only). The Generator Contact/Breaker will open and the Cooling timer is then initiated, allowing the engine a cooling down period off load before shutting down. Once the Cooling timer expires, the Fuel Solenoid is de-energised, bringing the generator to a stop.

For full details of multi-set operation please refer to the manual ‘The Guide to sync and load share Pt1’

Should the Remote Start signal be re-activated during the cooling down period, the set will return on load.

NOTE:- When synchronising is enabled, the bus is checked before closing any load switching device. If the bus is live, synchronising will take place before any closure takes place.

NOTE:- Synchronising can be disabled if the application does not require this function. Contact your genset supplier in the first instance for further details.

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 10

NOTE:- The internal ‘Scheduler’ can be configured to operate the system in the same manner as described for the Remote start input. Please refer to the 5xxx Configuration Software manuals for full details on the feature.

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 11

3.3 MANUAL OPERATION

Manual mode is used to allow the operator to control the operation of the generator, and to provide fault finding and diagnostic testing of the various operations normally performed during Automatic mode operation.

NOTE:- If a digital input configured to panel lock is active, changing module modes will

not be possible. Viewing the instruments and event logs iis NOT affected by panel lock. If panel lock is active the Panel lock indicator (if configured) illuminates.

MANUAL, mode is selected by pressing the pushbutton. An LED besides the button will

illuminate to confirm this operation. When the START (I) button is operated, the module will initiate

the start sequence.

NOTE: - There is no Start Delay in this mode of operation.

If the pre-heat output option has been selected, this timer will be initiated and the auxiliary output selected energised.

After the above delay, the Fuel Solenoid (or ECU output if configured) is energised, and then one second later, the Starter Motor is engaged.

Alarm

Shutdown Fail to start

When the engine fires, the starter motor is disengaged and locked out at a pre-set frequency measured from the Alternator output. Alternatively, a Magnetic Pickup mounted on the flywheel housing can be used for speed detection (This is selected by PC using the 5xxx series configuration software). Rising oil pressure can also be used to disconnect the starter motor; however, it cannot be used for underspeed or overspeed detection.

NOTE:- If the unit has been configured for CAN Bus, speed sensing is via CAN Bus.

Once the engine is running, the Warm Up timer (if selected) is initiated, allowing the engine to stabilise before it can be loaded. Once the warm up timer has expired the generator is then available to go on load and the Generator Available LED will illuminate on the front panel.

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 12

If the module has been configured for synchronising and has speed control of the engine governor, during off load running, the engine speed can be changed using the “running editor”. The speed control options are not displayed in the editor unless the engine is running OFF LOAD in MANUAL MODE. Details of how to access the ‘running editor’ are contained elsewhere in this manual.

The generator will run off load unless:

1. A Remote Start on load signal is applied

2. An on-load run is configured in the scheduler.

3. The Close Generator button is pressed.

On a multi-set system, if the common generator bus is live, the 5510 module will first synchronise the generator to the bus before closing the Generator Contactor/Breaker to close. A ‘token‘ is held by the module that first closed onto the dead bus and as only one token exists, this prevents other sets in the system from attempting to close their own breakers. For added security, the modules also monitor the bus. If this is found to be live, then the synchronisation process begins.

During the parallel run the module can be configured to either run at a fixed level output, such as when used in parallel with an infinite bus. Alternatively, it can be configured to load share with other generators on the bus. For full details of these mode please refer to the manual ‘The Guide to sync and load share Pt1’

• If the Open Generator button is pressed while in parallel, the module will ramp the load

on the remaining generators and then open the generator contactor/breaker.

• If the Open Generator button is pressed and the generator is connected to the

common generator bus then the load is ramped off the generator and the contactor/breaker is opened.

If Auto mode is selected and the remote start on load signal not active, and the scheduler is not calling for a run, then the Return Delay Timer will start.

Once this has expired then the module will exit parallel operation and will ramp the load back to the remaining generators. It will then open the Generator Contactor/Breaker. The generator will then run off load allowing the engine a cooling period.

Selecting STOP (O) de-energises the FUEL SOLENOID, bringing the generator to a stop.

WARNING: - Operation of the STOP button in any mode will stop the generator operation and return the load switching system to a safe state. This operation may lead to loss of supply to the load. It is recommended that the STOP button is only operated once the generator is OFF LOAD and the mains supply provides power to the load.

NOTE: - Synchronising can be disabled if the application does not require this function. Contact your genset supplier in the first instance for further details.

NOTE: - When synchronising is enabled, the bus is checked before closing any load switching device. If the bus is live, synchronising will take place before any closure takes place.

NOTE:- Upon closing the load switching device, the module checks that the bus becomes live. If it does not, an alarm is generated to indicate the problem.

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 13

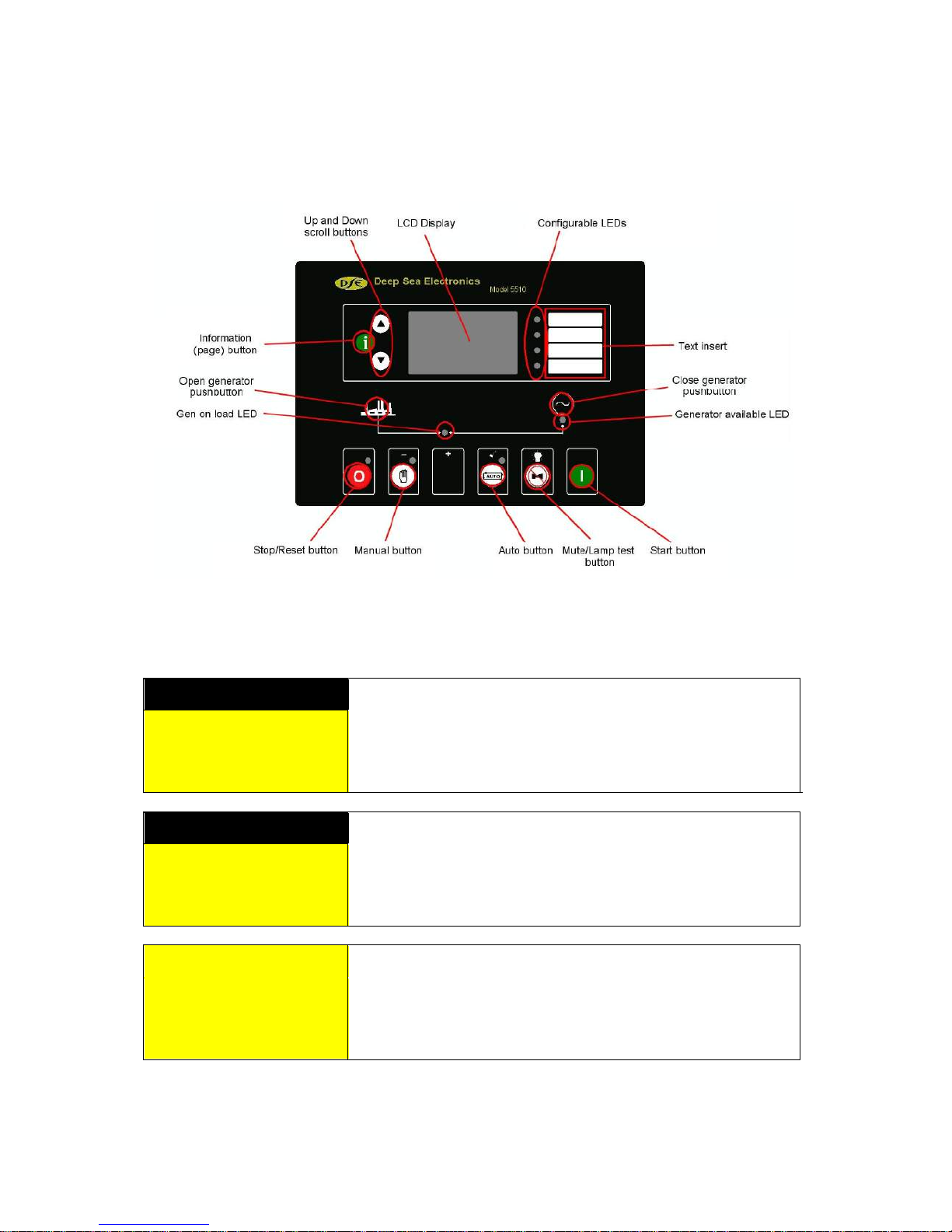

4 PROTECTIONS

When an alarm is present the Audible Alarm will sound and the Common alarm LED (if configured) will illuminate.

The audible alarm can be silenced by pressing the ‘Mute’ button

The LCD display will jump from the ‘Information page’ to display the Alarm Page

Alarm

Warning Low oil pressure

The type of alarm. Shutdown or warning

The nature of alarm, e.g. Low oil pressure.

The LCD will display multiple alarms e.g. “High Engine Temperature shutdown”, “Emergency Stop” and “Low Coolant Warning” alarms that may have been triggered. These will automatically scroll round in the order that they occurred.

In the event of a warning alarm the LCD will display the appropriate text. If a shutdown then occurs the module will again display the appropriate text. Example:-

Alarm

Shutdown High coolant temp

Followed by….

Alarm

Shutdown Emergency stop

Followed by….

Alarm

Warning Low coolant level

The unit will scroll through all active alarms in a continuous loop.

Alarm

Shutdown High coolant temp

Generator available L-N 229v 0A

If no alarms are present the LCD will display this default page.

L-L 400 v 50.0Hz Pf 0.00 0KW

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 14

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 15

4.1 WARNINGS

Warnings are non-critical alarm conditions and do not affect the operation of the generator system. They draw the operators’ attention to an undesirable condition.

In the event of an alarm the LCD will jump to the alarms page and scroll through all active warnings and shutdowns.

BATTERY CHARGE FAILURE, will be displayed if the module does not detect a voltage from the warning light terminal on the auxiliary charge alternator.

Alarm

Warning Charge alt failure

BATTERY LOW VOLTAGE will be displayed if the module detects that the plant DC supply has

fallen below the low volts setting level. The Battery Low Voltage alarm is delayed by the Low DC Volts Delay timer.

Alarm

Warning Low battery voltage

BATTERY HIGH VOLTAGE will be displayed if the module detects that the plant DC supply has

risen above the high volts setting level. The Battery High Voltage alarm is delayed by the High DC Volts Delay timer.

Alarm

Warning High battery voltage

FAIL TO STOP, will be displayed if the module detects the engine is still running when the ‘Fail to

stop timer’ expires.

Alarm

Fail to stop

NOTE:- ‘Fail to Stop’ could indicate a faulty oil pressure sender - If engine is at rest

check oil sender wiring and configuration.

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 16

AUXILIARY INPUTS, auxiliary inputs can be user configured and will display the message as

configured in the module. Example

Alarm

Warning Bearing temp high

LOW FUEL LEVEL, will be displayed if the fuel level detected by the fuel level sender falls below

the low fuel level setting.

Alarm

Warning Low fuel level

LOW ENGINE TEMPERATURE, if the module detects that the engine coolant temperature has

fallen below the low engine temperature pre-alarm setting level, a warning will occur. Alarm Warning Low Coolant Temp will be displayed.

Alarm

Warning Low Coolant Temp

GENERATOR HIGH CURRENT, if the module detects a generator output current in excess of the

pre-set trip a warning is initiated. Alarm Warning High Current will be displayed. If this high current condition continues for an excess period of time, then the alarm is escalated to a shutdown condition. For further details of the high current alarm, please see High Current Shutdown Alarm.

Alarm

Warning Over current

GENERATOR FAILED TO OPEN, if the module requests the generator contact/breaker to open it

will monitor the auxiliary contacts for feedback that this has happened. If the feedback does not confirm the action within the Generator breaker open timer, then the following alarm will occur.

Alarm

Warning Gen failed to open

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 17

MAINTENANCE DUE, The module can be configured to monitor either engine running hours or

absolute time, or both. Should either of these values exceed the pre-set service interval the following alarm will occur.

Alarm

Warning Maintenance Due

The following alarms are only applicable if synchronising is enabled: FAILED TO SYNCHRONISE, if the module cannot synchronise within the timer allowed by the

Synchronising timer a warning is initiated. The LCD will indicate ‘FAILED TO SYNC’.

Alarm

Warning Failed to synchronise

GENERATOR PHASE SEQUENCE WRONG, if the module detects a phase rotation error, a warning is initiated. The LCD will indicate ‘GEN PHASE SEQ WRONG’.

Alarm

Warning Gen phase Seq Wrong

BUS PHASE SEQUENCE WRONG, if the module detects a bus phase rotation error a warning is initiated. The LCD will indicate ‘BUS PHASE SEQ WRONG’.

Alarm

Warning Bus phase Seq Wrong

NEGATIVE PHASE SEQUENCE, if the module detects an imbalance in the load current of each

phase above a pre-set level, then the following warning will occur.

Alarm

Warning Negative phase Sequence

MSC DATA ERROR, if the module detects a problem on the MSC link which prevents the module

from communicating correctly with the other modules, then the MSC Data Error alarm will be triggered. Incorrect wiring type or connection may be a possibility.

Alarm

MSC Data Error

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 18

MSC TOO FEW SETS, if the module detects fewer modules on the MSC link than the minimum

number configured in the unit the MSC Too few sets alarm will be triggered. This may indicate a break in the MSC connection between the sets.

Alarm

MSC Too Few Sets

CAN ECU ERROR, If the module is configured for CAN Bus instruments and receives an

“error” message from the engine control unit, ‘Can ECU error” is shown on the module’s display and a warning alarm is generated.

Example

Alarm

The display will alternate between the text display and the manufacturers error codes

Alarm

Can ECU error Exhaust high temperature

Can ECU error SPNnnnnnnn FMInnnnnnn

kW OVERLOAD ALARM

The kW level provided by the set is above the level of the kW Overload pre alarm.

Alarm

kW Overload Alarm

ENGINE INLET TEMPERATURE

The engine inlet temperature (electronic engines only) is above the level of the Engine Inlet Temperature alarm.

Alarm

Engine Inlet Temperature

AVR MAXIMUM TRIM LIMIT

The AVR output is beng controlled to its maximum limit (100%). This can indicate a problem with the setup or control of the AVR.

Alarm

AVR Maximum Trim Limit

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 19

4.2 ANALOGUE PRE-ALARMS

The following alarms are termed ‘pre-alarms’ as they pre warn the operator of a potentially more serious alarm condition. For instance, if the engine temperature rises past the pre alarm level, a warning condition will occur to notify the operator. If the temperature falls below this level, then the alarm ceases and the set will continue to run as normal. However if the temperature continues to rise until the coolant temperature trip point is reached, the warning is escalated and a high coolant temperature shutdown is initiated.

LOW OIL PRESSURE, if the module detects that the engine oil pressure has fallen below the low oil pressure pre-alarm setting level after the Safety On timer has expired, a warning will occur. Alarm Warning Low Oil Pressure will be displayed.

Alarm

Warning Low oil pressure

HIGH ENGINE TEMPERATURE, if the module detects that the engine coolant temperature has

exceeded the high engine temperature pre-alarm setting level after the Safety On timer has expired, a warning will occur. Alarm Warning High Coolant Temperature will be displayed.

Alarm

Warning High coolant temp

OVERSPEED, if the engine speed exceeds the pre-alarm trip a warning is initiated. Alarm Warning Overspeed will be displayed. It is an immediate warning.

Alarm

Warning Overspeed

UNDERSPEED, if the engine speed falls below the pre-set pre-alarm after the Safety On timer has

expired, a warning is initiated. Alarm Warning Underspeed will be displayed.

Alarm

Warning Underspeed

LOSS OF EXCITATION, the module will monitor the KVAr present on the generator. Should this

exceed a pre-set amount of negative Var this indicates a possible loss of excitation on the alternator. The following alarm will then be generated.

Alarm

Warning Loss of Excitation

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 20

GENERATOR HIGH FREQUENCY, if the module detects a generator output frequency in excess of

the pre-set pre-alarm, a warning is initiated. Alarm Warning High frequency will be displayed, it is an

immediate warning.

Alarm

Warning Gen high frequency

GENERATOR LOW FREQUENCY, if the module detects a generator output frequency below the

pre-set pre-alarm after the Safety On timer has expired, a warning is initiated. Alarm Warning Low Frequency will be displayed

Alarm

Warning Gen low frequency

GENERATOR HIGH VOLTAGE, if the module detects a generator output voltage in excess of the

pre-set pre-alarm, a warning is initiated. Alarm Warning High voltage will be displayed, it is an

immediate warning.

Alarm

Warning Gen high voltage

GENERATOR LOW VOLTAGE, if the module detects a generator output voltage below the pre-set

pre-alarm after the Safety On timer has expired, a warning is initiated. Alarm Warning Low Voltage will be displayed.

Alarm

Warning Gen low voltage

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 21

4.3 SHUTDOWNS

Shutdowns are latching and stop the Generator. The alarm must be cleared and the fault removed to reset the module.

NOTE:- The alarm condition must be rectified before a reset will take place. If the alarm condition remains it will not be possible to reset the unit (The exception to this is the Low Oil Pressure alarm and similar ‘delayed alarms’, as the oil pressure will be low with the engine at rest).

FAIL TO START, if the engine does not fire after the pre-set number of attempts has been made a

shutdown will be initiated. Alarm Shutdown Fail To Start will be displayed.

Alarm

Shutdown Fail to start

EMERGENCY STOP, removal of the positive DC Supply from the Emergency Stop input will initiate

a shutdown of the Generator and prevent any attempt to restart the Generator until the Emergency Stop push-button has been reset. Additionally it removes the positive DC supply from both the Fuel Solenoid and Starter Solenoid.

Alarm Shutdown Emergency Stop will be displayed.

Alarm

Shutdown Emergency stop

NOTE:- The Emergency Stop positive signal must be present otherwise the unit will shutdown.

LOW OIL PRESSURE, if the module detects that the engine oil pressure has fallen below the low

oil pressure trip setting level after the Safety On timer has expired, a shutdown will occur. Alarm Shutdown Low Oil Pressure will be displayed.

Alarm

Shutdown Low oil pressure

HIGH ENGINE TEMPERATURE, if the module detects that the engine coolant temperature has

exceeded the high engine temperature trip setting level after the Safety On timer has expired, a shutdown will occur. Alarm Shutdown High Engine Temperature will be displayed.

Alarm

Shutdown High coolant temp

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 22

OVERSPEED, if the engine speed exceeds the pre-set trip a shutdown is initiated. Alarm Shutdown Overspeed will be displayed. Overspeed is not delayed, it is an immediate shutdown.

Alarm

Shutdown Overspeed

NOTE:-During the start-up sequence the overspeed trip logic can be configured to allow an extra trip level margin. This is used to prevent nuisance tripping on start-up - Refer to the 55xx series configuration software manual under heading ‘Overspeed Overshoot’ for details.

UNDERSPEED, if the engine speed falls below the pre-set trip after the Safety On timer has

expired, a shutdown is initiated. Alarm Shutdown Underspeed will be displayed.

Alarm

Shutdown Underspeed

GENERATOR HIGH FREQUENCY, if the module detects a generator output frequency in excess of

the pre-set trip a shutdown is initiated. Alarm Shutdown High Frequency will be displayed, it is an

immediate shutdown.

Alarm

Shutdown Gen high frequency

GENERATOR LOW FREQUENCY, if the module detects a generator output frequency below the

pre-set trip after the Safety On timer has expired, a shutdown is initiated. Alarm Shutdown Low Frequency will be displayed.

Alarm

Shutdown Gen low frequency

GENERATOR HIGH VOLTAGE, if the module detects a generator output voltage in excess of the pre-set trip a shutdown is initiated. Alarm Shutdown High Volts will be displayed, it is an immediate shutdown.

Alarm

Shutdown Gen high voltage

GENERATOR LOW VOLTAGE, if the module detects a generator output voltage below the pre-set

trip after the Safety On timer has expired, a shutdown is initiated. Alarm Shutdown Low Volts will be displayed.

Alarm

Shutdown Gen low voltage

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 23

NOTE:-Generator voltage and frequency alarms can be delayed by the ‘Gen Transient ignore’ timer. This is to prevent nuisance tripping when applying or removing load on the generator.

DSE Model 5510 Autostart Control and Instrumentation System Operators Manual

057-015 5510 OPERATING MANUAL ISSUE 11 07/07/09 AM 24

OIL PRESSURE SENDER OPEN CIRCUIT, if the module detects a loss of signal from the oil

pressure sender (open circuit) a shutdown is initiated. Alarm Shutdown Sender Fault will be displayed. Sender failure is not delayed, it is an immediate shutdown.

Alarm

Shutdown Oil press sender fault

MAGNETIC PICKUP OPEN CIRCUIT, if the module detects a problem with the connection to the magnetic pickup (open circuit) a shutdown is initiated. MPU failure is not delayed, it is an immediate shutdown.

Alarm

Shutdown MPU open circuit

AUXILIARY INPUTS, if an auxiliary input has been configured as a shutdown the appropriate

message will be displayed as configured by the user.

Alarm

Shutdown Bearing temp high

LOSS OF SPEED SIGNAL, if the speed sensing signal is lost during cranking, a shutdown is

initiated. Alarm Shutdown Loss of Speed Signal will be displayed.

Alarm

Shutdown Loss of speed signal

NOTE:- This will only occur if the magnetic pickup speed sensing signal is lost during cranking or during the safety on timer. If the signal is lost during normal operation the Generator will shutdown with an Under-speed alarm.

CAN DATA FAIL, If the module is configured for CANbus operation and does not detect

data on the engine CANbus datalink, a shutdown will occur and ‘Can data fail’ is shown on the module’s display.

Alarm

Shutdown Can data fail

+ 54 hidden pages

DSE DSE5510 Operating Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
