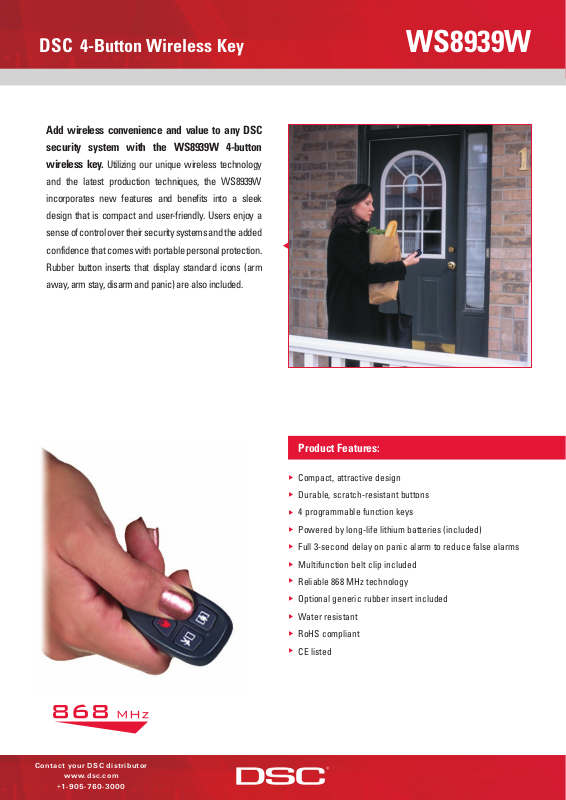

Dsc WS8939W DATASHEET

DSC 4-Button Wireless Key

Add wireless convenience and value to any DSC

security system with the WS8939W 4-button

wireless key. Utilizing our unique wireless technology

and the latest production techniques, the WS8939W

incorporates new features and benefits into a sleek

design that is compact and user-friendly. Users enjoy a

WS8939W

sense of control over their security systems and the added

confidence that comes with portable personal protection.

Rubber button inserts that display standard icons (arm

away, arm stay, disarm and panic) are also included.

▼

Product Features:

▼

Compact, attractive design

▼ ▼ ▼

Durable, scratch-resistant buttons

Contact your DSC distributor

www.dsc.com

+1-905-760-3000

4 programmable function keys

Full 3-second delay on panic alarm to reduce false alarms

▼ ▼ ▼ ▼

Multifunction belt clip included

Reliable 868 MHz technology

Optional generic rubber insert included

▼

ater resistant

▼

RoHS compliant

▼

CE listed

DSC 4-Button Wireless Key

Committed To False Alarm Reduction

False alarm reduction is achieved through activation delays that require users to press and hold a button for a period of time before its function is initiated. For example, to trigger the arm/disarm function you must press and hold the appropriate button for one second, and for the panic alert, three seconds.

A red LED indicator on the WS8939W flashes to indicate that a transmission has been sent to the security system. The LED indicator activates only after the necessary delays have expired.

Control

The WS8939W can be used to arm/disarm security systems from a distance, be programmed to trigger garage door openers, turn on lights, open powered gates or trigger panic alarms.

WS8939W

ptional generic

O rubber insert included.

Versatile

A multi-function clip allows the wireless key to be clipped to a convenient location, whether it’s on a belt or car visor. The WS8939W is built with reliable 868 MHz technology, uses long-life lithium batteries and is compatible with the RF5132-868W wireless receiver.

For those not using the default settings, the threesecond delay on the panic alert can be removed. A generic rubber button insert without the standard icons is included and can easily be inserted.

Ordering Information:

WS8939W . . . . . . . . . . . . . . . . . . . . . . . 4-Button Wireless Key

Compatibility

The WS8939W is compatible with the following receiver:

PowerSeries™ Wireless Receiver RF5132-868W

Specifications

Dimensions . . . . . . . . . . . . . . . . . . . . . . . . 57 mm x 32 mm x 13 mm

Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15 g

Operating Environment . . . . . . . . . . . . 0° to 49° C

Relative Humidity . . . . . . . . . . . . . . . . . . 5% to 93%

1/4

” x 1

(0.5 oz)

(32° to 120° F)

” x 7/16”)

P/N 30000732 R001 Printed in Canada

Distributed by:

For product information www.dsc.com
