DSB DC-15 Instructions Manual
DC-15
DC-15

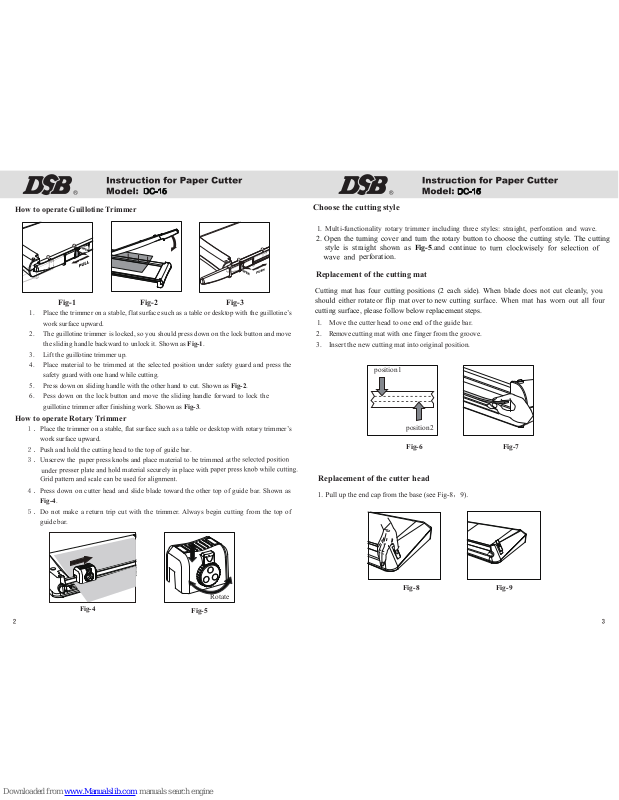

How to operate Guillotine Trimmer
Fig-1 Fig-2 Fig-3
1. Place the trimmer on a stable, flat surface such as a table or desktop with the guillotine’s
work surface upward.
2. The guillotine trimmer is locked, so you should press down on the lock button and move
the sliding handle backward to unlock it. Shown as Fig-1.
3. Lift the guillotine trimmer up.
4. Place material to be trimmed at the selected position under safety guard and press the
safety guard with one hand while cutting.
5. Press down on sliding handle with the other hand to cut. Shown as Fig-2.
6. Pess down on the lock button and move the sliding ha
ndle forward to lock the
guillotine trimmer after finishing work. Shown as Fig-3.
How to operate Rotary Trimmer
１．Place the trimmer on a stable, flat surface such as a table or desktop with rotary trimmer’s
work surface upward.
２．Push and hold the cutting head to the top of guide bar.
３．Unscrew the paper press knobs and
place material to be trimmed at
ld material securely in place with
４．Press down on cutter head and slide blade toward the other top of guide bar. Shown as
Fig-4.
５．Do not make a return trip cut with the trimmer. Always begin cutting from the top of
guide bar.
Fig-4
Choose the cutting style
1. Multi-functionality rotary trimmer including three styles: straight, perforation and wave.
Fig-5
Replacement of the cutting mat
.
1. Move the cutter head to one end of the guide bar.
2. Remove cutting mat with one finger from the groove.
3. Insert the new cutting mat into original position.
Fig-6 Fig-7
Replacement of the cutter head
Fig-8 Fig-9
Rotate
2. Open the turning cover and turn the rotary button to choose the cutting style. The cutting
style is straight shown as Fig-5.and continue
perforation.
Cutting mat has four cutting positions (2 each side). When blade does not cut cleanly, you
cutting surface, please follow below replacement steps.
position1
position2
① End cap
② Rotary toggle
③ Locking switch
④ Sliding handle
⑤ Guide bar
⑥ Lock button
⑦ Translucent clamp
⑧ Safety guard
⑨ Cutting mat
⑩ Paper press knob
Cautions:
1. Sharp blade and please do not touch the edge of the blade.
2. Paper cutter should be operated by an adult or under adult s supervision.
3. Remove staples, paper clips before cutting.
4. Do not cut metal film and film containing glass etc.
5. Do not cut more sheets beyond cutting capacity.
6. Do not carry trimmer by holding on to the cutting blade handle.
7. Always operate trimmer with both hands on top of stable base or desk.
Please read this instruction carefully before using and keep it in a safe place for
later reference.
DC-15
DC-15
Technology data
guillotine 10sheets
straight 10sheets
skip 3sheets
Cutting
capacity
wave 3sheets
guillotine 320mm Cutting
length
rotary 320mm
Dimension 453*215*64mm
Net weight 1.5kg
Fig-10 Fig-11
Fig-12
Horizontal level
,
