Page 1
www.drzamps.com
SRZ-65
Manual
Model: ZA-1
Page 2
This symbol warns the user of dangerous voltage levels localized within the enclosure.
This symbol advises the user to read all accompanying literature for safely operang
the unit
Important Safety Instrucons
1) Read these instrucons.
2) Keep these instrucons.
3) Heed all warnings.
4) Follow all instrucons.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any venlaon openings. Maintain at least 3 feet of distance around all sides of amplifier.
Do not block any venlaon openings with items such as newspapers, tablecloths, curtains, etc.
8) Do not install near any heat sources such as radiators, heat registers, stoves, or other
apparatus (including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug
has two blades with one wider than the other. A grounding type plug has two blades and a third
grounding prong. The wide blade or the third prong are provided for your safety. If the provided
plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or pinched parcularly at plugs, convenience
receptacles, and the point where they exit from the apparatus.
11) Only use aachments/accessories specified by the manufacturer.
12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use cauon when moving the cart/apparatus
combinaon to avoid injury from p-over.
13) Unplug this apparatus during lightning storms or when unused for long periods of me.
14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus
has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been
spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or
moisture, does not operate normally, or has been dropped.
15) Avoid placing any liquids on or near the amplifier that may splash or drip such as those contained in
boles, cans, glasses, etc.
*Dr Z amplifiers are capable of producing very high sound pressure levels which can cause temporary or
permanent hearing damage.
*If any screw that is actually on the amp chassis needs to be replaced contact Dr Z Amps for the proper size.
Screw size is crical for inner chassis clearances.
Page 3
General Informaon
The SRZ-65 is one of Dr Z's first designs going back 20 years. This amp was ahead of it’s me. You get a tube
recfied EL34 output secon and a classic three 12AX7 cascaded gain front end in all it’s hand wired glory.
The tonal possibilies are vast. Gain and power combine to deliver pure crunch making this the ulmate rock
amp. Simply roll the volume back on your guitar and you’ll hear the shimmering bell like cleans from the
EL34s. The SRZ-65 is perfect for dialing up modern and classic rock sounds as well as old school Brish Steel.
Coming in at 60 was the SRZ-65 can handle stages big and small. The master and gain sengs allow many
different shades of clean to crunch. The full EQ and Presence circuit let you dial in the perfect blend of top
end, middle, and bass for your guitar. Single coil and humbucker equipped guitars are equally at home
plugged in to the SRZ-65. Around back are 4, 8, and 16 ohm speaker outs as well as a convenience AC outlet.
The SRZ-65 is available as a head only and matches up great with any of our speaker cabs…especially the Z
Best!
Specificaons
Power Output 60 was
Output Tubes 2 - EL34
Preamp Tubes 3 - 12AX7
Recfier 1 - 5AR4
Controls Presence, Bass, Mid, Treble, Volume, Gain
Configuraons Head
Colors Black, Blonde, Red
Dimension & Weight 19”W x 9 ¾H x 9 ½D 35 lbs.
Page 4

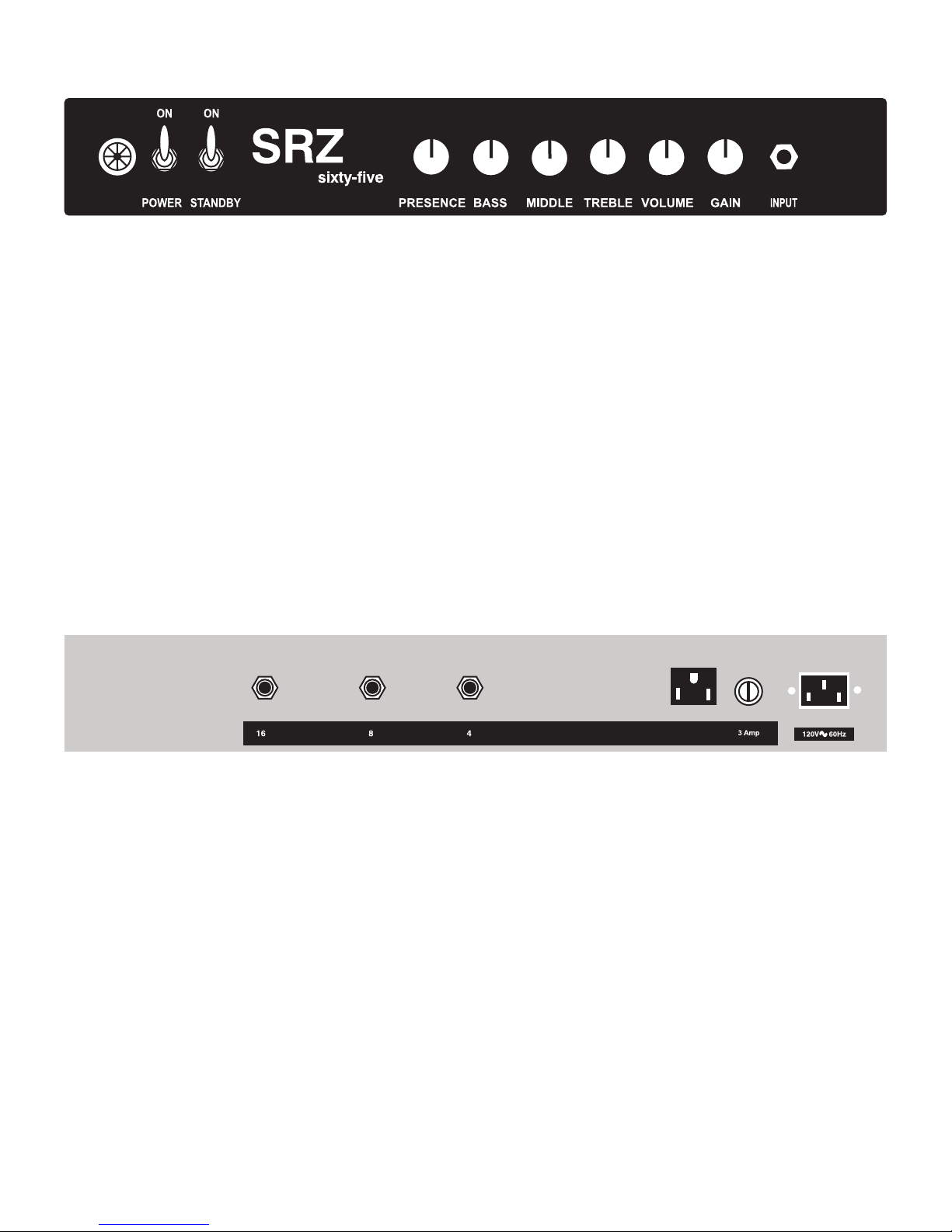

FRONT PANEL
2 3 4 5 6 7 8 9 101
1. Power Indicator: Lights up when power is switched on. If bulb fails replace with type T47.
2. Power: Switch up to turn on amplifier. Switch down to turn off amplifier.
3. Stand-By: Leave in off posion for 1 minute when powering up the amp. Turn on for play. Place in off
posion for extended break periods.
4. Presence: This control gives your tone more bite by adding higher frequencies. Your sound will appear
closer (more present) without increasing volume.
5. Bass: Controls overall low frequency response.
6. Mid: Controls overall mid frequency response.
7. Treble: Controls overall high frequency response.
8. Volume: Use this to control overall amp volume.
9. Gain: Controls loudness of amp. As you turn the volume up more natural drive will occur along with
an increase in level.
10. Input: Input jack for your guitar.
REAR PANEL
11
11. 16 OHM Speaker Jack: Plug in 16 ohm speaker here. Always have a speaker plugged into the amp
when it is powered on. Always match the speaker impedance to the proper speaker out jack. This will
allow the amp to sound its best and avoid damage.
12. 8 OHM Speaker Jack: Plug in 8 ohm speaker here. Always have a speaker plugged into the amp
when it is powered on. Always match the speaker impedance to the proper speaker out jack. This will
allow the amp to sound its best and avoid damage.
13. 4 OHM Speaker Jack: Plug in 4 ohm speaker here. Always have a speaker plugged into the amp
when it is powered on. Always match the speaker impedance to the proper speaker out jack. This will
allow the amp to sound its best and avoid damage.
14. Convenience AC Outlet: Use this outlet to supply power to other devices (Z-Verb, pedal
boards,etc).
15. Fuse: The fuse protects the amp from electrical faults. Replace only with the same rang and type
stated below fuse holder (3A 250v Fast Acng). If the amp repeatedly blows the fuse contact your
dealer or Dr Z Amps.
17. AC Inlet: (Class I Wiring). This device is used for disconnecon from power mains and must remain
readily opearable. The power indicator light does not indicate connecon to power mains. The power
cord must be disconnected to disconnect amplifier from power mains.
12 13 14 1615
Page 5
MODEL: ___________________
SERIAL NUMBER: ___________
INPUT VOLTAGE: ____________
MADE IN USA
