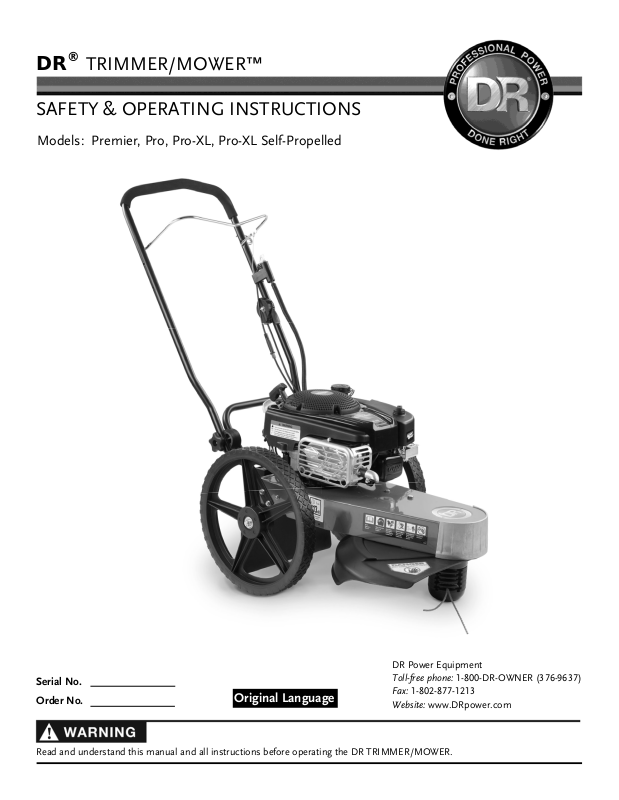

DR Power Premier, Pro, Pro-XL User manual
DR
SAFETY & OPERATING INSTRUCTIONS
®
TRIMMER/MOWER™
Models: Premier, Pro, Pro-XL, Pro-XL Self-Propelled
DR Power Equipment
Serial No.
Order No.
Read and understand this manual and all instructions before operating the DR TRIMMER/MOWER.
Original Language
Toll-free phone: 1-800-DR-OWNER (376-9637)
Fax: 1-802-877-1213
Website: www.DRpower.com
Table of Contents
y
Chapter 1: General Safety Rules ............................................................................................................................................................ 3
Chapter 2: Setting Up The DR TRIMMER/MOWER ............................................................................................................................ 6
Chapter 3: Operating The DR TRIMMER/MOWER ............................................................................................................................. 11
Chapter 4: Maintaining The DR TRIMMER/MOWER .......................................................................................................................... 17
Chapter 5: Troubleshooting .................................................................................................................................................................. 28

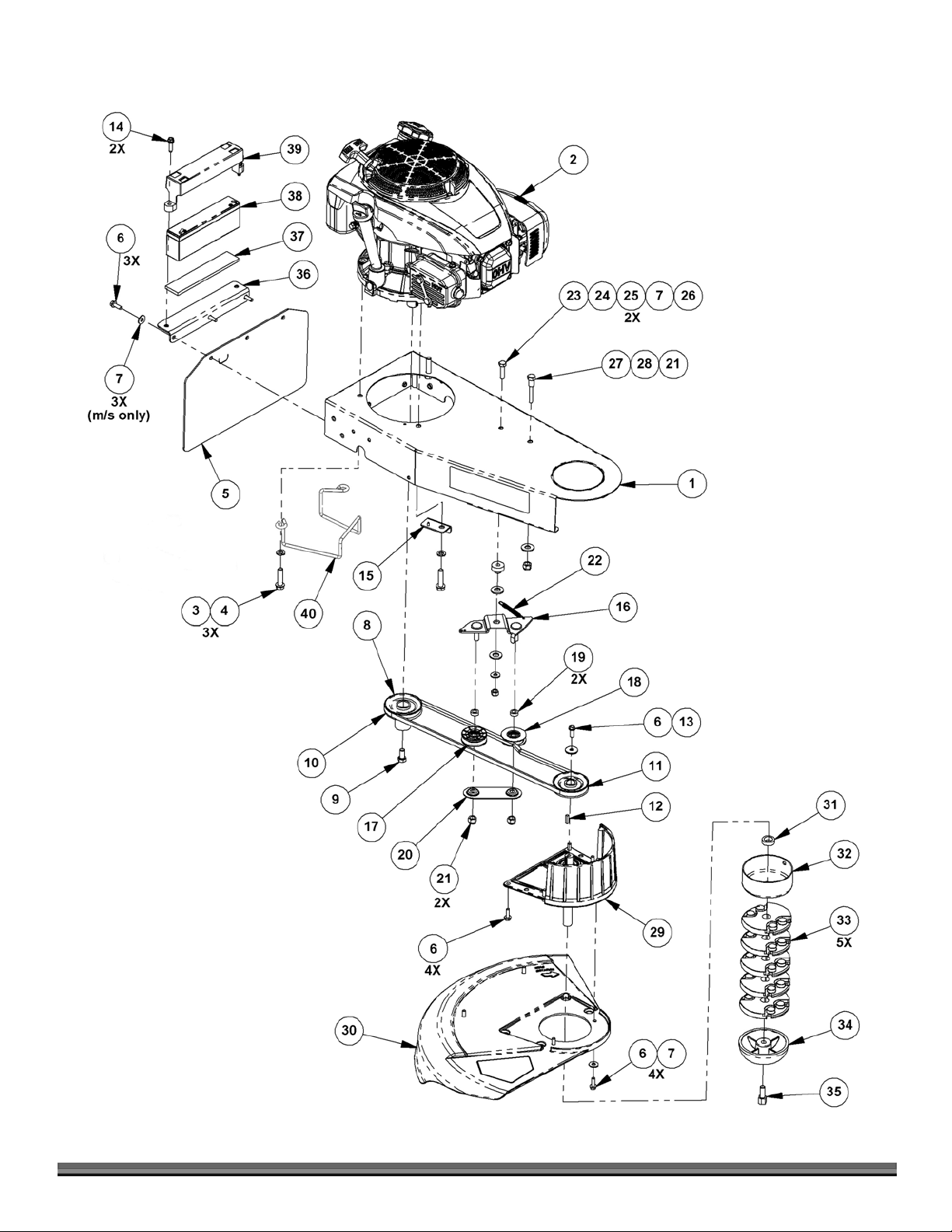

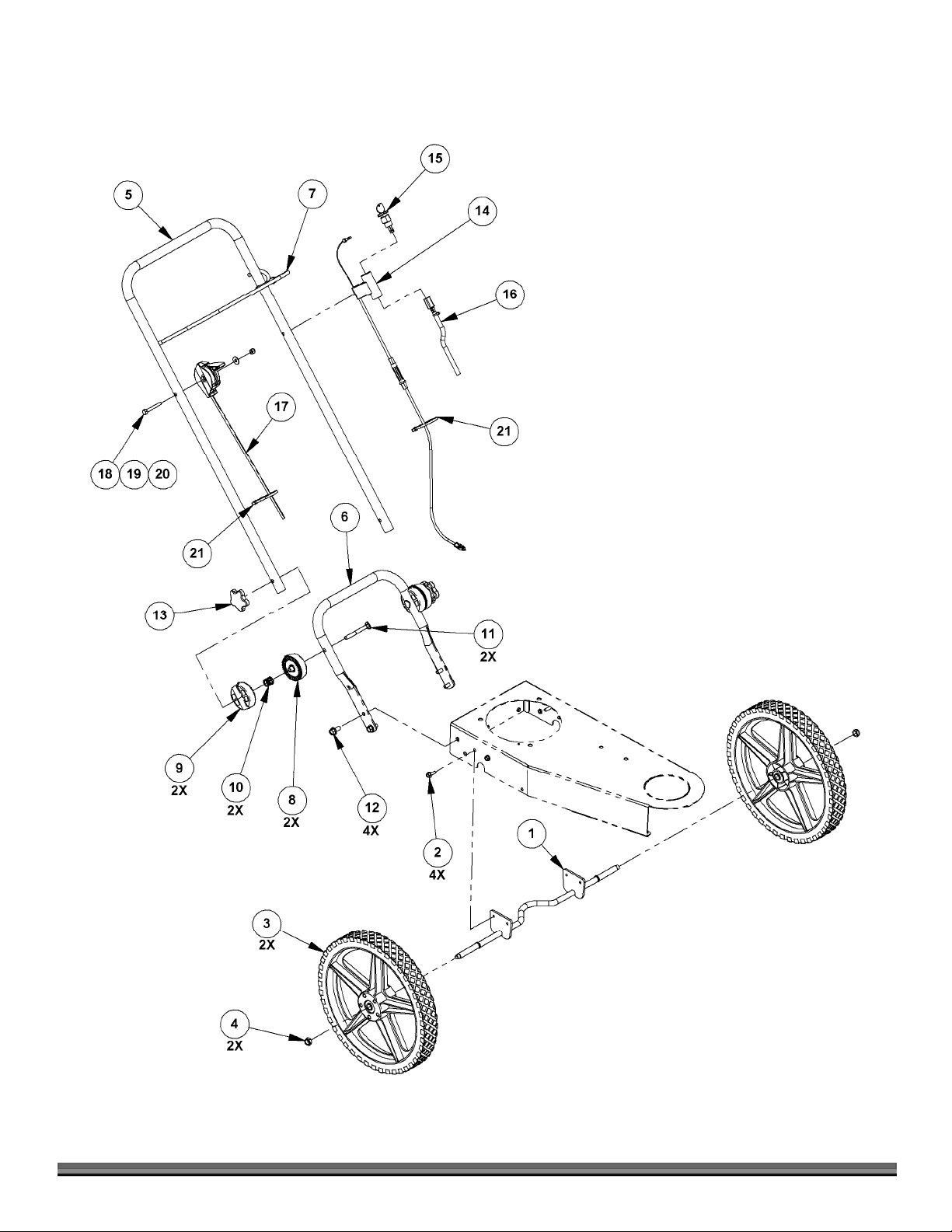

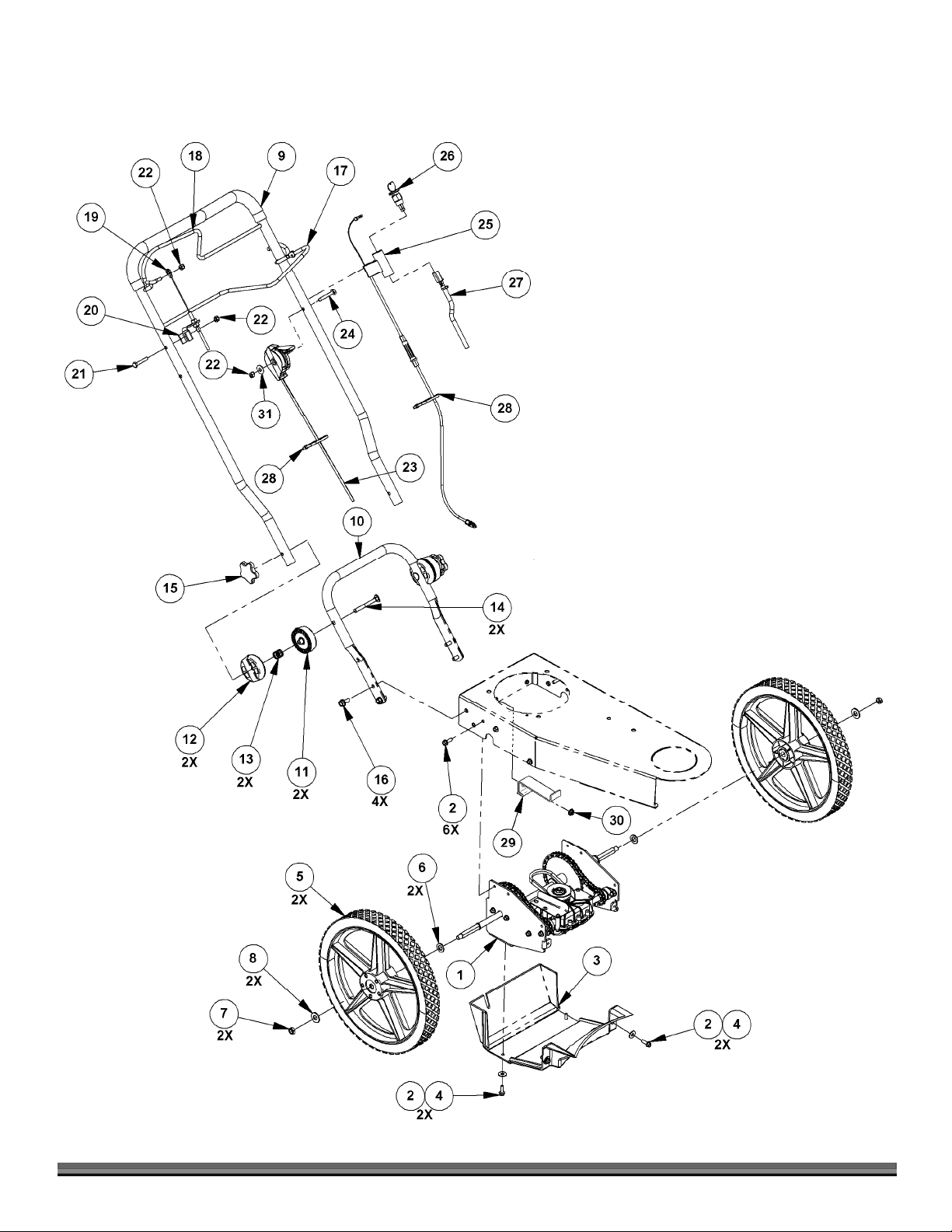

Chapter 6: Parts Lists and Schematic Diagrams .................................................................................................................................. 31
Conventions used in this manual
This indicates a hazardous situation, which, if not avoided, could result in death or serious injury.
This indicates a hazardous situation, which, if not avoided, could result in minor or moderate injury.
This information is important in the proper use of your machine. Failure to follow this instruction could result in damage
to
our machine or property.
Serial Number and Order Number
A Serial Number is used to identify your machine and is located on the Serial Number Label on your machine. An Order Number
is used to check and maintain your order history and is located on the upper left portion of your packing slip. For your
convenience and ready reference, enter the Serial Number and Order Number in the space provided on the front cover of this
manual.
Additional Information and Potential Changes
DR Power Equipment reserves the right to discontinue, change, and improve its products at any time without notice or obligation
to the purchaser. The descriptions and specifications contained in this manual were in effect at printing. Equipment described
within this manual may be optional. Some illustrations may not be applicable to your machine.
2 DR
®
TRIMMER/MOWER
Chapter 1: General Safety Rules
Read this safety & operating Instructions manual before you use the DR TRIMMER/MOWER. Become familiar with the operation
and service recommendations to ensure the best performance from your machine. If you have any questions or need assistance,
please contact us at www.DRpower.com or call toll-free 1-800-DR-OWNER (376-9637) and one of our Technical Support
Representatives will be happy to help you.
Labels
Your DR TRIMMER/MOWER carries prominent labels as reminders for its proper and safe use. Shown below are copies of the
Safety and Information labels that appear on the equipment. Take a moment to study them and make a note of their location on
your DR TRIMMER/MOWER as you set up and before you operate the unit. Replace damaged or missing safety and information
labels immediately.
#14823
#13649
#13758
#32343
#37829
Protecting Yourself and Those Around You
This is a high-powered machine, with moving parts operating with high energy at high speeds. You must operate the machine
safely. Unsafe operation can create a number of hazards for you, as well as anyone else in the nearby area. Always take the
following precautions when using this machine:
Keep in mind that the operator or user is responsible for accidents or hazards occurring to other people, their property, and
themselves.
Always wear protective goggles or safety glasses with side shields while mowing to protect your eyes from possible thrown
debris.
Avoid wearing loose clothing or jewelry, which can catch on the mower’s moving parts.
We recommend wearing gloves while mowing. Be sure your gloves fit properly and do not have loose cuffs or drawstrings.
Wear shoes with non-slip treads when using your DR TRIMMER/MOWER. If you have safety shoes, we recommend wearing
them. Do not use the machine while barefoot or wearing sandals with exposed toes or heels.
Wear long pants while operating the DR TRIMMER/MOWER.
Use ear protectors or ear plugs rated for at least 20 dba to protect your hearing.
Keep bystanders at least 50 feet away from your work area at all times. The tips of the cutting cords on the DR
TRIMMER/MOWER can throw sticks, small stones, gravel, and bits of debris over long distances at great velocity. Do not
travel over loose materials such as gravel or mulch with the trimmer head spinning. Doing so could cause personal injury or
property damage from thrown objects. Release the bail bar to stop the spinning cords and shut off the engine when another
person or pet approaches.
Never tamper with safety devices. Check their proper operation regularly.
Never operate the machine when under the influence of alcohol, drugs, or medication.
In an emergency, to quickly stop the cutting cords, remove your hand from the bail bar.
CONTACT US AT www.DRpower.com 3
Operating the Mower Safely
This is a high-powered machine, with moving parts operating with high energy at high speeds. You must operate the machine
safely. Unsafe operation can create a number of hazards for you, as well as anyone else in the nearby area. Always take the
following precautions when using this machine:
Never allow people who are unfamiliar with these instructions to use the DR TRIMMER/MOWER. Allow only responsible
individuals who are familiar with these rules of safe operation to use your machine.
Never place your hands, feet, or any part of your body on or under the mower deck in the path of the spinning cords, belt,
pulleys, or near the discharge opening while the engine is running. Keep area of discharge clear of people, animals, buildings,
glass, or anything else that will obstruct clear discharge, cause injury, or damage.
Your DR Trimmer/Mower is a powerful tool, not a plaything. Exercise extreme caution at all times. The design of your
machine is for trimming and mowing grass, weeds, and other growth as specified in this manual. Do not use it for any other
purpose.
Whenever you leave the operating position to make adjustments, change cords or if you have to remove grass or debris from
the underside of the deck, always shut off the engine and wait five (5) minutes to allow parts to cool. Remove the key, if so
equipped, and disconnect the spark plug wire and keep the wire away from the spark plug to prevent accidental starting.
When operating over uneven terrain and slopes, use extreme caution to ensure solid and firm footing. Keep a firm hold on
the handlebar and walk, never run.
Stop the cutting cords when crossing gravel drives, walks, or roads.
Never operate your unit on a slippery, wet, or muddy surface. Exercise caution to avoid slipping or falling.
Always operate the mower from behind the handlebar. Never pass or stand on the discharge side of the machine when the
engine is running or cutting cords are spinning.
Never, under any conditions, remove, bend, cut, fit, weld, or otherwise alter standard parts on the DR TRIMMER/MOWER.
This includes all shields and guards. Modifications to your machine could cause personal injuries and property damage and
will void your warranty.
If the cutting cords strike a foreign object or if your machine should start making an unusual noise or vibration, stop the
engine and wait five (5) minutes for all moving parts to come to a complete stop and cool. Vibration is generally a warning of
trouble. Disconnect the spark plug wire and inspect for damage. Clean and repair and/or replace damaged parts.
While using the DR TRIMMER/MOWER, do not hurry or take things for granted. When in doubt about the equipment or your
surroundings, stop the machine and take the time to look things over. Make sure that you have 100% control of the mower at
all times.
Watch for traffic when mowing near roadways.
Use the machine only in daylight.
Be cautious when using your DR TRIMMER/MOWER around fencing, wires, ropes, and hoses. It is possible that these and
other debris can become wound around the line plates of the machine, potentially damaging the bearings or injuring you.
Do not operate the DR TRIMMER/MOWER on slopes greater than 20 degrees.
Keep all nuts and bolts tight and keep the equipment in good operating condition.
Safety for Children and Pets
Tragic accidents can occur if the operator is not alert to the presence of children and pets. Children are often attracted to the
machine and the mowing activity.
precautions:
Keep children and pets out of the working area and under the watchful care of a responsible adult.
Be alert and turn the machine off if children or pets enter the work area.
Never allow children to operate the DR TRIMMER/MOWER.
Use extra care when approaching blind corners, shrubs, trees, or other objects that may obscure your vision.
4 DR
®
TRIMMER/MOWER
Never
assume that children will remain where you last saw them. Always follow these
Safety with Gasoline - Powered Machines
Gasoline is a highly flammable liquid. Gasoline also gives off flammable vapor that can be easily ignited and cause a fire or
explosion. Never overlook the hazards of gasoline. Always follow these precautions:
Never run the engine in an enclosed area or without proper ventilation as the exhaust from the engine contains carbon
monoxide, which is an odorless, tasteless, and deadly poisonous gas.
Store all fuel and oil in containers specifically designed and approved for this purpose and keep away from heat and open
flame, and out of the reach of children.
Replace rubber fuel lines and grommets when worn or damaged and after 5 years of use.
Fill the gasoline tank outdoors with the engine off and allow the engine to cool completely. Don't handle gasoline if you or
anyone nearby is smoking, or if you're near anything that could cause it to ignite or explode. Reinstall the fuel tank Cap and
fuel container cap securely.
If you spill gasoline, do not attempt to start the engine. Move the machine away from the area of the spill and avoid creating
any source of ignition until the gas vapors have dissipated. Wipe up any spilled fuel to prevent a fire hazard and properly
dispose of the waste.
Allow the engine to cool completely before storing in any enclosure. Never store a machine that has gas in the tank, or a fuel
container, near an open flame or spark such as a water heater, space heater, clothes dryer or furnace.
Never make adjustments or repairs with the engine running. Shut down the engine, wait 5 minutes, disconnect the spark plug
wire, keeping it away from the spark plug to prevent accidental starting before making adjustments or repairs.
Never tamper with the engine’s governor setting. The governor controls the maximum safe operation speed and protects the
engine. Over-speeding the engine is dangerous and will cause damage to the engine and to the other moving parts of the
machine. If required, see your authorized dealer for engine governor adjustments.
Keep combustible substances away from the engine when it is hot.
Never cover the machine while the muffler is still hot.
Do not operate the engine with the air cleaner or cover over the carburetor air-intake removed, except for adjustment.
Removal of such parts could create a fire hazard. Do not use flammable solutions to clean the air filter.
The muffler and engine become very hot with use and can cause a severe burn; do not touch. Allow the engine to cool before
refueling, doing maintenance, or making adjustments.
Do not mow in the rain. Water on the spark plug may cause the engine to stall.
Keep combustible substances away from the engine when it is hot.
Never cover the machine while the muffler is still hot.
California Proposition 65
California Proposition 65:
Engine exhaust and some of its constituents are known to the state of California to cause cancer, birth defects, and other
reproductive harm.
This product contains or emits chemicals known to the state of California to cause cancer, birth defects, and other
reproductive harm.
A Note to All Users
Under California law, and the laws of some other states, you are not permitted to operate an internal combustion engine using
hydrocarbon fuels without an engine spark arrester. This also applies to operation on US Forest Lands. All DR
TRIMMER/MOWERS shipped to California, New Mexico and Washington State are provided with spark arresters. Failure of the
owner or operator to maintain this equipment in compliance with state regulations is a misdemeanor under California law and
may be in violation of other state and/or federal regulations. Contact your State Park Association or the appropriate state
organization for specific information in your area.
No list of warnings and cautions can be all-inclusive. If situations occur that are not covered by this manual, the operator must
apply common sense and operate this DR TRIMMER/MOWER in a safe manner. Contact us at www.DRpower.com or call 1-800DR-OWNER (376-9637) for assistance.
CONTACT US AT www.DRpower.com 5
®
Chapter 2: Setting Up The DR TRIMMER/MOWER
A
It may be helpful to familiarize yourself with the controls and features of your DR TRIMMER/MOWER as shown in Figure 1 before
beginning these procedures.
If you have any questions at all, please feel free to contact us at www.DRpower.com.
DR TRIMMER/MOWER Controls and Features
Variable Speed
Drive Engage Bar
Trimmer Head
Engage Bar
Trimmer Head
Engage Bar
Oil Fill
Handlebar
djuster
Recoil Starter
Key Switch
Throttle Control Lever
(opposite side on
6.75/7.25 models)
Pro-XL Self-Propelled Controls
Fuel Fill
®
Trimmer Guard
Figure 1
6 DR
®
TRIMMER/MOWER
Mow-Ball
Cutting Cord
Specifications
g
Engine
Engine
Speed
Cutting
Width
Cutting
ht
Hei
Cutting
Speed
Cord Size
Wheels
Handlebars
Frame
Mow-Ball
Drive Belt
Drivetrain
Machine
Dimensions
Machine
Weight
Accessories
Premier Pro Pro-XL Pro-XL SP
Briggs and Stratton 6.75
EXi Manual or Electric
Start. See Engine Owners
Manual for details
3500 rpm 3500 rpm 3500 rpm 3500 rpm
22" 22" 22" 22"
5 Heights, 1.5" to 3.5" 5 Heights, 1.5" to 3.5" 5 Heights, 1.5" to 3.5" 5 Heights, 1.5" to 3.5"
3800 RPM 3800 RPM 3800 RPM 3800 RPM
Green .155" Round, Blue
.175" Spiral, 25" Long
14" x 1.75" Wide, Resin,
Steel Bearings
Straight Ergonomic Ergonomic Ergonomic
14 Gage Steel 14 Gage Steel 14 Gage Steel 14 Gage Steel
4" Diameter,
Super-Tough Nylon
V-Belt, 3L, Gates
PoweRated 6744, No
Substitutions
N/A N/A N/A Auto Clutching
50.4" L x 21.5" W
x 38.3" H
57 Lbs Manual Start,
63 Lbs Electric Start
12" Beaver Blade, DR
DuraBlade, TrimSafe
Guard, and Weather
Cover
Briggs and Stratton 7.25
EXi Manual or Electric
Start. See Engine Owners
Manual for details
Green .155" Round, Blue
.175" Spiral, 25" Long
16" x 1.75" Wide, Resin,
Steel Bearings
4" Diameter,
Super-Tough Nylon
V-Belt, 3L, Gates
PoweRated 6744, No
Substitutions
50.4" L x 21.5" W
x 40" H
58 Lbs Manual Start,
65 Lbs Electric Start
12" Beaver Blade, DR
DuraBlade, TrimSafe
Guard, and Weather
Cover
Briggs and Stratton 8.75
Manual or Electric Start.
See Engine Owners
Manual for details
Green .155" Round, Blue
.175" Spiral, 25" Long
16" x 1.75" Wide, Resin,
Steel Bearings
4" Diameter,
Super-Tough Nylon
V-Belt, 3L, Gates
PoweRated 6744, No
Substitutions
50.4" L x 21.5" W
x 40" H
60 Lbs Manual Start
67 Lbs Electric Start
12" Beaver Blade, DR
DuraBlade, TrimSafe
Guard, and Weather
Cover
Briggs and Stratton 8.75
Electric Start.
See Engine Owners
Manual for details
Green .155" Round, Blue
.175" Spiral, 25" Long
14" x 1.75" Wide, Resin,
Steel D-Bore
4" Diameter,
Super-Tough Nylon
V-Belt, 3L, Gates
PoweRated 6744, No
Substitutions
Transmission, Gates 1330
3L V-Belt, #35 Steel
Chain, 10 Tooth to 40
50.4" L x 21.5" W
x 40.25" H
79 Lbs Electric Start
12" Beaver Blade, DR
DuraBlade, TrimSafe
Guard, and Weather
Cover
Hardware Supplied in Hardware Bag
Part# Description Qty
15233 ....... Nut, Nylon Lock, 7/16-20, LP * ......................... 2
16413 ....... Nut, Nylon Lock, 3/8-16, LP ** ......................... 2
11239 ....... Washer, Flat, 3/8" USS ** ................................. 2
32338 ....... Washer, Flat, .510" X .875" X .1", ZP ** ........... 2
* Non Self Propelled machines only
** Self Propelled machines only
CONTACT US AT www.DRpower.com 7
Plastic
A
Hub
Locknut
Figure 2
Lower
Handlebar
Handlebar
Hardware
Wheel
3/8" Washer
(SP Only)
.510" Washer
(SP Only)
FOR PROPER SETUP OF YOUR NEW DR TRIMMER/MOWER PERFORM ALL
THE FOLLOWING STEPS IN THIS CHAPTER.
Installing the Wheels
Tool needed:
9/16" Wrench SP (Self Propelled)
5/8" Wrench Non SP (Non Self Propelled)
1. Remove the Locknuts (SP and Non SP)and washers (SP) from the Hardware
Bag.
2. SP only: Insert a 510" X .875" X .1" Washer (#32338) onto the Axle (Figure
2).
3. Slide the wheel onto the axle with the plastic hub facing out.
4. SP only: Insert a 3/8" Washer onto the Axle against the outside of the
Wheel.
5. Install a 7/16-20 Locknut with a 5/8" Wrench (#15233 Non SP) or a 3/8-16
Locknut with a 9/16" Wrench (#16413 SP).
6. Repeat for the other wheel.
Adjusting the DR TRIMMER/MOWER Handlebar
The Lower Handlebar may have been loosened during shipping. Make sure
that the Bolts attaching the Lower Handlebar to the Frame are tight.
Figure 3
Upper
Handlebar
djustment
Knob
Figure 4
Notches
Lined Up
Lower
Handlebar
Tool needed:
1/2" Wrench
Check the tightness of the four Bolts that secure the Lower Handlebar to the
Frame using a 1/2" Wrench (Figure 3).
The Handlebar folds down for easy storage and the DR Trimmer/Mower is
shipped to you with them folded.
Note: Ensure that the teeth of the Handlebar Adjusters mesh correctly as you tighten
the Knobs in the following step.
1. Loosen both the Adjustment Knobs and move the Handlebar up or down
until the Notches on the Adjusters are aligned on both sides and tighten the
Knobs (Figure 4). This puts the Handlebar at a comfortable operating
position for many people.
It is important to find a Handlebar height that allows the Mow-Ball
comfortably hover just above the ground. When in use, proper adjustment is
critical to best performance. You may find you like different Handlebar heights
for different mowing conditions.
2. For other Handlebar height settings, loosen the Knobs, move the Handlebar
up or down until you are comfortable, and then tighten the Adjustment
Knobs securely. Take note of how many teeth you have moved away from the
aligned notches to align both sides.
®
to
8 DR
®
TRIMMER/MOWER

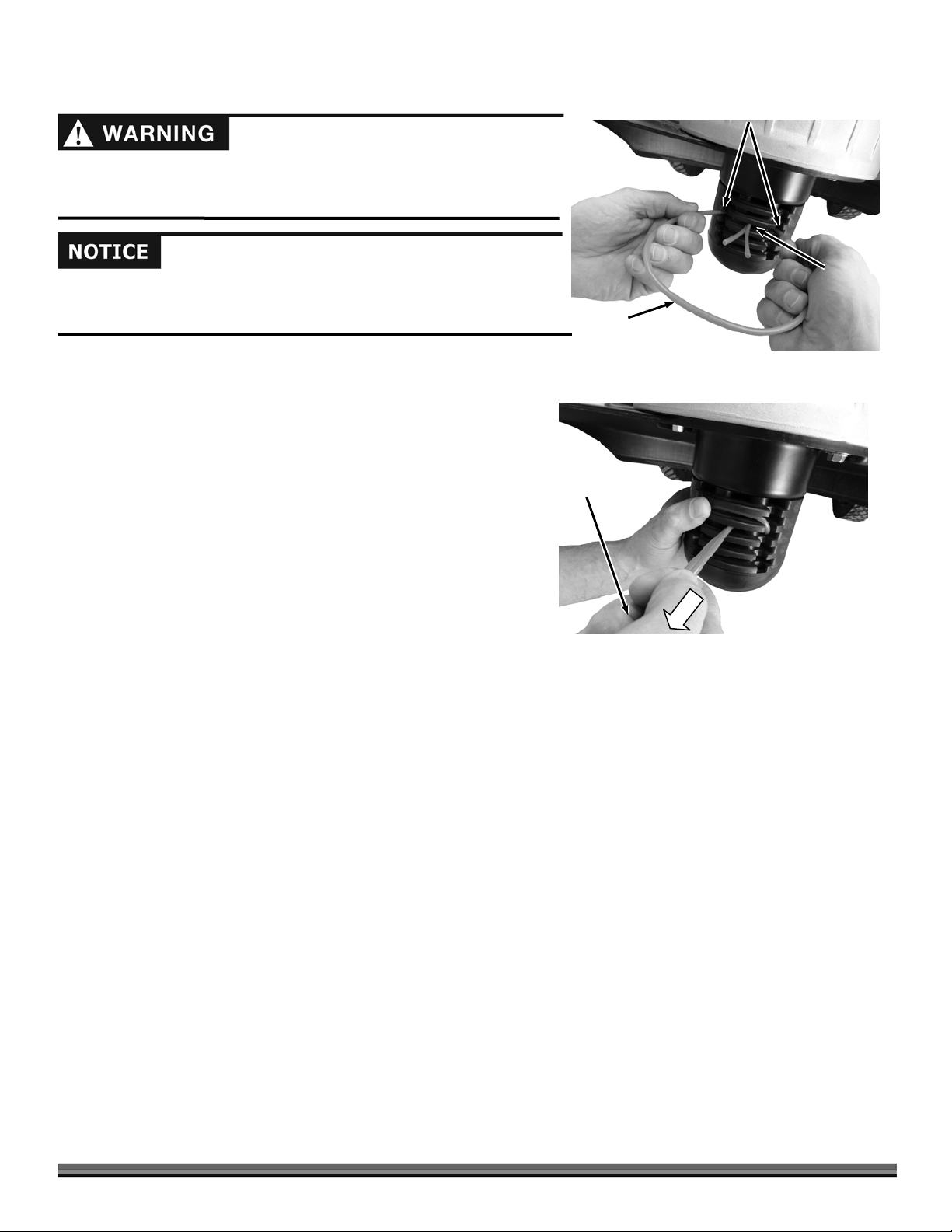

Installing the Cutting Cords
s
There are two installation points on each Line Plate. Each point is 180 degrees
apart. Always install two Cords, one opposite the other at the same height.
Note: Soaking the Cutting Cords and trimming the ends at an angle will make
installation easier.
Side
Openings
1. Insert the ends of the Cords into the side openings in the Line Plate
(Figure 5).
2. Push the Cord through until the ends come out the center hole in the Line
Plate. Adjust the Cords so the tips are even.
3. Pull the Cords under the loop and push the loop up into the Line Plate
groove above them (Figure 6) and then pull the Cords tight.
If the tips of the cords are not even, it can cause unbalance of the trimmer
and will result in increased vibration.
Figure 7 illustrates the Cords installation on the Line Plates. It shows the Line
Plate from a top view. It may look complicated, but once you have done it a
couple of times, it’s easy. There are two installation points on each Line Plate.
Each point is 180 degrees apart. Always install two Cords, one opposite the
other.
Extending Cutting Cord Life
STORE YOUR CORD OUT OF THE SUN. UV can damage your cord causing
premature wear.
KEEP YOUR CORD HYDRATED. Soak your cord in water for at least 3 days
before using.
Cord
Figure 5
Cord End
Figure 6
In Here
Center
Opening
In Here
Top View
Out Here
Out Here
In Here
Figure 7
CONTACT US AT www.DRpower.com 9
Out Here
Out Here
In Here
Adding Oil and Gasoline
Note: Refer to the Engine Manufacturers Manual for more detailed Engine information.
Tip: To avoid confusion, we recommend leaving the caps ON the Fuel and Oil Fills until you are ready to pour either gasoline or
oil into the correct Fill.
Note: You will need approximately 15 to 22 ounces of SAE 30 high detergent oil depending on Engine type. Use only SAE 30 high
detergent oil classified “For Service SF, SG, SH, SJ” or higher. Do not use special additives. Other types of oil could cause
problems with the operation of your machine. Please refer to your Engine Owner’s Manual for detailed information on oil
quantity and cold temperature oil specifications.
You must add oil before starting the engine. This machine is shipped without oil. Traces of oil may be in the reservoir from
factory testing, but
avoid overfilling.
To get an accurate reading when checking the oil level:
- the machine should be on a level surface.
- the dipstick should be screwed down to ensure an accurate oil level reading.
you must add oil before starting the engine. Fill the reservoir slowly, checking the level frequently to
Oil Fill
Figure 8
Fuel Fill
1. Place the machine on a level surface and initially add 1/2 of the SAE 30 High
Detergent oil into the Oil Fill (Figure 8) and wait one (1) minute for the oil
to settle
2. Check the Dipstick and continue adding a few ounces of oil at a time,
rechecking the Dipstick until the oil reaches the fill mark. Be careful not to
overfill.
Fill the fuel tank outdoors or in a well-ventilated area, away from sparks, open
flames, pilot lights, heat, and other ignition sources.
3. Fill the Fuel Tank with fresh, unleaded gas (with a minimum of 85 Octane
and no more than 10% Ethanol), to not more than 1/4" from the bottom of
the Fill Neck to allow for Fuel expansion. Be careful not to overfill and
reinstall the Cap before starting the Engine. See your Engine Owner’s
Manual for more information.
Note: To refill the Fuel Tank, turn the Engine OFF, and let the Engine cool at least
two minutes before removing the Fuel Fill Cap.
Connecting the Battery Wire (Electric-Starting Models Only)
We ship all Electric-Starting Trimmers with the negative Battery wire
disconnected. This prevents the Battery from discharging during shipment.
Before using your Trimmer, you must connect the Battery wire.
Negative (-) Battery
Terminal
Figure 9
10 DR
®
Negative Battery
Wire
TRIMMER/MOWER
1. Connect the black wire by pushing the plastic connector onto the negative
(–) Battery terminal (Figure 9).
Note: The red wire should already be attached to the positive terminal.
Chapter 3: Operating the DR TRIMMER/MOWER
The design of your machine is for trimming and mowing grass, weeds, and other growth as specified in this manual. Do not
use it for any other purpose as it could cause serious injury.
Contact with internal rotating parts will cause serious personal injury. Never put hands, face, feet, or clothing under the
mower deck or discharge opening at any time.
Before performing any adjustments to the trimmer cords or any other procedure or inspection, stop the engine, wait five
minutes to allow parts to cool. Disconnect the spark plug wire, keeping it away from the spark plug.
Before Starting the Engine
1. Check the oil level every time you use the DR TRIMMER/MOWER (Figure
10).
2. Check the fuel level.
3. Remove any debris buildup from the top of the Engine and the underside of
the machine.
Throttle
Control
Lever
Recoil Starter
Handle
Key Switch
(Electric
Start Only)
Fuel Fill
It is important for proper operation to keep the top of the engine clear of
Oil Fill
grass and debris at all times so the engine can pull air through to stay cool. If
the top of the engine is clogged then the engine could overheat causing
engine damage.
Figure 10
Note: See the Engine Manual for more detailed and specific information on
operating the Engine.
Manual Starting
Note: You may use these starting methods with both Manual and Electric-Starting models.
1. Push the Throttle Control Lever all the way forward to the Run
position (Figure 10).
2. Grasp the Recoil Starter Handle and slowly pull until you feel resistance. Let the cord retract a little bit and then pull the cord
rapidly to start the Engine. One or two pulls usually starts the DR TRIMMER/MOWER.
Note: Do not engage the Bail Bar (Trimmer Head Control) until after the Engine has started.
Electric Starting
The 6.75 and 7.25 EXI Engines are not equipped with alternators. Running the Trimmer Engine will NOT recharge your
Battery. Charge the Battery after each use by following the Instructions on page 25.
If the engine fails to start after TEN (10) seconds of continuous cranking, turn the key to the off position and allow the starter
motor to cool. Check the cause of hard starting; See Chapter 5 - Troubleshooting.
Note: Use the following steps with Electric-Starting models only.
1. Push the Throttle Control Lever all the way forward to the Run
position (Figure 10).
2. Turn the Key to the START position until the Engine starts, then release. The Key will snap back to the RUN position and the
Engine will continue to run.
Note: Do not engage the Trimmer Head Engage Bar until after the Engine has started.
CONTACT US AT www.DRpower.com 11
Trimmer Head
Engage Bar
Figure 11
Handlebar
Throttle
Control
Lever
Handlebar
Trimmer Head
Engage Bar
Stopping the Engine
1. Move the Throttle Control Lever (Figure 11) all the way back past the Idle
position.
Note: If you have an Electric-Starting model, please note that the Key does not stop
the Engine. You must follow these instructions to stop the Engine for both Electric
and Manual-Starting models.
2. Remove the Key for safety. If the Key becomes difficult to remove, apply SAE
30 Oil into the Keyhole.
Engaging the Trimmer Head
1. Bring the Trimmer Head Engage Bar toward you and grip it together with the
Handlebar (non self propel Figure 11) (Self Propel Figure 12). Keep holding
the Bar to the Handlebar. The Cutting Cords will rotate and will continue to
rotate until you release the Bar.
Note: Before using your Trimmer for the first time or after you have installed a new
Belt, engage the Trimmer Head Engage Bar 10 times and hold it for 3 seconds each
time. This is required to wear in the Belt to ensure the best grip for trimming.
Stopping the Cords from Spinning
1. Release the Trimmer Head Engage Bar from the Handlebar. The Trimmer
Head will stop spinning while the Engine continues to run.
Figure 12
Wheel Drive Engage Bar
Figure 13
Handlebar
3-1/2"
3"
2-1/2"
2"
1-1/2"
Engaging the Self Propel Wheel Drive
1. Bring the Wheel Drive Engage Bar toward you and the Handlebar (Figure
13). The closer to the Handlebar you move the Bar the faster the machine
will travel. The machine will continue to move forward until you release the
Bar.
2. Push the Trimmer forward a little after releasing the Wheel Drive Engage
Bar. This unlocks the Wheel Transmission Clutches so you can pull the
Trimmer back easily.
Setting the Cutting Height
Setting the Cutting Height is easy. Cutting heights range in 1/2-inch increments
from 1-1/2 inches (minimum) when using the bottom Line Plate, to
approximately 3-1/2 inches when using the top Line Plate (Figure 14).
Install the Cutting Cords in the Line Plate that gives you the desired cutting
height.
Figure 14
12 DR
®
TRIMMER/MOWER
Loading...
