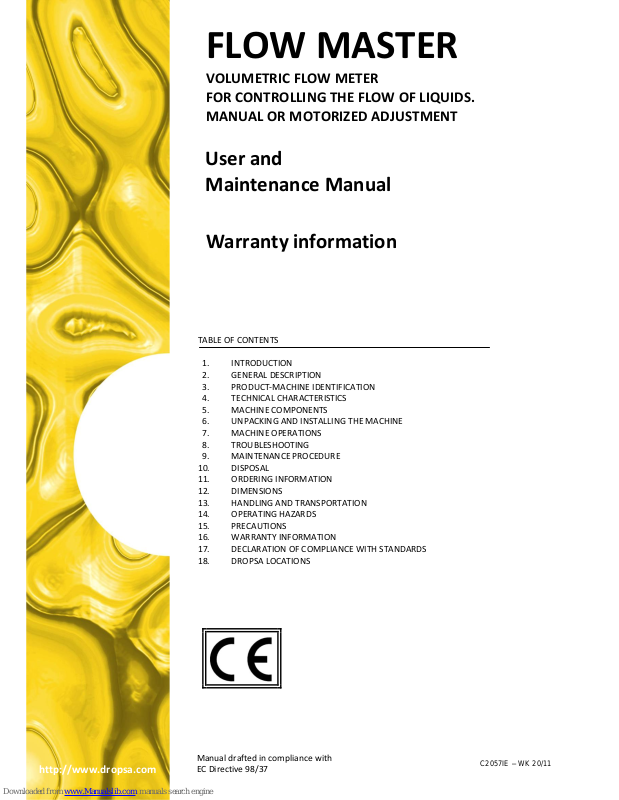

DROPSA Flow master User And Maintenance Manual

User and
Maintenance Manual

Warranty information

FLOW MASTER

VOLUMETRIC FLOW METER
FOR CONTROLLING THE FLOW OF LIQUIDS.
MANUAL OR MOTORIZED ADJUSTMENT

http://www.dropsa.com

Manual drafted in compliance with
EC Directive 98/37

C2057IE – WK 20/11

TABLE OF CONTENTS

1. INTRODUCTION

2. GENERAL DESCRIPTION

3. PRODUCT-MACHINE IDENTIFICATION

4. TECHNICAL CHARACTERISTICS

5. MACHINE COMPONENTS

6. UNPACKING AND INSTALLING THE MACHINE

7. MACHINE OPERATIONS

8. TROUBLESHOOTING

9. MAINTENANCE PROCEDURE

10. DISPOSAL

11. ORDERING INFORMATION

12. DIMENSIONS

13. HANDLING AND TRANSPORTATION

14. OPERATING HAZARDS

15. PRECAUTIONS

16. WARRANTY INFORMATION

17. DECLARATION OF COMPLIANCE WITH STANDARDS

18. DROPSA LOCATIONS

2

1. INTRODUCTION

This manual refers to FLOW MASTER volumetric flow device.

You can find additional copies and newer revisions of this document from our website http://www.dropsa.com. Alternatively
contact one of our Sales Offices.

This User and Maintenance Manual contains important information on health and safety issues for the personnel.

It is recommended to attentively read this manual and carefully keep it in good condition so that it is always available to
personnel requiring to consult it.

2. GENERAL DESCRIPTION

FLOW MASTER is a volumetric flow meter, which constantly monitors lubrication.

Flow meter precise monitoring, without calibrations or adjustments, is due to volumetric measurements not dependent on
lubricant temperature or viscosity.

FLOWMASTER is a modular system consisting of two elements:

Base
Metering module

MODULAR SYSTEM

The base is common to all size modules, which are also interchangeable. The modular construction makes it possible to built
assys (base and metering module) of 20 modules or more.

OPERATING PRINCIPLE

A “satellite”, which rotates with a fixed orbital movement, is operated by the liquid passage through the metering module. An
inductive sensor picks up each orbital movement and transmits a signal to an electronic reader. The operator can read the
output of the metering module in litres/min or in rev/min directly from the FACT 2000 device-display or from a PC monitor.

VISUAL INDICATION OF THE FLOW OF LIQUID

A “satellite”, built in the module body, rotating with an orbital movement indicates the fluid velocity. The flow output is neither
reduced nor interrupted even if the “satellite” stops.

3. PRODUCT - MACHINE IDENTIFICATION

Machine identification red label is located on the front side of the unit and contains machine serial number.

3

4. TECHNICAL CHARACTERISTICS

Proximity Inductor Sensor

Electric Diagram

Base and metering module

Fluid maximum viscosity
(at lubricant operating temperature)

1000 cSt (4628 SUS)

Operating temperature

-20 C ÷ +60 C (-4 °F ÷ +140 °F)

Minimum pressure
(continuous working)

6 bar (88.2 psi)

Maximum pressure
(intermittent working; maximum operating time: 1 hour)

20 bar (294 psi)

Base threads

-Inlet G”1/2 UNI-ISO 228/1-

- Outlet G” 3/8 UNI-ISO 228/1 -

Seals

O-Ring in Viton

Bases and metering modules

Stainless steel AISI 316

or

aluminium

Cover

Transparent polyamide

Maximum distance between a flow meter and the Electronic Control
Equipment

15 metres (16.4 yard)

It is advisable the use of a shielded cable

Motor for output adjustment

Supply voltage

12V DC

Reduction ratio

392:1 – Max torque: 3 Kg/cm (6.61 lb/cm)

Rev/min without load

6

Rev/min with max torque

5

Current consumption without load

15 mA

Current consumption with max torque

30mA

Revolution direction

reversible

Proximity Inductive Sensor

Maximum output current

200 mA

Supply voltage

10 ÷ 30V D.C.

Maximum switching frequency

200 Hz

Current consumption at 24 V D.C.

<18 mA

Outputs

NPN or PNP

Protection grade

IP 67

Temperature

-25 °C ÷ +70 °C (-13 °F ÷ + 158 °F)

4

5. MACHINE COMPONENTS

6. UNPACKING AND INSTALLING THE MACHINE

6.1 UNPACKING

Once a suitable location has been found to install the unit remove the machine from the packaging. Check the device has not
been damaged during transportation or storage. No particular disposal procedures are necessary, as packaging materials are not
dangerous or polluting.

6.2 INSTALLING

Install the flow meter on a proper support surface, free from impediments which could interfere with machine well functioning.

WARNING: All the electric, electronic components, reservoirs and base structure must be grounded.

The stainless steel option makes the FLOW MASTER suitable for applications in harsh, damp or corrosive environments.

- Connect inlet (par. 11.3, fig.1, pos. J) and outlet (par. 11.3, fig.1, pos. K) piping.

- Connect the inductive sensor cables (and the motor cables, for the motorized option) to the electronic control and

monitoring equipment terminal strip (see FACT 2000 User and Maintenance Manual).

To assemble flow meters in batteries, follow the instructions below:

1) Unscrew the two grub screws (par. 11.3, fig.1, pos.1) of the next flow meter.

2) Tighten the two screws (par. 11.3, fig.1, pos.2) to the previous flow meter. Pay attention to the O-Ring correct position

to prevent damages during assembling.

3) Screw again the grub screws (par. 11.3, fig.1, pos.1) to the previous flow meter.

The above operations must be carried out for all the flow meters being assembled.

6.3 TECHNICAL INDICATIONS

It is recommended to use:

- Structural steel piping of proper dimensions

- Grip-ring pipe fittings (To assembly: block pipe fittings and tighten pipes using a vice)

- An inlet filter with a proper filter grade (not over 90µ), Dropsa part N°3130309

BASE

METERING
MODULE

INDUCTIVE
SENSOR

GEAR MOTOR FOR
OUTPUT ADJUSTMENT
