Product Profile

This section mainly introduces
functions and installation guidelines
of EX3 and lists the components of
the aircraft and remote controller.

Introduction

● Equipped with Vision System and GPS System, your EX3 can precisely position, hover and
automatically return. It is also capable of flying in the intelligent flight modes like Point of Interest,
Follow Me and Waypoint Flight. Features a single-axis gimbal, your EX3 can shoot 2K, 2-megapixel
photos and adjust camera angle 90 degrees in flight.

● The aircraft and camera can easily be controlled using the onboard buttons. Real-time images and
aircraft data information can be shown on the “X-DRONE” APP. Foldable hand sticks and pull-out
holder design make the remote controller easier to operate and carry.

● Maximum flight speed is 40km/h and maximum flight time is 22 minutes.

Prepare Your EX3

Unfold the aircraft

The Aircraft is folded inside the package. Follow the steps as below to unfold the aircraft.
Step 1: Unfold the rear arms (Pic. 1).
Step2: Repeat again to unfold front arms (Pic. 2).

Pic. 1

Pic. 2

-1-

EX3 User Manual

Battery installation

Slide the battery into the battery compartment at the rear of the aircraft by pushing with appropriate
force. Make sure that you hear a click sound indicating the battery is firmly installed.

Attention: The battery should be installed firmly, failure to do so may affect the flight

!

safety of your aircraft. The aircraft may crash due to power-cut during the
flight.

Prepare the Remote Controller

Install the battery of remote controller

Step 1: Unfold the hand sticks and open the battery door (Pic. 1);

Step 2: Install 2*AA batteries into the battery compartment according to the given polarity (Pic. 2);
Step 3: Close the battery compartment (Pic. 3).

Pic. 1 Pic. 2 Pic. 3

● Insert batteries with correct polarity.

!

● Non rechargeable batteries are not to be charged; the transmitter need 2*AA
batteries for work.

● Do not mix old and new batteries.

● Do not mix alkaline, standard (carbon-zinc), or rechargeable (nickel-cadmium)

batteries.

● Rechargeable batteries are to be removed from the aircraft before being
charged.

● Rechargeable batteries are only to be charged under adult supervision.

● Exhausted batteries are to be removed from the aircraft.

● The supply terminals are not to be short-circuited.

-2-

Major Parts & Functional Switch

[1]

[2]

[3]

[4]

[5]

EX3 User Manual

[1] Power switch

[2] Brushless motor

[3] Undercarriage

[4] Propeller

[5] Camera

[6]

[7]

[1]

[2]

[3]

[8]

[9]

[4]

[5]

[6]

[7]

[6] Ultrasonic sensor

[7] Lights

[8] Vision positioning
lens

[9] Battery

[1] Photo/Video

[2] Left stick

[3] One-key unlock

[4] One-key RTH

[5] Right stick

[6] Power switch

[7] LCD display

-3-

[9]

[8] [10]

[11]

EX3 User Manual

[8] One-key takeoff/
one-key landing

[9] Gimbal trimmer

[10] High/Low speed

switch(short-press);

Light switch
(long-press)

[11] Gesture/GPS
mode switch

-4-

Aircraft

This section introduces functions and
features of the EX3.

Flight Modes

Your EX3 has two flights modes:

GPS mode: ON

Slide the button up at the right side to position “ON” (Pic.1), the aircraft is in GPS mode and can
precisely position and hover by the assistance of the GPS module. When GPS signal is weak or the
aircraft’s compass is interfered, the aircraft will automatically enter into Gesture Mode.

Gesture mode: OFF

Slide the button down to “OFF” (Pic.2), the aircraft is in Gesture mode that GPS is not used for
positioning, and the aircraft only uses the barometer to maintain altitude. The aircraft will not fly with
precise positioning and hovering. Gesture mode requests pilot with good skill.
In Gesture Mode, the aircraft cannot position itself or brake automatically, which increases the risk
of potential flight hazards. The aircraft will be also more easily affected by its surroundings.
Environmental factors such as wind can result in horizontal shifting, which may present hazards,
especially when flying in confined spaces.

Pic. 1 Pic. 2

-5-

Aircraft Status Indicator Lights

Aircraft front light

EX3 User Manual

Aircraft front light

Aircraft rear light

Aircraft rear light

Aircraft status indicator

No.

1 Front and rear lights flash yellow rapidly. Aircraft 2.4GHz disconnected.

Front and rear lights flash red, green and

2

Front lights glow solid red, rear lights glow

3

4

5 Front and rear lights flash green rapidly. Aircraft is in gyroscope calibration status.

6 Front and rear lights flash yellow alternatively. Aircraft is in compass horizontal calibration.

7 Front and rear lights flash green alternatively. Aircraft is in compass vertical calibration.

8

9

Indicator status Meanings

yellow alternatively.

solid green.

Front light glows solid red, rear

light glows solid green.

Front light glows solid red, rear light

flashes red slowly.

Front light glows solid red, rear light

flashes red rapidly.

Aircraft is in initialization detection status.

No GPS signal, aircraft is in gesture mode.

Good GPS signal, aircraft is preparing

for GPS mode.

Aircraft is nearly low voltage, 1/4

battery level left.

Aircraft is in low voltage, only 1/6

voltage left.

-6-

EX3 User Manual

No.

10

11

Front and rear lights flash three times, stop

12

Front and rear lights flash four times, stop

13

Front and rear lights flash five times, stop

14

Front and rear lights flash six times, stop

15

Indicator status Meanings

Front and rear lights flash once, stop

for 1.5 second.

Front and rear lights flash twice, stop

for 1.5 second.

for 1.5 second.

for 1.5 second.

for 1.5 second.

for 1.5 second.

Something wrong with the GPS module.

Something wrong with the ultrasonic module.

Something wrong with the vision positioning

Something wrong with the gyroscope.

Something wrong with the barometer.

Something wrong with the compass.

module.

Return to Home (RTH)

The Return-to-Home(RTH) function brings the aircraft back to the last recorded Home Point. There
are 3 types of RTH: smart RTH, low battery RTH and failsafe RTH. This section describes these 3
scenarios in detail.

GPS Description

If a strong GPS signal (satellites over 7) was acquired before takeoff, the

Home Point

● Aircraft can not avoid obstacles when it is flying back with the RTH function

!

initiated.

● Aircraft can not return to the Home Point when the GPS signal is weak or
unavailable.

● Aircraft will stop ascending and immediately return to the Home Point if user
moves the throttle stick in the aircraft reaches 15 meters altitudes or beyond
during Smart RTH.

● If there is no GPS signal and the remote controller signal lost for more than
6 seconds, the aircraft can not Return-to-Home but descend slowly until land
to the ground and lock the aircraft.

Home Point is the location from which the aircraft launched. The GPS signal
strength is indicated by the GPS icon( ). The aircraft rear indicator lights
will blink rapidly from yellow color to green color when the home point is
recorded.

-7-

EX3 User Manual

Smart RTH

Use the RTH button on the remote controller or tap the RTH button in the “X-DRONE” APP and follow
the on-screen instructions when GPS(more than 7 satellites is presented) is available to initiate Smart
RTH. During the smart RTH, you can use the remote controller to guide the aircraft around obstacles.
You can press the RTH button again to exit RTH procedure and regain control of the aircraft.

Low Battery RTH

The low battery level failsafe is triggered when the Eachine intelligent battery is depleted to a point
that may affect the safe return of the aircraft. Users are advised to return home or land the aircraft
immediately when prompted.

1. When the aircraft rear lights flash slowly, battery icon “ ” is shown on the remote controller or
on the “X-DRONE” APP. And steady “beep beep beep... beep beep beep” sound is heard. At this
moment, the aircraft will automatically return to the Home Point if the flying altitude is beyond 100
meters or the flying distance against the home point is beyond 300 meters.

2. When the aircraft rear lights flash slowly, battery icon “ ” is shown on the remote controller or on
the “X-DRONE” APP. And steady “beep..beep...beep” sound is heard. At this moment, the aircraft will
automatically return to the Home Point if the flying altitude is beyond 15 meters or the flying distance
against the home point is beyond 15 meters. If the aircraft flying altitude is less than 15 meters or
the flying distance is less than 15 meters, the aircraft will automatically land to the ground.

Attention: When the aircraft is automatically return home with Low Battery RTH

!

function activated, you can not cancel the RTH procedure by pressing the
RTH button to regain control of the aircraft.

Failsafe RTH

If the Home Point was successfully recorded and the compass is functioning normally, Failsafe RTH
will be automatically activated if the remote controller signal is lost beyond 6 seconds. Return-to-Home
can be cancelled by the pilot, allowing them to regain control when the remote controller signal
connection is re-established.

-8-

EX3 User Manual

Vision System

Made up by camera ①, camera ② and ultrasonic sensor ③, the Vision System locates at front bottom
of your EX3. It is a positioning system that is combined by image sensor and ultrasonic sensor. Your
EX3 acquires its location and perceives obstacles through using the camera sensor to detect the
ground texture and visible features. Meanwhile, assisted by the ultrasonic sensor, your EX3 could
determine the altitude where it stays, which could better insure the fly safety and gain precise
positioning.

①

②

③

Detection range

Detection range of Vision System indicates as below. Your EX3's detection function will be not so
effective that it could not avoid the obstacles that is out of its detection range. You have to be careful
once you fly when your EX3 is not flying within its detection range.

50°

Positioning System function

The Positioning System is typically used in indoor environment when GPS is weak or unavailable. It
works best when the aircraft altitude is less than 10 meters.

10m

-9-

EX3 User Manual

The precision of the vision system is easily affected by the light strength and features

!

of the surface textures. It would happen that the ultrasonic sensor could work normally
to detect the altitude when it is flying over objects that is made by sound-absorbing
materials. Once the image sensor and ultrasonic sensor are both not available, your
aircraft will switch to Gesture mode automatically. Be cautious to operate the aircraft
in the following situation:

1. Fly fast at an altitude below 0.5m.

2. Fly over monochrome surfaces (like pure black, pure red, pure red and pure green).

3. Fly over strong light reflective surfaces or surfaces prone to reflection.

4. Fly over water or transparent object surfaces.

5. Fly over moving object surfaces (such as crowds, swaying juggles and glass).

6. Fly over an area where light changes dramatically and rapidly.

7. Fly over surfaces extremely dark (lux<10) or extremely bright (lux>10,000).

8. Fly over material surfaces that is good at absorbing ultrasonic waves (like thick
carpet).

9. Fly over surfaces without clear textures.

10. Fly over surfaces with highly repeating textures (small grid brick in the same color).

11. Fly over surfaces that are tilting over 30 degrees (could not receive the echo of the
ultrasonic wave).

12. Flying speed should be controlled not to be too fast. When the aircraft is 1 meter
against the ground, the flying speed should not be over 5m/s; When the aircraft is
2 meter against the ground, the flying speed should not be over 14m/s.

● Keep sensors clean at all times.

● The vision system is only effective when the aircraft is within the altitude range of

10 meters.

● Make sure that the light is bright enough and the surfaces is with clear textures so
that the vision system can acquire the movement information through recognizing
the ground textures.

● The vision system may not function properly when the aircraft is flying over water,
low light ground and surfaces without clear patterns or textures.

● Do not use other ultrasonic device with a frequency of 40KHz when the vision
system is in operation.

Attention: Keep animals away from the aircraft when the vision system is activated.

!

The ultrasonic sensor emits high frequency sounds that are audible to
some animals.

-10-

EX3 User Manual

Aircraft Power Switch

Turn on the aircraft

Once battery is installed firmly, press on the power switch for 3 seconds, the aircraft makes beep
sounds and the lights keep flashing.

Turn off the aircraft

Press on the power switch for 3 seconds, the aircraft lights go off and the EX3 turns off.

Aircraft Battery

● Made by high-energy battery cells;

● Standard battery is 7.6V 3400mAh.

Aircraft battery Charger

Charge the aircraft battery

● The aircraft needs to be full charged before every flight;

● Please use Eachine charging device for this aircraft;

● Full Charging time takes about 270 minutes.

USB

-11-

EX3 User Manual

● Need adult supervision when this aircraft is being played by children.

!

● Only batteries of the same or equivalent type as recommended are to be used.

● Insert batteries with correct polarity.

● Rechargeable batteries are to be removed from the aircraft before being charged.

● Rechargeable batteries are only to be charged under adult supervision.

● Exhausted batteries are to be removed from the aircraft.

● The supply terminals are not to be short-circuited.

● The charging line to be used with the product should be regularly examined for

potential hazard, such as damage to the cable or cord, plug, enclosure of other

parts and that in the event of such damage, the product must not be used until that

damage had been properly removed.

Attach and Detach the Propellers

Attach the propellers

Install propeller A and propeller B on the corresponding motor shaft and fix the rotor propellers tightly
by rotating clockwise. (A/B mark are at the bottom of the propeller.)

A B

B A

-12-

EX3 User Manual

Detach the propellers

Take out the screws by rotating counter-clockwise and then remove the propellers.

A B

B A

● Please make sure that the clockwise and the counter-clockwise propellers are

!

installed on the correct motors, because the aircraft will not fly normally for wrong
propellers installation.

● Be aware of the sharp edges of the propellers. Handle with care.

● Use only the Eachine approved propellers. Do not mix propeller types.

● Stand clear of the motors and DO NOT touch the propellers when they are spinning.

● Check that the propellers and motors are installed correctly and firmly before every

flight.

● Ensure that all propellers are in good condition before each flight. DO NOT use
aged, chipped, or broken propellers.

● To avoid injury, STAND CLEAR of and DO NOT touch propellers or motors when
they are spinning.

● ONLY use original Eachine propellers for a better and safer flight experience.

-13-

Remote Controller

This section describes the features
of the remote controller, including the
instruction on controlling the EX3.

Remote Controller Functions and Status

Flight mode switch

Choose the flight mode by switching the GPS button to ON/OFF position.

-14-

GPS mode

Gesture mode

LCD Screen display

Aircraft battery

level

Distance against

Home Point

Altitude against

Home Point

Aircraft status indicator

No.

1

2

3

4

5

Remote controller status

Signal strength indicator changes circularly
from weak to strong.

Indicator lights flash slowly with steady
“beep beep... beep beep” sound and the
battery legend “ ” on LCD display flashing.

Battery legend “ ” on LCD display is as
shown, with steady “beep beep beep...beep
beep beep” sound.

Battery legend “ ” on LCD display is as
shown, with steady long beep sound.

Signal strength on LCD display is less
than two grids or no displaying, with
steady long beep sound.

EX3 User Manual

Return to Home

(RTH) icon

Satellite
amount

GPS mode

Remote controller

throttle mode

Description

The remote controller is under signal connection
status.

The remote controller is in low voltage status.
Please change a full charged battery.

Battery is running out “ ”; the aircraft will return

when the altitude is over 100m or the distance is
over 300m.

Battery is low “ ” ; the aircraft will return when

the altitude is over 15m or the distance is over

15m; if either the flying altitude or flying distance

is less than 15m, the aircraft will land to the spot.

1. The distance between aircraft and remote
controller is so long that the signal is weak.

2. The battery is removed after the aircraft
connects to the remote controller.

Signal strength
Remote controller
battery level

Photo/Video
High/Low speed

mode

-15-

EX3 User Manual

Gimbal trimmer

The camera angle can be adjusted within a 90 degree range by operating the gimbal trimmer to obtain
a better aerial experience. When scroll up the gimbal trimmer(upward to direction of “A”), the camera
will tilt upward to the direction of A; when scroll down the gimbal trimmer(downward to direction of “B”),
the camera will tilt downward to the direction of B.

A

B

A

90°

The camera can be rotated by 90 degrees.

Photo/Video

Short-press the button indicated as below and the camera icon “ ” on the LCD screen flashes once,

the camera takes one photo;

Long-press the same button, the video icon “ ” on the LCD screen flashes slowly, the camera is
taking video. Long-press again will exit shooting.

Attention: When the aircraft is not inserted with TF card or the TF card is malfunction,

!

photos and videos taking can not be done by pressing the button of the
remote controller, but by the icon on the APP interface.

B

One-key takeoff/landing

● After the EX3 unlocked, short-press the “ ” button (indicated as below), the aircraft will

automatically take off and hover at 1.5m altitude.

● When the aircraft is flying, short-press the “ ” button (indicated as below), the aircraft will

automatically land on the ground.

-16-

EX3 User Manual

Smart RTH button

● Press the button to start the RTH, the remote controller makes a beep sound and the aircraft will
fly back to the recorded Home Point.

● Press the RTH button again to exit RTH procedure and regain control of the aircraft.

● For more information about RTH, please turn to Return to Home section.

Low battery warning

1. When the battery icon “ ” is shown on the LCD screen or on the “X-DRONE” APP, and the aircraft
front lights glow solid on and the rear lights keep flashing slowly, it means that the battery is nearly
low voltage.

2. When the battery icon “ ” is shown on the LCD screen or on the “X-DRONE” APP, and the aircraft
front lights glow solid on and the rear lights keep flashing rapidly, it means that the battery is in low
voltage.

Pic. 1 Pic. 2

Signal strength indicator

Signal strength “ ” shows the strength of the received signal. The more, the better.

-17-

EX3 User Manual

Optimal transmission zone

To obtain a satisfied flight experience, please make sure that your EX3 is flying ahead of the remote
controller and no obstacles between the aircraft and the remote controller.

Optimal transmission zone

Throttle Control Stick Mode

Throttle mode switch

Forward/

Backward
control

Turn Left/
Right control

Mode 1: The right stick serves as the throttle.
Mode 2: The left stick serves as the throttle.

● The remote controller is set at Mode 2 by default.

Throttle
control

Leftward/

Rightward
flight control

Throttle
control

Turn Left/
Right control

Mode 2Mode 1

Forward/

Backward
control

Leftward/

Rightward
flight control

How to change throttle mode

Step 1. Keep pressing the red button and turn on the remote controller, the remote controller is under

signal connection status (Pic. 1);

Step 2. Keep pressing the RTH button “ ” for 3 seconds to choose the throttle control mode (Pic. 2).
The throttle control mode will change according to each press. The mode number is shown on
the LCD screen. The throttle control mode is set at mode 2 by default.

-18-

EX3 User Manual

①

Pic. 1 Pic. 2

Attention: To change the stick mode of the remote controller, please make sure that

!

the remote controller is under signal connection status (the indicator light
keep flashing). If not, the stick mode could not be changed.

②

Install the Mobile Phone Holder

1. Pull out the mobile phone holder upwards completely (Pic. 1);

2. Tilt the holder 30 degrees towards you and then you will hear a click sound (Pic. 2);

3. Rotate and fix the support board in place (Pic. 3);

4. Adjust the mobile phone holder upward or downward according to the size of your mobile phone
(Pic. 4).

Pic. 1 Pic. 2

Pic. 3 Pic. 4

-19-

App Download &
Installation

This section introduces how to
download the “X-DRONE” APP and
connect with mobile device.

FPV Real-time Image Transmission Software “X-DRONE”

Where to download “X-DRONE” APP

1. For Apple IOS system, please turn to Apple store, search “X-DRONE” or scan the QR code as below
to download the software.

2. For Android system, please scan the “Google play” QR code or search “X-DRONE” in “Google play”
to download the software.

Available on the

App Store

ANDROID APP ON

-20-

EX3 User Manual

How to link the “X-DRONE” to the camera

Power on the aircraft, then enter phone settings option. Turn on WiFi, find drone**** on the list and
connect it. When “ ” legend is shown, it means WiFi connecting is successful. Exit settings and tap
“X-DRONE” APP at your mobile device, then select your aircraft model on the home page; click “ ”
to enter into the real-time image transmission interface.

Setting

Wi-Fi

drone****

X-DRONE

Tap “X-DRONE” App Connect WIFI

Photos and video saving feature

1. If the camera is without TF card, videos and photos will be saved at the APP.

2. If the camera is with TF card, videos and photos will be saved at the TF card.

3. Videos and photos in the TF card can be downloaded to the APP.

Attention: Please make sure that your mobile device supports 5G WIFI before linking

!

“X-DRONE” to your device.

Real-time image quality and FPV distance depend on your
smart phone and flight environment. To obtain the best live
view, please choose a wide open area to fly in. As tested, the

Farther.Faster.Clearer

EX3 could transmit 2K videos up to 800 meters (0.6 mile) in
an environment with no interference.

Click “ ”

-21-

Flight

This section introduces safe flight
requirements and basic aircraft
operations.

Flight Environment Requirements

1. Please don’t fly in such bad weather conditions as high temperature, snow, strong wind (≥level 5),
rain or fog.

2. Always choose a wide open area for every flight. Tall structures and large metal structures may
affect the accuracy of the onboard compass and GPS system.

3. Well away from people and property. Never fly directly over people or animals.

4. To minimize interference, please do not fly the aircraft in locations near power lines, base stations,
electrical substations and broadcasting towers.

5. Aircraft and battery performance is subject to environment factors like temperature. Be very careful
when flying over 6KM above sea level since the performance will be affected.

6. Your EX3 cannot use GPS within the polar regions.

Flight limits and GEO zones

Abide by all laws and regulations when flying your EX3. Flight limitations are applied by default to
help users operate this product safely and legally. Flight limitations include altitude limits, distance
limits and GEO Zones.
Altitude limits, distance limits and GEO Zones function concurrently to manage flight safety when
operating in GPS Mode.

No-fly zone

All Flight Limits and GEO Zones are listed on Eachine official website www.mjxrc.net. The Zones are
divided into different categories and include locations such as airport, flying fields where manned
aircraft operate at low altitude, border between countries, and sensitive location such as power plants.

The aircraft will be banned or restricted in the no-fly zone. “X-DRONE” APP will send out the
corresponding warning. Please pay attention to it at all times.

-22-

EX3 User Manual

Pre-flight Checklist

1. The aircraft, remote controller and mobile device are full charged;

2. The propellers are installed correctly;

3. The arms and propellers are unfolded;

4. Ensure the camera lens are clean;

5. Use only Eachine parts or parts certified by Eachine. Unauthorized parts or parts not from Eachine
certified manufacturers may cause malfunction or safety issues.

Aircraft Operations

Signal connection between the aircraft and remote controller

● Keep pressing the red button “ ” and turn on the remote controller (Pic. 1). The remote controller
makes 2 beep sounds, and the indicator light “ ” keeps flashing; the remote controller is under
signal connection status.

● Power on the aircraft (Pic. 2). The aircraft will make beep sounds with front and rear lights flashing
and will automatically link to the remote controller. Once the remote controller sends out a long beep
sound and the indicator light of the remote controller turns from flashing to solid on and the signal
icon “ ” is shown on the LCD screen, it means that signal connection is succeeded.

Pic. 1 Pic. 2

● Signal connection is done once for all if the remote controller is not linked to other

!

aircraft.

● Set the connection one by one to avoid signal connection error.

Aircraft initialization detection

After signal connection, the aircraft enters into initialization detection procedure with front and rear

lights flashing red, green and yellow alternatively. Make sure that the aircraft is set on a flat and still
surface for the initialization detection. The aircraft initialization detection takes about 8 seconds. Once
the remote controller sends out “Di Di” sounds and the aircraft front and rear lights flash yellow
alternatively, initialization detection is completed.

-23-

EX3 User Manual

Attention: Make sure that the aircraft is set on a flat and still surface for the initialization

!

detection.

Aircraft compass calibration

1. Compass calibration should be performed after successful aircraft initialization detection.

2. Aircraft compass calibration should be done for every flight. That is to say, if changing new battery
or the battery is reinstalled, compass calibration should be done again.

Two steps of compass calibration:

Step 1: Horizontal calibration

After successful aircraft initialization detection, the aircraft front and rear lights flash yellow
alternatively. Hold the aircraft horizontally and rotate it 360 degrees along the central axis for
about 3 circles. The aircraft front and rear light will change from flashing yellow alternatively

to flashing green alternatively when horizontal calibration is completed.

Step 2: Vertical calibration
Hold the aircraft with camera facing up, and rotate it 360 degrees along the central axis for
about 3 circles until the front and rear lights of the aircraft change from flashing to solid on,
the compass calibration is successful.

-24-

EX3 User Manual

Attention: To fly at GPS mode, please choose an open and wide space for the flight,

!

and make sure that the satellite amount is over 7.

● Please do not calibrate the compass in strong magnetic area, such as magnetic

!

field, parking place or construction areas with underground reinforcement.

● Please do not carry magnetic materials with you (such as keys, cell phones, etc)
when calibrating compass.

● Please keep away from big metal when calibrating compass.

Gyroscope calibration

After the aircraft and the remote controller are banded, set the aircraft on flat ground and follow the
indication photo as below to calibrate the gyro. Once the aircraft front lights turn from flashing to solid
on, it means that the gyro calibration is succeeded.

● The gyroscope calibration has been done by factory default. Gyroscope calibration

!

is no need to be performed unless the aircraft can not exit the aircraft initialization
detection procedure while the aircraft initialization detection is finished.

● Please make sure to set the aircraft on horizontal surface when performing

calibration, failure to do this will affect the flight.

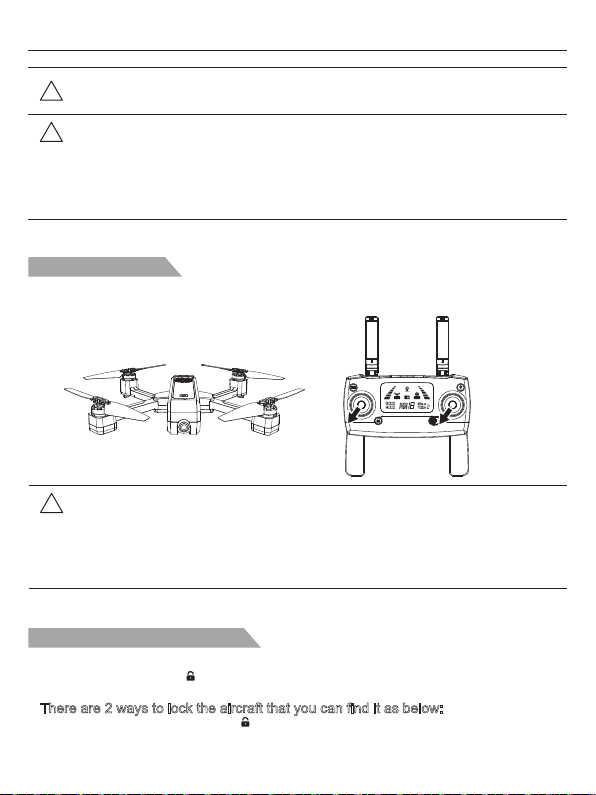

How to lock and unlock the aircraft

● Unlock the aircraft

Short-press the red button “ ” . The motors rotate and the aircraft is unlocked.

● Lock the aircraft

There are 2 ways to lock the aircraft that you can find it as below:

Method 1: Long-press the red button “ ” for 3 seconds, the motors will stop rotating immediately
and the aircraft is locked.

-25-

EX3 User Manual

Method 2: After the aircraft lands on the ground, pull down the throttle stick to the bottom position
and keep for 3 seconds, the motors will stop rotating and the aircraft is locked.

Warm tips：Please do not lock the aircraft by pressing the “ ” button directly during

!

the flight, or the aircraft will be crashed.

Operate the aircraft

Remote controller Aircraft Remote controller Aircraft

Ascent

Turn LeftTurn Right

Front

Forward

Descent

Backward Leftward

-26-

flight

Rear

Front

Rear

Rightward

flight

EX3 User Manual

Test Flight

Basic flight operation steps

1. Place the aircraft in a wide open area that its front is your front.

2. Turn on the aircraft and remote controller.

3. Connect the remote controller with the aircraft and then proceed aircraft initialization detection.

4. Connect the EX3 with your phone and enter into the image transmission interface.

5. Unlock the aircraft after the gyro detection of the aircraft is completed.

6. Pull up the throttle stick then the aircraft takes off, and control the aircraft flight by left/right stick.

7. Pull down the throttle stick to land the aircraft.

8. Pull down the throttle stick to the bottom position and keep for 3 seconds to lock the aircraft.

9. Pull out the battery from the aircraft and then turn off the remote controller.

Video suggestion and tips

1. Do pre-flight checklist;

2. Choose appropriate gimbal shooting angle;

3. Fly in a good weather with no wind;

4. Perform test flights to establish flight routes and to preview scenes;

5. Push the control stick gently to keep the aircraft movement smooth and stable.

Please bear proper operation and flight safety guidelines in mind as it is very
important for all of us.
For more information, please turn to Appendix.

-27-

Product Parameters

Aircraft

Gross Weight
(Battery and propellers included)

Dimensions

Diagonal 350mm

Max Ascent Speed

Max Descent Speed 2m/s

Max Speed

Flight Height Limitation 150m

Max Flight Time 22 minutes (no wind)

Max Wind Speed Resistance ≤Level 3

Max Tilt Angle 35°

Max Angular Velocity

Operating Temperature Range 0℃- 40℃

GNSS GPS

Hovering Accuracy Range Indoor: Vertical ±0.3m

EX3: about 640g

Folded: 190*130*75mm(length*width*height)
Unfolded: 450*450*75mm(length*width*height)

3m/s

40km/h

200°/s

Horizontal ±0.3m

Outdoor: Vertical ±0.5m

Horizontal ±1.5m

Appendix

-28-

EX3 User Manual

Operating Frequency

Transmission Power (EIRP)

2.4-2.4835GHz

5.15-5.35GHz

2.4GHZ≤20dBm
5GHz≤16dBm

Gimbal

Controllable Range Tilt: -90°- 0°

Camera

Image Sensor 1/3 “ CMOS; Effective Pixel: 2 million

Lens FOV: approx. 110°

ISO Range Photo: 100-1600 (Auto)

Electronic Shutter Speed Electronic Shutter: 1/30s-1/10000s

Still Image Size

Still Photography Modes

Video Resolution

Color Mode RGB Mode

Max Video Bitrate

Supported File System

Photo Format

Video Format MP4, Compressed Format H.264

SD Cards Support Class 10 Micro SD card up to 32G.

Operating Temperature

Aperture: f/2.4
Shooting Range: 1m to ∞

Video: 100-1600 (Auto)

2048X1152

Single Shot

2K: 2048X1152

Video 12Mbit/Transmission 2Mbit

FAT32

JPEG Format

≥ Class 10 Micro SD Cards

0℃- 40℃

Remote Controller

Operating Frequency 2.4-2.4835GHz

Max Transmission Distance

Operating Temperature 0℃- 40℃

Battery 2* AA

Transmission Power (EIRP) 2.4GHz≤20dBm

Operating Current/Voltage 200mA@3V

1.6km

-29-

Charger

Input Type C 1: 5V 2A

Charging Voltage Battery 1: 3.8 2A

Rated Power 15.2W

Type C 2: 5V 2A

Battery 2: 3.8 2A

Aircraft Battery

Capacity 3400mAh

Voltage

Operating Temperature LiPo 2S

Energy 25.84Wh

Net Weight about 297g

Charging Temperature Range 5℃- 40℃

Charging Time

7.6V

270 minutes

APP

APP Name X-DRONE

Image Transmission System WIFI 5GHz

Real-time Image Transmission 720p@20fps

Latency 300-500ms

Required Operating System iOS 9.0 or later

Android4.4 or later

EX3 User Manual

-30-

Packing Detail

Full package includes the following parts.

Aircraft *1 Remote Controller *1 Extra Propellers Set *1

Aircraft Battery *1 Charger x1 USB Cable x1

EX3 User Manual

Screwdriver x1

EX3

Quick Start

Farther.Faster.Clearer

EX3

User Manual

Farther.Faster.Clearer

Quick Start x1 User Manual x1

-31-

EX3 User Manual

Important Statement

● This aircraft is not a toy, but hobby grade model. It should be assembled and operated properly.
Pilot must operate this aircraft in safe way. Improper operation may cause injury or property damage.

● This aircraft is applicable for pilots aged 14+ who are with skilled flying experience.

● Users are in full charge of proper operating this aircraft. Manufacturer and dealers disclaim any

responsibility for damages caused by misuse.

● Keep the small accessories away from kids to avoid accident.

Flight Safety Guidelines

Hobby grade radio control aircraft is somewhat considered to be the highest danger potential article.
Users should firmly uphold the principle of “safety comes first”. Never fly the aircraft near airports,
above crowds or in zones storing dangerous goods and understand the responsibility of the accident
may cause by improper operations.

● Stay away from obstacles, crowds, power lines, trees or waters

Always choose a wide open area for every flight, well away from people and property. Never fly
directly over people or animals. Please don't fly in such bad weather conditions as high temperature,
snow, strong wind (≥level 5), rain or fog. Maintain a 7ft (2m) distance from the aircraft when taking off
and landing.

● Keep the aircraft in dry environment

The aircraft is composed by sophisticated electronic components and mechanical parts. To avoid
damages on the mechanical and electronic components, please keep the aircraft in dry environment
and use clean cloth to wipe the surface and keep it clean.

● Practice flying together with skillful pilot

Beginners are suggested to practice flying together with skillful pilot’s guidance. Do not fly alone.

● Bear proper operation and safe flight guidelines in mind

Please take a careful look at the manuals before flights for important information of product functions
and operation tips, and learn how to use the accessory, safe flight always comes first. Stay informed
of and abide strictly by relevant local laws and regulations. Keep away from any non-flight zones and
respect other people's privacy.

● Safe flying

Please make sure you are in good shape mentally before every flight. Fly the aircraft as per your
flying experience. Never fly under influence of alcohol or drugs. Keep the remote controller at least
20 cm away from your body when flying the aircraft.

● Keep distance from a flying aircraft

Never use your hands to touch a flying aircraft under any circumstance. Don’t approach and touch a
landed aircraft before its propellers are completely locked.

-32-

EX3 User Manual

● Keep away from heat source

The aircraft is made of metal, fiber, plastic, electronic component and other material. Please keep it
away from the heat source to avoid deformation or even damage caused by sun exposure and high
temperature.

● Environmental protection requirements

To protect our blue planet, so please recycle the aircraft as per local laws and regulations.

-33-

Note:

a) Changes or modifications not expressly approved by the party responsible for compliance could

void the user's authority to operate the equipment.

b) This equipment has been tested and found to comply with the limits for a Class B digital device,

pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection

against harmful interference in a residential installation. This equipment generates, uses and can

radiate radio frequency energy and, if not installed and used in accordance with the instructions,

may cause harmful interference to radio communications. However, there is no guarantee that

interference will not occur in a particular installation. If this equipment does cause harmful

interference to radio or television reception, which can be determined by turning the equipment off

and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

— Reorient or relocate the receiving antenna.

— Increase the separation between the equipment and receiver.

— Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

— Consult the dealer or an experienced radio/TV technician for help.

MADE IN CHINA
