WOOD STOVE MANUAL

STOVE BUILDER INTERNATIONAL.

1700, Léon-Harmel

Québec (Qc) Canada

G1N 4R9

Tel: 418-527-3060

Fax: 418-527-4311

WWW.DROLET.CA

45030

TABLE OF CONTENTS



INTRODUCTION.........................................................................................................................

2

INTRODUCTION.........................................................................................................................

3

THE DROLET WOOD STOVE MANUAL ..............................................................................

3

WOOD HEATING....................................................................................................................

3

THE CONTROLLED COMBUSTION WOOD STOVE......................................................

3

ASSEMBLING THE STOVE ..................................................................................................

4

INSTALLING THE FIREBRICKS ........................................................................................

5

INSTALLATION OF YOUR DROLET WOOD STOVE .....................................................

6

POSITIONING THE STOVE ...............................................................................................

6

FLOOR PROTECTION ........................................................................................................

6

CLEARANCES TO COMBUSTIBLE MATERIALS ..........................................................

7

INSTALLATION OF A HEAT RADIATION SHIELD ......................................................

8

STEP BY STEP INSTALLATION OF YOUR CHIMNEY .................................................

9

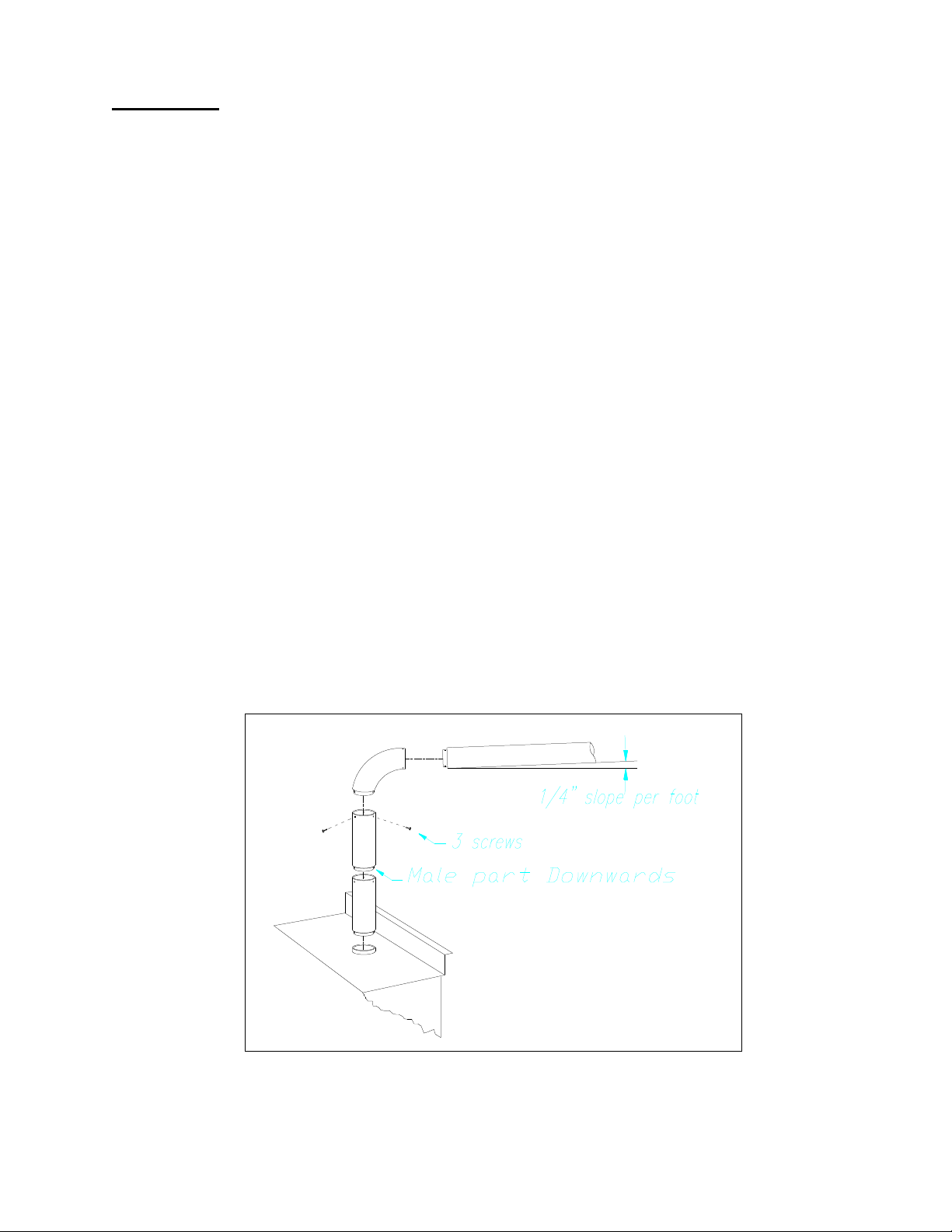

COUPLINGS........................................................................................................................

16

AIR CIRCULATION SYSTEM ............................................................................................

17

BAFFLE BRICK INSTALLATION (SAWMAN STOVE ONLY).....................................

17

OPERATING YOUR DROLET WOOD STOVE................................................................

18

FUEL....................................................................................................................................

18

IGNITION ............................................................................................................................

19

MAINTENANCE OF THE HEATING SYSTEM ...............................................................

21

MAINTENANCE OF THE STOVE ...................................................................................

21

MAINTENANCE OF THE CHIMNEY .............................................................................

22

PROCEDURES IN CASE OF FIRE......................................................................................

22

FREQUENTLY ASKED QUESTIONS ................................................................................

23

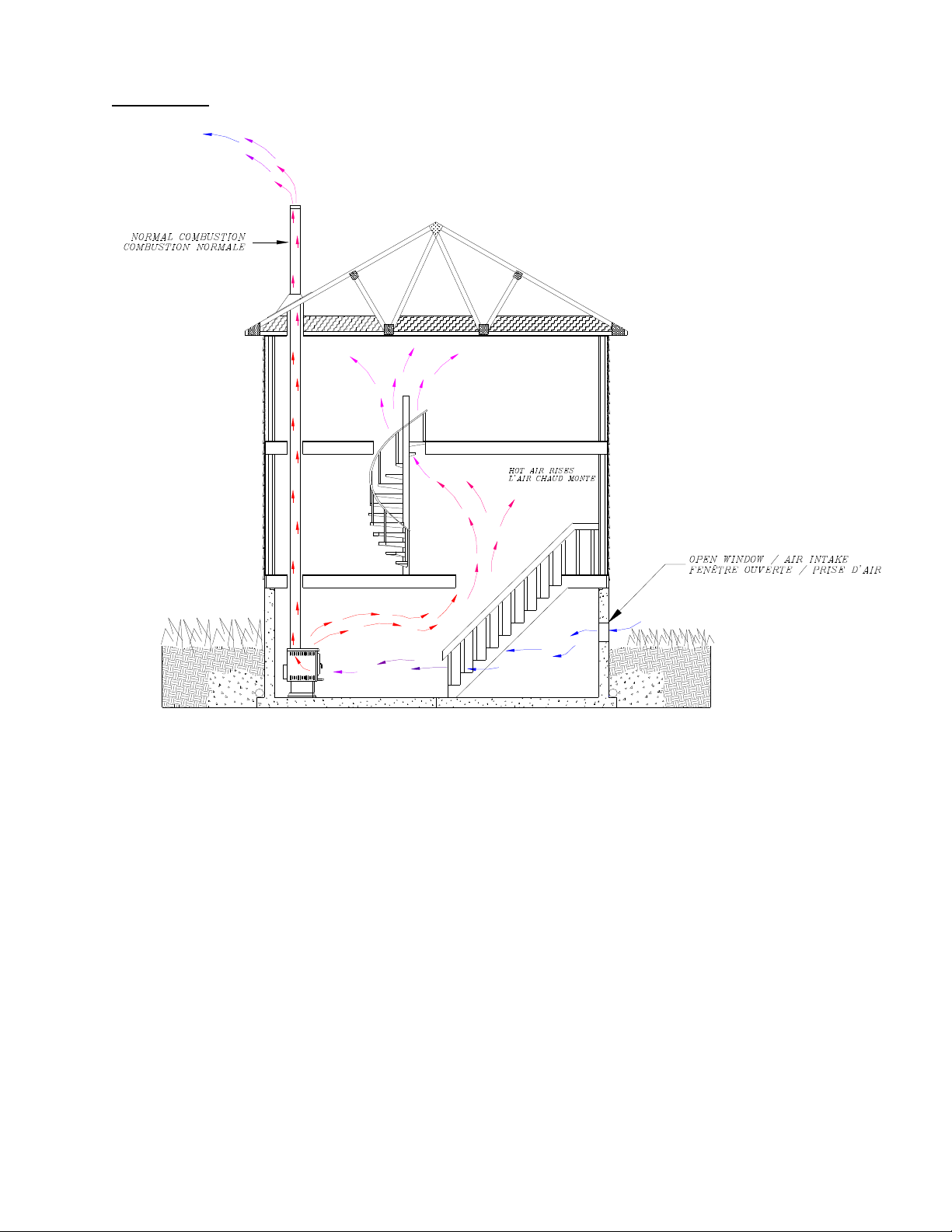

WHAT DO THE WORDS “DRAFT” AND “NEGATIVE PRESSURE” M EAN? ..........

23

CAN I MODIFY MY STOVE TO INSTALL A GLASS DOOR? ......................................

29

WHEN DO IN NEED TO REPLACE THE FIREBRICKS? ............................................

29

DROLET LIMITED LIFETIME WARRANTY.....................................................................

30

REGISTER YOU WARRANTY ONLINE

To receive full warranty coverage, you will need to show evidence of the date you purchased your stove. Keep your sales invoice. We also recommend that you register your warranty online at www.drolet.ca

Registering your warranty online will help us track rapidly the information we need on your insert.

2

INTRODUCTION

THE DROLET WOOD STOVE MANUAL

SBI INC., one of the most important wood stove and fireplace manufacturers in North America, congratulates you on your purchase and wishes to help you get maximum satisfaction from the wood stove you have selected. In the pages that follow, we will give you advices on wood heating and controlled combustion as well as technical specifications regarding installation, operation and maintenance of the model you have chosen.

The instructions pertaining to the installation of your wood stove comply with ULC #S627 standards. You must follow them very carefully in order to eliminate any chance of encountering major problems.

Read this entire manual before you install and use your new stove. If this stove is not properly installed, a house fire may result. To reduce the risk of fire, follow the installation instructions. Failure to follow instructions may result in property damage, bodily injury or even death.

PLEASE CONSULT LOCAL AUTHORITIES, BUILDING DEPARTMENT OR FIRE MARSHALL ABOUT RESTRICTIONS, INSTALLATION REQUIREMENTS AND FOR THE NEED TO OBTAIN A PERMIT BEFORE YOU INSTALL YOUR WOOD STOVE.

KEEP THIS INSTRUCTION MANUAL FOR FUTURE REFERENCE.

WOOD HEATING

Many consumers choose wood as the main or auxiliary energy source for heating their dwelling or secondary residence. This source of energy has the advantage of being abundant, relatively cheap and easy to store so that you are assured of energy autonomy for more of less longer periods.

THE CONTROLLED COMBUSTION WOOD STOVE

The main feature of a controlled combustion wood stove is an air tightness that is the most perfect possible, and must of course be equipped with the most efficient heat exchanger possible in order to transfer maximum heat to the ambient air. It is generally doubled with firebricks, and it may have a glass door, with steel or cast iron frame. The main feature that makes it a controlled combustion wood stove remains its air tightness, which allows the user to control the quantity of oxygen admitted into the wood stove.

The wood will burn slowly if the wood stove draught keys are adjusted in order to reduce the oxygen supply in the combustion chamber to minimum; on the other hand, wood will burn quickly if the draught keys are adjusted to admit a larger quantity of oxygen in the combustion chamber.

3

ASSEMBLING THE STOVE

Note: This section applies to models Compak, ML, RC and Nordic only.

1- Mount the 4 legs using 2 screws per leg.

2- Mount the ash lip with two screws.

3- Install the heat shield between the front legs, just above the leg supports.

4- Bend the heat shield slightly to make it fit between the back legs.

4

INSTALLING THE FIREBRICKS

Note: This section applies to models Compak, ML, RC and Nordic only.

5

INSTALLATION OF YOUR DROLET WOOD STOVE

POSITIONING THE STOVE

It is very important to position the wood stove as close as possible to the chimney, and in an area that will favor the most efficient heat distribution possible throughout the house. The stove must therefore be installed in the room where the most time is spent, and in the most spacious room possible. Recall that wood stoves produce radiating heat, the heat we feel when we are close to a wood stove. A wood stove also functions by convection, that is through the displacement of hot air accelerated upwards and its replacement with cooler air. If necessary, the hot air distribution from the stove may be facilitated by a blower or the installation of floor or wall grids. It is strictly forbidden to install your wood stove in a mobile home.

Important:

A wood stove must never be installed in a hallway or near a staircase, since it may block the way in case of fire or fail to respect required clearance. The wood stove must not be hooked up to a hot air distribution system since an excessive accumulation of heat may occur.

FLOOR PROTECTION

Your woodstove should be placed on a non-combustible surface. Having these minimum specifications.

FLOOR PROTECTION



Models



Thickness of



Front Protrusion



Side Protrusions



Rear Protrusion







Sheet































Baron 2000sp



1/4" (6mm)



18" (457mm)



8" (203mm)



10" (152mm)



























Classic



1/4" (6mm)



18" (457mm)



8" (203mm)



8" (203mm)



























Compak



1/4" (6mm)



18" (457mm)



8" (203mm)



8" (203mm)



























Contempro 1600



1/4" (6mm)



18" (457mm)



8" (203mm)



8" (203mm)



























Contempro 2000



1/4" (6mm)



18" (457mm)



8" (203mm)



8" (203mm)



























Gemini 1200



1/4" (6mm)



18" (457mm)



6" (152mm)



6" (152mm)



























Gemini 1500



1/4" (6mm)



18" (457mm)



6" (152mm)



6" (152mm)



























ML



1/4" (6mm)



18" (457mm)



6" (152mm)



6" (152mm)



























RC



1/4" (6mm)



18" (457mm)



8" (203mm)



8" (203mm)



























Nordic



1/4" (6mm)



18" (457mm)



8" (203mm)



8" (203mm)



























Sawman



1/4" (6mm)



18" (457mm)



10" (254mm)



10" (254mm)



























Sawyer



1/4" (6mm)



18" (457mm)



8" (203mm)



10" (254mm)



























Whistler , DLX



1/4" (6mm)



18" (457mm)



6" (152mm)



6" (152mm)

























6

CLEARANCES TO COMBUSTIBLE MATERIALS

It is of utmost importance that the clearances to combustible material mentioned on your wood stove certification plate be scrupulously respected upon installation.

CLEARANCES



Model



Back Wall



Side Walls



Corners



* Height



Baron 2000sp



24" / 610 mm



16" / 406 mm



16" / 406 mm



7' / 2,13 m



Baron 2000sp



15" / 381 mm



26,5’’ / 673mm



26,5’’ / 673mm



7' / 2,13 m



with enveloppe





























Compak



16" / 406 mm



16" / 406 mm



16" / 406 mm



7' / 2,13 m



Contempro 1600



12" / 305 mm



24" / 610 mm



15" / 381 mm



7' / 2,13 m



Contempro 2000



12" / 305 mm



24" / 610 mm



15" / 381 mm



7' / 2,13 m



Gemini 1200



16" / 406 mm



16" / 406 mm



16" / 406 mm



7' / 2,13 m



Gemini 1500



16" / 406 mm



16" / 406 mm



16" / 406 mm



7' / 2,13 m



ML



16" / 406 mm



16" / 406 mm



16" / 406 mm



7' / 2,13 m



RC



16" / 406 mm



16" / 406 mm



16" / 406 mm



7' / 2,13 m



Nordic



16" / 406 mm



16" / 406 mm



16" / 406 mm



7' / 2,13 m



Sawman



16" / 406 mm



30" / 762 mm



30" / 762 mm



7' / 2,13 m



Whistler, DLX



16" / 406 mm



16" / 406 mm



16" / 406 mm



7' / 2,13 m







Single Pipe / Double



Single Pipe / Double



Single Pipe / Double







Classic



16" (406mm) / 12" (305mm)



22" (559mm) / 22" (559mm)



11" (279mm) / 11" (279mm)



7' / 2,13 m

* Height, from stove base to ceiling.

You may decrease these clearances by installing heat radiation shields between the walls or the ceiling and the stove. These heat radiation shields must be installed permanently, and can include sheet metal, a rigid non-combustible sheet or a masonry wall. The installation standards of such heat radiation shields are listed on the following page.

IT IS STRICTLY FORBIDDEN TO PLACE WOOD WITHIN THE MINIMUM CLEARANCES.

7

INSTALLATION OF A HEAT RADIATION SHIELD

Following the installation of a heat radiation shield, the clearances mentioned on the stove certification plate may be reduced as stated in the following table.



Reductions in clearance to a combustible wall (or

TYPE OF PROTECTION

ceiling) and the heating device, %





SIDES AND

TOP





REAR\BACK











Minimal requirements:

67%**

50%

0,013" (0,33 mm) sheet metal

with 1" (25.4mm) fire-proof braces











Ceramic tile or an equivalent fire-proof material

50%

33%

resting on fire-proof brackets spaced 1" (25.4mm)

apart by fire-proof braces











Ceramic tile or an equivalent fire-proof material built





on a fire-proof base resting on sheet metal of at

67%

50%

least 0,013" (0,33 mm) thick spaced 1" (25.4mm)





by fire-proof braces.











Solid bricks, spaced 1" (25.4mm) from the rear

50%

N\A

wall using fire-proof braces.











Solid bricks, resting on sheet metal 0,013" (0,33

67%

N\A

mm) thick spaced 1" (25.4mm) from the rear wall

using fire-proof braces.

















**Example: 15 inches x (100% - 67%) = 4,95 inches.





This reduction in clearance, when in compliance, is accepted by insurance companies.

FOR BARON 2000SP USING THE ENVELOPE

It is strictly forbidden to connect the envelope to existing liners or existing floor registers or grilles.

8

CHIMNEY

Your wood stove may be hooked up with a prefabricated or masonry chimney. If you are using a prefab chimney, it must comply with S-629 standards; therefore it must be approved for up to 2100oF (650° C). It is extremely important that it be installed according to the manufacturer's specifications.

If you are using a masonry chimney, it is important that it be built in compliance with the specifications of the National Building Code. It must be lined with refractory bricks, metal or clay tiles sealed together with fire cement. (Round flues are the most efficient).

The interior diameter of the chimney flue must be identical to that of the stove smoke exhaust. A flue which is too small may cause draft problems, while a large flue favors rapid cooling of the gas, thus enhancing creosote build-up and the risk of chimney fires. Current practice requires that the area of the chimney flue do not exceed the stove exhaust area by more than 35%. For a round pipe, 35% of the area represent approximately 1” (25 mm) on the diameter. (ex: For a stove with an exhaust of 6”, the chimney flue should not exceed 7” of diameter.) Note that it is the chimney and not the stove which creates the draft effect; your stove's performance is directly dependent on an adequate draft from your chimney.

The following recommendations may be useful for the installation of your chimney:

1)It must rise above the roof at least 3' (0,9 m) from the uppermost point of contact.

2)The chimney must exceed any part of the building or other obstruction within a 10' (3,04 m) distance by a height of 2' (0,60 m).

3)Installation of an interior chimney is always preferable to an exterior chimney. Indeed, the interior chimney will by definition be hotter than an exterior chimney, being heated up by the ambient air in the house. Therefore the gases which circulate will cool more slowly thus reducing the build-up of creosote and the risk of chimney fires.

The draft, which is created by the tendency for hot air to rise, will be better with an interior chimney.

4)You must not install more than one heating unit per chimney flue.

5)The use of a fire-screen at the extremity of the chimney requires regular inspection in order to insure that it is not obstructed.

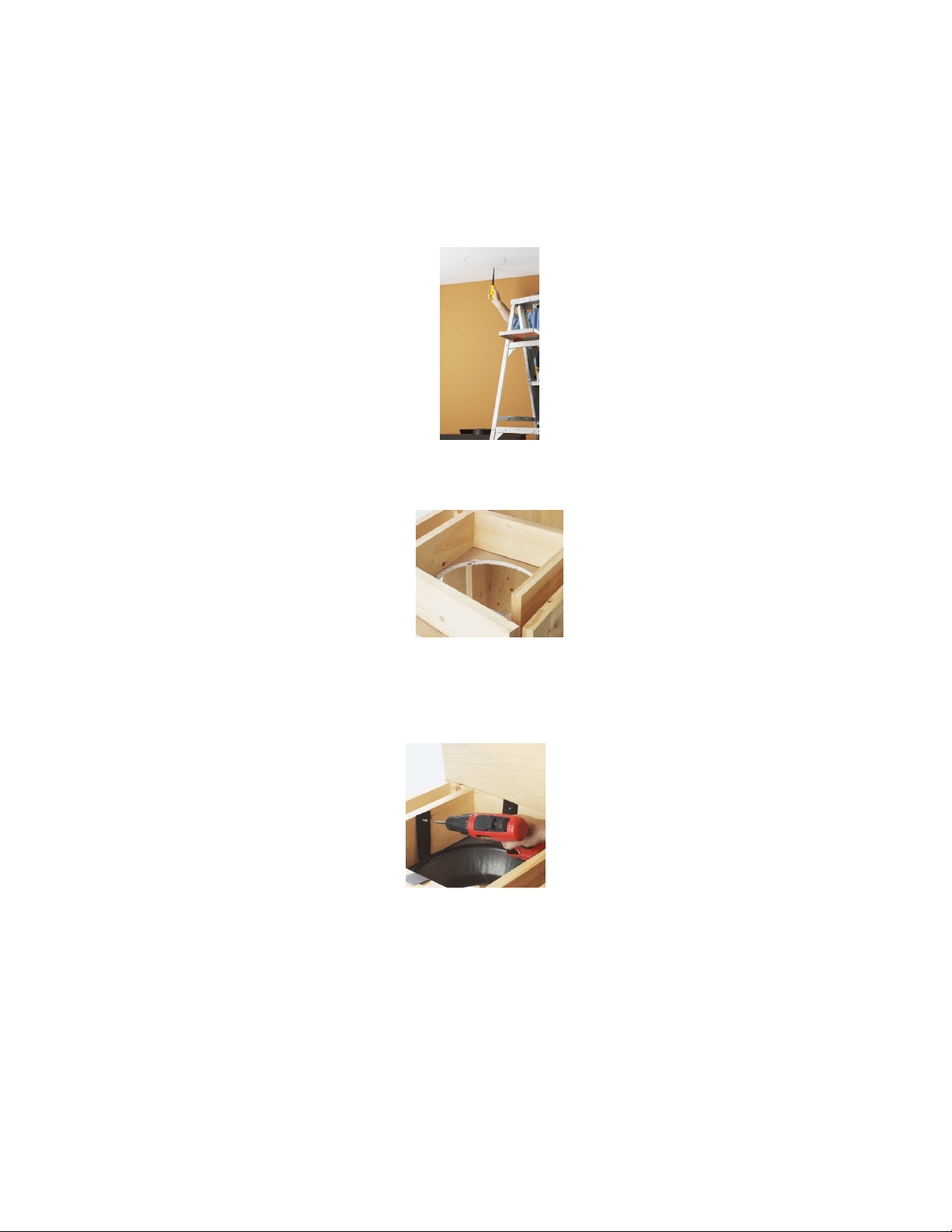

STEP BY STEP INSTALLATION OF YOUR CHIMNEY

Note : The way to install your chimney may vary from one chimney manufacturer to another. The instructions contained in this manual are based on the recommendations of chimney manufacturers whose products are sold at many Canadian retailers of wood stoves and related heating accessories.

WALL SUPPORT SYSTEM

If your chimney must rise along an outside wall, you need to connect it to your stove through an adjacent wall. For this type of installation, the following items are normally required :

Chimney

Suitable lengths of chimney (enough to go up to your roof)

An adjustable wall support

A wall thimble

An adequate number of wall bands (one for every 8 feet of chimney, excluding the roof portion)

A stove pipe adapter

One insulated tee & plug

A chimney cap.

Roof guys (if required)

9
