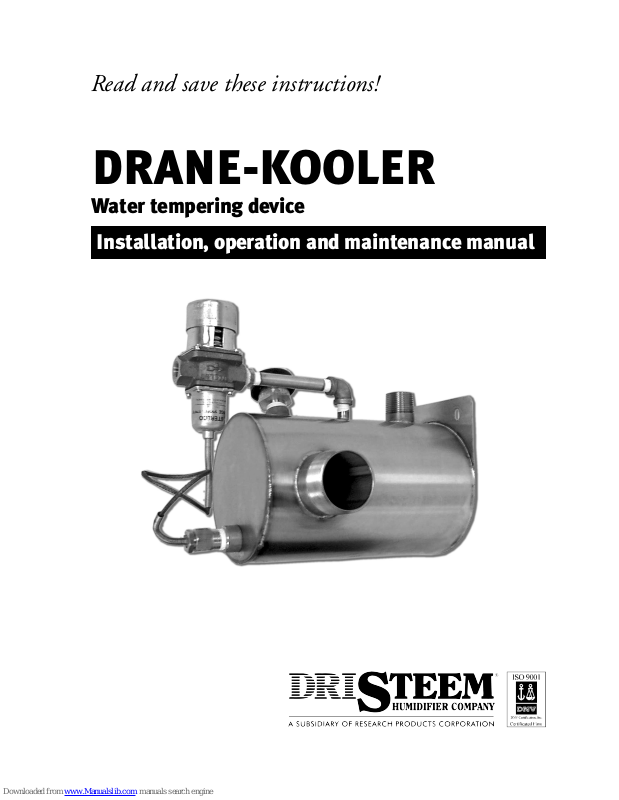

DriSteem DK-12 Installation, Operation And Maintenance Manual

Read and save these instructions!

DRANE-KOOLER

Water tempering device

Installation, operation and maintenance manual

PLEASE: read this manual!

This manual will guide you through installation,
operation and maintenance procedures for your new
DRANE-KOOLER. Proper installation and operating
practices will ensure years of trouble-free service.

Technical support: 800-328-4447

If you have questions, review the troubleshooting
guide on Page 10. If you still have questions, call our
customer support group at 800-328-4447. Technicians
are available from 7:30 a.m. to 5:00 p.m. (central
standard time) Monday through Friday, excluding
major holidays.

Visit our web site:
www.dristeem.com

For information about other DRI-STEEM products,
visit our web site, or contact us using the information
listed below.

Corporate headquarters

14949 Technology Drive  Eden Prairie, MN 55344
952-949-2415  800-328-4447  952-229-3200 (fax)
[e-mail] (e-mail)

European office

Bell Place, Bell Lane  Syresham, Brackley  NNN13 5HP, UK
[phone]  [phone] (fax)

[e-mail] (e-mail)

DRANE-KOOLER table of contents.

Product overview

Features summary ..................................................... 1

Capacities and connection sizes................................ 2

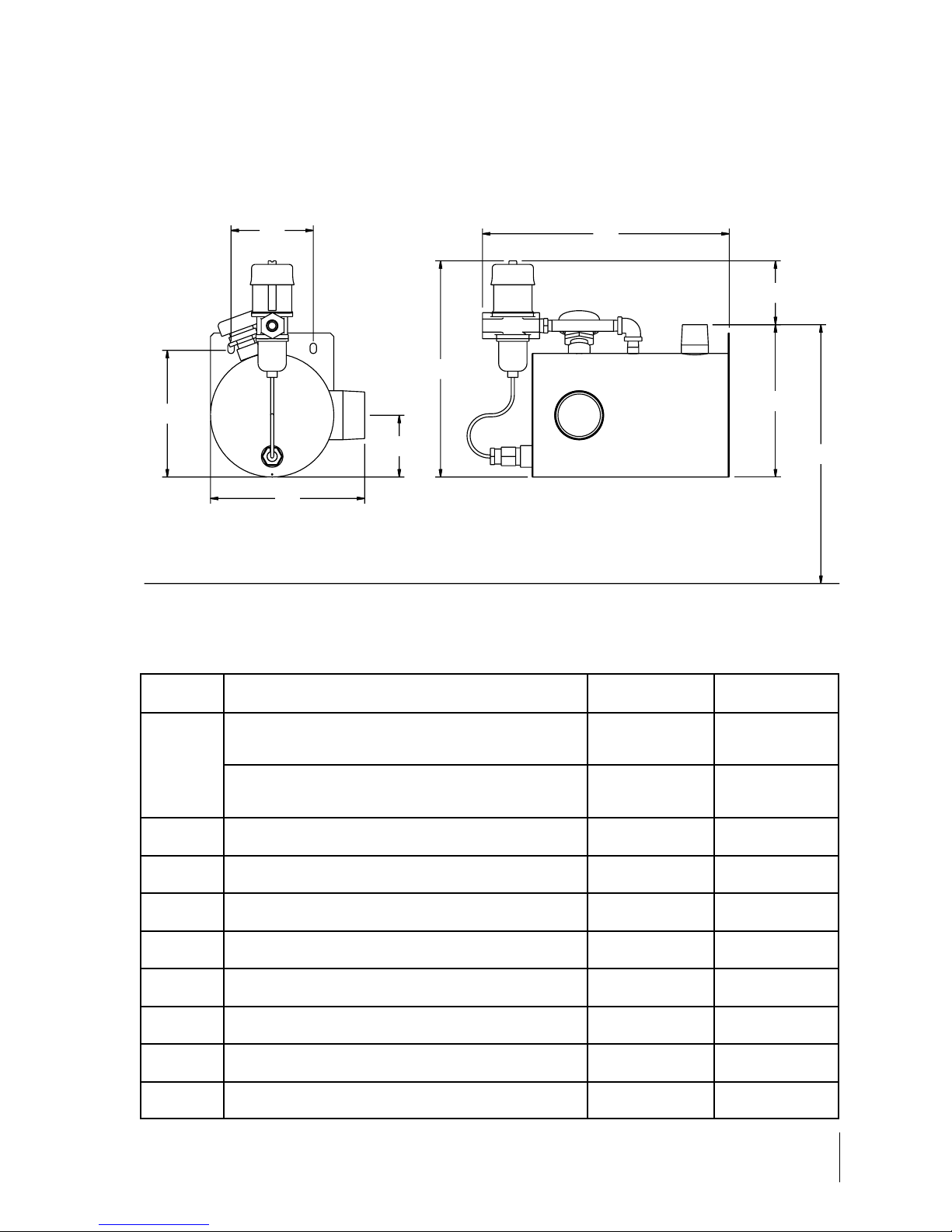

Dimensions ............................................................... 3

Warranty ................................................................. 12

Installation

Installation instructions............................................. 4

Mounting .................................................................. 5

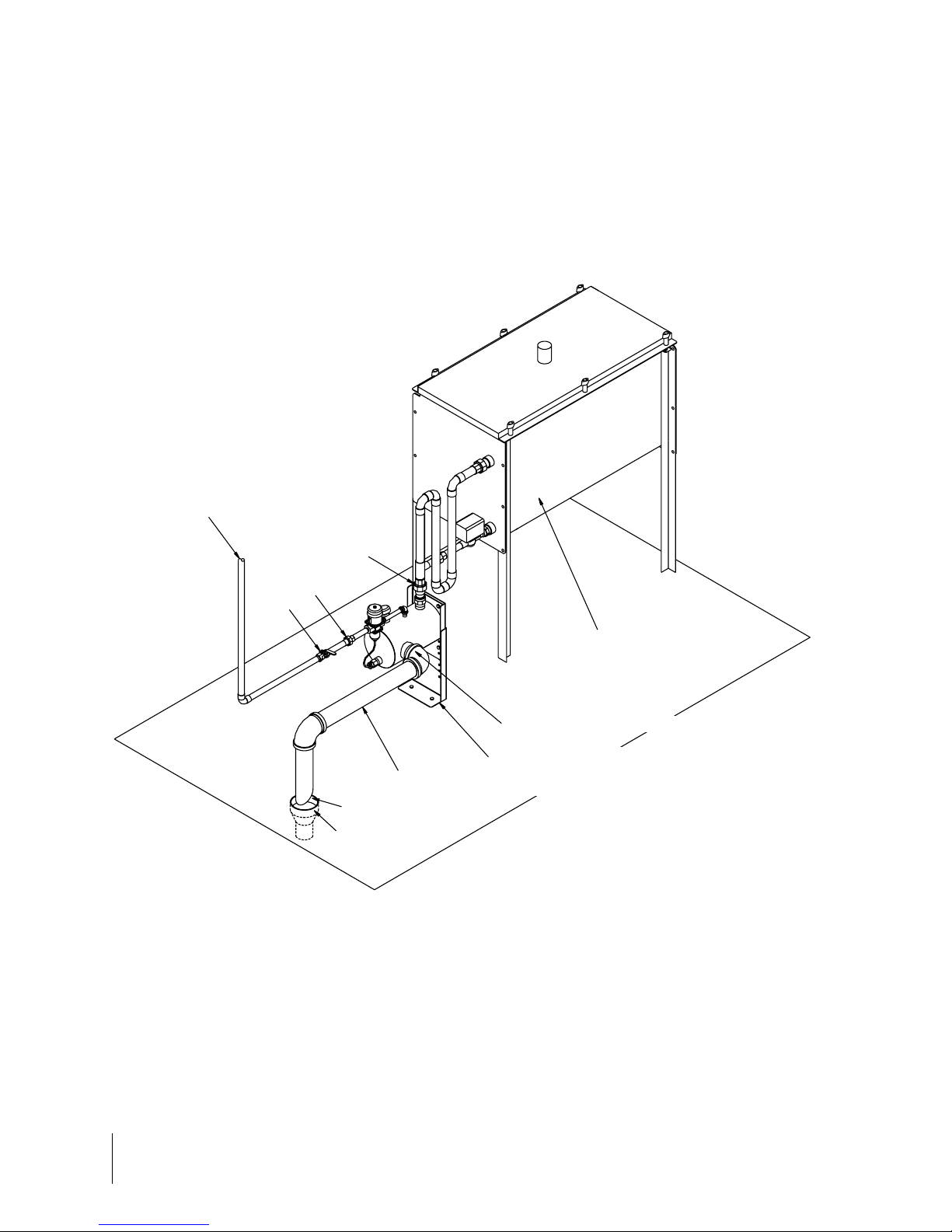

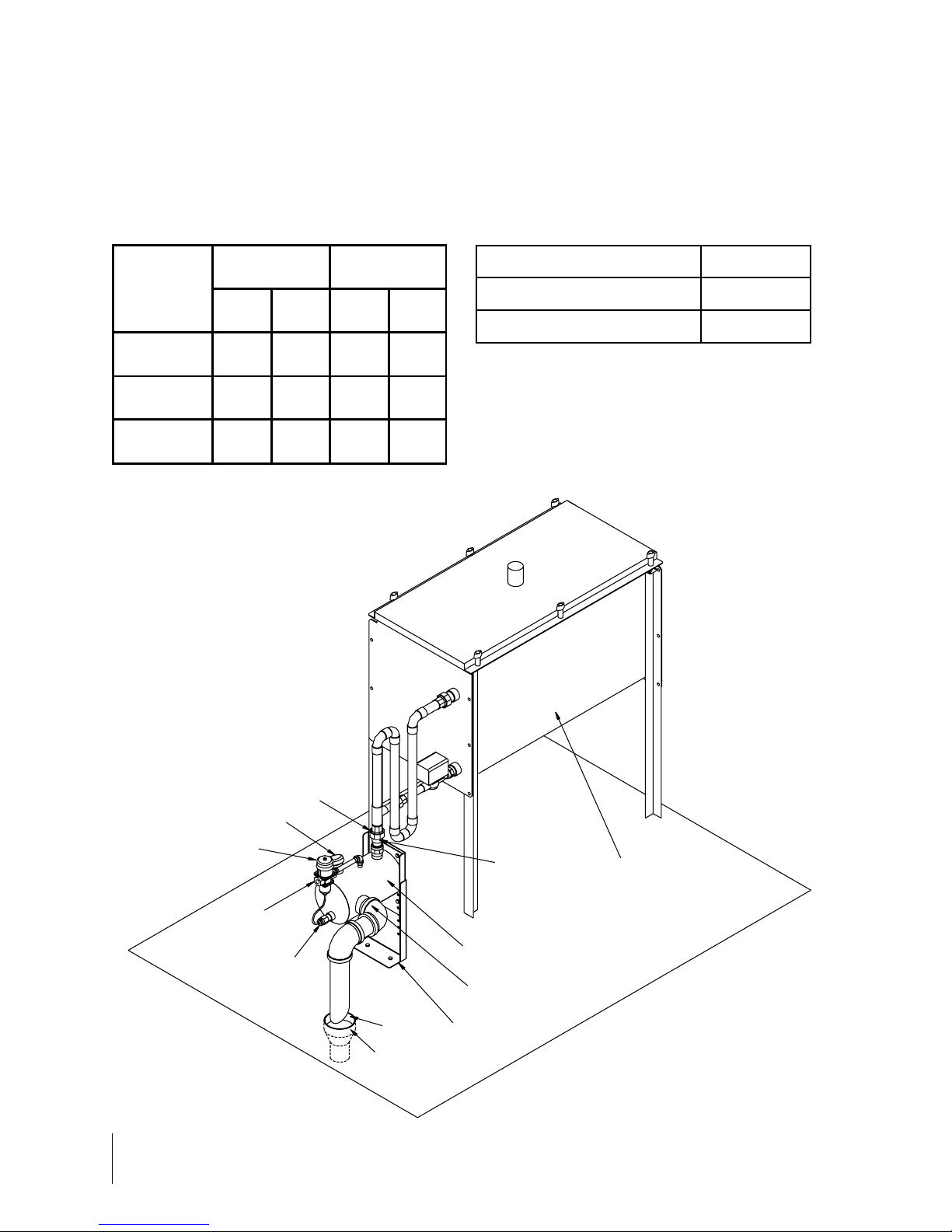

Piping ..................................................................... 6-7

Operation

Start-up and operation instructions ........................... 8

Maintenance

Maintenance instructions .......................................... 9

Troubleshooting guide ............................................ 10

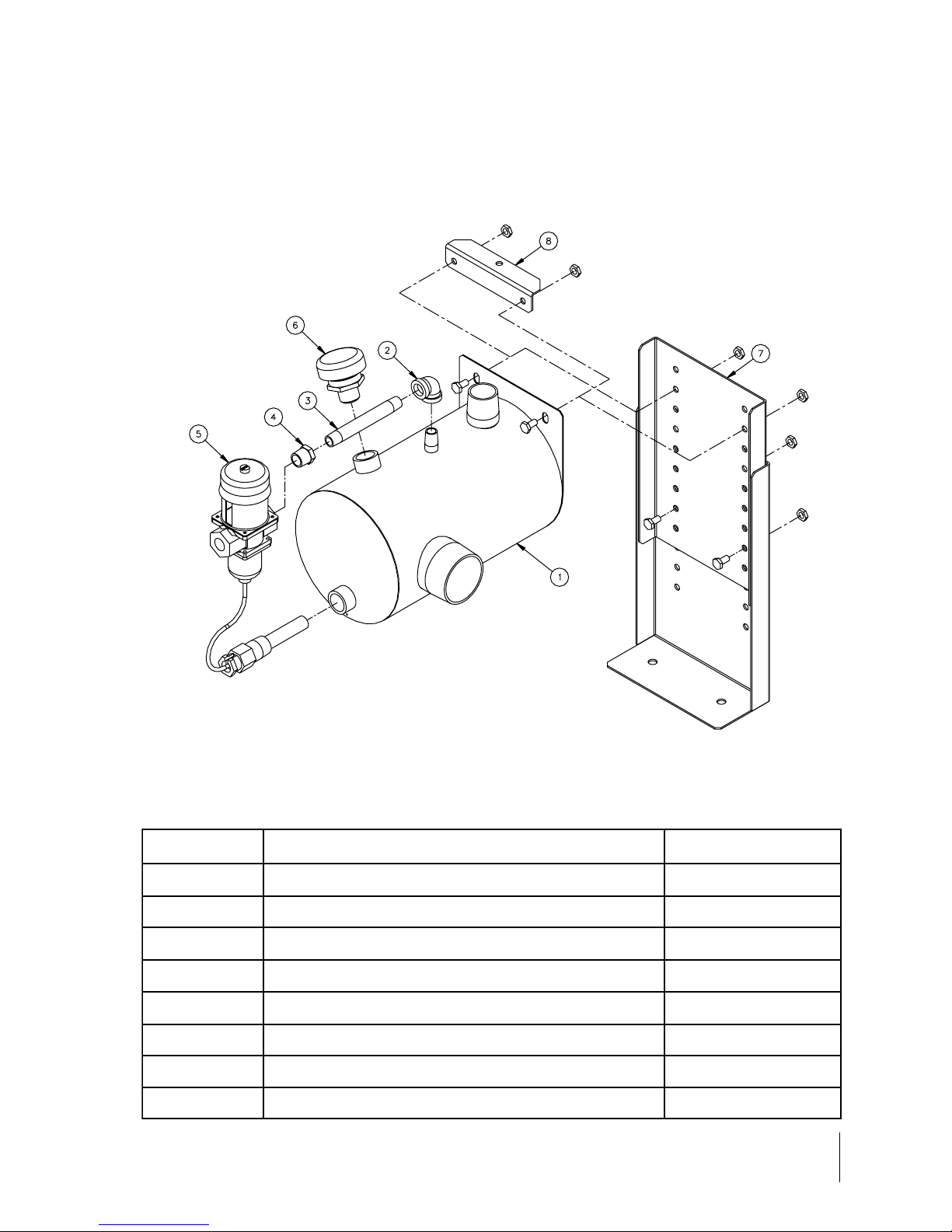

Replacement parts....................................................11

Table of contents

Product overview

DRANE-KOOLER features summary.

Cool discharged hot water

DRANE-KOOLER is a water tempering device that
mixes cold water with hot water discharged from
various types of equipment, such as a humidifier, to
reduce the discharged water temperature before it
enters a municipal sewer system.

There are two reasons to use a water tempering
device. First, most municipalities prohibit draining
water hotter than 140 °F (60 °C) into their sewer
systems. And second, PVC drain pipes are susceptible
to damage from water that is too hot. When faced
with either of these situations, DRANE-KOOLER is
the solution!

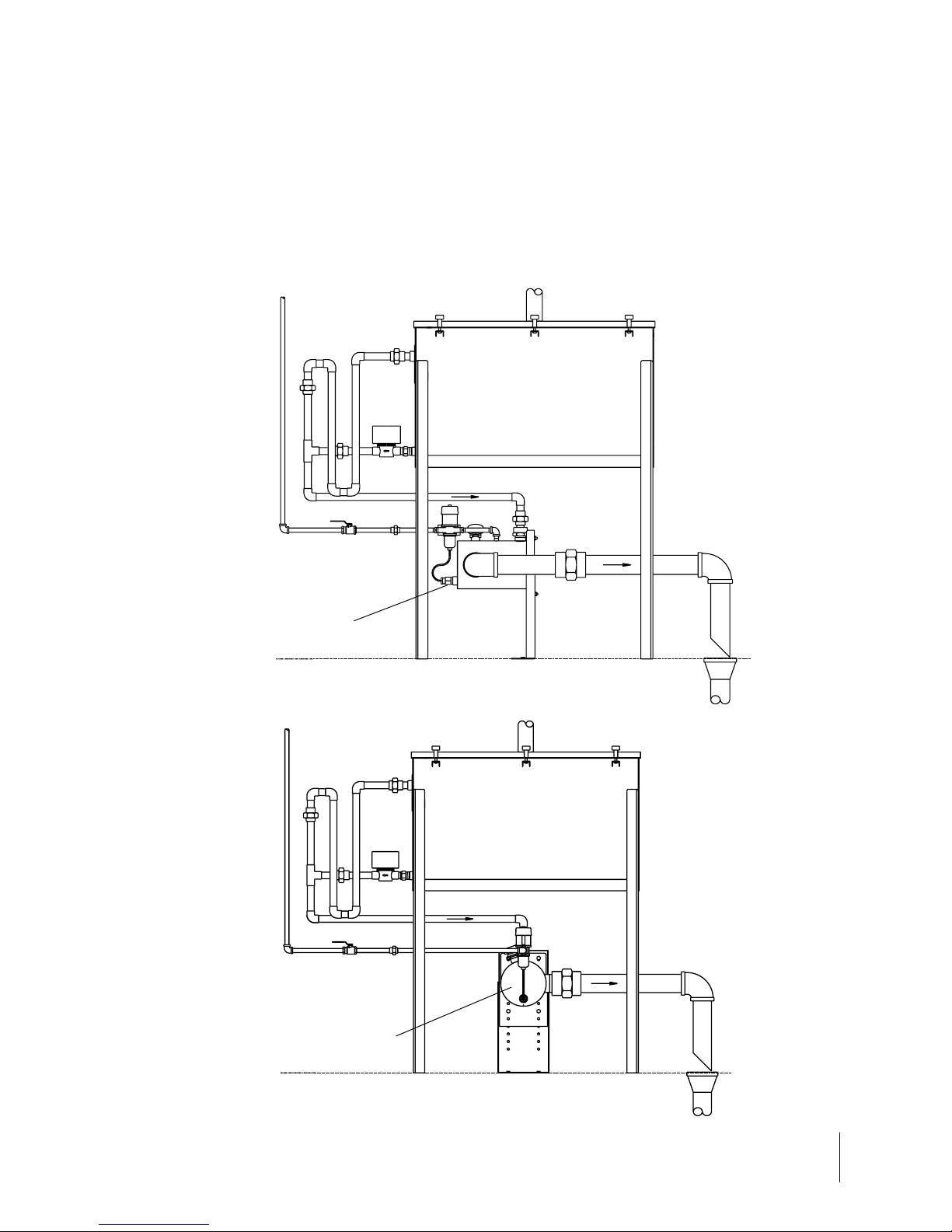

New horizontal design!

A new space-efficient horizontal orientation and side
drain outlet provide enough clearance to allow the
DRANE-KOOLER to be mounted directly
underneath DRI-STEEM humidifiers, saving
footprint space while allowing room for pitched drain
piping.

Reliable, non-electric valve

The temperature-actuated valve is time-tested to be
reliable and maintenance-free. And because it is non­electric, no wiring is required!

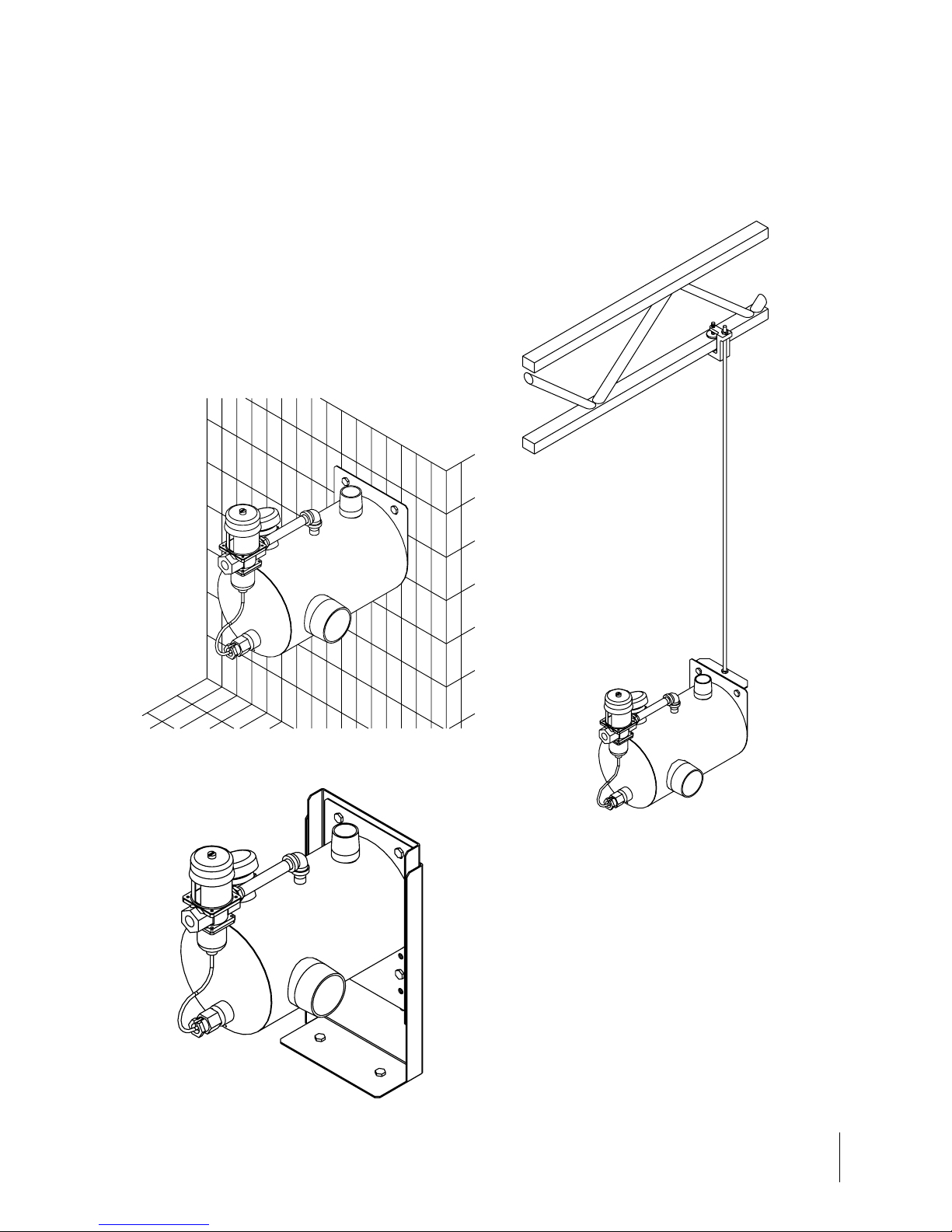

Multiple mounting options

The DRANE-KOOLER can be mounted by attaching
the integral mounting plate to a wall, by attaching the
mounting plate to an adjustable floor stand, or by
using an assembly for suspension mounting. These
multiple mounting options provide capability for the
DRANE-KOOLER to be properly supported and not
secured entirely by piping.

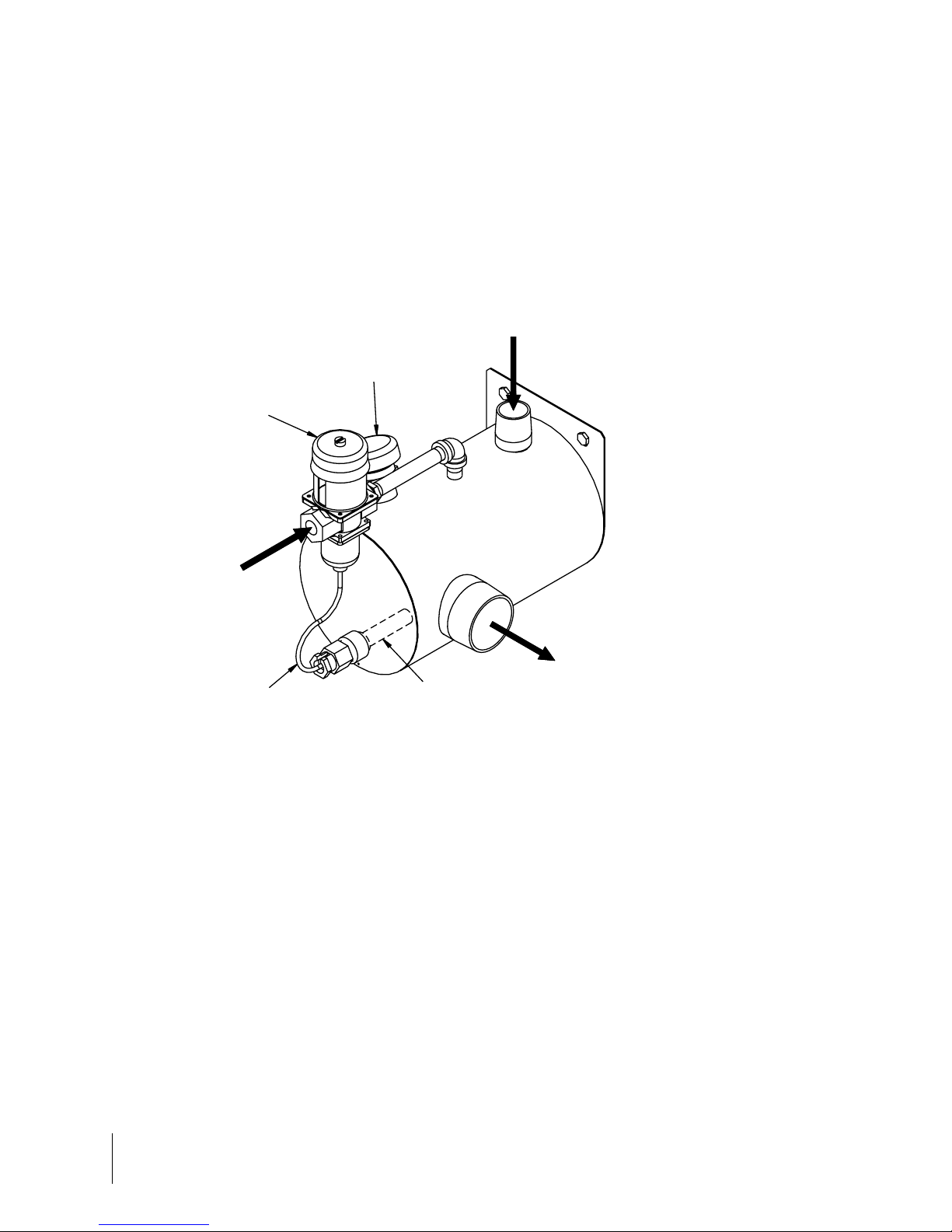

How it works: Hot + cold = tempered!

1. Hot water discharged from a humidifier or other

appliance enters the DRANE-KOOLER through
piping connected to the top threaded connection.
A vacuum breaker prevents backflow into
potable water systems.

2. Cold water enters through the temperature-

actuated valve. The valve and the
DRANE-KOOLER's straightforward design
ensure efficient mixing of hot and cold water.
The valve's sensor, located near the outlet,
ensures that water leaving the
DRANE-KOOLER is 140 °F (60 °C)* or less
before entering the municipal sewer system.

3. Tempered water at 140°F (60°C)* or less exits

through the side outlet for safe discharge into a
municipal sewer system or PVC pipe.

* Please see the capacities table on the next page.

1

2

3

Product overview:

Summary of features

1
