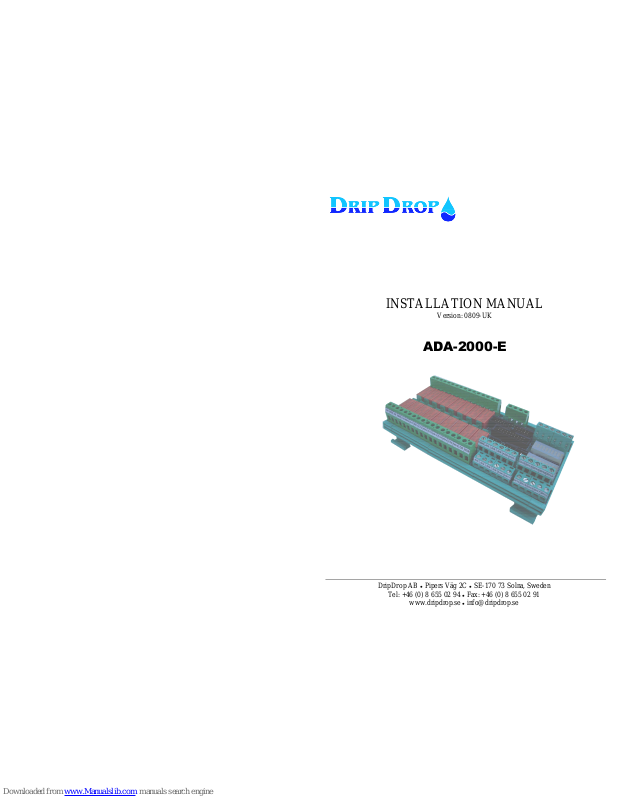

Drip Drop ADA-2000-E Installation Manual

DripDrop AB ● Pipers Väg 2C ● SE-170 73 Solna, Sweden

Tel: [phone] ● Fax: [phone]

www.dripdrop.se ● [e-mail]

INSTALLATION MANUAL

Version: 0809-UK

ADA-2000-E

Page 1(14)

TABLE OF CONTENTS

ADA-2000-E.........................................................................................................................0

1 DESCRIPTION ADA-2000-W .................................................................................2

2 DIMENSIONS AND MOUNTING .......................................................................... 3

3 I/O-SIGNALS............................................................................................................. 4

4 ELECTRICAL CONNECTIONS ............................................................................5

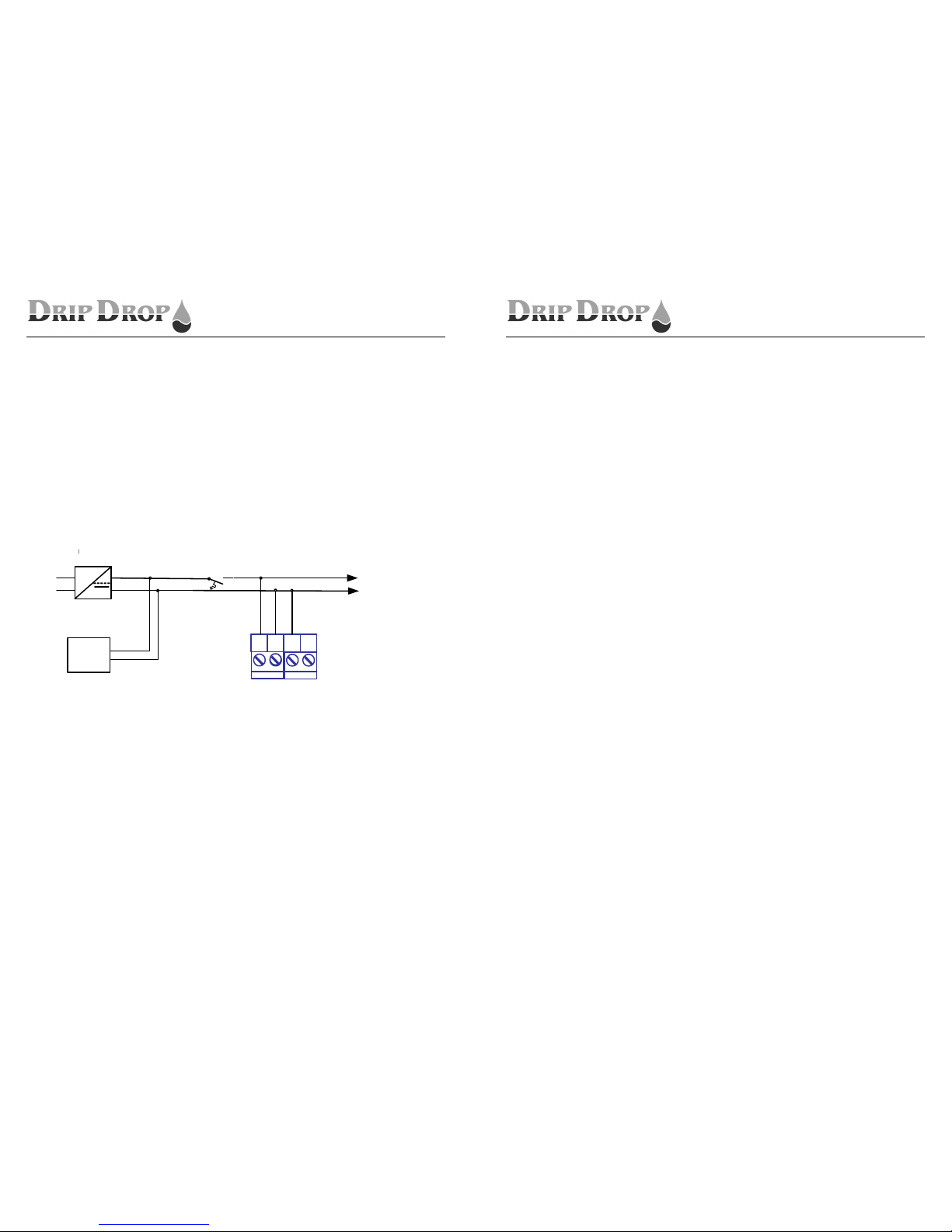

4.1 P

OWER SUPPLY 24 V

DC..................................................................................... 5

4.2 I/O-

SIGNALS DESCRIPTION

..................................................................................6

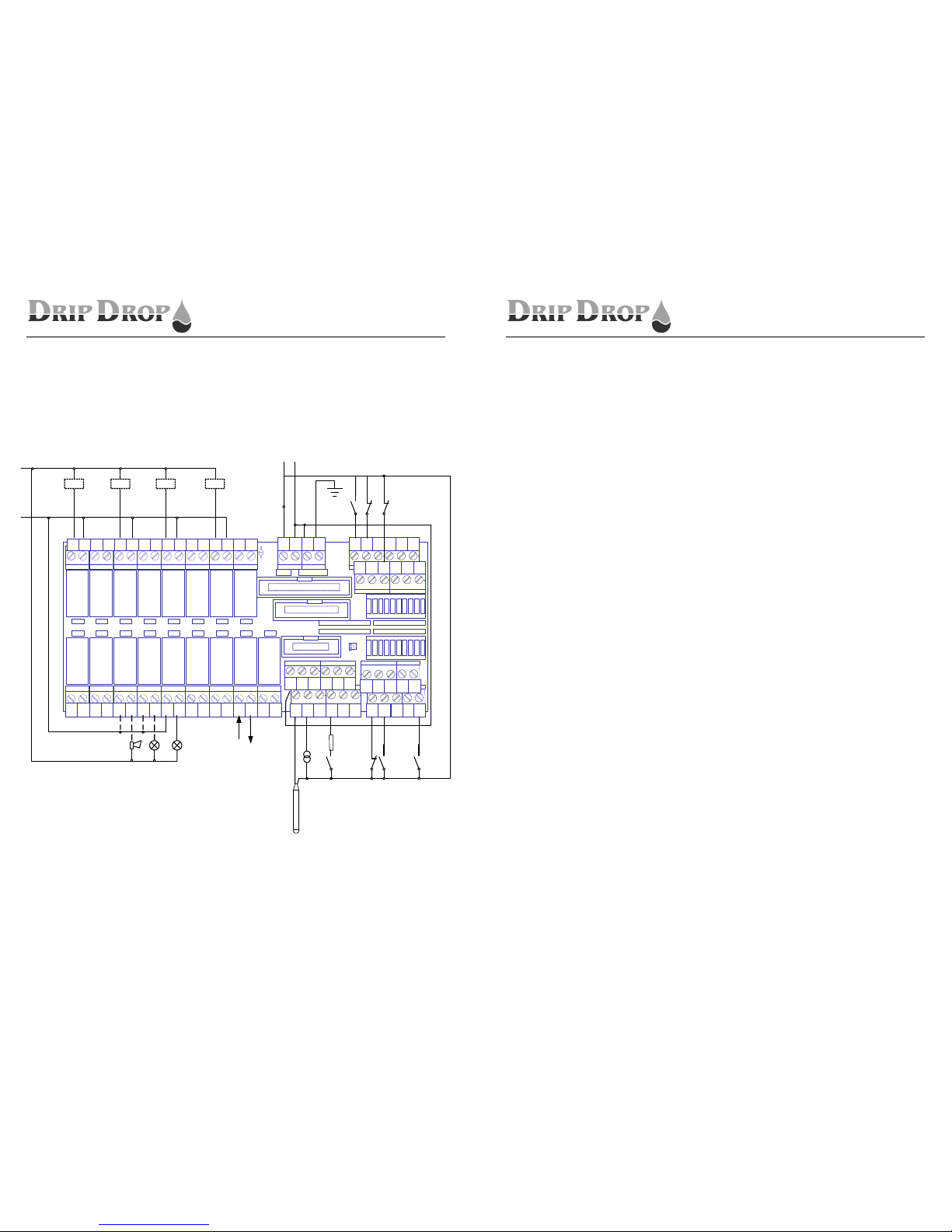

4.3 I/O-

SIGNAL CONNECTIONS

..................................................................................7

4.4 D

IGITAL INPUTS AND COUNTERS

.........................................................................8

4.5 D

IGITAL OUTPUTS

............................................................................................... 8

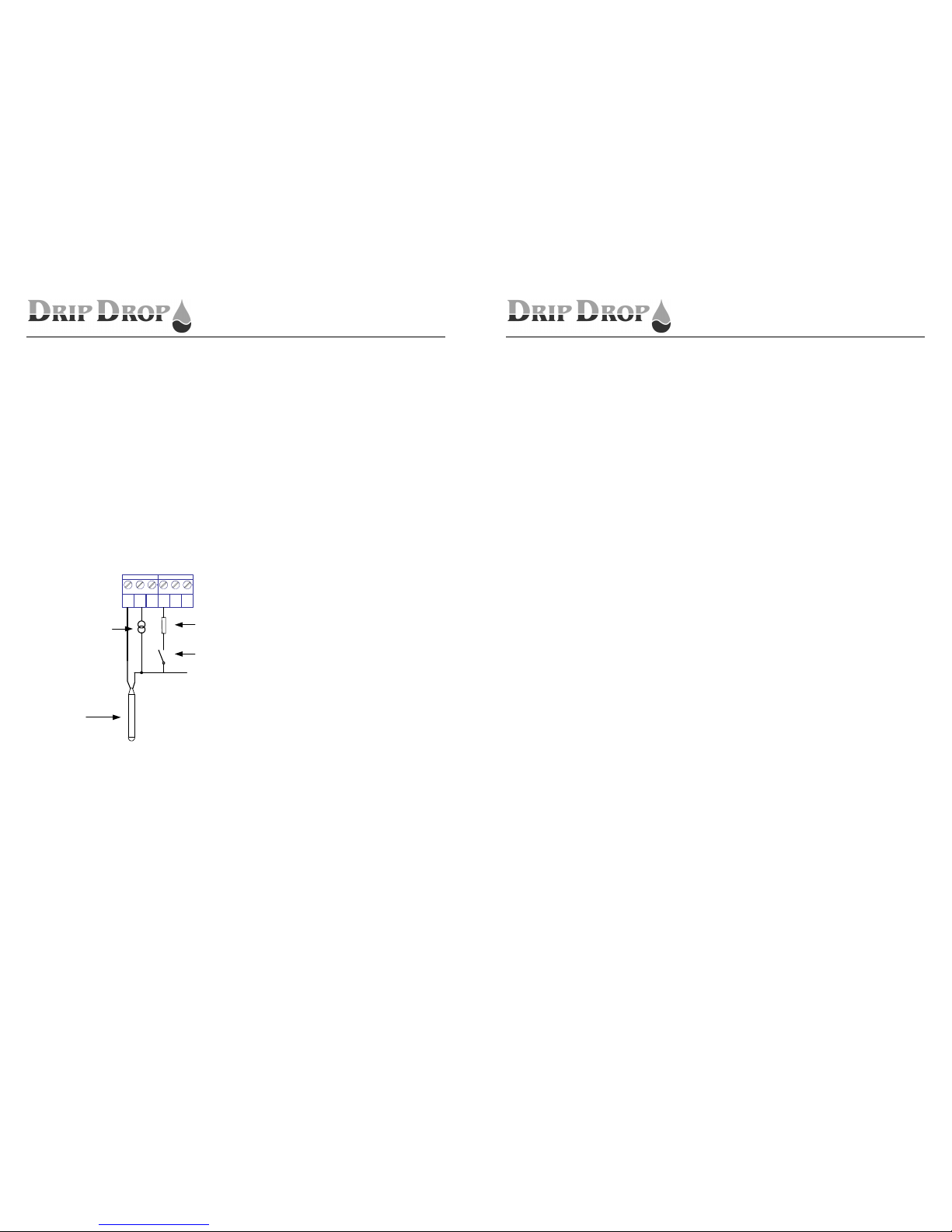

4.6 A

NALOGUE INPUTS

.............................................................................................. 9

4.7 S

IGNAL INTERFACE

PC2000-W

AND

ADA2000-E............................................11

5 TECHNICAL SPECIFICATION ADA-2000-W .................................................. 12

6 ELECTROMAGNETIC COMPATIBILITY (EMC)...........................................12

7 ACCESSORIES AND PART NUMBERS.............................................................13

8 PACKING CONTENTS..........................................................................................14

Page 14(14)

8 Packing contents

On delivery the packing box of the ADA2000E comes with the following
items:

1(one) I/O unit ADA-2000-E

1(one) 1,5 meter long 26 wires flat band cable CSD26/1,5m
1(one) 1,5 meter long 20 wires flat band cable CSD20/1,5m
1(one) 1,5 meter long 14 wires screened cable including
ground connection CSA14E/1,5 m

Page 13(14)

7 Accessories and part numbers

Description Part number Comments

CPU unit PC-2000-W 20101-03-101
I/O unit ADA-2000-E 20101-03-110
Band cable screened CSA14E/1,5 m 20101-03-120
Band cable flat CSD20/1,5 m 20101-03-130
Band cable flat CSD26/1,5 m 20101-03-140
Level sensor SP-25 (0-1m Wg) 40101-06-103 4-20mA
Level sensor SP-25 (0-4m Wg) 40101-06-102 4-20mA
Level sensor SP-25 (0-5m Wg) 40101-06-106 4-20mA
Level sensor SP-25 (0-10m Wg) 40101-06-108 4-20mA
Current transformer E83-2050 (0-50A) 40101-54-104 4-20mA

Page 2(14)

1 Description ADA-2000-W

The ADA-2000-W is the I/O-board for the pump control PC-2000-W.

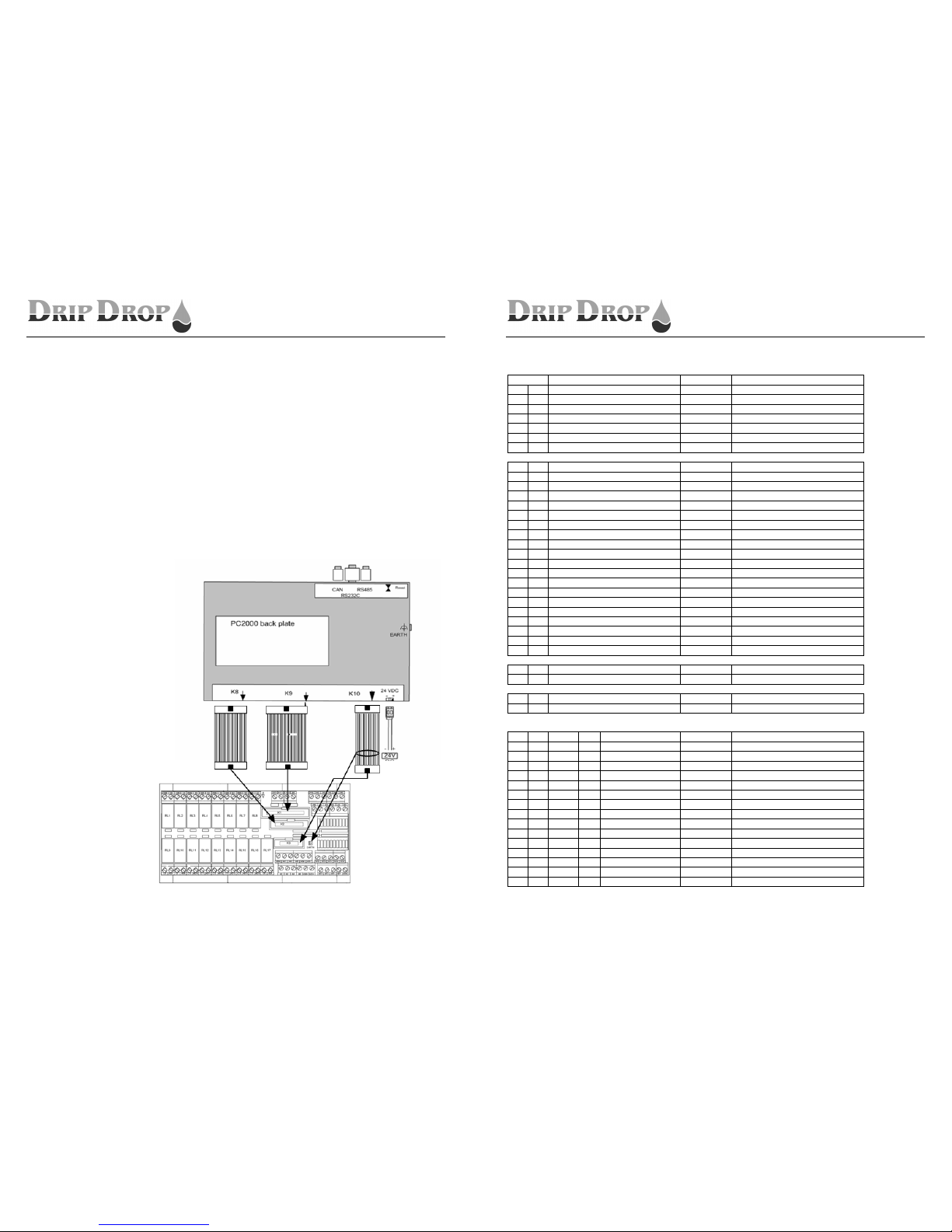

All I/O-signals are connected via the ADA-2000-E, and the signal interface
between the ADA-2000 and the PC-2000 is made through 3 separate band cables.
All inputs (digital and analogue) are 24 VDC signals. The digital outputs are
potential free relay contacts where the relay supply is also 24 VDC and the relay
contacts are max. 250VAC at 6A.

1. Digital outputs max 250 V / 6A 8. Ground connection ( flat cable )

2. Power supply 24 VDC 9. Analogue outputs (4-20 mA / 0-10 V)

3. Ground connection 10. Analogue inputs (0/4-20 mA)

4. Digital counter inputs 24 VDC 11. Signal ground ( - 24 VDC)

5. Digital inputs (1 – 10) 24 VDC 12. Flat cable connectors

6.Digital inputs status LED´s 13. Digital output status LED´s

7. Digital inputs (11 - 20) 24 VDC

1

2

8

3 4 5

6

7

9

1

10

11

12

13
