DrinKup DrinKup-17 User Manual [en, fr]

DrinKup-17

Smart Bottle

User Manual

Save our planet! by using this electronic User
manual.

Download full electronic version user manual
at www.mydrinkup.com

Product Description Accessory kit

瓶身
Body

說明書
User Manual

智能瓶蓋
Smart Lid

USB線
USB Cable

Manual

DrinKup-17 Product Specification

• Bottle material：Stainless Steel 316 (inner layer)/ Stainless steel 304

(outer layer)

• Temperature Preservation: Hot 12 hrs/ Code 24 hrs

• Operation Temperature: 0~45C

• Water Temperature: 0~100C

• Smart Lid Material：Alum 6061、Food Grade PP、Tritan (BPAFREE)

• Water & Dust Proof: IP66

• Color：white/blue/red/yellow

• Dimension（Lid+Bottle）：H249mm xW73mm /17OZ(500ml)

• Lid Dimension：ø50mmｘHeight 55mm

• Screen：5 x 16 LED lattice screen(Touch sensor)

• Gross weight：350 ±10 g

• Battery：400mAh polymerbattery

• Charging Spec: Micro USB 5V / 500mA

• Battery Life(stand by): 180 Days

• Battery Life(Operating): 30~90 Days

• Connectivity：Bluetooth 4.2 BLE

• APP：iOS & Android

• Operation Environment：

• iOS 9.0 or above

• Android 4.4 or above

• Warranty：1 Yearlimited Warranty from the date of purchase

• Packaging Content：

• DrinKup Smart Bottle x 1

• Micro USB cable x 1

• Quick Guild user manual

• Countryof Origin：Taiwan

• *Specification will be slightly different under differentoperation

environment.

DrinKup-17 Overview

Lattice LED screen

Stainless Steel 304

Ultra sounded
monitoring sensor

Vaccum insulated
Design

Aluminum lid case

Highest
water level

Stainless
Steel 316
inner layer

Copper
inlay

DrinKup-17

1.App

• Download from Google Play or APPLE App Store

• Search ”DrinKup“

• Download DrinKup APP

APP
圖示

2.Quick Guide

ON

TURN ON

Note: Lid must be screwed onto the

bottle when turn on & off the smart lid

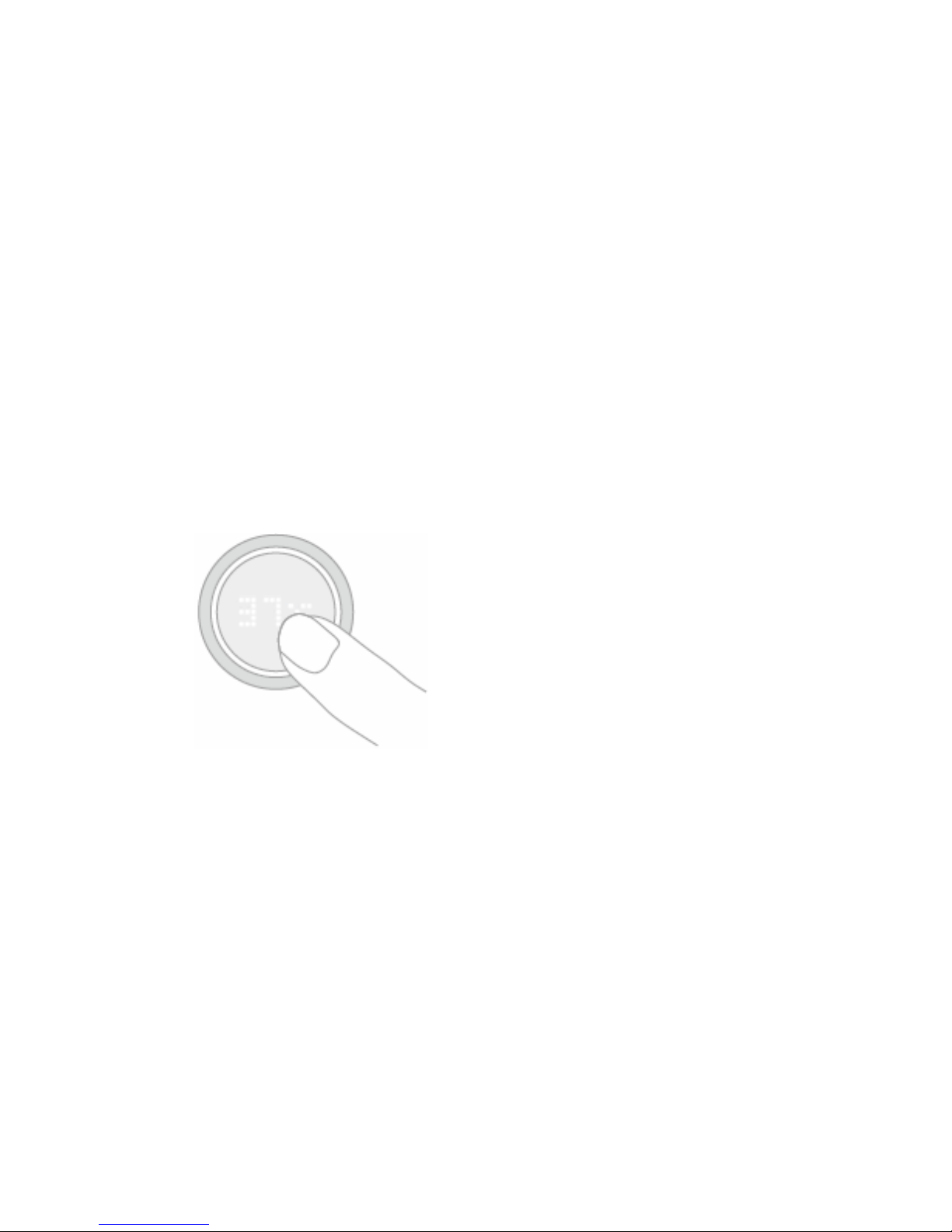

Double Tap the screen and Hold for 3
seconds to turn on.

3.Blue Tooth &
Connectivity

Log in

登錄/註冊

APP畫面

快速配對

APP畫面

Turn on Blue

Tooth

Pairing

Turn on Bluetooth
on smart device

Download full electronic version user
manual at www.mydrinkup.com

Pairing

Confirmed Pairing

Open App
Select the bottle to pair up
Press Confirm pairing by a button on
App
Lid will display a check mark when
pairing successful

Please follow this safety instruction when you are charging
the product.

Do not charge the product with any damaged charger or
cables.

Do not twist and pull the USB cable. If the cable is
damaged may lead to electric shock, short circuit and risk
of fire.

Avoid heavily impact, damage and replaced the part by
yourself.

Any problem regarding installation and using the product,
please contact us for assistance to prevent further damage
to the product.

Avoid charging in hot and humid environments to prevent
sparks and electric shock.

Do not perform the action of charging the product when
your hand is wet to prevent electric shock and damage of
the product.

Please charge the battery at least once every 3 month to
prevent discharging and causing damage to the battery.

Avoid cleaning the product with chemical cleansing product.

Keep away from children.

Safety Instruction

Please follow instruction manual, do not use exceed the DC5V
as the voltage marked on the product.
For safety reason, please keep your hand and product dry
before charge the product.
To reset, please open the USB cover and using pointing object
to hold the button for 3 seconds, avoid making contact the
metallic part with pointing object.
Please seal back the USB cover after charging and make sure
O-Ring is not deform or dislocated in any way.

* Please charge the product regularly at least once
every 3 month.

Turn to
open

USB Cover

O-Ring to
prevent leaking

Avoid contact with
sharpen object

Open USB Cover

Plug USB cable

RESET button is located
underneath of USB socket

Safety Instruction

Following liquid should not be inside

• Dry ice, Carbonated drinks

• Soup contain salt

• Milk, Soy milk, Juice and any kind drink

Do not use in any other purpose other than insulation

Do not disassemble, repair and making modification

Do not assemble parts other than for this product

Keep away from children reachable area

It’s not design for children use

Please keep away from high temperature area,
gas stove or electronic stove, etc.

Cannot use inside of microwave

Do not clean with any kind dishwasher or dryer

Do not store in refrigerator or freezer

Do not soak in hot water

Make sure cap is close tight and firm after use

Avoid any strong force impact to the product

Do not open cap when the bottle is tilt or near face

Finish drink in the same day

Clean the bottler and air dry after using

Be careful when pouring hot drink

Drinks rotten will produce gas to raise the
internal pressure, which may cause cap fail to
open or the contents burst out

Do not exceed the max level when
pouring liquid into the bottle

Avoid using hard and sharpen object on the
cap to prevent damage water proof film and
causing leaking.

Avoid using sharpen object on the bottle. It
may causing scratch the paint.

We retain the right in any form of modification and definition all the specification list above.

1cm

Bottle inside

Prohibited

Warning

Attention

This appliance is not intended for use by
persons (including children) with reduced physical,
sensory or mental capabilities, or lack of
experience and knowledge, unless they have
been given supervision or instruction concerning
use of the appliance by a person responsible for
their safety.
Children should be supervised to ensure that they
do not play with the appliance.

Maintenance and Cleaning

Smart Cap

• Use sponge to clean with neutral dishwashing detergent dilute by warm water.

• Do not soak in water to avoid damage to electronic parts.

• Attention !! Sharpen object may damage water proof film of the cap.

Bottle

• Use soft sponge brush with handle to clean with neutral dishwashing detergent dilute by warm water, air dry after rinse.

• Use soft moist sponge to clean surface with neutral dishwashing detergent. Keep battle dry when it is not in use.

• Regularly using mixture of vinegar and water in ratio of 1:10 by pour the liquid inside of the bottle and wait for 30 minutes for

maintenance purpose.

Attention

• Do not use any kind dishwasher and dish dryer.

• Do not use bleach.

• Do not use scrub powder, scrub metallic ball, stain remover or detergent contain chlorine to avoid surface scratch, rust or

corrosion.

• Do not use metal scrub, melon cloth to clean surface of the bottle to avoid scratch off the paint.

• Do not soak in water.

• Do not boil in water.

• Clean it after using and air dry before store it.

• Do not leave liquid inside of the bottle, it may creates gas and increase internal pressure and cause of burn or other danger.

Warning Message - Battery

• Keep your battery charging or discharging within the temperature of 0 ° C and 40 ° C (32 to 104 ° F). If temperature beyond

the specified rage, it may cause electrolyte leakage, heat or other damage.

• Please do not use the battery on other products.

• Falling to the floor and heavy impact can cause electrolyte leakage or other damage.

• Do not try to disassemble, cut or modified the battery on your own.

• Keep battery away from water or any liquid.

• Keep battery away from children.

• Store battery in dry and cool (room temperature 0-25 ℃；32-77 ℉). Do not leave battery uncharged over 3 months.

• Do not use batteries that are damaged, deformed, rusty, discolored, excessive heat, or odor.

• Keep battery away from any metal object. Battery positive and negative making contact with metal object will cause chort

circuit and damage.

• If battery electrolyte is exposed to skin or clothing, rinse immediately with plenty of water. If the electrolyte comes into

contact with the eyes or mouth, immediately rinse with plenty of water and seek medical assistance.

• Improper use of the battery may cause a fire, explosion or other disaster.

• Keep fluid leaking battery away from flam to prevent fire and explosion.

• Follow local regulation when dispose the used battery.

• The battery must be removed from the appliance before it is scrapped.

• The appliance must be disconnected from the supply mains when removing the battery.

• The battery is to be disposed of safely.

NCC警語

根據 NCC 低功率電波輻射性電機管理辦法規定：

第十二條 經型式認證合格之低功率射頻電機，非經許可，公司、商號或使用者均不
得擅自變更頻率、加大功率或變更原設計之特性及功能。

第十四條 低功率射頻電機之使用不得影響飛航安全及干擾合法通信；經發現有干擾
現象時，應立即停用，並改善至無干擾時方得繼續使用。前項合法通信，指依電信
法規定作業之無線電通信。低功率射頻電機須忍受合法通信或工業、科學及醫療用
電波輻射性電機設備之干擾。

1. 本產品為 NCC 認證合格的產品型式，非經許可不得擅自變更頻率、加大功率或
是變更原設計之功能與特性。

2. 本產品為一防水功能的整體設計，非經許可不得擅自拆除固定螺絲與機殼等，
造成防水功能與保固失效。

3. 為避免造成受傷或燙傷，在使用前請務必詳閱完整版「操作手冊」，並務必遵
循指示正確使用本產品。

注意事項

Federal CommunicationsCommission(FCC) Statement

15.105(b)
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant topart 15 of the FCC rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, ifnot installed and used in accordance with theinstructions,may cause harmful
interference to radiocommunications. However, there is no guarantee thatinterference will not occur in a particular installation. If this equipment does cause
harmful interference to radio or television reception, which can be determined by turning the equipmentoff and on, the user is encouragedto try to correct the
interference by one ormore of the following measures:

-Reorient or relocate the receiving antenna.

-Increase the separation betweenthe equipment and receiver.

-Connect the equipmentinto an outlet ona circuit different from that to which the receiver is connected.

-Consult the dealeror an experienced radio/TV technicianfor help.

15.21
You are cautioned that changesor modifications not expressly approvedby the part responsible for compliance could void the user’s authority to operatethe
equipment.

FCC RF Radiation Exposure Statement:

1. This Transmitter must not be co-located or operatingin conjunction with any other antenna ortransmitter.

2. This equipment complieswith FCC RF radiation exposure limitsset forth for an uncontrolled environment. This equipment should be installed andoperated
with a minimum distanceof 20 centimetersbetween theradiator and your body.

FCC warning:

This device complies with Part 15 of the FCC Rules.
Operation is subject tothe following two conditions:

1) this device may not cause harmful interference and

2) this device must accept anyinterference received,including interferencethat may cause undesired operation of the device.

Industry Canada Statement
This device complies with IndustryCanada's licence-exempt RSSs.
Operation is subject tothe following two conditions:
(1) this device may not cause interference,and
(2) this device must accept any interference, includinginterferencethat may cause undesired operation of the device.

Avis d’industrie Canada
Le present appareil est conforme auxCNR d'Industrie Canadaapplicables auxappareils radio exempts de licence.
L'exploitation est autorisee aux deuxconditions suivantes:
(1) l'appareil ne doit pas produire de brouillage, et, and
(2) l'utilisateur de l'appareil doit accepter tout brouillageradioelectriquesubi, meme si le brouillageest susceptible d'en compromettrele fonctionnement.

Industry Canada Class B Emission Compliance Statement
This Class B digital apparatus complies with Canadian ICES-003.
Avis deconformite ala reglementation d'Industrie Canada
Cet appareilnumerique de laclasse B est conforme a la norme NMB-003du
Canada.

Déclaration d'exposition aux radiations:
Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnementnon contrôlé. Cet équipementdoit être installé et
utilisé avecun minimum de 20 cm de distance entre la source de rayonnement et votre corps.

IC warning:

Warranty Card

Product Warranty Detail

Dear Customer：

Thank you for purchasing our excellent product, if you valuable advice or
required any service. Please kindly give us a call, our customer service
representatives will be more than glad to assist you.

Product :

Model No. :

Serial No. :

Name :

Phone No. :

Address :

Date of purchase :

Warranty Period: One year from the date of purchase (or date shows on
invoice)

1. Warranty period will be counting one year from the date after one
month of this product has been make by manufacturer, If following
situation take place: warranty card cannot confirm by dealer, contain
false information, empty, damage, lost or information cannot be
identify. .

Warranty Coverage & Notes

1. Product will be under full repaired service within one year from the date

of purchase, and all the parts and components will be under repaired

service within four year from the date of purchase. If product was using
by following the instruction manual.

2. Malfunction causing by personnel or natural disasters (improper using
or storage) will apply charge on servicing and parts.

3. Any parts or product replacement will not effect warranty period on the
product that apply to.

4. In any circumstance, the charge may apply:

a. Exceed warranty period
b. Fail to show warranty card
c. Product information does not match with warranty card
d. Fail to fill the date of purchase or cannot be identify
e. Fail to show the invoice of purchase or without seal

5. Product over five years advice change newer model.

6. We retain the right in any form of modification and definition all the
warranty service list above.

2. Please show this warranty card or the invoice of purchasing, when
service is required.

3. This warranty is not valid without store or authorized dealer’s seal.
