1

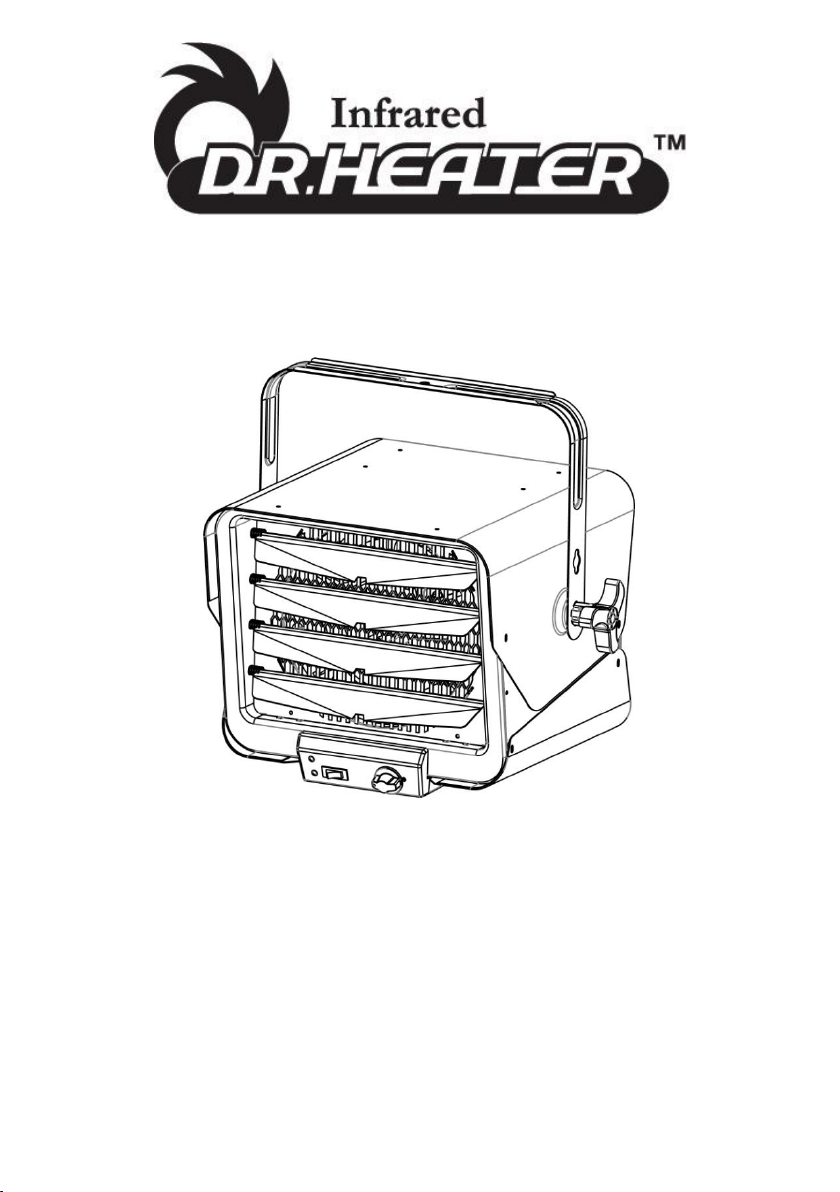

WALL/CEILING MOUNT HEATER
OWNER’S MANUAL
Model No.: DR-966
6000W 240V 60HZ
IMPORTANT INSTRUCTIONS
READ & SAVE
2
TABLE OF CONTENTS
Important Instructions .………………………………….… 3-4
Installation Instructions .……………………….………..… 5-8
Specifications and Wiring Diagram………………………. 9
Parts of the Heater ……………………….……………….. 10
Operating Instructions……………………….………....…. 11-13
Maintenance and Cleaning ………………………………. 14
Troubleshooting …………………………………………… 15
3
IMPORTANT INSTRUCTIONS
PLEASE READ ALL INSTRUCTIONS BEFORE USING
THIS HEATER
NOTE: There may be a trace of smoke or odor when unit is first
operated. Don’t be alarmed. This indicates that a drop of oil fell on
the heating coil during the manufacturing process. It will quickly
evaporate and should not recur.
Make sure that the room in which the appliance is located is well
ventilated during this operation. It is normal for the appliance to emit
small crackling sounds when you turn it on for the first time. Do not
be alarmed.
WHEN USING ELECTRICAL APPLIANCES, BASIC PRECAUTIONS
SHOULD ALWAYS BE FOLLOWED TO REDUCE THE RISK OF FIRE,
ELECTRICAL SHOCK, AND INJURY TO PERSONS AND/OR PROPERTY.
THESE INCLUDE THE FOLLOWING:
1. Read all instructions before using this heater.
2. This heater is hot when in use. To avoid burns, do not let bare skin touch
hot surfaces. Keep combustible materials, such as furniture, pillows,
bedding, papers, clothes, and curtains at least 3 feet (0.9 m) from the
front of the heater and away from the sides and rear.
3. Extreme caution is necessary when any heater is used by or near
children or the physically challenged and whenever the unit is operating
and unattended.
4. Always switch off the heater when not in use.
5. Do not operate any heater after it malfunctions, or has been dropped or
damaged in any manner. Disconnect the power at the service panel and
have the heater inspected by a certified electrician before use.
6. Do not use outdoors.
7. To disconnect heater, turn off the power to the heater circuit at the main
circuit breaker panel.
8. Do not install less than 8 feet (2.4 m) high from the floor and closer than
1 foot (0.3m) to any adjacent vertical surfaces or walls. Keep at least
4.5 inches (0.12m) from the back wall (with or without using the wall
hanging mounting bracket).
9. Do not insert or allow foreign objects to enter any ventilation or exhaust
opening as this may damage the heater and/or cause an electric shock or
fire.
4
10. To prevent a possible fire, do not block air intakes or exhaust in any
manner.
11. This heater has hot/arcing or sparking parts inside. To reduce the risk of
fire, do not use the unit in areas where gasoline, paint, or flammable
liquids are used or stored.
12. Use this heater only as described in this manual. Any other use not
recommended by the manufacturer may cause fire, electric shock, or
injury to persons.
13. This product must be installed by a certified electrician, in accordance
with local codes.
For supply cables, use 8-2 or 8-3 AWG (8.4 mm2) copper wires.
14.
15. This heater includes a visual alarm to warn that parts of the heater are
getting excessively hot. If the alarm flashes, immediately turn the heater
OFF and inspect for any objects on or adjacent to the heater that may
cause high temperatures. DO NOT OPERATE THE HEATER WITH THE
ALARM FLASHING. To reset the heater, switch the CIRCUIT BREAKER
OFF and wait five to ten minutes for the unit to cool down before turning the
heater back on.
SAVE THESE INSTRUCTIONS
WARNING – RISK OF FIRE, DO NOT USE AS A RESIDENTIAL
OR HOUSEHOLD HEATER.
5
WARNING: All wiring must be installed by a certified electrician in
·
Heater
·
Owner's Manual
·Warranty Card
·
Heater Handle
·
Mounting Bracket
·Tilt Adjustable Knob x 2
INSTALLATIONINSTRUCTIONS
accordance with electrical safety standards.
The ceiling heater must be grounded in accordance with all national
and local building codes.
WARNING:
To reduce the risk of fire, do not store or use gasoline
or other flammable vapors and liquids in the vicinity of the heater.
All wiring procedures and connections should be in
accordance with local codes and ordinances.
NOTE: Compatible with a 240V Line Voltage Double Pole Wall
Thermostat. Must be installed by a certified/licensed electrician.
Before installation:
Disconnect the main supply connection.
Supply cables should be 8-2 AWG (8.4 mm2) copper wires.
The heater must be connected to an individual branch circuit
protected by a 35 amp circuit breaker.
Supply cables must be equipped with a dual pole circuit breaker
rating of at least 240V 35 A/pole as the main cut-off switch of power
to the heater.
Tools/ Materials Needed (Not Included):
Regular Screwdriver Set
·
Spanner
·
Impact Drill with 12mm Drill Bit
·
Recommended Accessories:
DR-001: Thermostat
·
Unpacking Contents:
·Screw Kit
6
Screw Kit Contents
Qty
Description
2
M10 Explosion Screw
1
M10x60mm Screw
1
M10 Nut
2
Ф10 Washer
1
Ф10 Spring Washer
2
Ф10 Rubber Pad
WARNING:
WALL MOUNT
CEILING MOUNT
To reduce the risk of fire, do not store or use
gasoline, paint or other flammable liquids (with vapors) and in the
vicinity of the heater.
INSTALLATION INSTRUCTION:
1. Keep the heater at least 8 feet (2.4 m) from the floor. This
minimum distance must be maintained.
2. Do not install closer than 1 foot (or 0.3 m) to any adjacent vertical
surfaces or walls.
3. Keep at least 4.5 inches (0.12m) from the back wall (with or
without using the wall hanging mounting bracket).
4. Mark the drill-hole positions in the wall or ceiling for the mounting
bracket.
5. Drill the required holes with the diameter that fits the anchor
provided for positioning the mounting bracket.
6. Insert the anchors.
7. Attach the mounting bracket to the wall or ceiling and secure with
mounting screws.
7
8. Hook the unit to the mounting bracket and let the unit hang from
the mounting bracket.
9. Insert the screw through the mounting bracket and the heater
handle, and tighten the nut.
10.Loosen the screw to remove the wiring compartment/connection
cover in the rear of the heater.
11.Run the electrical power supply cable in flexible conduit and
connect to the wiring compartment via the knock-out at the back
of the unit.
12.Make the connections properly with connectors suitable for the
conductor size, including grounding wiring. After making the
connections, arrange the pigtail leads of unit and power supply
wires in the wiring compartment.
8
13.Replace the wiring compartment/connection cover and lock in
place with the screw.
9
Wall/Ceiling Mount Heater
SPECIFICATIONS
Model No: DR-966
Voltage: 240V
Watts: 6000W
Frequency: 60Hz
BTU/h: 20472
Recommended Heating Capacity: 1.25 watts / ft3(0.03 m3)
10
PARTS OF THE HEATER
E
F
G
H
I
A. Upper enclosure
B. Tilt adjustable knob
C. Front exhaust grille
D. Louver for air direction
E. Control panel
F. Power indicator
G. Alarm LED
H. Setting switch (High/Low)
I. Temperature setting knob
11
WARNING!The heater must be properly installed before use.
OPERATING INSTRUCTIONS
HAZARD OF ELECTRIC SHOCK, EXPLOSION
OR ARC FLASH:
Apply appropriate personal protective equipment (PPE)
and follow safe electrical work practices. See NFPA 70.
A circuit breaker must be installed and serviced only by a
certified electrician.
Always use a properly rated voltage sensing device to
confirm that the power is OFF.
The HIGH/LOW switch on the heater is only for setting
selection. Use the circuit breaker as the Power
ON/OFF switch for the heater. The circuit breaker is
to be installed by a certified electrician and should be
located in line-of-sight from the heater location, or it
should be capable of being locked in the open
position. Follow the operating instructions to reduce
the risk of fire, electric shock, injury, or death.
To turn on the heater, switch on the circuit breaker.
Then turn the thermostat to the farthest clockwise position. The
fan should start, the unit will begin heating the room, and the
lamp will light.After the room reaches a comfortable level, turn
the thermostat counterclockwise until the heater shuts off. The
heater will cycle automatically around this preset temperature.
To increase the temperature, turn the thermostat knob
clockwise. To lower the temperature, turn the thermostat
counterclockwise.
Toggle the HIGH/LOW switch to change the heat setting.
HIGH: 6000W
LOW: 3000W
Select a thermostat setting.
12
Ambient temperature is regulated by adjusting the thermostat to a
desired position. Allow the unit to operate and warm up the room.
When the desired temperature is reached, turn the control knob
counterclockwise until the heater turns off. This is your ideal setting.
The heater will start automatically when the room temperature
drops below this set point, and will turn off when the set point is
reached.
To turn off the heater, switch off the circuit breaker. The
circuit breaker serves as the only means of disconnecting
power from the heater.
This heater includes a visual alarm to warn that parts of the
heater are becoming excessively hot. If the alarm flashes,
immediately turn the heater OFF and inspect for any objects on,
in, or adjacent to the heater that may cause high temperatures.
DO NOT OPERATE THE HEATER WITH THE ALARM
FLASHING. To reset the heater, switch the circuit breaker OFF,
and wait five to ten minutes for the unit to cool down before
turning the heater on again.
How to install Wall Thermostat. (DR-001 Not Included.)
1. Install the Thermostat Outlet Box to the wall. Open the knockout on the right.
2. Run line voltage wires to the thermostat location via the
knock-out. Connect the wires as below image:
13
3. Insert wires into the Thermostat Outlet Box, and screw up
Connect to the Heater
Connect to the Heater
Connect to the Power Cord
Connect to the Power Cord
the thermostat.
4. Cover the thermostat.
14
There are no user-serviceable parts inside this heater except
MAINTENANCE AND CLEANING
regular cleaning as described below. All other servicing or
maintenance should be performed by qualified service personnel.
Before any cleaning, make sure that:
1. The power supply is disconnected at the source. Switch off the
circuit breaker.
2. Wait for 60 minutes to ensure the heating coil has cooled. Your
heater now will be ready for cleaning.
Regular Cleaning
1. Do not spray cleaning liquid or other chemicals on the unit.
2. Interior dust can often be removed by using a vacuum cleaner
with a crevice tool attachment.
3. To clean enclosure, use a clean, soft, lightly damp cloth to
gently wipe off the dirt from the surface of the unit. Make sure
that the heating coil and the switches do not get wet. Allow the
unit to dry completely before use.
CAUTION: DO NOT ALLOW WATER INTO THE INTERIOR OF
THE HEATER AS THIS MAY CAUSE A FIRE OR AN ELECTRICAL
HAZARD AND DAMAGE THE UNIT.
15
If your heater fails to operate, please follow the procedures below.
Problem
Probable Cause
Solution
Unit is
not
heating
Overheat protection has
temporarily deactivated the
heater.
Turn the heater OFF.
Switch OFF the circuit breaker.
Wait 10 minutes before turning on
the heater.
Room temperature has
warmed to thermostat setting.
To increase room temperature,
adjust the thermostat control knob
to a higher setting.
Breaker/Fuse has been
tripped.
Check your electrical box to
confirm the breaker has not been
blown. This might occur if the
receptacle is shared between other
high-consumption appliances.
Unit
produces
a burning
smell
Check & ensure there are no
combustible materials within
0.9 meters (3 feet) surrounding
the heater.
Remove any combustible items
from the heater.
A drop of oil fell on the heating
coil during the manufacturing
process. It will quickly
evaporate and should not
occur again.
Ensure room containing the heater
is well ventilated.
Ensure a minimum clearance
of 1ft (12 inches) from both
sides, and 4.5 inches from the
back.
Reposition the heater so there is
enough space between the heater
and the adjacent walls.
TROUBLESHOOTING
This heater is intended to be a ceiling-mounted heater. It has a
thermal cut-off protection feature. If the thermal cut-off protection
trips, switch OFF the circuit breaker. The unit should reset
automatically after 10 minutes. If the thermal cut-off protection trips
again, consult a certified electrician to determine the reason for
overheating.
PLEASE DO NOT ATTEMPT TO OPEN OR REPAIR THE HEATER
YOURSELF. DOING SO COULD CAUSE HEATER DAMAGE OR
PERSONAL INJURY.
16
How long is the warranty?
This heater comes with a ONE-YEAR LIMITED COMPONENT WARRANTY. If
your unit does not appear to be working properly, please contact our service
center by calling 1-800-317-1688. Prior to your call, we encourage you to visit our
service related website www.DrHeaterUSA.com for troubleshooting tips and
service instructions if needed.
Warranty Information
Register your product at our website:
Or visit DrHeaterUSA.com/register-your-heater
Feedback
Love it? Help us make the product more for you.
Let us know with a customer review.
Please visit: https://www.amazon.com/review/review-your-purchases#
At Dr. Heater USA, we are committed to bringing top quality alternative & supplemental
heating products to our customers.
Dr. Heater USA
860 Mahler Road
Burlingame, CA 94010
Tel: 1-800-317-1688
EMAIL: SERVICE@DRHEATERUSA.COM
Dr Heater USA
@DrHeaterUSA
Dr. Heater USA
Dr. Heater USA
Loading...
