Drill Master XP User Manual

Page 1
THE DRILL BIT SHARPENER
USER GUIDE
USER GUIDE
GET SHARP BACK TO WORK
⚠ Caution! To reduce risk of injury, the user must read and understand this instruction manual before using product. Save these instructions for future reference.
AND GET
Page 2
Contents
English ............................................................................................. 2
General Safety Rules ...................................................................4
®

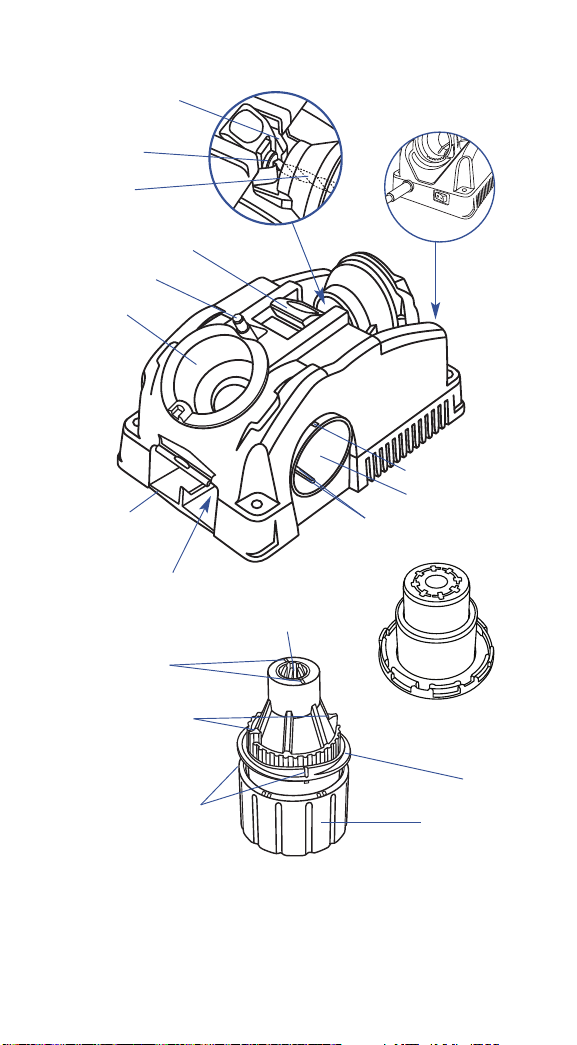

Getting to Know Your Drill Doctor

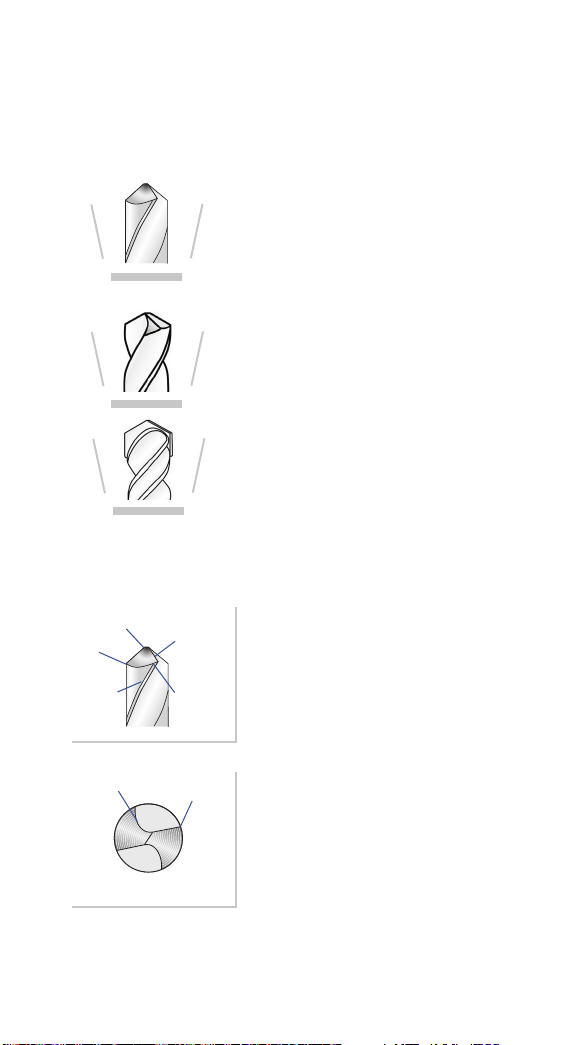

Identifying Basic Drill Bits ....................................................... 13
Anatomy of a Drill Bit ............................................................... 13
Aligning the Drill Bit ................................................................. 14
Sharpening the Drill Bits .........................................................16
Identifying Correctly Sharpened Drill Bit ..........................17
Split Points ...................................................................................18
Identifying Correctly Split Drill Bits .....................................19
Grit Tube Attachment .............................................................. 20
Sharpening Bits of Dierent Lengths, Diameters,
and Types .....................................................................................21
Masonry Drill Bits ...................................................................... 22
Using the Variable Alignment to Adjust Chisel and
Relief Angle ................................................................................. 23
Questions and Answers .......................................................... 25
®
Drill Doctor
Maintenance ..................................................... 28

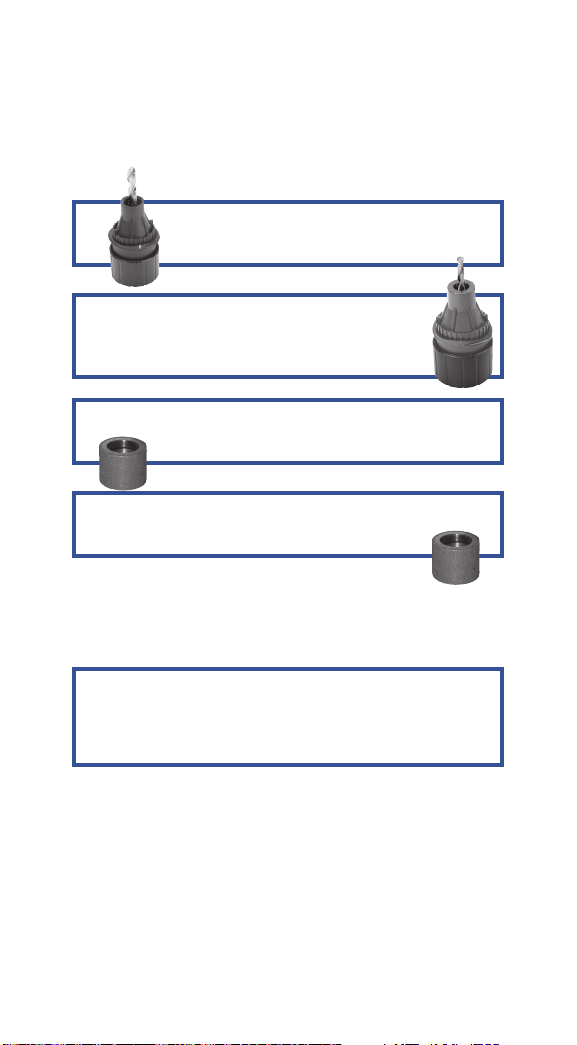

Accessories .................................................................................. 31
Warranty .......................................................................................32
................................... 12
English
Original Instructions
www.drilldoctor.com2
Page 3
Thank you
for purchasing a Drill Doctor ®. It is sure to become a valuable tool because you will always have sharp drill bits before a project, during a project, and after a project.
As president of this company, I am very proud of the quality of our products—and I am equally proud of the great people at Drill Doctor them. If you have questions or need help with your Drill
Doctor ®, please contact us and one of our customer
representatives will be there to help. We support what we build!
®
who design and produce
Use this User’s Guide to learn to operate your
Drill Doctor®
quickly and easily. I’d also like to invite you to visit our website at www.DrillDoctor.com. There you will nd:
• Demonstrations of all operations with the sights and
sounds leading to successful drill bit sharpening
• Downloadable copies of the User’s Guide
• Warranty registration
• Service and contact numbers
Again, thank you for buying a Drill Doctor ®. Now go enjoy its convenience and quality.
Matt Bernard President, Drill Doctor
®
www.drilldoctor.com 3
Page 4
General Safety Rules
WARNING! Read and understand all instructions. Failure to follow all instructions listed may result in electric shock,  re and/or serious injury. The term “power tool” in all warnings listed herein refers to your corded power tool.
WARNING! CHOKING HAZARD! Small Parts – Not for children under 3-yrs.
Installation/Assembly
Carefully unpack the power tool and set it on the table. Check to see that no damage has occurred in shipment. Check all packing materials to be sure that all parts are present. See the section in this User’s Guide for part identi cation diagram.
The Drill Doctor ® is completely assembled – it only needs to be mounted securely to your workbench.
WARNING! Connect to properly wired (110V or 230V, as applicable) outlet, or electrical shock may occur.
1. Work Area Safety:
a) Keep work area clean and well lit. Cluttered or dark areas
invite accidents.
b) Do not operate power tools in explosive atmospheres, such
as in the presence of  ammable liquids, gases or dust. Power tools create sparks which may ignite the dust or fumes.
c) Keep children and bystanders away while operating a power
tool. Distractions can cause you to lose control. Do not let persons not involved in the work touch the tool or power cord.
d) Make workshop kid proof with padlocks, master switches or
by removing starter keys.
e) Securely mount this tool to your workbench during use.
2. Electrical Safety:
DANGER! Electrical shock can kill! Read, understand and follow ALL safety instructions.
WARNING! Do not expose power tools to rain or wet conditions. Water entering a power tool will increase the risk of electric shock.
a) Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodi ed plugs and matching outlets will reduce risk of electric shock.
www.drilldoctor.com4
Page 5
b) Avoid body contact with earthed or grounded surfaces,
such as pipes, radiators, ranges and refrigerators. There
is an increased risk of electric shock if your body is earthed or grounded.
c) Do not abuse the cord. Never use the cord for carrying,
pulling or unplugging the power tool. Keep cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of electric shock.
d) User proper extension cord. Use only 3-wire extension
cords that have 3-prong plugs and 3-pole receptacles that accept the power tool’s plug. Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. Use marked outdoor extension cord leads when the tool is used outdoors.
e) Disconnect tools. Always disconnect your power tool when
cleaning, inspecting, and changing accessories. When not in use, disconnect from the power supply. Never touch internal parts of the sharpener when it is turned on or plugged in. The rotating diamond wheel can result in injury.
f) Grounding instructions. In the event of a malfunction or
breakdown, grounding provides a path of least resistance for electric current to reduce risk of electric shock. This power tool is equipped with an electric cord having an equipment­grounding conductor and grounding plug. Do not modify the plug provided. The plug must be plugged into a matching outlet that is properly installed and grounded in accordance with all codes and ordinances. Improper connection of the equipment-grounding conductor can result in a risk of electric shock. The conductor with insulation having an outer surface that is green with or without yellow stripes is the equipment-grounding conductor. If repair or replacement of the electric cord or plug is necessary, do not connect the equipment-grounding conductor to the live terminal. Check with a qualied electrician or service personnel if the grounding instructions are not completely understood, or if in doubt as to whether the tool is properly grounded. Repair or replace damaged or worn cord immediately.
g) When operating a power tool outdoors, use an extension
cord suitable for outdoor use. Use of a cord suitable for outdoor use reduces the risk of electric shock.
www.drilldoctor.com 5
Page 6

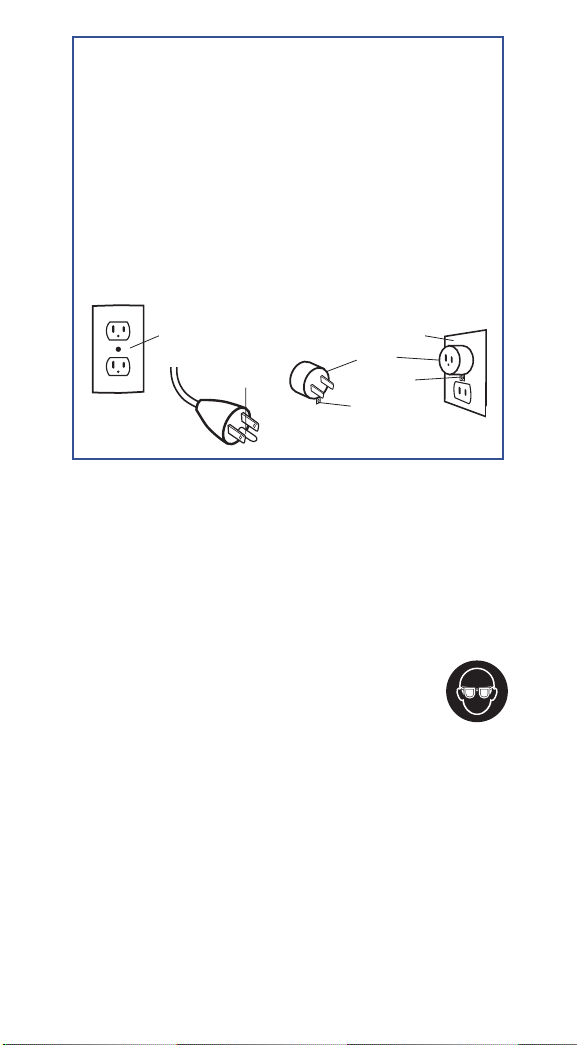

USA Only
This tool is intended for use on a circuit that has an outlet that looks like the one illustrated in Fig. A. It has a grounding plug that looks like the one in Fig. B. A temporary adapter, which looks like the adapter illustrated in Fig. C & Fig. D, may be used to connect this plug to a 2-pole receptacle as shown in Fig. D if a properly grounded outlet is not available. The temporary adapter should be used only until a properly grounded outlet can be installed by a qualied electrician. The green-colored rigid ear, lug, and the like, extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box.
Cover of Grounded
Cover of Grounded Outlet Box
Grounding Pin
Fig. A
Fig. B
Fig. C
3. Personal Safety:
Sharpening operations can create hot sparks and metal debris, loud noises and dust.
a) Stay alert - watch what you are doing and use common
sense when operating a power tool. Do not use a power tool while you are tired or under the inuence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
b) Use personal protective equipment (PPE).
Always wear eye protection. Protective equipment such as dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
c) Use ear protection during use.
generate in excess of 85 dB(A) noise emissions when in operation.
d) Prevent unintentional starting. Ensure the switch is in
the o-position before connecting to power source and/ or battery pack, and when picking up or carrying the tool. Carrying power tools with your nger on the switch, or energizing power tools that have the switch on invites accidents.
e) Remove any adjusting key or wrench before turning the
power tool on. A wrench or a key left attached to a rotating
Outlet Box
Adapter
Metal Screw
Grounding Means
Drill Doctor
Fig. D
®
unit can
www.drilldoctor.com6
Page 7
part of the power tool may result in personal injury.
f) Do no overreach. Keep proper footing and balance at
all times. This enables better control of the power tool in unexpected situations. Nonslip footwear is recommended.
g) Dress properly. Wear closed, non-ammable protective
clothing. Do not wear loose clothing or jewelry. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewelry or long hair can be caught in moving parts.
h) Secure Work. Use clamps or a vise to hold work when
practical. It’s safer than using your hand and it frees both hands to operate tool.
4. Power Tool Use and Care
WARNING! Use recommended accessories. Use the power tool, accessories, abrasives, and tool bits etc., in accordance with these instructions, taking into account the working conditions and the work to be performed. Use of the power tool for operations dierent from those intended could result in a hazardous situation.
CAUTION! Keep power tools and work space clean for best performance and safety. Do not let sharpening debris accumulate on, in, or around the tool. Accumulated ne metal sharpening debris can be very hot and may present a re danger if the machine or your workspace is not properly cleaned and maintained. Accumulated sharpening debris can also degrade the life of the tool and cause premature wear on some components. If sharpening debris has accumulated, do not immediately throw it into a trash receptacle without ensuring the debris is completely cool and free of heat. Improperly disposing of the accumulated sharpening debris may present a re risk. Do not collect the sharpening debris during sharpening. This increases the risk of heat build-up in the debris and the potential for re.
a) Do not force the power tool or attachment. Use the correct
power tool for your application. Do not force small tools to do the job of a heavy duty tool. The correct power tool will job better and safer at the rate for which it is designed.
b) Use the right tool. Do not force tool or attachment to do a
job for which it is not designed.
c) Do not use the power tool if the switch does not turn it
on or o. Any power tool that cannot be controlled with the switch is dangerous and must be repaired.
d) Never leave tool running unattended – Turn power o.
Do not leave the tool until it comes to a complete stop.
e) Disconnect the plug from the power source and/or the
battery pack from the power tool before making any adjustments, changing accessories, or storing power
www.drilldoctor.com 7
Page 8
tools. Such preventative safety measures reduce the risk of starting the power tool accidentally.
f) Store idle power tools out of reach of children and do
not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools
are dangerous in the hands of untrained users.
g) Maintain power tools. Check for misalignment or binding
of moving parts, breakage of parts and any other condition that may aect the power tool’s operation. If damaged, have the power tool repaired before use. Keep unit dry, clean and free from oil and grease. Many accidents are caused by poorly maintained power tools.
h) Keep guards in place and in working order. A guard or
other part that is damaged should be properly repaired or replaced by an authorized service center unless otherwise indicated in the instruction manual.
i) Never stand on the power tool. Serious injury could
occur if the tool is tipped or if the sharpening edge is unintentionally contacted.
j) Check damaged parts. Before further use of the tool, a
guard or other part that is damaged should be carefully checked to determine that it will operate properly and perform its intended function. Check for alignment of moving parts, binding of moving parts, breakage of parts, mounting and any other conditions that may aect its operation. A guard or other part that is damaged should be properly repaired or replaced by an authorized service center unless otherwise indicated in the instruction manual. Have defective switches replaced by an authorized service center. Do not use the tool if the switch does not turn it on and o. Do not use if the grinding wheel is damaged. Use only grinding wheels recommended by Drill Doctor ®.
5. Service
a) Have your tool serviced by a qualied repair person
using only identical replacement parts. This will ensure
that the safety of the power tool is maintained.
For Service in the USA, Contact:
Darex, LLC
PO Box 730
210 E Hersey St
Ashland OR
97520
Phone: (800) 418-1439 Fax: (541)552-1377 Email: [email protected]
www.drilldoctor.com8
Page 9
Specic Safety Rules
WARNING! ALWAYS use proper safety glasses. Everyday
eyeglasses are NOT safety glasses. Also use face of dust mask if operation is dusty. ALWAYS wear certied safety equipment:
• ANSI Z87.1 eye protections (CAN/CSA Z94.3)
• ANSI 512.6 (53.19) hearing protection
• NIO5H/OSHA respiratory protection
WARNING! Use of this tool can generate and/or disperse dust, which may cause serious permanent respiratory or other injury. Always use NIOSH/OSHA approved respiratory protection appropriate for the dust exposure. Direct particles away from face and body.
WARNING! Avoid prolonged contact with dust from power sanding, sawing, grinding, drilling, and other construction activities. Wear protective clothing and wash exposed areas with soap and water. Allowing dust to get into your mouth, eyes, or lie on the skin may promote absorption of harmful chemicals.
Motor
Be sure your power supply agrees with the nameplate marking. 230 Volts AC only means your tool will operate on standard 50 HZ household power. Do not operate AC tools on DC. A rating of 230 volts AC/DC means that your tool will operate on standard 50 HZ AC or DC power. This information is printed on the nameplate. Lower voltage will cause loss of power and can result in over­heating.
Extension Cords
Make sure your extension cord is in good condition. When using an extension cord, be sure to use one heavy enough to carry the current your product will draw. An undersized cord will cause a drop in line voltage resulting in loss of power and overheating. The Drill Doctor® has a 1.75 ampere rating (.4 ampere in U.U.; .74 ampere in Japan). The following table shows the correct size to use depending on cord length and nameplate ampere rating. If in doubt, use the next heavier gauge. The smaller the gauge number, the heavier the cord.
www.drilldoctor.com 9
Page 10
Not recommended
Minimum Gauge Cord Sets
Save These Instructions
Volts
115V
230V
Ampere Rating
More than Not more than
0
6 10 12
Total Length of Cord in Feet
0-25
(0 - 7.6m)
(1 - 15.2m)
0-50
(7.6 - 15.2m)
(15.2 - 30.4m)
6 10 12 16
26-50
51-100
51-100
(15.2 - 30.4m)
101-200
(30.4 - 60.9m)
American Wire Gauge
18 18 16 14
101-200
(30.4 - 60.9m)
201-300
(60.9 - 91.4m)
16
16 16 16 12
14
14
12
14
12
Safety Guidelines – Denitions
It is important for you to read and understand this manual. The information it contains relates to protecting YOUR SAFETY and PREVENTING PROBLEMS. The symbols below are used to help you recognize this information:
DANGER! Indicates an imminently hazardous situation which,
if not avoided, will resut in death or serious injury.
WARNING! Indicates a potentially hazardous situation which, if
not avoided, could result in death or serious injury.
CAUTION! Indicates a potentially hazardous situation which, if
not avoided, may result in minor or moderate injury.
CAUTION! Used without the safety alert symbol ( ) indicates a potentially hazardous situation which, if not avoided, may result in property damage.
The label on your tool may include the following symbols:
v........................
Hz.....................
Min...................
.....................
.....................
..................
volts hertz minutes direct current Class II Construction safety alert symbol
a........................
w.......................
......................
n
o
......................
......................
rpm...................
amperes watts alternating current no load speed earthing terminal revolutions or reciprocations per minute
Safety Markings
15,000 RPM 110•120V - 60Hz - 1.75A max / 0.77A nom
-or- 220•230V - 50Hz - 0.88A max / 0.4A nom
Tool mass including detachable parts.
(1) DDXP unit, (1) user’s guide, (1) wheel wrench
Drill Bit Sharpener
AC Only
DDXP Mass: 1.979 lbs.
Includes:
www.drilldoctor.com10
Page 11
DECLARED DUAL-NUMBER NOISE EMISSION
VALUES in accordance with ISO 4871
Ld = L + K, where the maximum K = 3.0 dB (per ISO 11201)
Manufacturer: DAREX, LLC Model: DDXP Rated Input: 92w Hz: 50 Source: 230VAC
A-weighted emission sound pressure level, LpA (ref. 20 µPa) at the operator’s position, in decibels:
Un-Loaded: 76.9 Loaded: 89.7 Uncertainty, KpA, in decibels: 3.0 At 1m Distance: Un-Loaded: 71.9 Loaded: 76.0
Peak C-weighted emission sound pressure level, LpC, peak (ref. 20 µPa) at the operator’s position, in decibels: Un-Loaded: 77.4 Loaded: 87.8 Uncertainty, KpC, peak, in decibels: 3.0 At 1m Distance: Un-Loaded: 72.7 Loaded: 75.0
Declared noise emmision value.
Intended Uses
• This drill bit sharpener is designed to sharpen twist style drill bits 3/32” - 1/2”.
• Using factory authorized accessories this sharpener can be expanded to sharpen twist style drill bits up to 3/4”.
• Light duty twist drill sharpening in the home or small shop.
• Clean and dry (indoor use only).
• Use with a clean power source of the correct rated voltage and cycle.
Unintended Uses (Not permissible)
• This drill bit sharpener not intended to sharpen chisels, screw drivers or other similar shop tools.
• Sharpener is a light duty sharpener not intended for industrial or commercial sharpening services.
• Not for use in wet and/or hazardous environments.
• Not for use with converters or alternate power supply.
www.drilldoctor.com 11
Page 12
Getting to Know Your Drill Doctor
®
Bit Clamp Arms
Drill Stop
Drill Bit
Alignment Button
Cam Pin
Sharpening Port
Wheel Access Cover
Diamond Sharpening Wheel (Inside)
Masonry Bit Alignment Marks
Chuck Jaws
Power Switch and
Power Cord
Splitting Guide
Split Point Port
Split Point Guide Rails
Alignment Guides
(raised ns)
Sharpening Guides
(white lines)
Grit Tube
Cam
Chuck Knob
Chuck
www.drilldoctor.com12
Page 13
Identifying Basic Drill Bits
The Drill Doctor® is most ecient when used to resharpen a drill bit’s original point angle. With its standard Diamond Sharpening Wheel it will sharpen high-speed steel, cobalt, TiN-coated, carbide and masonry drill bits. It has been designed and engineered to sharpen three of the most common drill bit types:
Standard Point
This general-purpose point (normally 118°) is used for drilling softer materials like cold rolled steel, aluminum, and wood.
Split Point
Split-point bits are self-centering and are generally used for tempered steels, hard alloys or hard cast materials.
Masonry Bits
Masonry bits have a carbide insert at the point and are used for drilling materials like cement, brick, and ceramic.
Anatomy of a Drill Bit
Chisel Edge
Heel
Leading
Edge
Cutting
Edge
Relief Angle
When viewing a well-sharpened bit from the side, the Heel will always be lower than the Cutting Edge; this is called “positive relief ”.
Heel
Cutting Edge
When viewing a well-sharpened bit from the end, the entire surface from the Cutting Edge to the Heel will have a nely ground surface without ridges or indentations.
www.drilldoctor.com 13
Page 14

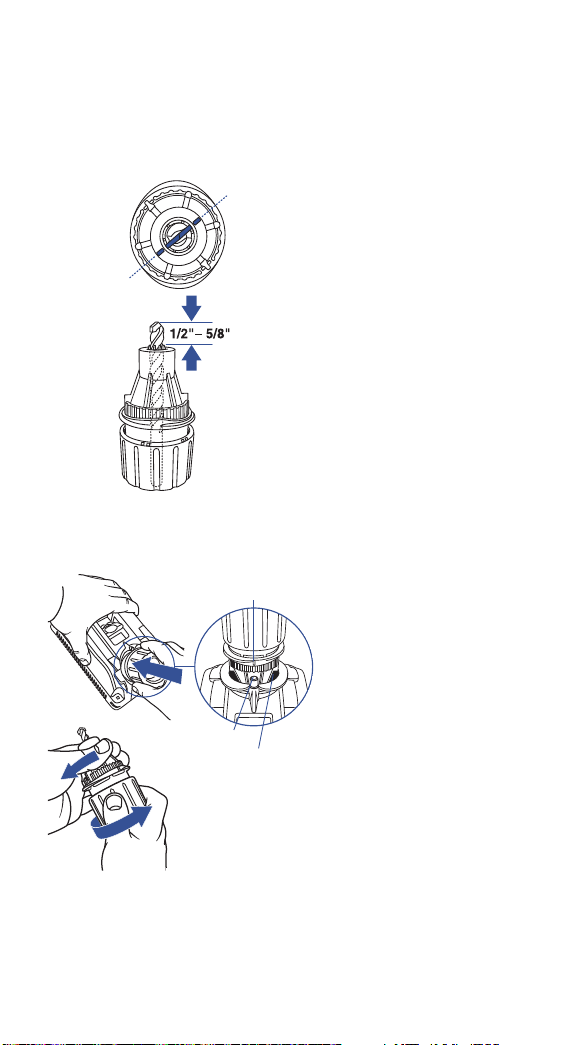

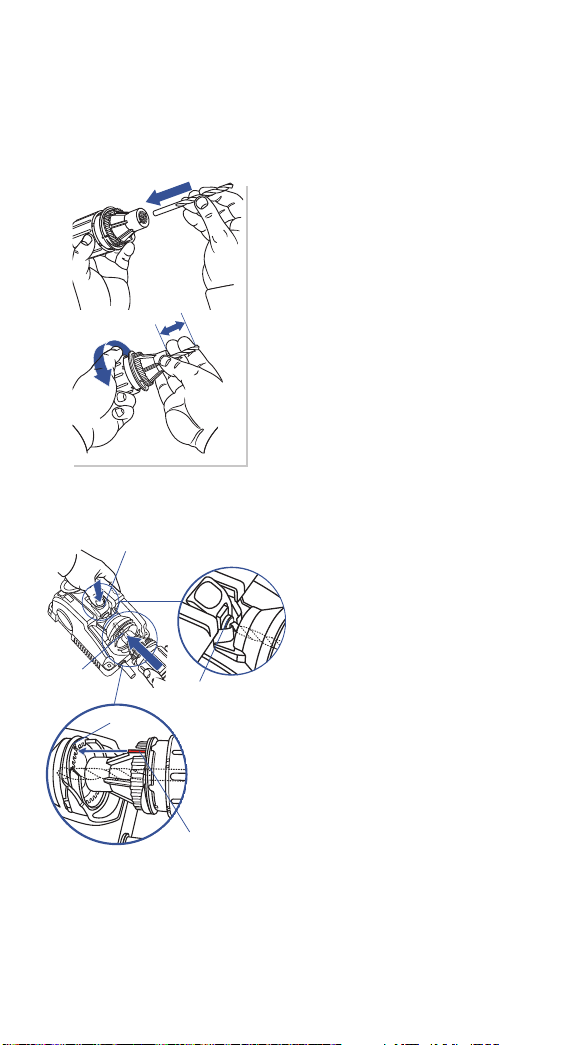

Aligning the Drill Bit
This makes sure that the Drill Doctor creates the right geometry. It also sets the depth of the bit so that only a small amount of the tip is taken o during sharpening.
Insert bit in Chuck and tighten
Insert the bit into the Chuck Jaws and
1"
close the Jaws just to the point where the bit slides in and out. Do not over tighten the Chuck; the bit needs to be able to move in and out until Step 4.

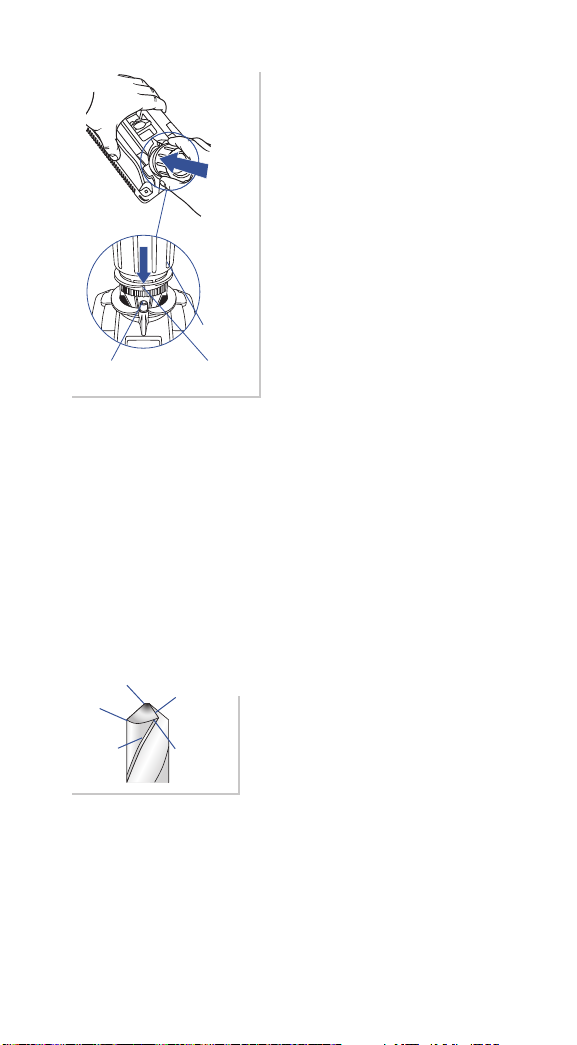

1. Insert Chuck into Alignment Port
Alignment Button
Alignment
Port
Drill Stop
118˚
Press the Alignment Button down
and hold it. Match either of the
Alignment Guides (raised ns)
on the Chuck with the 118°
notch on the Alignment Port. Insert the Chuck. While holding
the Alignment Button down,
slide the drill bit forward until
it touches the Drill Stop and the Chuck is pushed all the way into the Alignment Port. Release the Alignment Button.
Alignment Guide
www.drilldoctor.com14
Page 15

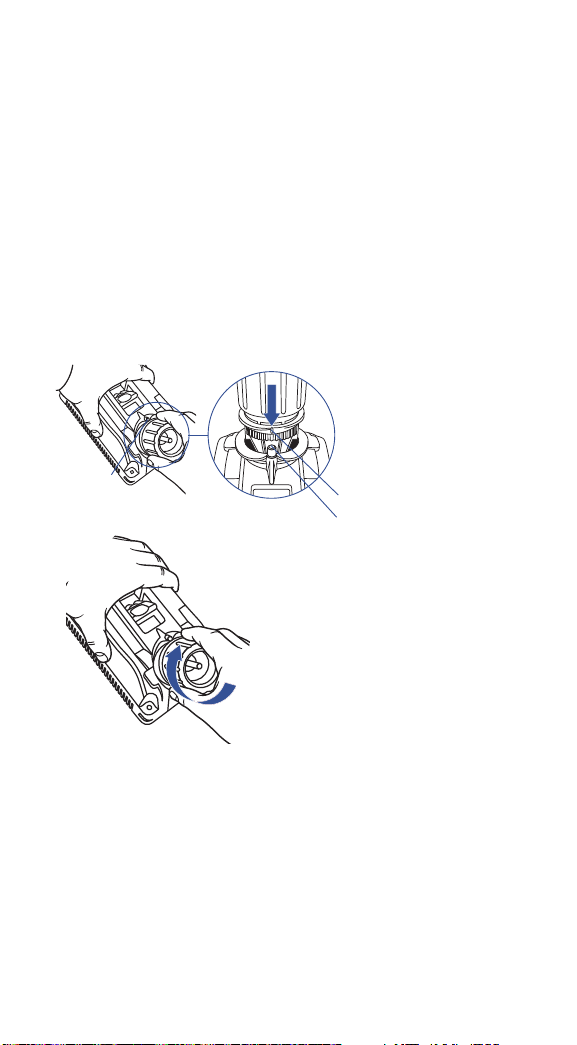

2. Adjust Bit Position
Look at the bit and make sure the Bit Clamp Arms are in the bit’s narrowest spot (the utes). If they aren’t, turn the bit until it is. This is an important step to proper alignment.
Bit Clamp Arms
Drill Stop
3. Tighten Chuck
Tighten the Chuck Knob. Avoid over tightening the Chuck in the Alignment Port. This could damage the Alignment Port.
4. Remove and Re-tighten
Press the Alignment Button and remove the Chuck from the Alignment Port. Tighten the Chuck once more to ensure the bit is held securely.
You are now ready to sharpen the drill bit.
www.drilldoctor.com 15
Page 16

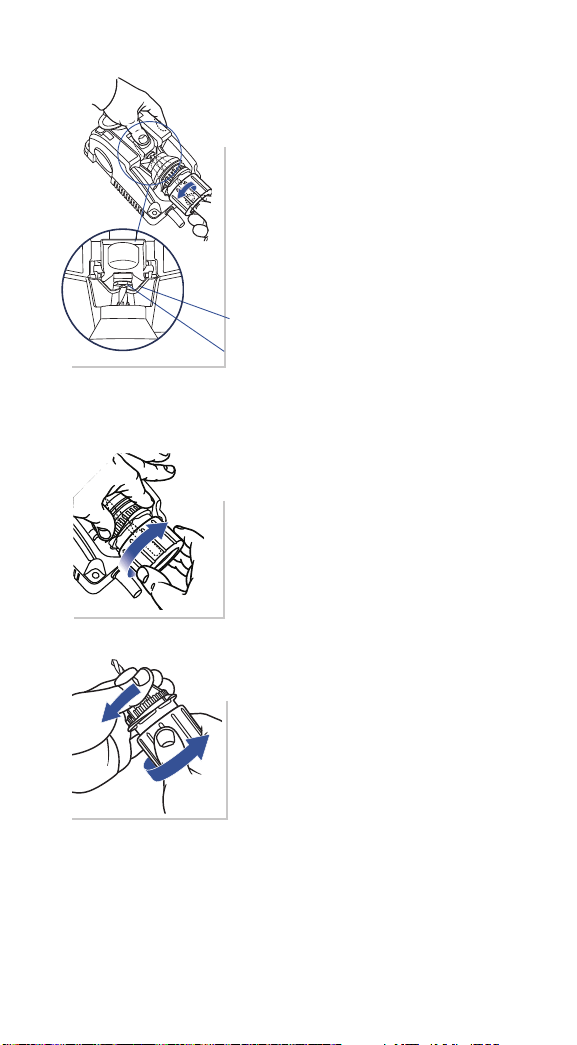

Sharpening the Bit
Before sharpening you should know:
• Keep the Chuck in constant contact with the Cam Pin as you
sharpen—push the Chuck straight into the Port.
• Only light pressure is required.
• You will hear a grinding noise (zzzzzzzzz) as you complete
each half-turn.
• The Sharpening Port will rock as you turn the Chuck and it rides
on the Cam.
Align Guides
Turn the Drill Doctor on. Align either of the
Sharpening Guides (white
lines) with the Cam Pin
on the machine.
Cam Pin
Sharpening Guide
Cam Pin
Insert Chuck and turn until sharp
Insert the Chuck in the Sharpening Port. Making sure you keep the chuck against the Cam Pin, rotate the Chuck one half-turn in a clockwise direction—from Sharpening Guide to Sharpening Guide—an even number of times. Your motion should be smooth and even. Always sharpen until there is no more grinding noise.
The number of turns needed to sharpen the bit depends on the size.
Dierent size drill bits may require a dierent number of rotations. Continue to sharpen until you no longer hear grinding noise. This will result in a Chisel Edge that is clean and straight and the entire surface from the Cutting Edge to the Heel is nely ground.
www.drilldoctor.com16
Page 17

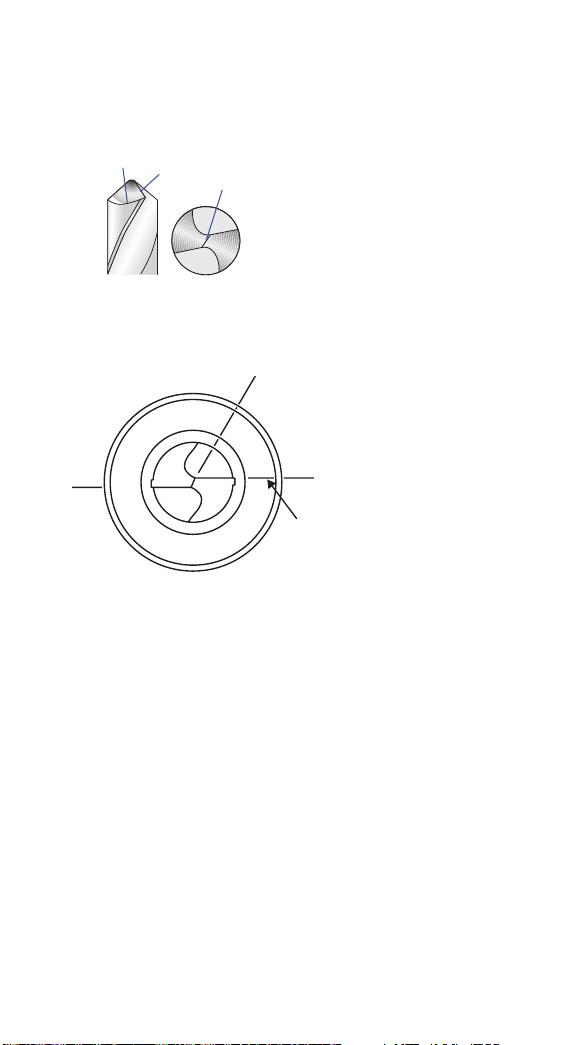

Identifying Correctly Sharpened Drill Bits
9:00
(and what to do with those that aren’t!)
Correctly Sharpened Bits
Heel
Cutting
Edge
Chisel
The entire surface from the Cutting
Point
Edge to the Heel will have a nely ground surface without ridges or indentations. The Heel will always be lower than the Cutting Edge (positive relief).
Once you have reached spark-out (no more grinding noise at all) take a look at your drill bit. The chisel angle should be at 1 o’clock or 1:30.
1:00
Look at the bit: Hold the bit up and look at it with the cutting edges in line with the horizon (or parallel with the 9:00 and 3:00 position
3:00
imagining a clock’s face).
2:00 is too far advanced,
scribe
line
and if the chisel gets too close to 12:00, the relief will be negative.
Too much relief will cause an oversized hole diameter and rapid bit wear. Too little relief will limit feed rates, slowing down the drilling operation or in extreme cases cause the drill not to perform at all.
If chisel angle looks to be about 2 o’clock, align bit 1-2 ticks on the minus direction.
If chisel angle is up to about 2:30, align 2-3 ticks minus.
If chisel is about 12:45, it’s at the low end of chisel and relief, align 1 tick to positive.
www.drilldoctor.com 17
Page 18

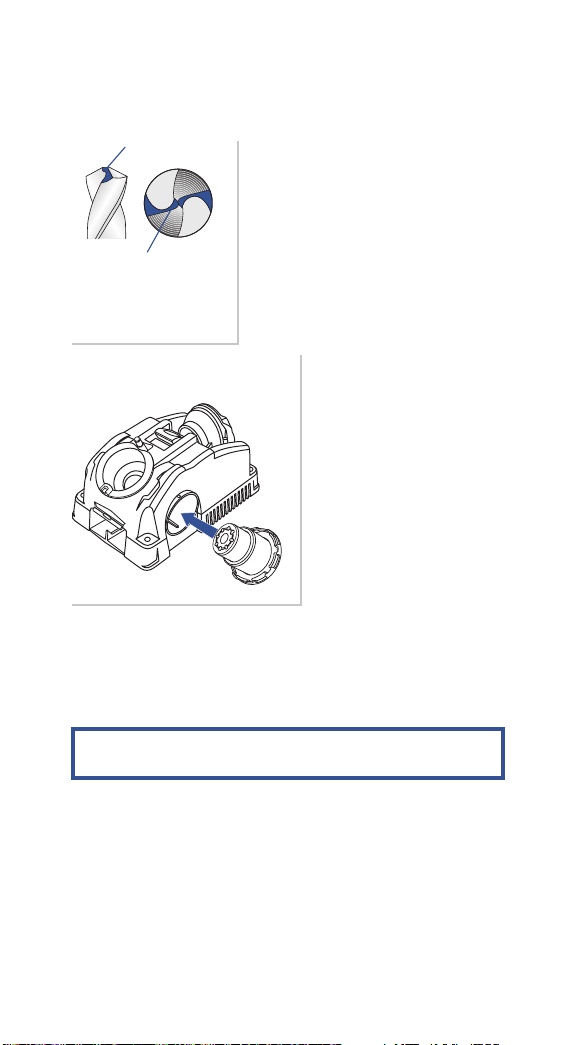

Split Points
Split point drill bits prevent walking on the material before they begin to cut. This feature is described as self-centering. The need to center punch is eectively eliminated. A standard drill bit chisel point has to wear an area in the middle of the hole to be drilled before the cutting edges will remove material. Due to its addition­al cutting lips along the chisel edge, a split point will begin cutting immediately. Up to 70% less thrust (when compared to a non-split or conventional point) is required to drill a hole with a split point.
Optional Step: Splitting the Point
1. Leave bit in chuck after sharpening
Always align and sharpen a bit before splitting it. To split the point, do not remove the bit from the Chuck after sharpening.
2. Remove the Grit Tube
3. Align Guides
Align one of the Sharpening Guides on the Chuck (white lines) with the Splitting Guide on the Splitting Port.
www.drilldoctor.com18
Page 19

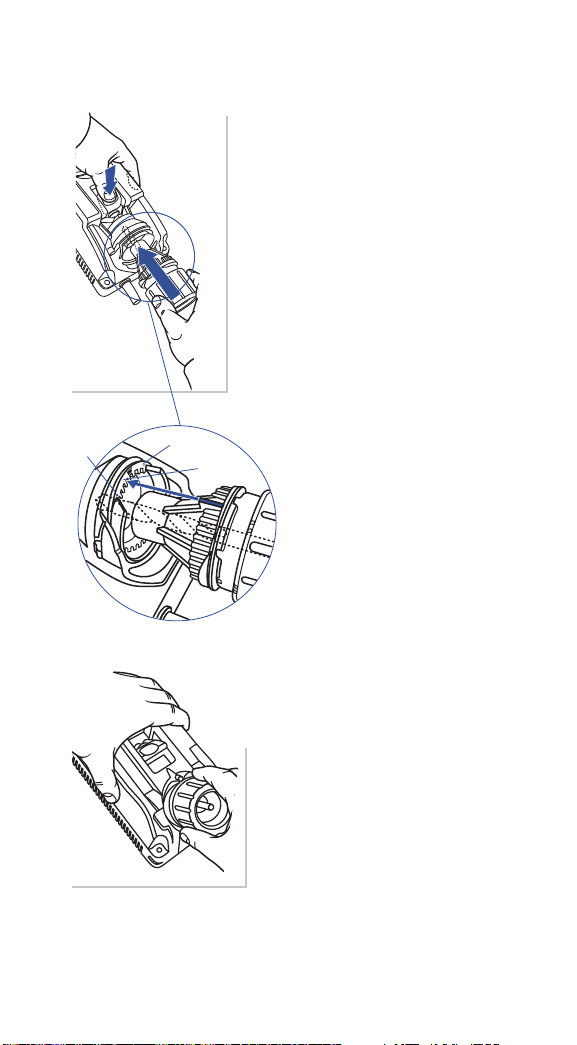

Splitting Port
Split Line
Split lines do not meet in the center but Chisel Edge remains.
Not enough material has been removed from the Heel of the drill bit.
Press Chuck slowly and rmly into the Splitting Port. Remove the chuck, rotate one-half turn, and repeat.
Check the tip of the bit carefully to determine that both sides of the bit are split equally. Compare it to this illustration. If it does not match, study the information below.

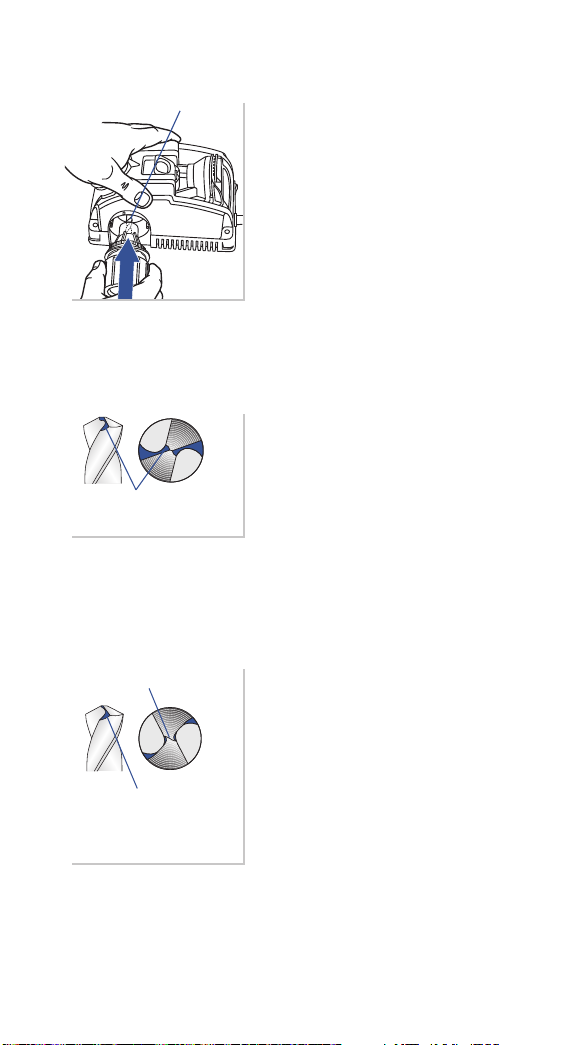

Identifying Correctly Split Drill Bits (And What to Do With Those That Aren’t!)
Correctly Split
Split lines are nearly straight across.
4. Split the point
Undersplit
www.drilldoctor.com 19
Solution
More grinding is needed for larger drill bits. If one side of the bit is under split, insert the Chuck into the Splitting Port again and split both sides. Repeat until the split sides are equal and look like the correctly split bit shown above.
Page 20
Oversplit
Too much material removed.
Split lines are joined in the center and Chisel Edge has been removed.
Solution
Reinsert the chucked bit into the Sharpening Port and remove enough of the tip until the split tip looks like the correctly split bit above.
sharpening. It will catch the grit that is formed from the sharpening process. Clean the inside of your Drill Doctor and the Grit Tube on a regular schedule. The grit tube is designed to accept a standard 1-1/4” shop vacuum for extended periods of sharpening.
Never clean with an air compressor, it may damage the machine. Use a brush or vacuum.

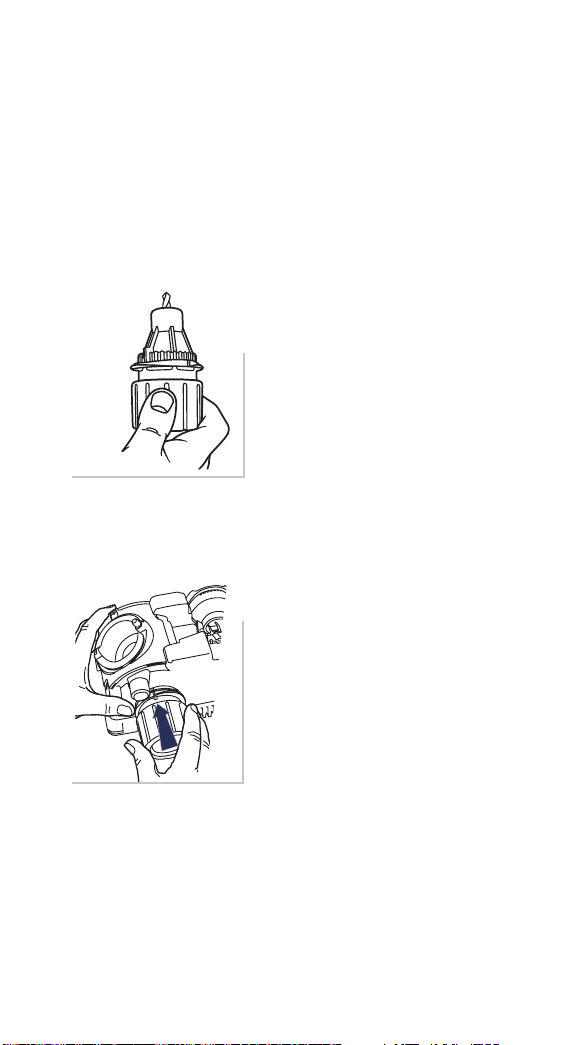

Grit Tube Attachment
The Grit Tube attachment is designed to keep any sparks caused by sharpening safely inside the machine and away from you. In addition, the Grit Tube reduces the sharpening dust in the air and on your workbench.
Simply insert the Grit Tube into the Splitting Port of your Drill Doctor when
www.drilldoctor.com20
Page 21
Sharpening Bits of Dierent Lengths, Diameters, and Types
Dierent size drill bits may require a dierent number of rotations. Continue to sharpen until you no longer hear grinding noise. This will result in a Chisel Edge that is clean and straight and the entire surface from the Cutting Edge to Heel is nely ground.
Large Drill Bits
The Model XP sharpens bits from 3/32” to 1/2”. You can also purchase the optional Large Bit Chuck that sharpens bits up to 3/4”.
Large bits are sharpened just like any other bit.
A large bit requires more half-turns to sharpen it.
It may take two or three complete sharpenings (repeat all steps) to resharpen a very dull or chipped large drill bit. Using a optional 100-grit coarse wheel can speed up the process.
Short Drill Bits & Bit Smaller than 1/8”
Sharpen the small bit as usual, but use very light pressure and an even number of turns. The bit should only briey contact the wheel.
www.drilldoctor.com 21
Page 22
Masonry Sharpening Marks
Masonry Drill Bits
To sharpen a masonry bit, you do not turn the Chuck. Instead you insert the Chuck until it touches the wheel, remove, and repeat on the other side.
1. Align the bit with the Masonry Sharpening Marks
Insert the bit into the Chuck and line up the carbide insert on the tip of the bit so that it is lined up with the Masonry Sharpening Marks on the end of the chuck. Leave about 1/2”– 5/8” of bit sticking out past the nose of the Chuck. Tighten the Chuck just to the point where the bit slides in and out.
2. Set the depth
Sharpening Guide
Cam Guide Sharpening Port
Sharpening Marks and tighten again.
Set the depth by lining up the one of the Sharpening Guides (white line) with the
Cam Pin. Making sure the
Chuck stays against the Cam Pin, push the Chuck
into the Sharpening Port
until it stops and tighten
the Chuck. Remove the
Chuck to ensure the insert
is aligned with the Masonry
www.drilldoctor.com22
Page 23
3. Sharpen by “plunging”
Line up the Sharpening Guide (white lines) on the Chuck with the Cam Pin on the machine. Plunge the Chuck into the Sharpening Port until it touches the Sharpening Wheel. Remove the Chuck, rotate one half-turn clockwise and repeat the plunge action. Start with four plunges and always use an even number. Inspect the bit and
Cam
Cam Guide Sharpening Guide
continue until the cutting surfaces are sharp.
Using the Variable Alignment to Adjust the Chisel and Relief Angles
The Model XP enables you to adjust the Chisel and Relief Angles of your drill bit. The Chisel and Relief Angles have a direct eect on the performance of your drill. By increasing the Relief Angle, you can increase the speed of the drill in softer materials. To improve the quality of the hole you can adjust the drill to be less aggressive. A less-aggressive drill has a lower Chisel and Relief Angles. Your Drill Doctor enables you to adjust both angles in one setting.
Chisel Edge
Heel
Cutting
Edge
1. Chuck bit as usual
To prepare your bit for this ne adjustment, follow all the Steps for
Leading
Edge
Relief
Angle
chucking your bit given previously in this User’s Guide.
www.drilldoctor.com 23
Page 24
2 . Insert Chuck into Alignment Port
+
118˚
–
To adjust the Chisel and Relief Angles, simply align the bit as usual with the following adjustment:
To increase relief, insert the Chuck into the Alignment Port so that the Align­ment Guides (raised ns) are notched into one of the slots towards the (+) symbol. This will make a more aggres­sive drill point.
To decrease relief, insert the Chuck into the Alignment Port so that the Alignment Guides (raised ns) are notched into one of the slots towards the (-) symbol. This will make a more precise hole. Take care not to adjust
Relief too far as this will actually
cause the drill to lose all Relief and
therefore not drill a hole.
Each notch in the Alignment Port is approximately a 10° change in Chisel Angle.
3. Tighten Chuck, and sharpen as usual
Refer to section "Sharpening the Bit" for these Steps. Experiment with a few dierent settings to nd the one that best suits your drill bits and applica­tion. You may nd it helpful to mark this setting for future use.
www.drilldoctor.com24
Page 25
Questions and Answers
1. Question:
Why was my drill bit sharpened improperly?
Answer:
The most common cause of improper sharpening is improper drill bit alignment.
Key causes are:
• Chuck not inserted into the Sharpening Port correctly. Ensure
the Alignment Guides (raised ns) are tted into the correct alignment slot.
• Drill not aligned in the Chuck Jaws correctly.
arms are holding in the narrowest part of the bit.
• The type of drill requires an angle adjustment to achieve
the desired Chisel and Relief Angles. Try using the Variable Alignment to adjust the Chisel and Relief Angle.
• Chuck is dirty or the bit slipped out of alignment.
See “Cleaning the Chuck.”
Ensure bit clamp
2. Question:
When I aligned the drill bit and sharpened it, why was no material removed?
Answer:
Your sharpening tube may not be fully seated. Make sure the small, black sharpening cup is sitting ush in the Sharpening Port.
3. Question:
I sharpened the bit. Why will it not cut?
Answer:
This happens when the Heel on the bit is higher than the Cutting Edge (negative relief). You may not have sharpened long enough, make sure to sharpen until there is no more grinding noise.
You may have a specialty bit that requires dierent alignment. See section "Using the variable Alignment to Adjust Chisel and Relief Angle".
www.drilldoctor.com 25
Page 26
4. Question:
What can I do about at spots on the bit point between the Cutting Edge and the Heel?
Answer:
The at spots on a sharpened bit are the result of an incomplete or paused half-turn of the Chuck in the Sharpening Port. To correct, apply light, inward pressure and rotate the Chuck smoothly while sharpening. Be sure to complete the half-turns.
5. Question:
Why is the drill point o center?
Answer:
If the tip of the drill bit appears to be sharpened o center, check the following items:
• Make sure there are no particles between the Chuck
Jaws and the drill bit that could hold it o center.
• Check the drill to ensure it is free of burrs.
• Your drill bit may be bent.
6. Question:
Why is the Chisel Edge on my drill bit at or rounded?
Answer:
• During the alignment process the Bit Clamp Arms were
gripping the high points of the drill bit. Realign the drill bit making sure that the Bit Clamp Arms are holding the drill bit in the narrowest section of the bit.
• You may have aligned using the Sharpening Guides (white
lines) instead of the Alignment Guides (raised ns). Make sure to insert either of the raised ns into the correct alignment slot.
www.drilldoctor.com26
Page 27
7. Question:
Why is my split point uneven?
Answer:
You may have used uneven pressure during the splitting process. To correct an uneven point split, insert the Chuck into the Split­ting Port and split both sides again. Repeat until the split sides are equal.
8. Question:
Why does the drill bit back up into the Chuck during the sharpening procedure?
Answer:
• Your Chuck may be dirty. Follow the steps for cleaning the
chuck.
• Your bit may have been loose in the Chuck. Make sure to
tighten adequately before sharpening.
9. Question:
When splitting, why don’t I hear a grinding sound?
Answer:
The Chuck is not seated properly in the Splitting Port. The Chuck’s Sharpening Guide must line up with the Splitting Guide on the top of the Split Point Port. Firmly and slowly push the Chuck into the hole until you hear grinding.
10. Question:
Can I change a 135° drill bit into a 118° drill bit?
Answer:
While you can change the degree angle of any drill bit, they will perform best when sharpened at the same angle they were manufactured.
www.drilldoctor.com 27
Page 28
Drill Doctor® Maintenance
After sharpening 20 to 25 drill bits, the drill bit grinding dust will accumulate in the grinding compartment. Grinding particles will promote wear in the Sharpening Port and Chuck, so cleaning on a consistent basis can add life to your machine. Before any maintenance or cleaning is performed, be sure to disconnect your Drill Doctor.

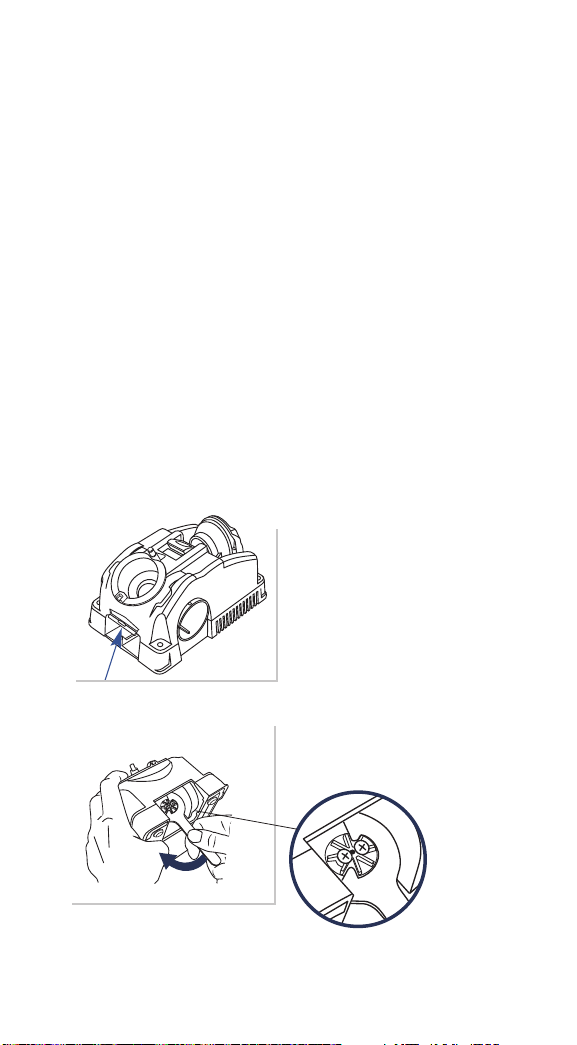

Removing the Wheel Access Cover
With the Drill Doctor unplugged, use your nail or the tip of your nger pull the Wheel Access Cover. To close, insert the Cover in the slots and snap it back into place.
Cleaning Your Drill Doctor
With the Drill Doctor unplugged, shake accumulated drill bit grinding dust from behind the Wheel Cover into a disposable con­tainer. Remove dust particles around the wheel with a small, dry brush. Dispose of the container and drill bit dust in a safe and en­vironmentally approved manner. With a dry cloth wipe the inside and outside of the Sharpening Port to remove any grinding dust that may have accumulated. A standard 1” vacuum hose works equally well.
Cleaning the Chuck
Brush out with a small, dry brush.
®
www.drilldoctor.com28
Page 29
Determining if Replacing the Diamond Grinding Wheel Is Required
You can double the life of the Diamond Sharpening Wheel by re­versing it before you replace it. The Sharpening Wheel supplied with the Drill Doctor® is designed to give you long and trouble free service, with an average of more than 200 sharpenings for 3/32” to 1/2” drill bits.
The Sharpening Wheel may need to be changed if:
• Your drill bit has a shiny, mirror nish.
• Your drill bits burn or turn blue on the tip.
Contact the store or dealer where you purchased the machine, or contact Drill Doctor® directly, to purchase a replacement Sharpening Wheel.
Reversing or Replacing Your Diamond Sharpening Wheel
1. Unplug your Drill Doctor, make sure machine is cool, then remove wheel cover.
Wheel Access Cover
2. Use wrench supplied with your Drill Doctor to hold sharpening wheel in place.
www.drilldoctor.com 29
Page 30

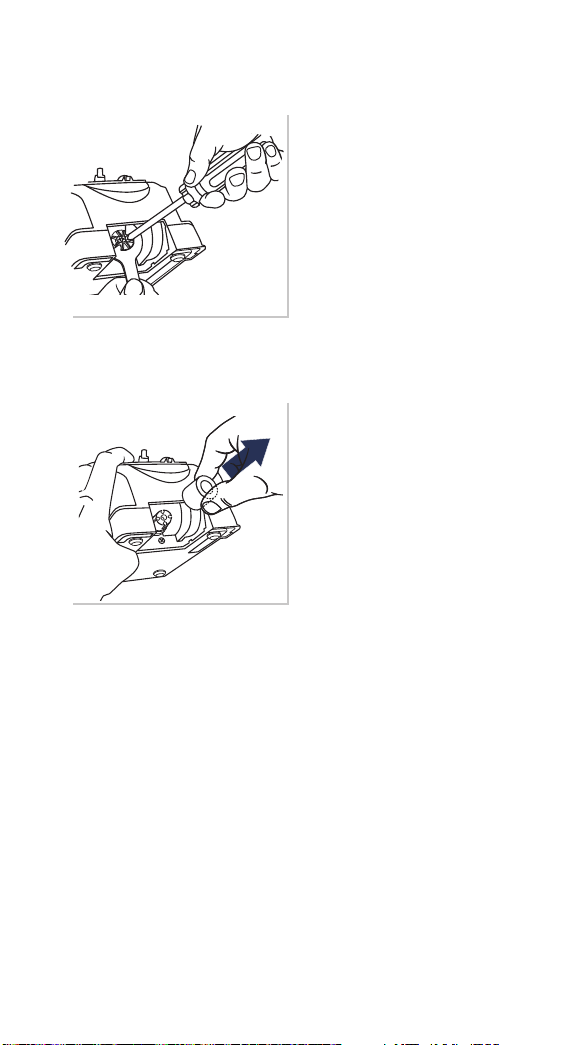

3. With Phillips-head screw­driver, remove the two screws and wheel retainer.
4. Remove worn wheel by twist­ing slightly and lifting wheel o hub. Install new wheel and reinstall wheel retainer and screws. Don’t over-tighten mounting screws. Remove the wrench and replace the Wheel Access Cover before turning on the machine.
www.drilldoctor.com30
Page 31
Accessories
Order accessories by contacting us at the phone number listed on the back cover, or at the retailer where you purchased your Drill Doctor
3/32” to 3/4” Large Bit Chuck
Part # DA70100PF
3/32” to 1/2” Left-handed Bit Chuck
(for 3/32”-1/2” reverse twist drill bits)
Part # DA02105PF
Standard Diamond Sharpening Wheel Kit (180 grit)
Coarse Diamond Sharpening Wheel Kit (100 grit)
Part # DA31320GF
Part # DA31325GF
WARNING:
The use of any accessory other than one recommended in this user’s manual may present a risk of personal injury.
www.drilldoctor.com 31
Page 32
Drill Doctor® Warranty
Darex, LLC warranties your Drill Doctor to be free of defects due to workmanship or design for 3 years from the date of purchase.
For warranty service, contact your dealer with sales receipt.
www.drilldoctor.com32
Page 33
www.drilldoctor.com 33
Page 34
THE DRILL BIT SHARPENER
DAREX, LLC
P.O. BOX 730
210 E. Hersey St.
Ashland, OR 97520
USA
Phone
1-800-597-6170
Fax
541-552-1377
Web
www.DrillDoctor.com
Drill Doctor
®
is a registered trademark of DAREX, LLC
PP41121KF Rev 0 8/18
Loading...
