Drill Master 92383 Operating Instructions Manual
RIGHT ANGLE CORDLESS DRILL
®
18 VOLT
Model 92383
OPERATING INSTRUCTIONS
3491 Mission Oaks Blvd., Camarillo, CA 93011
Visit our Web site at: http://www.harborfreight.com
TO PREVENT SERIOUS INJURY,
READ AND UNDERSTAND ALL WARNINGS
AND INSTRUCTIONS BEFORE USE.
Copyright 2004 by Harbor Freight Tools®. All r ights reserved. No portion of this
manual or any artwork contained herein may be reproduced in any shape or form
For technical questions, or replacement parts, please call 1-800-444-3353.
©
without the express written consent of Harbor Freight Tools.
PRODUCT SPECIFICATIONS
Item Description
Electrical Requirements Power Source: 18 VDC R echargeable Battery.
Battery Type: NI-MH 1300 MAH, 15 Cell, 1.2V.
Initial Charge Time: 5 Hours.
Subsequent Charge Times: 3 Hours.
Charger Input: 120 VAC / 60 Hz.
Charger Output: 24 VD C / 400 MA.
Motor: 0-900 RPM No Load / Reversible.
Chuck T ype 3/8” Keyless.
Accessories 2” Double End Bits (Qty. 2).
AC/DC Charger/Base.
Weight 4.60 Pounds.
UNPACKING

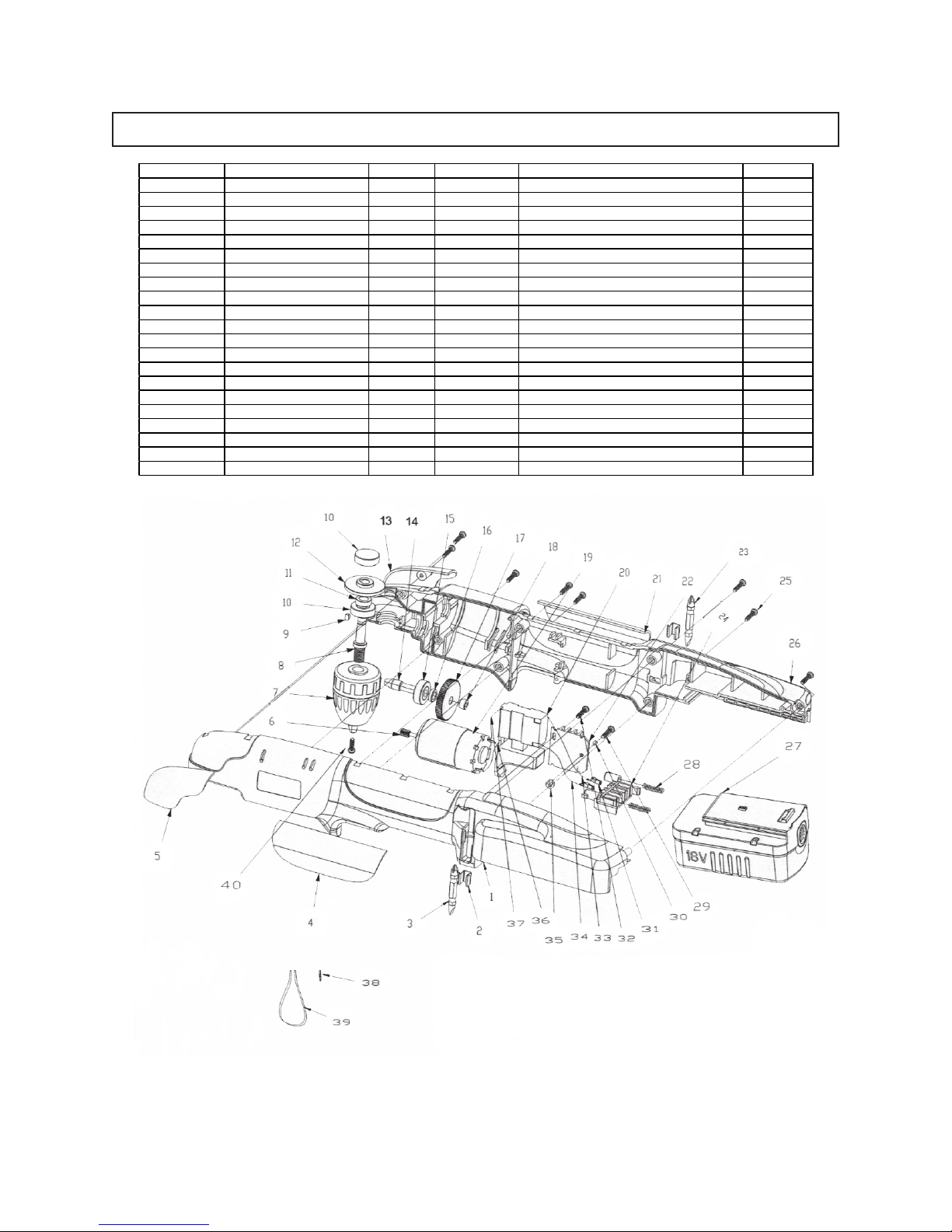

When unpacking, check to make sure all the par ts shown on the Parts List on page 11
are included. If any par ts are missing or broken, please call Harbor Freight Tools at the
number shown on the cover of this manual as soon as possible.
SAVE THIS MANUAL
You will need this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures, parts list and assembly diagram. Keep your invoice with this manual. Write the invoice number
on the inside of the front cover. Keep this manual and invoice in a safe and dry
place for future reference.
GENERAL SAFETY RULES
WARNING!
READ AND UNDERSTAND ALL INSTRUCTIONS
Failure to follow all instructions listed below may result in
electric shock, fire, and/or serious injury.
SA VE THESE INSTRUCTIONS
WORK AREA
1. Keep your work area clean and well lit. Cluttered benches and dark areas
invite accidents.
2. Do not operate power tools in explosive atmospheres, such as in the
presence of flammable liquids, gases, or dust. Power tools create sparks
which may ignite the dust or fumes.
SKU 92383 For technical questions, please call 1-800-444-3353 PAGE 2
3. Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control. Protect others in the work area from
debris such as chips and sparks. Provide barriers or shields as needed.
ELECTRICAL SAFETY
1. Avoid body contact with grounded surfaces such as pipes, radiators,
ranges, and refrigerators. There is an increased risk of electric shock if your
body is grounded.
2. Do not expose power tools to rain or wet conditions. Water entering a power
tool will increase the risk of electric shock.
PERSONAL SAFETY
1. Stay alert. Watch what you are doing, and use common sense when operating a power tool. Do not use a power tool while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while operat-
ing power tools may result in serious personal injury.
2. Dress properly. Do not wear loose clothing or jewelry. Contain long hair.
Keep your hair, clothing, and gloves away from moving parts. Loose
clothes, jewelry, or long hair can be caught in moving parts.
3. Avoid accidental starting. Be sure the Power Switch (20) is released before
plugging in. Carrying power tools with your finger on the Power Switch, or
plugging in power tools with the Power Switch depressed, invites accidents.
4. Remove adjusting keys or wrenches before turning the power tool on. A
wrench or a key that is left attached to a rotating part of the power tool may result
in personal injury.
5. Do not overreach. Keep proper footing and balance at all times. Proper
footing and balance enables better control of the power tool in unexpected
situations.
6. Use safety equipment. Always wear ANSI approved safety glasses underneath
a full face safety shield. Dust mask, non-skid safety shoes, hard hat, or hearing
protection must be used for appropriate conditions.
7. Use clamps (not included) or other practical ways to secure and support
the workpiece to a stable platform. Holding the work by hand or against your
body is unstable and may lead to loss of control.
SKU 92383 For technical questions, please call 1-800-444-3353 PAGE 3
TOOL USE AND CARE
1. Do not force the tool. Use the correct tool for your application. The correct
tool will do the job better and safer at the rate for which it is designed.
2. Do not use the power tool if the Power Switch (20) does not turn it on or off.
Any tool that cannot be controlled with the Power Switch is dangerous and must
be replaced.
3. Disconnect the power tool from its Battery Pack (27) before making any
adjustments, changing accessories, or storing the tool. Such preventive
safety measures reduce the risk of starting the tool accidentally.
4. Store idle tools out of reach of children and other untrained persons. Tools
are dangerous in the hands of untrained users.
5. Maintain tools with care. Keep drill bits sharp and clean. Properly
maintained tools with sharp drill bits are less likely to bind and are easier to
control. Do not use a damaged tool. Tag damaged tools “Do not use” until
repaired.
6. Check for misalignment or binding of moving parts, breakage of parts, and
any other condition that may affect the tool’s operation. If damaged, have
the tool serviced before using. Many accidents are caused by poorly main-
tained tools.
7. Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool may become hazardous
when used on another tool.
SERVICE
1. Tool service must be performed only by qualified repair personnel. Service
or maintenance performed by unqualified personnel could result in a risk of injury.
2. When servicing a tool, use only identical replacement parts. Follow
instructions in the
“Inspection, Maintenance, And Cleaning”
section of this
manual. Use of unauthorized parts or failure to follow maintenance instructions
may create a risk of electric shock or injury.
SPECIFIC SAFETY RULES
1. Maintain a safe working environment. Keep the work area well lit. Make sure
there is adequate surrounding workspace. Always keep the work area free of
SKU 92383 For technical questions, please call 1-800-444-3353 PAGE 4
