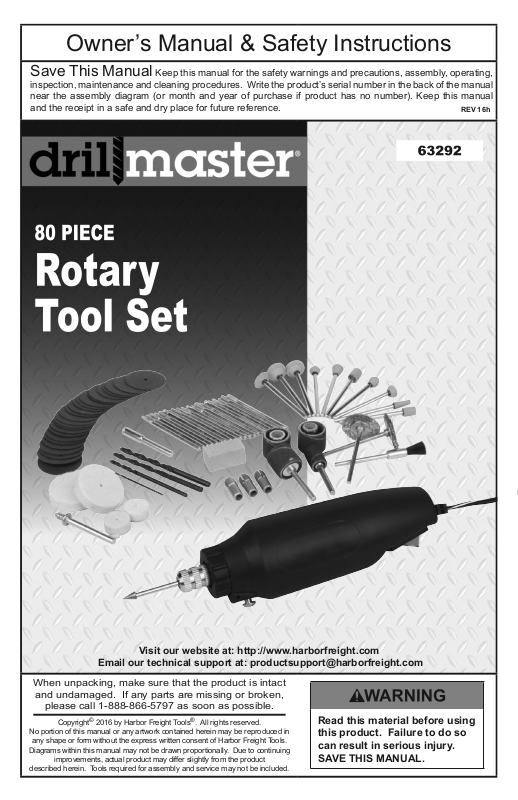

Drill master 63292 User Manual

Owner’s Manual & Safety Instructions

Save This Manual Keep this manual for the safety warnings and precautions, assembly, operating,

inspection, maintenance and cleaning procedures. Write the product’s serial number in the back of the manual
near the assembly diagram (or month and year of purchase if product has no number). Keep this manual
and the receipt in a safe and dry place for future reference.

REV 16h

Visit our website at: http://www.harborfreight.com

Email our technical support at: [e-mail]

When unpacking, make sure that the product is intact

and undamaged. If any parts are missing or broken,

please call 1-888-866-5797 as soon as possible.

Copyright© 2016 by Harbor Freight Tools®. All rights reserved.

No portion of this manual or any artwork contained herein may be reproduced in

any shape or form without the express written consent of Harbor Freight Tools.

Diagrams within this manual may not be drawn proportionally. Due to continuing

improvements, actual product may differ slightly from the product

described herein. Tools required for assembly and service may not be included.

Read this material before using
this product. Failure to do so
can result in serious injury.
SAVE THIS MANUAL.

SAFETY OPERATION MAINTENANCESETUP

Safety ..............................................3

Specifications ..................................9

Setup ...............................................9

Operation ....................................... 11

Table of Contents

Maintenance ..................................13

Parts List and Diagram ..................14

Warranty ........................................16

WARNING SYMBOLS AND DEFINITIONS

This is the safety alert symbol. It is used to

alert you to potential personal injury hazards.

Obey all safety messages that follow this

symbol to avoid possible injury or death.

Indicates a hazardous situation which, if not
avoided, will result in death or serious injury.

Indicates a hazardous situation

which, if not avoided, could result

in death or serious injury.

Indicates a hazardous situation

which, if not avoided, could result

in minor or moderate injury.

Addresses practices not related

to personal injury.

Page 2 For technical questions, please call 1-888-866-5797. Item 63292

IMPORTANT SAFETY INFORMATION

General Power Tool Safety Warnings

Read all safety warnings and instructions.

Failure to follow the warnings and instructions may result in
electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

The term ″power tool″ in the warnings refers to your
mains-operated (corded) power tool.

Work area safety

1. Keep work area clean and
well lit.

Cluttered or dark areas
invite accidents.

2. Do not operate power tools in
explosive atmospheres, such
as in the presence of flammable
liquids, gases or dust.

Power tools create sparks which

may ignite the dust or fumes.

Electrical safety

1. Power tool plugs must match
the outlet. Never modify
the plug in any way.
Do not use any adapter
plugs with grounded power
tools. Unmodified plugs and

matching outlets will reduce
risk of electric shock.

2. Do not expose power tools
to rain or wet conditions.

Water entering a power tool will

increase the risk of electric shock.

3. Keep children and bystanders
away while operating a
power tool.

Distractions can cause
you to lose control.

3. Do not abuse the cord. Never
use the cord for carrying,
pulling or unplugging the
power tool. Keep cord away
from heat, oil, sharp edges
or moving parts. Damaged

or entangled cords increase
the risk of electric shock.

4. If operating a power tool in a
damp location is unavoidable,
use a Ground Fault Circuit
Interrupter (GFCI) protected
supply. Use of a GFCI reduces

the risk of electric shock.

SAFETYOPERATIONMAINTENANCE SETUP

Page 3For technical questions, please call 1-888-866-5797.Item 63292

Personal safety

SAFETY OPERATION MAINTENANCESETUP

1. Stay alert, watch what you
are doing and use common
sense when operating a
power tool. Do not use a
power tool while you are tired
or under the influence of
drugs, alcohol or medication.

A moment of inattention while

operating power tools may result
in serious personal injury.

2. Use personal protective
equipment. Always wear eye
protection. Safety equipment

such as dust mask, non-skid
safety shoes, hard hat, or

hearing protection used for
appropriate conditions will
reduce personal injuries.

3. Prevent unintentional starting.
Ensure the switch is in the
off-position before connecting
to power source, picking up or
carrying the tool.

Carrying power tools with your

finger on the switch or energizing

power tools that have the

switch on invites accidents.

4. Remove any adjusting
key or wrench before
turning the power tool on.

A wrench or a key left attached to

a rotating part of the power tool
may result in personal injury.

5. Do not overreach. Keep
proper footing and balance
at all times. This enables

better control of the power tool
in unexpected situations.

6. Dress properly. Do not wear
loose clothing or jewelry.
Keep your hair, clothing and
gloves away from moving parts.

Loose clothes, jewelry or long hair

can be caught in moving parts.

7. If devices are provided
for the connection of dust
extraction and collection
facilities, ensure these are
connected and properly used.

Use of these devices can
reduce dust-related hazards.

8. Only use safety equipment
that has been approved by an
appropriate standards agency.

Unapproved safety
equipment may not provide
adequate protection.
Eye protection must be
ANSI-approved and
breathing protection must be
NIOSH-approved for the specific

hazards in the work area.

Page 4 For technical questions, please call 1-888-866-5797. Item 63292

Power tool use and care

1. Do not force the power
tool. Use the correct power
tool for your application.

The correct power tool will do

the job better and safer at the
rate for which it was designed.

2. Do not use the power
tool if the switch does
not turn it on and off.

Any power tool that cannot be

controlled with the switch is

dangerous and must be repaired.

3. Disconnect the plug from
the power source before
making any adjustments,
changing accessories,
or storing power tools.

Such preventive safety measures

reduce the risk of starting the

power tool accidentally.

4. Store idle power tools out
of the reach of children
and do not allow persons
unfamiliar with the power
tool or these instructions
to operate the power tool.

Power tools are dangerous in
the hands of untrained users.

5. Maintain power tools. Check
for misalignment or binding
of moving parts, breakage of
parts and any other condition
that may affect the power tool’s
operation. If damaged, have
the power tool repaired before
use. Many accidents are caused

by poorly maintained power tools.

6. Keep cutting tools sharp and
clean. Properly maintained

cutting tools with sharp cutting

edges are less likely to bind
and are easier to control.

7. Use the power tool, accessories
and tool bits etc. in accordance
with these instructions, taking
into account the working
conditions and the work to be
performed. Use of the power

tool for operations different from

those intended could result
in a hazardous situation.

Service

Have your power tool serviced by a qualified repair
person using only identical replacement parts. This will

ensure that the safety of the power tool is maintained.

SAFETYOPERATIONMAINTENANCE SETUP
