COMPACTA 76
User Manual
14 pgs338.2 Kb0

Drija COMPACTA 76 User Manual

Download
User Manual
COMPACTA 76
Voltage 110V-120V
User Manual
2
1. RECOMMENDATIONS AND SUGGESTIONS .......................................................... 3
2. CHARACTERISTICS ................................................................................................. 5
3. INSTALLATION AND USE ........................................................................................ 6
4. INSTALLATION FOR FIXING ON THE WALL ........................................................... 7
5. MOUNTING INSTALLATION IN THE CABINET ........................................................ 8
6. INSTALLATION IN RECIRCULATION VERSION FIXED TO THE WALL ................. 9
7. INSTALLATION OF ASSEMBLY WITH RECIRCULATION IN THE CABINET ........ 10
8. MAINTENANCE ....................................................................................................... 13
User Manual
3
1. RECOMMENDATIONS AND SUGGESTIONS
INSTALLATION
• The manufacturer is not liable for damage caused by improper or improper installation.
• Please read this instruction manual before installing and using the extractor. It is
important to keep this manual in a safe place for future reference.
• This extractor can be used in conduit mode (external smoke ducts) or recirculation mode
(internal recycling). The choice of modes can be left to the customers' decision.
• Only a qualified technician can perform the installation work.
• Check that the mains voltage corresponds to the voltage indicated on the inner plate of
the extractor
• Do not connect the extractor to the flue pipes (boilers, chimneys, etc.)
• If the extractor is used in conjunction with non-electric appliances (eg gas appliances), a
sufficient ventilation system must be provided in place to avoid backflow of exhaust gases. The kitchen should have a direct opening in the open air in order to ensure the entry of clean air.
• The minimum installation distance to the kitchen worktop should be 650 mm. If the installation manual of the gas cooker specifies a greater distance than the suggested one, it must be taken into account.
• The extractor must be installed on a plate with four anchor points.
NOTICE: Taking into account the weight of the extractor, it is recommended that two or more persons are required to install or move. Otherwise, it may cause physical injury.
USE:
• The extractor has been designed for domestic use only, to remove fumes from the kitchen.
• Never use the extractor for purposes other than those intended.
• When the extractor is operating, it must not be exposed to high flames below.
• Adjust the flame intensity by which it should be directed to the bottom of the pots, making
sure that the flame does not come out over the edge of the pot.
• When frying, the flame intensity must be continuously monitored: very hot oil may burst
into flames.
User Manual
4
• The extractor should not be used by children or persons who do not know its correct use.
MAINTENANCE
• Proper maintenance of the extractor assures its correct operation.
• Disconnect the appliance from the mains before carrying out any maintenance work.
• Clean and / or replace activated carbon filters after a specified period of time.
• Clean the extractor with a damp cloth and then dry thoroughly.
• ELIMINATION: Do not dispose of this product in household waste. Special garbage
collection is required for your treatment.
WARNING:
Under certain circumstances, appliances may be a hazard.
• Do not check the condition of the filters while the extractor is running.
• Do not touch the light bulbs after being turned on (it is hot).
• Do not unplug the appliance with wet hands.
• Avoid intense flames as it is harmful to the filters and a fire hazard.
• Constantly checking the frying food so that the oil does not overheat can become a fire
hazard.
• Disconnect the electrical plug before any maintenance.
• Do not use this product outdoors.
• This appliance is not intended for use by persons (including children) with physical,
sensory or mental disabilities or lack of experience and knowledge unless they have been supervised or instructed in the use of the appliance by a person responsible for their safety. Children should be supervised to ensure that they do not play with the appliance.
• There must be adequate ventilation at the extractor's operating site when used with other
gas appliances or other fuels.
• There is a risk of fire if cleaning is not carried out in accordance with the instructions in the manual.
• Do not flare under the extractor.
• The exhaust air outlet must not be connected to the same flue outlet of appliances using
gaseous fuels or other fuels.
5

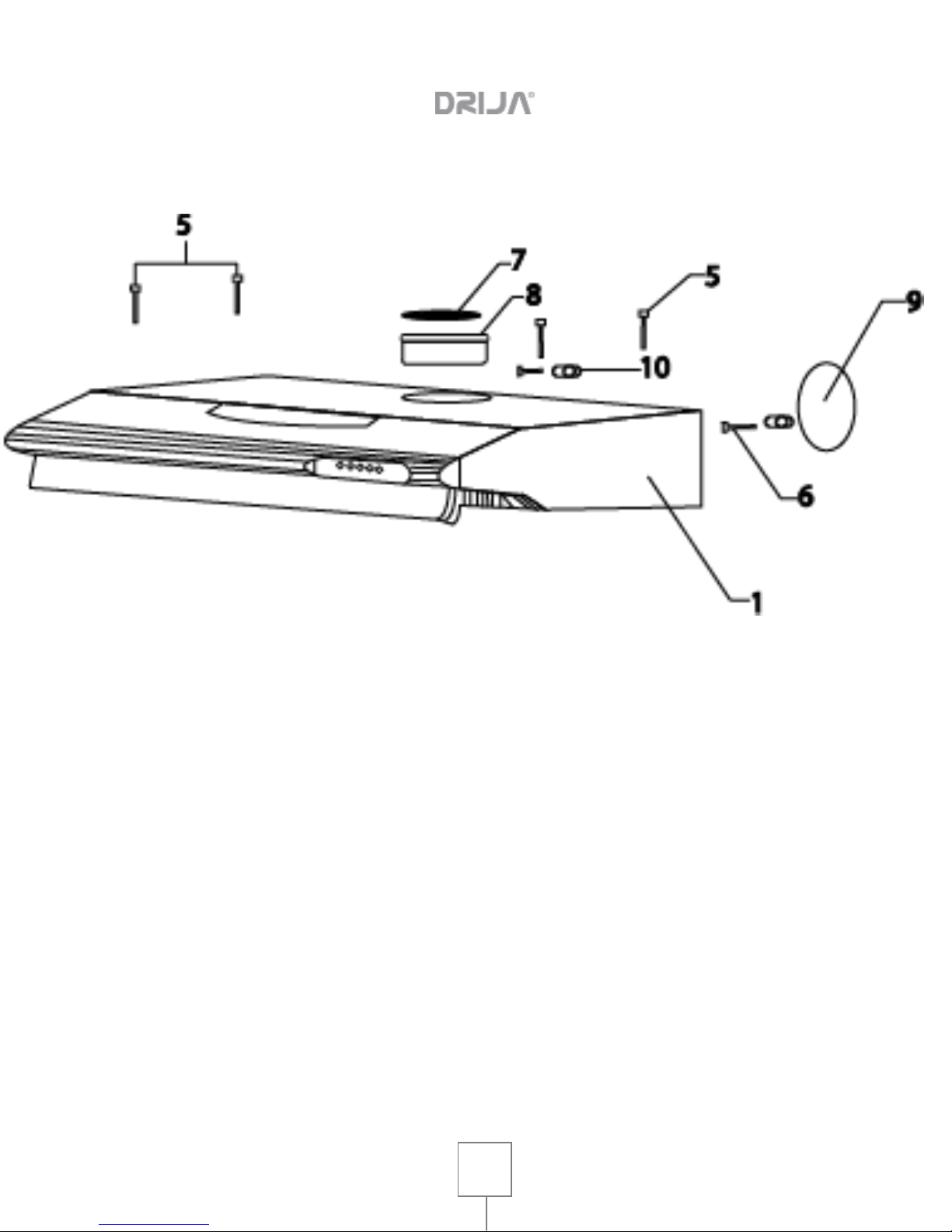

REFERENCE
QUANTITIES
PRODUCT COMPONENTS
1
1 PIECE
EXTRACTOR BODY PROVIDED WITH: CONTROLS, LIGHTS, BLOWERS, AND FILTERS.
5
4 PIECES
MOUNTING SCREWS (SUPERIOR ST 3.5x16)
6
2 PIECES
MOUNTING SCREWS (LOWER ST 5x40)
7
1 BASTIDOR
SHOCK ABSORBERS
8
1 PIECE
AIR OUTLET ADAPTER
9
1 PIECE
AIR OUTLET CAP
10
4 PIECES
RAMPLUS

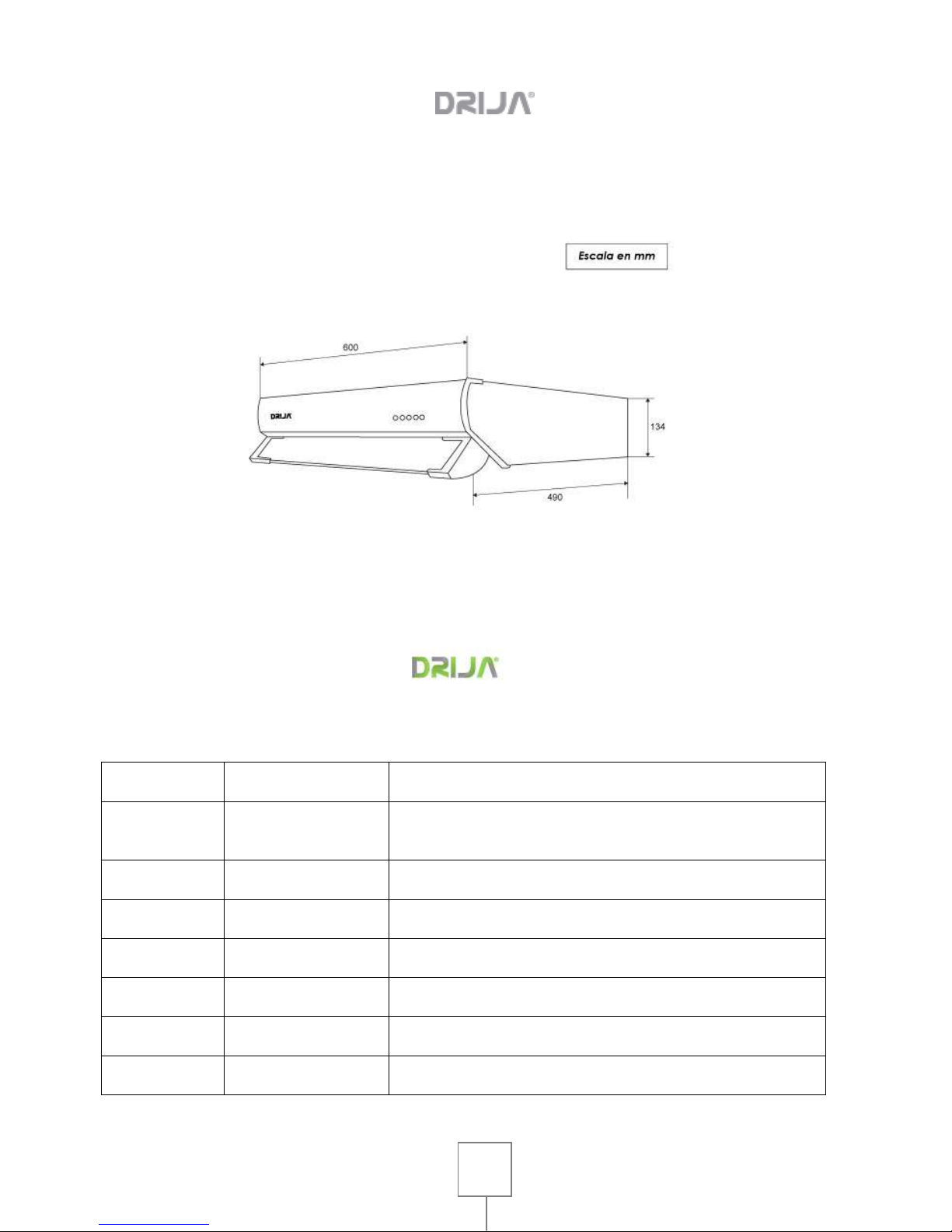

2. CHARACTERISTICS
User Manual
COMPONENTS
User Manual
6
3. INSTALLATION AND USE
Note 1: Carefully remove the protective plastic film from all exterior surfaces of the extractor and chimney prior to final installation.
Note 2: At least two people are required to assemble and pull. Note 3: IMPORTANT: Observe the distance between the tables of the cooker burners and
the bottom of the extractor (it should not be less than 650mm).
FIXING ADAPTER
1. Decide which air outlet to use. When using the outlet (8) of the extractor, use the cap to block the outlet by (9). (See fig. 1)
2. Install the air outlet (8) into the outlet opening and turn it clockwise until it engages (see fig 1).
User Manual
7
4. INSTALLATION FOR FIXING ON THE WALL

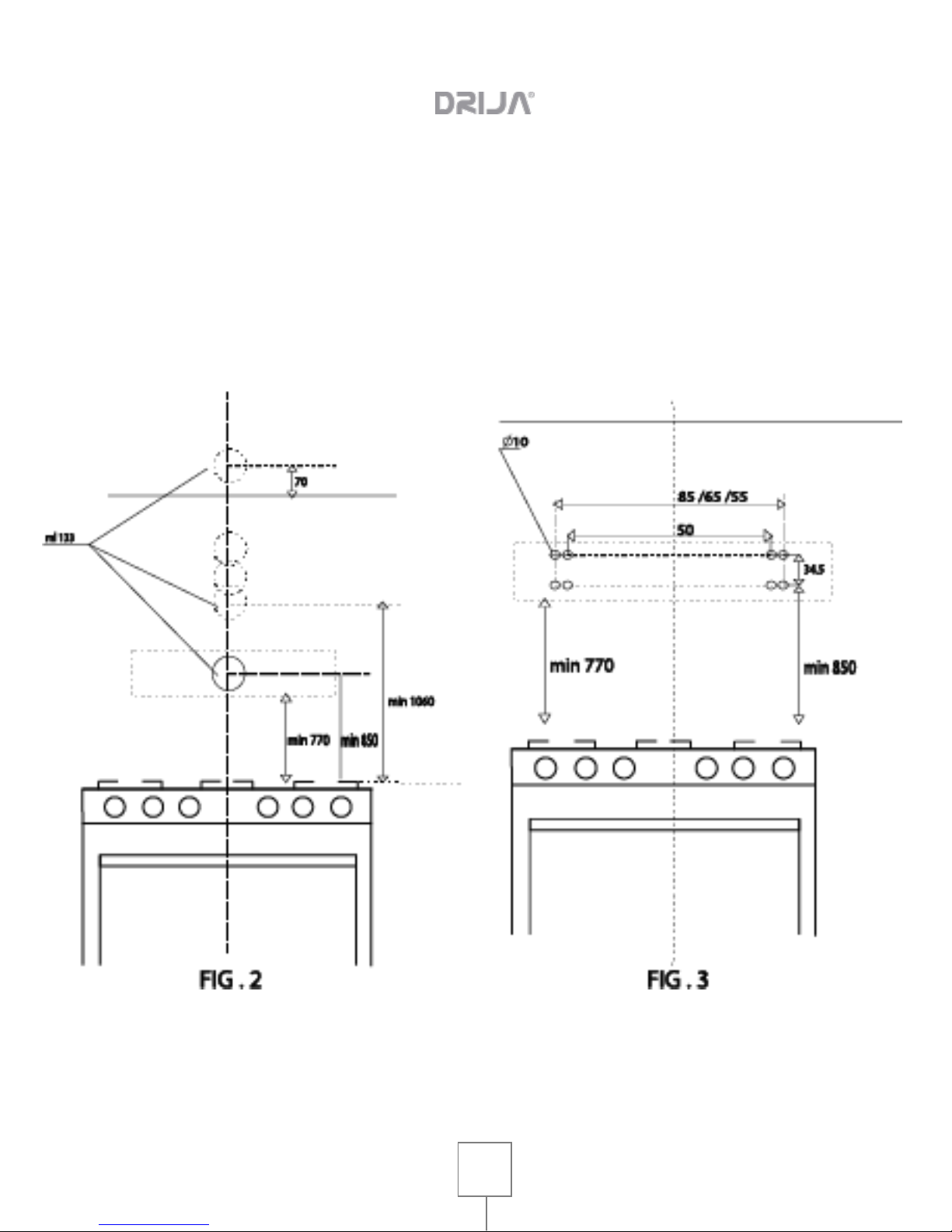

1. As shown (Figure 2). Drill a hole of 133 mm diameter in the wall, in any case, check the position of the socket and observe if the cable of the appliance arrives.
2. Mark two points for the holes in the wall, respecting the distances indicated in (Figure 3). Make two 10 mm diameter holes in the wall and place two ram plus (10).
3. Take the screws (6) and insert into the ram plus (10) then tighten the screws completely.
User Manual
8

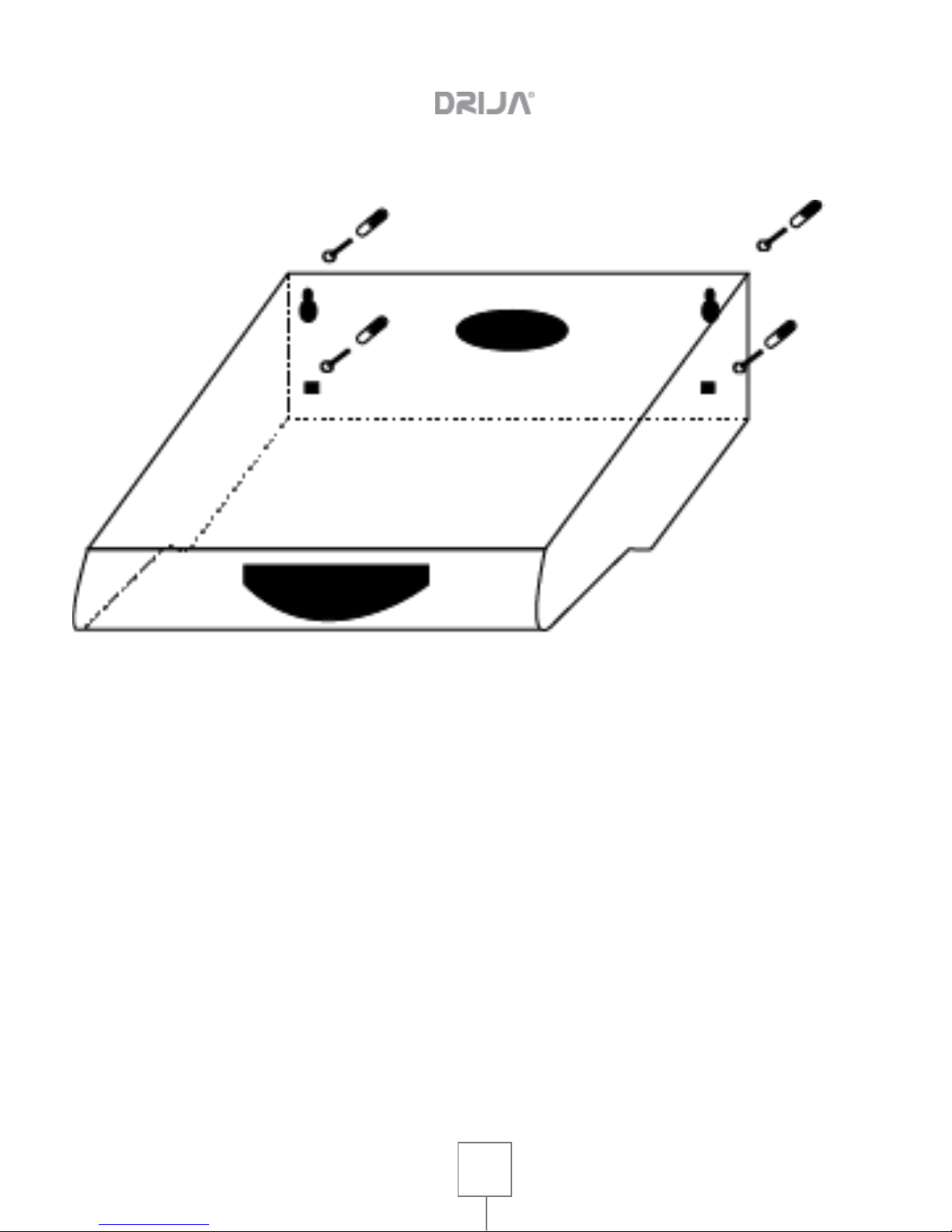

5. MOUNTING INSTALLATION IN THE CABINET

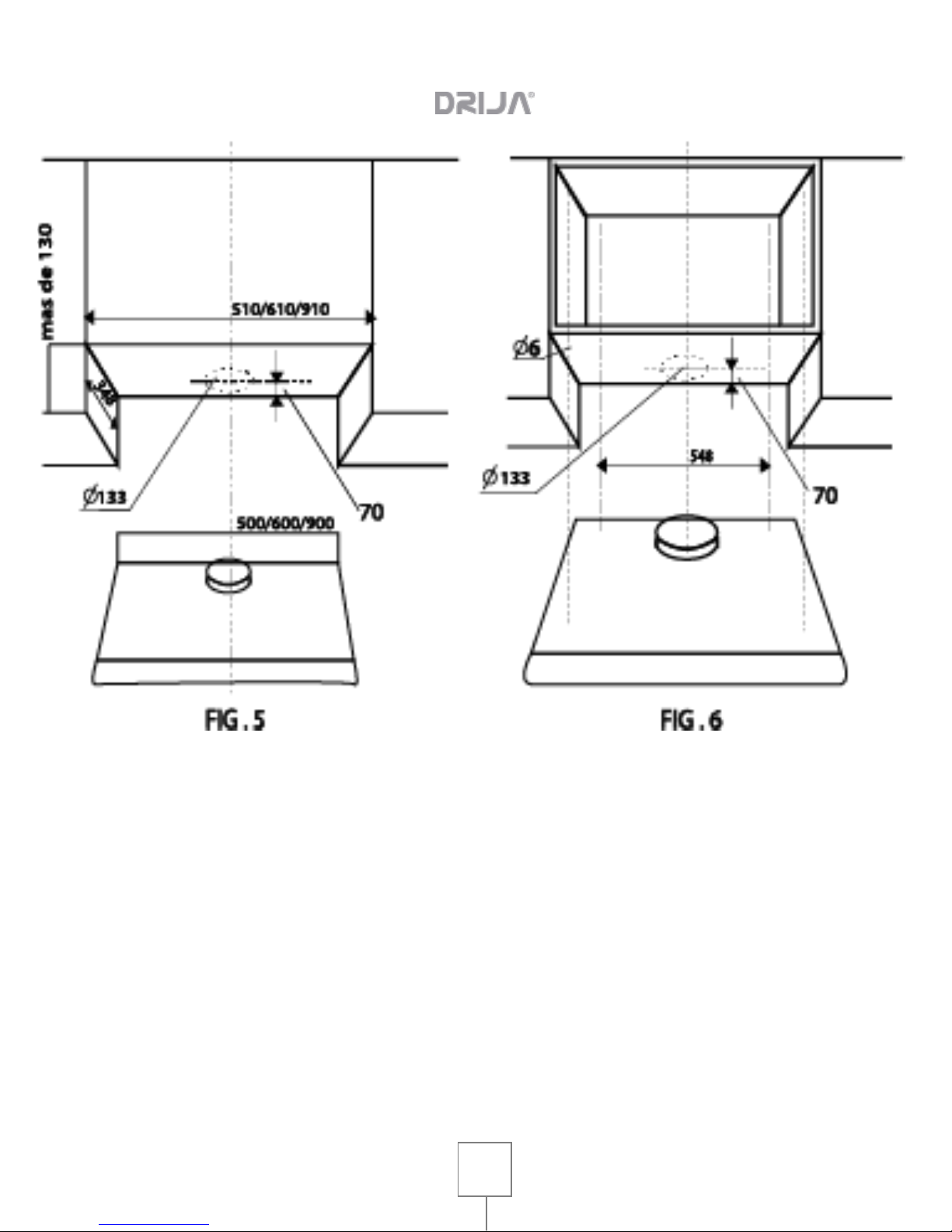

1. As shown (fig.5), drill a hole 133 mm in diameter into the cabinet to check the position of the power outlet and consider whether the power cord of the appliance reaches the wall outlet.
2. Mark 4 points for the holes in the cabinet, respecting the indicated distances (fig.6), drill 4 holes of 6 mm diameter in the cabinet.
3. Push the extractor into the cabinet and insert the 4 screws (5) that operate from the cabinet. Tighten the screws completely.
User Manual
9
6. INSTALLATION IN RECIRCULATION VERSION FIXED TO THE WALL
IMPORTANT: The carbon filter must be installed in the extractor in the filter version. The
two outlet points of the extractor must be blocked with the air outlet covers (9).
1. As shown (fig. 2) drill a hole of 133 mm in diameter on the wall in any case, check the position of the socket and consider if the power cord of the appliance reaches the socket.
2. Mark two points for the holes in the wall, respecting the indicated distances (fig.3). Make two 10 mm diameter holes in the wall and insert two ramplus (10).
3. Take the screws (6) and insert into the ramplus (10) then tighten the screws completely.
User Manual
10
7. INSTALLATION OF ASSEMBLY WITH RECIRCULATION IN THE CABINET
IMPORTANT: The charcoal filter must be installed in the filter version extractors. The two
outlet points of the extractor must be blocked with the air outlet covers (9).
1. As shown (fig.5), drill a 133 mm diameter hole in the cabinet, check the position of the power outlet, and consider whether the power cord of the appliance reaches the wall outlet.
2. Mark 4 points for the holes in the cabinet, respecting the indicated distances (fig.6). Drill 4 6 mm diameter holes in the cabinet.
3. Push the extractor into the cabinet and insert the 4 screws (5) that operate from the inside of the cabinet. Tighten the screws completely.

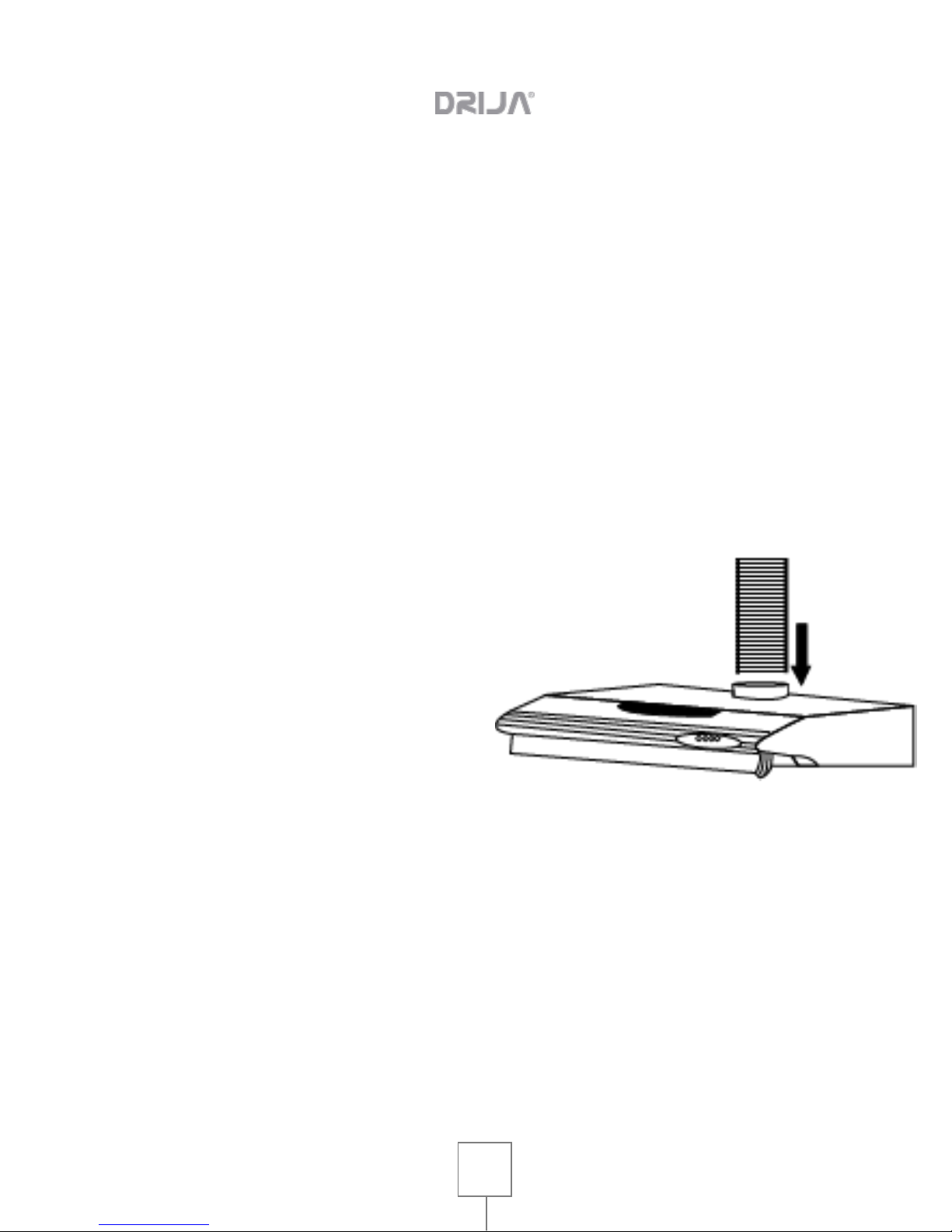

FASTENING CONDUCT
Caution to reduce the risk of fire, we use only metal material.
1. Glue a round tube 120 mm long in the recessed area of the air outlet adapter.
2. Secure the conduit with the two screws that are already attached to both sides of the air outlet adapter. Make sure the conduit is securely fastened.

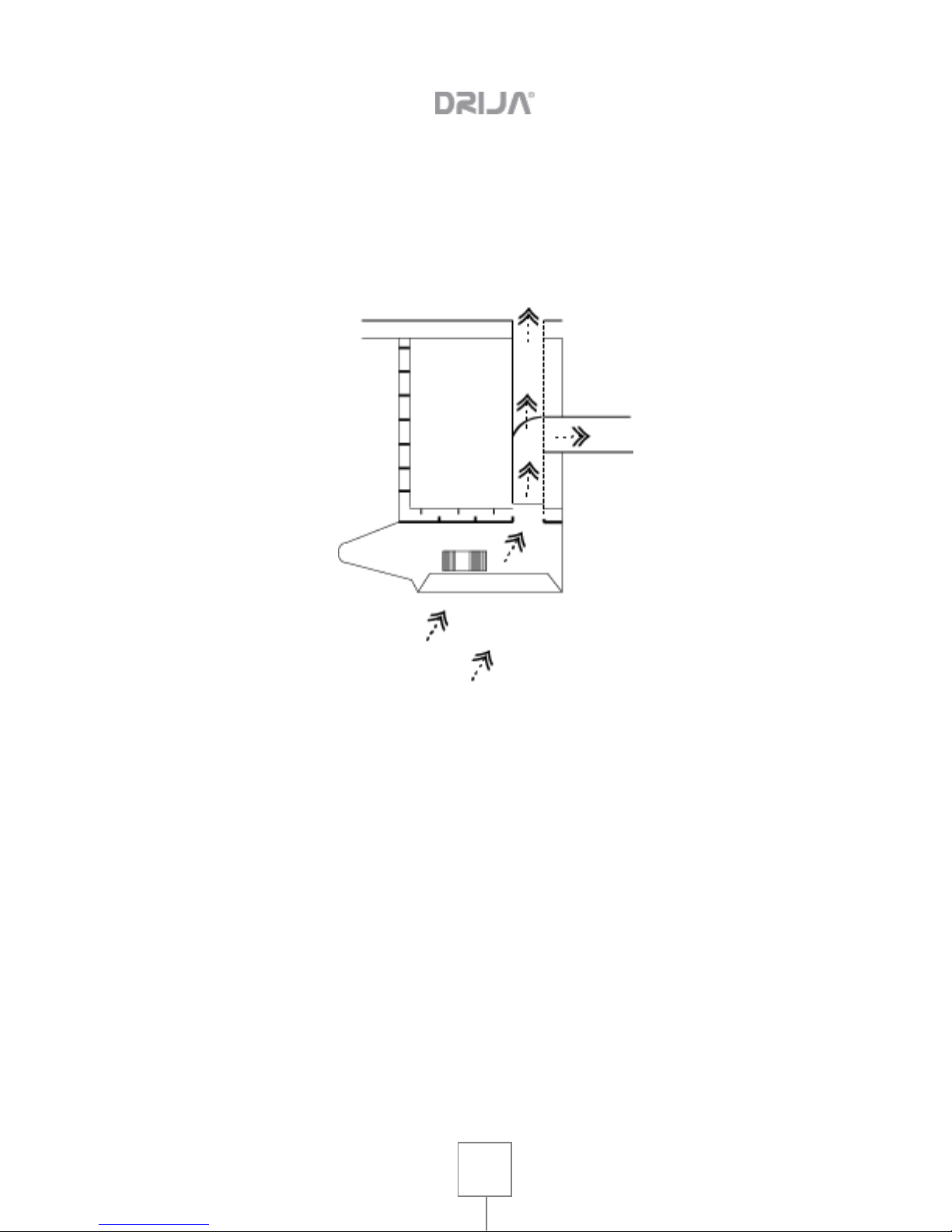

CONNECTIONS
Exhaust system through air CAUTION: To reduce the risk of fire. Use metal conduits.
1. Decide where the line of ducts between the extractor and the outside goes.
2. Use a straight pipe section and allow the extractor to work as efficiently as possible.
3. Long tube runs, elbows, prevent proper operation of the extractor. Use as few of them as possible. For larger ducts longer tubes can be used for best performance.
4. Attach a suitable length of 120 mm round tube to the air outlet adapter.
User Manual
11
5. Air should not be discharged into a pipe that is used to expel fumes from gas appliances or other fuels. The regulations regarding the discharge of air must be met.
6. Install a wall cover / cover. Move the metal tube back to the position of the extractor. Use tape to seal joints between tubing parts.
RECIRCULATION MODE
Be careful not to use rigid metal or plastic.
1. Install the charcoal filter.
2. Note that air flows out of the grid from the front of the body.
ELECTRIC CONNECTION
• The electrical installation must be carried out by a qualified person in accordance with all codes and standards.
• If the power cord is damaged, it must be replaced by the manufacturer or its service agent or qualified personnel in order to avoid dangerous situations.
• Do not use the plug and / or extension cord other than those initially connected to the extractor.
User Manual
12

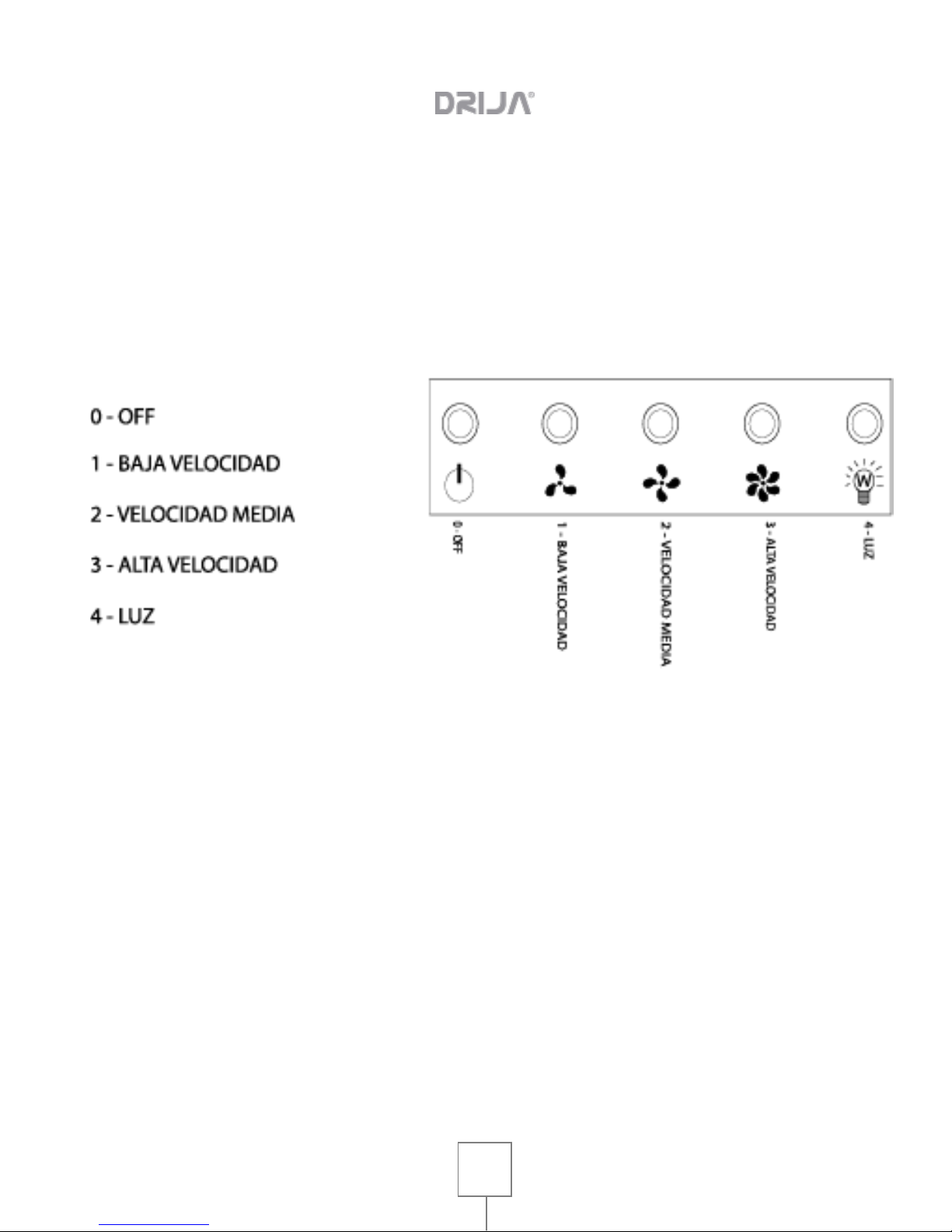

OPERATION OF THE CONTROLS
The extractor is controlled by the buttons on the front panel. The light switch to turn them on and off. The fan switch turns on the three-speed fan. De extension distends a los inicialmente connect to extractor.
13
8. MAINTENANCE
FAT FILTER
There are two types of grills chosen by the customer, one is the aluminum grid and the other is the metal grid. Grease filters should be cleaned frequently (every two months of operation, or more frequently when the use is extreme). Use a detergent solution to clean them.
FILTERS ARE WASHABLE

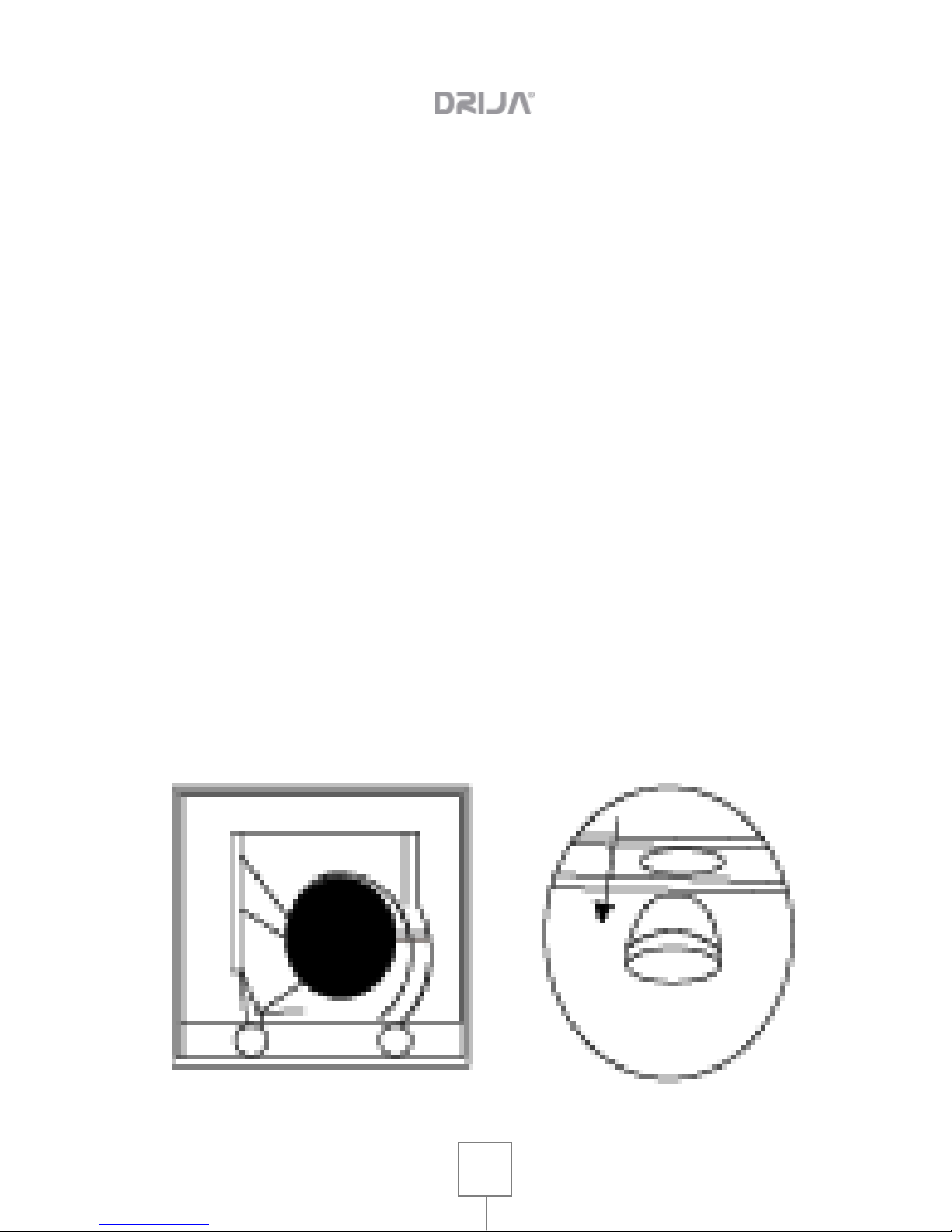

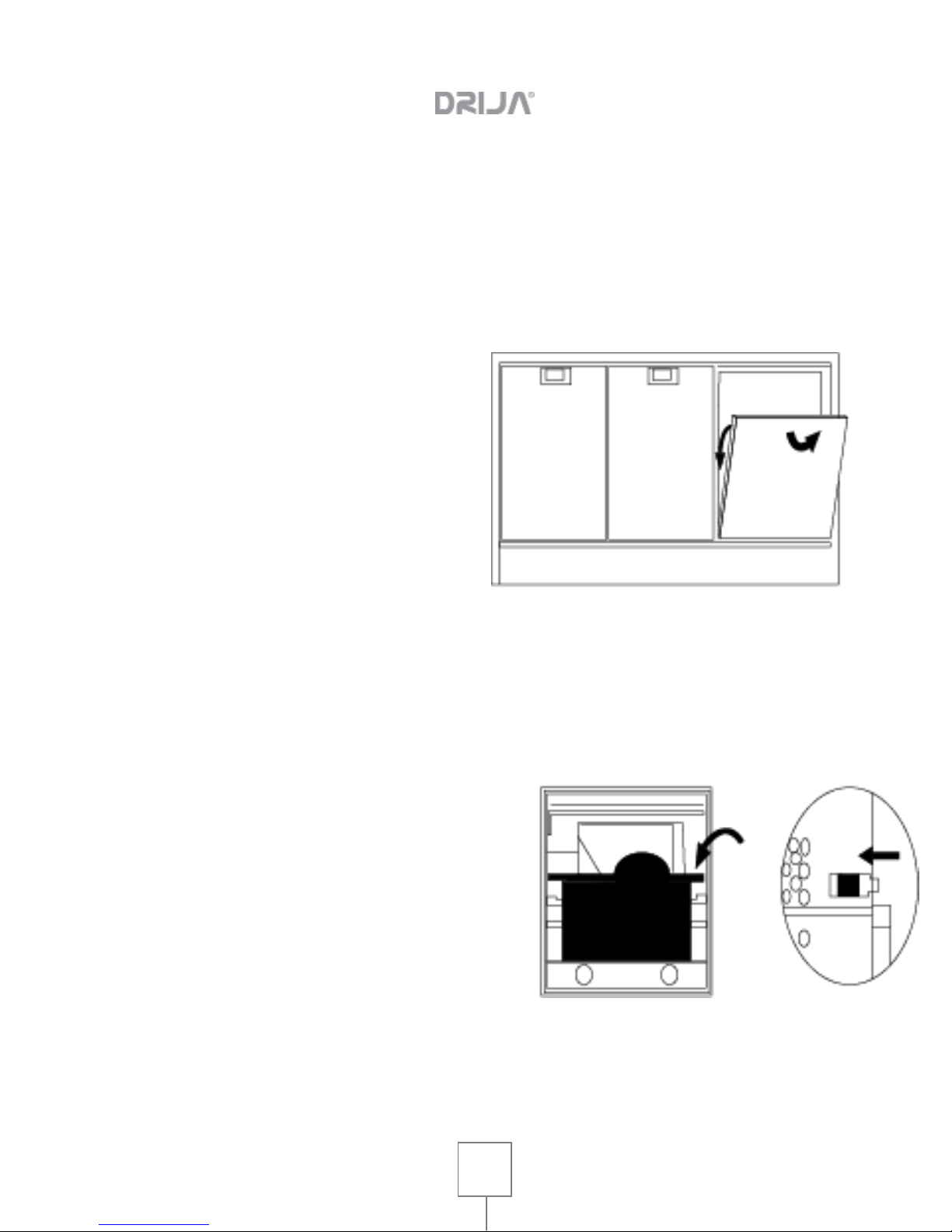

1. Remove the grease filter, one by one removed from each closure. This can be removed from the extractor by tilting the filter down.
2. Wash the filters, taking care not to bend them. The filters should be dry before putting them back on.
User Manual
3. When installing the filters, make sure the handle is visible from the outside.
4. To install the grease filter, align the rear filter tabs with the exhaust slots. Remove the seal, push the filter into position and release it. Make sure that the filter is firmly attached after assembly.
RECIRCULATION OF AIR WITHOUT CONDUCT USING CARBON FILTER
This filter is not washable, cannot be recovered, and should be replaced approximately every 3 months of operation or in less time in case of heavy use.
1. To install the carbon filter, close and stop until you hear "click".
2. Install grease filter after charcoal filter is installed.
User Manual
14
NORMAL BULBS
This type of extractor may require two bulbs or normal bulbs (2W) WARNING: Always turn off the power before performing any installation on the unit. To change the lamps
1. Remove the metal or aluminum grille.
2. Turn the bulb switch on (off) by hand.
3. Replace the normal 110V bulb. 2W maximum. Do not touch the spare bulb with bare hands.
EXTRACTOR CLEANING
Stainless steel is one of the easiest materials to clean, but special care must be taken to preserve it in good condition.
Cleaning Tips:
• A damp cloth is needed with soap or detergent.
• Dry with a soft, clean cloth to avoid water stains.
• Do not allow dirt to remain for long periods of time.
• Do not use steel sponges or steel brushes.
• Do not use salt solutions, disinfectants, or other cleaning items that remain in
contact with stainless steel for extended periods of time. Many of these compounds contain chemicals that can be harmful.
