Page 1
user manual
version 1.0.0.
Page 2
Contents
Precauons
Overview
Using the Camera
Inial Setup
Powering On and O
Charging
Baery Life
External Power Supply
Micro SD Cards
Camera Menu System
Video Mode
Recording Video
Video Tag/Loop
Simultaneous Photos and Videos
Car DVR
Photo Mode
Capturing Photos
Photo Sengs
Timelapse Mode
Capturing Timelapse Sequences
Timelapse Sengs
Photoburst Mode
Capturing Photoburst Sequences
Photoburst Sengs
/ 3
/ 4
/ 5
/ 6
/ 7
/ 10
/ 11
/ 12
Shot Setup
Fixing the Camera to the Universal Clip
Aaching the Camera to Mounts
Rear Hatch
Lens Rotaon
Connecvity
Connecng to Windows PC
Connecng to Mac
Connecng to WiFi device
Connecng to a TV
Conserving Baery
LCD Sengs
Camera Auto O
Updang Firmware
Camera Care
Cleaning the Camera
Cleaning the Lens and LCD Screen
Cleaning the Seals
Technical Specicaons
Warranty
Disclosures
/ 16
/ 17
/ 18
/ 19
/ 20
/ 21
/ 22
/ 23
Camera Sengs
WiFi and Network Name
Date and Time
Camera Sengs and Reset
Firmware
Two-Way Remote Control
Charging
Powering On and O
Pairing Camera to a Remote Control
Pairing Mulple Cameras to a Remote Control
Using the Remote Control
/ 13
/ 14
2
Page 3
Precautions
General precautions
Please take note of the following guidelines when using your Stealth 2 camera:
• The camera is 1.2m shock resistant, but not shock proof—please take care of
your camera and accessories, mounting and storing them securely.
• For your safety, do not press the buttons on the camera during sports activities
• Do not store the camera anywhere prone to dust or damp for extended periods
of time.
• Do not leave the camera exposed to extremely high temperatures—such as
under direct sunlight—for extended periods of time as this may affect the
camera housing and internal components.
• Clean the lens and screen with a micro fibre, antistatic cloth to remove
fingerprints or dust—no cleaning chemicals are required.
• The camera has a working temperature range of -10°C to 40°C (14°F to 104°F).
• Power o the camera before removing the memory card as stored data may
be damaged if it is removed or inserted while the camera is powered on.
• Remove the memory card before storing the camera for long periods of time.
Weather resistance
The Stealth 2 is engineered to be resistant to dust, snow, rain and splashes.
The camera is NOT waterproof without the waterproof case.
• Operating the camera at temperatures below 0°C reduces battery life and
lowers battery performance.
• Do not charge the battery at temperatures below 0°C.
• Clean o any salt water or dirt from the camera immediately and prior storing.
• Do not subject the camera to a sudden impact of water—the camera should
always be used in the waterproof case under intensive water-based applications.
Attention
! Rechargeable batteries are only to
be charged under adult supervision.
! DO NOT open, puncture or
otherwise damage the internal
rechargeable battery, or dispose of
it in fire.
! DO NOT attempt to open the
camera body or disassemble for
any reason. This will instantly nullify
the standard warrnty, and risks
damaging the internal battery.
! Optimal Camera Storage
We recommend users store cameras
for a minimum of 6-12 hours with the
Back Hatch open, in less then 30%
humidity.
Never open the Back Hatch in damp
or humid conditions if possible.
Disclaimer
Drift Innovation will not, under any
circumstances, be responsible for
injuries or property damaged incurred
during participation of any high-risk
sport or activity not endorsed or
recommended by Drift Innovation.
Remember that the warranty will only
cover manufacturing defects.
3
Page 4
Overview
C
Figure 1: Top View
E
MODE Button (Simultaneous
Photo/Tag)
CYCLE OPTION Button
ACTION Button (On/O/Rec/Stop)
Status LED
Lens ‘UP’ indicator
1.3” LCD Screen
300° Rotating / Replaceable Lens
Speaker
¼”-20 Thread
USB Port (Micro Type B)
HDMI Port (Micro Type D)
Micro SDHC Card Slot
Figure 2: Screen View
Figure 3: Connector View
RESET Button
Standard Rear Hatch
Rear Hatch ‘Up’ Indicator
Lens ‘Up’ Indicator
Built-in Noise Reducing Microphone
N
Q
Figure 4: Rear View - No Hatch Figure 5: Rear View - Standard Hatch Figure 6: Rear View - Front View
4
Page 5
Using The Camera
Figure 7: Inserting the Micro SD card
Initial setup
1. Unscrew the rear hatch of the camera by hand.
2. Insert a micro SDHC card into the card slot, as above, until you hear a click
3. Connect the camera by the micro USB cable (provided) to a powered USB
port and charge for at least 4 hours before first use, until fully charged.
4. Replace the rear hatch, ensuring the arrow indicator points to the camera face
with the control buttons.
Powering on and o
Press and hold the ACTION button on the camera—the LED indicator and screen
will power on and display a welcome message.
To power o, hold the ACTION button for 3 seconds, or until the LED indicator
and screen power o.
Charging
1. Connect the micro USB cable to the port at the rear of the camera and then
to a powered USB port in your computer, other USB device or USB power
adaptor (not included).
! If connected to a computer, the camera screen will show a USB symbol
! If connected to a USB power adaptor, the screen will show ‘Charging...’
2. A full charge takes around 4 hours (min 1A)—once the camera is fully charged,
remove the micro USB cable and replace the rear hatch and screw closed
Battery life
At a temperature of 25°C (77°F), with all power saving features o and the camera
recording continuously, the battery will last for about 3 hours (1080p 30FPS, Wi-Fi
o), on a full charge (see Conserving Battery Life, p18).
Using an external power supply
The camera can be powered by an external power supply such as a USB power
adapter, Drift Power Pack or Drift 12V Charger. We recommend you power o
your camera before plugging into any external power supply.
Press the ACTION button to begin normal usage when using an external supply.
If the external power is cut o for any reason during recording, the camera will
immediately start drawing power from the rechargeable battery instead and
continue recording, protecting your footage from file corruption.
Selecting a micro SD card
The Drift Stealth 2 is compatible with
Micro SDHC cards of up to 32GB,
and of Speed Class 6 or above.
We recommend Class 10 cards for
recording HD video and system stability.
Below is a table of approximate video
recording times against card size.
Approximate Recording Time (30 FPS)
1080P 720P* WVGA
1 GB 9min 12min 27min
2 GB 18min 24min 54min
4 GB 36min 48min 1h 48min
8 GB 1h 12min 1h 36min 3h 36min
16 GB 2h 24min 3h 12min 7h 12min
32 GB 4h 48min 6h 24min 14h 24min
Formatting a micro SD card
Formatting will remove all files from
a memory card. When using a new
card for the first time, formatting is
recommended. With the card inserted
in the camera:
1. Cycle to Camera Settings
2. Select ‘Format Memory Card’, press
ACTION and then confirm
Formatting may take a few moments
to complete—please be patient.
Removing a micro SD card
To remove the card, push it until you hear
a click. The card slot is spring loaded and
the card will slide from the slot.
5
Page 6
Camera Menu System
1st screen of
Settings Mode.
2nd screen of
Settings Mode.
SS
Exposur
Self
X
Video Tag.
Video Stand
Clone Mode
WI-FI
NTSC
X
X
C
Figure 8: Stealth 2 Top View
The Drift Stealth 2 has an easy-to-use menu system which can be navigated using
the camera’s three control buttons.
Mode Selection
The Mode Selection menu is used to select the camera mode.
On pressing the MODE button, the camera will switch between the 4 recording
modes and the Camera Settings. The LCD screen backlight will take over the
colour for the selected mode and the camera is ready to capture.
For more information about the four camera modes, (see p7-12).
Cycle Options
The CYCLE button is used to select specific settings for each of the four camera
modes, as well as cycle through setting options.
To change the settings of the current camera mode press the CYCLE button. This
will change the settings between a selection of presets.
For more information about the four camera modes and their settings, (see p7-12).
MODE/Simultaneous Photo/Video
Tag Button
CYCLE OPTION Button
ACTION Button (On/O/Rec/Stop)
LED Indicator
Current Mode
25 FPS
1080p
12:05:59
EXP
-2.0
10s
87%
87%
5MP
129
EXP
-2.0
3s
87%
87%
5MP
Camera Settings Menu
The Camera Settings menu is used to view and adjust camera settings.
For full details, (see p13).
Recording Mode
25 FPS
12:05:59
EXP
-2.0
Exposure
Figure 9: Preview Screen
87%
Batter y SD Card
Resolution
1080p
87%
EXP
EXP
SETTINGS
Wi-Fi
Video Format
Mode Selection Flow Chart
-2.0
1s - 3/s
2-20
-2.0
e
Timer
Figure 10:
87%
87%
GNITTE
M
87%
5MP
87%
0.0
X
...
X
P4
0
6
Page 7
Video Mode
VIDEO MODE (GREEN LED)
While the camera is powered on and in Video Mode—with a compatible micro
SD card inserted with enough free memory—it will record video when ACTION is
pressed on the camera or the remote control.
1. To enter Video Mode, ensure the camera is powered on.
2. Press MODE button to cycle through the 4 modes until video mode is
selected.
3. Press the cycle to switch between video resolutions.
! The Stealth 2 will only toggle between resolutions of either NTSC or PAL
standards. This can be changed in the settings menu, under ‘video standard’,
see page 13.
The screen will take over a green backlight and display the Video Mode icon in
the top-lefthand corner of the screen, and the LED indicator will turn green—the
camera is ready to record video.
Recording Video
1. Press ACTION on the camera or remote control to begin recording video
2. The LED indicator will blink red while the camera is recording
! The duration of the current recording is indicated by the on-screen timer
3. To stop recording, press ACTION on the camera, or STOP on the remote
control—the LED indicator will turn green
Video Mode
25 FPS
12:05:59
Frame Rate
12
Resolution
1080p
Video Mode Settings
Resolution
25 (1080/960/720/WVGA)
30 (1080/960/720/WVGA)
Frame Rate
FOV 135°
Exposure
Self Timer
Video Tagging
Video Tagging
Interval
Car DVR
1080P
960P
720P
WVGA
50 ( 720 / W VGA )
60 (720/WVGA)
100 (WVGA)
120 (WVGA)
-2
-1
0
+1
+2
3s
5s
10s
On
Off
10s
30s
1m
2m
5m
10m
1m
3m
5m
10m
15m
EXP
-2.0
Total Video Count
Figure 11: Video Mode - Stand by
Video Mode
87%
Frame Rate
25 FPS
12:05:59
12:05:59
EXP
-2.0
Total Video Count
Figure 12: Video Mode - Recording
87%
Recording Timing
87%
Resolution
1080p
87%
7
Page 8
Video Tagging
Video Mode
Figure 13: Video Tagging Illustration
When activated, this feature allows the camera to continuously record video, but
save only ‘tagged’ footage. For example, with Video Tagging turned on and a
Video Tagging Interval of 30s selected, pressing MENU while recording video will
save the previous 30s, the current 30s and an additional 30s—a total of 1m30s of
tagged footage.
Video Tagging can be turned on or o in the Settings menu.
1. To turn Video Tagging on, switch to Settings Mode
2. Cycle to ‘Video Tagging’, press ACTION to toggle between On/O
3. Under ‘Video Tagging Interval‘, press ACTION to choose the desired interval
time
4. At the Standby screen, ‘T’indicates Video Tagging is activated, and the set
Video Tagging Interval is displayed, (see Figure 14).
5. Pressing ACTION will begin the loop recording, but without saving any
footage. The LED will be blinking green, (see Figure 15).
6. While recording video, pressing the MODE button will tag and save past,
present and future video intervals. The on screen indicator will turn to a check
mark and the LED will turn RED (see Figure 16).
5. Tagging can be stopped by pressing ACTION on the camera, or STOP on the
remote control
Pressing MODE again while tagging will add an additional tagging interval to the
end of the saved footage.
! Please ensure you have at least 4GB of free space on your micro SD card for
video tagging to function properly
25 FPS
T
T
10s
10s
EXP
-2.0
EXP -2
Figure 14: Stand by Screenshot
25 FPS
T
T
00:00:07
12:05:59
x
x
EXP -2
EXP
-2.0
Figure 15: Recording Screenshot
25 FPS
T
00:01:30
12:05:59
EXP
-2.0
EXP -2
Figure 16: Tagging Screenshot
6
90%
90%
90%
90%
90%
90%
1080p
87%
87%
1080p
87%
87%
1080p
87%
87%
8
Page 9
S
C
(
)
C
(
)
S
G
N
lip
N
lip
N
lip
S
V
STO
G
Video Mode
Taking simultaneous photos while recording video
With Video Tagging turned o, pressing MODE on the camera while recording
video will simultaneously take a still photo. Simultaneous Photo is available in the
following video setups: 1080p (30/25 FPS), 960p (30/25 FPS), 720p (30/25 FPS),
WVGA (30/25 FPS).
! This feature is only available when Video Tagging (see p.8) is turned o
Car DVR mode
ENGINE START
TART RECORDIN
CAR DVR INTERVAL* CAR DVR INTERVAL CAR DVR INTERVAL CAR DVR INTERVAL
amera turns on
Automatically
ew c
Figure 17: Car DVR Illustration
This hands o mode setting is ideal for insurance and security purposes.
In this mode the camera records footage in a continuous loop style (DVR
Intervals) recording loop after loop until it fills the Micro SD Card. Once full,
the oldest loops will be deleted as the newest ones are saved. DVR loop
intervals can be 1min, 3min, 5min, 10min or 15min intervals.
ew c
ew c
ENGINE STOP
P RECORDIN
amera turns o
Automatically
Car DVR mode can be turned on or o in the Camera Settings menu, it will
automatically power the camera on and begin recording when power is
delivered to the USB port. Setting the Car DVR to ‘M’ (manual) allows the user
to use this feature while manually starting the first loop by pressing ACTION.
This is ideal for users such as cyclists where external power is not often used.
To turn Car DVR mode on, cycle to the Camera Settings menu and select Car
DVR Mode, press ACTION, then select ‘AUTO’ or ‘MAN’. On the screen a car
icon will indicate that Car DVR mode is enabled.
9
Page 10
Photo Mode
PHOTO MODE YELLOW LED
While the camera is powered on and in Photo Mode—with a compatible micro
SD card inserted with available memory—it will capture a still image when
ACTION is pressed on the camera or the remote control.
1. To enter Photo Mode ensure the camera is powered on.
2. Press MODE button to switch to photo mode.
3. Press CYCLE to switch between Photo Resolutions.
The screen will be backlit in yellow and display the Photo Mode icon in the toplefthand corner of the screen, and the LED indicator will turn yellow—the camera
is ready to take photos.
! Exposure & self timer settings are global and can be set in the settings menu.
Capturing photos
1. Press ACTION on the camera or remote control to take a photo.
2. The LED indicator will blink red once before returning to yellow.
Photo Mode Settings
Resolution 3/5/12MP
FOV 135°
Exposure
Self Timer
Photo Mode
Self-Timer
10s
129
EXP
Exposure
-2.0
87% 87%
-2
-1
0
+1
+2
3s
5s
10s
Photo Resolution
90%
5MP
45%
Photo Count
Figure 18: Photo Mode - Preview Screen
10
Page 11
Timelapse Mode
TIMELAPSE MODE (PURPLE LED)
While the camera is powered on and in Timelapse Mode—with a compatible
micro SD card inserted with enough free memory—it will capture a series of still
images at a specified rate when ACTION is pressed on the camera or the remote
control.
1. To enter Timelapse Mode, ensure the camera is powered on
2. Press MODE to switch to Timelapse mode
The screen will be backlit in purple and display the Timelapse Mode icon in the
top-lefthand corner of the screen, and the LED indicator will turn purple—the
camera is ready to take timelapse photos.
Capturing Timelapse
The Timelapse Sequence Interval can be set using the CYCLE button
1. While in Timelapse Mode, use the CYCLE button to select between the
interval time options
3. Press ACTION on the camera or remote control to start a timelapse series.
4. The LED indicator will blink red once when each photo is taken
5. To stop timelapse, press ACTION on the camera or STOP on the remote control
Timelapse Mode Settings
Resolution 3MP
FOV 135°
Sequence Interval
Exposure
Self Timer
Timelapse Mode
Timelapse Interval
0.5s
1s
2s
3s
5s
10s
30s
60s
-2
-1
0
1
2
3s
5s
10s
Photo Resolution
90%
90%
3s
67%
5MP
5MP
1-1078
EXP
-2.0
Exposure
Total Timelapse Sequence Count
Figure 19: Timelapse - Preview Screen
87%
Total Timelapse Images Count
87%
11
Page 12
Photoburst Mode
PHOTOBURST MODE (CYAN BLUE LED)
While the camera is powered on and in Photoburst Mode—with a compatible
micro SD card inserted with enough free memory—it will capture a burst of still
images for an allotted duration, at a rate of 3 images a second when ACTION is
pressed on the camera or the remote control.
1. To enter Photoburst Mode, ensure the camera is powered on
2. Press MODE to switch to Photoburst mode
The screen will be backlit in cyan blue and display the Photoburst Mode icon
in the top-lefthand corner of the screen, and the LED indicator will turn cyan
(light blue)—the camera is ready to take a photoburst series.
Capturing Photoburst
The Photoburst Mode settings can be set using the CYCLE button.
1. While in Photoburst Mode, use the CYCLE button to select between the
dierent burst duration options.
2. Press ACTION on the camera or remote control to start photoburst
3. The LED indicator will blink rapidly during a photoburst shoot
Photoburst Mode Settings
Resolution 5MP
FOV 135°
Capture Rate 3/s
Burst Duration
Exposure
Self Timer
Photoburst Mode
Burst Duration Capture Rate
1s - 3/s
1s
2s
5s
-2.0
-1. 0
0.0
+1. 0
+2.0
3s
5s
10s
Photo Resolution
90%
90%
5MP
5MP
67%
2-20
EXP
-2.0
Exposure
Total Photoburst Count
Figure 20: Photoburst - Preview Screen
87% 87%
Tot al Photoburst Images Count
12
Page 13
Camera Settings
Upon opening the ‘Settings’ menu, the
screen will display a list of adjustable
camera settings.
Pressing CYCLE will navigate forward
one setting, while holding CYCLE will
move the selection back up the menu
allowing for reverse scrolling.
WiFi
To turn WiFi on or o, switch to
Settings Mode and use the CYCLE
button to navigate to WiFi settings.
Press ACTION to switch between ON
and OFF.
WiFi Network Name
Your Stealth 2 will come with the SSID
programmed to be: ‘Stealth 2_XXXXX’
where XXXXX is the last 5 characters
of your camera’s unique serial number.
Setting the date and time
1. While in Settings Mode, use the
CYCLE button to select the Date
2. Press ACTION to start adjusting the
Date and Time settings
3. Use the CYCLE button to adjust the
value of year/month/day/time and
press ACTION to confirm
Reset Default Settings
To restore the factory camera settings,
navigate to ‘Reset Settings’ in Settings
Mode and press ACTION, then
confirm.
Firmware
Selecting ‘Firmware Version’ from the
Camera Settings menu will display the
camera’s current firmware version.
For more details about updating
firmware, (see p19)
Exposure
Self Timer
WiFi
Video Tagging
Video Tagging
Interval
Car DVR Mode
Car DVR Interval
Video Standard
Mic Sensitivity
-2.0
-1.0
0.0
1.0
2.0
O
3s
5s
10s
On
O
On
O
10s
30s
1m
2m
5m
10m
O
Auto
Manual
1m
3m
5m
10m
15m
NTSC
PAL
O
Low
Medium
High
O
Speaker Volume
Remote Control
Remote Pairing
RC LED
Camera LED
Camera Auto O
LCD Backlight
LCD Backlight
Timer
Date Year/Month/Day
Date/Time
Language English
Reset Settings
Format Memory
Firmware Version v.X.X.X.X.
Low
Medium
High
Yes
No
Refresh
Cancel
On
O
On
O
O
2m
5m
10m
20m
On
O
O
5s
10s
20s
1m
On
O
Yes
No
13
Page 14
Two-Way Remote Control
Please note: The Two-Way Remote Control is an accessory for purchase
(see driftinnovation.com for more info) but is NOT
included in the purchase of the Stealth 2.
Charging
Connect the remote control using the Mini USB cable (provided) to a powered
USB port. The LED will blink red. A full charge takes around 2 hours using a 2
amps charger. Once the remote is fully charged, the LED will show solid green—
remove the mini USB cable and replace the rubber dust-proof USB seal.
Powering on and o
1. Ensure the camera is powered on (see p5)
2. Press and hold the ACTION button on the remote—the LED will power on and
indicate the current camera mode
! The remote will automatically power o if it does not find a camera after 15s
Figure 21: Two-Way Remote
Pairing camera to a remote control - one to one ‘RC 1-1’
1. On the camera, navigate to Settings mode using the MODE button
2. Scroll down to ‘RC 1-1’ using the CYCLE button and press ACTION
3. On the remote control, press ACTION—The camera will beep and return to
the Camera Settings menu if it has recognised the remote
! If the camera does not display ‘successful’ and return to the Camera Settings
menu it will not be paired—try pressing ACTION on the remote again
4. On the camera, the icon beside Remote Pairing will change to indicate it is
paired to a remote control
Using the remote control - one to one ‘RC 1-1’
While the camera and remote are both powered on and paired, pressing ACTION
on the remote control will begin recording video, capture a photo, start
timelapse or photoburst, depending on the camera mode.
Pressing ACTION while recording video will capture a photo, or start Video
Tagging (if activated, see p8). Pressing STOP will end video recording or timelapse.
Pressing STOP while the camera is in stand by will toggle between camera
modes, as indicated by the LED indicator on the camera and remote (see
Recording Modes p7 - p12).
ACTION Button
STOP Button (Tag/Toggle Mode)
LED Indicator
! The Remote is NOT waterproof.
14
Page 15
Two Way Remote Control (cont’d)
Pairing camera to a remote control - one to all ‘RC 1-ALL’
A single remote control can be paired to an infinite number of cameras in a 10m
range from the remote control, to enable footage to be captured from every
angle.
1. On the camera, navigate to Settings mode using the MODE button
2. Scroll down to ‘RC 1-ALL’ using the CYCLE button and press ACTION
3. On the remote control, press ACTION—The camera will beep and return to
the Camera Settings menu if it has recognised the remote
! Any camera that does not display ‘successful’ and return to the Camera
Settings menu it will not be paired—try pressing ACTION on the remote again
4. On the camera, the icon beside Remote Pairing will change to indicate it is
paired to a remote control
! When pairing multiple cameras, always test the remote control to see if it
operates all the cameras before mounting them
Using the remote control - one to all ‘RC 1-ALL’
While the camera and remote are both powered on and paired, pressing ACTION
on the remote control will begin recording video, capture a photo, start
timelapse or photoburst, depending on the camera mode.
Pressing ACTION while recording video will capture a photo, or start Video
Tagging (if activated, (see p8). Pressing STOP will end video recording or
timelapse.
The remote contol indicator lights will show white to indicate the remote control
is paired to multiple cameras.
LED Status Description
Rapid Blinking Red Less than 15% battery life remains
Blink Red Once Taking a photo (Photo, Timelapse and Photoburst Modes)
Blinking Red Recording video (Video Mode)
Blinking Blue When the camera receives a signal from the remote control
Blinking Green Camera is in Video Mode
Blinking Yellow Camera is in Photo Mode
Blinking Purple Camera is in Timelapse Mode
Blinking Cyan Camera is in Photoburst Mode
Figure 22: Remote LED Status
15
Page 16
Shot Setup

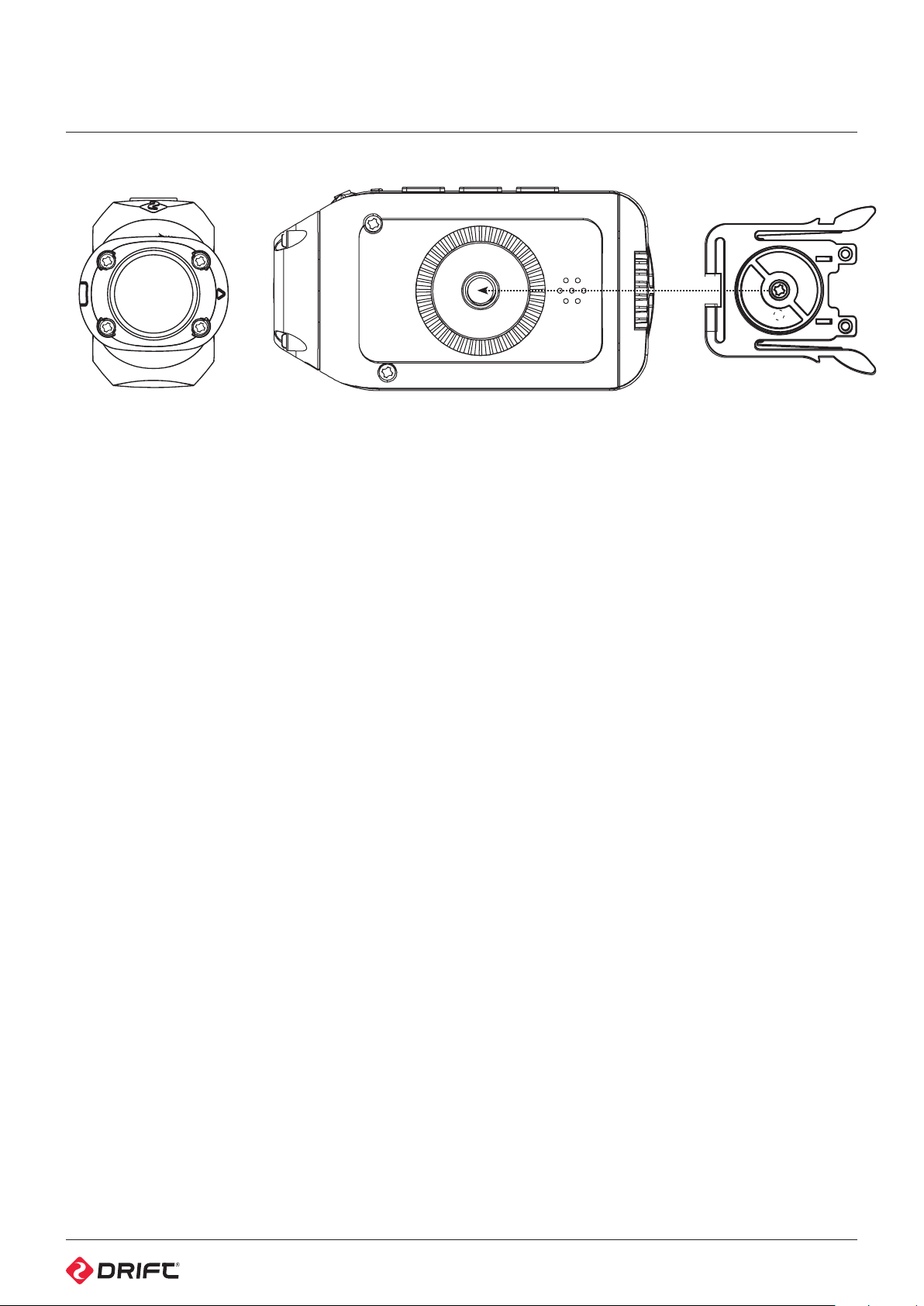

Fixing the camera to the Universal Clip
1. Align the screw of the universal clip with the thread on the underside of the
camera body
2. Twist the screw thread in a clockwise direction
3. As the universal clip tightens against the body of the camera, rotate the
camera to provide the desired angle of attachment, holding the clip in place
4. Tighten the screw on the universal clip until it fits firmly against the camera
body
Closing the rear hatch
1. Ensure the directional arrow “up” indicator is pointing up towards the buttons
2. Tighten the screw on the rear hatch by hand
! Failure to completely seal the rear hatch will compromise weather resistance
(see p3).
Mounting the camera to a Drift mount
Included with the camera are several Drift mounts which will help you find the
shot you want.
Mounting the camera on goggles
1. Attach the Goggle Mount to the strap of your goggles
2. Slide the camera (with universal clip attached) into the mount until the two
arms on the clip click into place
Mounting the camera on a helmet
1. Position the Curved Surface Mount against your helmet to find the optimum
mounting position
2. Ensure the mounting surface is clean, dry and free of oil and dust
3. Remove the cover of the mount’s 3M adhesive and fix the mount to the
helmet—allow 24 hours to cure
4. Slide the camera (with universal clip attached) into the mount until the two
arms on the clip click into place
Fixing the camera to the standard ¼” thread
Thread the camera onto a tripod, or any other mount with a standard camera
thread, turning the camera body on the thread clockwise to secure.
! However you choose to mount your camera, ensure that the camera is fitted
firmly to reduce the risk of losing it. Give it a tug before you set out.
! Do not overtighten on a ¼” thread with a thread longer than 6 mm.
Lens Rotation
In order to maximise your mounting
options, the camera lens is rotatable
through 300°, allowing for the perfect
shot from even the most awkward of
positions.
Whilst holding the camera body in
one hand, use the index finger and
thumb of the other hand to hold the
camera lens firmly, then twist the
lens to the desired angle. The arrow
indicator above the lens indicates ‘up’
and corresponds with the top of the
display in Live Preview.
! Be sure to rotate the lens back to
the 0° position (so the ‘up’ indicator
on the lens is aligned with the
LED indicator on the camera, and
the edge of the lens is flush with
the body of the camera) before
mounting, or removing the camera
from a mount to reduce the risk of
damage to the lens.
*The App is the perfect viewfinder
when using the Stealth 2
16
Page 17
Connectivity
Recorded video footage and photos can be copied to a computer using the USB
cable provided or—if your computer has an appropriate card reader—directly
from the micro WVGA card.
Connecting to a Windows PC by USB cable
1. Connect the camera to your PC using the USB cable—the camera screen will
display a USB logo and the LED status indicator will blink red.
2. Your PC’s operating system may be setup open new devices automatically; if
not, open My Computer
3. Your PC should recognise the camera as a removable device—look for DRIFT
CARD in the list of devices and open
4. Open the DCIM folder—inside, you will find the 100DRIFT folder which
contains all the files saved on the memory card by the camera.
! If there are a very large numbers of files, there will be multiple folders
(100DRIFT, 101DRIFT, etc)
5. Copy the desired files to your PC
Connecting to a Mac by USB cable
1. Connect the camera to your Mac using the USB cable—the camera screen will
display a USB logo and the LED status indicator will blink red.
2. Your Mac’s operating system may be setup open new devices automatically; if
not, open a new Finder window
3. Your Mac should recognise the camera as a removable device—look for DRIFT
CARD in the list of devices and open
4. Open the DCIM folder—inside, you will find the 100DRIFT folder which
contains all the files saved on the memory card by the camera.
! If there are a very large numbers of files, there will be multiple folders
(100DRIFT, 101DRIFT, etc)
5. Copy the desired files to your Mac
Connecting the camera to a TV
1. While the camera is turned o, connect it to your T V using a micro HDMI
cable (not included)
2. Power on the camera
3. Once booted up, the image usually displayed on the camera’s LCD screen will
instead be displayed directly on your TV, and the sound will come out of the
TV speakers
4. Press MODE to cycle through camera modes while connected to a TV.
Playing video on a computer
Some computers may not have the
correct codecs required for video
playback and editing.
If you experience diculties playing
video recorded with your camera, you
can download VLC media player for
free from ww w.videolan.org.
If you are experiencing diculties
editing video or do not wish to use
VLC player for playback, you will need
to download and install a codec pack.
The FFDshow codec pack can be
downloaded from www.free-codecs.
com/FFDshow_download.htm.
Recommended System Requirements
To smoothly view and edit 1080p video,
powerful hardware is required:
Windows
• 3.2 GHz Pentium 4 processor or
higher
• At least 2GB of RAM
• Graphics card with at least 256MB
of video RAM (512MB for video
editing)
• Direct X 9.0c or later
• Microsoft Windows XP (SP2 or
later), Windows Vista or Windows 7
Macintosh
• 2.2 GHz Intel Core Duo or higher
• At least 1GB of RAM
• Graphics Card with at least 256MB
of video RAM (512MB for video
edition)
• Mac OS X v10.4.11 or later
17
Page 18
Conserving Battery
The Stealth 2 has an internal rechargeable 1500mAh Lithium-Ion battery, allowing
you to record continuously for hours between charges.
LCD
The camera’s LCD screen consumes power, so one of the best ways to extend
battery life is to use the ‘Backlight Timer’ feature.
The camera will still function as normal when the screen backlight is o.
Camera Auto O
It is possible to set the camera to power o entirely when no buttons are pressed
for a number of minutes (the duration can be chosen selecting ‘Camera Auto
O’ from the Camera Settings menu). This can be useful to reduce battery
consumption if the camera is accidently left powered on.
! The camera will not power o while recording is in progress. However,
once the camera has powered o, you will need to power it on again before
capturing any footage.
! The remote control will not operate the camera while the unit is powered o.
18
Page 19
Updating Firmware
The Drift Stealth 2 should always be operated on the latest firmware available,
downloadable from http://www.driftinnovation.com. Be sure to check back
often for updates as we will continue to add features and options to your
camera after you purchase it.
See p22 for information about the warranty and signing up.
Firmware updates on the Stealth 2 can be done by following steps:
Updating Firmware on the Stealth 2 is accomplished
1) Go to www.driftinnovation.comn and download the latest firmware file
(‘’Stealth 2.bin’’) which will be found easily in the Drift Stealth 2 section, or by
navigating to ‘Firmware’ listed in the bottom footer of any page
2) Plug your Drift Stealth 2 unit into your computer (MAC or PC) using the
supplied USB cable
3) Your camera should come up as an External Device with the ‘’Drift Card’’
Micro SD card being visible as a storage device (see connectivity p17). Please
copy the ‘’Stealth 2.bin’’ firmware file into the root folder of the ‘’Drift Card’’
Micro SD card
4) Safely eject your Drift Stealth 2 and Micro SD as a storage device from your
computer
5) Power on the camera and wait for it to automatically update itself. You will get
a “Firmware update in Progress” message, and the LED status indicator will
blink red. This should take a few seconds and the camera will automatically
power o after
6) The first time you start the camera it will display “wait for restart”. This is
normal and the camera is simply insatalling a Wi-Fi patch.
7) Turn the camera back on. Navigate to the settings menu and check the
“Firmware Version” to ensure the firmware has been successfully updated
19
Page 20
Camera Care
The Stealth 2 is specifically designed for extreme sports. It is a very durable piece
of equipment. However, to ensure a long and healthy life for your camera, please
follow the guidelines below.
Cleaning the camera
During your sporting activities, the camera will inevitably get dirty or wet.
Although this is not an issue, it is recommended that you clean the camera
after each use. Clean the camera thoroughly with a damp cloth and let it air dry
before you open the back hatch or rotate the lens. Take extra care when cleaning
the built-in microphone and speaker.
Cleaning the lens and LCD screen
In order to provide a clear image for high definition video, it is important to keep
the camera lens clean. Be careful not to scratch the camera lens whilst cleaning
it. Wipe o any surface mud or water from the lens with a damp cloth and use a
dry, micro fibre, scratch proof cloth to polish the lens once it is dry.
20
Page 21
Technical Specifications
Video resolution 1080p, 960p (4:3), 720p and WVGA (16:9)
File format .MP4 (H.264 codec)
Sensor type CMOS
1080P: 25 / 30 fps
Frame rate
Field of view 135°
Lens focal range 0.5m to infinity
Lens rotation 300°
Photo mode 3 / 5 / 12MP
Exposure -2, -1, 0, 1, 2
LCD Screen 1.3” mono graphic backlit LCD
Weather Resistant Yes
Microphone Built-in, noise reducing microphone
Built-in memory 256MB (not user accessible)
Memory capacity Micro SD memory cards up to 32GB
Outputs
Compatibility Windows XP and up / Mac OS 10.2 and up
Remote range
(remote not included)
960p: 25 / 30 / 48 / 50 fps
720p: 25 / 30 / 50 / 60 fps
WVGA: 25 / 30 / 50 / 60 / 100 / 120 fps
Micro HDMI connector type D (cable not included)
USB Plug and Play, mini-B USB connector
10 m (32ft)
Radio frequency 2.4G
Dimensions: 80 (L) × 41.9 (W) × 27.6 (D) mm
Camera
Remote control
(not included)
Weight: 97g
Power: 1500mAh rechargeable lithium-ion battery
(built-in) (DC 3.7V)
Dimensions: 59 (L) × 48 (W) × 12 (D) mm
Weight: 22g
Power: 350mAh rechargeable lithium-ion battery
(DC 3.7V)
21
Page 22
Warranty
Drift Innovation (“Manufacturer”) warrants to the original End User (“Purchaser”)
that this product purchased from us or any authorized dealer is free from
manufacturing defects in material and workmanship for the applicable warranty
period, as set forth in the product specification, or 12 months—whichever is the
less. Drift Innovation products purchased from non-authorized dealers might not
be covered by the oered warranty. The warranty period is considered valid from
the issue date confirmed on the sale invoice.
This limited warranty covers defects encountered in the normal use of the
product during the warranty period and does not apply under the following
conditions:
• Product is damaged due to physical abuse, mishandling, accident, negligence
or failure to follow the supplied operating instructions;
• Product is physically modified by Purchaser in any manner other than that for
which it was intended or otherwise previously approved by the Manufacturer;
• Product is damaged or has developed defects caused by the use of
unauthorized parts or by an unauthorized repair service;
• The product has been subject to unsuitable operating or physical conditions
outside those recommended in product specifications as provided by the
Manufacturer;
• Product has it’s serial numbers altered or removed
• Product is damaged due to improper packaging of the warranty return to the
dealer or Manufacturer.
In the event of a product failure under normal use and within the warranty
period, a repair or replacement will be provided at the discretion of the
Manufacturer or the authorized dealer. The Manufacturer warranty does not
cover loss, accidental damage or costs incurred during the handling and
shipping of repairs or replacement products.
The Manufacturer shall have no liability or responsibility whatsoever to Purchaser
or any other person for any loss, injury, death, or any damages derived from the
use of the product or accessories.
Service
To obtain our warranty service, register
your product at driftinnovation.com.
Customer Support
• Check driftinnovation.com for
firmware updates, product updates
and user videos.
• We are here to help you make the
most of your Stealth 2 camera;
if you have any suggestions,
comments or complaints, please visit
the support section of our website—
support.driftinnovation.com—or
contact our customer support team
on [email protected].
22
Page 23
Disclosures
FCC Information
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
1. This device may not cause harmful interference, and;
2. This device must accept interference received, including interference that may
cause undesired operation.
Warning
Changes or modifications to this unit not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.
The equipment has been tested and found to comply with the limits for a Class
B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions,
may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by powering the equipment on and o, the user is encouraged
to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna;
• Increase the separation between the equipment and the receiver;
• Connect the equipment into an outlet on a circuit dierent from that which
the receiver is connected;
• Consult the dealer or an experienced radio / TV technician for help.
Motorcycle Disclaimer
Interacting with the camera while riding
could cause a crash and you or others
may be seriously injured or killed.
• Keep your eyes and mind on the road;
• Avoid looking at the camera for
too long;
• Stop the vehicle in a safe location
before adjusting the camera.
Industry Canada Information
This device complies with Industry Canada license-exempt RSS standard(s).
Operation is subject to the following two conditions:
1. This device may not cause interference, and;
2. This device must accept any interference, including interference that may
cause undesired operation of the device.
This Class [B] digital apparatus complies with Canadian ICES-003.
Cet appareil s’accorde avec Industrie Canada licence-exempte RSS standard.
Son fonctionnement est soumis aux deux conditions suivantes:
1. Cet appareil ne peut pas causer l’intervention, et;
2. Cet appareil doit accepter de l’intervention, y compris l’intervention qui peut
causer l’opération non désirée de.
Cet appareil numérique de la classe [B] est conforme à la norme NMB-003 du Canada.
Cet appareil s’accorde avec Industrie Canada licence-exempte RSS standard.
FCC RADIATION EXPOSURE
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment . This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
23
Loading...
